A generator transfer switch connects a generator to selected circuits in your home's electrical panel while disconnecting those circuits from the utility, so power can never flow back onto the grid. Most portable generator owners need a manual switch matched to their generator's largest outlet: 30 amps for an L14-30 outlet, 50 amps for a 14-50 or CS6365 outlet. Automatic switches suit standby generators and battery systems.
This guide covers how a transfer switch works, whether you legally and practically need one, manual vs automatic, how to size it, and what installation involves. Jump to our picks if you already know your generator.
Your home normally gets power from one source: the utility. A transfer switch gives selected circuits a second source and makes it physically impossible to connect both at once.
With a manual transfer switch, the switch mounts next to your main panel, and the circuits you choose (furnace, fridge, well pump, a few lights) are rewired to run through it. During an outage you:
When the power comes back, you flip them back to Line and shut the generator down. Each circuit is on one source or the other, never both.
If you want to power anything hard-wired, yes. The safety agencies are blunt about it. The Consumer Product Safety Commission warns: never try to power the house wiring by plugging the generator into a wall outlet, a practice known as "backfeeding," because it puts utility workers and neighbors at risk of electrocution and bypasses household circuit protection. OSHA's guidance is to never attach a generator directly to a structure's electrical system unless a qualified electrician has installed it with a transfer switch.
Can I run a generator without a transfer switch? Yes, if you only plug appliances directly into the generator with heavy-duty extension cords. That is legal and safe when done right. It just means no furnace, no well pump, no hard-wired lights, and cords running through a cracked door or window.
Is it illegal to run a generator without one? Running cords from the generator is not. Connecting a generator to your home's wiring without approved transfer equipment (a transfer switch or a listed interlock kit) violates electrical code in most places and is the dangerous part.
| Manual | Automatic (ATS) | |
|---|---|---|
| How it switches | You flip it by hand | Senses the outage and switches on its own |
| Best for | Portable generators | Standby generators, battery and solar systems |
| Backup source | Any generator you can plug in | One that can start or run without you |
| Typical equipment cost | About $300 to $650 | About $400 for small units to several thousand for whole-home |
| Your role in an outage | Start the generator, flip circuits | Nothing |
Choose manual if you have, or plan to buy, a portable generator. It is the most affordable code-compliant way to back up your essentials, and the pre-wired kits make installation straightforward for an electrician.
Choose automatic if your backup source can start without you, such as a standby generator with auto-start, or a home battery or solar generator system. An ATS restores power within moments even if you are asleep or away. The trade-off is cost and complexity.
What are the disadvantages of automatic transfer switches? Higher price, more installation work, and they only make sense with a backup source that can run unattended. Paired with a portable generator you still have to go outside and start it, which removes most of the benefit.
Two numbers matter: amps and circuits.
Amps: match your generator's largest outlet.
| Generator outlet | Switch to use | Most it can deliver |
|---|---|---|
| L14-30 (30A, 120/240V, 4-prong locking) | 30A switch | 7,200 watts (30A x 240V) |
| 14-50 or CS6365 (50A, 120/240V) | 50A switch | 12,000 watts (50A x 240V) |
The outlet sets the limit, not the generator's sticker. A 13,000 watt generator with a 50A outlet can only push about 12,000 watts through that outlet, so a 50A switch is the right match. Reliance rates its 30A Pro/Tran 2 switches for generators up to 7,500 running watts and its 50A models up to 12,500.
Do I need a 30 or 50 amp transfer switch? If your generator runs under about 7,500 watts and has an L14-30 outlet, 30 amps. If it is larger and has a 50A outlet, 50 amps. What size transfer switch for a 10,000 watt generator? Usually 50A, since generators that size typically have a 50A outlet, and 10,000 watts at 240V is about 42 amps, more than a 30A switch can carry.
Circuits: count your essentials. List what you must keep running. A typical list: furnace blower, fridge, freezer, well pump (a 240V double-pole circuit), sump pump, a few light and outlet circuits, and the internet. Six circuits covers the basics; ten or twelve gives you room for more.
What about whole-home switches? A switch that feeds your entire panel must match your service size, usually 100A or 200A. If it is installed ahead of your main panel it must be service-rated, meaning it includes the main disconnect for the house. That is standby generator and whole-home battery territory, not a portable generator project.
It depends on where you live. Some jurisdictions let homeowners pull a permit and do electrical work on their own home; many require a licensed electrician; almost all require a permit and inspection for work inside the panel. Pre-wired kits make the job simpler, but you are still working inside a live service panel. Our recommendation: have a licensed electrician install it and get it inspected. The cost of labor varies widely by region and by how far the inlet box is from the panel, so get a local quote.
How far away can a generator be from the transfer switch? Far enough to keep exhaust out of the house. The CPSC says to place a portable generator outdoors and far away from windows, doors, and vents, and our guide to running a generator overnight covers safe placement in detail. The inlet box mounts on an outside wall, and a generator cord bridges the gap, so choose a cord long enough to reach a safe spot.
Every switch below is carried by Krato Power and in stock as of this writing.
Best all-in-one kit for most portable generators: Reliance 310CRK. 30A, 10 circuits, built-in wattmeters, and it comes with an outdoor L14-30 power inlet box and a 10 ft generator cord. Rated for generators up to 7,500 running watts. $479.

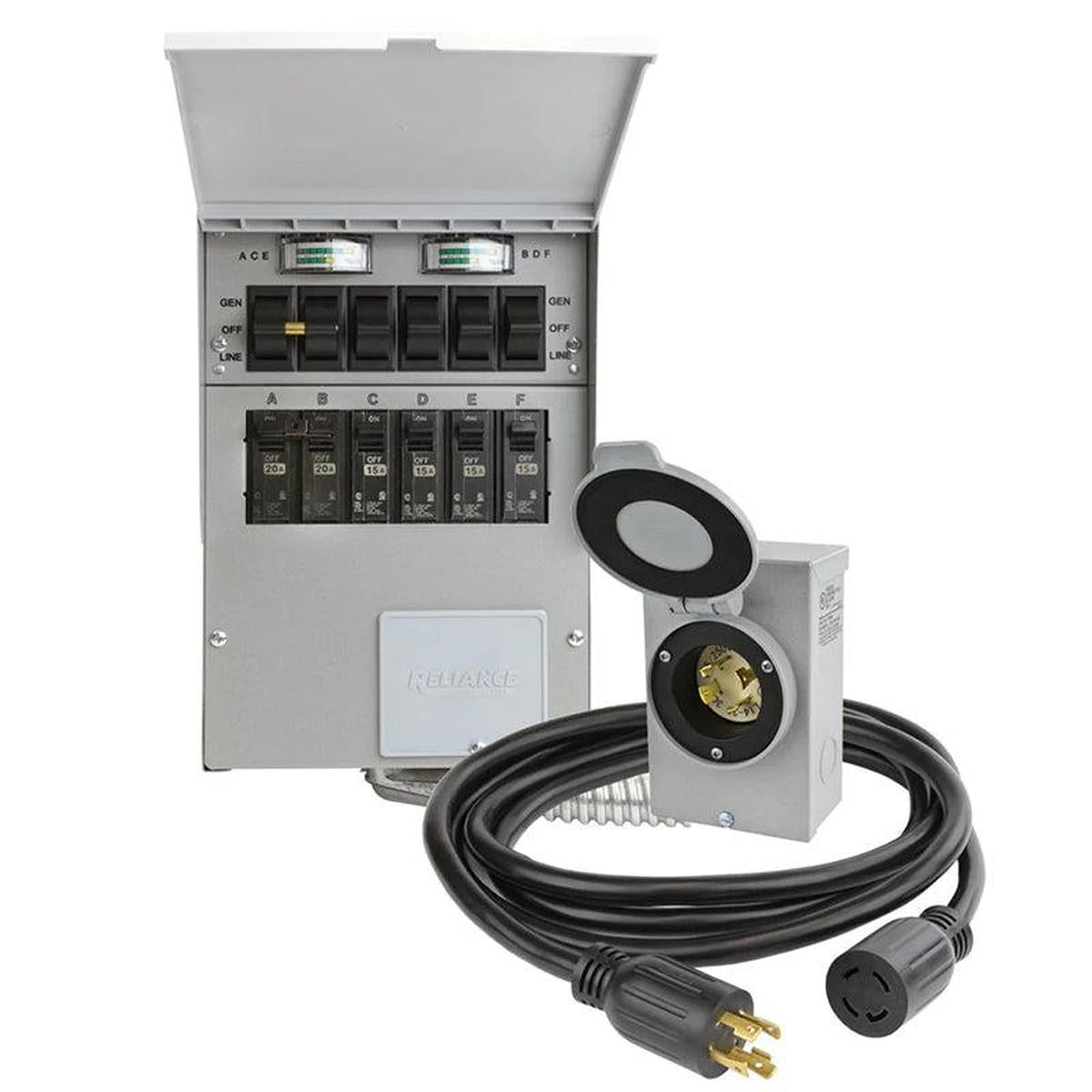

Best budget kit: Reliance 306CRK. The same idea with 6 circuits: switch, L14-30 inlet box, and 10 ft cord. $349.
Best for larger generators: Reliance 510C ($529) or Nature's Generator 12-Circuit 50A ($479.99). The Reliance handles 10 circuits and generators up to 12,500 running watts. The Nature's Generator switch handles 12 circuits (or 6 at 240V), up to 12,000 watts, and includes a CS6375 50A inlet box.
Best automatic switch for a generator: Nature's Generator 50A Automatic Transfer Switch. 120/240V, up to 24 circuits, with an emergency override. $499.99. A 30A version handles up to 16 circuits for $399.99.
Best whole-home automatic switch: Tigo 200A Automatic Transfer Switch with Generator Support. Full 200A whole-home backup with a built-in service disconnect and manual bypass, for Tigo solar and battery systems with generator auto-start support. $2,698.97.
Just need the furnace? Reliance TF151W ($109.99). A single-circuit switch that lets you run a furnace from a generator.
Compare every option under manual transfer switches, automatic transfer switches, or all transfer switches. Still deciding between a switch and an interlock? See our interlock kit vs transfer switch guide.
What is a transfer switch used for? To connect a generator or battery system to selected circuits in your home safely, by disconnecting those circuits from the utility first so power cannot backfeed onto the grid.
Do I need a 30 or 50 amp transfer switch? Match your generator's largest outlet: L14-30 means 30A, a 14-50 or CS6365 means 50A.
What size transfer switch do I need for a 10,000 watt generator? Usually 50A. Ten thousand watts at 240V is about 42 amps, more than a 30A switch can carry.
Can I use a portable generator without a transfer switch? Yes, with appliances plugged directly into the generator. To power anything hard-wired, you need a transfer switch or a listed interlock kit.
Can I install a generator transfer switch myself? Some areas allow homeowners to, with a permit; many require a licensed electrician. We recommend a licensed electrician and an inspection.
What is the difference between service-rated and non-service-rated? A service-rated switch includes the main disconnect and can be installed between the utility meter and your panel. A non-service-rated switch goes after your main breaker.
Not sure which switch fits your generator? Call our team at 888-855-7286 with your generator's model and the circuits you want to run, and we will match the switch. Shopping for the generator too? See portable generators.
This guide is general information, not electrical or professional installation advice. Transfer switches must be installed per the manufacturer's instructions and local electrical codes, typically by a licensed electrician with a permit and inspection.
