Generator Interlock Kit Installation: Steps, Cost, and Parts List

Installing a generator interlock kit usually costs $400 to $850 with an electrician, parts and labor included. The interlock plate itself is only about $50 to $70. The rest goes to a generator breaker, an outdoor power inlet box, wire, a generator cord, the permit, and a few hours of an electrician's time.

Below is the cost breakdown, the full parts list with real prices, the installation steps, and what to check before you buy. Comparing all three safe hookup methods (extension cords, a transfer switch, or an interlock kit)? Start with How to Hook Up a Generator to Your House.

How much does it cost to install a generator interlock kit?

Source: HomeGuide 2026 cost guide. HomeGuide also puts electricians at $50 to $130 per hour, plus about a $75 call-out fee. Your price goes up if the inlet box is far from the panel, the panel needs a breaker moved to free the top slot, or your city requires extra work to pass inspection.

What you need: the full parts list

Here is a complete 30 amp setup using parts we carry, plus the pieces your electrician supplies:

The kit, inlet box, and cord from us come to $159.93 to $179.93, depending on the kit. Need a shorter run? The 10 ft XP3010GC cord is $39.99.

30 amp or 50 amp?

Match the setup to your generator's largest 240V outlet:

• L14-30 outlet: 30 amp breaker, inlet, and cord. A 30 amp, 240V connection carries up to 7,200 watts (30 A x 240 V). Generators like the DuroMax XP5500HX ($629) and XP8500EH ($1,075.99) use this outlet.
• 14-50 outlet: 50 amp breaker, inlet, and cord. That carries up to 12,000 watts (50 A x 240 V). The DuroMax XP13000HX ($1,399) has one. For the inlet, the Nature's Generator 50A Power Inlet Box ($49.99) uses a CS6375 inlet; make sure your cord's connector matches it.

How to install a generator interlock kit

This is an overview so you know what the job involves. Follow the kit's instructions and your local code, and hire a licensed electrician unless you are qualified and your local rules allow you to do it.

1. Confirm the kit fits your panel. Interlocks are panel-specific. Check your panel brand, main breaker style, which way it throws, and the spacing to the first breaker against the kit's product page.
2. Pull a permit. Most areas require one for panel work.
3. Shut off the power. Turning off the main breaker does not de-energize the wires coming into the top of the main. Those stay live unless the utility disconnects them, which is one of the biggest reasons to use an electrician.
4. Install the generator breaker in the slot the kit specifies, usually the top position next to the main. Secure it with a hold-down. The National Electrical Code (408.36(D)) requires a backfed plug-in breaker to be held in with an extra fastener.
5. Mount the inlet box outside and run cable from it to the generator breaker, sized for the breaker.
6. Mount the interlock plate on the panel cover using the kit's template, then test it: the main and generator breaker should never be able to be on at the same time.
7. Label the panel and inlet, then get the inspection.

One detail to ask your electrician about: an interlock does not switch the neutral. That affects how the generator's neutral should be bonded. Check your generator's manual.

How to use it during an outage

1. Set the generator outside, away from doors and windows, and plug the cord into it and the inlet box.
2. Start the generator.
3. Turn off the main breaker, slide the interlock over, and turn on the generator breaker.
4. Turn on circuits one at a time, staying within the generator's running watts.

When power returns, reverse the steps: turn off the generator breaker, slide the interlock back, turn the main on, then shut down the generator.

Is a generator interlock kit legal?

The National Electrical Code (Article 702) requires transfer equipment that keeps the utility and a generator from ever being connected together. A listed interlock does that mechanically, and it is accepted in many areas. Local rules vary, so check with your building department first. For a side-by-side look, see Interlock Kit vs Transfer Switch.

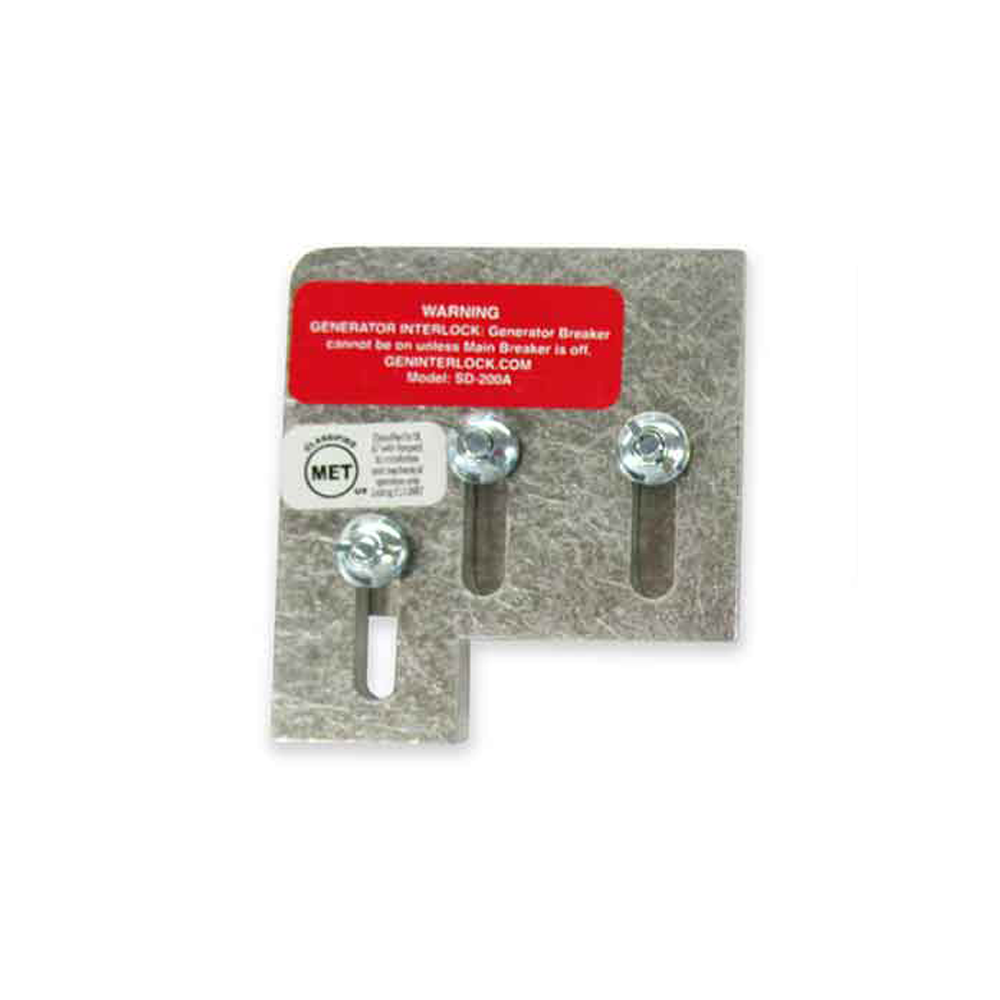

Generator interlock kits for common panels

We carry 13 GenInterlock models in all. See every generator interlock kit by panel, or send us a photo of your panel label and we will confirm the fit.

Need help sizing? Call 1-888-855-7286. Tell us your panel brand and your generator model, and we will put together the right kit, inlet, and cord.

Generator interlock kit installation FAQ

How much does it cost to install a generator interlock kit? About $400 to $850 installed, according to HomeGuide, plus a permit in most areas. The kit itself is about $50 to $70.

Can I install a generator interlock kit myself? Some areas allow homeowners to do their own panel work with a permit; many require a licensed electrician. It means working inside a panel where the incoming wires stay live, so hire a pro unless you are qualified.

What size breaker do I need for a generator interlock? Match the inlet and the generator outlet: a 30 amp double-pole breaker for an L14-30 setup, 50 amp for a 50 amp setup. It must be the same brand and type as your panel.

Do I need a permit for a generator interlock? In most areas, yes. Check with your local building department.

Will any interlock kit fit my panel? No. Kits are made for specific panel brands and main breaker layouts. Match the kit to your panel before you order.
