Mean Well CSP 3000 Industrial Strength You Can Trust

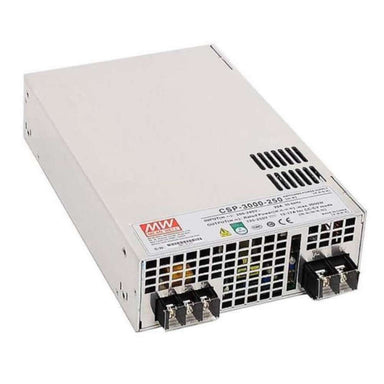

Mean Well CSP-3000 Series 3000W AC/DC Enclosed Power Supply - CSP-3000-250 delivers a high 3000W output with excellent efficiency and stable performance for demanding industrial systems. It includes active power factor correction, built-in protection, forced-air cooling, and a rugged, enclosed metal case designed for continuous operation.

Get dependable high-power performance for your application. Order the Mean Well CSP-3000-250 Power Supply today while supplies last.

Features

3000W high power output for demanding applications
Built-in active PFC function
Active current sharing up to 7200W for scalable systems
Remote ON OFF control with auxiliary power and power OK signal
High efficiency up to 93 percent
Backed by a 5-year manufacturer's warranty

Specifications

Wattage 3000 W
Input Voltage 180–264 VAC, 254–370 VDC
Output Current 12 A
Output Voltage 250 V
Output Voltage Options Single
Dimensions (W × H × D) 10.94 × 7.00 × 2.50 in (27.8 × 17.78 × 6.35 cm)
Working Temperature −20 to +65 °C
Safety Standards UL62368-1, Dekra seal EN62368-1, EAC TP TC004, GB4943.1
EMC Standards EN55032 CISPR32, EN55011 CISPR11, EN61000-3-2, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
