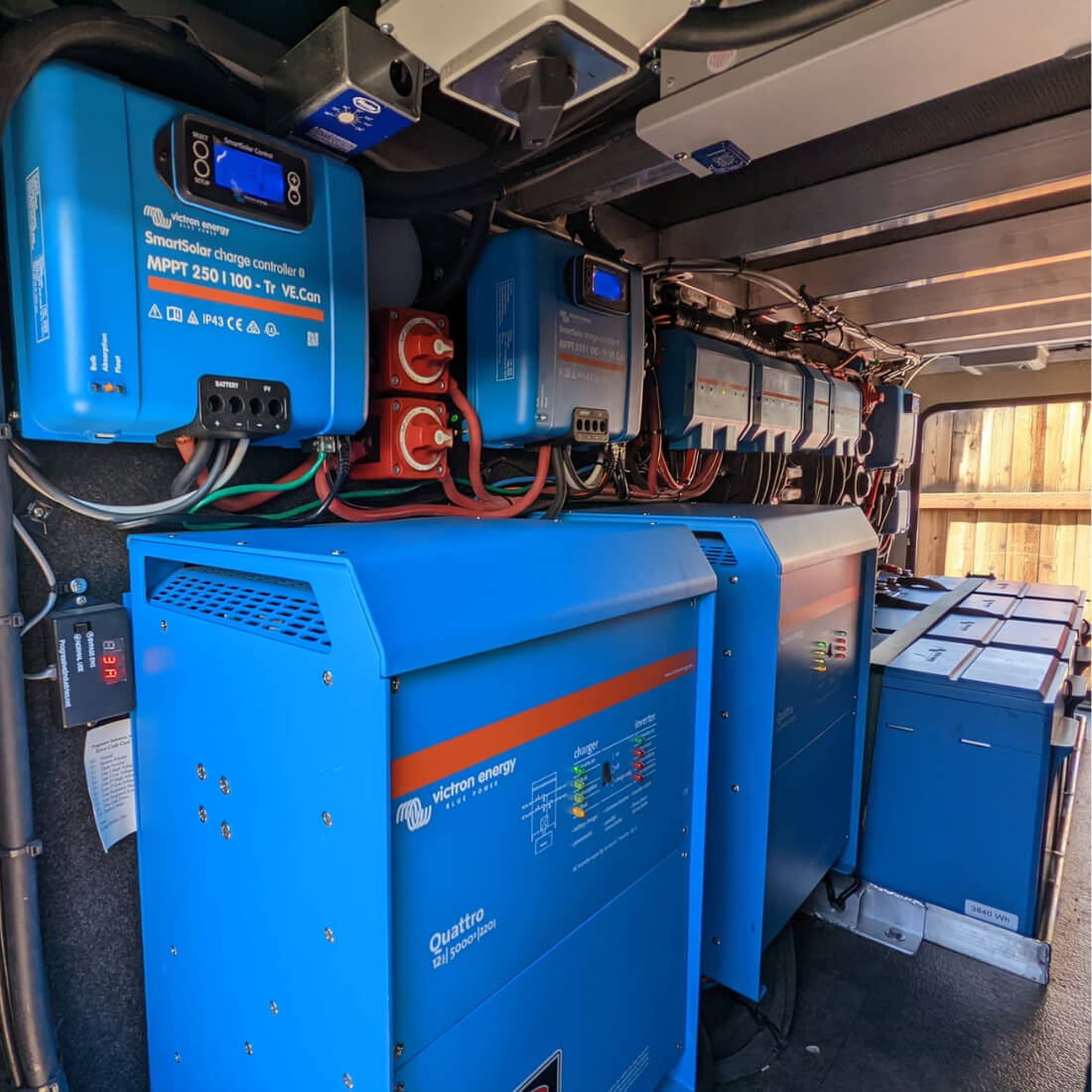

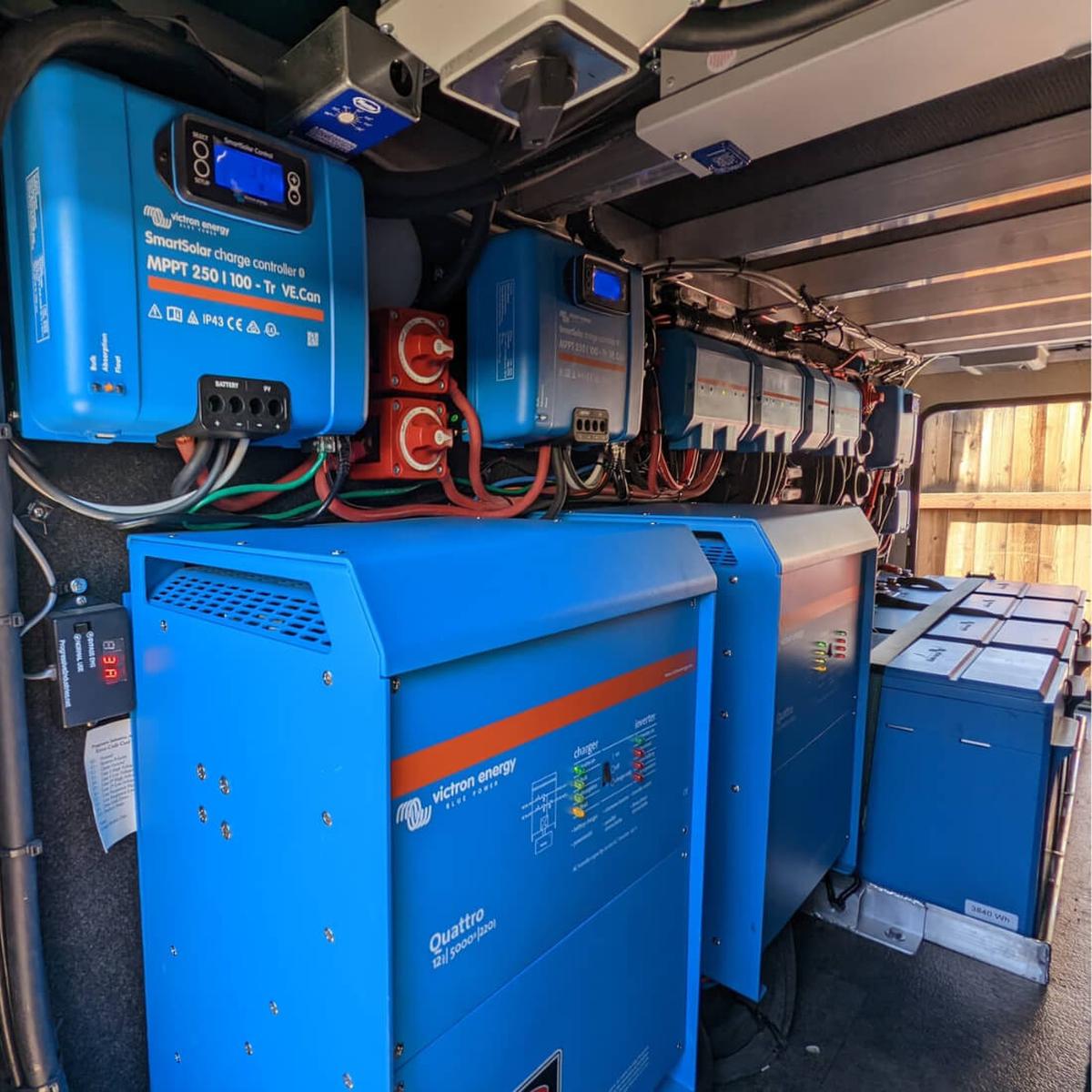

Quattro 24/5000/120-100/100 120V Inverter Charger by Victron Energy
The Victron Quattro 24/5000/120-100/100 is a powerful and versatile inverter/charger designed for demanding energy systems in off-grid, mobile, or backup applications. It features dual AC inputs with an integrated transfer switch, allowing seamless connection to both grid and generator sources. With two AC outputs, it ensures uninterrupted power to critical loads during outages while isolating non-essential devices like water heaters that should not drain the battery. Built with Victron's renowned reliability, it’s ideal for applications requiring robust energy continuity and intelligent load management.

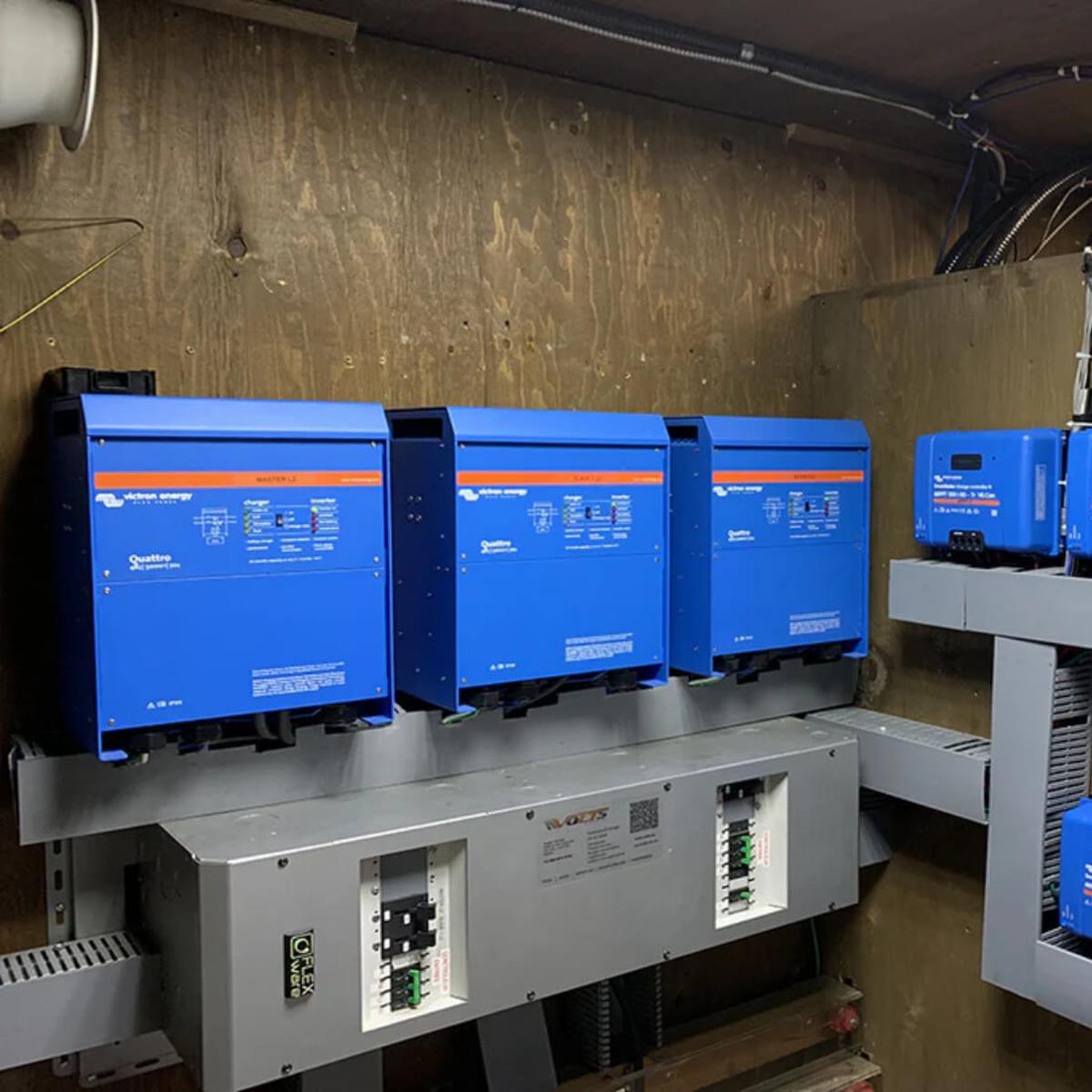

This inverter/charger supports split-phase and three-phase configurations, and can be paralleled for expanded output—up to 96 kW of inverter power and over 1600A charging capacity with multiple units. It includes advanced features like PowerControl to prevent generator or grid overload, and PowerAssist, which boosts limited shore or generator power by drawing additional energy from the battery during peak demands. With seamless compatibility for solar energy integration, the Quattro ensures uninterrupted AC power, even during grid failures.
Monitoring and configuration are effortless thanks to compatibility with GX devices like the Ekrano GX or Cerbo GX, enabling real-time system control and access to the free Victron Remote Management (VRM) portal. Users can remotely monitor performance, adjust settings, and receive alerts from anywhere via the VRM website or app. Whether you're managing an off-grid cabin, a mobile command center, or a hybrid solar setup, the Quattro 24/5000 delivers unmatched reliability and smart energy control.

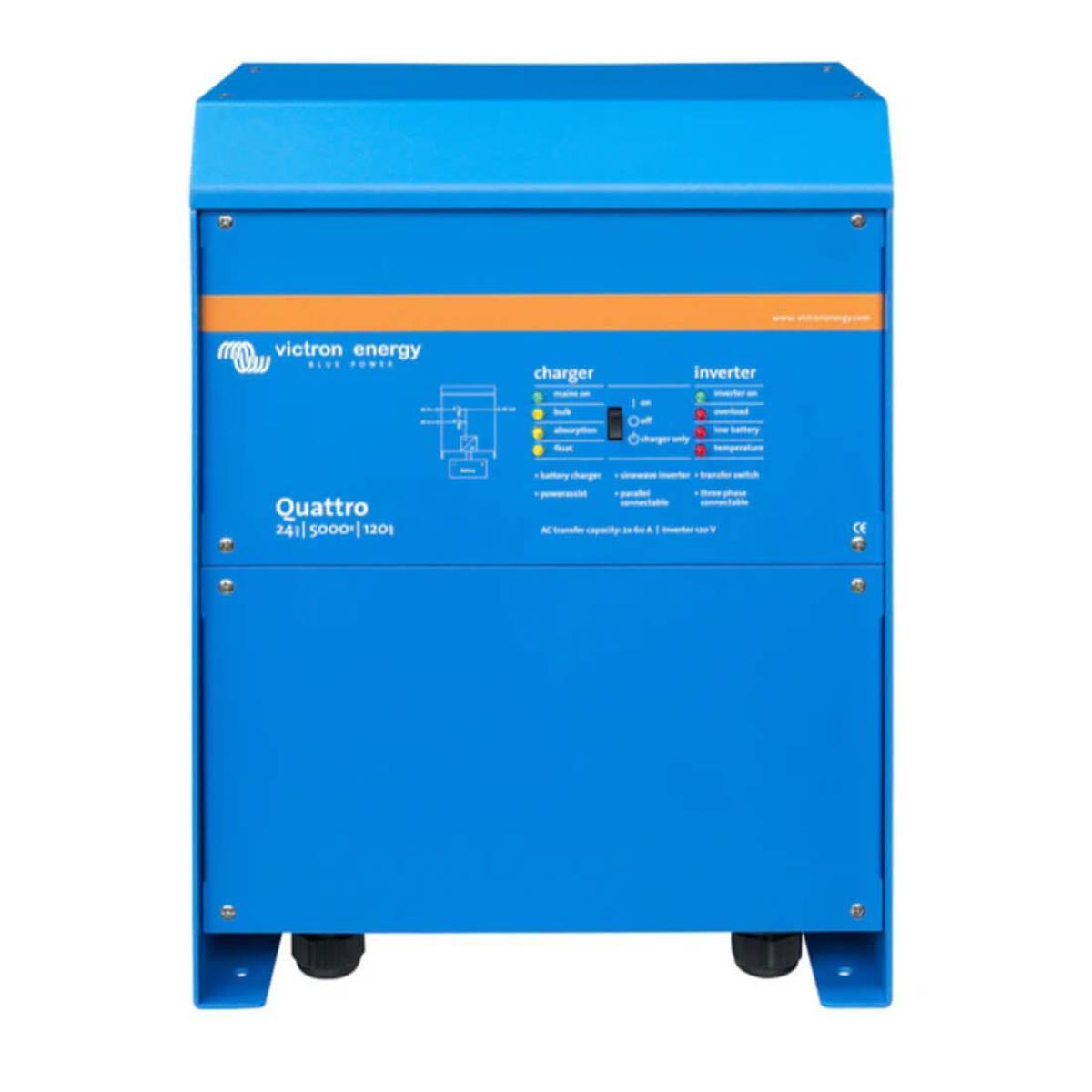

Quattro 24V 5000w Inverter Charger Overview
Battery Monitor
To monitor battery state of charge via
Bluetooth or the VRM portal.

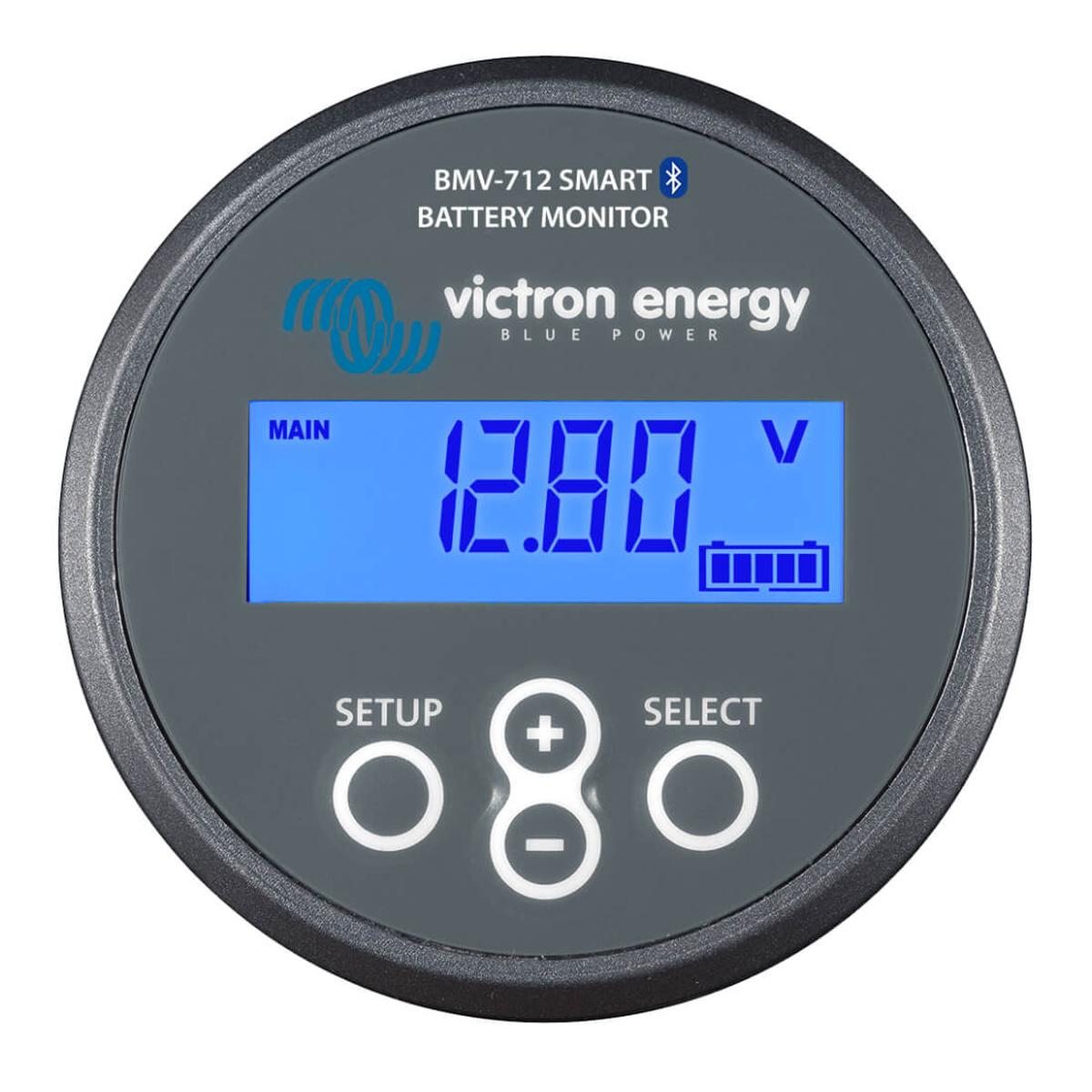

The BMV 712 Smart has display, while the
SmartShunt does not have a display.

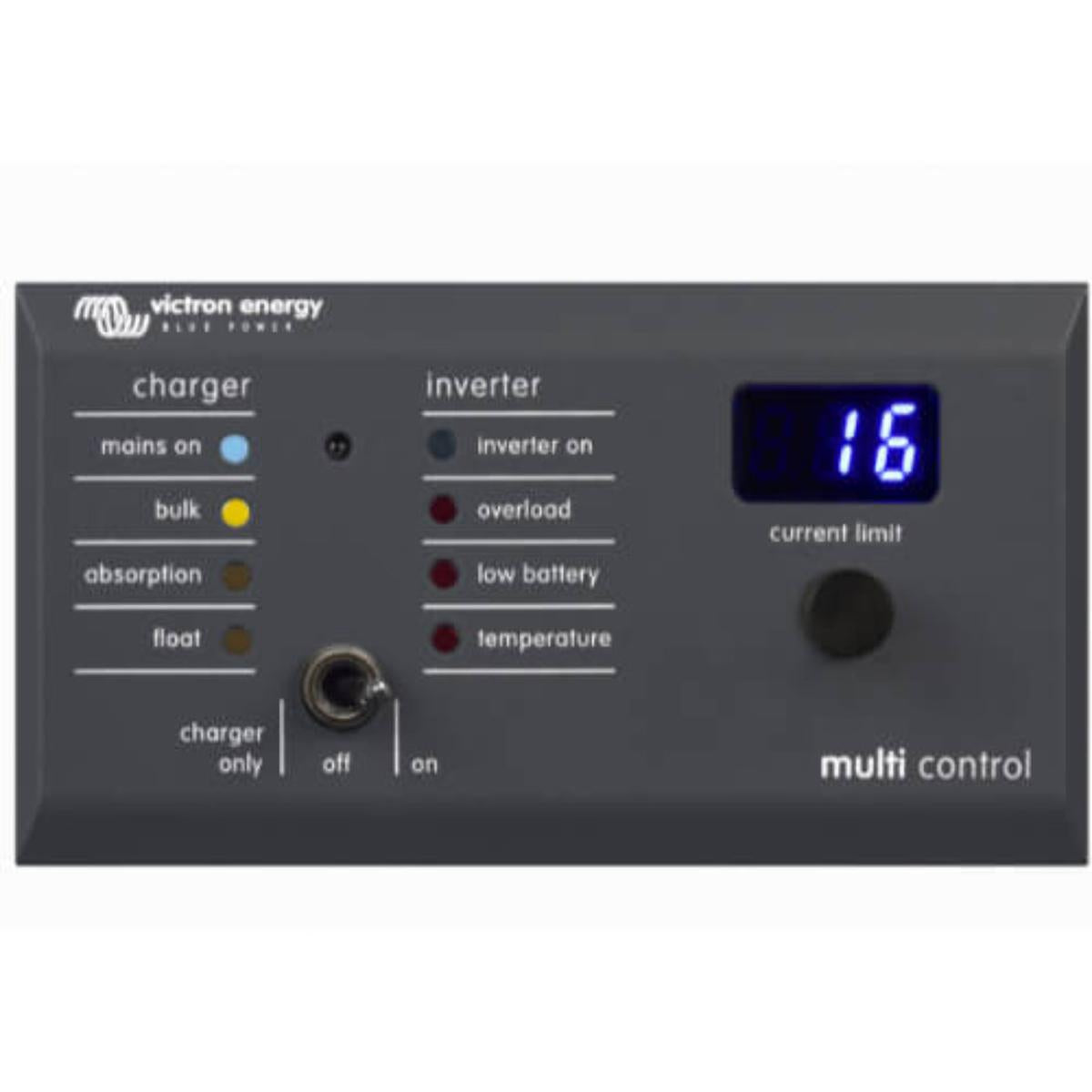

Digital Multi Control Panel
A convenient and low-cost solution for monitoring and control.
Includes an on/off switch, charger-only mode, LED readout, and rotary knob for setting PowerControl and PowerAssist levels.
Interface MK3-USB
Used to configure the MultiPlus via VictronConnect or VE.Configure software.
Connects to the MultiPlus with an RJ45 UTP cable and plugs into a USB port.

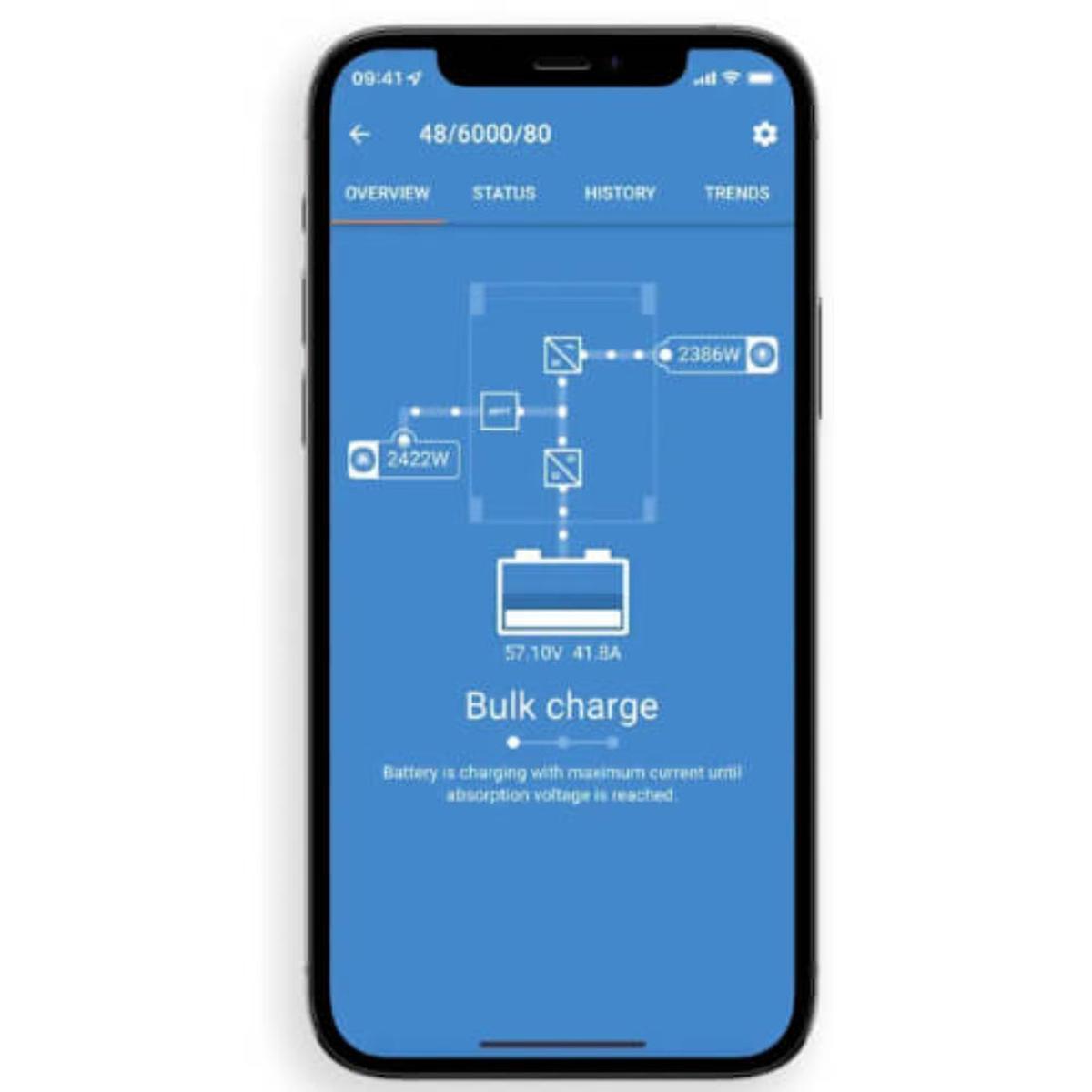

VictronConnect App
Use the app to monitor or configure the MultiPlus from your smartphone, tablet, or PC.

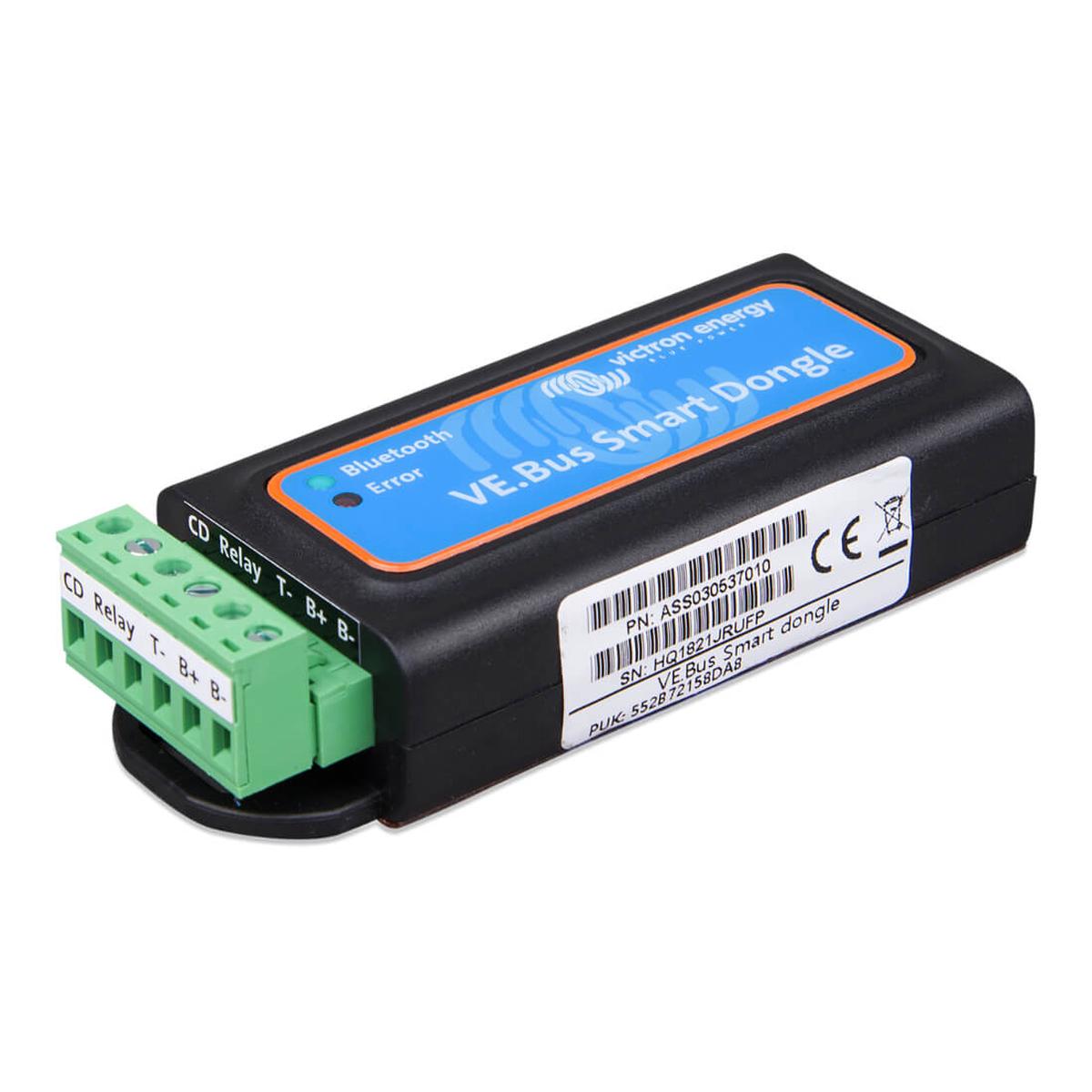

VE.Bus Smart Dongle
Enables monitoring and control via Bluetooth using the VictronConnect app.
Also measures battery voltage and temperature.
Quattro 24V 5000W Inverter Charger Features
🔌 Two AC Inputs with Integrated Transfer Switch
- Seamlessly switches between two power sources like grid and generator.
- Ensures uninterrupted operation without manual intervention.
🔋 Dual AC Outputs
- Main output offers instant, no-break transition during power loss (under 20ms).
- Second output powers non-essential loads only when AC is available.

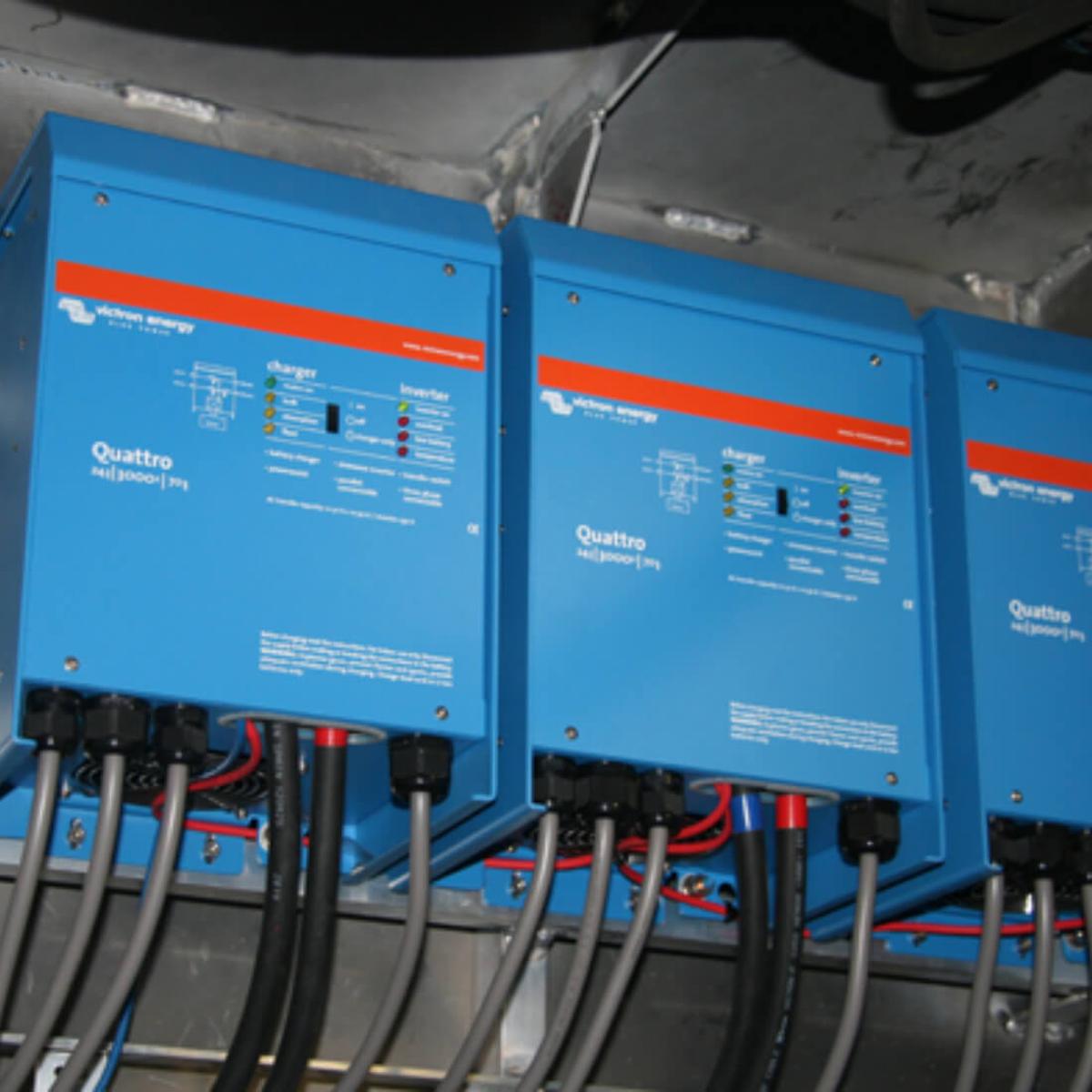

⚙️ Split-Phase and Three-Phase Capability
- Configure for 120V split-phase or 120V three-phase systems.
- Scale your power setup easily with up to 4 sets of 3 units in parallel.
🧠 PowerControl – Smart Current Management
- Prevents generator or shore supply overload by adjusting charge rate.
- Frees up extra power for priority loads when needed.
🚀 PowerAssist – Boosts Generator or Grid Capacity
- Supplements limited shore or generator power using battery support.
- Automatically recharges batteries once loads decrease.

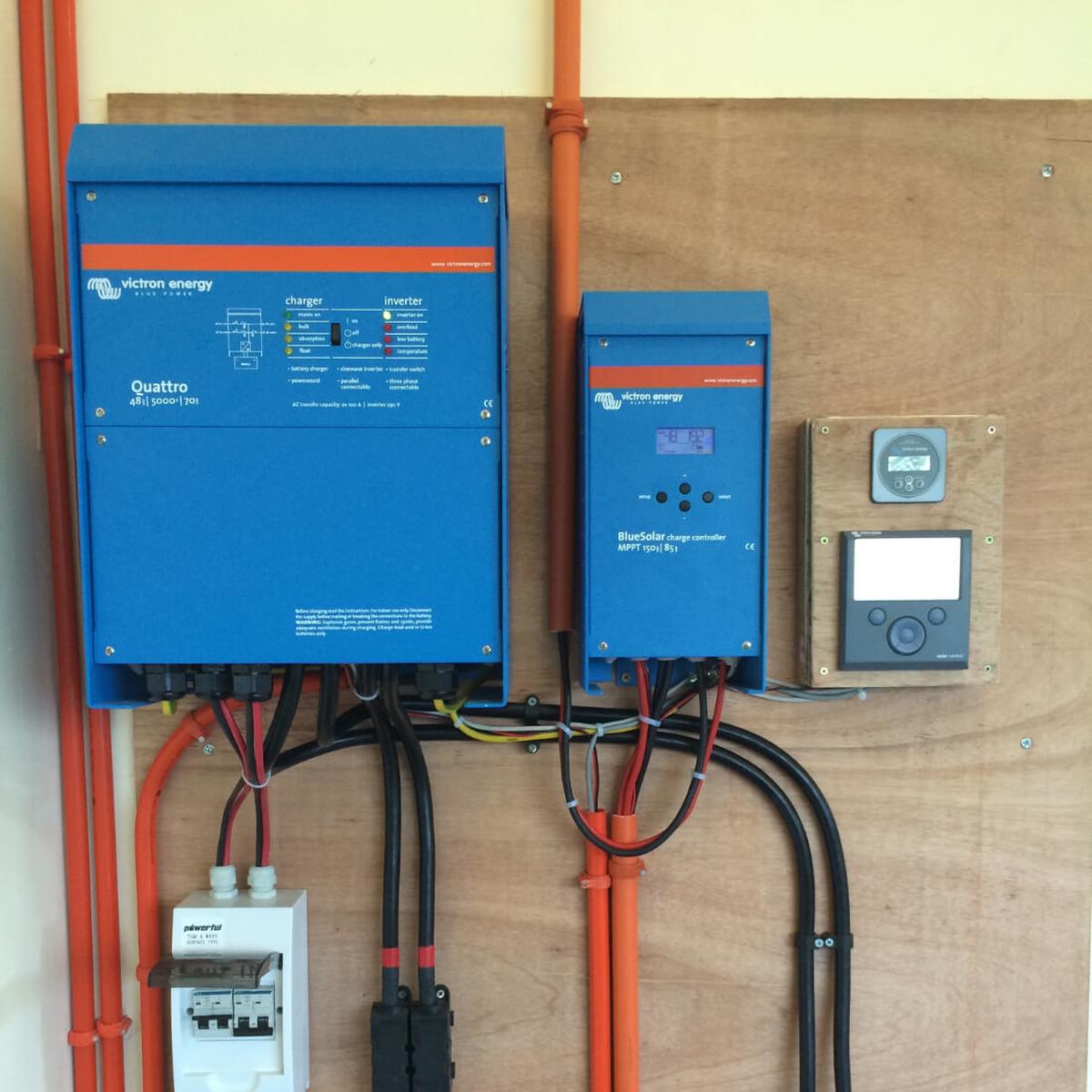

☀️ Solar Energy Support with Backup Power
- Keeps essential appliances running even during grid outages.
- Compatible with off-grid, grid-tied, and hybrid solar energy systems.
⚡ Easy System Configuration
- Quick DIP switch setup for standalone use.
- Advanced system tuning with VE.Bus software tools.
📱 Local Monitoring and Control
- Manage your system via smartphone, tablet, laptop, or GX device.
- Access detailed performance data directly from your location.
🌐 Remote Monitoring and Management
- View and control your system online via the free Victron VRM Portal.
- Receive real-time alarms, status updates, and make remote adjustments.
🔋 Lithium-Ion Battery Compatibility
- Works seamlessly with modern lithium-ion battery banks.
- Optimizes battery lifespan with intelligent charging profiles.
Quattro 24V 5000W Inverter Charger Warranty
-
Duration: 5 years from the original purchase date
-
Coverage: Defects in materials and workmanship
-
Process: Return the product with the purchase receipt to the retailer
What's in the Box?
Quattro 24 5000W Specifications
| Specification |
| PowerControl / PowerAssist |
Yes |
| Integrated Transfer switch |
Yes |
| AC inputs (2x) |
2 |
| Maximum feed through current |
2x 100A |
| Inverter |
| Input voltage range |
19 – 33V |
| Output voltage / Frequency |
120 VAC ±2% / 60 Hz ± 0.1% |
| Cont. output power at 25°C |
4000W |
| Cont. output power at 25°C |
5000VA |
| Cont. output power at 40°C |
3700W |
| Cont. output power at 65°C |
3000W |
| Peak power |
10000W |
| Maximum efficiency |
94% |
| Zero load power |
36W |
| Zero load power in search mode |
15W |
| Charger |
| AC input voltage range |
90 – 140 VAC |
| Charge voltage 'absorption' |
28.8V |
| Charge voltage 'float' |
27.6V |
| Storage mode |
26.4V |
| Charge current house battery (A) |
120A |
| Charge current starter battery (A) |
4A (12V only) |
| Battery temperature sensor |
Yes |
| General |
| Programmable relay |
Yes |
| Protection |
a–g |
| VE.Bus communication port |
For parallel, 3-phase operation, monitoring and system integration |
| Remote on-off |
Yes |
| Common Characteristics |
Operating temp: -40 to +65°C. Max 95% humidity (non-condensing) |
| ENCLOSURE |
| Material & Colour |
Aluminum (blue RAL 5012) |
| Protection category |
IP21 |

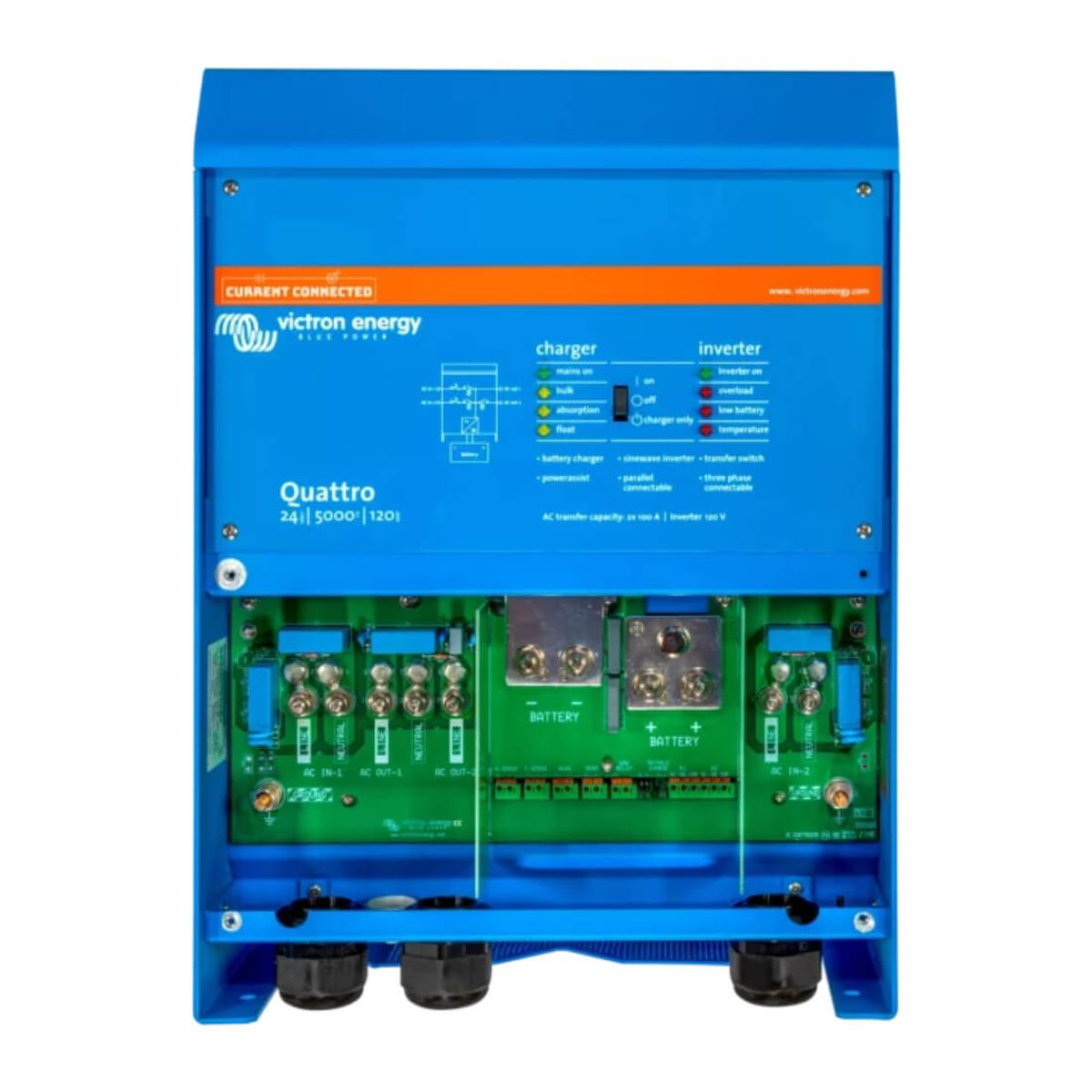

| Battery connections |
Four M8 bolts (2 plus and 2 minus connections) |
| 120 VAC connection |
3/8" screw terminals |
| Weight |
30 kg |
| Dimensions (h x w x d) |
470 x 350 x 280 mm |
| STANDARDS |
| Safety |
EN 60335-1, EN 60335-2-29 |
| Emission / Immunity |
EN 55014-1 / EN 55014-2 |
| Vehicle directive |
ECE R10-4 |
Victron Quattro 24 5000W 120 FAQ's
1. What is the main difference between the Quattro and MultiPlus inverter/chargers?
The Quattro supports two AC inputs (e.g., grid and generator), while the MultiPlus supports only one. It also has two AC outputs for more flexible load management.
2. What happens during a grid failure or generator disconnection?
The Quattro automatically switches to inverter mode in less than 20 milliseconds, ensuring no interruption to your devices.
3. Can the Quattro be used in three-phase or split-phase systems?
Yes. Two units can be used for split-phase, and three units for three-phase systems. Up to 12 units can be paralleled for large power setups.
4. What is PowerAssist and how does it help?
PowerAssist boosts shore or generator power by adding battery power during peak loads to prevent overloads and ensure performance.
5. Can the Quattro be used in solar energy systems?
Yes, it works with both off-grid and grid-connected solar setups. It supports integration with MPPT solar chargers and grid-tie inverters.
6. What tools are needed for configuration and monitoring?
You can use tools like VE.Bus Quick Configure, VE.Bus System Configurator, VictronConnect app, Color Control GX, and MK3-USB Interface.
7. Is remote monitoring available?
Yes. Victron’s VRM Portal allows remote access and control with mobile and web interfaces, all free of charge.
8. What is the output capacity of the Quattro?
Available models include 3000 VA / 2400 W, 5000 VA / 4000 W, and 10000 VA / 8000 W. Peak power ranges from 6000 W to 20000 W.
9. What battery types are compatible with the Quattro?
The Quattro is compatible with Lithium-Ion, AGM, and Gel batteries. It supports configurable charge settings and temperature sensors.
10. What are the available communication and control interfaces?
It includes VE.Bus ports, Bluetooth (via Smart Dongle), USB configuration options, remote on/off input, and programmable relay outputs.
