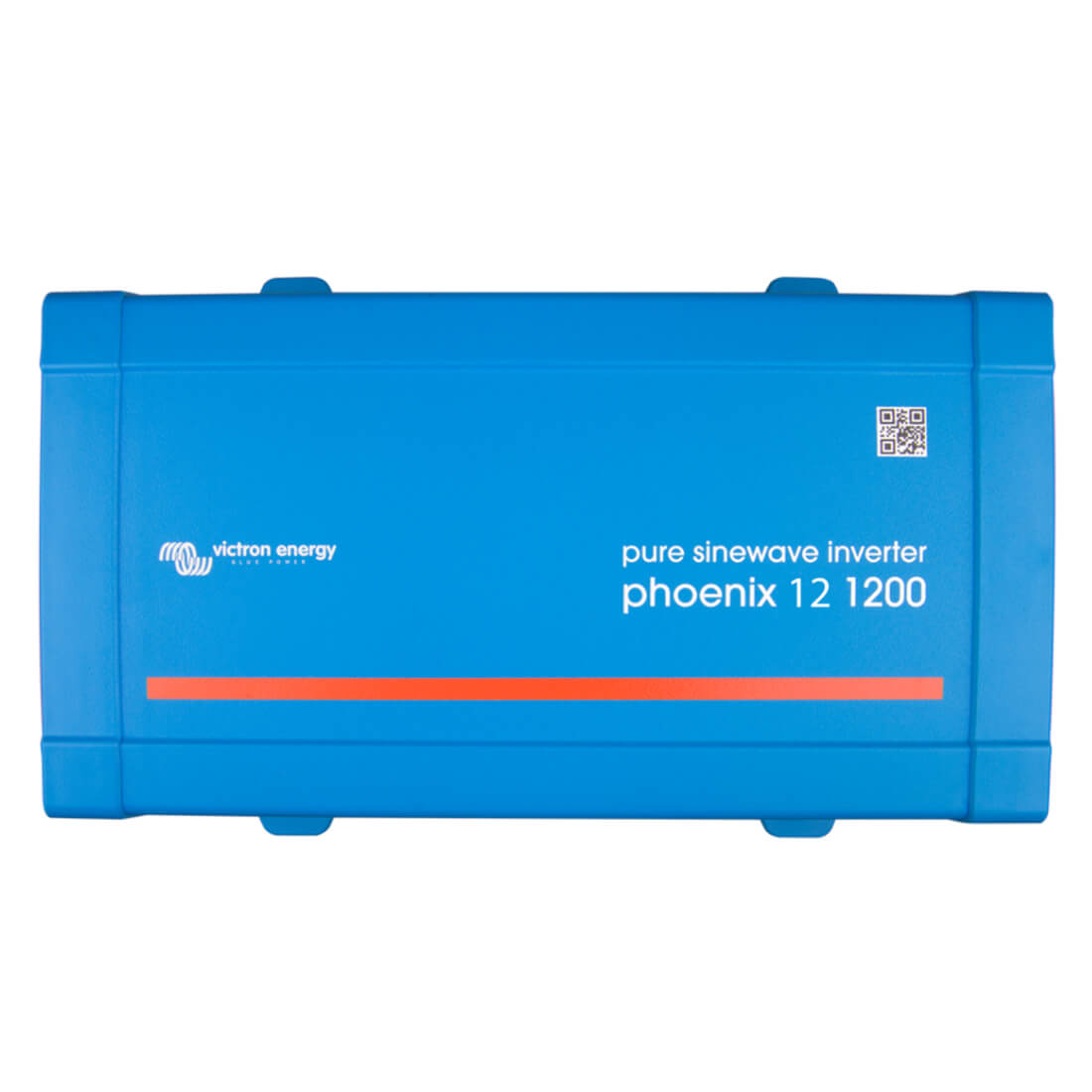

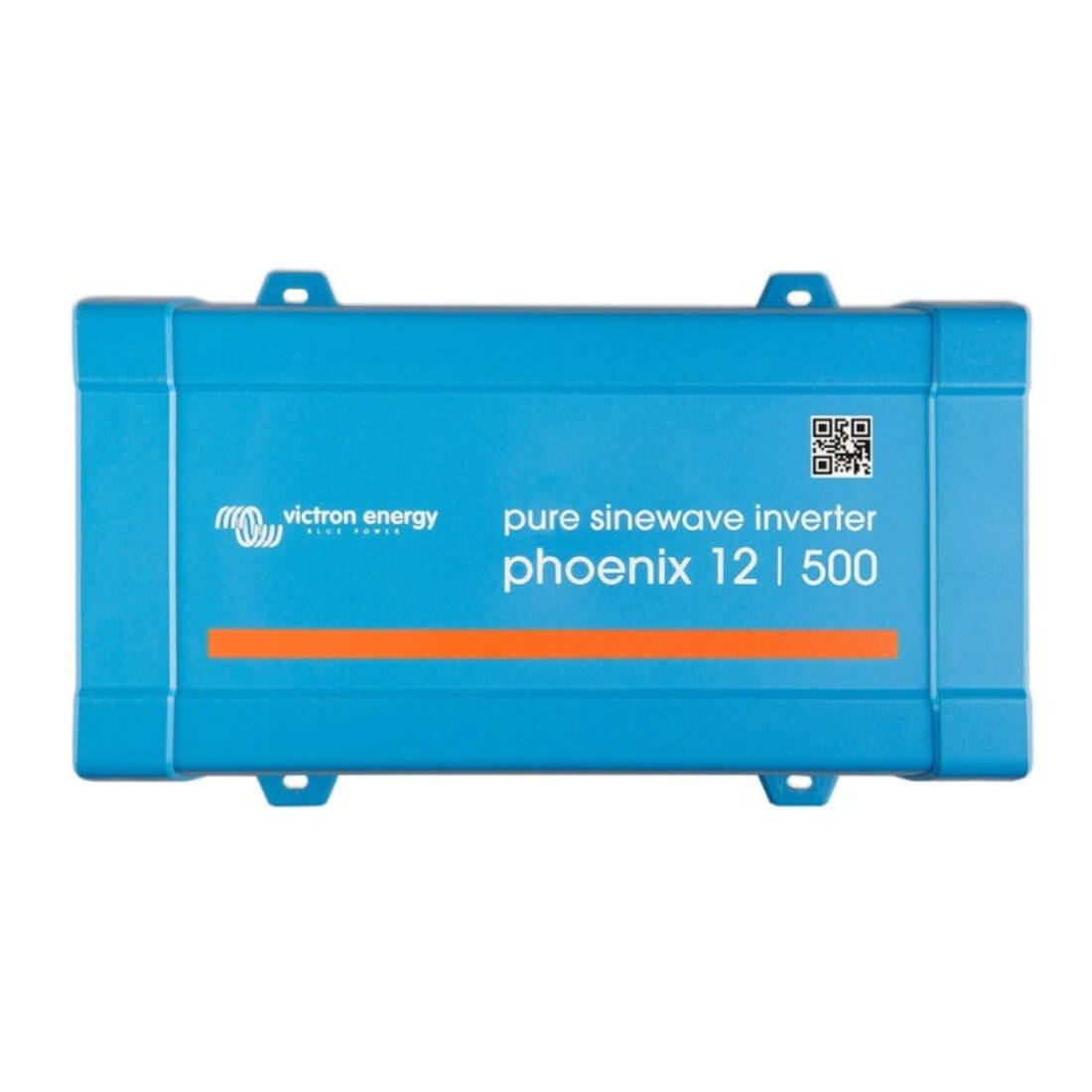

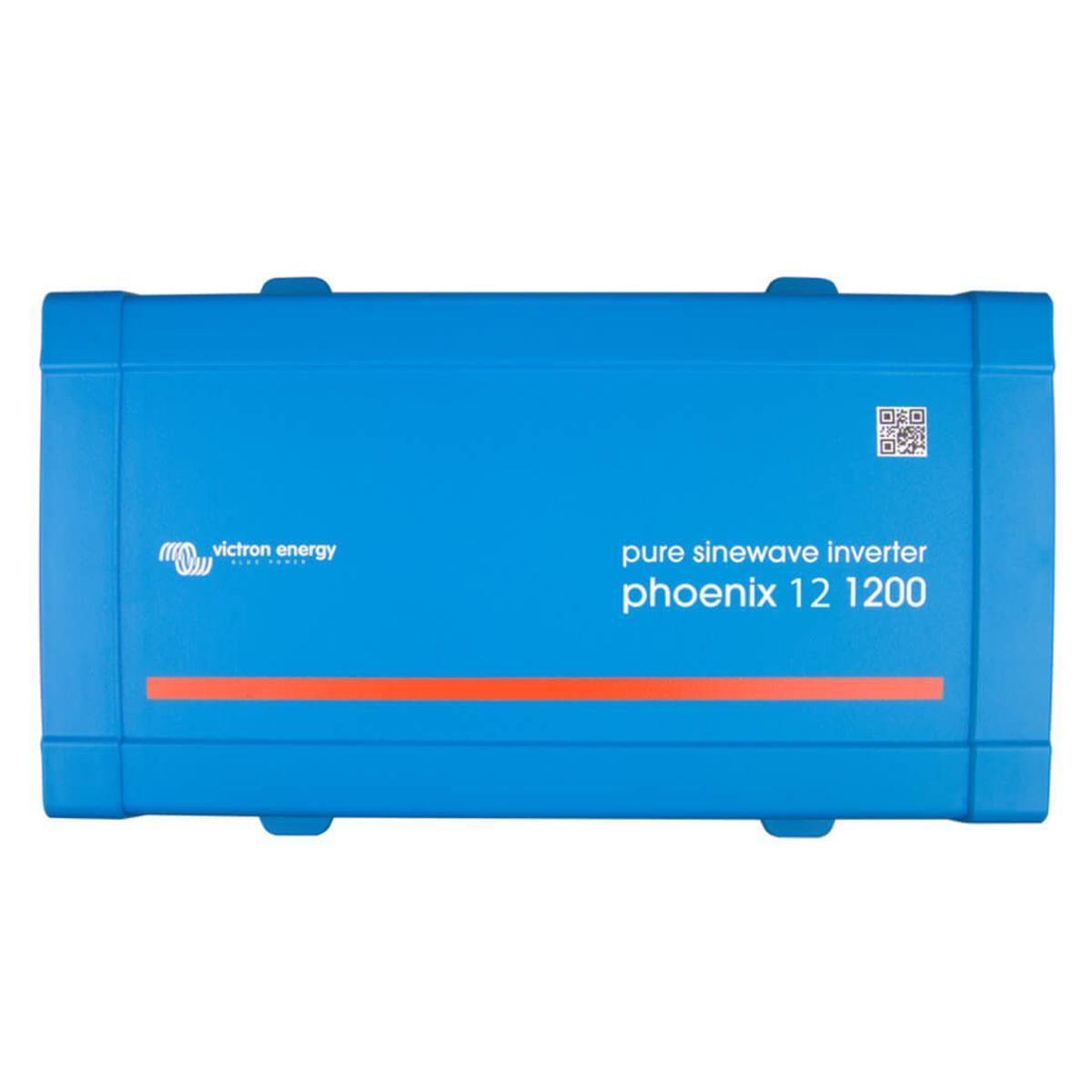

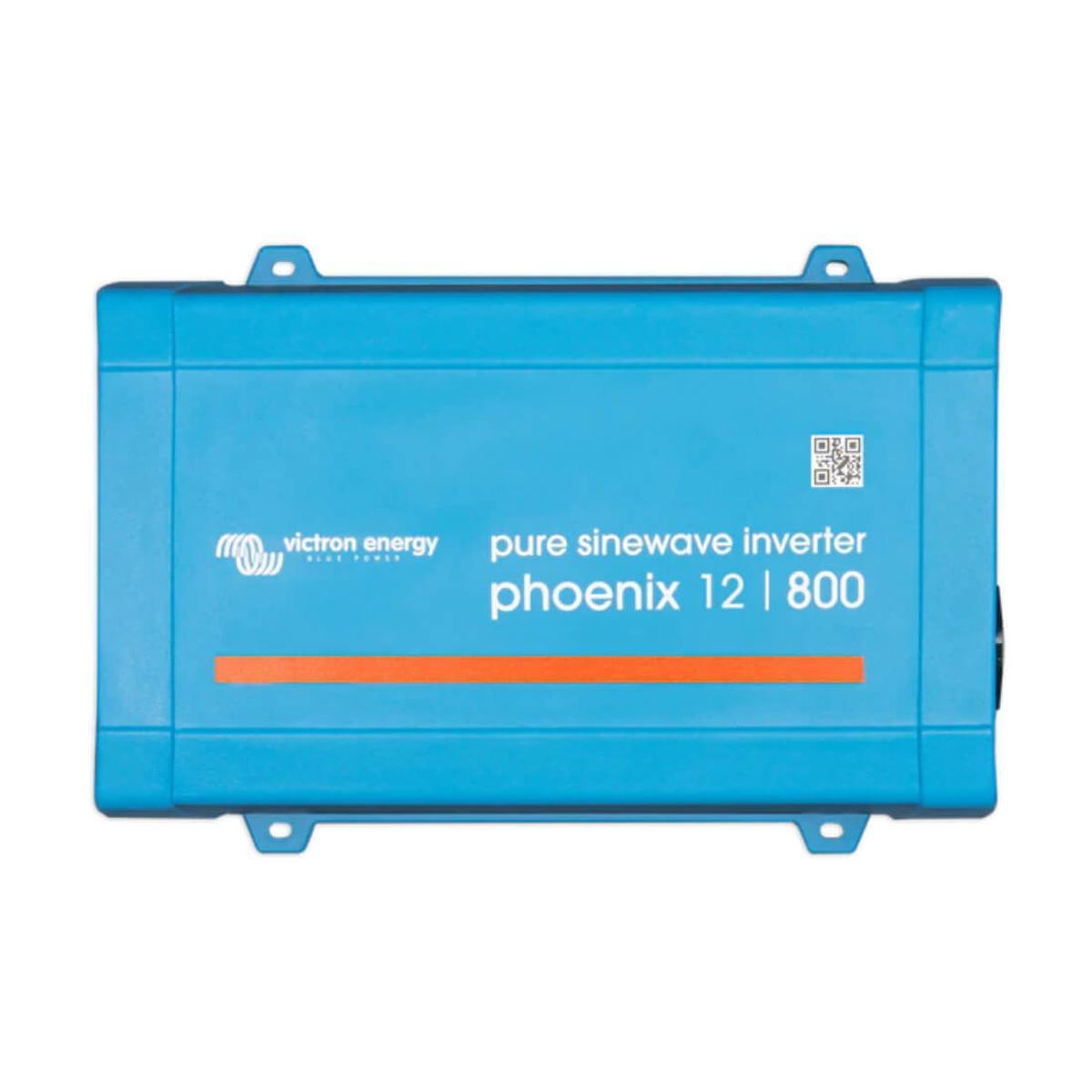

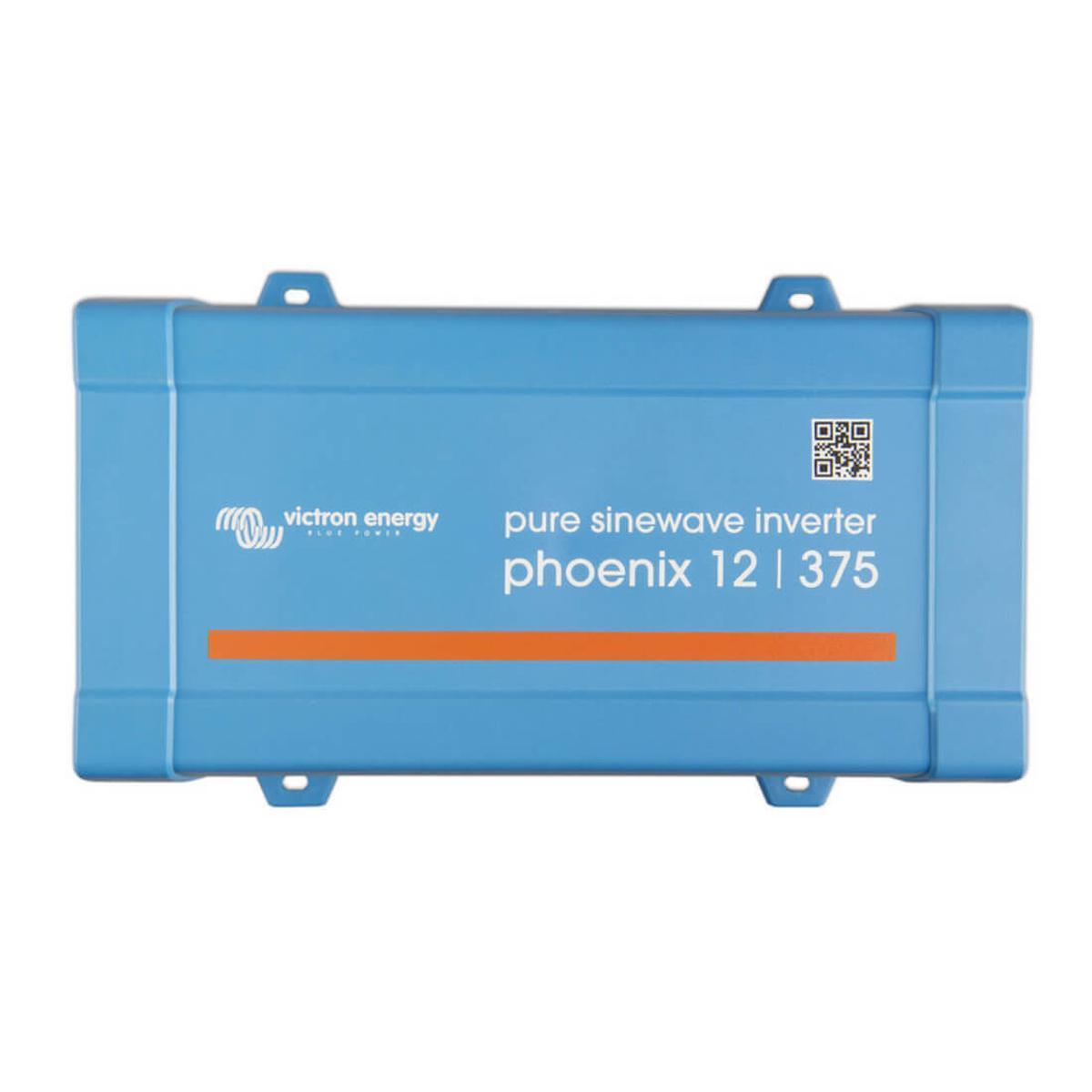

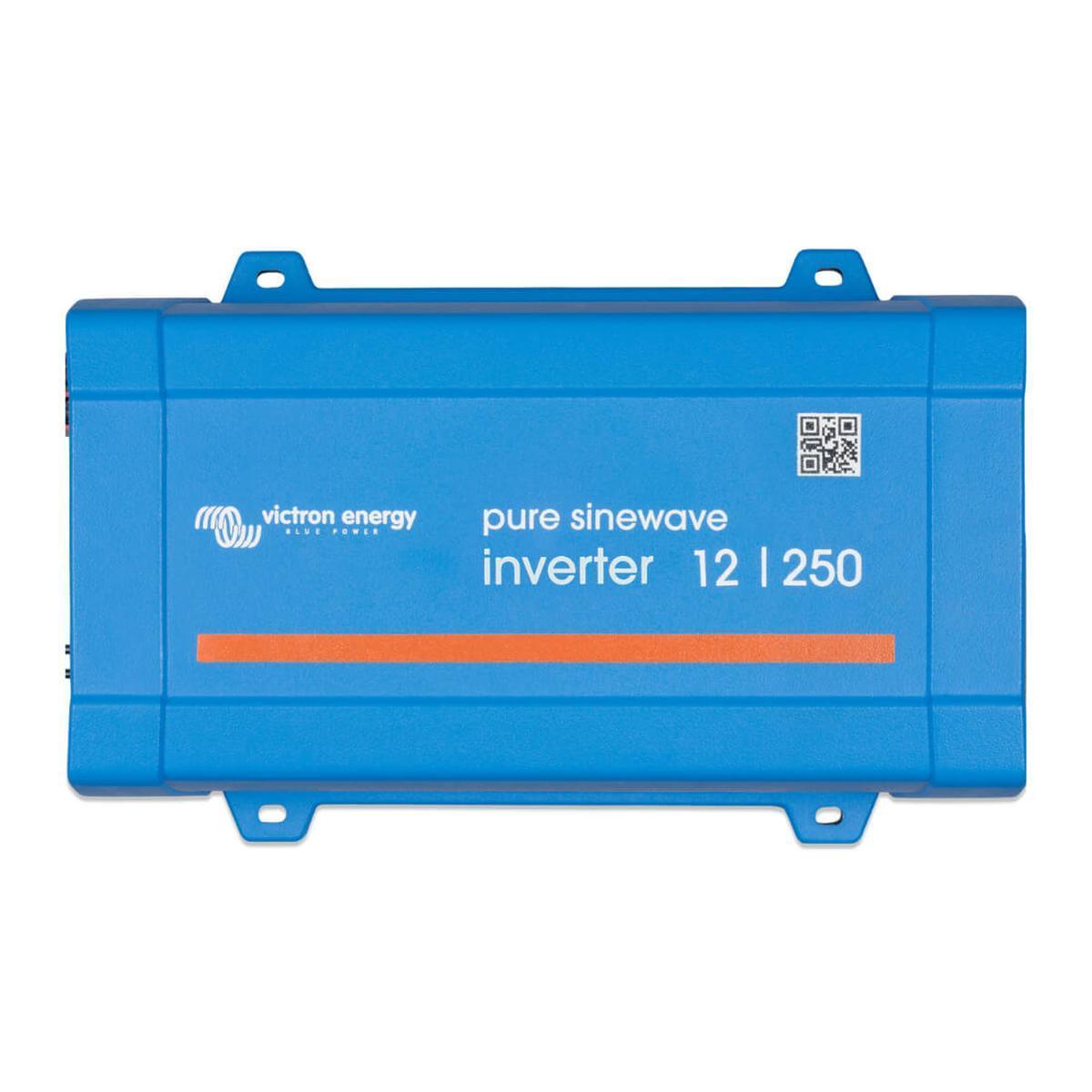

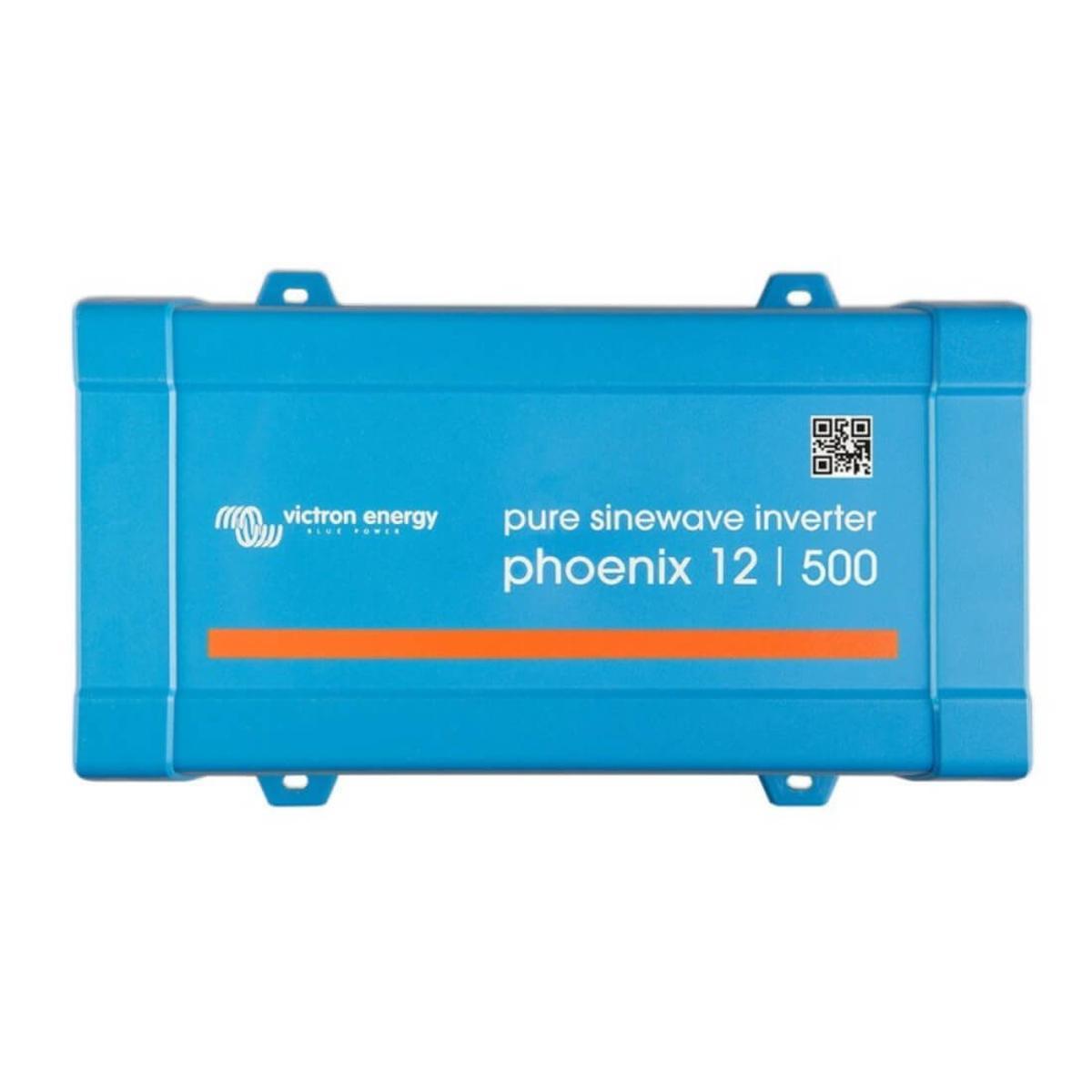

Victron Phoenix 12V Inverter – Reliable Power Solution with VE.Direct & NEMA GFCI – 250VA-1200VA
The Victron Phoenix 12V VE.Direct NEMA GFCI (UL 458) Inverter is a reliable and versatile power solution with a capacity range of 250VA to 1200VA. Equipped with an integrated Ground Fault Circuit Interrupter (GFCI) certified to UL 458 standards, it ensures an added layer of safety by automatically cutting power in the event of a ground fault or leakage current. This feature significantly reduces the risk of electric shock, making it ideal for environments with moisture or outdoor exposure. The UL 458 certification guarantees that the inverter meets stringent safety standards, providing dependable performance and peace of mind for mobile and off-grid applications.
The Victron Phoenix 12V VE.Direct NEMA GFCI (UL 458) Inverter is designed for efficiency and convenience. It provides high start-up power, making it ideal for devices like LED converters, filament lamps, and electric tools that need extra power to start. Its Smart Mode (Eco Mode) enhances energy savings by switching to standby during low loads and resuming operation automatically when needed. The inverter also features easy connection with a remote on/off connector, allowing simple control through a two-pole connector or direct battery connection.
The Victron Phoenix 12V VE.Direct NEMA GFCI (UL 458) Inverter is designed for efficiency and convenience. It provides high start-up power, making it ideal for devices like LED converters, filament lamps, and electric tools that need extra power to start. Its Smart Mode (Eco Mode) enhances energy savings by switching to standby during low loads and resuming operation automatically when needed. The inverter also features easy connection with a remote on/off connector, allowing simple control through a two-pole connector or direct battery connection.
Phoenix 12V VE.Direct NEMA GFCI (UL 458) Features
Pure Sine Wave Output
- Provides clean and stable power for sensitive electronics
- Reduces interference and prevents potential damage

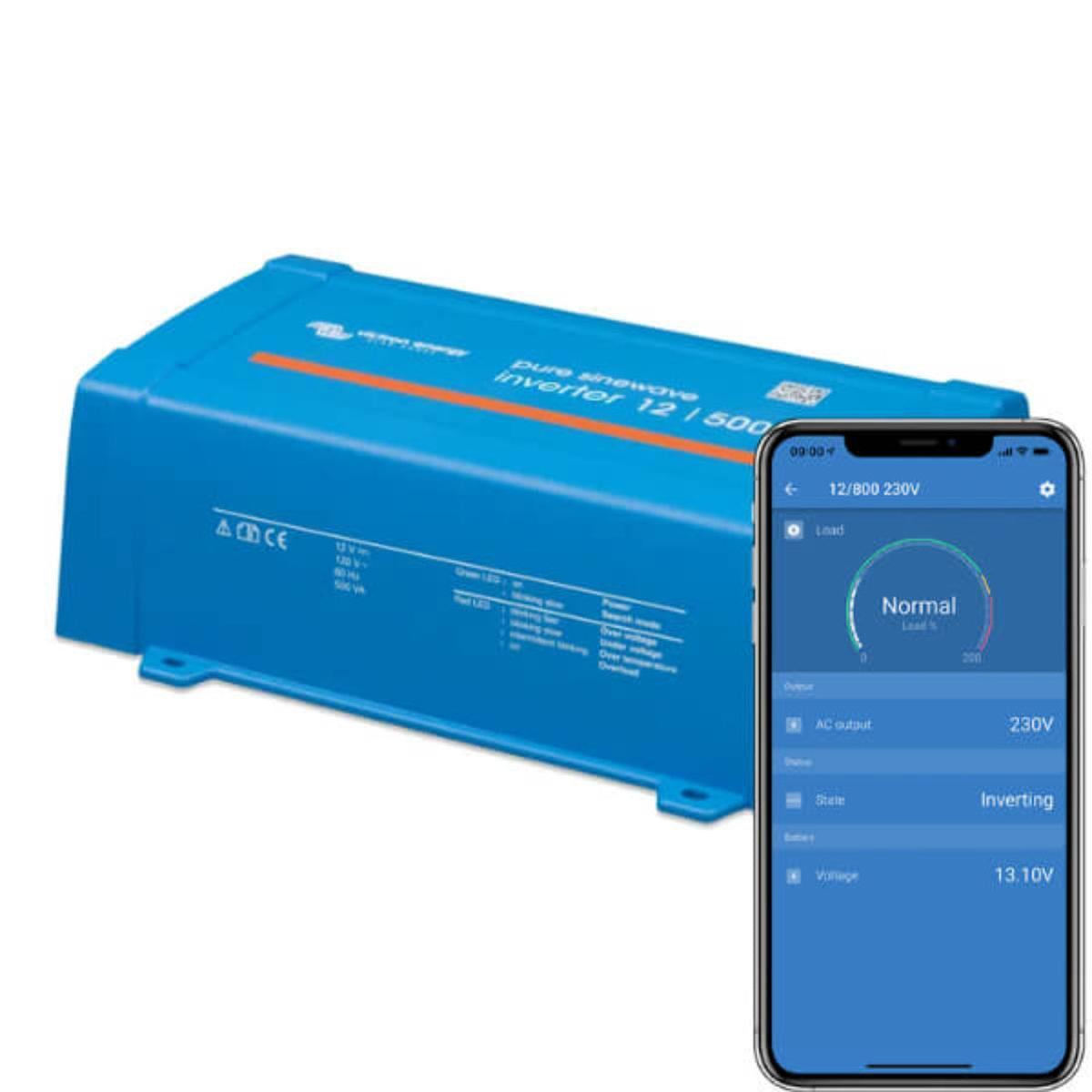

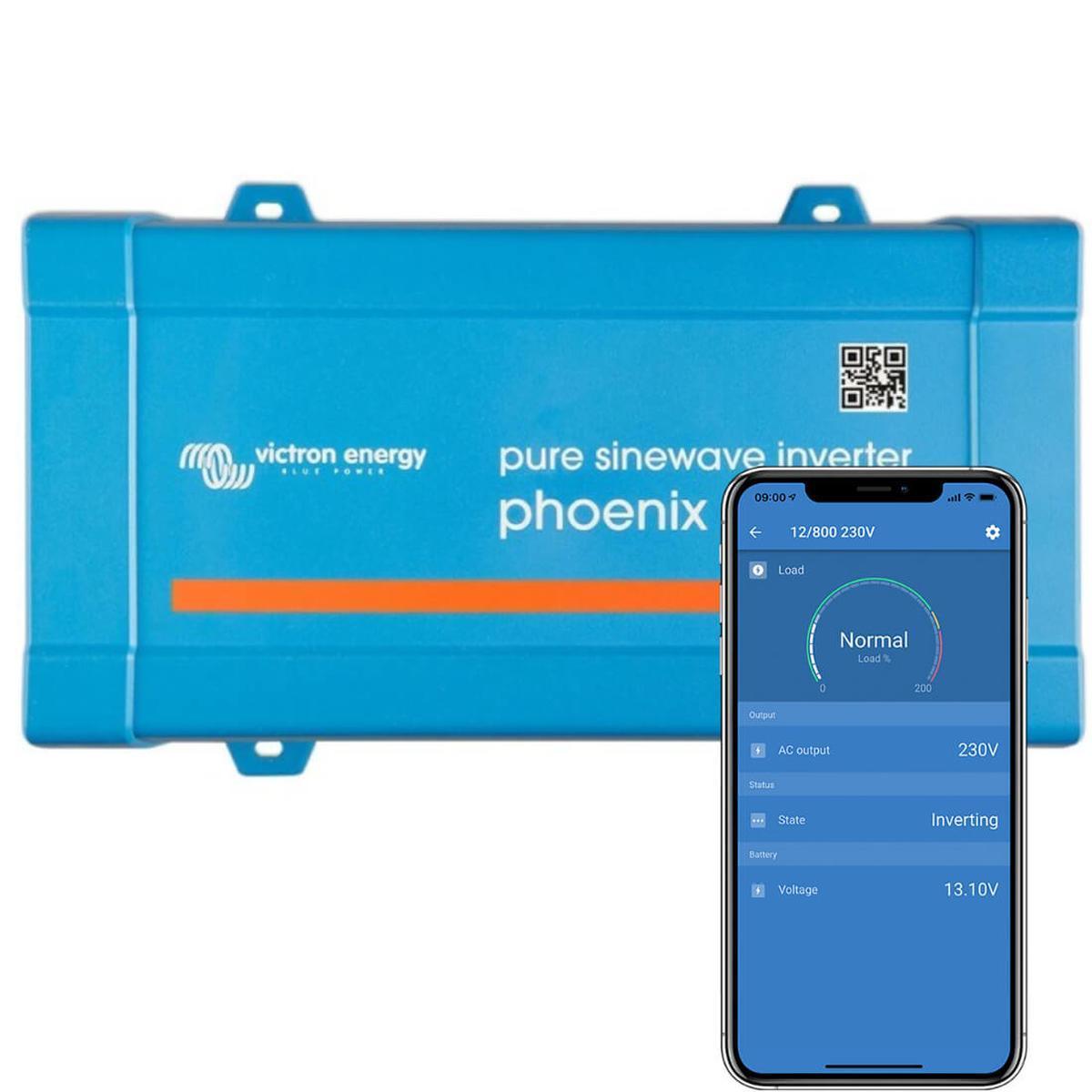

VE.Direct Communication Port
- Enables real-time monitoring and easy configuration via VictronConnect
- Enhances control over power management and system alerts
Eco Mode for Power Savings
- Automatically shuts down when idle to reduce energy consumption
- Reactivates instantly when power is needed, improving efficiency
High Surge Power Capacity
- Handles high inrush loads from appliances like compressors and motors
- Delivers extra peak power for demanding startup requirements
Advanced Safety Protections
- Includes overload, short-circuit, and temperature safeguards
- Ensures reliable and long-lasting operation in various conditions

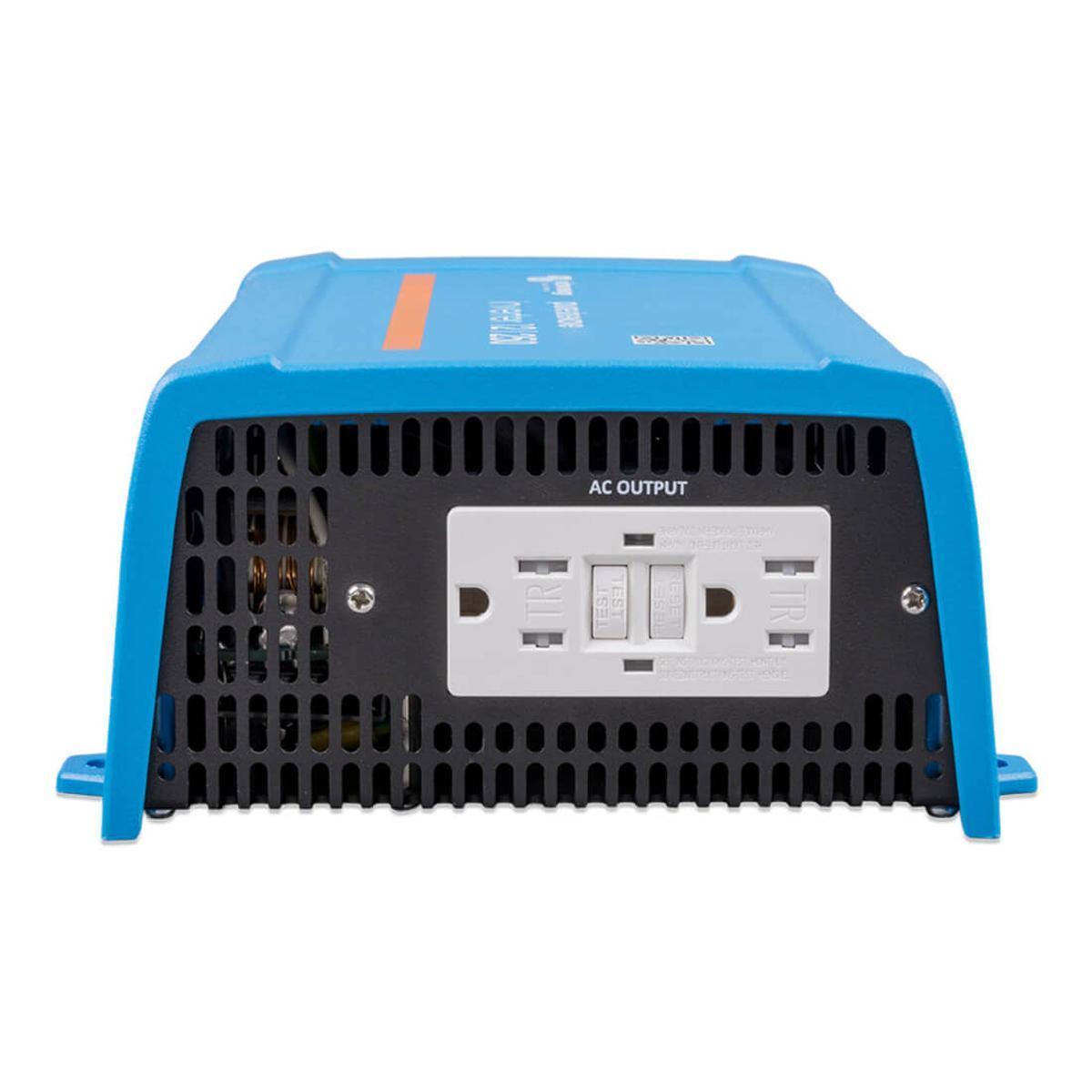

NEMA GFCI (UL 458) Outlet
- Provides safe and compliant power access for North American users
- Meets strict safety standards for secure energy distribution
Compact & Durable Design
- Built to withstand rugged use in off-grid, RV, marine, and emergency applications
- Steel chassis and plastic cover ensure durability and longevity
Intelligent Shutdown & Restart
- Prevents false alarms with smart power management
- Ensures uninterrupted operation without unnecessary shutdowns
Adjustable Power Settings
- Customizable low-voltage shutdowns and ECO mode adjustments
- Optimizes battery performance for different power needs
Reliable Performance & Efficiency
- High efficiency ratings up to 92% for maximum energy use
- Wide operating temperature range for versatile applications
Phoenix 12V VE.Direct NEMA GFCI (UL 458) Warranty
-
General Warranty: 5 years from the date of purchase by the original end-user (maximum of 66 months from the Victron Energy invoice date).
-
Lead-Acid Batteries: 2 years from the date of purchase (maximum of 30 months from the Victron Energy invoice date).
-
Lithium Batteries: 3 years from the date of purchase (maximum of 42 months from the Victron Energy invoice date).
-
Battery Warranty Claims: Proof of correct battery usage is required.
What's in the Boxs?
- Inverter Unit
- DC connection with screw terminals
- Standard AC outlet (NEMA GFCI )
- Male plug
Note: Additional accessories such as the VE.Direct to USB interface cable, VE.Direct Bluetooth Smart dongle, and Phoenix Inverter Control VE.Direct are available separately. Remote on/off switch capability is available but requires an external switch connection. The Automatic Transfer Switch (Filax) is recommended for switching between power sources but is sold separately.
Phoenix 12V VE.Direct NEMA GFCI (UL 458) Specification
| Inverter |
| 12 Volt |
12/250 | 12/375 | 12/500 | 12/800 | 12/1200 |
| Performance |
| Cont. power at 25°C |
250VA | 375VA | 500VA | 800VA | 1200VA |
| Cont. power at 25°C / 40°C |
200 / 175W | 300 / 260W | 400 / 350W | 650 / 550W | 1000 / 850W |
| Peak power |
400W | 700W | 900W | 1500W | 2200W |
| Output AC voltage / frequency (adjustable) |
230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1% |
| Input voltage range |
9.2 - 17V |
| DC low shut down (adjustable) |
9.3V |
| Battery charged detect (adjustable) |
14.0V |
| Max. efficiency |
87 / 88 / 88% | 89 / 89 / 90% | 89 / 90 / 91% | 90 / 90 / 91% | 91 / 91 / 92% |
| Zero-load power |
4.2 / 5.2 / 7.9W | 5.6 / 6.1 / 8.5W | 6 / 6.5 / 9W | 7 / 8 / 10W |
| Default zero-load power in ECO mode |
0.8 / 1.3 / 2.5W | 0.9 / 1.4 / 2.6W | 1 / 1.5 / 3.0W |
| ECO mode stop and start power setting |
Adjustable |
| Operating temperature range |
-40 to +65°C (fan assisted cooling) *Derate 1.25% per °C above 40°C |
| Humidity (non-condensing) |
max 95% |
| Enclosure |
| Material & Colour |
Steel chassis and plastic cover (blue Ral 5012) |
| Protection category |
IP 21 |
| Dimensions (h x w x d, mm) |
86 x 165 x 260 | 86 x 165 x 260 | 86 x 165 x 260 | 105 x 216 x 305 | 117 x 232 x 327 |
| Dimensions (h x w x d, inch) |
3.4 x 6.5 x 10.2 | 3.4 x 6.5 x 10.2 | 3.4 x 6.5 x 10.2 | 4.1 x 8.5 x 12.1 | 4.6 x 9.1 x 12.8 |
| Accessories |
| Remote on-off |
Yes |
| Automatic transfer switch |
Filax |
| Standards |
| Safety |
NEMA GFCI (UL 458) |
| EMC |
EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-3 |
| Automotive Directive |
ECE R10-4 |
Frequently Asked Questions
Frequently-Asked Questions
What is the power range of the Victron Phoenix 12V Inverter?
The inverter has a capacity range of 250VA to 1200VA, allowing it to support a variety of appliances and devices.
What does the GFCI (UL 458) feature provide?
The GFCI (Ground Fault Circuit Interrupter) certified to UL 458 ensures safety by cutting off power if a ground fault or leakage current is detected, reducing the risk of electric shock.
Is this inverter compatible with sensitive electronics?
Yes, the pure sine wave output ensures clean and stable power, making it safe for sensitive electronics such as laptops, TVs, and medical devices.
What appliances can I power with this inverter?
The inverter can power devices like LED lights, small electric tools, filament lamps, and appliances requiring high surge power, such as refrigerators and motors.
Does it have energy-saving features?
Yes, the inverter has an Eco Mode that reduces energy consumption by switching to standby during low loads and resuming operation when power demand increases.
Can I monitor and control this inverter remotely?
Yes, the VE.Direct communication port allows for real-time monitoring and configuration using the VictronConnect app on a smartphone or computer.
Is the inverter suitable for outdoor or mobile use?
Yes, it is designed for rugged applications, including RVs, boats, and off-grid setups, with a durable steel chassis and GFCI-protected NEMA outlet.
What protections are built into the inverter?
The inverter includes safeguards against overload, short circuits, and temperature issues, ensuring reliable and long-lasting operation.
What is the operating temperature range?
The inverter operates in temperatures ranging from -40°C to +65°C, with fan-assisted cooling to maintain performance in extreme conditions.
What are the dimensions and weight of the inverter?
The dimensions vary by model but range from 86 x 165 x 260 mm (3.4 x 6.5 x 10.2 inches) for smaller models to 117 x 232 x 327 mm (4.6 x 9.1 x 12.8 inches) for larger models. The weight depends on the specific model.
