Victron Phoenix 48V VE.Direct Power Inverter – Pure Sine Wave, NEMA 5-15R
The Victron Phoenix 48V VE.Direct Power Inverter is a high-performance, pure sine wave inverter designed for reliable and efficient power conversion. With advanced VE.Direct communication, this inverter allows seamless monitoring and configuration via a computer, smartphone, or tablet. Users can customize settings such as low battery voltage cut-off, output voltage (210V-245V), frequency (50Hz/60Hz), and ECO mode sensitivity. The NEMA 5-15R output socket ensures compatibility with a wide range of appliances, making it ideal for both residential and commercial applications.
Built with proven reliability, the Phoenix 48V inverter utilizes a full bridge plus toroidal transformer topology, ensuring durability and protection against short circuits, overloads, and overheating. The high start-up power capability supports demanding loads, including LED lighting systems, power tools, and other electrical devices. Additionally, ECO mode enhances energy efficiency by reducing power consumption when loads are low, automatically switching to standby and reactivating as needed.
Installation and usability are streamlined with screw terminal DC connections, requiring no special tools for setup. A remote on/off feature allows external control, while LED diagnostics provide quick status monitoring. For seamless power transition, the inverter is compatible with the Filax Automatic Transfer Switch, ensuring uninterrupted operation for sensitive electronics. Available in multiple models, the Victron Phoenix 48V VE.Direct Power Inverter is a dependable choice for anyone requiring stable and efficient off-grid or backup power.
The Victron Phoenix 48V VE.Direct Power Inverter is available in the following models:

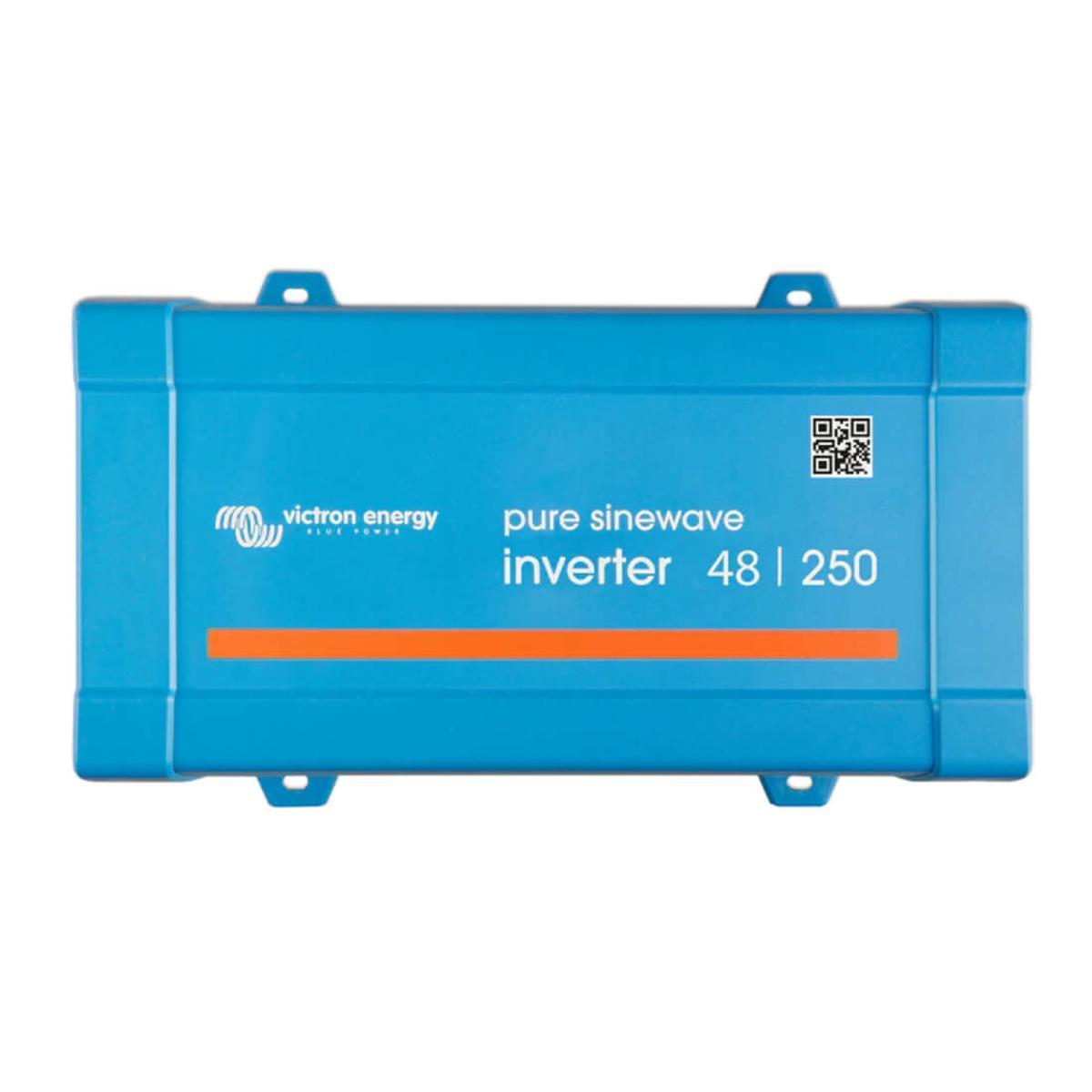

- 48/250 – Peak Power: 400W

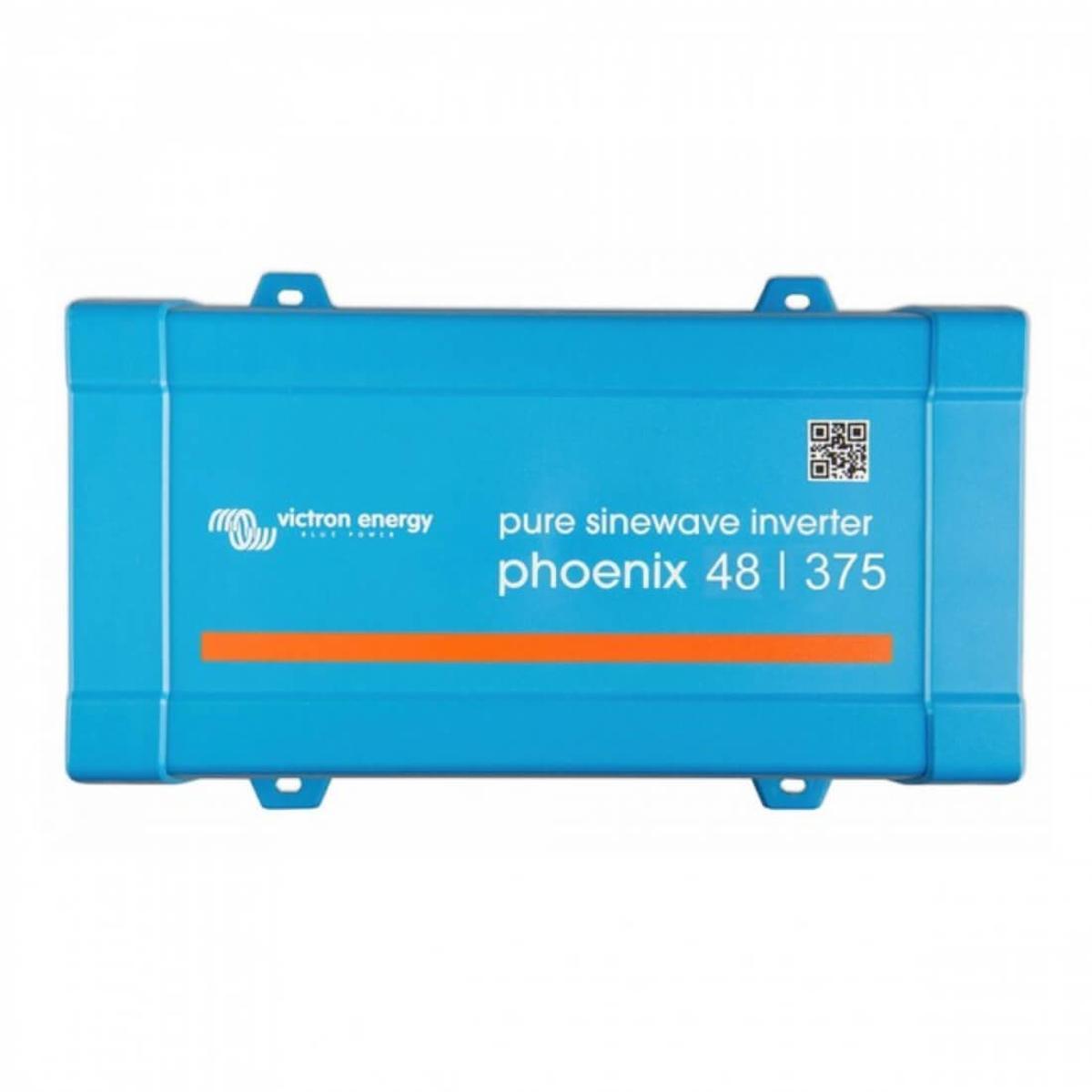

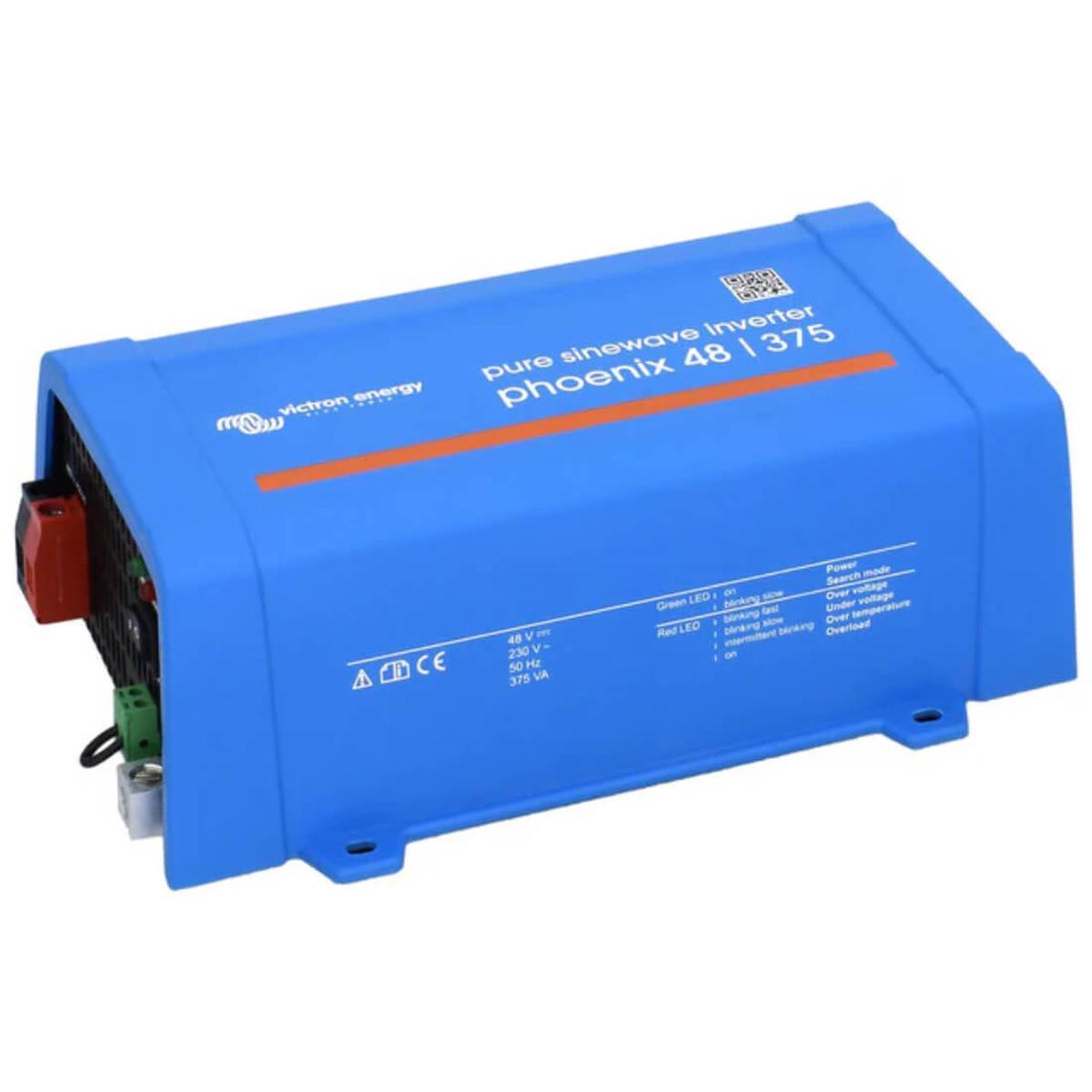

- 48/375 – Peak Power: 700W
- 48/500 – Peak Power: 900W

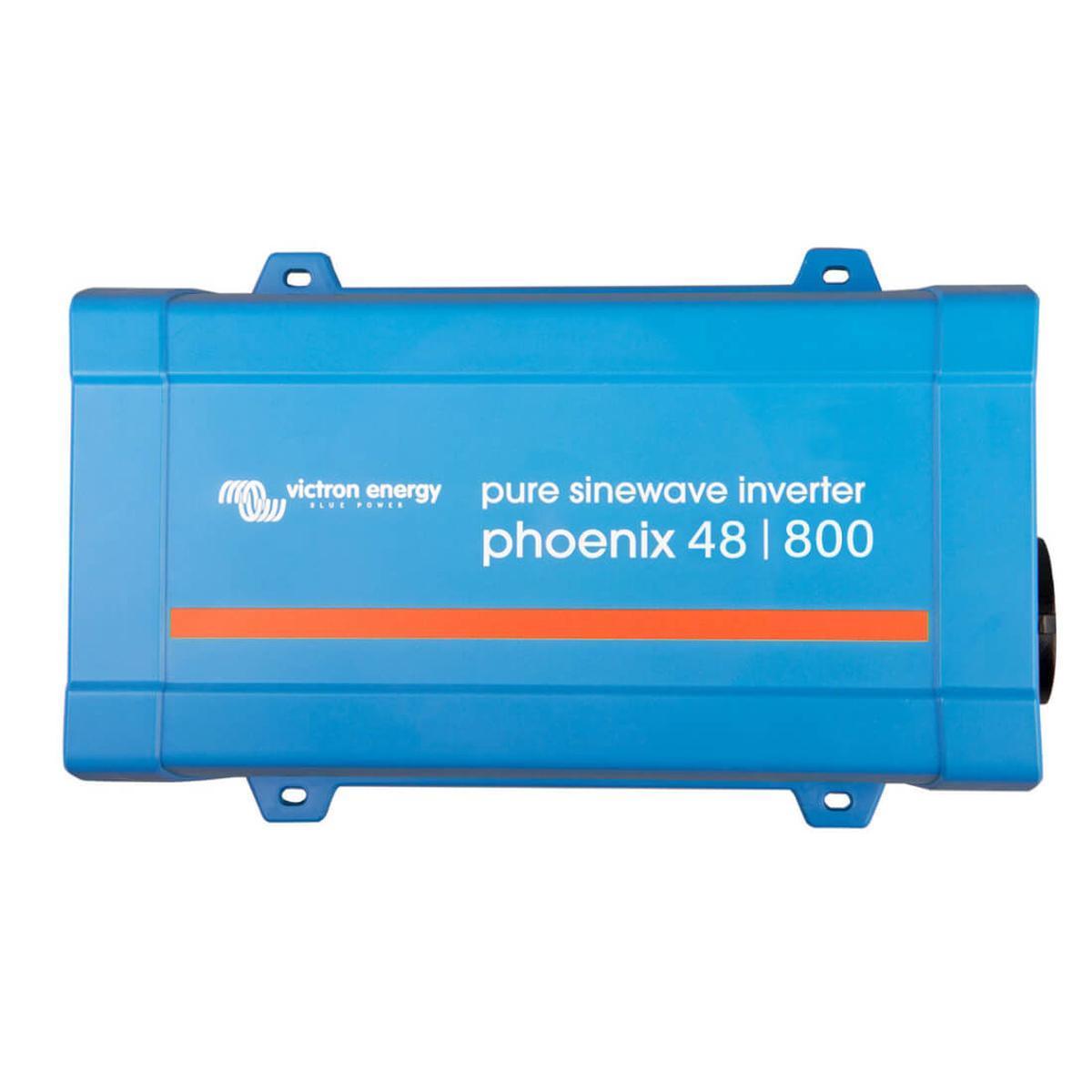

- 48/800 – Peak Power: 1500W

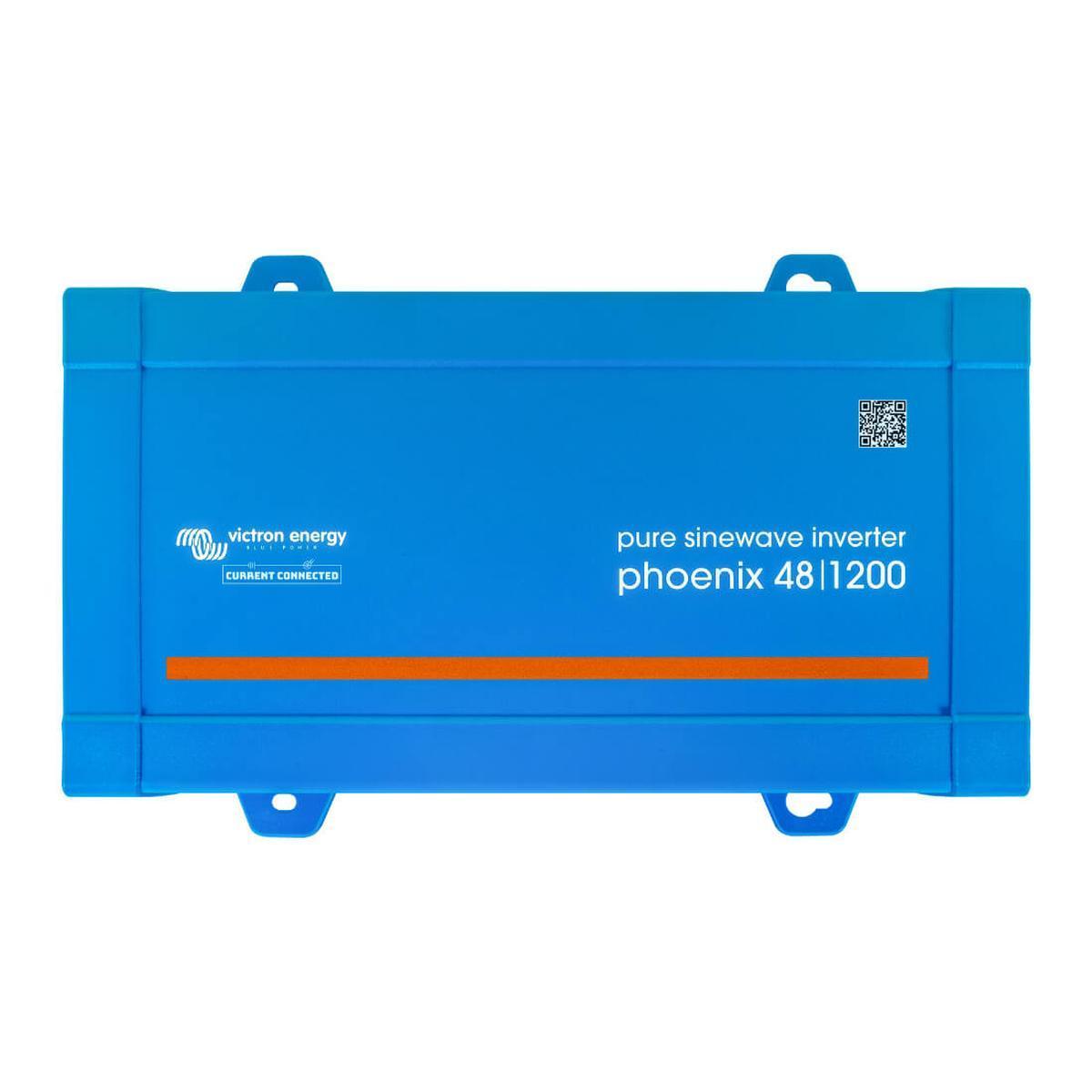

- 48/1200 – Peak Power: 2200W
Phoenix 48V NEMA 5-15R VE.Direct Features
VE.Direct Communication Port
- Connects to computers, smartphones, and tablets for easy monitoring.
- Enables real-time configuration and data tracking.
Fully Configurable Settings
- Customize voltage, frequency, and battery cut-off levels to suit your needs.
- Adjust ECO mode sensitivity for better power efficiency.
Reliable Pure Sine Wave Output
- Delivers clean and stable power for sensitive electronics.
- Prevents overheating and damage to appliances.
High Start-Up Power
- Supports power tools, LED lighting, and heavy loads.
- Ensures smooth operation without voltage drops.
ECO Mode for Energy Efficiency
- Automatically reduces power consumption when demand is low.
- Extends battery life and overall inverter efficiency.
Short-Circuit & Overheat Protection
- Built-in safety features prevent damage from electrical faults.
- Durable design ensures long-term reliability.
Remote On/Off Capability
- Allows external power control for added convenience.
- Saves energy by switching off when not in use.
LED Diagnostic Indicators
- Provides quick status updates at a glance.
- Helps with easy troubleshooting and maintenance.
Fast Automatic Transfer Switch Compatibility
- Works with the Filax Automatic Transfer Switch for seamless power transition.
- Protects computers and sensitive electronics from power interruptions.
Phoenix 48V VE.Direct NEMA 5-15R Warranty
- General Warranty: 5 years from the date of purchase by the original end-user
- Lead-Acid Batteries: 2 years from the date of purchase.
- Lithium Batteries: 3 years from the date of purchase.
- Battery Warranty Claims: Proof of correct battery usage is required.

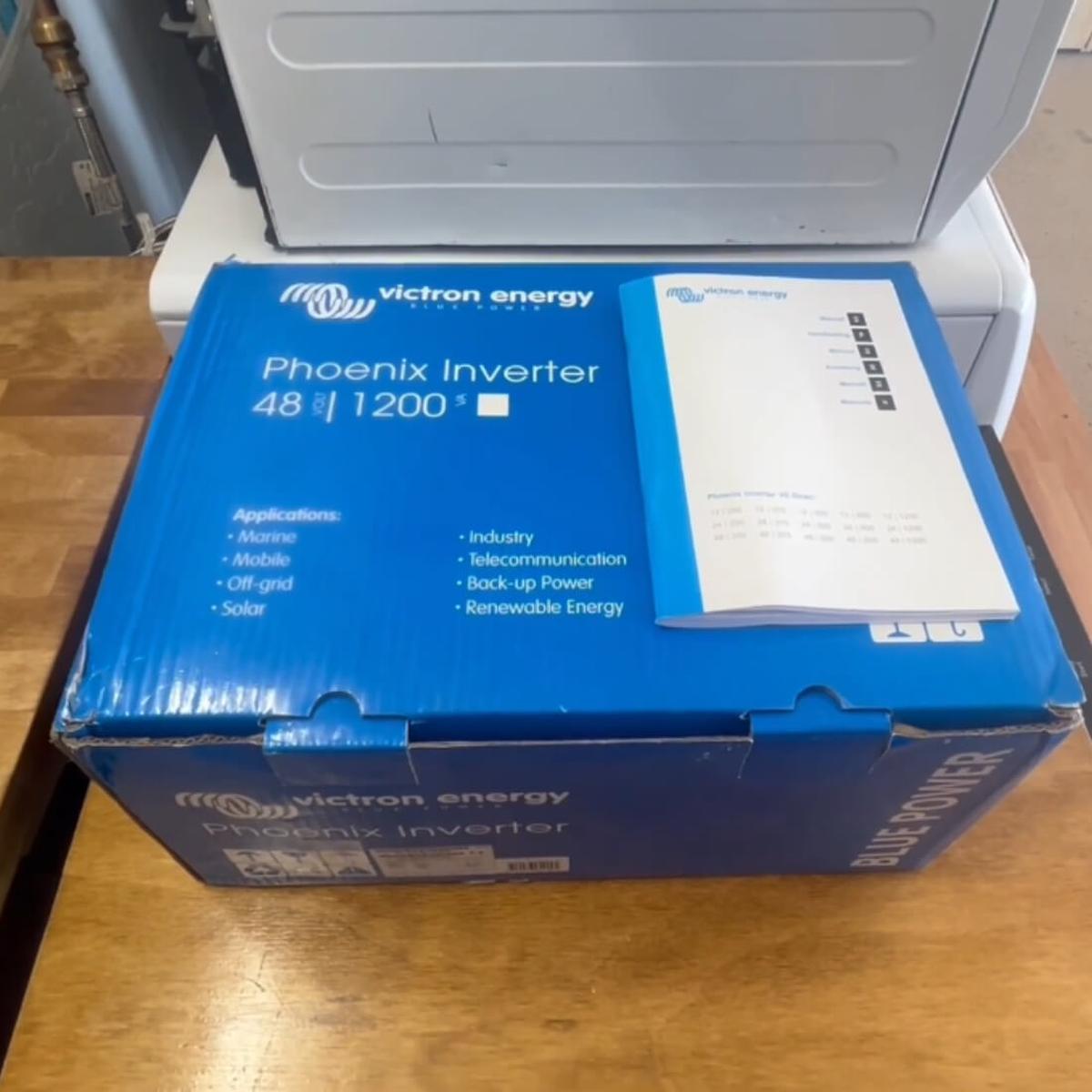

Whats in the Box
-
Victron Energy Inverter unit
-
DC screw terminals for battery connection
-

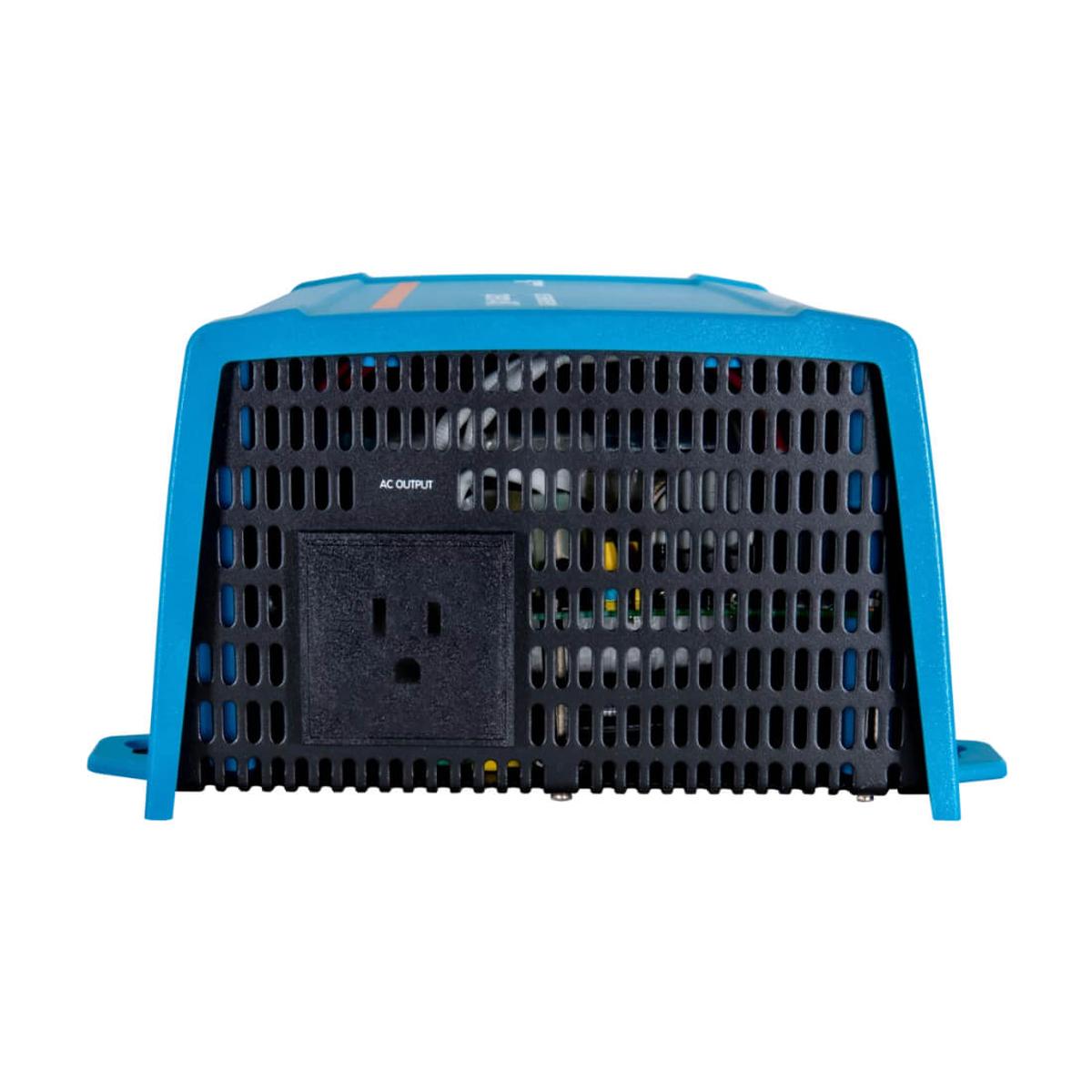

AC output socket (varies by model: Schuko, Nema 5-15R, UK, AU/NZ, or IEC-320)
-
Male AC plug (included with IEC-320 models)
-
Built-in LED indicator lights
-
User manual (typically included)
Note: Additional accessories such as the VE.Direct to USB interface cable, VE.Direct Bluetooth Smart dongle, and Phoenix Inverter Control VE.Direct are available sold separately.
Phoenix 48V NEMA 5-15R VE.Direct Specification
| Model |
48/250 |
48/375 |
48/500 |
48/800 |
48/1200 |
| Cont. Power at 25°C |
250VA |
375VA |
500VA |
800VA |
1200VA |
| Cont. Power at 25°C / 40°C |
200W / 175W |
300W / 260W |
400W / 350W |
650W / 600W |
1000W / 900W |
| Peak Power |
400W |
700W |
900W |
1500W |
2200W |
| Output AC Voltage / Frequency (Adjustable) |
230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1% |
| Input Voltage Range |
36,8 - 62,0V |
| DC Low Shut Down |
37,2V |
| DC Low Restart and Alarm |
43,6V |
| Battery Charged Detect |
56,0V |
| Efficiency |
88% |
90% |
91% |
91% |
92% |
| Zero-Load Power |
7,9W |
8,5 W |
9W |
9,5W |
10W |
| Protection |
a - f |
| Operating Temperature Range |
-40 to +65°C (fan assisted cooling) |
| Humidity (Non-Condensing) |
max 95% |
| Material & Colour |
Steel chassis and plastic cover (Blue RAL 5012) |
| Weight |
3.0 kg |
3.6 kg |
4.0 kg |
5.9 kg |
7.4 kg |
| Dimensions (HxWxD mm) |
86 x 165 x 260 |
86 x 172 x 275 |
105 x 230 x 325 |
105 x 230 x 355 |
125 x 230 x 375 |
| Remote On-Off |
Yes |
| Automatic Transfer Switch |
Filax |
| Safety |
NEMA 5-15R |
| EMC |
EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 |
| Automotive Directive |
ECE R10-4 |
Phoenix 48V NEMA 5-15R VE.Direct FAQ's
What makes the Victron Phoenix 48V VE.Direct Power Inverter unique?
This inverter features pure sine wave output for clean and stable power, VE.Direct communication for easy monitoring, and high start-up power to support demanding loads like power tools and LED lighting.
What type of devices can I run with this inverter?
You can power sensitive electronics, LED lighting, power tools, small appliances, and other AC devices, thanks to its pure sine wave output.
How do I monitor and configure the inverter?

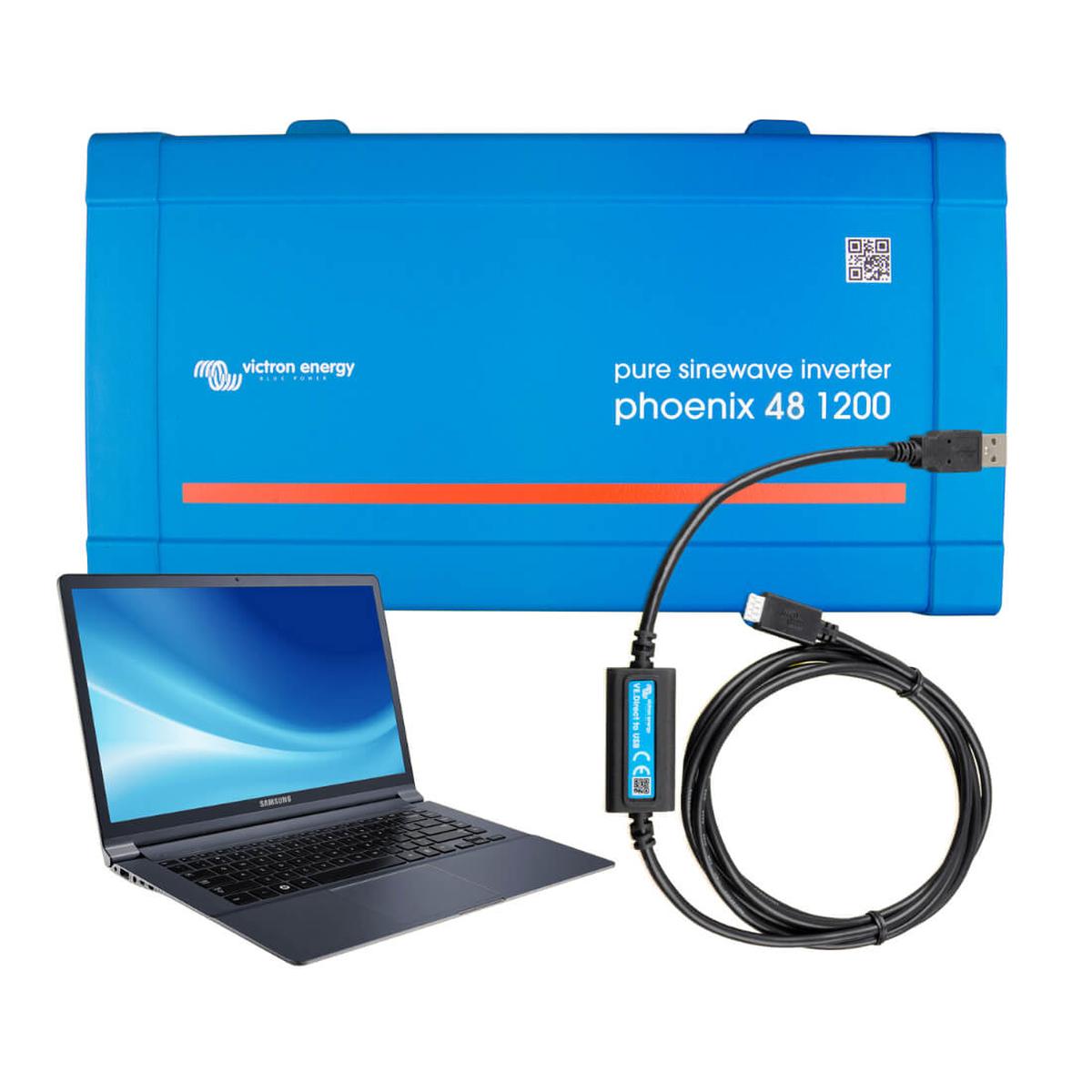

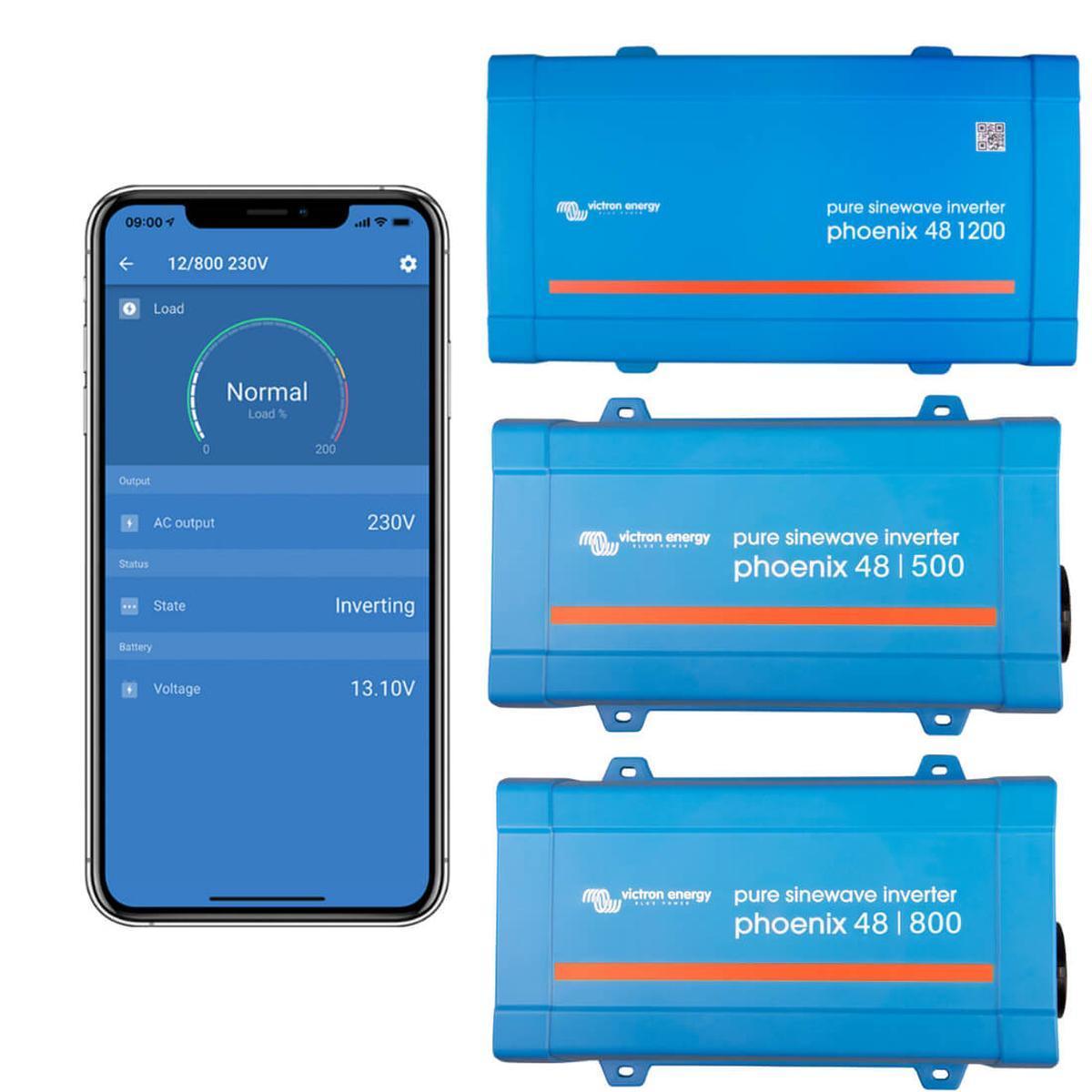

The VE.Direct port allows you to connect it to a computer via a VE.Direct to USB cable or to a smartphone/tablet using a VE.Direct Bluetooth Smart dongle for real-time monitoring and customization.
What is ECO mode, and how does it help?
ECO mode reduces power consumption by automatically switching the inverter to standby when the load is low. It turns back on when the demand increases, saving energy and extending battery life.
Does this inverter have built-in protection features?
Yes, it includes short-circuit protection, overload protection, overheating protection, and dynamic low-voltage cut-off to ensure safe operation.
Can I use this inverter with a solar power system?
Yes, it is compatible with solar power setups and can work alongside charge controllers and battery banks for efficient energy conversion.
Does it support remote control functionality?
Yes, you can connect a remote on/off switch to control the inverter externally, allowing for more convenient operation.
What is the peak power rating, and why is it important?
Peak power refers to the maximum short-term power the inverter can provide to start high-surge devices. For example, the 48/1200 model can handle up to 2200W at peak demand.
Can I use this inverter with an automatic transfer switch?
Yes, it is compatible with the Filax Automatic Transfer Switch, which allows seamless switching between inverter power and an alternate AC power source.
What’s included in the package, and what accessories might I need?
The inverter comes with the main unit and user manual. Additional accessories like the VE.Direct USB cable, Bluetooth Smart dongle, and remote on/off switch may be needed for extended functionality.
Manuals and PDFs
Phoenix 48V NEMA 5-15R VE.Direct Manual
