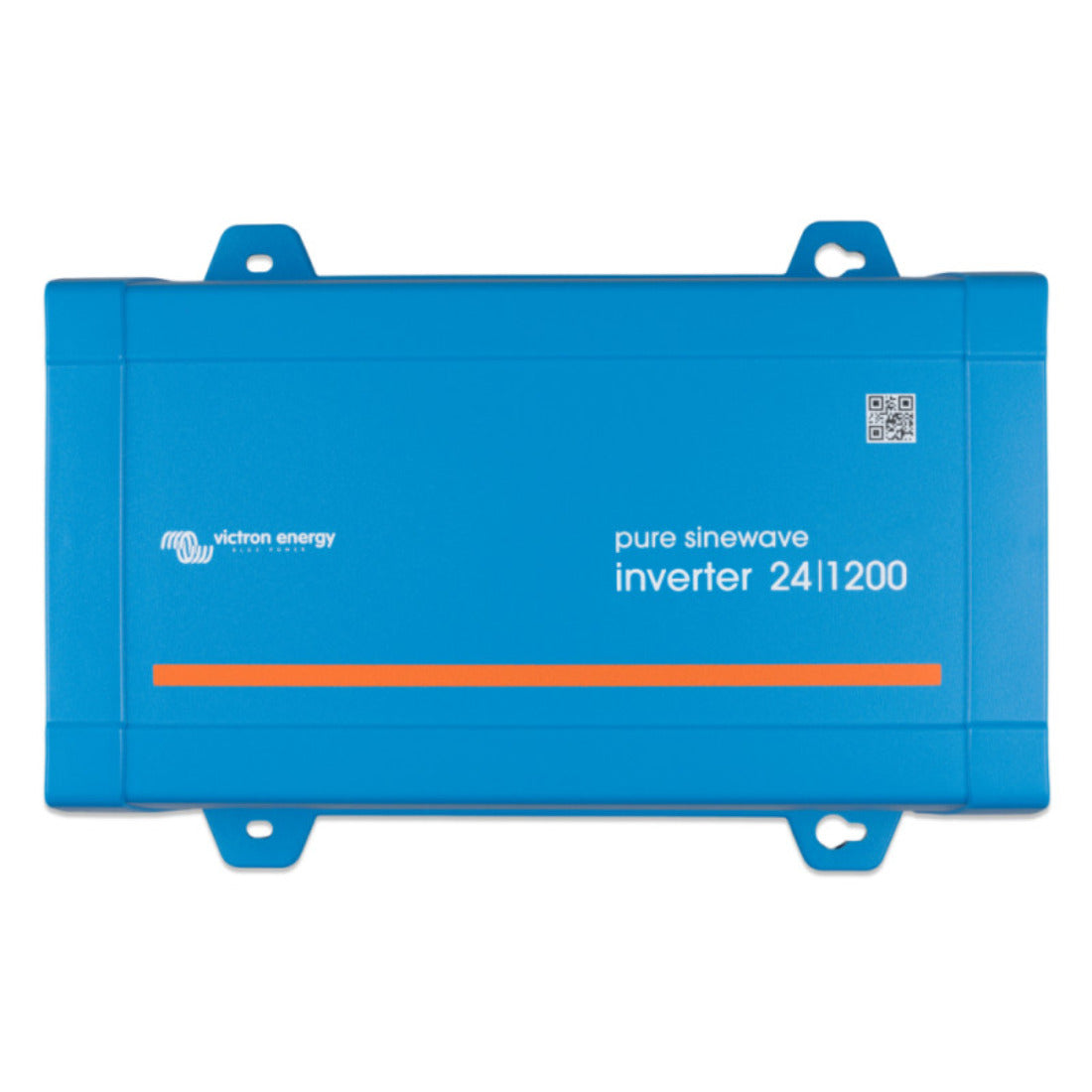

Victron Phoenix 24V VE.Direct NEMA GFCI Inverter (UL 458) – 250W to 1200W Power Options
Looking for a reliable and safe power solution for your off-grid or mobile setup? The 24V VE.Direct NEMA GFCI Inverter is designed with a built-in Ground Fault Circuit Interrupter (GFCI) to minimize the risk of electric shocks, making it ideal for wet or high-risk environments. Engineered with advanced full-bridge and toroidal transformer technology, it delivers clean, stable power for sensitive electronics while offering short-circuit, overload, and temperature protection. Whether used in RVs, marine applications, off-grid systems, or emergency backup power, this inverter ensures long-lasting durability and interference-free operation.

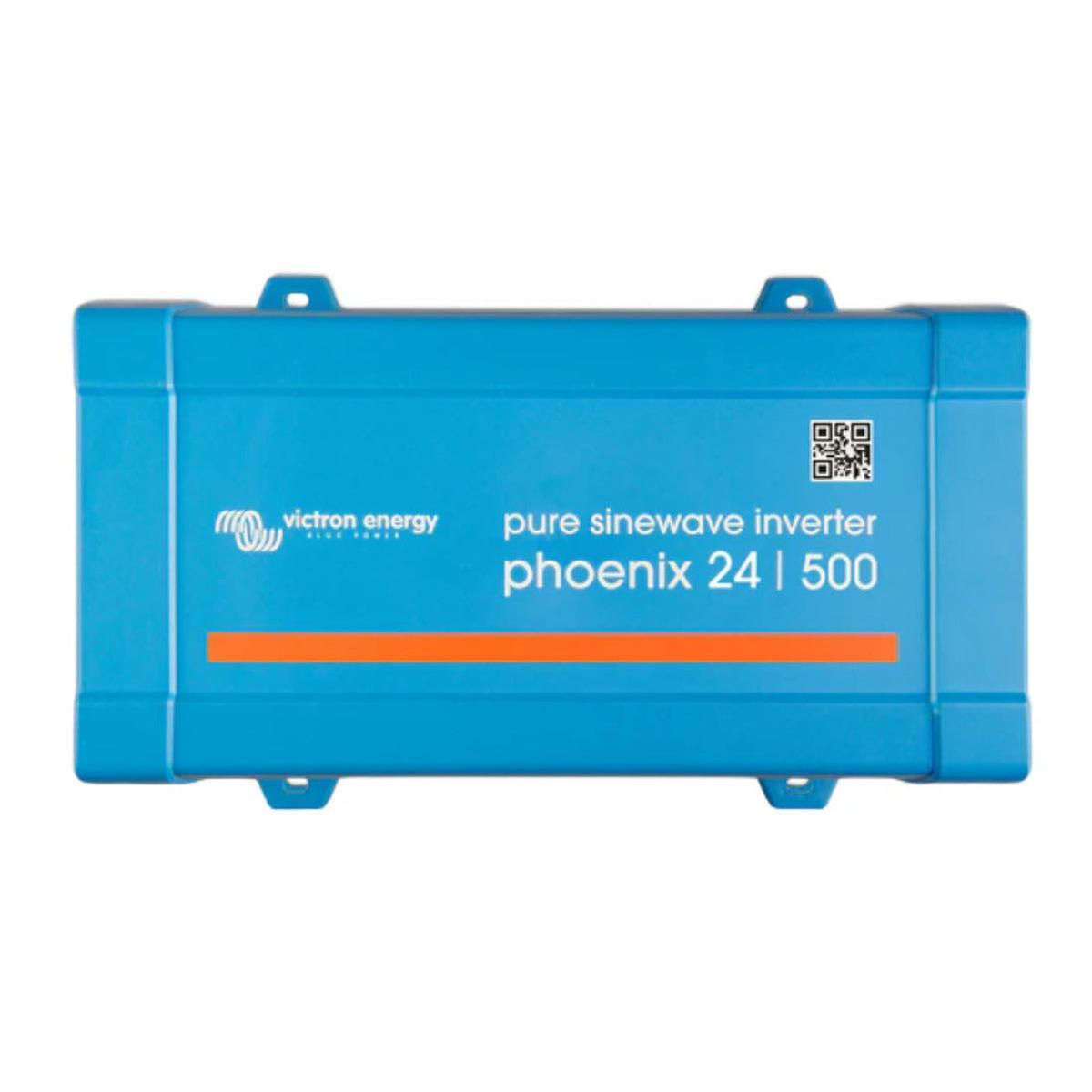

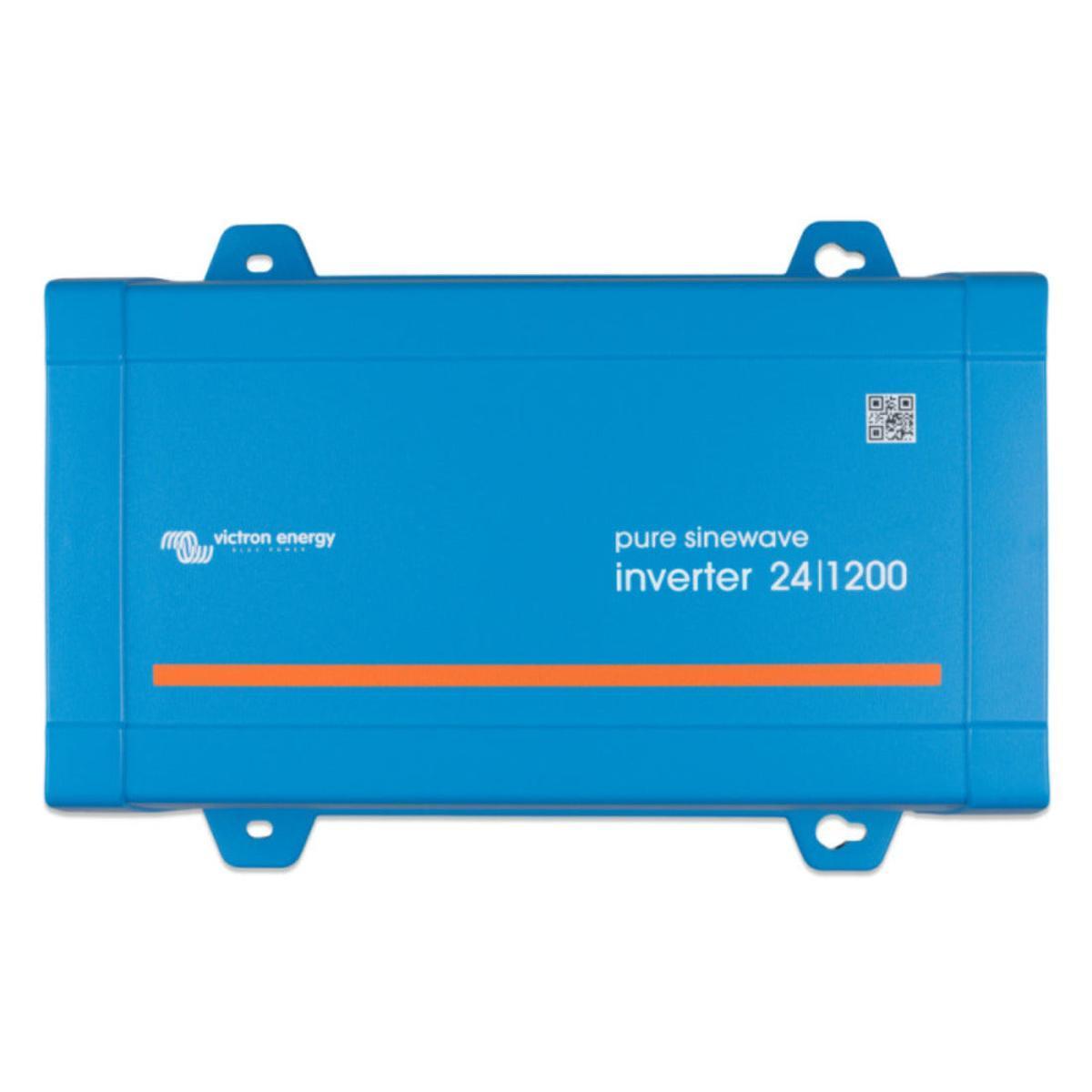

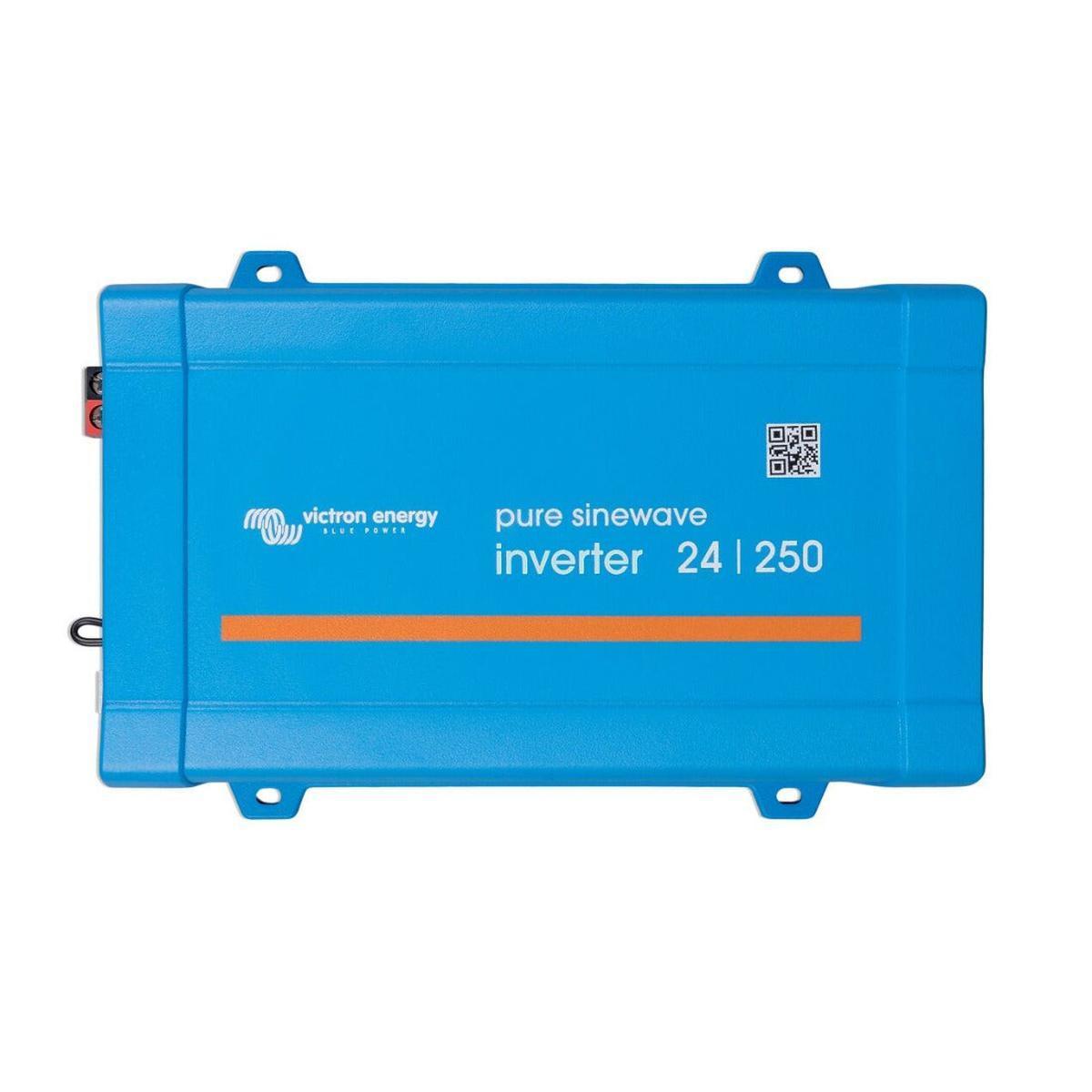

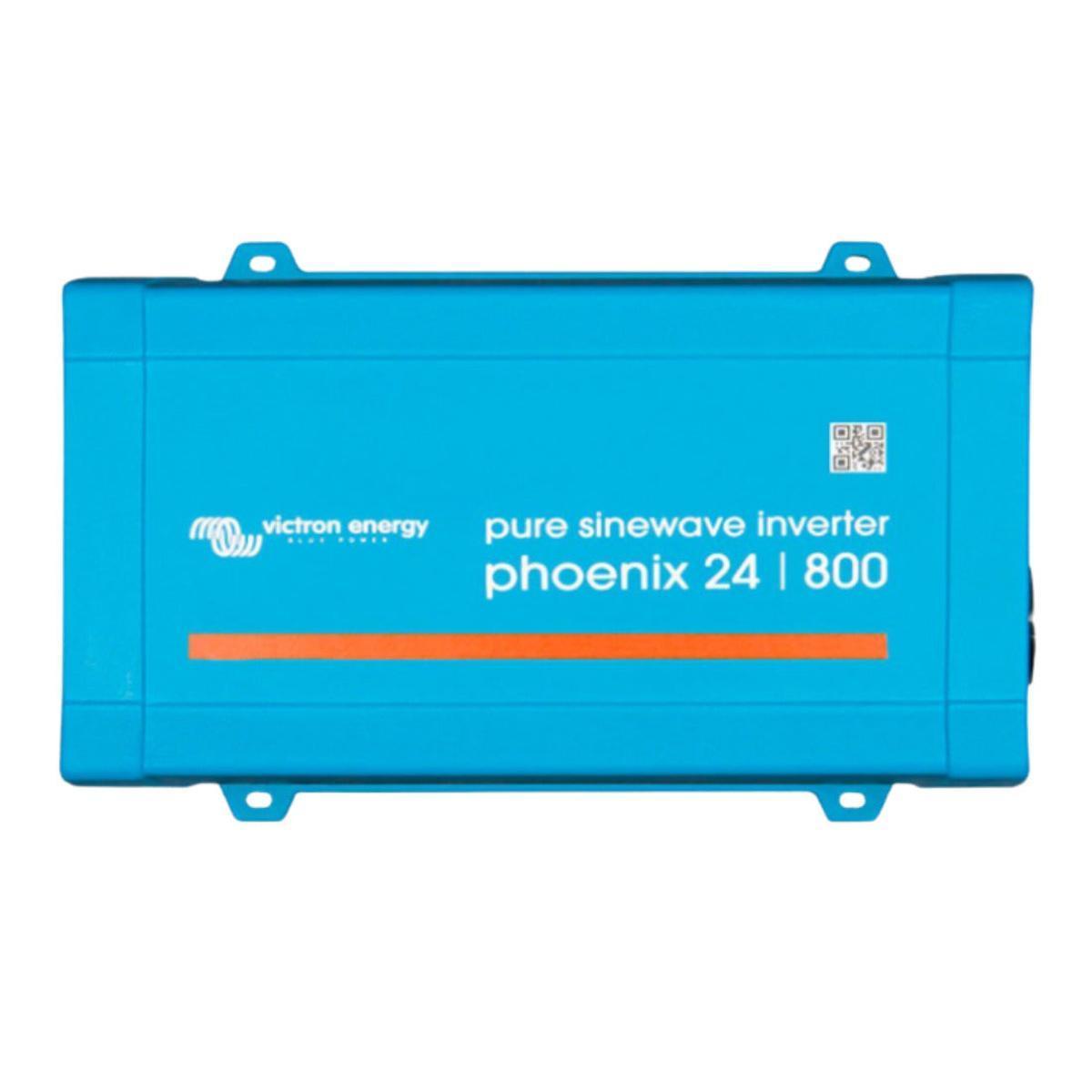

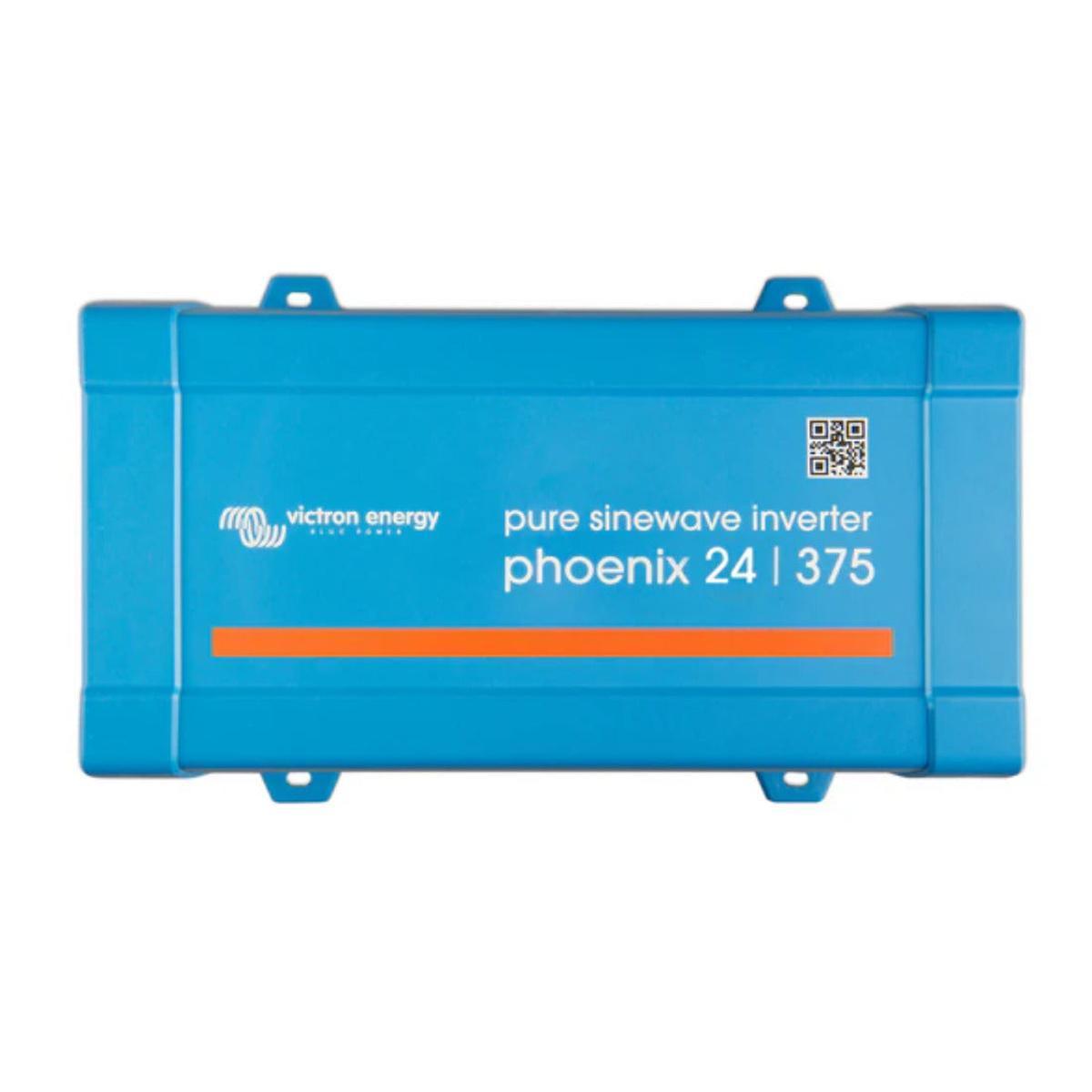

Available in five models—24/250, 24/375, 24/500, 24/800, and 24/1200—the 24V VE.Direct NEMA GFCI Inverter is built to handle high-power demands with industry-leading peak power. It’s perfect for running motor-driven appliances such as refrigerators, compressors, and power tools, ensuring stable performance even during high-startup surges. Its smart alarm and restart system prevents false shutdowns and automatically attempts restarts after short high-power draws. For seamless power management, it is also compatible with the Filax Automatic Transfer Switch, providing ultra-fast <20ms switching to prevent disruptions for critical electronics.
Designed for efficiency and convenience, the 24V VE.Direct NEMA GFCI Inverter features an energy-saving ECO mode, which switches to standby when no power is needed, reducing unnecessary energy consumption and extending battery life. The VE.Direct port enables complete customization via the VictronConnect app, allowing users to monitor performance, set low-voltage cut-off levels, and configure alarms remotely. With LED diagnostic indicators, a remote on/off function, and a durable steel chassis, this inverter offers a compact, robust, and user-friendly power solution for any mobile or off-grid setup.
Victron Phoenix 24V VE.Direct NEMA GFCI Inverter Features
24V VE.Direct NEMA GFCI Inverter

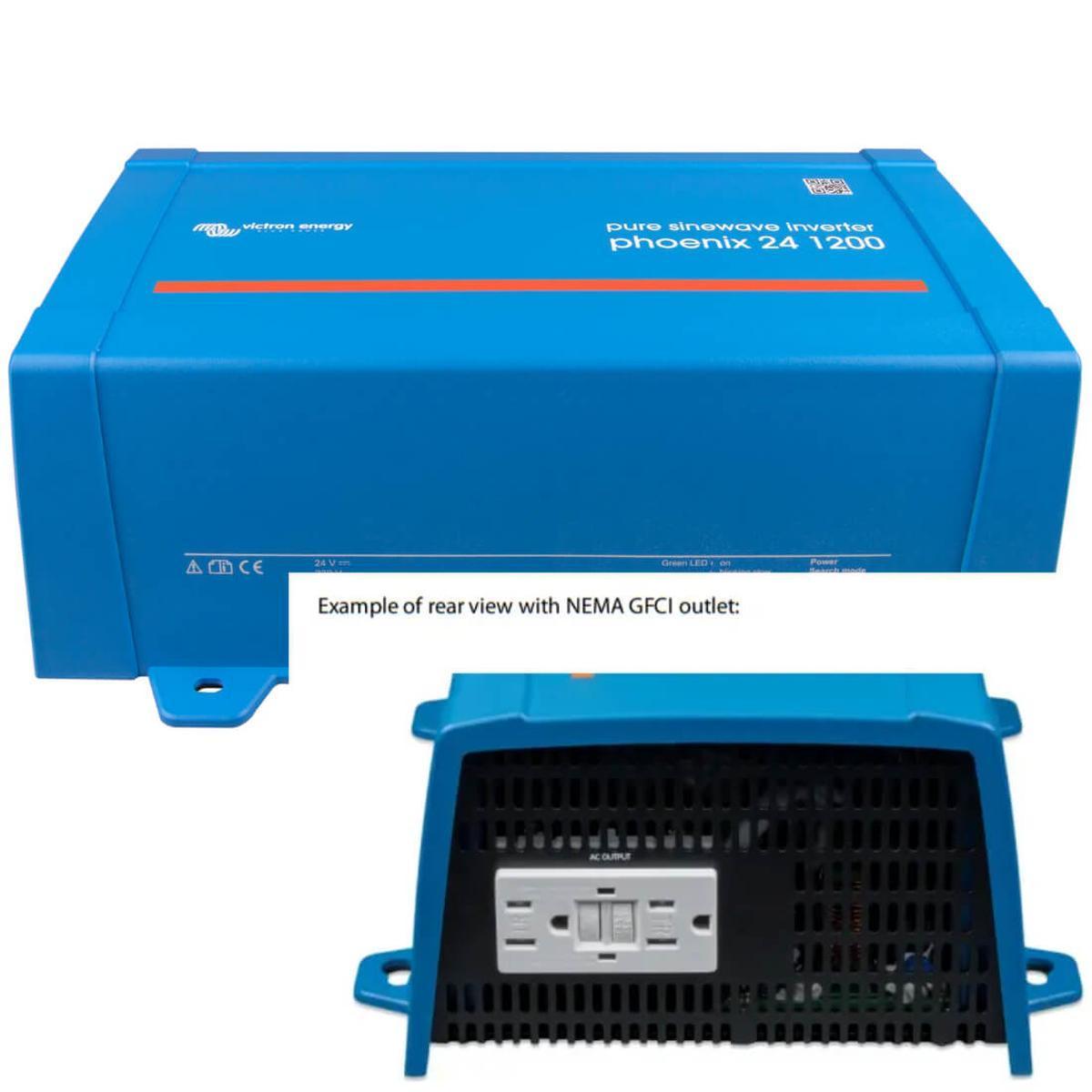

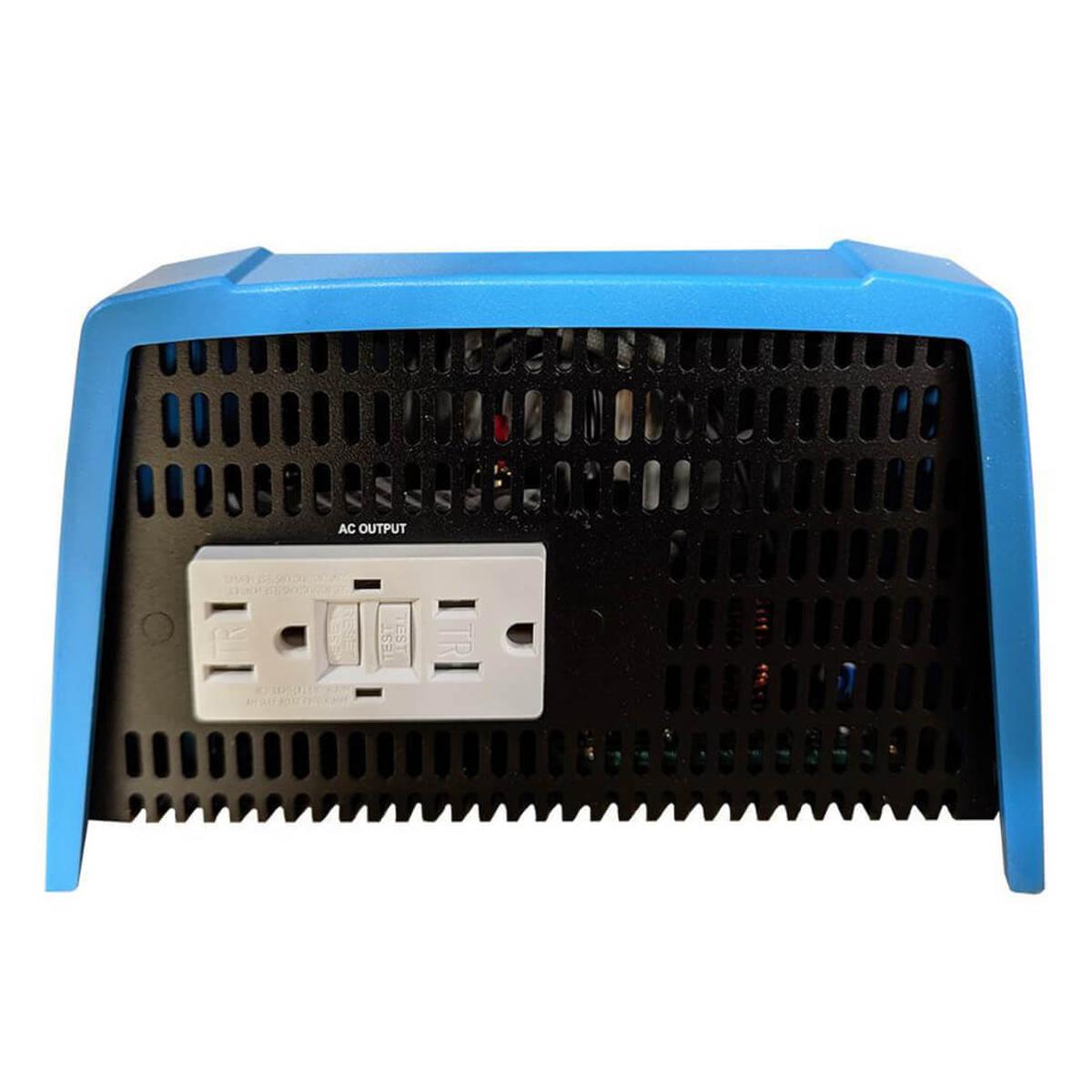

- Built-in Ground Fault Circuit Interrupter (GFCI) for enhanced safety.
- Reduces the risk of electric shocks, ensuring compliance with safety standards.
- Ideal for wet or high-risk environments requiring additional protection.
Highly Reliable - Built for Longevity
- Advanced full-bridge and toroidal transformer technology ensures durability and stable power.
- Provides clean, interference-free power for sensitive electronics.
- Equipped with short-circuit, overload, and temperature protection for safe operation.
High Peak Power for Demanding Loads
- Delivers industry-leading peak power for motor-driven devices.
- Supports refrigerators, compressors, power tools, and other high-startup surge appliances.
- Ensures consistent and stable performance under demanding conditions.
Smart Alarms, Shutdowns, and Restarts
- Prevents false alarms due to short high-power draws.
- Automatic restart attempts help maintain uninterrupted operation.
- Shuts down only in cases of persistent overload for added protection.
Energy-Saving ECO Mode
- Automatically switches to standby mode when no power is needed.
- Periodically checks the load and reactivates when necessary.
- Reduces energy consumption, helping to extend battery life.
Fully Configurable with VE.Direct Port

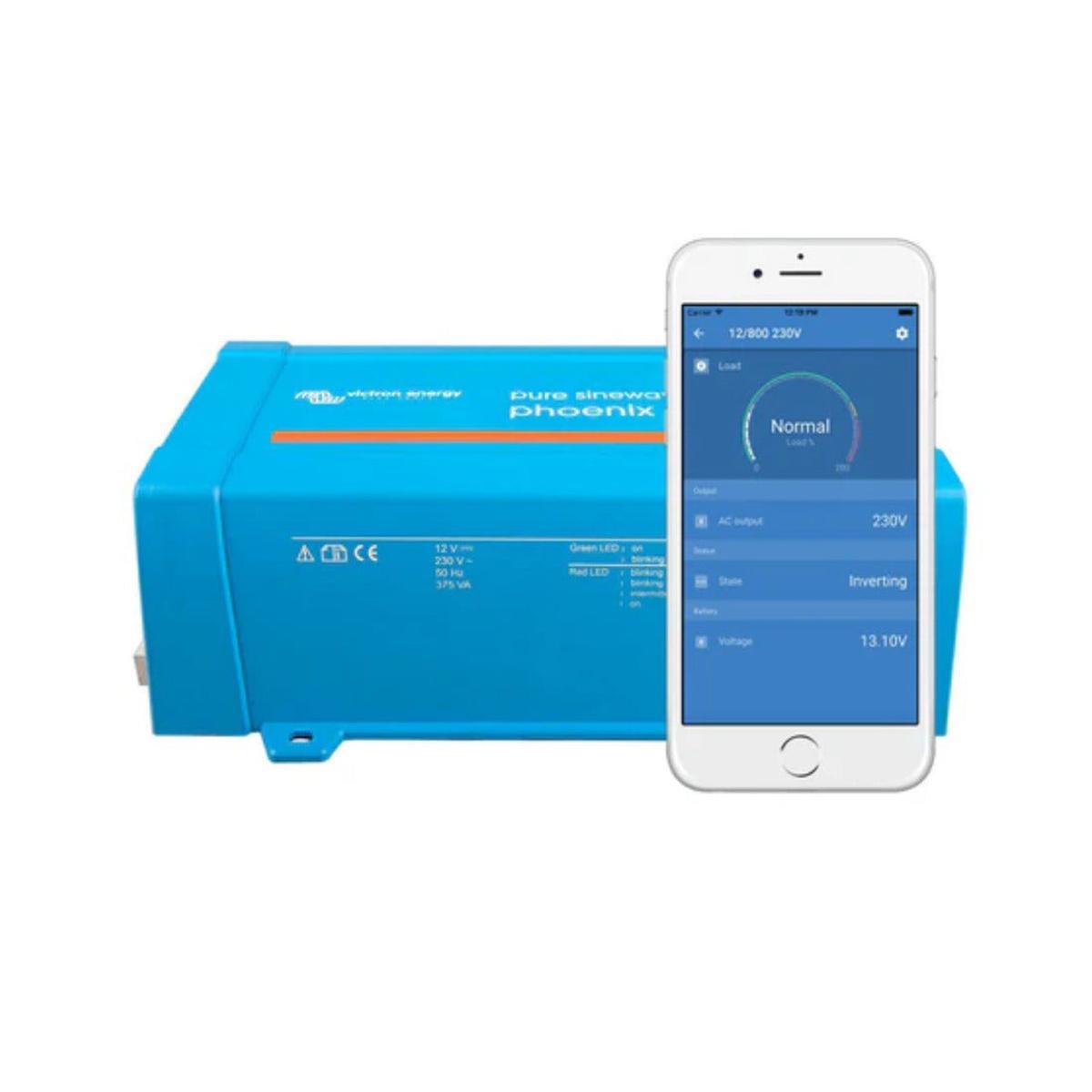

- Monitor and adjust settings via the VictronConnect app.
- Supports low battery voltage alarms and customizable cut-off levels.
- Compatible with USB or Bluetooth dongle for remote control and monitoring.
High Start-Up Power Capability
- Handles power-hungry loads effortlessly.
- Ideal for electric tools, pumps, and compressors requiring high surge power.
- Ensures smooth operation for peak-demand appliances.
Remote On/Off Function
- Can be controlled via a switch or direct battery connection.
- Enables convenient power management in off-grid or mobile setups.
- Improves flexibility and ease of operation.

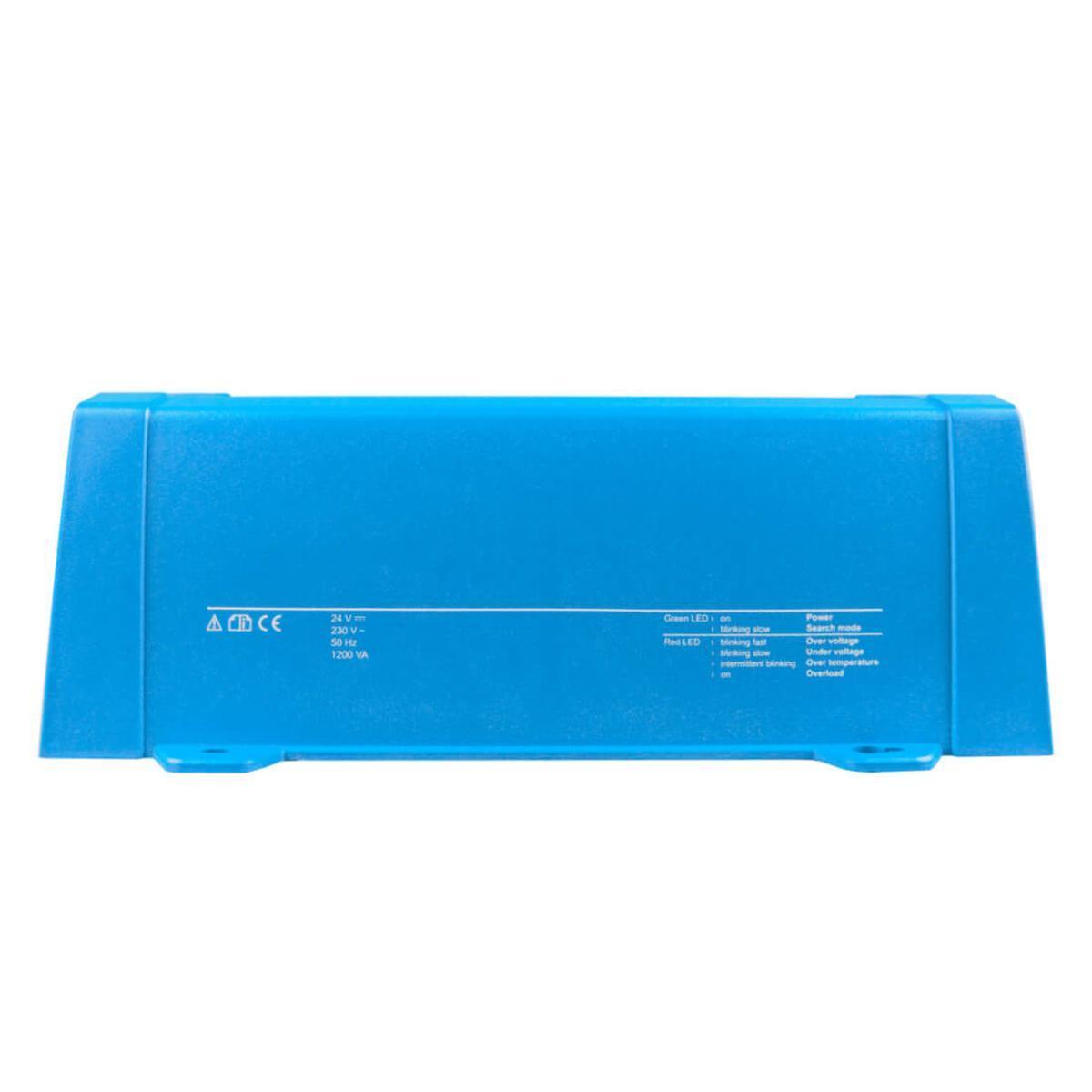

LED Diagnosis for Status Monitoring
- Provides clear status indicators for quick troubleshooting.
- Helps detect power issues efficiently, reducing downtime.
- Easy-to-understand diagnostics simplify maintenance.
Fast Automatic Power Transfer Compatibility
- Works with the Filax Automatic Transfer Switch for seamless switching.
- Ultra-fast <20ms switchover prevents interruptions in power-sensitive devices.
- Ensures continuous operation for critical electronics.
Compact, Durable, and Versatile
- Lightweight yet robust design for multiple applications.
- Ideal for RVs, marine use, off-grid systems, and emergency power.
- Features a steel chassis with a protective plastic cover for durability.
Phoenix 24V VE.Direct NEMA GFCI Inverter Warranty
- General Warranty: 5 years from the date of purchase by the original end-user (maximum of 66 months from the Victron Energy invoice date).
- Lead-Acid Batteries: 2 years from the date of purchase (maximum of 30 months from the Victron Energy invoice date).
- Lithium Batteries: 3 years from the date of purchase (maximum of 42 months from the Victron Energy invoice date).
- Battery Warranty Claims: Proof of correct battery usage is required.
What's in the Box?
-
Phoenix Inverter Unit
-
AC Output Sockets (Schuko, UK, AU/NZ, IEC-320, or NEMA 5-15R depending on the model)
-
Battery Connection Terminals (Screw terminals)
-
Remote On/Off Switch
-
Instruction Manual
Accessories (sold separately)
Victron Phoenix 24V VE.Direct NEMA GFCI Inverter Specification
| Model |
48/1200 |
| Cont. Power at 25°C |
1200VA |
| Cont. Power at 25°C / 40°C |
1000W / 900W |
| Peak Power |
2200W |
| Output AC Voltage / Frequency (Adjustable) |
230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1% |
| Input Voltage Range |
18.4 - 34.0V |
| DC Low Shut Down |
18.6V |
| DC Low Restart and Alarm |
21.8V |
| Battery Charged Detect |
26.4V |
| Efficiency |
92% |
| Zero-Load Power |
9.5 / 10.9 W |
| Protection |
a - f |
| Operating Temperature Range |
-40 to +65°C (fan assisted cooling) |
| Humidity (Non-Condensing) |
max 95% |
| Material & Colour |
Steel chassis and plastic cover (Blue RAL 5012) |
| Weight |
7.4 kg |
| Dimensions (HxWxD mm) |
4.6 x 9.1 x 12.9" |
| Remote On-Off |
Yes |
| Automatic Transfer Switch |
Filax |
| Safety |
NEMA GFCI (UL 458) |
| EMC |
EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 |
| Automotive Directive |
ECE R10-4 |
Victron Phoenix 24V VE.Direct NEMA GFCI Inverter FAQ's
What is the purpose of the built-in NEMA GFCI on this inverter?
The built-in Ground Fault Circuit Interrupter (GFCI) enhances safety by reducing the risk of electric shocks, making it ideal for wet or high-risk environments.
Which appliances can this inverter power?
This inverter supports various devices, including refrigerators, compressors, power tools, pumps, and other motor-driven appliances that require high startup surge power.
What are the available power options for this inverter?
The Victron Phoenix 24V VE.Direct NEMA GFCI Inverter is available in five models: 24/250, 24/375, 24/500, 24/800, and 24/1200, with continuous power outputs ranging from 250VA to 1200VA.
Does this inverter have surge protection?
Yes, it offers industry-leading peak power protection to handle high startup surges for demanding appliances, preventing damage to sensitive electronics.
Can I monitor and adjust the inverter settings remotely?
Yes, the VE.Direct port allows for remote monitoring and configuration using the VictronConnect app, with support for USB or Bluetooth dongles.
What is the ECO mode, and how does it help with energy savings?
The ECO mode automatically switches the inverter to standby when no power is needed, periodically checking the load and reactivating only when necessary to reduce energy consumption and extend battery life.
Is this inverter compatible with an automatic transfer switch?
Yes, it works with the Filax Automatic Transfer Switch, enabling ultra-fast switching (<20ms) to prevent power interruptions for critical electronics.
What kind of protection features does this inverter have?
It includes short-circuit, overload, and temperature protection, ensuring safe and stable operation in various conditions.
Can I use this inverter in an RV or marine setup?
Yes, the inverter is designed for versatile applications, including RVs, boats, off-grid systems, and emergency power solutions.
What are the dimensions and weight of the inverter models?
The inverter dimensions vary by model, with sizes ranging from 86 x 165 x 260 mm (24/250) to 125 x 230 x 375 mm (24/1200). The weight also varies from 3.0 kg to 7.4 kg, depending on the model.
