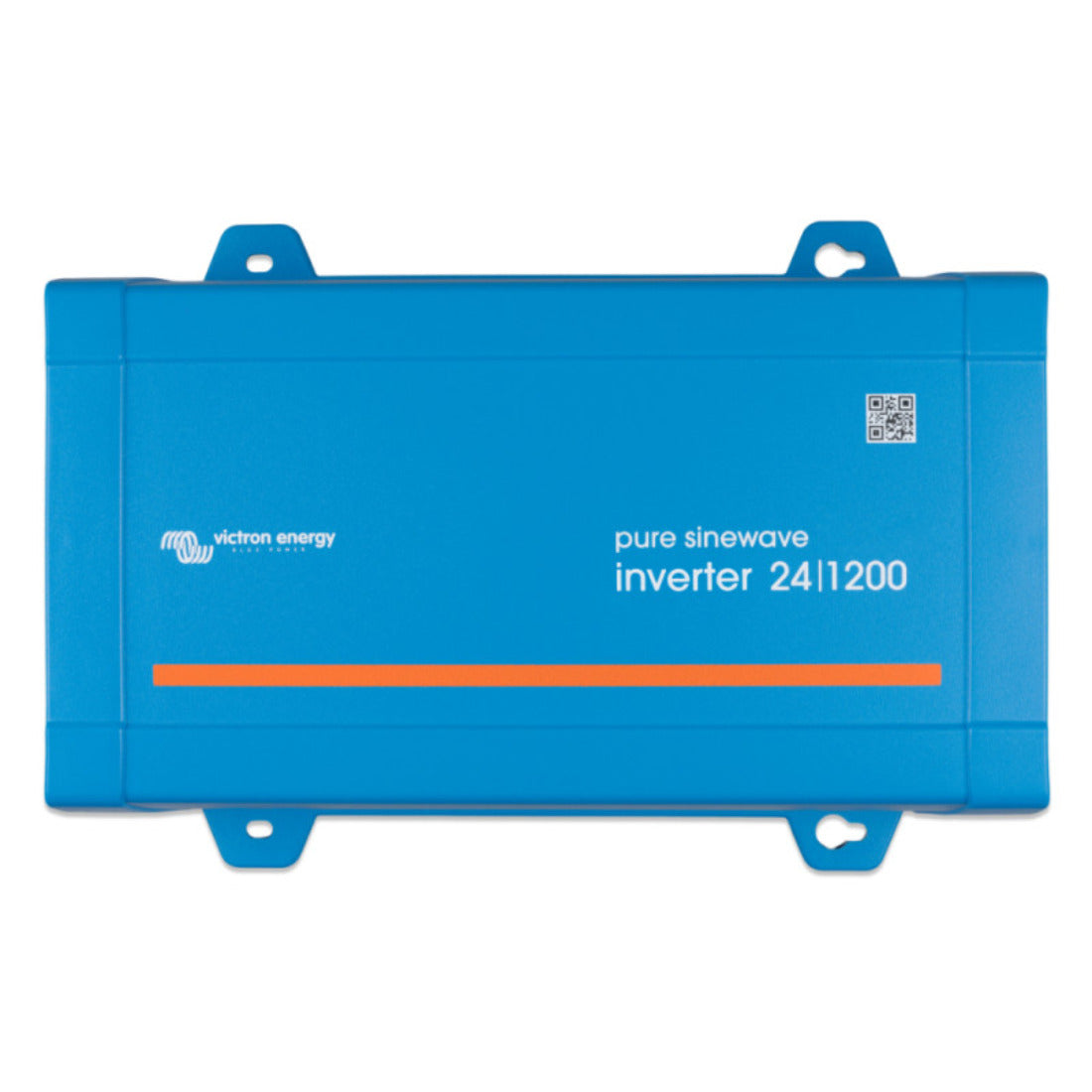

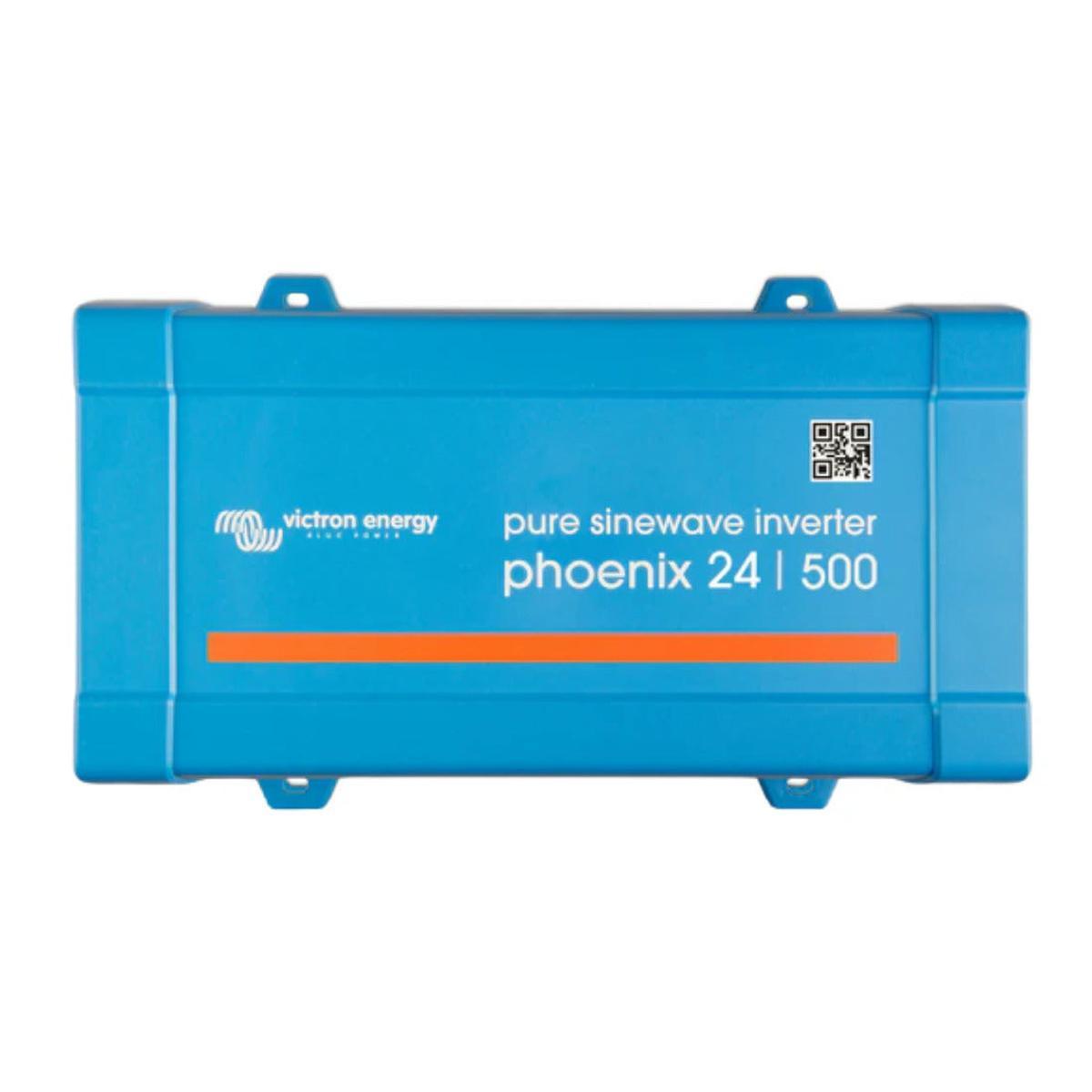

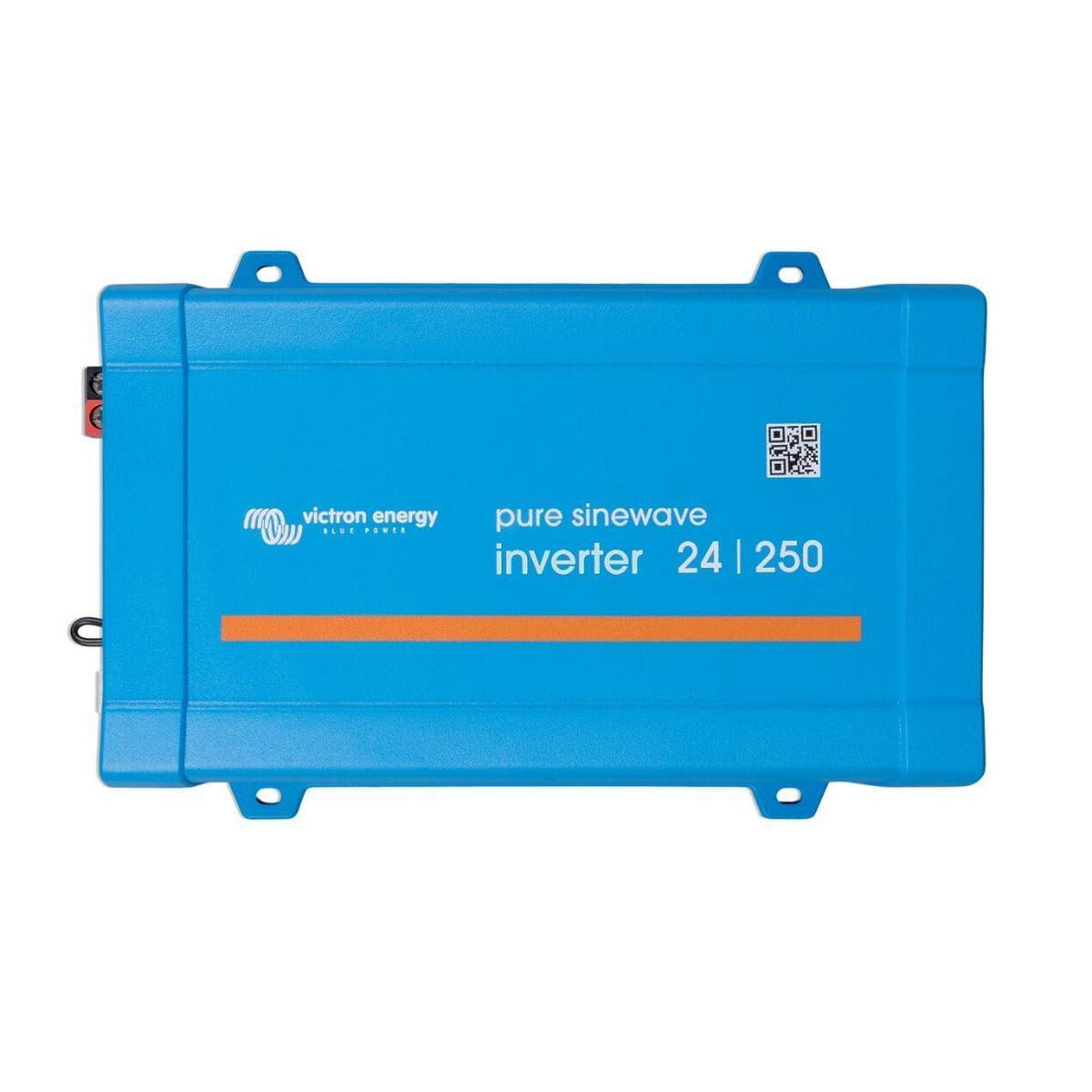

Phoenix 24V VE.Direct Inverters with NEMA 5-15R – 250W to 1200W Reliable Power Solutions
Looking for a reliable power solution for your sensitive electronics? The Phoenix Inverter VE.Direct 24V is designed for long-lasting performance, utilizing advanced full-bridge and toroidal transformer technology to deliver clean, stable power. Equipped with short-circuit, overload, and temperature protection, it ensures safe and interference-free operation. Its compact and durable build makes it a perfect choice for RVs, marine applications, off-grid systems, and emergency backup power.

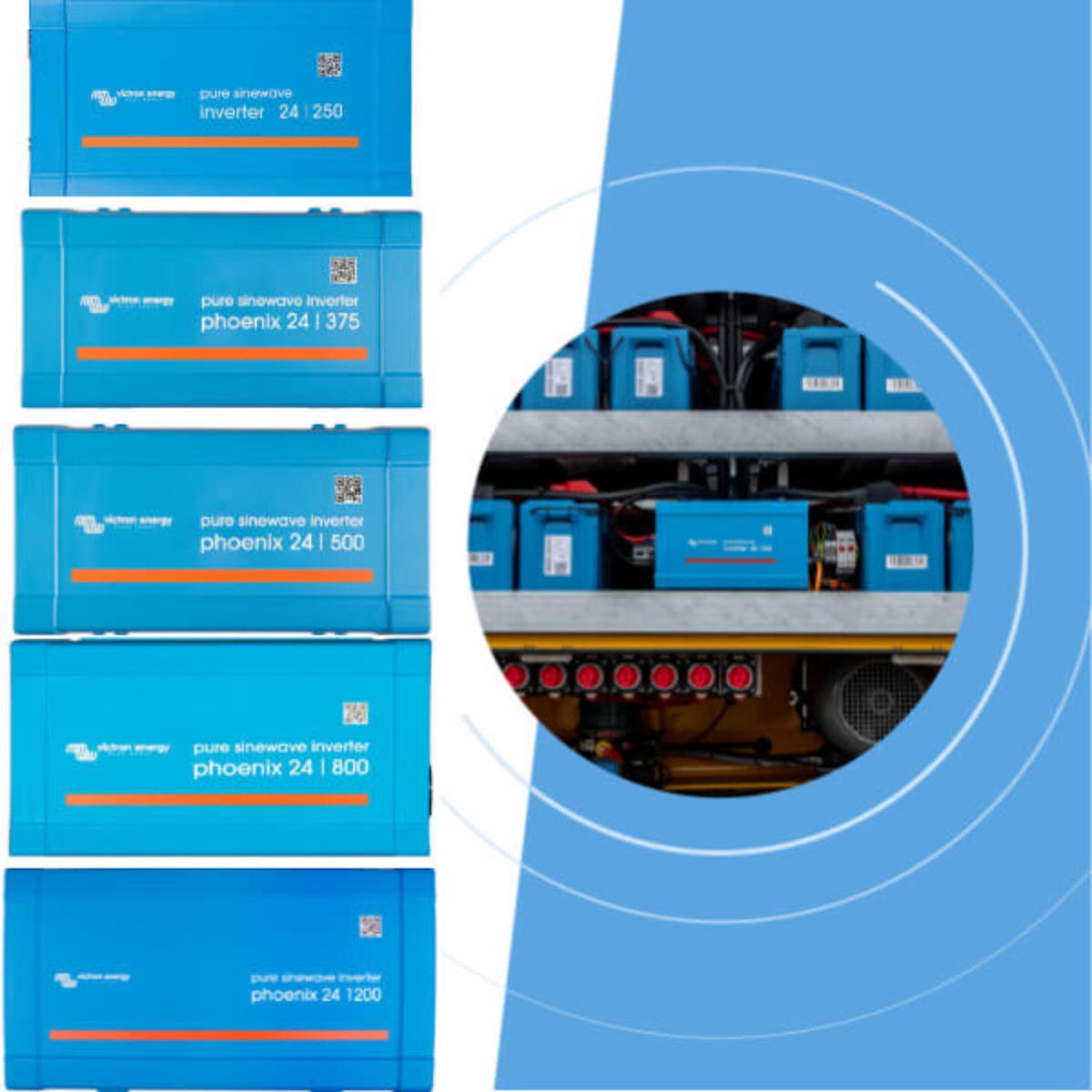

Designed for high-power demands, the Phoenix Inverter delivers industry-leading peak power, making it perfect for motor-driven devices such as refrigerators, compressors, and power tools. It prevents false alarms and unnecessary shutdowns, with smart restart attempts to ensure uninterrupted operation. The fast automatic power transfer compatibility allows seamless integration with a Filax Automatic Transfer Switch, ensuring continuous power for critical electronics. Available in five models—24/250, 24/375, 24/500, 24/800, and 24/1200—it offers a range of power options to suit various applications.
With its energy-saving ECO mode, the inverter automatically switches to standby when no load is detected, reducing unnecessary energy consumption and extending battery life. The VE.Direct port allows full customization through the VictronConnect app, enabling users to monitor performance, set alarms, and adjust low-voltage cut-off levels. Remote on/off functionality and LED diagnostics provide added convenience, ensuring easy operation and quick troubleshooting in any setup.
Victron Phoenix 24V VE.Direct Inverters with NEMA 5-15R Features
Highly Reliable - Built for Longevity
- Advanced full-bridge and toroidal transformer topology for durability
- Short-circuit, overload, and temperature protection ensures safety
- Designed to power sensitive electronics without interference
High Peak Power for Demanding Loads
- Delivers industry-leading peak power for motor-driven devices
- Supports LED converters, halogen lamps, and electric tools
- Ensures stable performance for high startup surge appliances
Smart Alarms, Shutdowns, and Restarts
- Prevents false alarms due to short high-power draws
- Automatic restart attempts ensure uninterrupted operation
- Shuts down only in cases of persistent overload

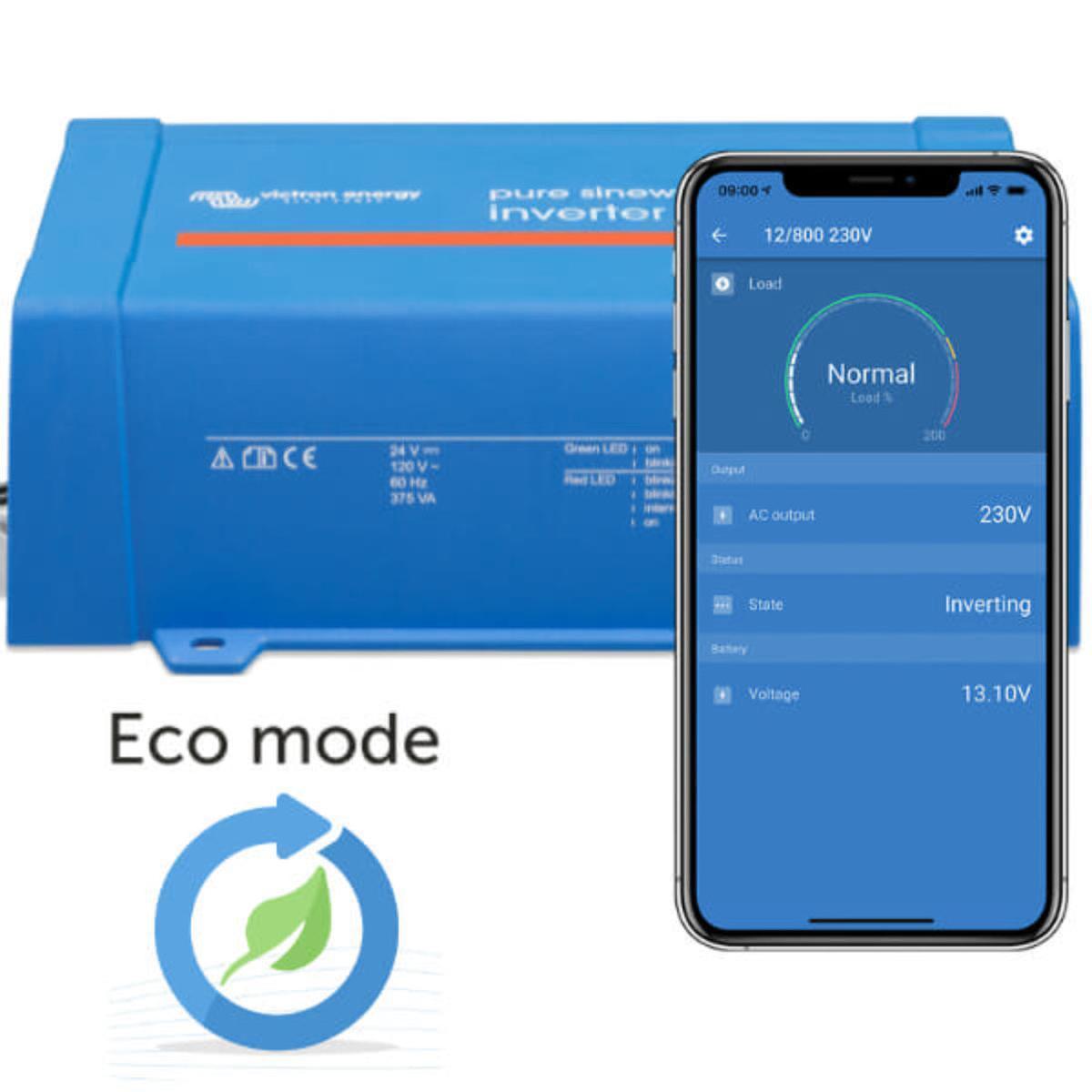

Energy-Saving ECO Mode
- Automatically switches to standby when no power is needed
- Periodically checks the load and reactivates when required
- Reduces unnecessary energy consumption, extending battery life

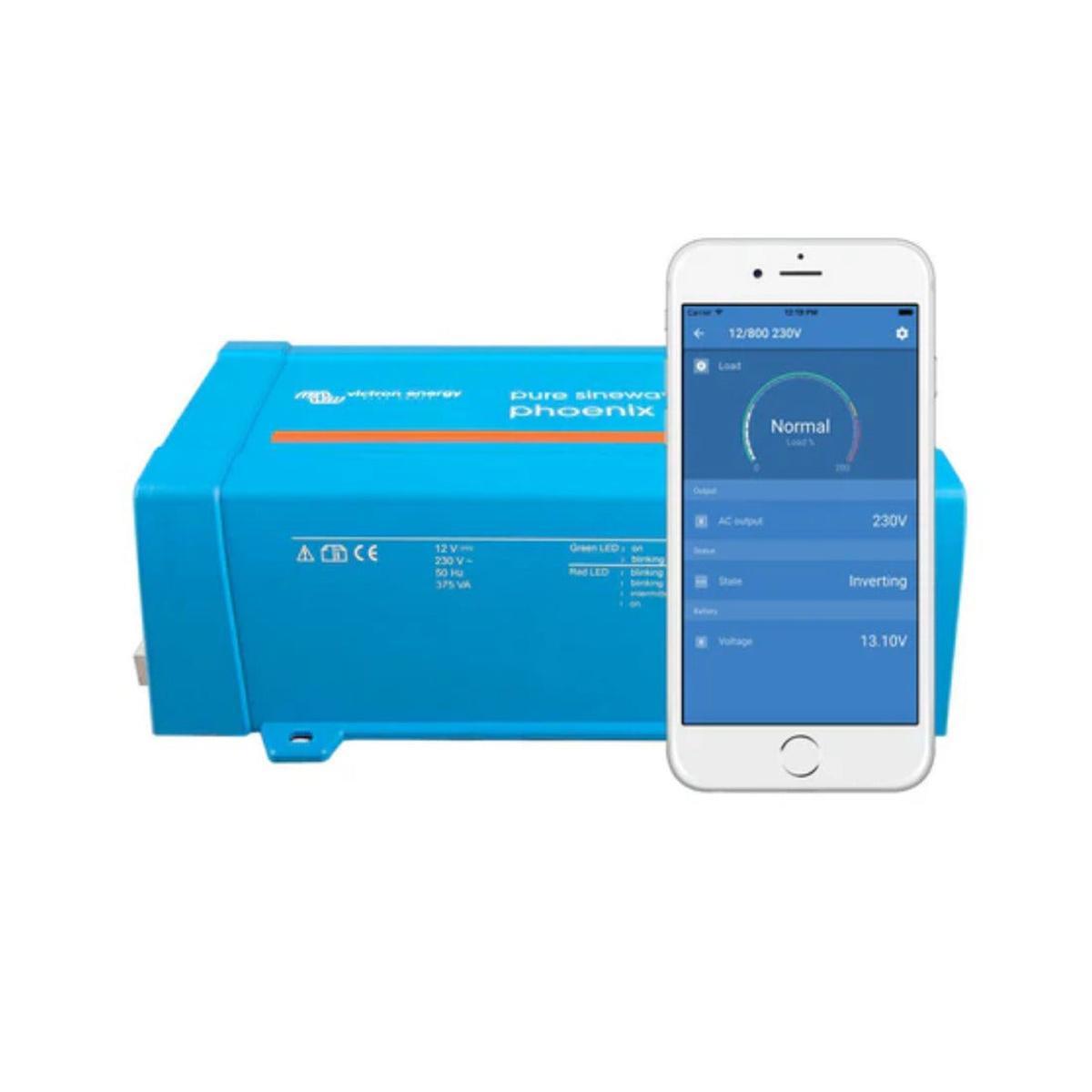

Fully Configurable with VE.Direct Port
- Monitor and adjust settings via VictronConnect app
- Supports low battery voltage alarms and customizable cut-off levels
- Compatible with USB or Bluetooth dongle for remote control
High Start-Up Power Capability
- Handles power-hungry loads effortlessly
- Ideal for electric tools, pumps, and compressors
- Ensures smooth operation for peak demand appliances
Remote On/Off Function
- Can be operated via a switch or direct battery connection
- Enables convenient power control in off-grid or mobile setups
- Improves user flexibility and ease of operation
LED Diagnosis for Status Monitoring
- Provides clear status indicators for troubleshooting
- Helps detect power issues quickly and efficiently
- Reduces downtime with easy-to-understand diagnostics
Fast Automatic Power Transfer Compatibility
- Works with Filax Automatic Transfer Switch for seamless switching
- Ultra-fast <20ms switchover prevents interruptions in power-sensitive devices
- Ensures continuous operation for critical electronics
Compact, Durable, and Versatile
- Lightweight yet robust design for various applications
- Ideal for RVs, marine use, off-grid systems, and emergency power
- Built with steel chassis and protective plastic cover for durability
Victron Phoenix 12/500 VE.Direct NEMA 5-15R Warranty
-
General Warranty: 5 years from the date of purchase by the original end-user (maximum of 66 months from the Victron Energy invoice date).
-
Lead-Acid Batteries: 2 years from the date of purchase (maximum of 30 months from the Victron Energy invoice date).
-
Lithium Batteries: 3 years from the date of purchase (maximum of 42 months from the Victron Energy invoice date).
-
Battery Warranty Claims: Proof of correct battery usage is required.
What's in the Box?
- Inverter Unit
- DC connection with screw terminals

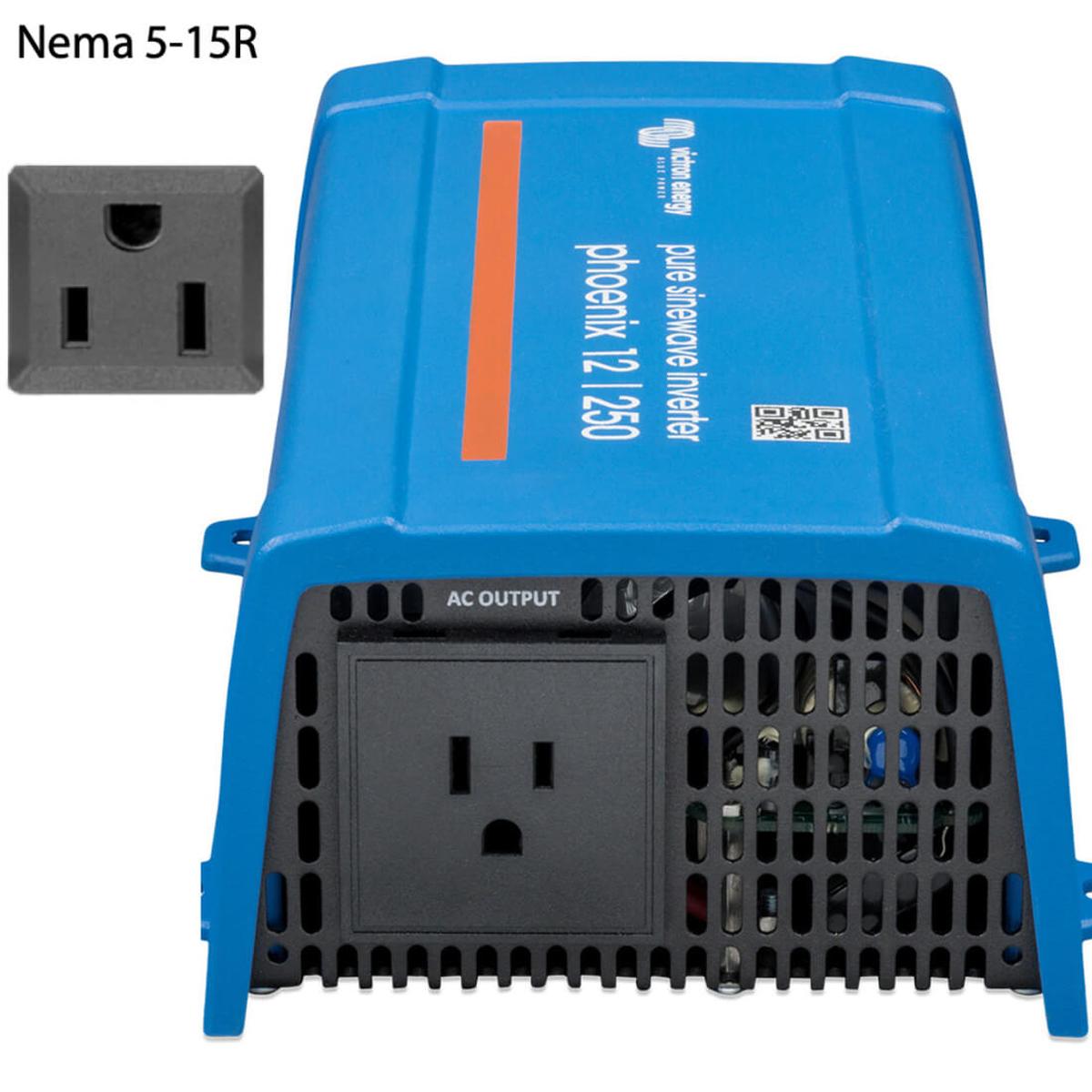

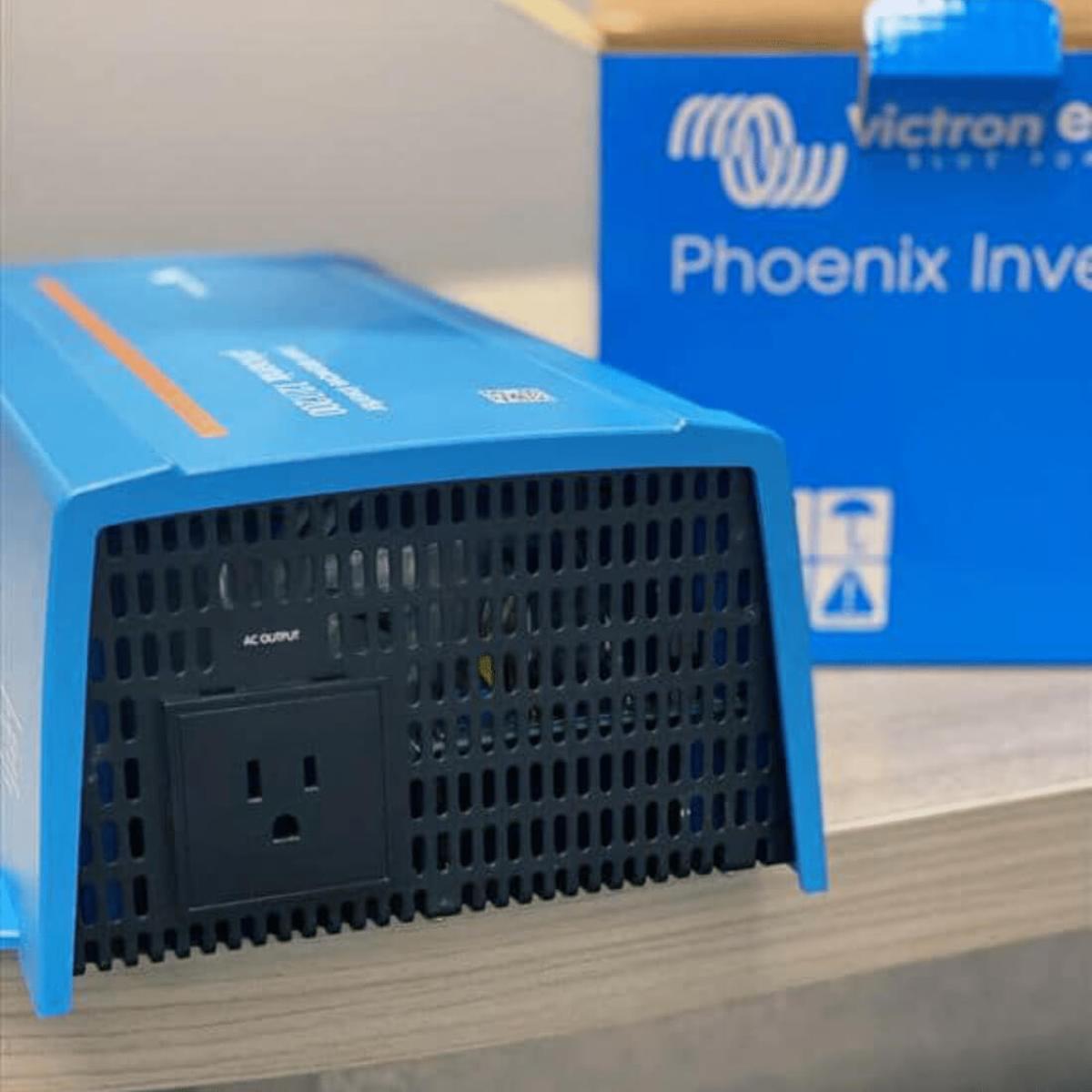

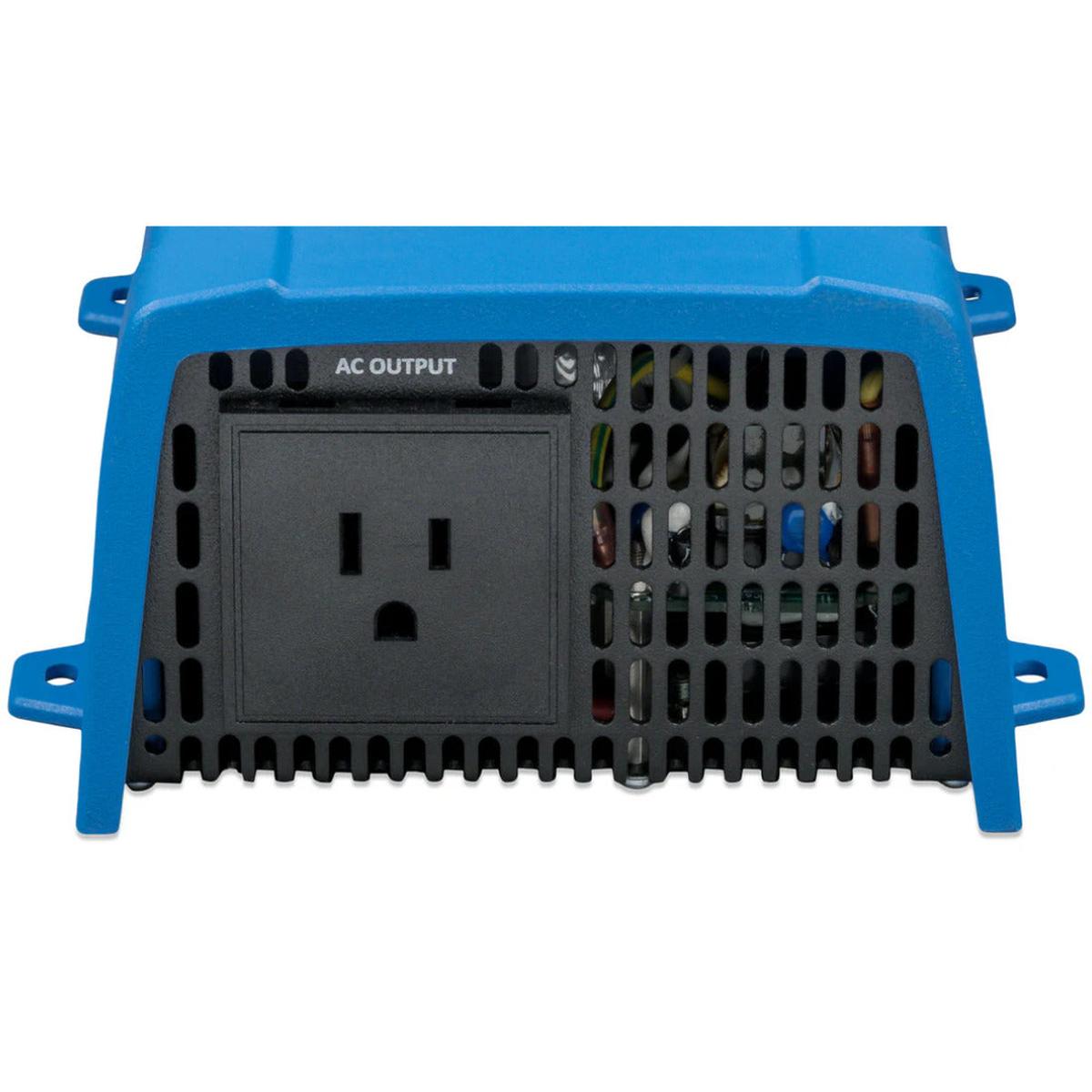

- Standard AC outlet (NEMA 5-15R )
- Male plug
Note: Additional accessories such as the VE.Direct to USB interface cable, VE.Direct Bluetooth Smart dongle, and Phoenix Inverter Control VE.Direct are available separately. Remote on/off switch capability is available but requires an external switch connection. The Automatic Transfer Switch (Filax) is recommended for switching between power sources but is sold separately.
Victron Phoenix 12/500 VE.Direct NEMA 5-15R Specification
| Model |
24/250 |

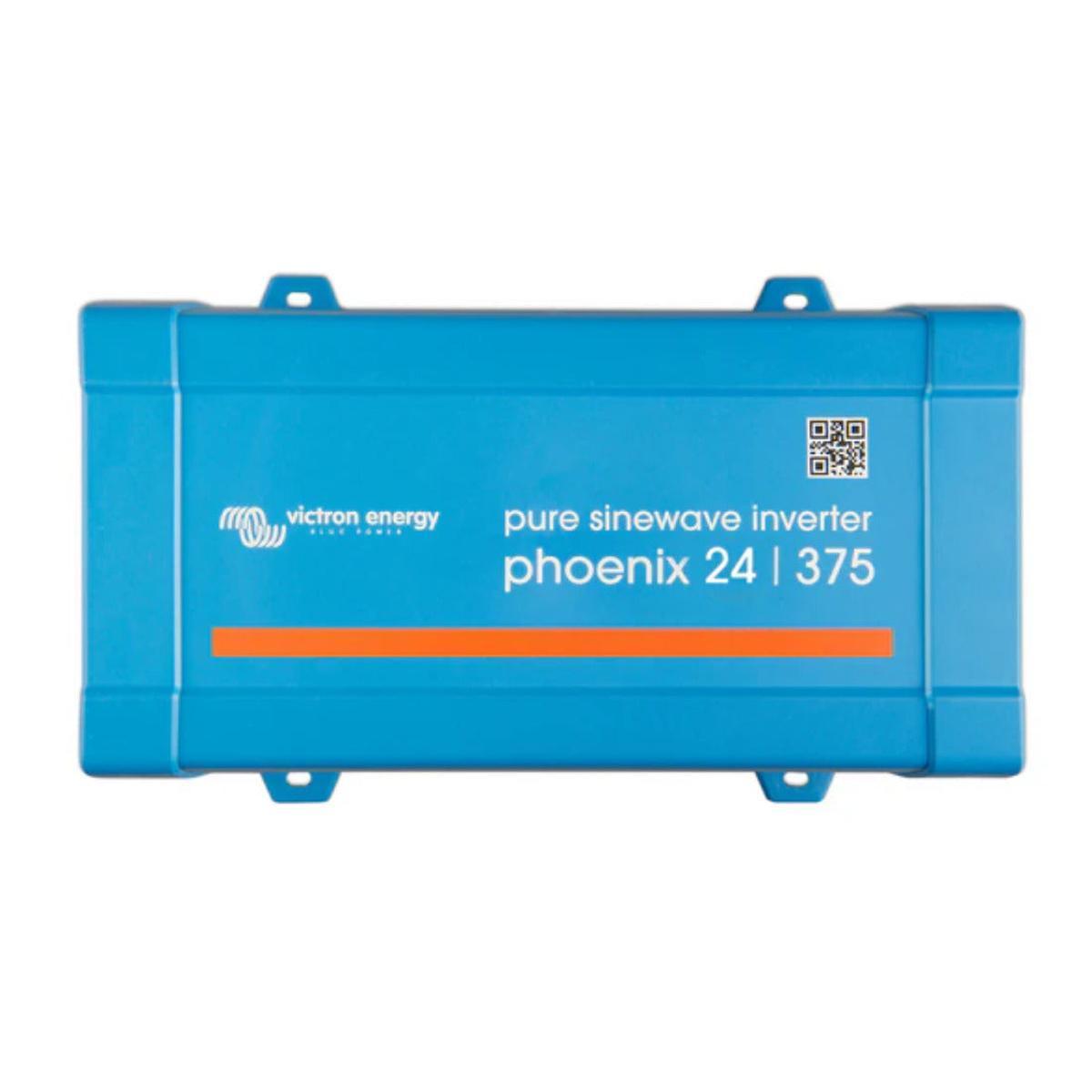

24/375 |
24/500 |

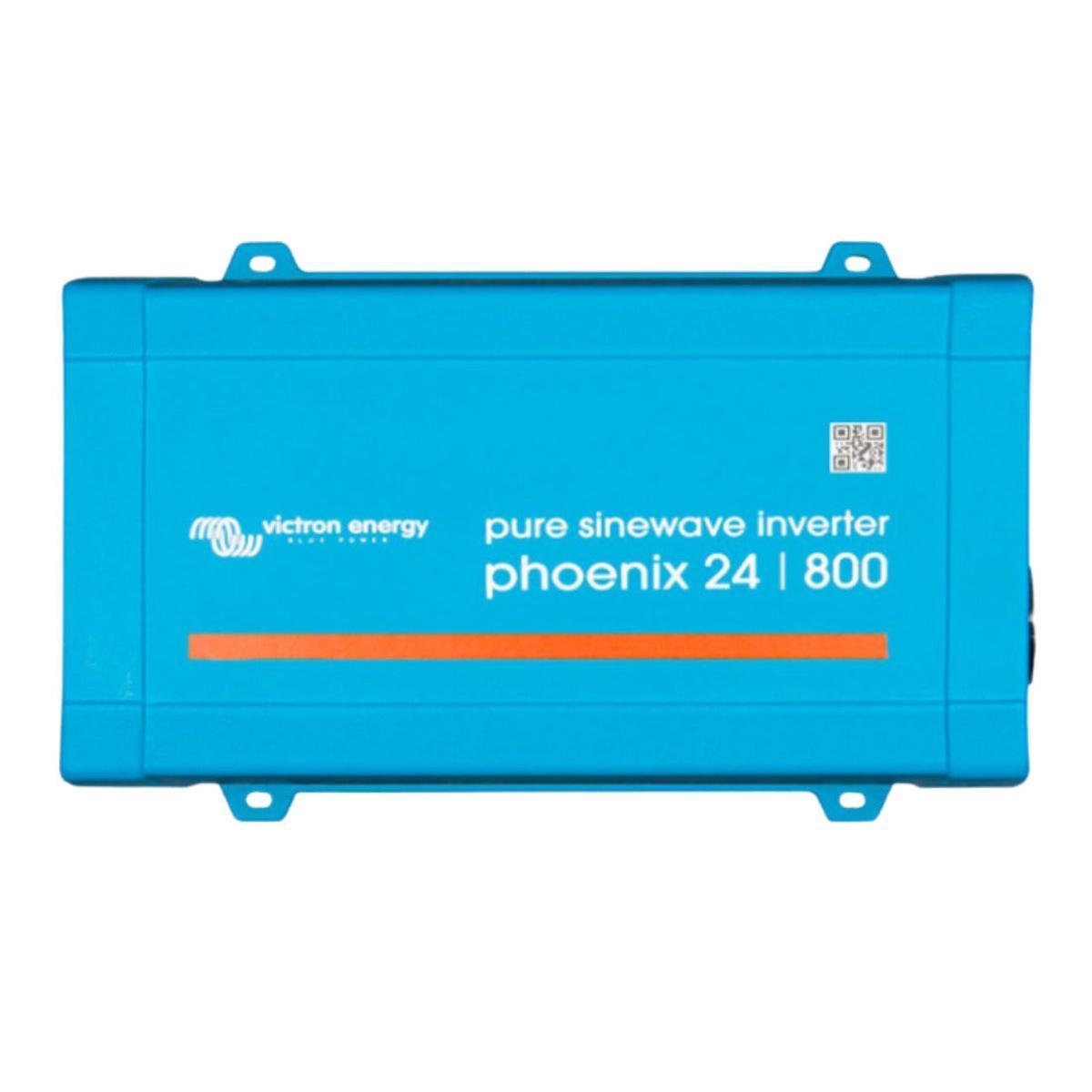

24/800 |

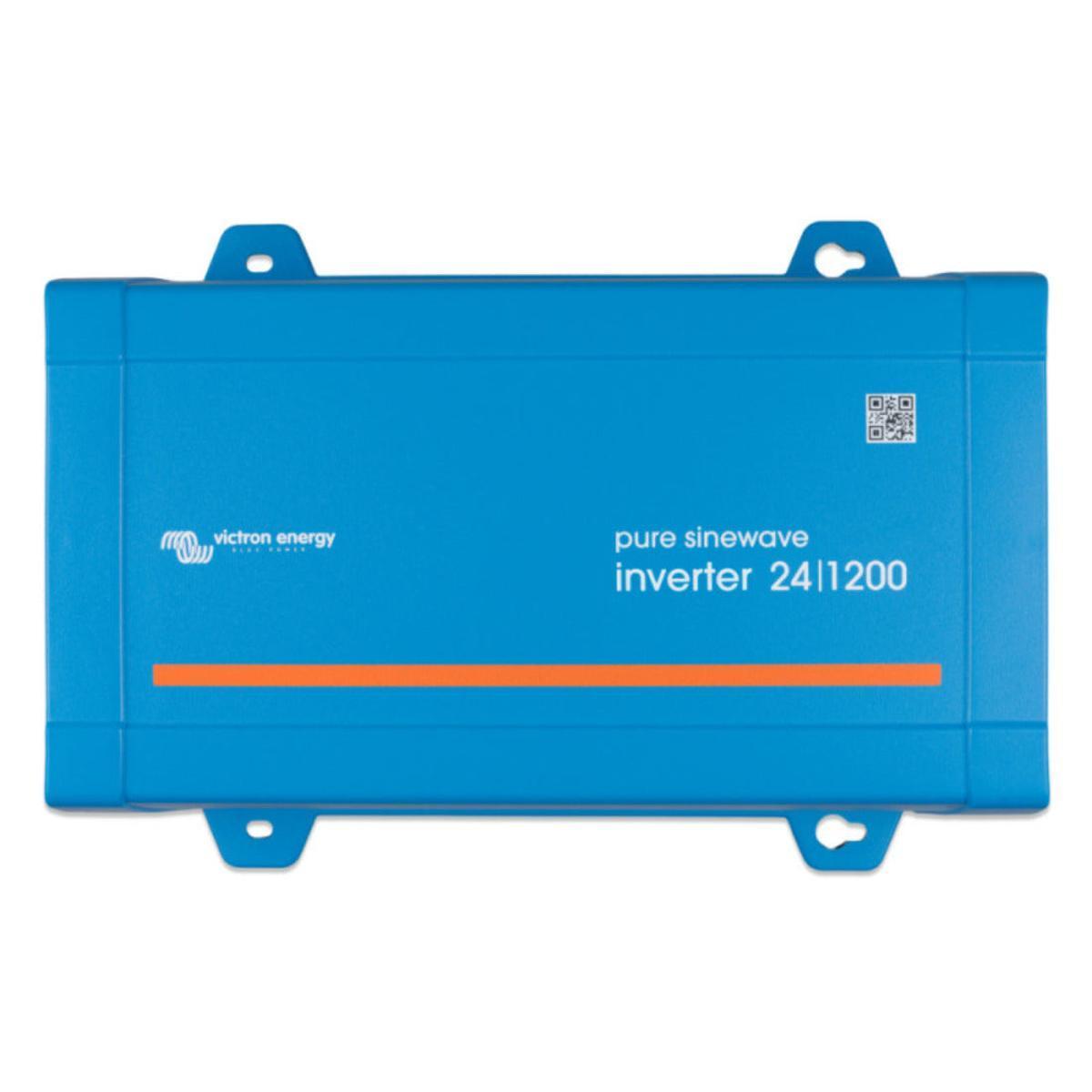

24/1200 |
| Cont. Power at 25°C |
250VA |
375VA |
500VA |
800VA |
1200VA |
| Cont. Power at 25°C / 40°C |
200W / 175W |
300W / 260W |
400W / 350W |
650W / 600W |
1000W / 900W |
| Peak Power |
400W |
700W |
900W |
1500W |
2200W |
| Output AC Voltage / Frequency (Adjustable) |
230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1% |
| Input Voltage Range |
18.4 - 34.0V |
| DC Low Shut Down |
18.6V |
| DC Low Restart and Alarm |
21.8V |
| Battery Charged Detect |
26.4V |
| Efficiency |
88% |
89% |
90% |
91% |
92% |
| Zero-Load Power |
4.2 / 5.7 W |
4.9 / 6.1 W |
6.1 / 8.5 W |
6.5 / 7.9 W |
9.5 / 10.9 W |
| Protection |
a - f |
| Operating Temperature Range |
-40 to +65°C (fan assisted cooling) |
| Humidity (Non-Condensing) |
max 95% |
| Material & Colour |
Steel chassis and plastic cover (Blue RAL 5012) |
| Weight |
3.0 kg |
3.6 kg |
4.0 kg |
5.9 kg |
7.4 kg |
| Dimensions (HxWxD mm) |
86 x 165 x 260 |
86 x 172 x 275 |
105 x 230 x 325 |
105 x 230 x 355 |
125 x 230 x 375 |
| Remote On-Off |
Yes |
| Automatic Transfer Switch |
Filax |
| Safety |
EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 |
| EMC |
EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 |
| Automotive Directive |
ECE R10-4 |
Victron Phoenix 24V VE.Direct Inverters FAQ's
1. What devices can I power with the Phoenix 24V VE.Direct Inverter?
The Phoenix Inverter is ideal for sensitive electronics, motor-driven appliances like refrigerators and compressors, power tools, and LED lighting.
2. How does the ECO mode work, and can I disable it?
The ECO mode reduces energy consumption by switching to standby when no load is detected. It periodically checks for power demand and reactivates automatically. You can enable or disable it via the VictronConnect app.
3. Can I monitor and customize settings remotely?
Yes, the inverter features a VE.Direct port that allows monitoring and customization through the VictronConnect app. You can adjust settings like alarms, voltage cut-offs, and more.
4. What protection features does the inverter have?
The inverter includes short-circuit, overload, and temperature protection to ensure safe and stable operation.
5. Does this inverter work with solar power systems?
Yes, it is compatible with solar power systems. However, a proper charge controller and battery system must be in place to ensure efficient operation.
6. How does the automatic transfer switch function?
The inverter is compatible with the Filax Automatic Transfer Switch, which enables seamless switching between AC power sources in under 20ms, ensuring no interruptions for critical electronics.
7. What is the peak power output, and why is it important?
Peak power ranges from 400W to 2200W, depending on the model. This is crucial for handling startup surges from appliances like compressors, pumps, and tools.
8. Can I connect multiple inverters for higher power output?
No, the Phoenix VE.Direct inverters are not designed for parallel operation. If you need higher power, consider other Victron models that support parallel operation.
9. What is the operating temperature range of the inverter?
The inverter operates between -40°C and +65°C, with fan-assisted cooling for stable performance in extreme conditions.
10. How do I turn the inverter on and off remotely?
You can control the inverter remotely via the VE.Direct port using the VictronConnect app, a remote switch, or by direct battery connection.
