Victron Phoenix 24/3000 Smart Inverter

Name: Victron Phoenix 24/3000 Smart Inverter
Brand: Victron Energy
SKU: PIN243020100
Price: 1769.97 USD
Availability: InStock

SKU PIN243020100

✔ US Based Authorized Victron Energy Dealer

✔ No Sales Tax - Except IN

✔ Ships in 4-5 Business Days with Free Shipping

✔ Dealer Warranty Included

✔ Post-Purchase Customer Support & 30-Day Returns

✔ CALL US NOW! We will BEAT any Price!

✔ Need someone to install? We find you the LOWEST PRICE FOR INSTALLS.

$1,769.97

Quantity

All items are in stock and ready to ship. All items ship in 1 business day. The estimated time of arrival is 4-5 business days.

Find a better price somewhere else? Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support. CALL US NOW for all of these benefits! CALL NOW!

Achieve Off-Grid Power.

Description
Shipping
Why Buy From Us

Description

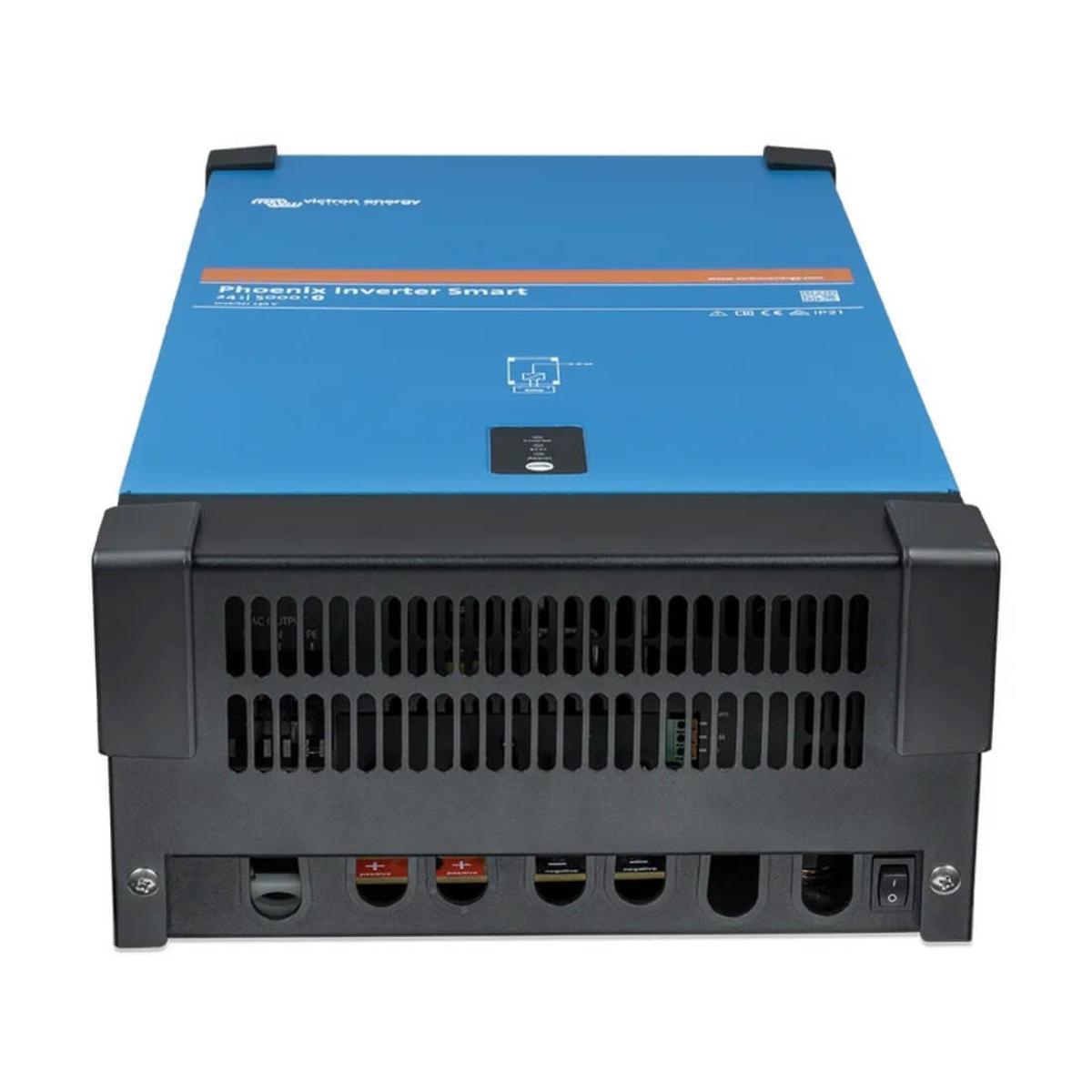

Phoenix 24/3000 Smart Inverter by Victron Energy

The Victron Phoenix 24/3000 Smart Inverter is a reliable power solution for off-grid setups, RVs, and boats. With built-in Bluetooth, it’s easy to monitor and customize settings like voltage, frequency, and ECO mode using a smartphone or tablet. It delivers high start-up power for devices like LED lights and tools, while safety features like short-circuit and overheat protection ensure durability. The VE.Direct port allows for real-time monitoring on a computer, and ECO mode reduces energy use during low loads. This inverter provides stable, efficient power for sensitive electronics and everyday needs.
Phoenix 24/3000 Smart Inverter by Victron Energy

The Victron Phoenix 24/3000 Smart Inverter, compatible with the VictronConnect app, offers seamless control and monitoring with built-in Bluetooth. Users can easily adjust settings such as voltage, frequency, and ECO mode directly from their smartphone or tablet. This inverter ensures efficient energy use, high start-up power for demanding devices, and reliable protection against overheating and short circuits.

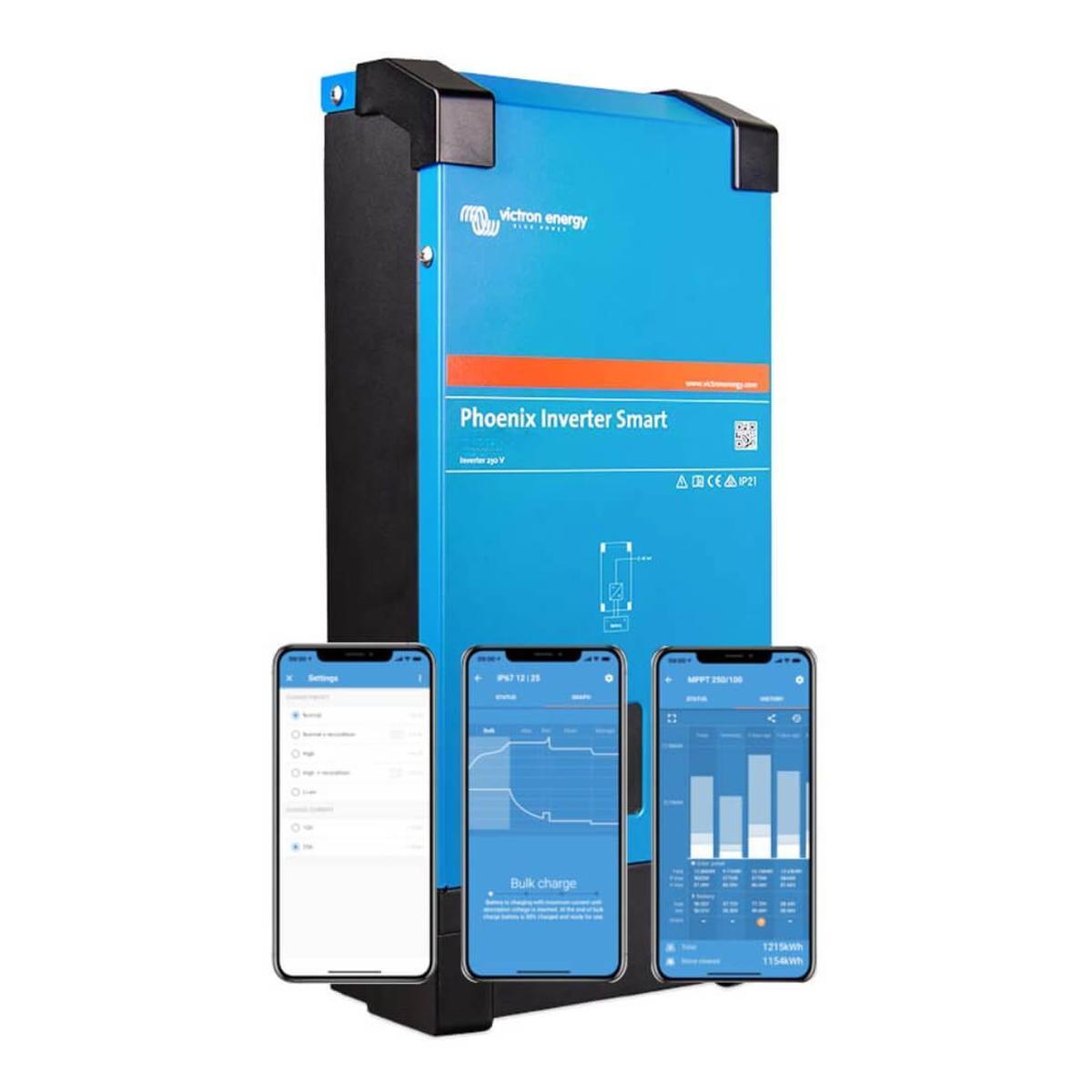

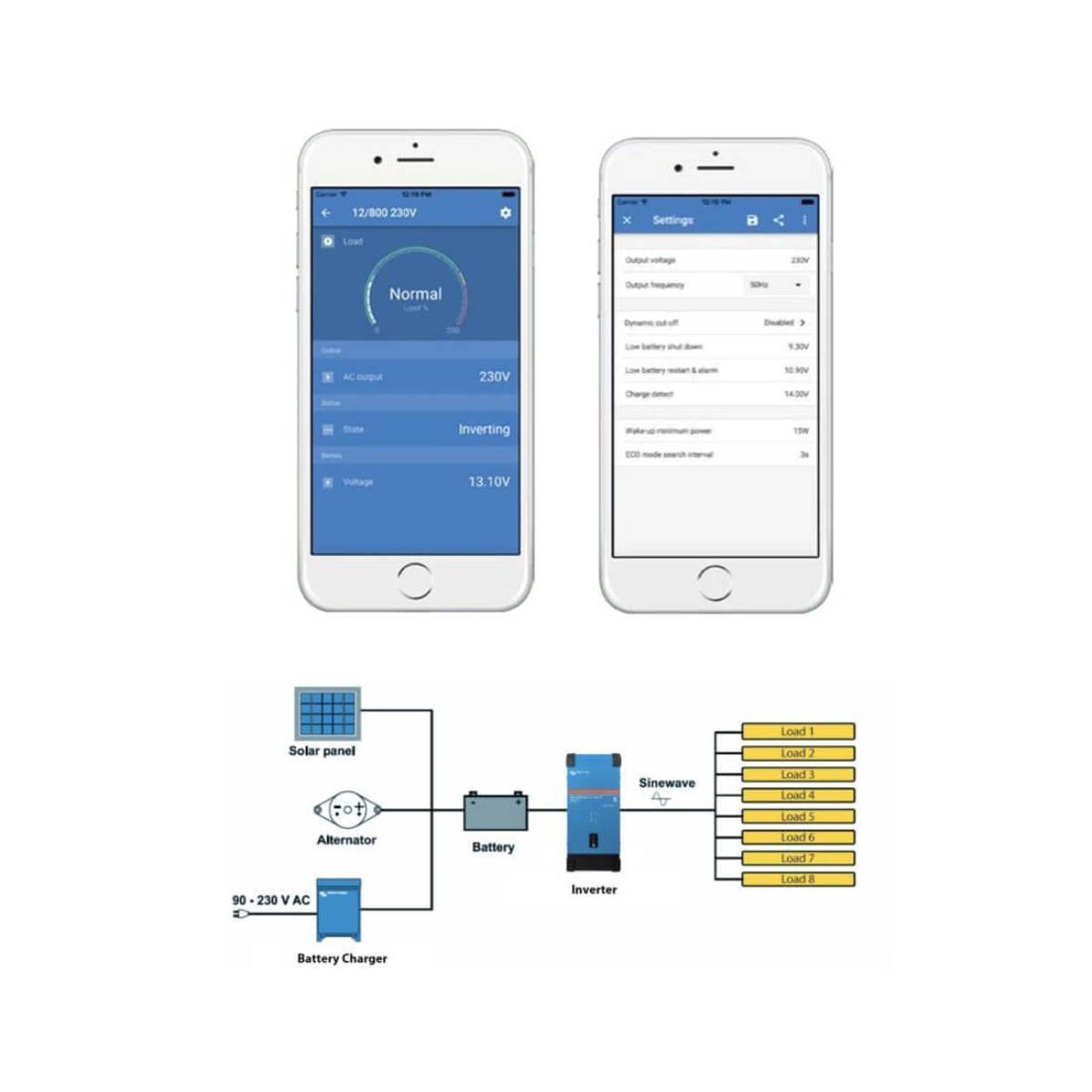

Victron Phoenix 24/3000 Smart Inverter with VictronConnect App Connection

Its remote on/off feature allows convenient control through a two-pole connector or vehicle chassis. Additionally, the inverter ensures stable performance with its full bridge plus toroidal transformer design, making it a dependable and energy-saving solution for a variety of applications.

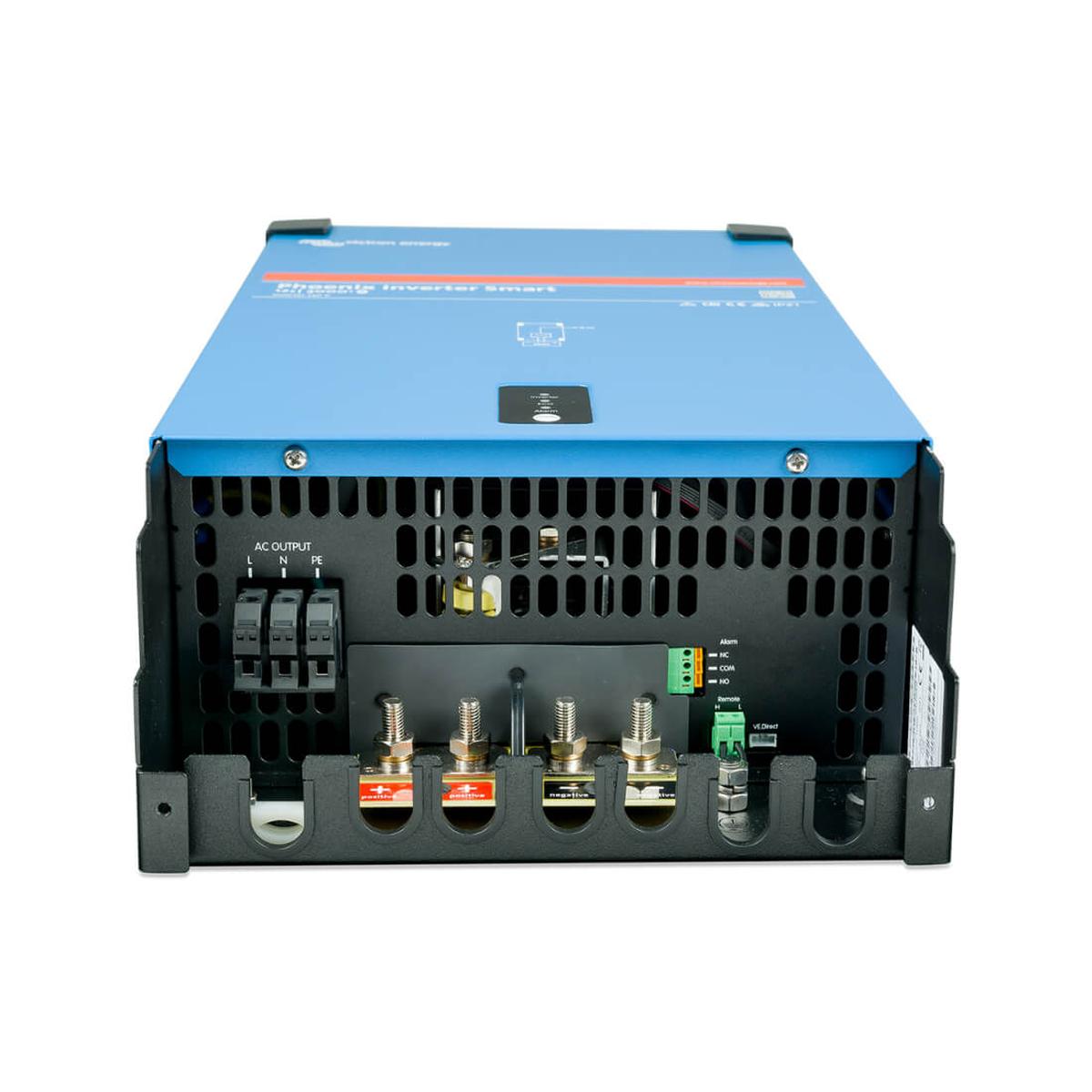

Victron Phoenix 24/3000 Smart Inverter Components

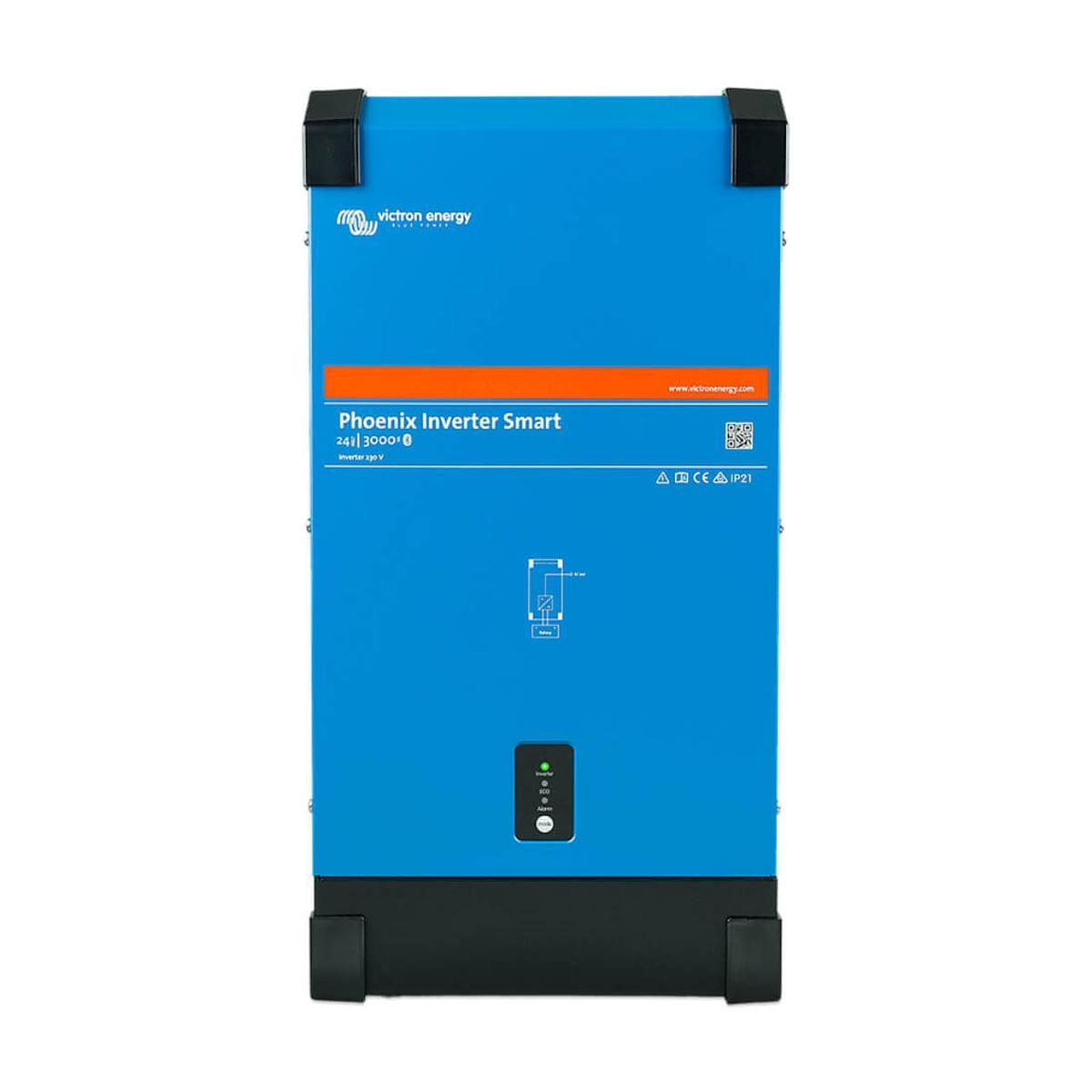

Phoenix 24/3000 Overview

Victron Accessories

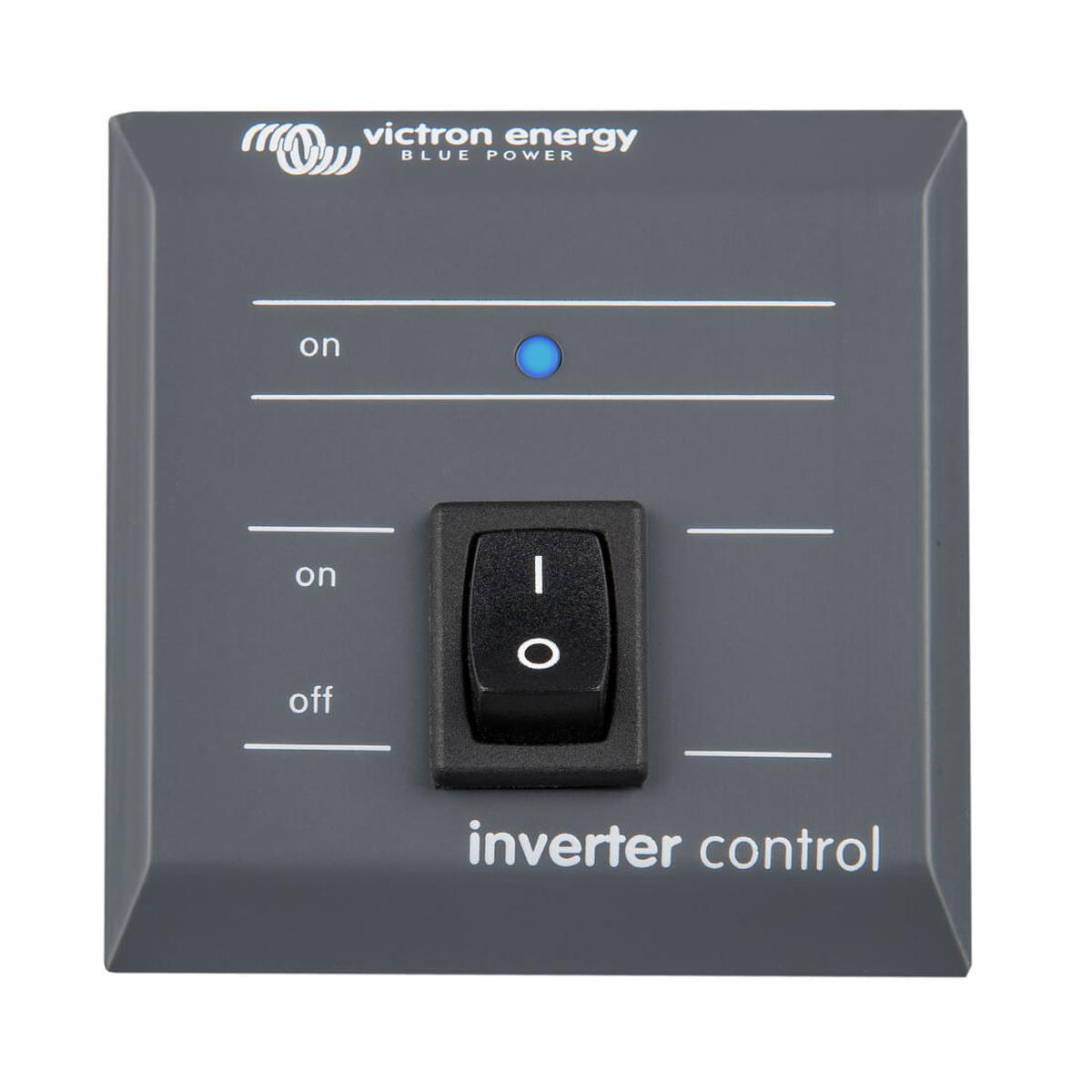

Phoenix Inverter Control This panel is intended for remote on/off control of all Phoenix inverters Smart.

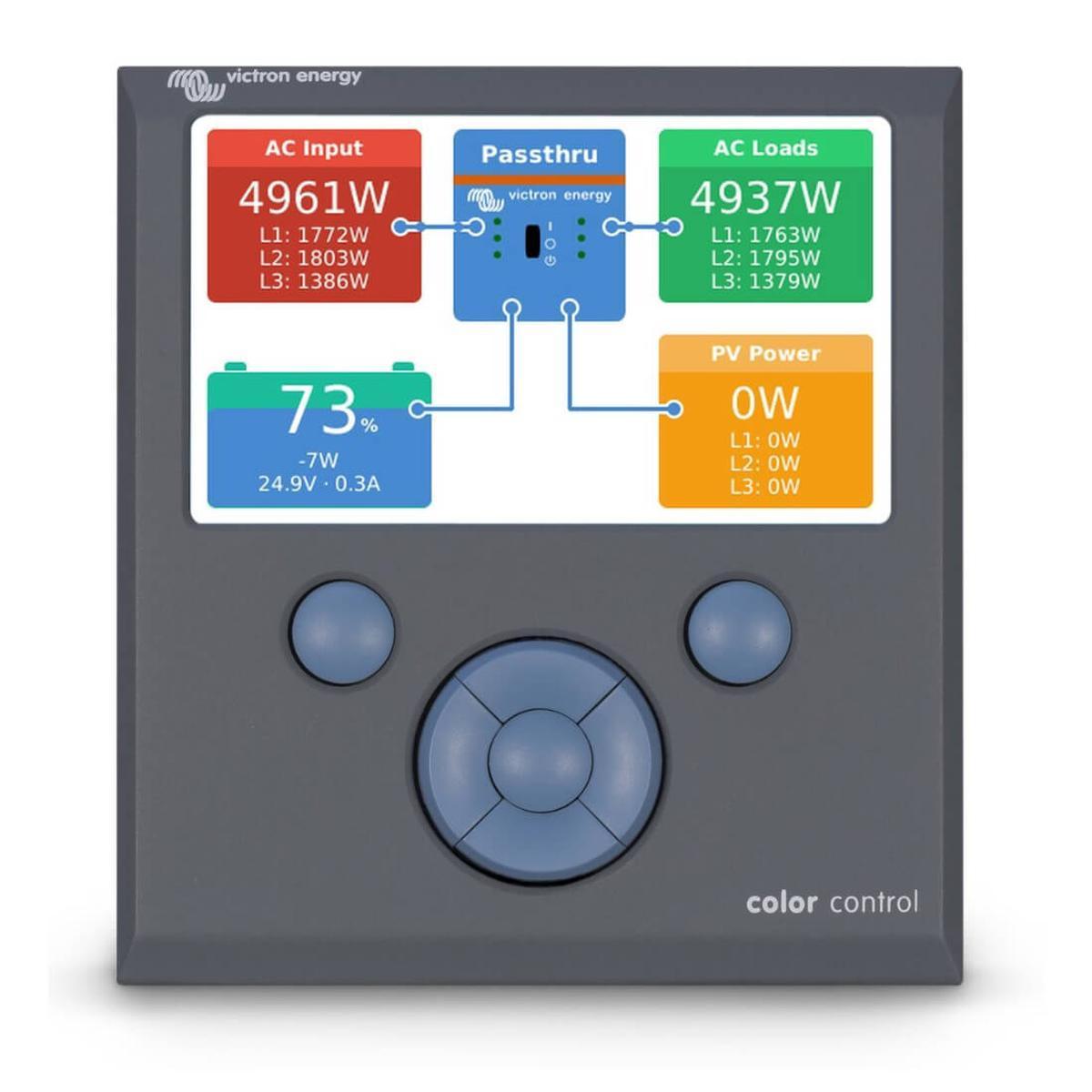

Color Control GX & Other GX Devices Provides monitoring and control, locally and remotely on the VRM Portal.

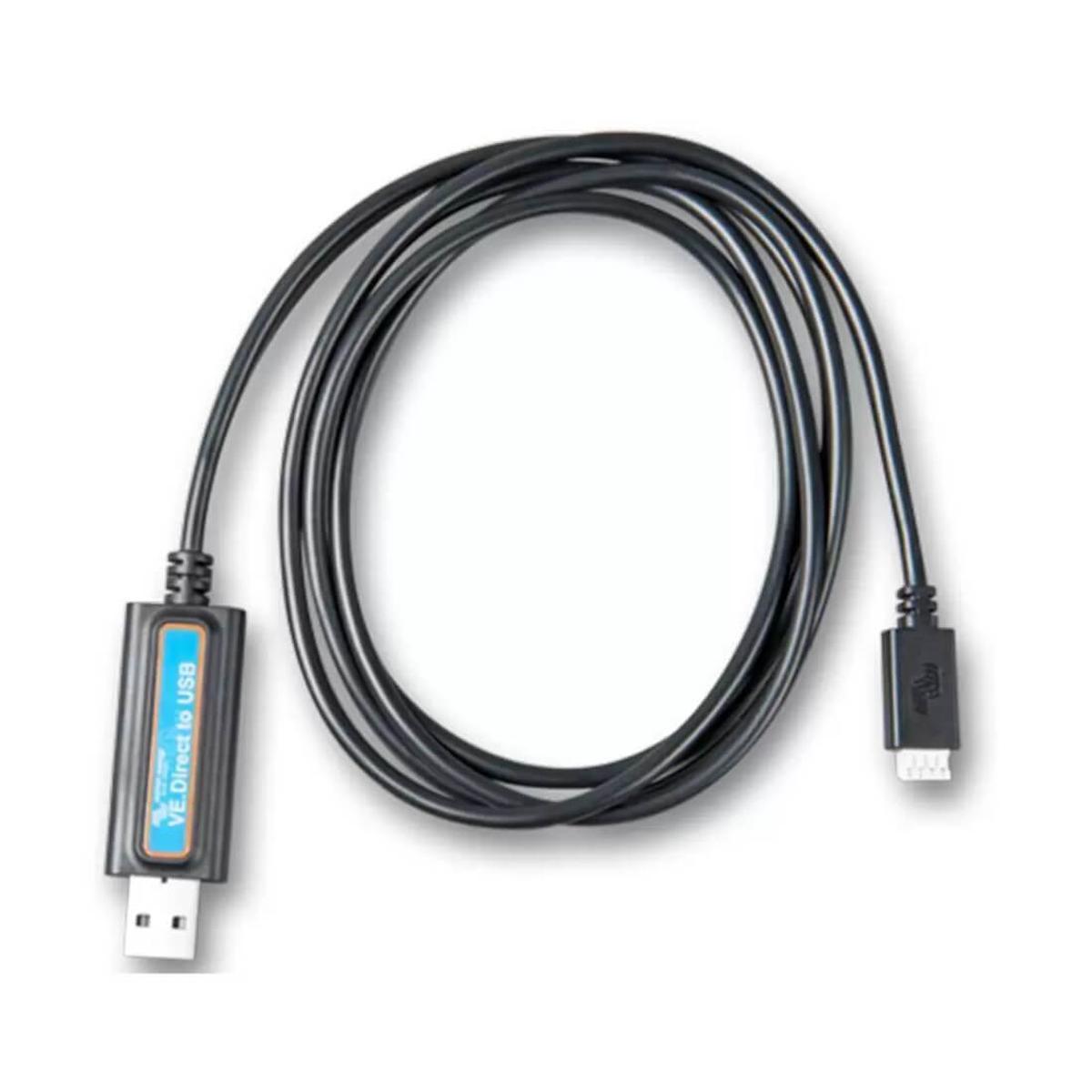

VE.Direct to USB Interface Connects to a USB port for use with VictronConnect software.

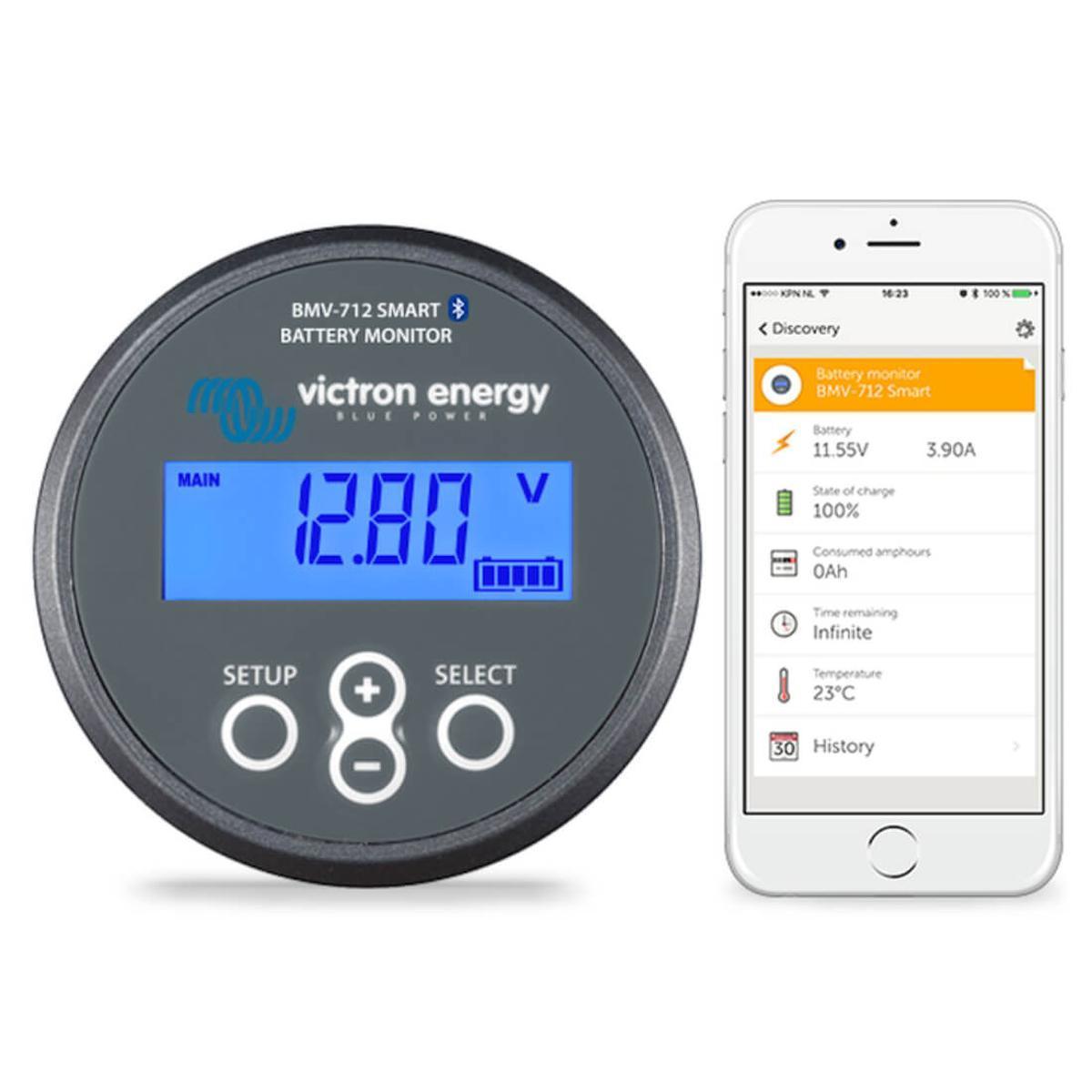

BMV-712 Smart Battery Monitor Advanced microprocessor-controlled system for monitoring battery voltage and current.

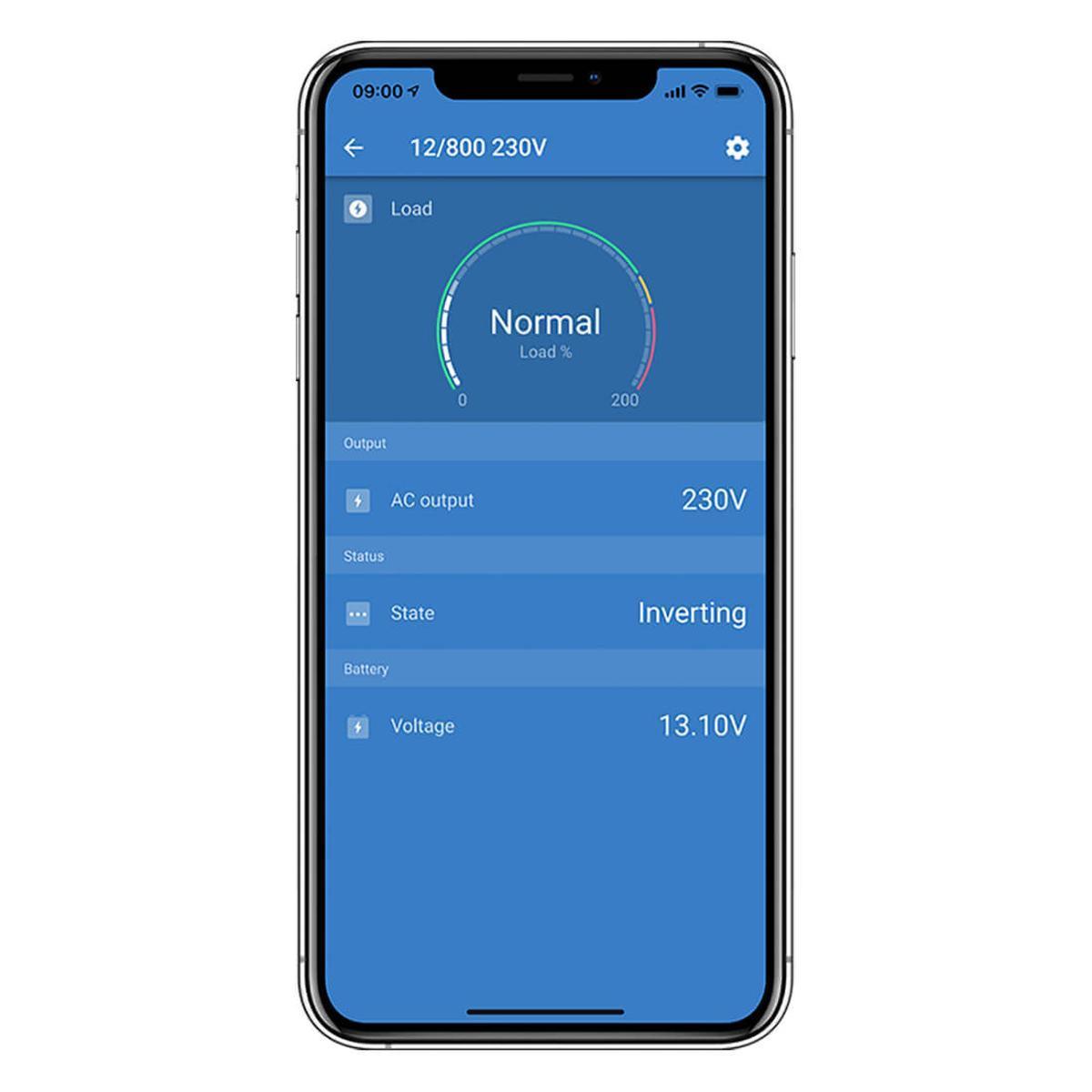

Bluetooth Wireless Communication Connects to a smartphone (both iOS and Android) via VictronConnect for wireless monitoring.

Phoenix 24/3000 Smart Inverter Features

Bluetooth Built-In

Fully configurable using a tablet or smartphone for seamless setup.
Allows for remote adjustments and monitoring without additional hardware.

Low Battery Management

Alerts you with a low battery voltage alarm to prevent unexpected shutdowns.
Customizable cut-off and restart levels extend battery lifespan.

Dynamic Cut-Off

Adjusts cut-off levels based on load for consistent performance.
Protects sensitive equipment by maintaining stable operation under varying loads.

Output & Frequency

Wide voltage range (210 – 245 V) accommodates diverse electrical requirements.
Flexible frequency options (50 Hz or 60 Hz) ensure compatibility with global standards.

ECO Mode

Automatically switches to standby to save energy when the load is low.
Ensures optimal power usage by only activating when necessary.

Alarm & Monitoring

Provides real-time notifications for voltage, load, and alarm conditions.
Simplifies troubleshooting with accessible system data.

VE.Direct Communication Port

Enables advanced configuration and monitoring when connected to a computer.
Simplifies data transfer and system management with VE.Direct to USB interface.

Proven Reliability

Built with full bridge plus toroidal transformer topology for long-term durability.
Short circuit and overheating protection ensure safe operation under all conditions.

High Start-Up Power

Easily powers devices with high initial energy demands like tools and LED lamps.
Reduces the risk of power interruptions during device startup.

Remote On/Off

Allows convenient control via a remote switch or vehicle chassis connection.
Supports flexible installation in various setups.

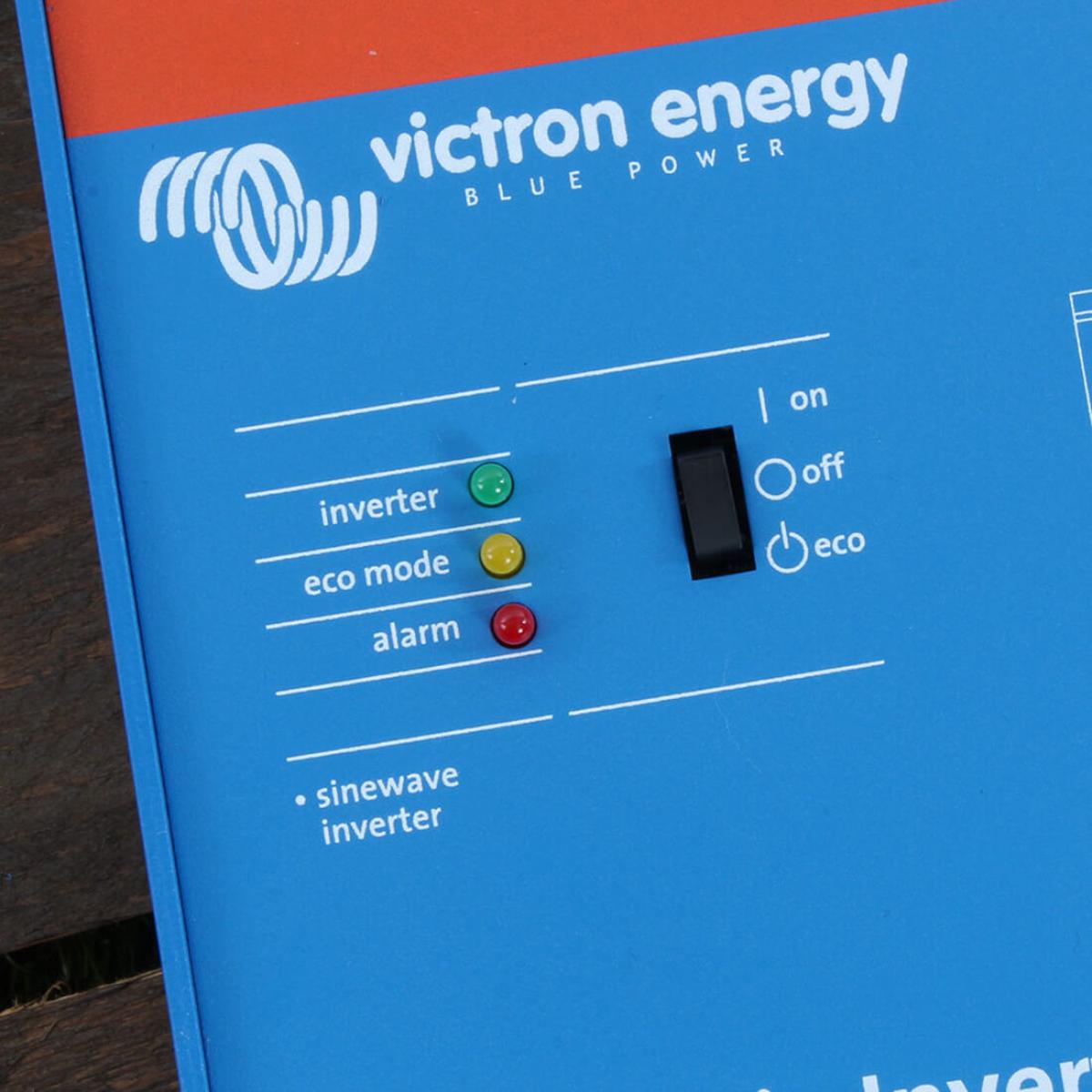

LED Diagnosis

Quick and easy monitoring with clear LED indicators.
Minimizes downtime by providing a visual status of the system.

Automatic Transfer Switch Compatibility

Ensures seamless power transition to an alternate AC source without disruption.
Protects sensitive equipment like computers with a switchover time under 20 milliseconds.

Phoenix 24/3000 Smart Inverter Warranty

Duration: 5 years from the original purchase date.
Coverage: Defects in materials and workmanship.

What's in the Box

Victron Phoenix 12/3000 Smart Inverter unit
Built-in Bluetooth module (for configuration and monitoring via smartphone/tablet)
Built-in VE.Direct communication port
Integrated programmable relay
Remote on/off terminal (2-pole connector)
M8 battery connection bolts (2+2)
Screw terminal for AC output
Fan-assisted cooling system
Steel enclosure (blue or black, IP21 rated)

Not Included (Sold Separately)

VE.Direct to USB interface cable
Remote control panel (Inverter Control)
GX devices (e.g., Color Control GX for VRM remote monitoring)
Filax Automatic Transfer Switch
BMV-712 Smart Battery Monitor

Phoenix 24/3000 Smart Inverter Specification

Inverter Smart 24/3000 Specifications

Category	Specification (24/3000)
Input Voltage Range	18.6 – 34 V
Output Voltage	230 VAC ±2% / 50 Hz or 60 Hz ±0.1%
Cont. Output Power at 25°C	3000 VA
Cont. Output Power at 25°C	2400 W
Cont. Output Power at 40°C	2200 W
Cont. Output Power at 65°C	1700 W
Peak Power	6000 W
Dynamic Low Shut Down	Dynamic cut-off
Max. Efficiency (12/24/48 V)	93 / 94 / 95 %
Zero Load Power (12/24/48 V)	12 / 13 / 15 W
Zero Load Power in ECO Mode	1.5 / 1.9 / 2.4 W
Programmable Relay	Yes
Stop & Start Power ECO Mode	Adjustable
Protection	a-g
Bluetooth	For remote monitoring and system integration
VE.Direct Port	For remote monitoring and system integration
Remote On-Off	Yes
Operating Temperature	-40 to +65°C (fan-assisted cooling)
Humidity (Non-condensing)	Max 95%
Battery Connection	24 V: 2×2 M8 bolts
230 VAC Connection	Screw terminals
Weight	19 kg
Dimensions (hxwxd)	533 x 285 x 150 mm (24 V)
Protection Category	IP21
Material & Colour	Steel (Blue RAL 5012 / Black RAL 9017)
Safety Standard	EN 60335-1
Emission Immunity	EN 55014-1 / EN 55014-2 / EN-IEC 61000-6-1 / EN-IEC 61000-6-2 / -6-3
Automotive Directive	ECE R10-5

Phoenix 24/3000 Smart Inverter FAQ

What is the purpose of the Victron Phoenix 24/3000 Smart Inverter?

The inverter is designed to provide reliable, efficient power for off-grid setups, RVs, boats, and sensitive electronics, ensuring stable energy delivery even in demanding environments.

Can I monitor and configure the inverter remotely?

Yes, the inverter features built-in Bluetooth, allowing you to monitor and adjust settings like voltage, frequency, and ECO mode using a smartphone, tablet, or computer via the VE.Direct communication port.

What is ECO mode, and how does it save energy?

ECO mode reduces energy consumption by switching the inverter to standby when the load is low. It reactivates automatically when the load exceeds a preset level, extending battery life.

What kind of devices can the inverter support?

The inverter provides high start-up power, making it suitable for devices with high initial energy demands, such as LED converters, halogen lamps, power tools, and other household appliances.

How does the inverter handle safety and durability?

The inverter is built with short-circuit and overheat protection and a durable full bridge plus toroidal transformer design, ensuring long-term reliable operation under various conditions.

Can the inverter operate in extreme temperatures?

Yes, the inverter has a wide operating temperature range of -40°C to +65°C with fan-assisted cooling, making it suitable for diverse environments.

Does the inverter support automatic switching between power sources?

Yes, the inverter is compatible with the Filax Automatic Transfer Switch, which ensures seamless power transition to an alternate AC source with minimal disruption.

What is the maximum peak power of the inverter?

The inverter delivers a peak power of up to 6000 W, which is ideal for starting heavy loads and high-demand devices.

Can I integrate the inverter into a larger system?

Yes, the inverter supports programmable relay functions, remote on/off capabilities, and VE.Direct communication for system integration and automation.

What is the efficiency of the inverter?

The inverter offers a high efficiency of up to 96%, depending on the input voltage (12V/24V/48V), ensuring optimal energy use and minimal waste.

Manuals and PDF's

Victron Phoenix 24-3000 Specsheet
