Victron Phoenix 12V Inverter – Quiet, Efficient & Versatile Power Solution
The Victron Phoenix 12V VE.Direct NEMA 5-15R Inverter is a reliable and efficient power solution designed for various applications, offering power outputs ranging from 250VA to 1200VA. Engineered with a pure sine wave output, it ensures seamless compatibility with sensitive electronics, power tools, and lighting systems. Featuring VE.Direct communication, this inverter allows real-time monitoring and configuration via a computer, smartphone, or tablet using the VE.Direct to USB interface or Bluetooth Smart dongle. With configurable settings for voltage, frequency, and ECO mode, users can customize performance to match their power needs.
Built with proven reliability, the Victron Phoenix inverter utilizes a full bridge plus toroidal transformer topology, making it short-circuit proof and resistant to overheating. Its high start-up power capability ensures smooth operation of power-hungry devices, such as LED and halogen lamps or electric tools. The Phoenix 12/250, 12/375, 12/500, 12/800, and 12/1200 models provide a range of power options to suit different energy requirements. The integrated ECO mode helps optimize power consumption by switching to standby when the load drops below a preset level, improving energy efficiency. Additionally, a remote on/off switch can be connected for convenient control.
For enhanced versatility, the inverter is compatible with automatic transfer switches, such as the Filax Automatic Transfer Switch, ensuring uninterrupted power supply for critical equipment. with the output socket NEMA 5-15R provide flexibility for different regions. The screw terminal DC connection allows for hassle-free installation without the need for special tools. Whether for home, mobile, or off-grid applications, the Victron Phoenix inverter delivers dependable performance with advanced safety and efficiency features.
Phoenix 12V VE.Direct NEMA 5-15R Features

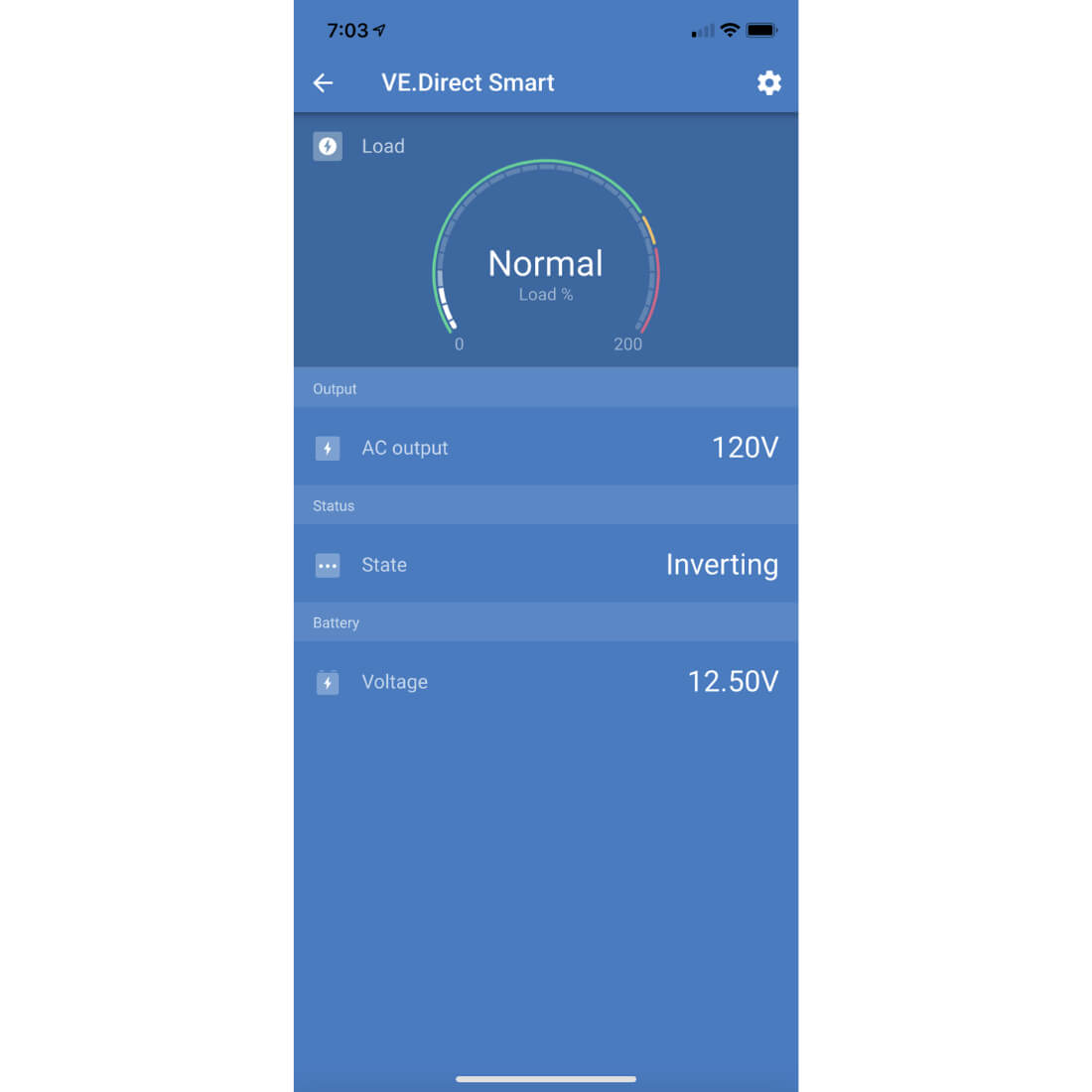

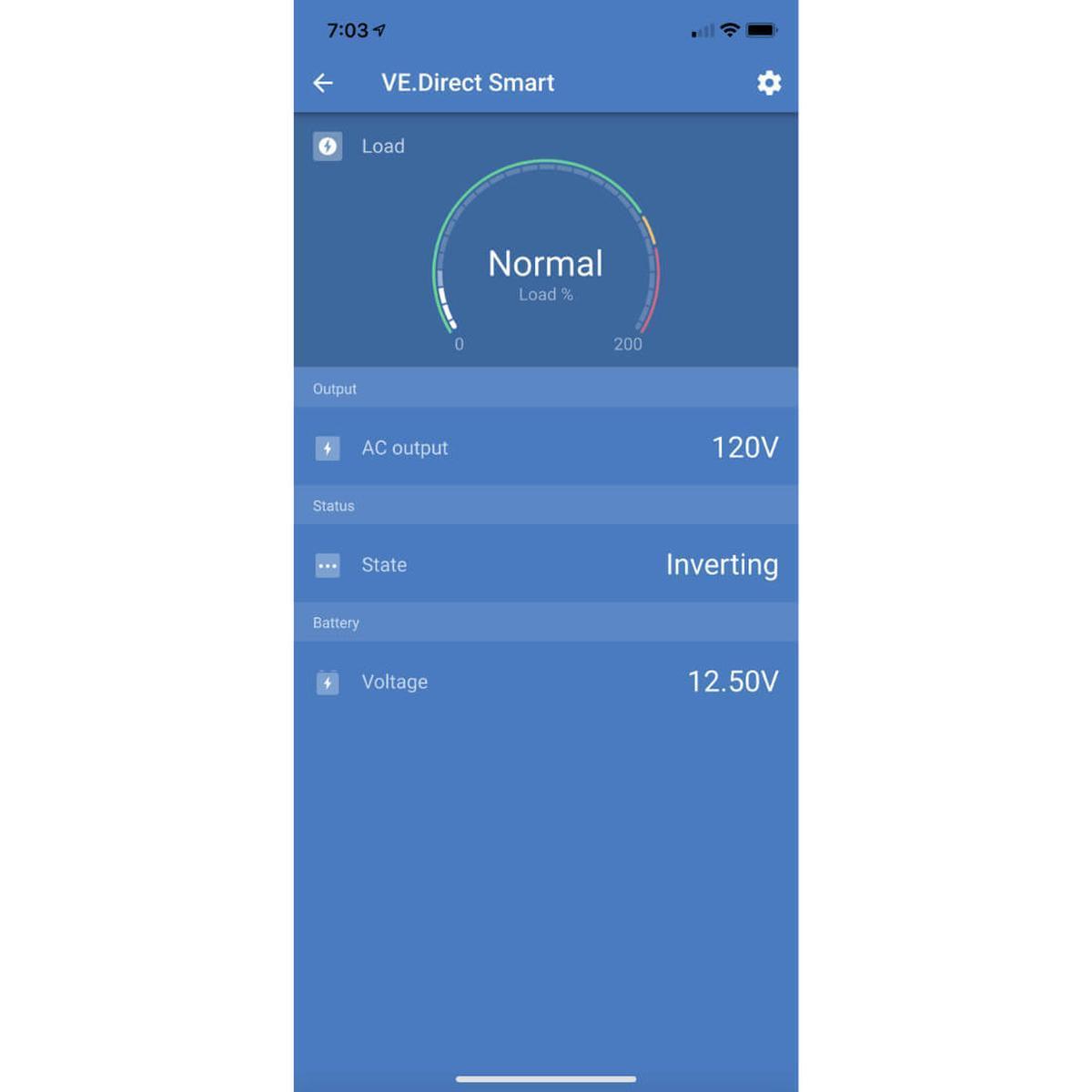

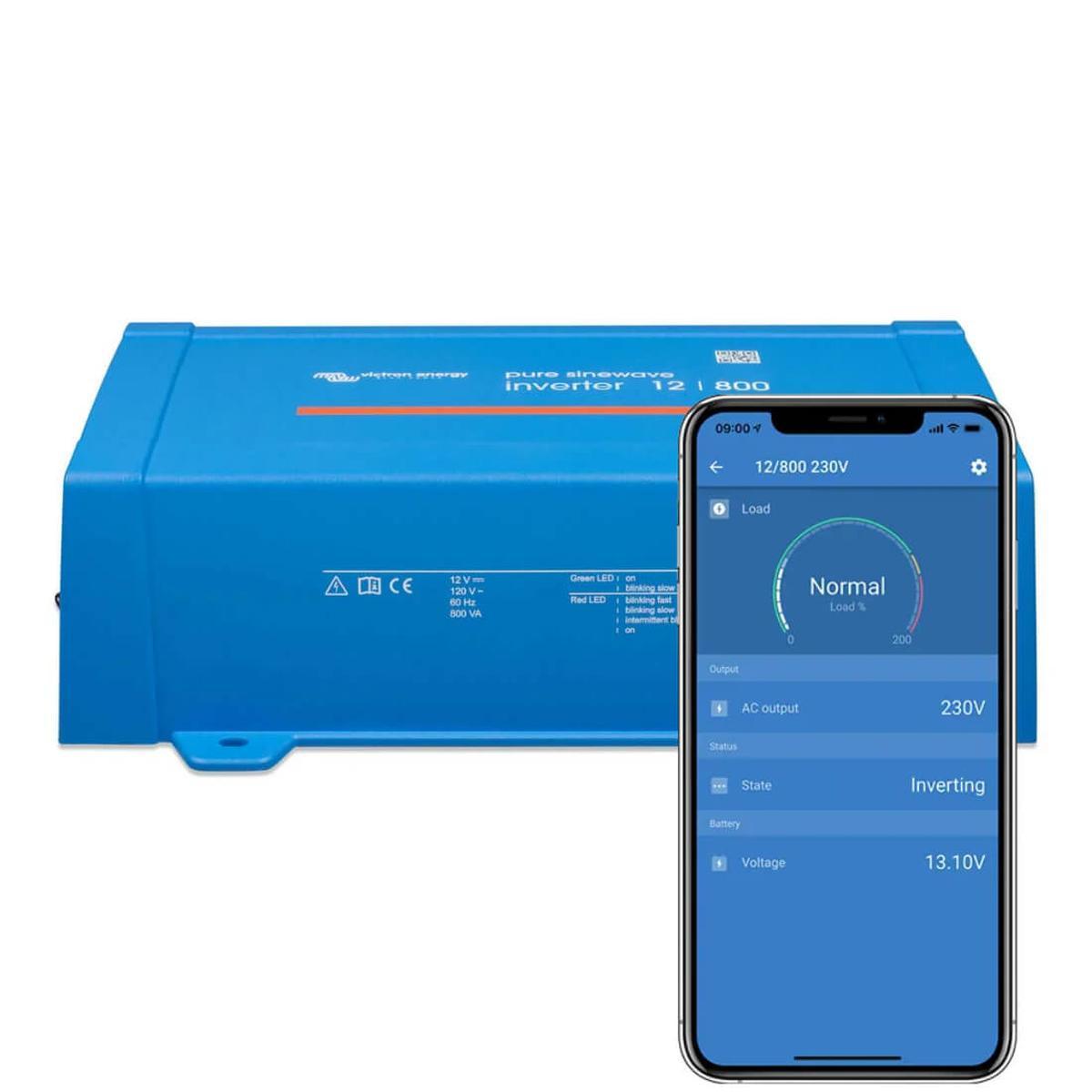

VE.Direct Communication Port
- Easily connects to computers, smartphones, and tablets for real-time monitoring.
- Allows full configuration of voltage, frequency, and ECO mode for optimized performance.
Pure Sine Wave Output
- Ensures compatibility with sensitive electronics and appliances.
- Provides stable and clean power, reducing the risk of damage to connected devices.
High Start-Up Power
- Supports power-hungry devices such as LED lamps, halogen lights, and electric tools.
- Prevents voltage drops and ensures smooth operation of demanding loads.
ECO Mode for Energy Efficiency
- Reduces power consumption by switching to standby when the load is low.
- Extends battery life, making it ideal for off-grid and mobile applications.
Reliable Full Bridge + Toroidal Transformer Design
- Offers proven durability and high efficiency.
- Provides protection against short circuits and overheating.
Remote On/Off Control
- Allows convenient operation with an external switch or battery connection.
- Enhances usability in remote or hard-to-reach locations.
Automatic Transfer Switch Compatibility
- Works with the Filax Automatic Transfer Switch for seamless power transitions.
- Prevents disruptions for critical electronics like computers and medical devices.

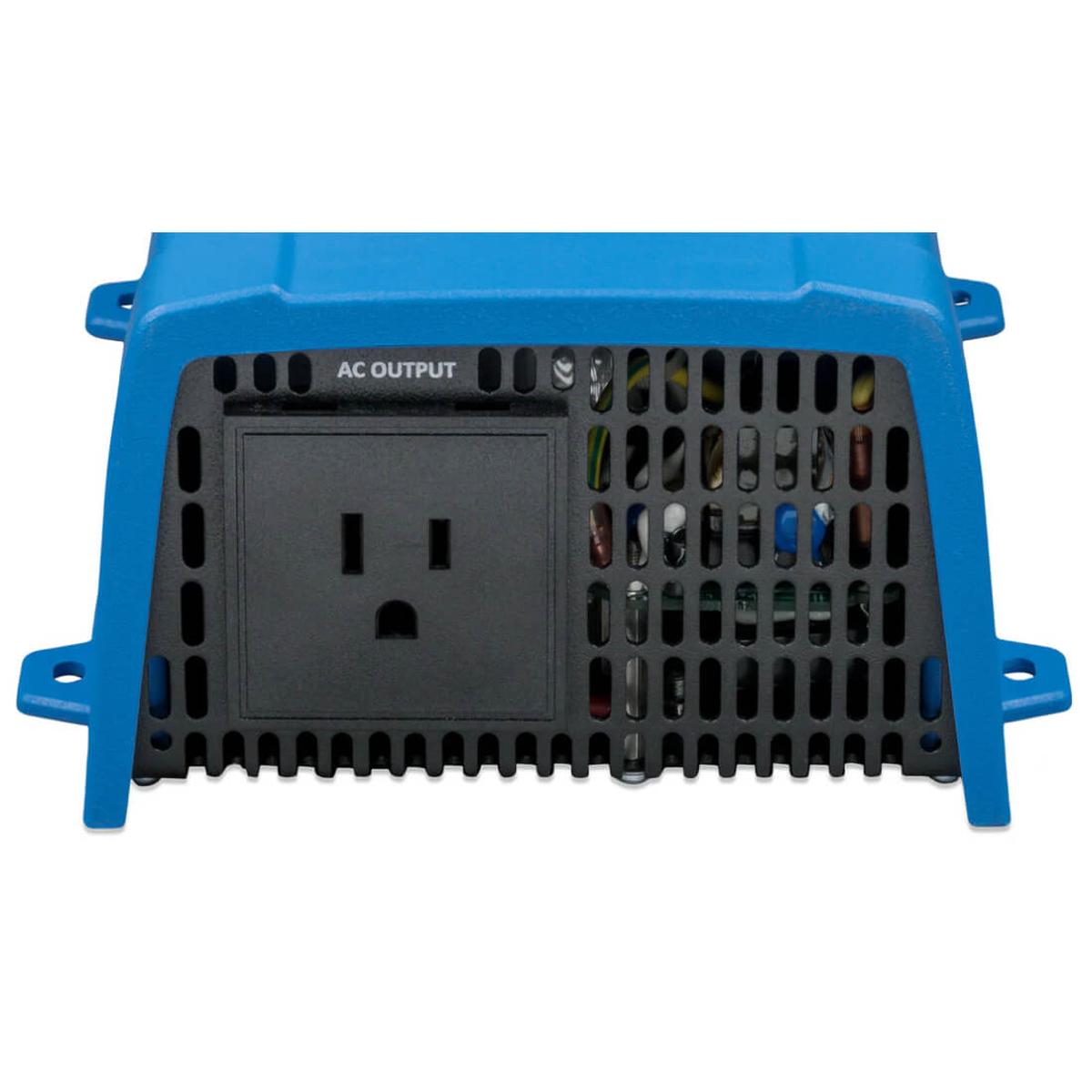

Multiple Output Socket Options
- Available with NEMA 5-15R, Schuko, UK, AU/NZS, and IEC-320 sockets.
- Offers flexibility for different regions and plug types.
User-Friendly DC Connection
- Screw terminal connections require no special tools for installation.
- Ensures secure and reliable wiring for various setups.

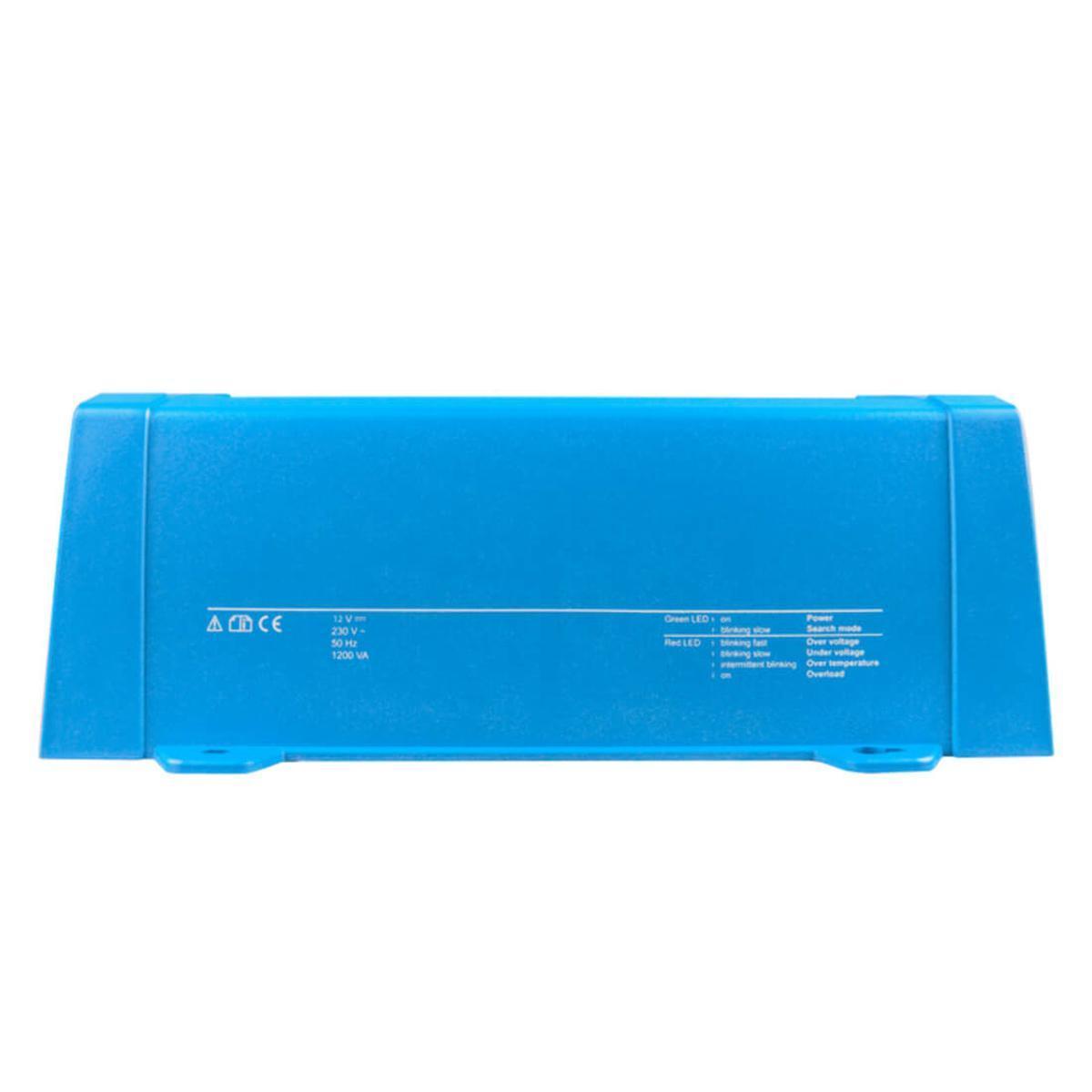

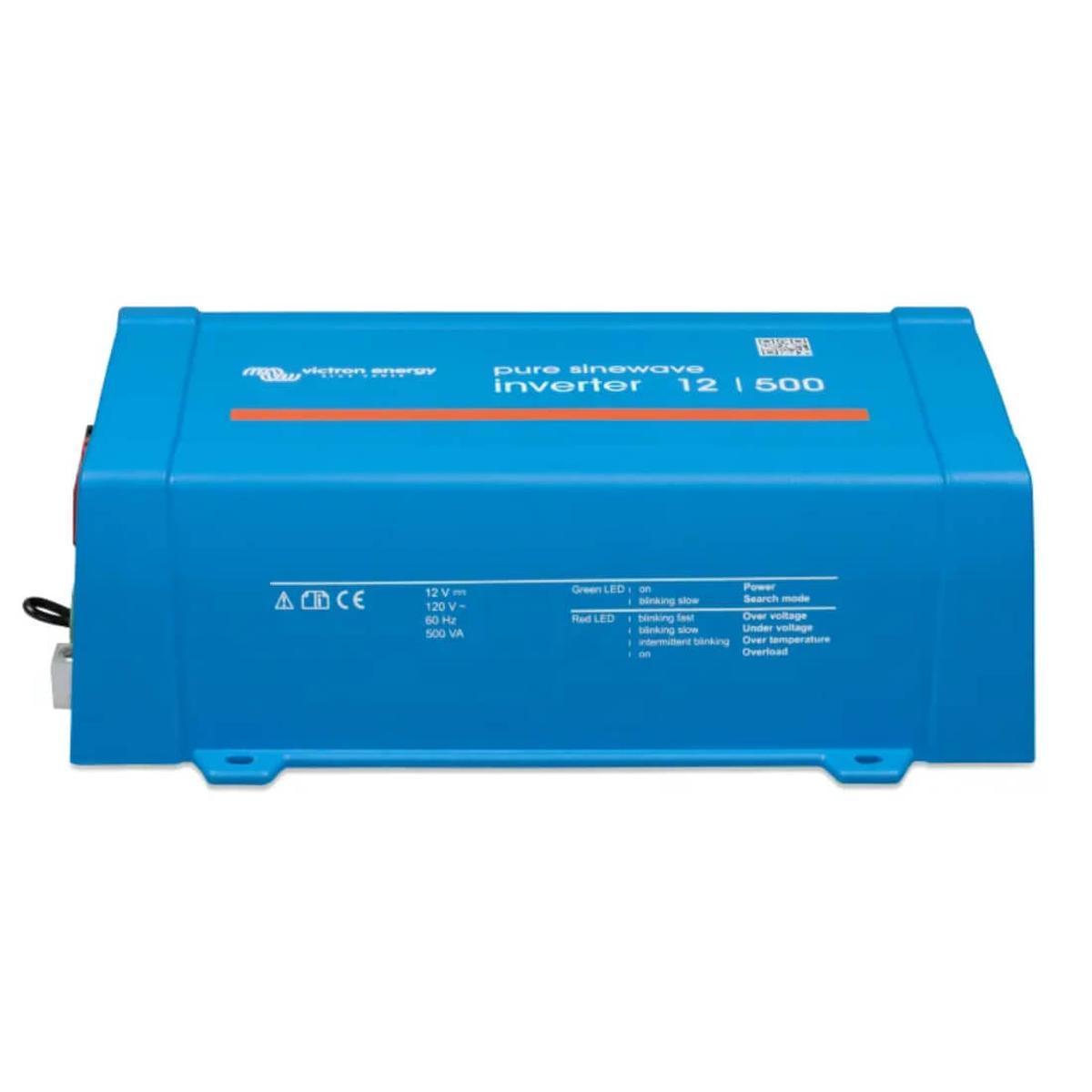

LED Diagnostic System
- Provides clear status indications for easy troubleshooting.
- Helps users quickly identify issues and monitor inverter operation.
Victron Phoenix 12V VE.Direct NEMA 5-15R Warranty
-
General Warranty: 5 years from the date of purchase by the original end-user (maximum of 66 months from the Victron Energy invoice date).
-
Lead-Acid Batteries: 2 years from the date of purchase (maximum of 30 months from the Victron Energy invoice date).
-
Lithium Batteries: 3 years from the date of purchase (maximum of 42 months from the Victron Energy invoice date).
-
Battery Warranty Claims: Proof of correct battery usage is required.
Whats in the Box
Note: Additional accessories such as the VE.Direct to USB interface cable, VE.Direct Bluetooth Smart dongle, and Phoenix Inverter Control VE.Direct are available separately.
Phoenix 12V VE.Direct NEMA 5-15R Specification
| Inverter |
| 12 Volt |
12/250 | 12/375 | 12/500 | 12/800 | 12/1200 |
| Performance |
| Cont. power at 25°C |
250VA | 375VA | 500VA | 800VA | 1200VA |
| Cont. power at 25°C / 40°C |
200 / 175W | 300 / 260W | 400 / 350W | 650 / 550W | 1000 / 850W |
| Peak power |
400W | 700W | 900W | 1500W | 2200W |
| Output AC voltage / frequency (adjustable) |
230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1% |
| Input voltage range |
9.2 - 17V |
| DC low shut down (adjustable) |
9.3V |
| Battery charged detect (adjustable) |
14.0V |
| Max. efficiency |
87 / 88 / 88% | 89 / 89 / 90% | 89 / 90 / 91% | 90 / 90 / 91% | 91 / 91 / 92% |
| Zero-load power |
4.2 / 5.2 / 7.9W | 5.6 / 6.1 / 8.5W | 6 / 6.5 / 9W | 7 / 8 / 10W |
| Default zero-load power in ECO mode |
0.8 / 1.3 / 2.5W | 0.9 / 1.4 / 2.6W | 1 / 1.5 / 3.0W |
| ECO mode stop and start power setting |
Adjustable |
| Operating temperature range |
-40 to +65°C (fan assisted cooling) *Derate 1.25% per °C above 40°C |
| Humidity (non-condensing) |
max 95% |
| Enclosure |
| Material & Colour |
Steel chassis and plastic cover (blue Ral 5012) |
| Protection category |
IP 21 |
| Dimensions (h x w x d, mm) |
86 x 165 x 260 | 86 x 165 x 260 | 86 x 165 x 260 | 105 x 216 x 305 | 117 x 232 x 327 |
| Dimensions (h x w x d, inch) |
3.4 x 6.5 x 10.2 | 3.4 x 6.5 x 10.2 | 3.4 x 6.5 x 10.2 | 4.1 x 8.5 x 12.1 | 4.6 x 9.1 x 12.8 |
| Accessories |
| Remote on-off |
Yes |
| Automatic transfer switch |
Filax |
| Standards |
| Safety |
EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3) |
| EMC |
EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-3 |
| Automotive Directive |
ECE R10-4 |
Frequently Asked Questions
FAQs
What is the Victron Phoenix 12V VE.Direct NEMA 5-15R Inverter used for?
The Victron Phoenix 12V inverter is designed for off-grid systems, RVs, boats, and backup power for sensitive electronics, ensuring stable and efficient performance.
What power output options are available?
The inverter is available in models 12/250, 12/375, 12/500, 12/800, and 12/1200, offering continuous power from 250VA to 1200VA.
How does the VE.Direct communication port work?
The VE.Direct port allows connection to a computer, smartphone, or tablet via a VE.Direct to USB interface or Bluetooth Smart dongle for real-time monitoring and configuration.
What is the benefit of pure sine wave output?
A pure sine wave output ensures compatibility with sensitive electronics, providing stable power without voltage fluctuations or interference.
How does ECO mode improve energy efficiency?
ECO mode reduces power consumption by switching to standby when the load is low and reactivating when needed, extending battery life.
Can the inverter handle high start-up power demands?
Yes, it supports devices with high initial energy requirements, such as LED lamps, small refrigerators, and power tools.
What protection features does this inverter have?
The inverter has short-circuit protection, overheating protection, and overload safeguards for durability and reliability.
What socket options are available?
It comes with multiple output socket options, including NEMA 5-15R, Schuko, UK, AU/NZS, and IEC-320.
Can I use an automatic transfer switch?
Yes, it is compatible with the Filax Automatic Transfer Switch for seamless power transitions without interruptions.
How do I install and connect the inverter?
Installation is simple with screw terminal DC connections, requiring no special tools. A remote on/off switch can also be connected.
