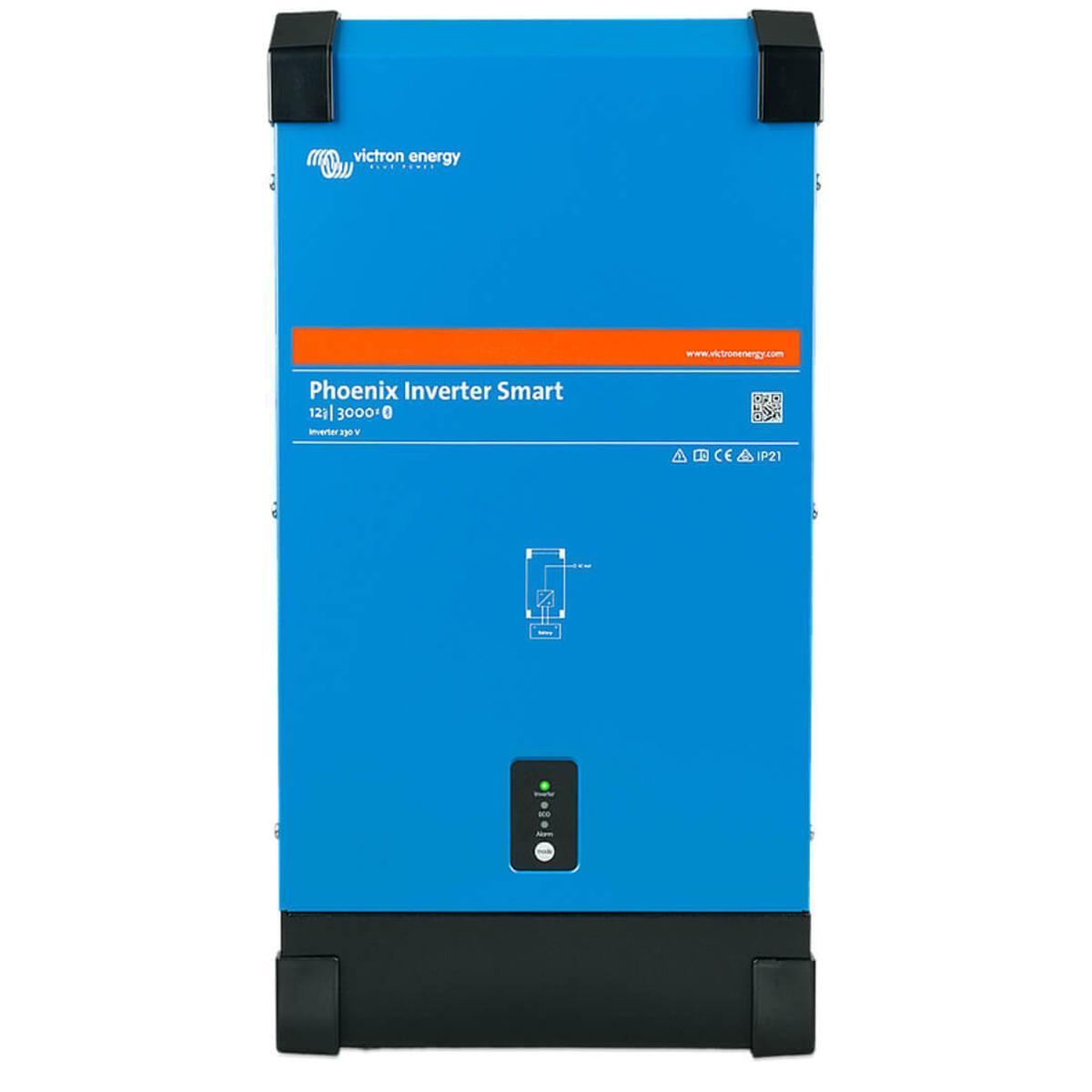

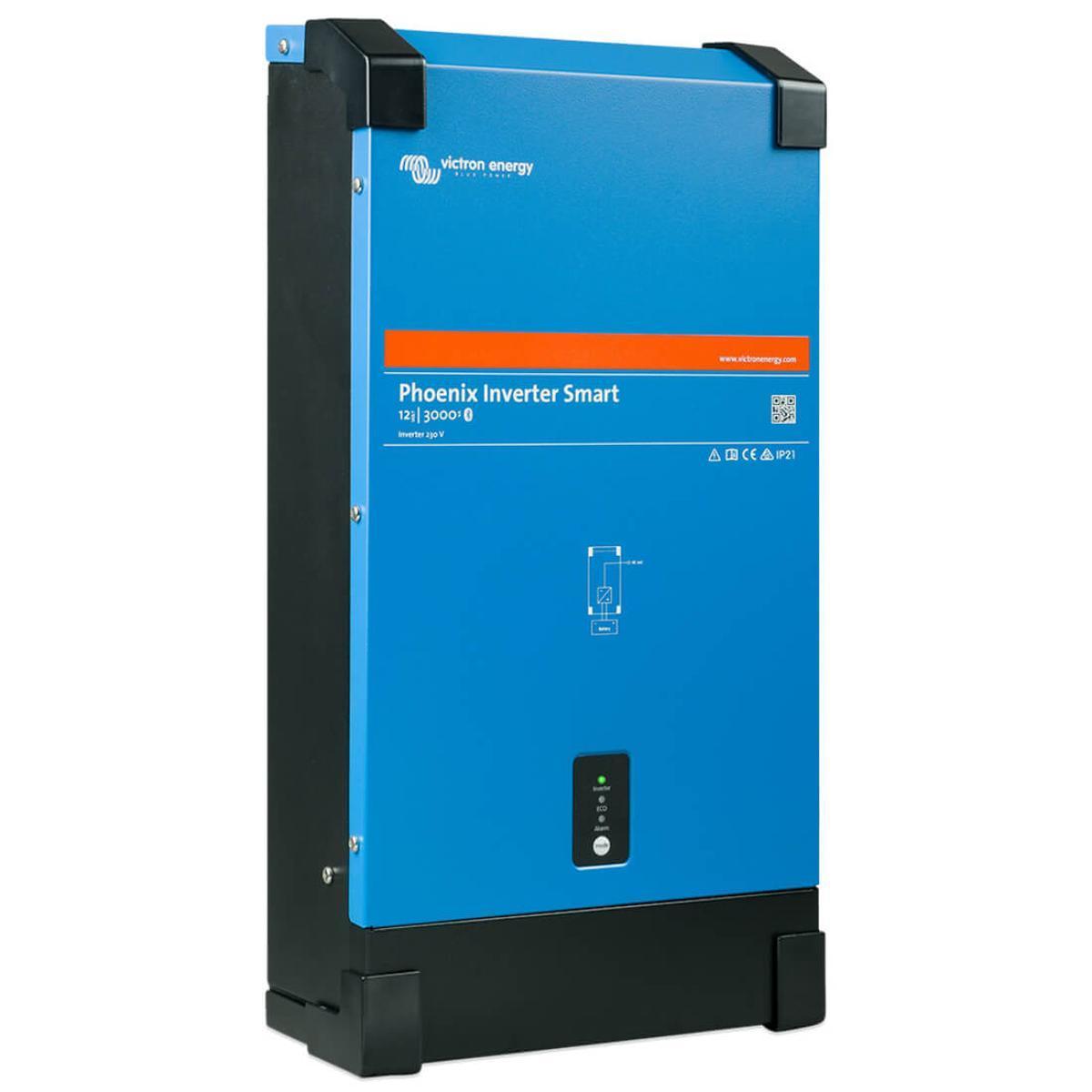

Phoenix 12/3000 Smart Inverter by Victron Energy

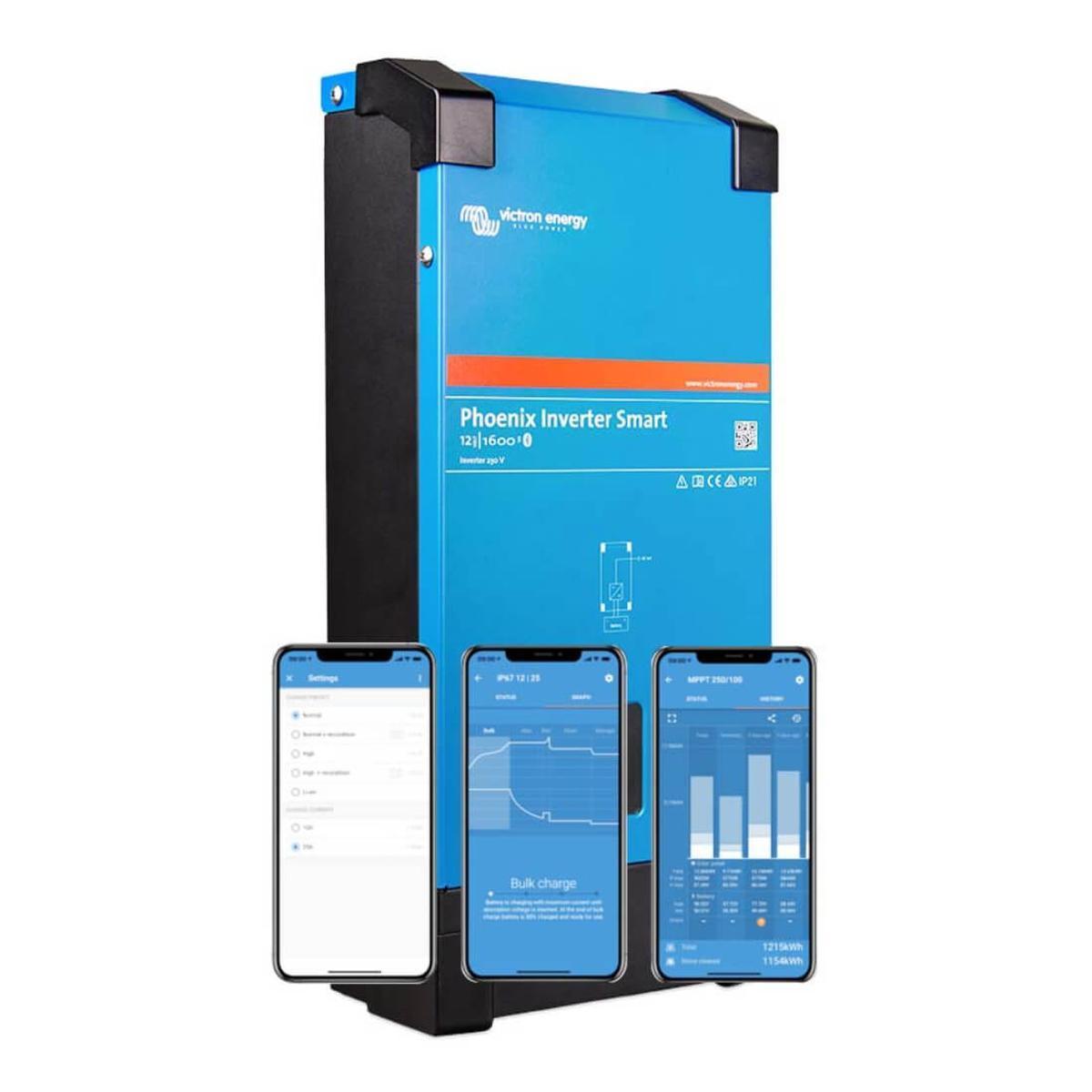

The Victron Phoenix 12/3000 Smart Inverter is a reliable power solution for off-grid setups, RVs, and boats. With built-in Bluetooth, it’s easy to monitor and customize settings like voltage, frequency, and ECO mode using a smartphone or tablet. It delivers high start-up power for devices like LED lights and tools, while safety features like short-circuit and overheat protection ensure durability. The VE.Direct port allows for real-time monitoring on a computer, and ECO mode reduces energy use during low loads. This inverter provides stable, efficient power for sensitive electronics and everyday needs.

The Victron Phoenix 12/3000 Smart Inverter offers proven reliability with a durable design that prevents overheating and short circuits, making it ideal for long-term use. Its high start-up power easily supports devices like LED converters, halogen lamps, and power tools. The ECO mode enhances energy efficiency by switching to standby during low loads and reactivating when needed, extending battery life.
Its remote on/off feature allows convenient control through a two-pole connector or vehicle chassis. Additionally, the inverter ensures stable performance with its full bridge plus toroidal transformer design, making it a dependable and energy-saving solution for a variety of applications.

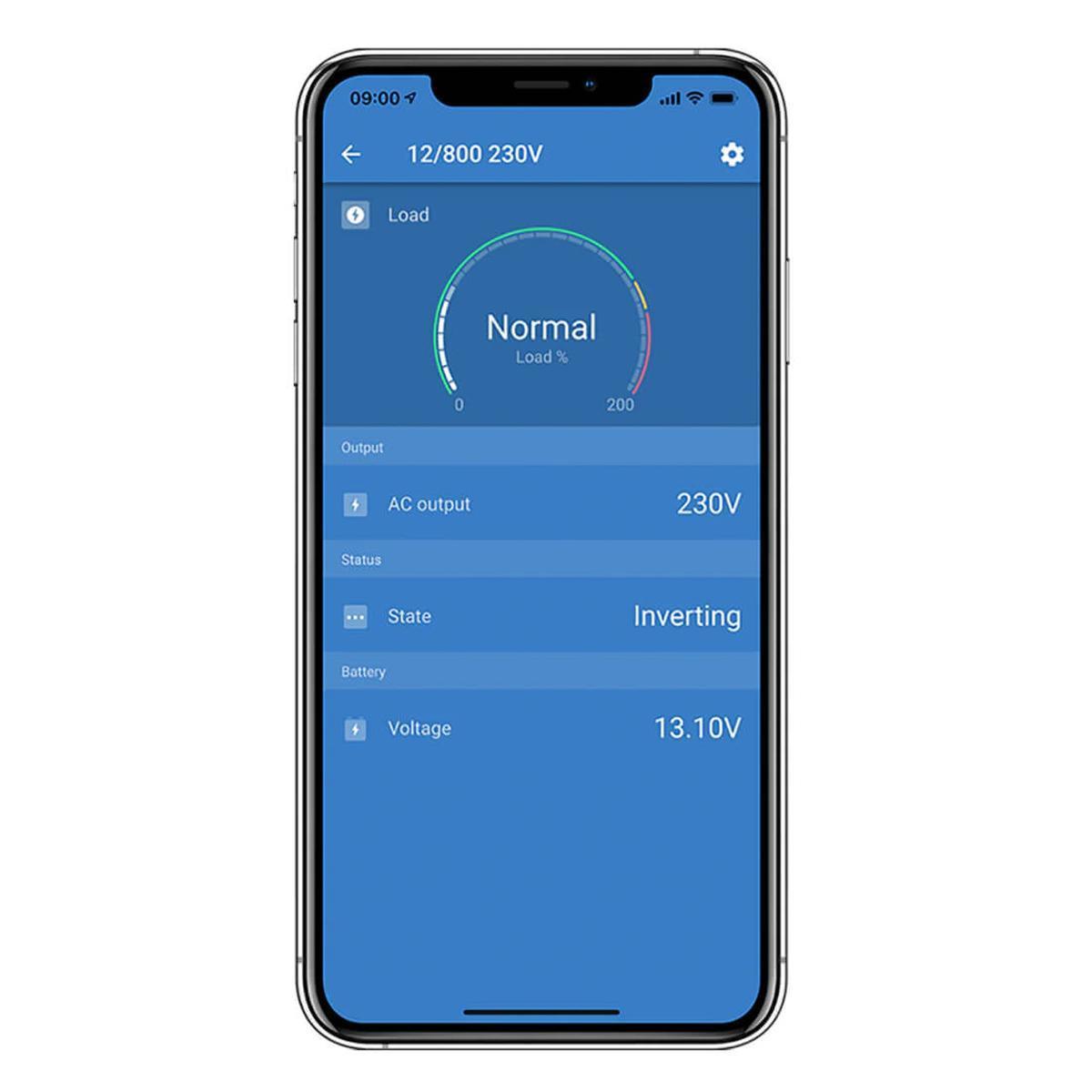

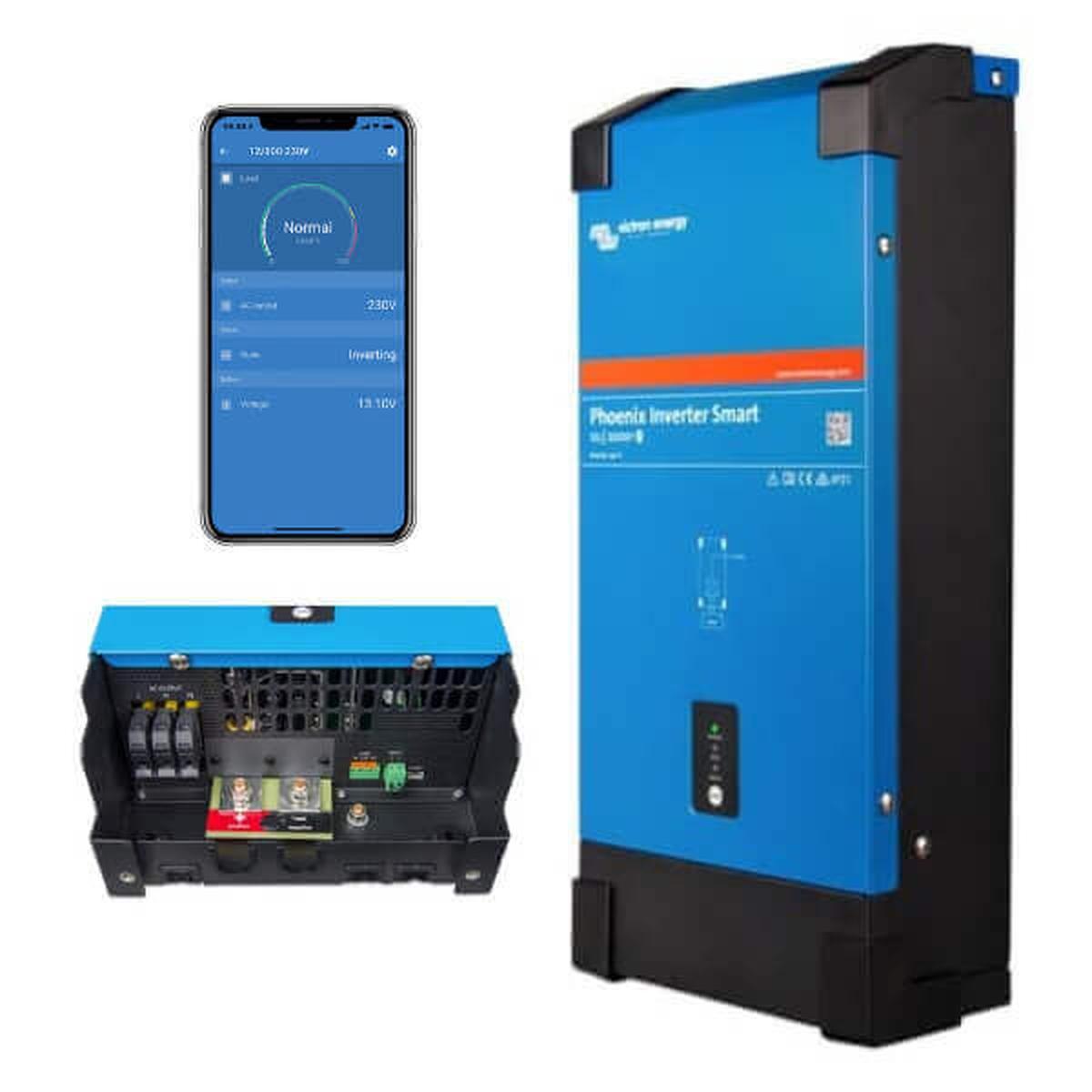

Victron Phoenix 12/3000 Smart Inverter VConnect Feature

Victron Phoenix 12/3000 Smart Inverter VConnect Feature

The Victron Phoenix 12/3000 Smart Inverter supports seamless load transfer to an alternative AC source through the Filax Automatic Transfer Switch, recommended for low-power inverters. The Filax switch features an ultra-fast switchover time of less than 20 milliseconds, ensuring uninterrupted operation of sensitive devices like computers and electronic equipment. For a more integrated solution, you can use a MultiPlus inverter/charger, which includes a built-in transfer switch for reliable and efficient power management. Both options provide convenience and ensure uninterrupted power delivery.
Victron Phoenix 12/3000 Smart Inverter with Auto Transfer Switch

Victron Phoenix 12/3000 Smart Inverter with Auto Transfer Switch

Phoenix 12/3000 Smart Inverter Over View

Phoenix Inverter Control This panel is intended for remote on/off control of all Phoenix inverters Smart.

Color Control GX & Other GX Devices Provides monitoring and control, locally and remotely on the VRM Portal.

VE.Direct to USB Interface Connects to a USB port for use with VictronConnect software.

BMV-712 Smart Battery Monitor Advanced microprocessor-controlled system for monitoring battery voltage and current.

Phoenix 12/3000 Smart Inverter Features

Proven Reliability

Built with full bridge and toroidal transformer technology for long-term durability.
Short circuit and overheating protection ensures safe operation under heavy loads or high temperatures.

High Start-Up Power

Easily powers devices with high initial energy demands, such as LED converters and electric tools.
Maintains stable performance without voltage drops during start-up.

ECO Mode for Energy Efficiency

Reduces power consumption by switching to standby mode during low loads.
Extends battery life and maximizes inverter efficiency.

Remote On/Off Capability

Allows convenient control with a two-pole switch or relay contact.
Offers flexible connection options, such as battery plus or minus terminals.

VE.Direct Communication Port

Enables connection to computers or devices for real-time monitoring and configuration.
Supports VE.Direct to USB or Bluetooth interfaces for enhanced usability.

Fully Configurable Settings

Customize voltage, frequency, and low battery cut-off levels to match your needs.
Adjust ECO mode sensitivity for optimal power management.

Reliable Power Output

Delivers pure sine wave AC power, ensuring compatibility with sensitive electronics.
Prevents damage and ensures the safe operation of appliances.

LED Diagnostic Indicators

Provides quick and easy status updates for troubleshooting.
Offers clear notifications for alarms and operational modes.

Automatic Transfer Switch Compatibility

Works seamlessly with the Filax switch for ultra-fast AC source transitions.
Ensures uninterrupted operation of computers and other sensitive devices.

Compact and Durable Design

Lightweight, robust construction for use in various environments.
Designed to perform in high ambient temperatures and demanding conditions.

Phoenix 12/3000 Warranty

Duration: 5 years from the original purchase date
Coverage: Defects in materials and workmanship
Process: Return the product with the purchase receipt to the retailer

What's in the Box?

Victron Phoenix 12/3000 Smart Inverter unit
Built-in Bluetooth module
Built-in VE.Direct communication port
Integrated programmable relay
Remote on/off terminal (2-pole connector)

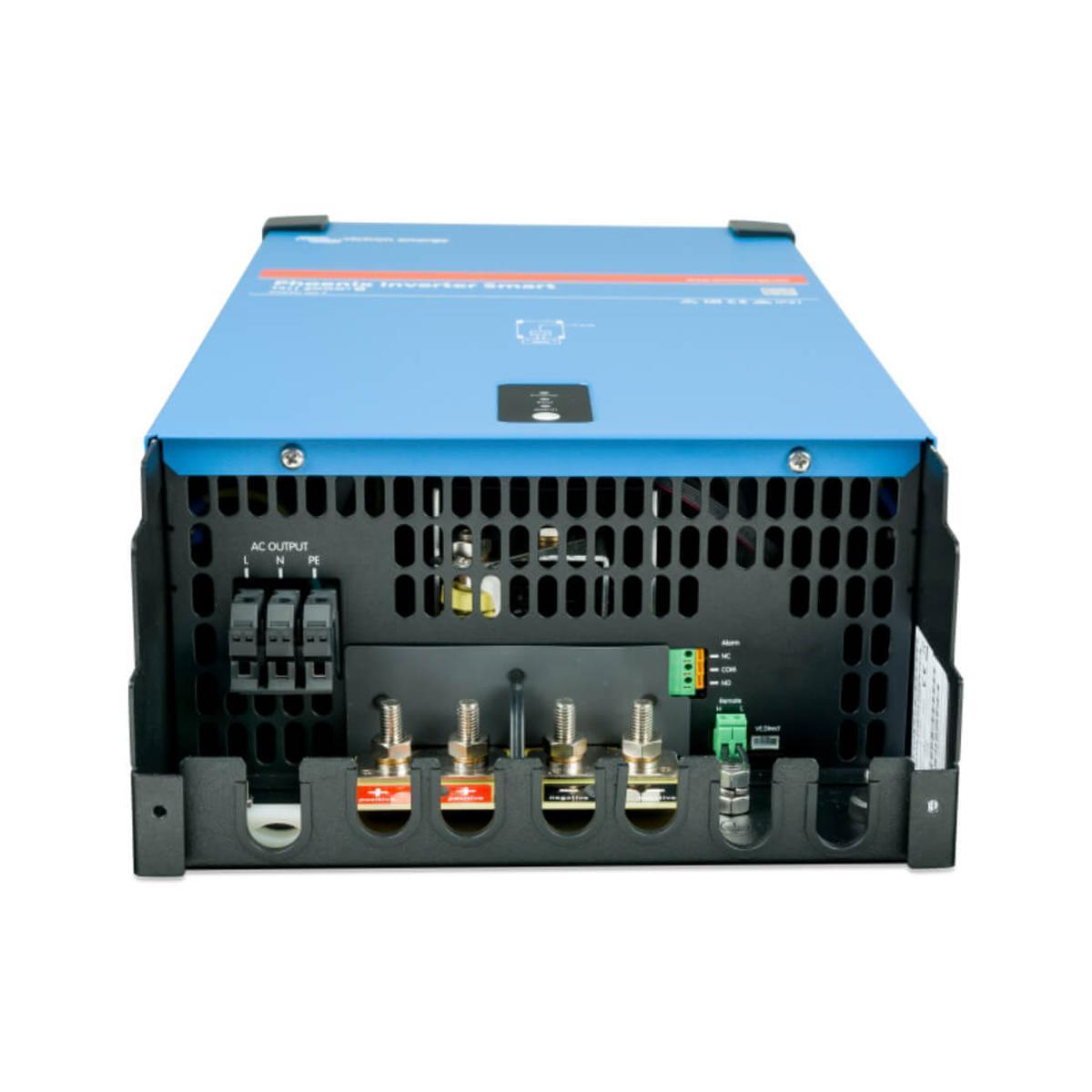

M8 battery connection bolts (2+2)
Screw terminal for AC output
Fan-assisted cooling system
Steel enclosure (blue or black, IP21 rated)

Not Included (Sold Separately)

VE.Direct to USB interface cable
Remote control panel
GX devices (for remote VRM monitoring)
Transfer switch
Battery monitor

Phoenix 12/3000 Smart Inverter Specification

Inverter 12/3000
Parallel, 3-phase and split-phase operation	Yes
INVERTER
Input voltage range (VDC)	9.5 – 17 V
Output	Output voltage: 120 VAC ±2 % Frequency: 60 Hz ± 0.1 %
Cont. output power at 25 °C / 77° F (VA)	3000
Cont. output power at 25 °C / 77° F (W)	2400
Cont. output power at 40 °C / 104° F (W)	2200
Cont. output power at 50 °C / 150 °F (W)	1700
Peak power (W)	6000
Max. efficiency (%)	93
Zero load power (W)	20
Zero load power in AES mode (W)	15
Zero load power in Search mode (W)	8
GENERAL
Programmable relay	Yes
Protection	a - g
VE.Bus communication port	For parallel and three-phase operation, remote monitoring and system integration
Remote on-off	Yes
Common Characteristics	Operating temperature range: -40 to +65 °C (-40 – 150 °F) Humidity (non-condensing): max 95%
ENCLOSURE
Material & Colour	Aluminium (blue RAL 5012)
Protection category	IP 21
Battery-connection	2+2 M8 bolts
120 VAC-connection	Screw terminals
Weight	18 kg / 38 lbs
Dimensions (h x w x d)	362 x 258 x 218 mm / 14.3 x 10.2 x 8.6 inch
STANDARDS
Safety	EN 60335-1
Emission Immunity	EN 55014-1 / EN 55014-2

Phoenix 12/3000 Smart Inverter FAQ's

What is the power capacity of the Phoenix 12/3000 Smart Inverter?

The inverter provides a continuous output power of 2400W at 25°C, with a peak power of up to 6000W to handle high start-up loads.

Can the Phoenix 12/3000 Smart Inverter power sensitive electronics?

Yes, it delivers pure sine wave AC power, making it safe and reliable for sensitive devices like computers, TVs, and medical equipment.

What energy-saving features does this inverter offer?

The ECO mode reduces power consumption by switching to standby during low loads and automatically reactivates when power demand increases, helping to extend battery life.

Can the inverter be monitored and controlled remotely?

Yes, the inverter features built-in Bluetooth for monitoring and customizing settings via a smartphone or tablet. It also includes a VE.Direct communication port for real-time monitoring through a computer or additional devices.

What safety features does the Phoenix 12/3000 Smart Inverter have?

It includes protection against short circuits, overheating, and overloading, ensuring safe operation under heavy loads or high temperatures.

Does the inverter support automatic power transfer?

Yes, it is compatible with the Filax Automatic Transfer Switch for ultra-fast transitions to an alternative AC source, ensuring uninterrupted operation of sensitive devices.

What devices can the inverter power?

The high start-up power can handle devices with significant initial energy demands, such as LED converters, halogen lamps, electric tools, and small appliances.

How customizable are the inverter settings?

You can configure voltage, frequency, low battery cut-off levels, and ECO mode sensitivity to optimize the inverter for your specific needs.

Is the inverter suitable for rugged environments?

Yes, its durable aluminum construction, IP21 protection, and ability to operate in temperatures from -40°C to +65°C make it ideal for demanding conditions in RVs, boats, and off-grid setups.

What is the weight and size of the Phoenix 12/3000 Smart Inverter?

The inverter weighs 18 kg (38 lbs) and measures 362 x 258 x 218 mm.

Phoenix 12/3000 Smart Inverter Manual

Victron Phoenix 123000 Smart Inverter SpecSheet
