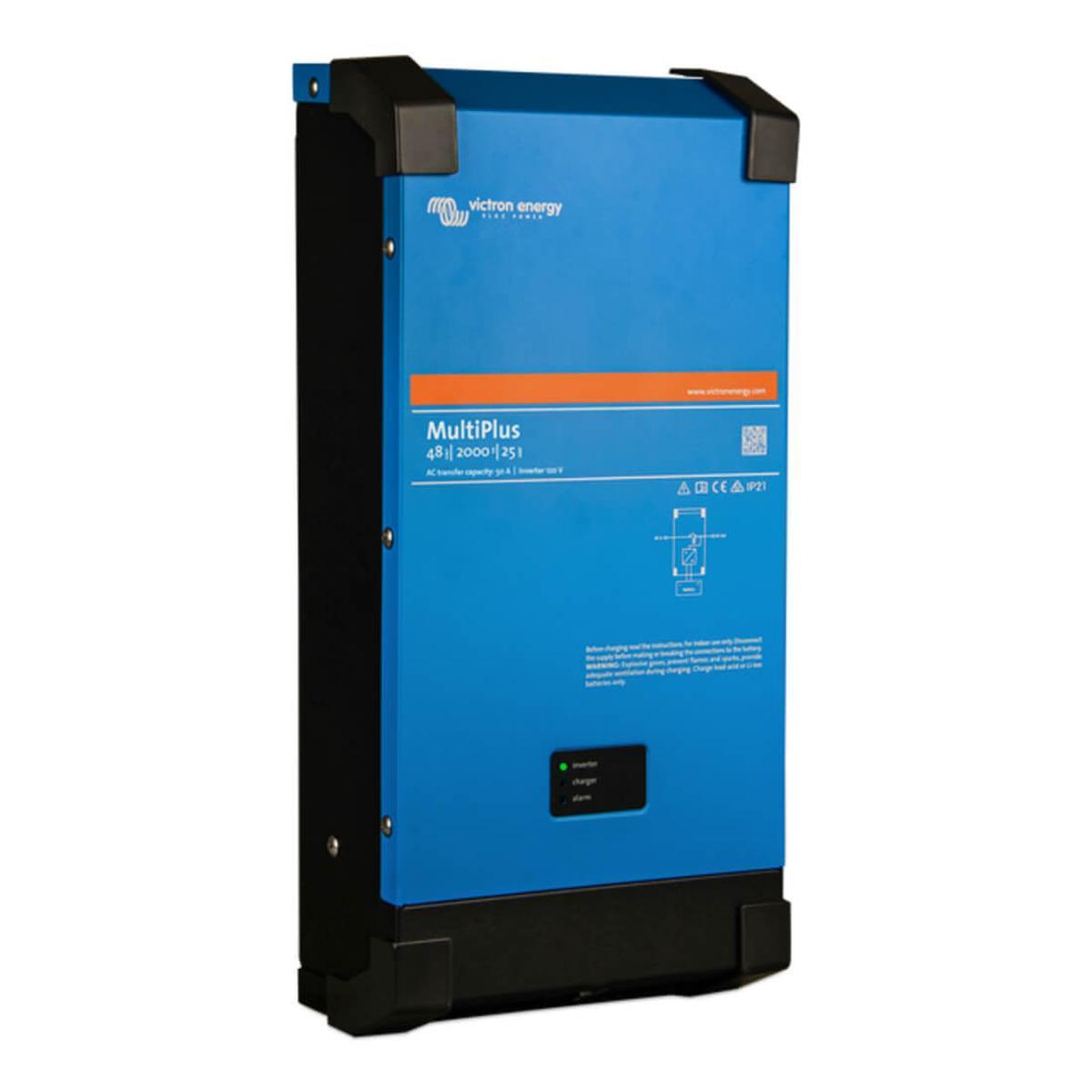

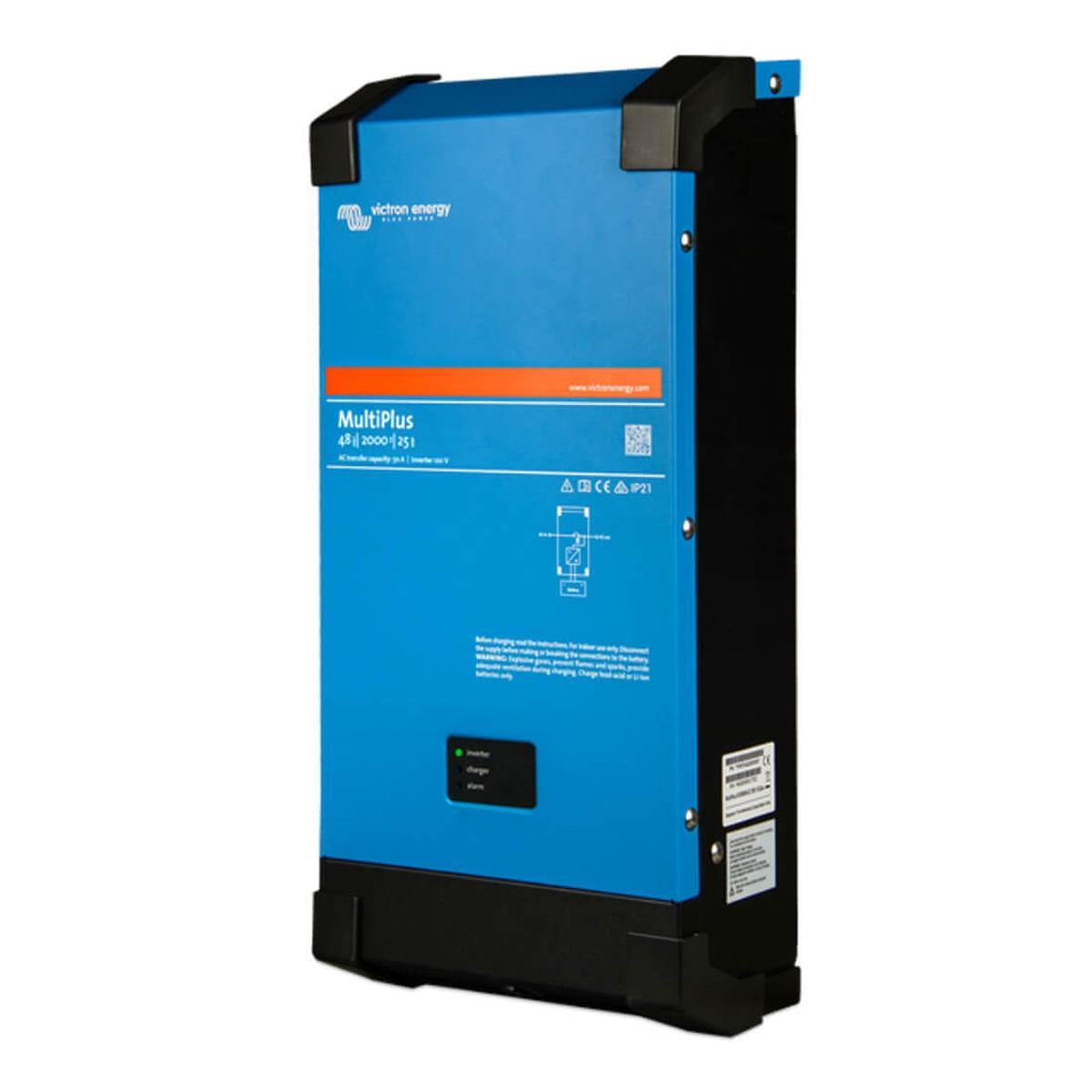

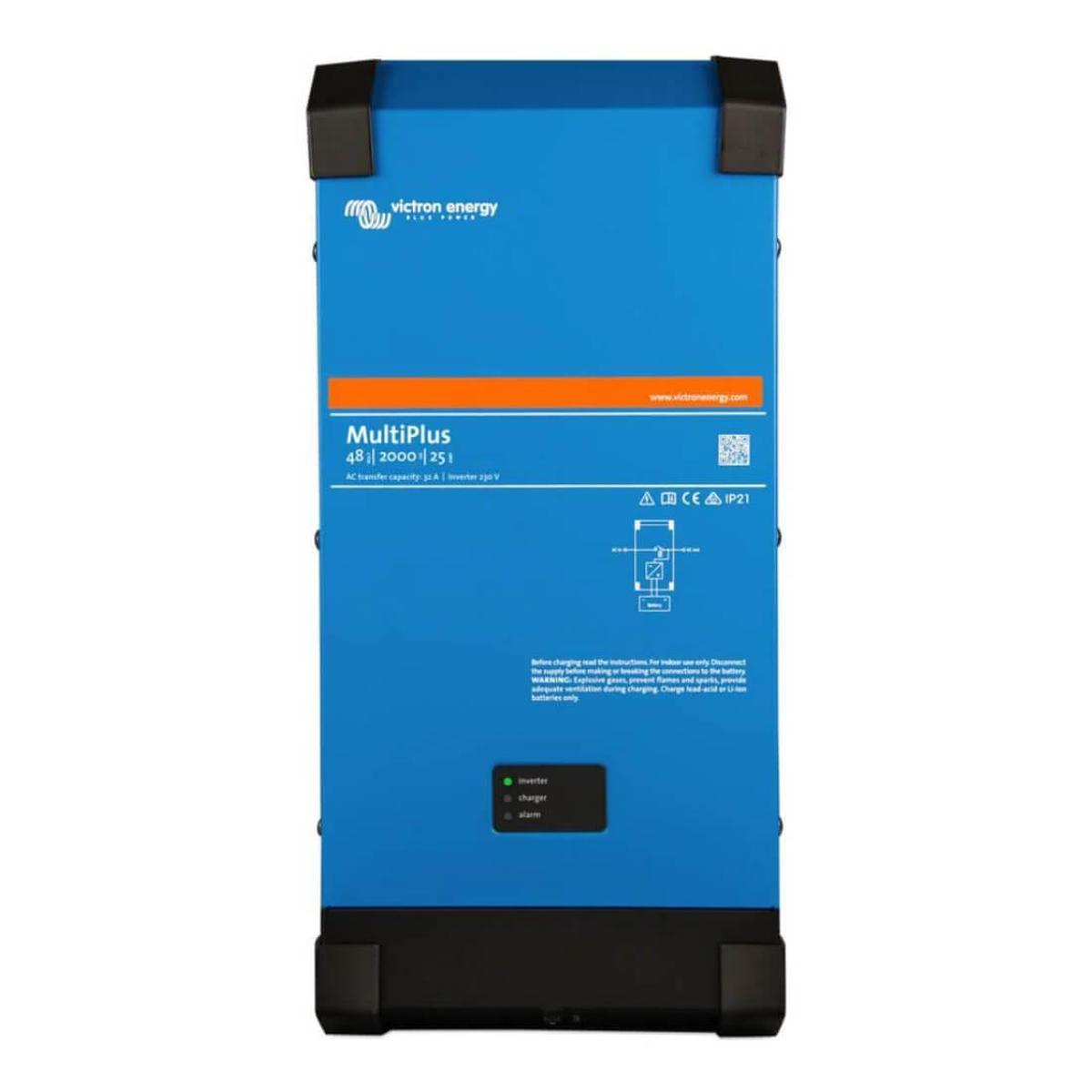

Victron MultiPlus 48/2000/25-50 Inverter/Charger by Victron Energy
The Victron MultiPlus 48/2000/25-50 Inverter/Charger is a versatile, all-in-one power solution designed for both residential and mobile energy systems. Combining a true sine wave inverter, sophisticated adaptive battery charger, and a high-speed AC transfer switch, this unit delivers seamless power management in a compact form. Whether you're dealing with off-grid applications or integrating with shore or generator power, the MultiPlus ensures reliable and uninterrupted energy flow.
One of the standout features of the MultiPlus is its PowerControl and PowerAssist technology. These intelligent systems manage and supplement limited AC sources like generators or shore connections, preventing overloads and providing additional power during peak demand by drawing from the battery bank. With parallel and three-phase operation capabilities, you can scale up to six units to meet higher power requirements, making it ideal for demanding setups. The unit also includes a four-stage adaptive charging system that optimizes battery health and longevity, while offering a secondary trickle charge for starter batteries.

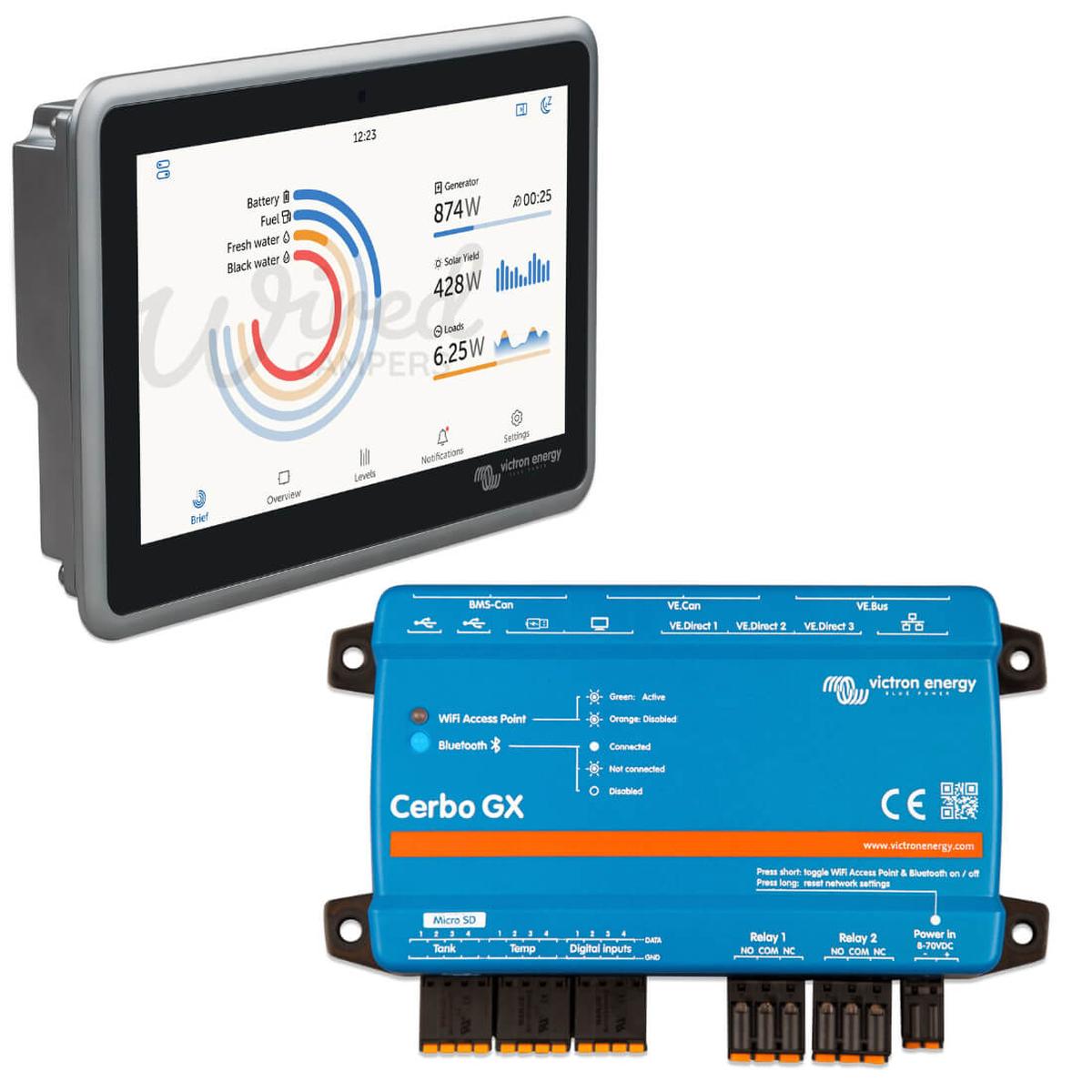

Designed with flexibility and efficiency in mind, the MultiPlus offers advanced features such as Search Mode to reduce no-load power consumption, a programmable relay for custom alerts, and remote monitoring and configuration via Victron’s VRM portal. When paired with a Cerbo GX or Ekrano GX device, users gain full control over their system from anywhere using the VRM app. Built for performance and convenience, the Victron MultiPlus 48/2000/25-50 is a trusted solution for those who require intelligent energy management without compromise.
MultiPlus 48/2000/25-50 120V Overview
Â
Battery Monitor
To monitor battery state of charge via Bluetooth or the VRM portal.
The BMV-712 Smart has a display, while the SmartShunt does not. Both communicate via Bluetooth and include a VE.Direct port.
Digital Multi Control Panel
A convenient and low-cost solution for monitoring and control.
Includes an on/off switch, charger-only mode, LED readout, and rotary knob for setting PowerControl and PowerAssist levels.

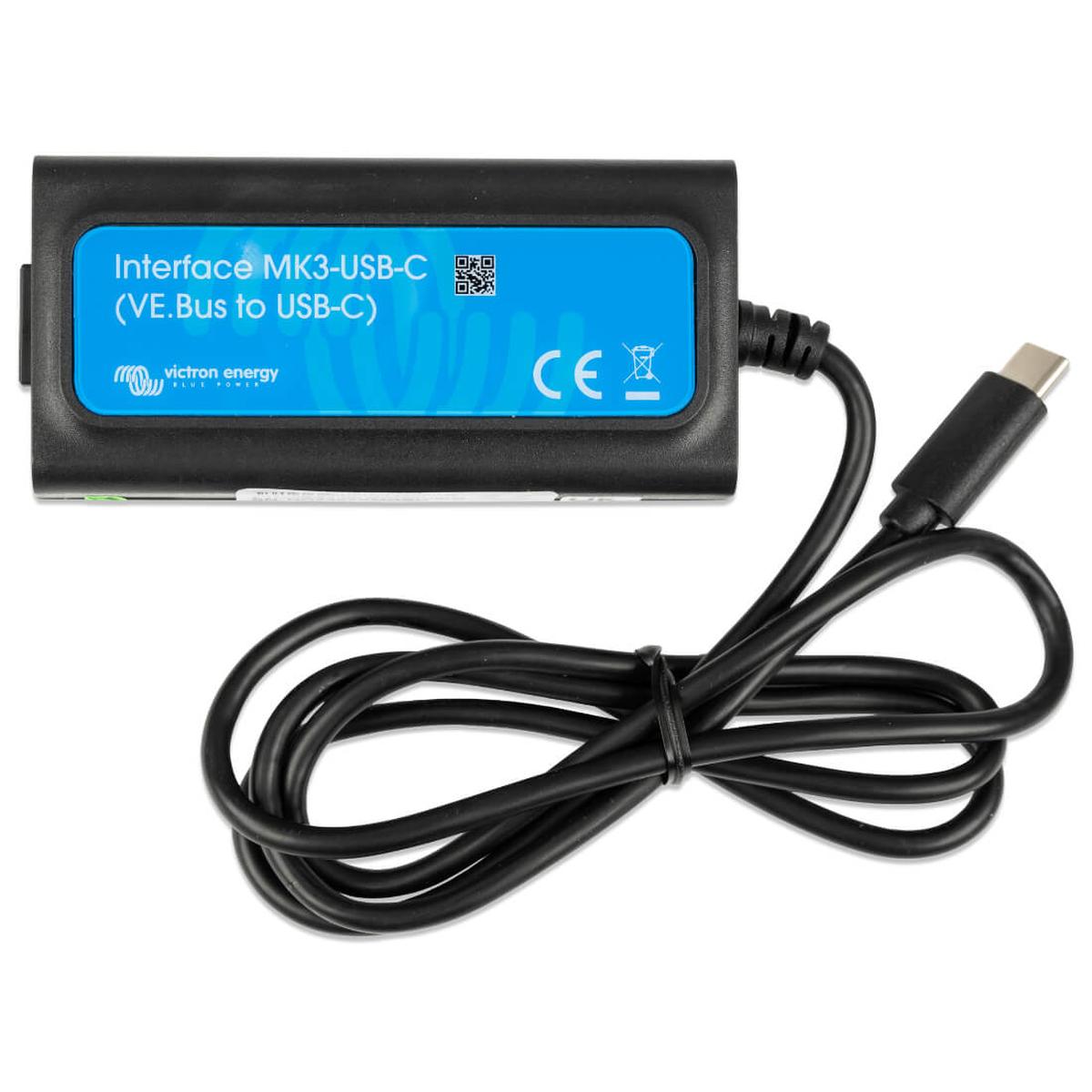

Interface MK3-USB
Used to configure the MultiPlus via VictronConnect or VE.Configure software.
Connects to the MultiPlus with an RJ45 UTP cable and plugs into a USB port.
VictronConnect App
Use the app to monitor or configure the MultiPlus from your smartphone, tablet, or PC.
VE.Bus Smart Dongle
Enables monitoring and control via Bluetooth using the VictronConnect app.
Also measures battery voltage and temperature.
MultiPlus 48/2000/25 Inverter/Charger Features
🔋 True Sine Wave Inverter & Adaptive Charger
-
Delivers smooth, clean AC power for sensitive electronics and appliances
-
Integrated 4-stage adaptive charger extends battery life and performance
âš¡ 2000VA Continuous Power with 50A Transfer Switch
-
Handles high-demand loads with ease, including tools and motors
-
Seamless AC transfer for uninterrupted power during source switching
🔄 PowerAssist for Load Support
🔌 Parallel & Three-Phase Ready
🔠Energy-Saving Search Mode
âš™ï¸ PowerControl Technology

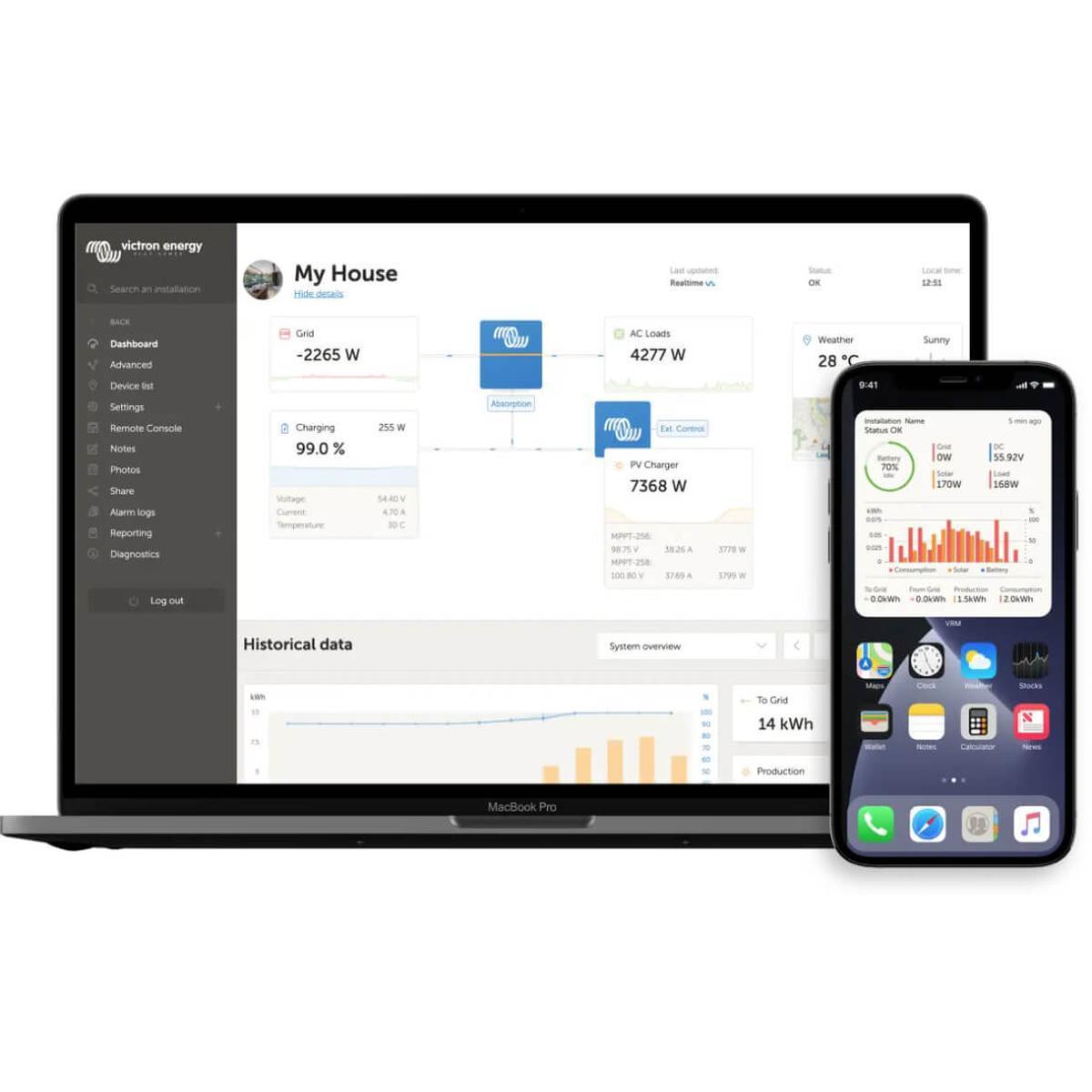

📡 Remote Management via VRM Portal

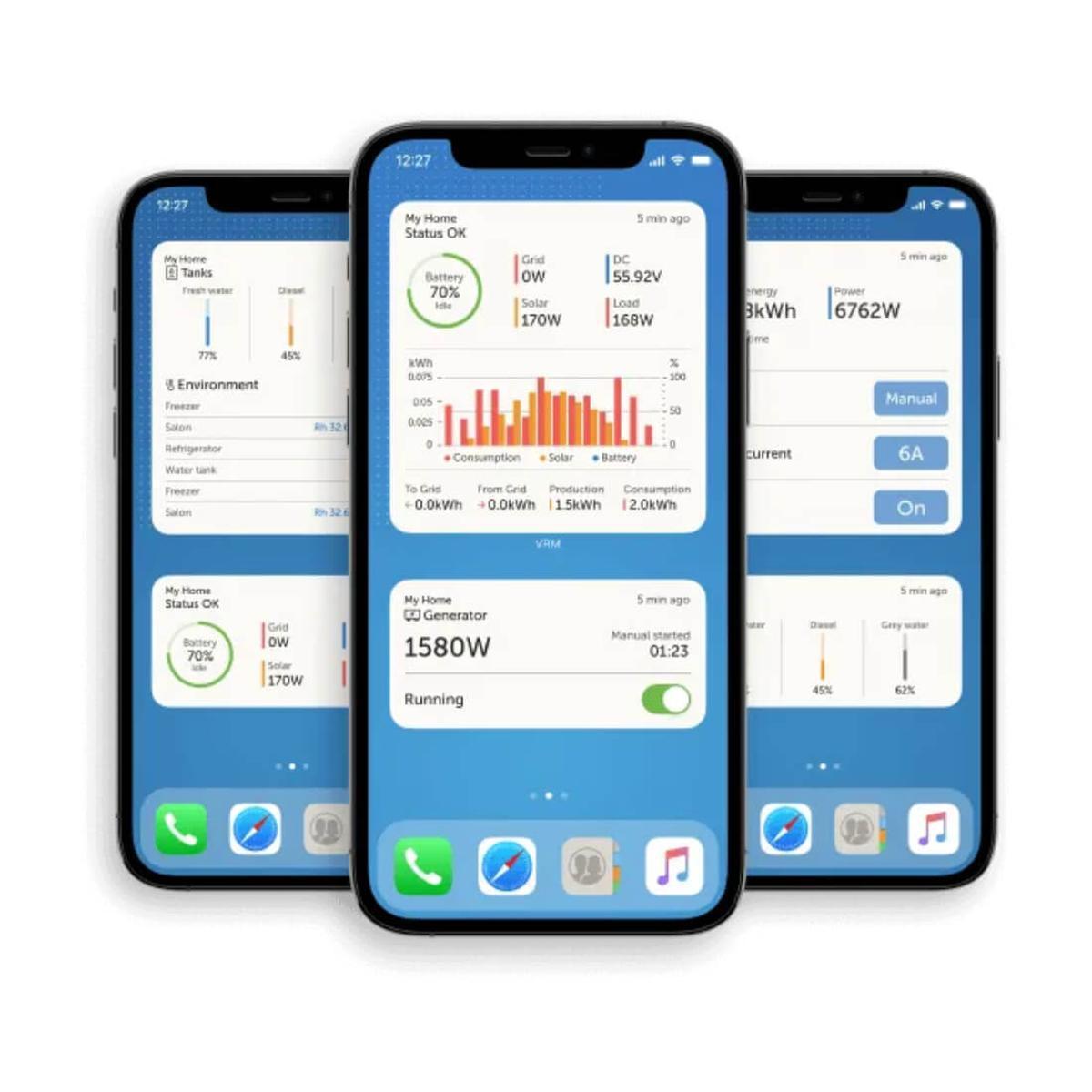

📱 Mobile Access with VRM App
-
Manage your Victron system via iOS or Android
-
View system status, history, and receive alerts on the go
🔋 Dual Bank Battery Charging
🧠Programmable Relay & DIP Switch Settings
MultiPlus 24V Inverter/Charger Warranty
-
Duration: 5 years from the original purchase date
-
Coverage: Defects in materials and workmanship
-
Process: Return the product with the purchase receipt to the retailer
What's in the Box?
MultiPlus 48/2000/25-50 Specifications
| MultiPlus 48/2000/25-50 |
| Input voltage range |
38 – 66 V |
| Output voltage |
120 VAC ± 2% |
| Frequency |
60 Hz ± 0.1% |
| Cont. output power at 25°C |
1600 W |
| Cont. output power at 40°C |
1450 W |
| Cont. output power at 65°C |
1000 W |
| Peak power |
4000 W |
| Maximum efficiency |
95% |
| Zero-load power |
11 W |
| Zero-load power in search mode |
3 W |
| AC input voltage range |
95-140 VAC |
| Frequency |
45 – 65 Hz |
| Charge voltage ‘absorption’ |
57.6 V |
| Charge voltage ‘float’ |
55.2 V |
| Storage mode |
52.8 V |
| Charge current house battery |
25 A |
| Charge current starter battery |
– |
| Battery temperature sensor |
Yes |
| Programmable relay |
Yes (x1) |
| VE.Bus communication port |
Yes |
| Remote on-off |
Yes |
| DIP switches |
Yes |
| Internal DC fuse |
No |
| Common Characteristics |
Steel (RAL 5012), IP22 |
| Operating temperature range |
-40 to +65°C (fan assisted cooling) |
| Humidity (non-condensing) |
Max 95% |
| Battery-connection |
Screw terminals 13 mm² (6 AWG) |
| Weight |
12 kg |
| Dimensions (h x w x d) |
506 x 236 x 147 mm |
| Safety |
EN 60335-1, EN 60335-2-29, EN 62109-1 |
| Emission & Immunity |
EN 55014-1, EN 55014-2, EN/IEC 61000-3-2, -3, -11, -12, -62 |
| Automotive Directive |
2004/104/EC |
Victron MultiPlus 48/2000/25-50 120V Inverter/Charger FAQ's
Â
What is the Victron MultiPlus 48/2000/25-50 120V Inverter/Charger?
The Victron MultiPlus 48/2000/25-50 is an all-in-one inverter/charger designed for residential and mobile energy systems. It combines a true sine wave inverter, adaptive battery charger, and high-speed AC transfer switch to ensure reliable power management.
What are the key features of the Victron MultiPlus 48/2000/25-50?
Key features include PowerControl and PowerAssist for managing and supplementing power from generators or shore connections, parallel and three-phase operation capabilities, a four-stage adaptive charger, Search Mode for energy savings, and remote monitoring via the VRM portal.
How does the PowerAssist feature work?
PowerAssist allows the MultiPlus to supplement power from a limited shore or generator supply by drawing additional power from the battery when demand spikes, ensuring consistent performance during peak loads.
Can the MultiPlus 48/2000/25-50 be connected in parallel or three-phase setups?
Yes, the MultiPlus can be configured for parallel operation with up to six units for higher capacity or set up in three-phase mode with three units to provide a balanced power system for demanding applications.
What is Search Mode and how does it help save energy?
Search Mode reduces the inverter’s no-load power consumption by up to 70%. It activates the inverter every two seconds to check for load, ensuring that it only operates when necessary, which helps save energy during periods of low demand.
What mobile apps are available for monitoring the MultiPlus 48/2000/25-50?
The VictronConnect app is available for both iOS and Android devices, allowing you to monitor and configure the system remotely. Additionally, the VRM app provides access to Victron’s free remote monitoring platform for system management.
What is the warranty for the MultiPlus 48/2000/25-50?
The MultiPlus comes with a 5-year warranty, covering defects in materials and workmanship. To claim, the product must be returned with the original purchase receipt.
What does the package include when I purchase the Victron MultiPlus 48/2000/25-50?
The package includes the MultiPlus inverter/charger unit, a user manual, a warranty card, mounting hardware, and a VE.Bus communication cable.
What is the maximum power output of the MultiPlus 48/2000/25-50?
The MultiPlus delivers a continuous power output of 2000 VA (1600 W at 25°C), with a peak power capacity of 3500 W to handle high-demand loads like motors and power tools.
How can I configure the MultiPlus and monitor its performance remotely?
You can configure the MultiPlus on-site using DIP switches for basic settings or through the VE.Bus Smart dongle and VE.Configure software for advanced settings. For remote monitoring, connect the system to the VRM portal or use the VRM app to receive alerts and adjust settings from anywhere.
Manuals and PDF's
 MultiPlus 48V Inverter Charger Data Sheet
