Victron Energy 12.8V 300Ah NG LiFePO4 Lithium Battery

Victron 300Ah Lithium Battery Serious Power in a Smart Package

Victron Energy 12.8V 300Ah NG LiFePO4 Lithium Battery provides high-capacity, dependable power for off-grid, marine, RV, and solar applications with a longer lifespan and greater efficiency than lead-acid batteries. It uses lithium iron phosphate technology with built-in safety protection, fast-charging support, deep-cycle capability, and full compatibility with Victron Energy systems.

Power your system with the Victron Energy BAT512130620 Lithium Battery. Order now and get long-lasting, efficient energy you can rely on.

Features

• Requires external Victron BMS compatibility, including Lynx Smart BMS NG
• Integrated cell voltage and temperature monitoring
• High 92% round-trip efficiency for minimal energy loss
• Scalable system supports up to 50 batteries per BMS
• Maximum single battery bank capacity up to 385 kWh
• Long-lasting and stable LiFePO4 battery chemistry
• IP65-rated enclosure for dust and water resistance

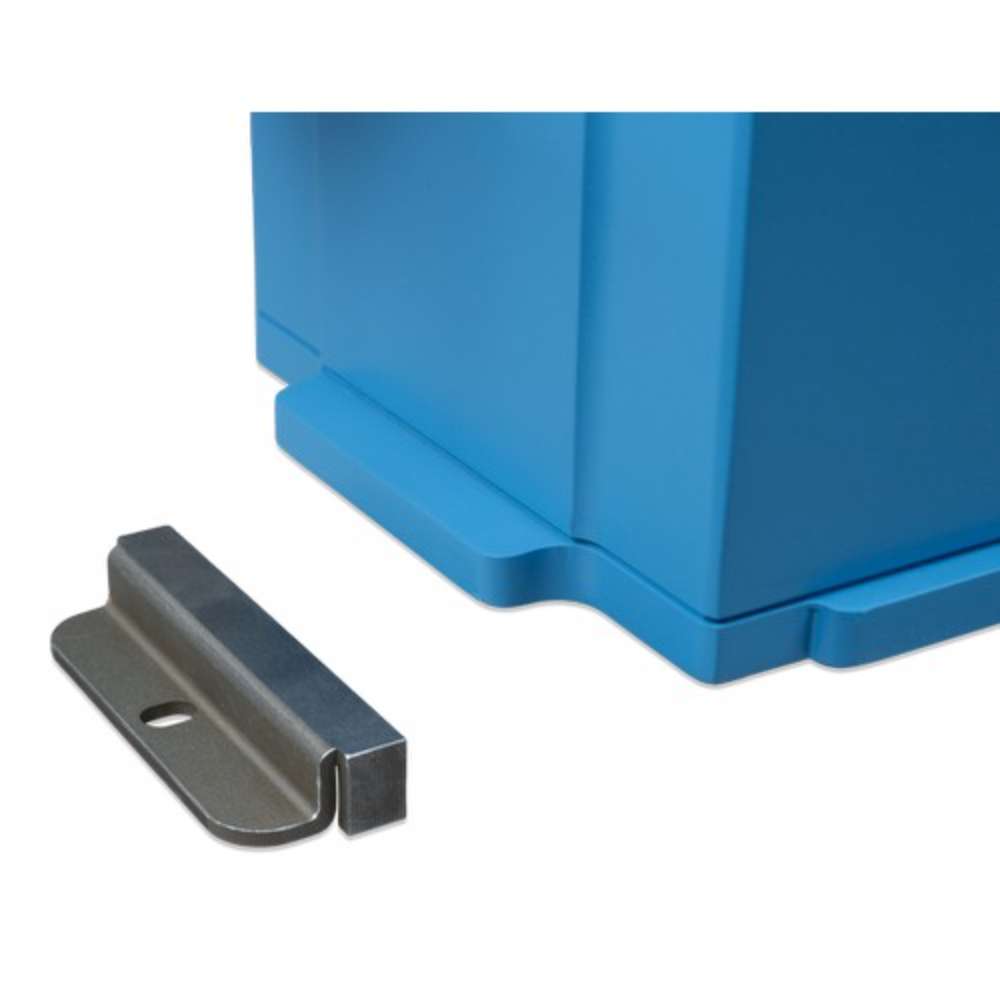

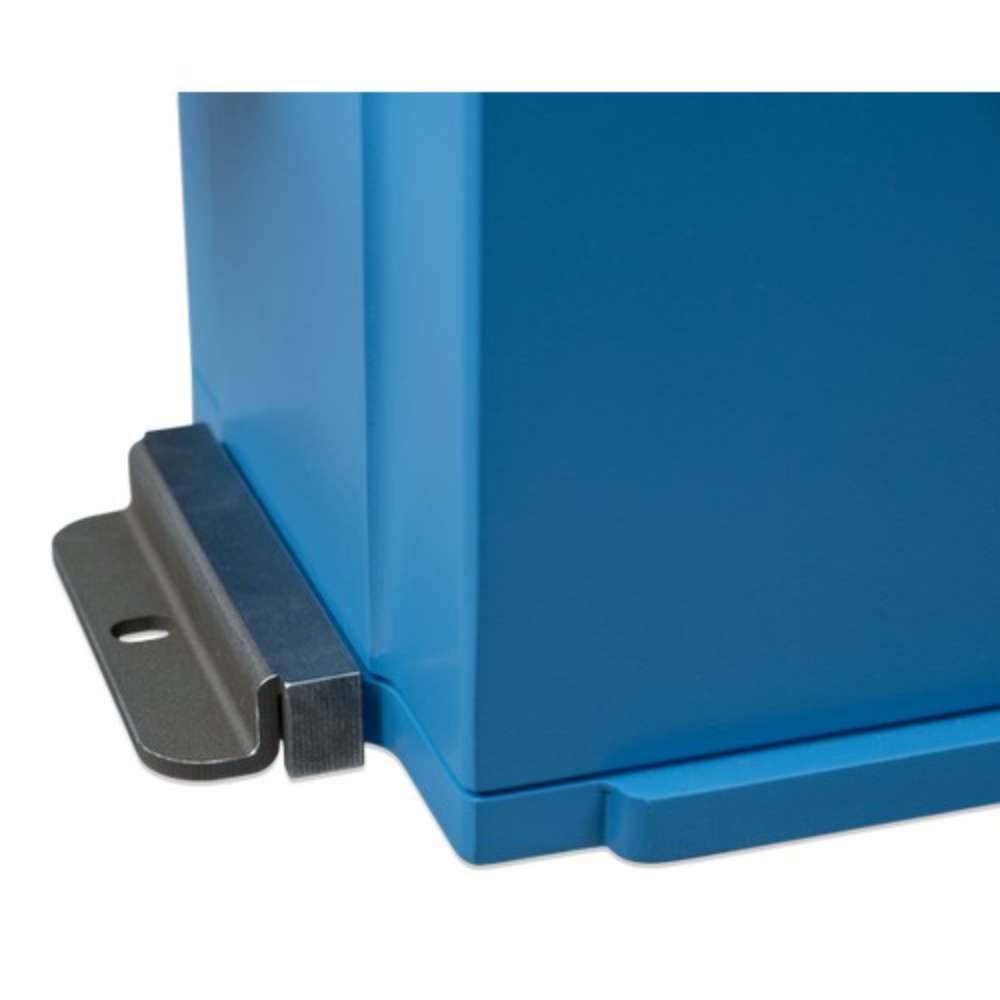

• Flexible installation with bracket and strap mounting options

Specifications

• Nominal Voltage: 12.8 V
• Nominal Capacity at 25°C: 300 Ah
• Nominal Energy at 25°C: 3.84 kWh (3840 Wh)
• Round Trip Efficiency: 92%
• Maximum Continuous Discharge Current: 300 A
• Maximum Pulse Discharge Current: 600 A for 10 seconds
• Maximum Continuous Charge Current: 300 A
• Maximum Pulse Charge Current: 450 A for 10 seconds
• Maximum Batteries per BMS: Up to 50 batteries
• Mounting Orientation: Upright or on its side, only terminals must not face downward
• Power Connection: M8 terminals

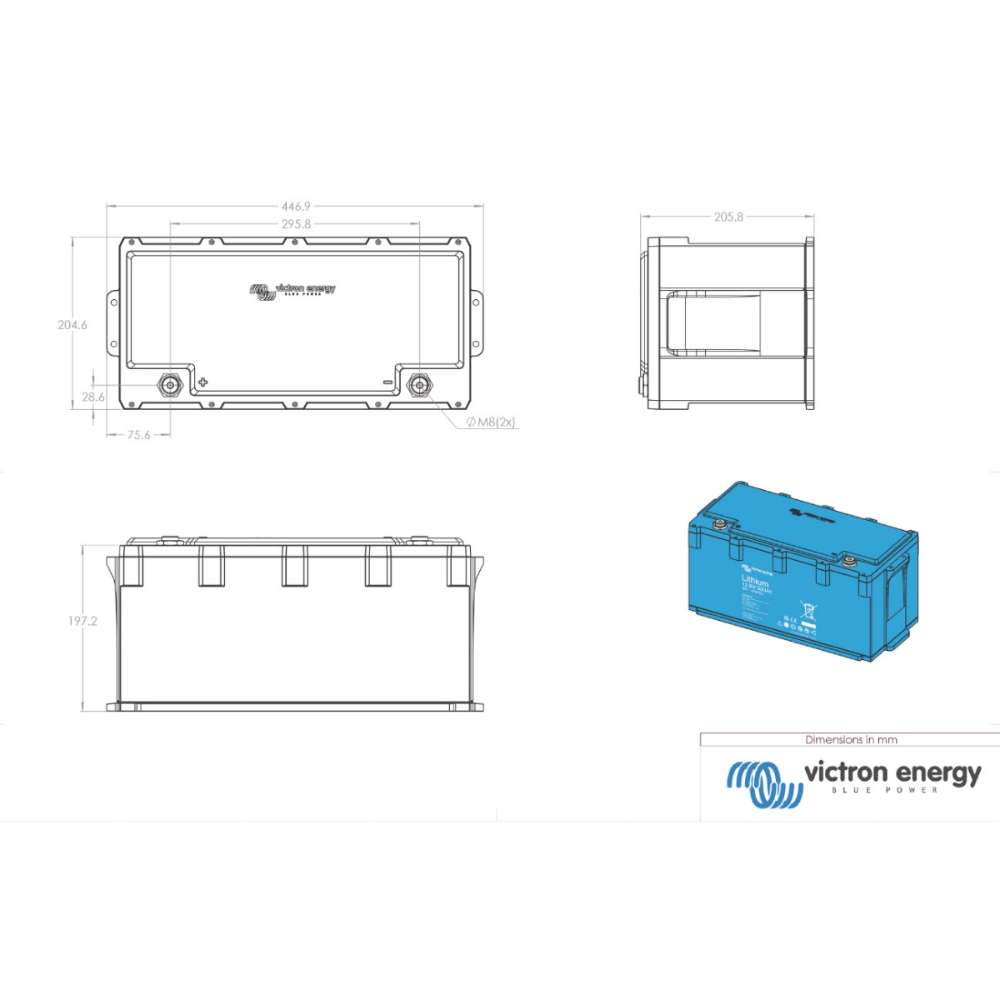

• Dimensions (W × H × D): 17.6 × 8.1 × 8.1 in (447 × 206 × 205 cm)
• Weight: 64 lb (29 kg)

Product Documents

• Lithium 12.8V Battery Manual
• Lithium NG Batteries
• BMS NG Overview
• Lynx Smart BMS NG
• SmallBMS NG
