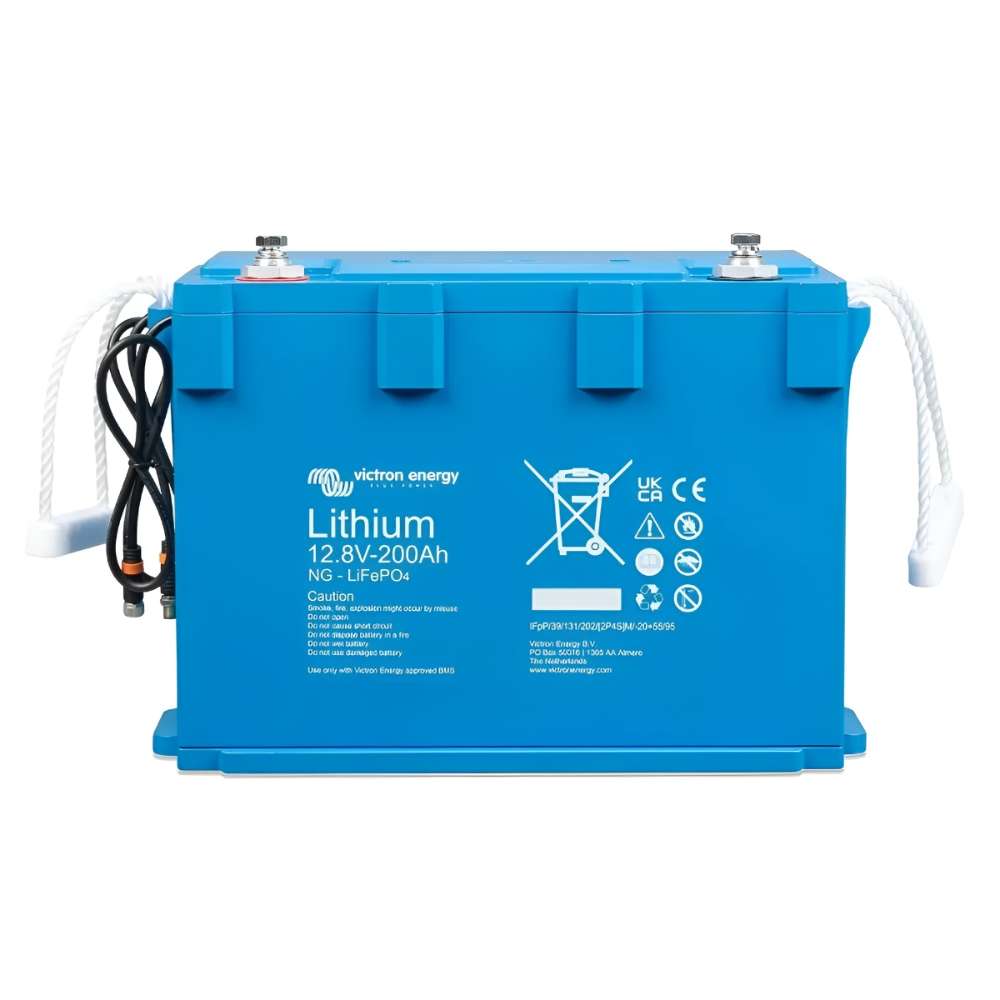

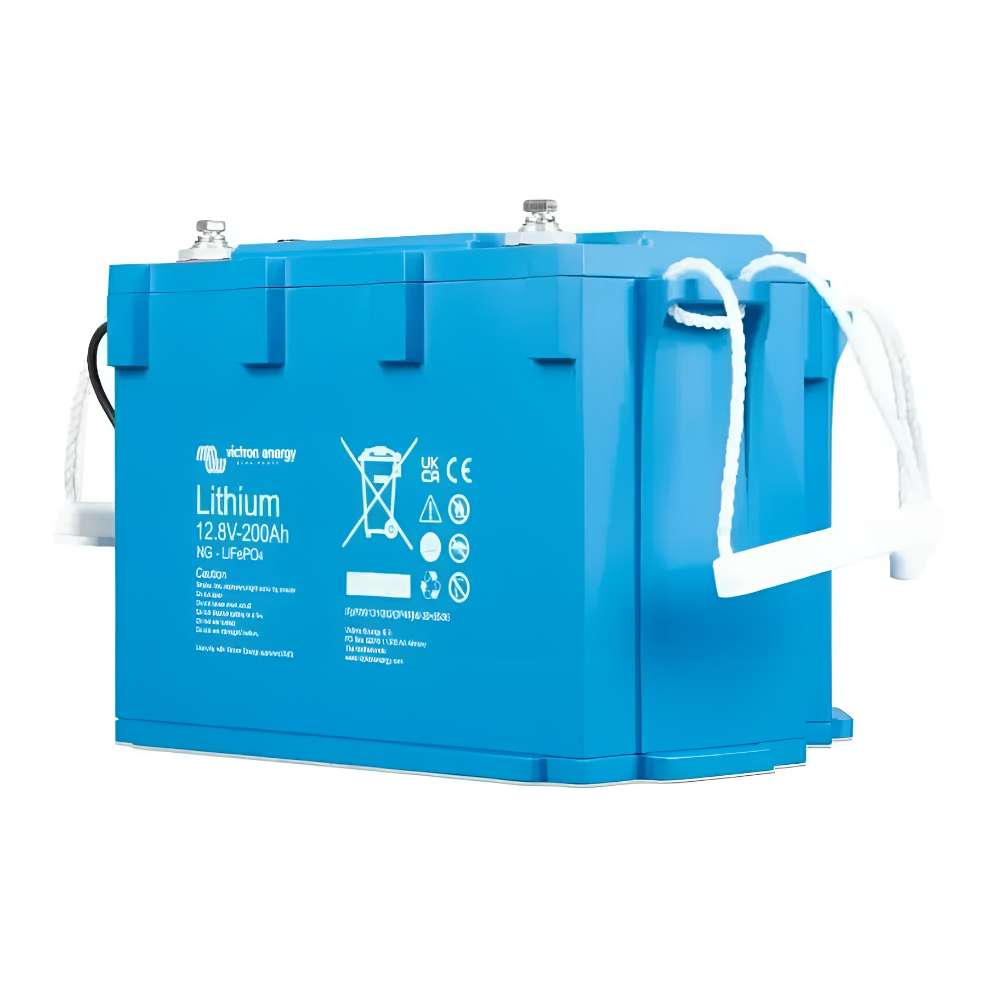

Victron Energy 12.8V 200Ah NG LiFePO4 Lithium Battery

Indoor Energy Made Simple With the Victron Smart Battery

Victron Energy 12.8V 200Ah NG LiFePO4 Lithium Battery delivers long-lasting power with high energy density, fast charging, and exceptional cycle life. It features built-in Bluetooth for easy monitoring, a robust BMS for safety, and reliable LiFePO4 chemistry that outperforms traditional lead-acid batteries in efficiency and lifespan.

Bring stronger, smarter energy into your space with the Victron LiFePO4 Battery - BAT512120620. Upgrade today and enjoy power you can trust.

Features

• Integrated BTV and shunt for precise cell monitoring and accurate state-of-charge data
• Requires a compatible external BMS for full smart functionality
• Smart monitoring through VictronConnect, GX devices, and the VRM portal
• Scalable system that supports up to 50 connected batteries
• Flexible installation options with included mounting brackets
• Low self-discharge rate of 3 percent or less per month
• Built for demanding off-grid, mobile, marine, and backup power setups
• High reliability and long lifespan thanks to advanced LiFePO4 chemistry

Specifications

• Chemistry: Lithium Iron Phosphate (LiFePO₄ or LFP)
• Nominal voltage: 12.8V
• Nominal capacity: 200 Ah at 25°C
• Nominal energy: 2560 Wh at 25°C
• Round-trip efficiency: 92%
• Cycle life:
  5000 cycles at 50% Depth of Discharge (DoD)
  3000 cycles at 70% DoD
  2500 cycles at 80% DoD
• Maximum continuous discharge current: 200A (1C)
• Maximum pulse discharge current (10s): 400A (2C)
• Protection class: IP65 rating, sealed against dust and resistant to low-pressure water jets.
• Dimensions (H x W x D): 235 x 341 x 160 mm
• Weight: ~19 kg (41.8 lbs)

Product Documents

• Lithium 12.8V Battery Manual
• Lithium NG Batteries
• BMS NG Overview
• Lynx Smart BMS NG
• SmallBMS NG
