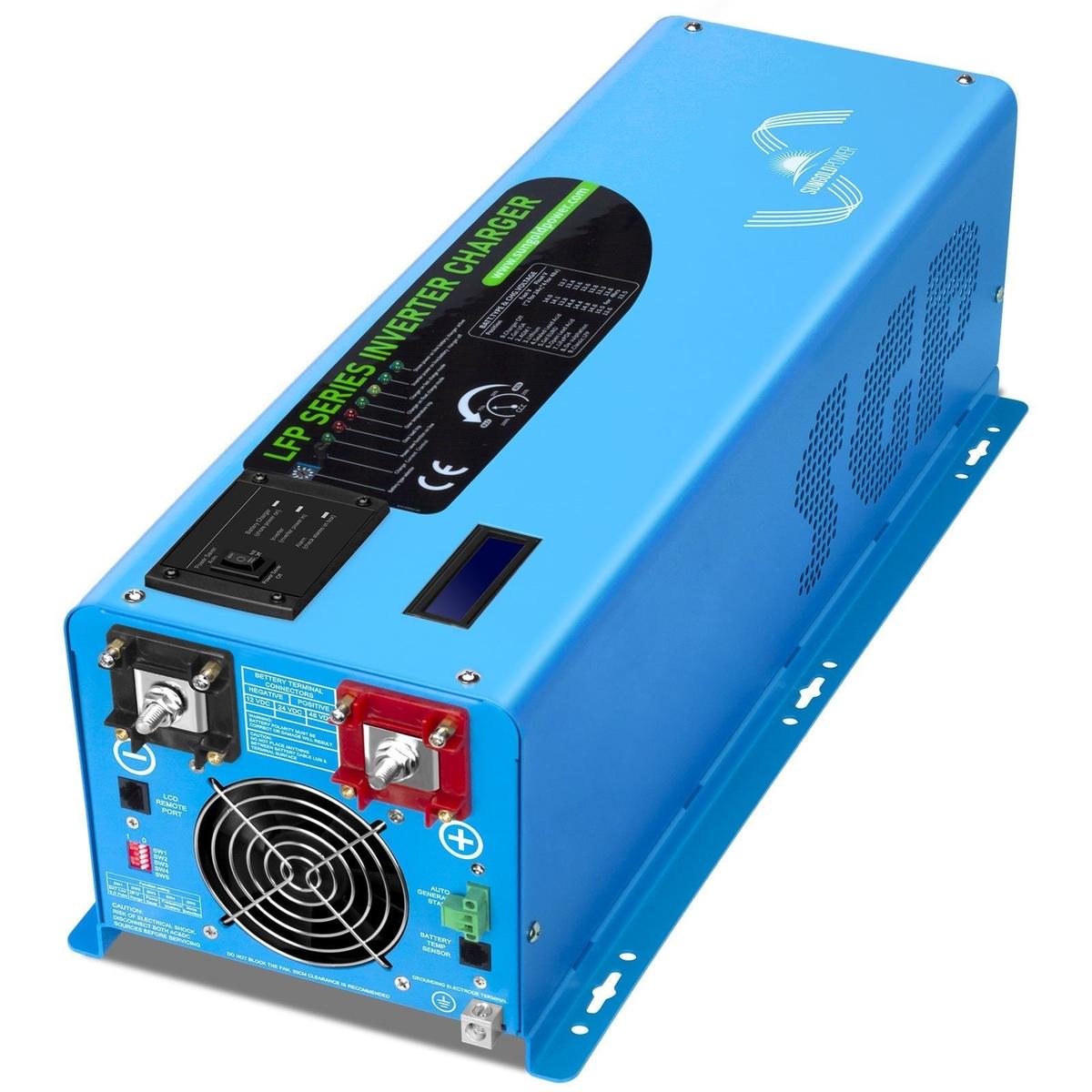

4000W 48V Split Phase Pure Sine Wave Inverter Charger – UL1741 Certified | Off-Grid & Backup Power Solution
The SunGoldPower LFP 4000 Watt 48V Split Phase Inverter Charger is a high-performance power solution designed to meet the demands of small homes, RVs, trailers, boats, and businesses. Delivering a pure sine wave output, it ensures stable and safe electricity for all your appliances, including sensitive electronics.
Its split-phase capability provides both 120V and 240V output, making it ideal for systems with a 220V panel. This unit supports both 50Hz and 60Hz output frequencies, giving users flexible configuration options depending on their region or setup requirements.

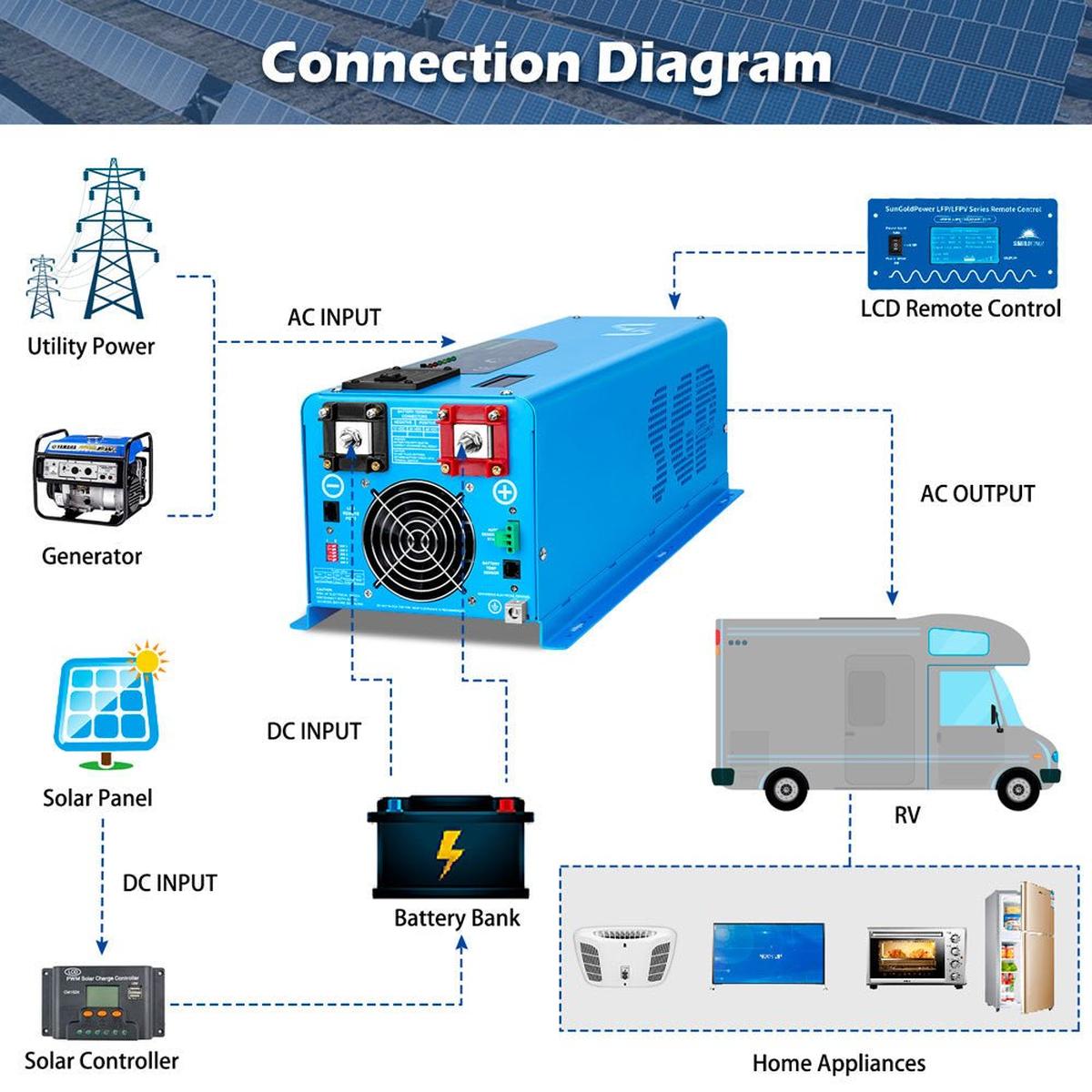

This inverter charger combines three essential functions in one compact unit: a powerful inverter, a 40A smart battery charger, and a 10ms automatic transfer switch. It not only converts 48V DC battery power into AC electricity but also charges your batteries using grid or generator input when available. During outages, the transfer switch seamlessly shifts your power source from shore to battery within milliseconds, ensuring uninterrupted energy flow. UL1741 certification guarantees safety, reliability, and compliance with national standards.
The SunGoldPower 4000W Inverter Charger features two easy-to-use working modes. In Battery Priority Mode, the inverter uses battery power first, switching to AC only when the battery gets low—ideal for off-grid systems. In AC Priority Mode, it uses grid or generator power first and charges the battery at the same time. If AC power goes out, it automatically switches to battery power. These smart modes give you reliable, flexible power for any setup.
SunGoldPower 4000W 48V Overview

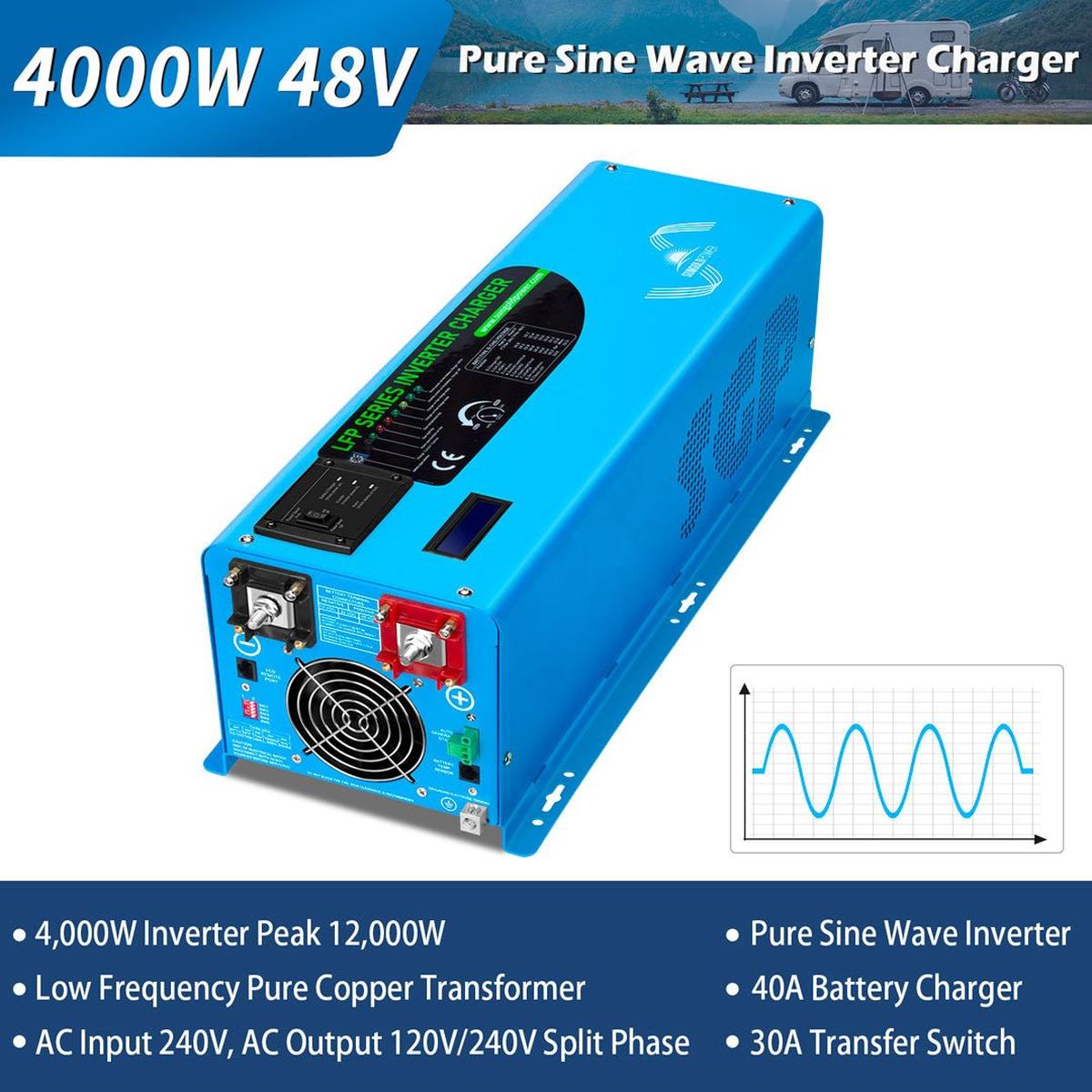

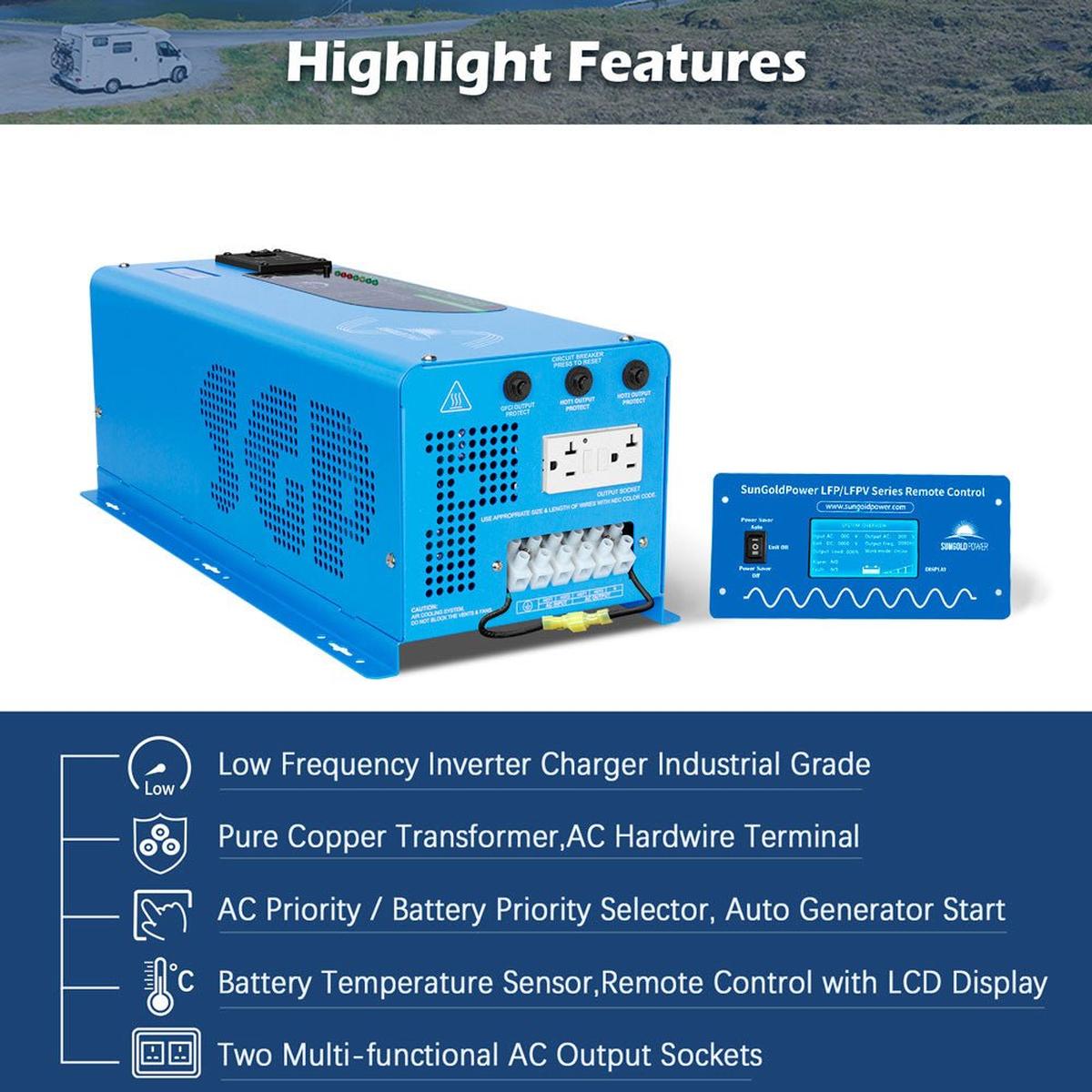

SunGoldPower 4000W 48V Features
âš¡ 4000W Low Frequency Pure Sine Wave Inverter
- Delivers clean, stable power suitable for sensitive electronics
- Ideal for running large appliances and power tools
🔌 AC/Battery Priority Selector
- Choose preferred power source for efficiency and control
- Seamless switch-over for critical equipment protection
🔄 Automatic Generator Start Function
- Automatically starts backup generator during low battery
- Keeps your system running without manual intervention
ðŸ›¡ï¸ Safe and Convenient Operation
- Built-in protection for overload, overheat, and short circuit
- User-friendly interface for easy control and monitoring
📺 LCD Display & Remote Control
- Real-time performance data at a glance
- Convenient remote operation from a distance
🌿 Low Idle Power Consumption
- Reduces energy waste when inverter is on standby
- Increases overall system efficiency and battery life
🔋 9 Battery Type Charging Options
- Compatible with AGM, Gel, Flooded, Lithium, and more
- Optimized charging profile for each battery type
💡 Smart Multi-Stage Battery Charger (40±5A)
- Extends battery life with intelligent charging stages
- Optional charging disable switch for flexible use
âš™ï¸ Fast 10ms Transfer Time
- Prevents power loss during source switching
- Protects connected devices from disruptions
Warranty

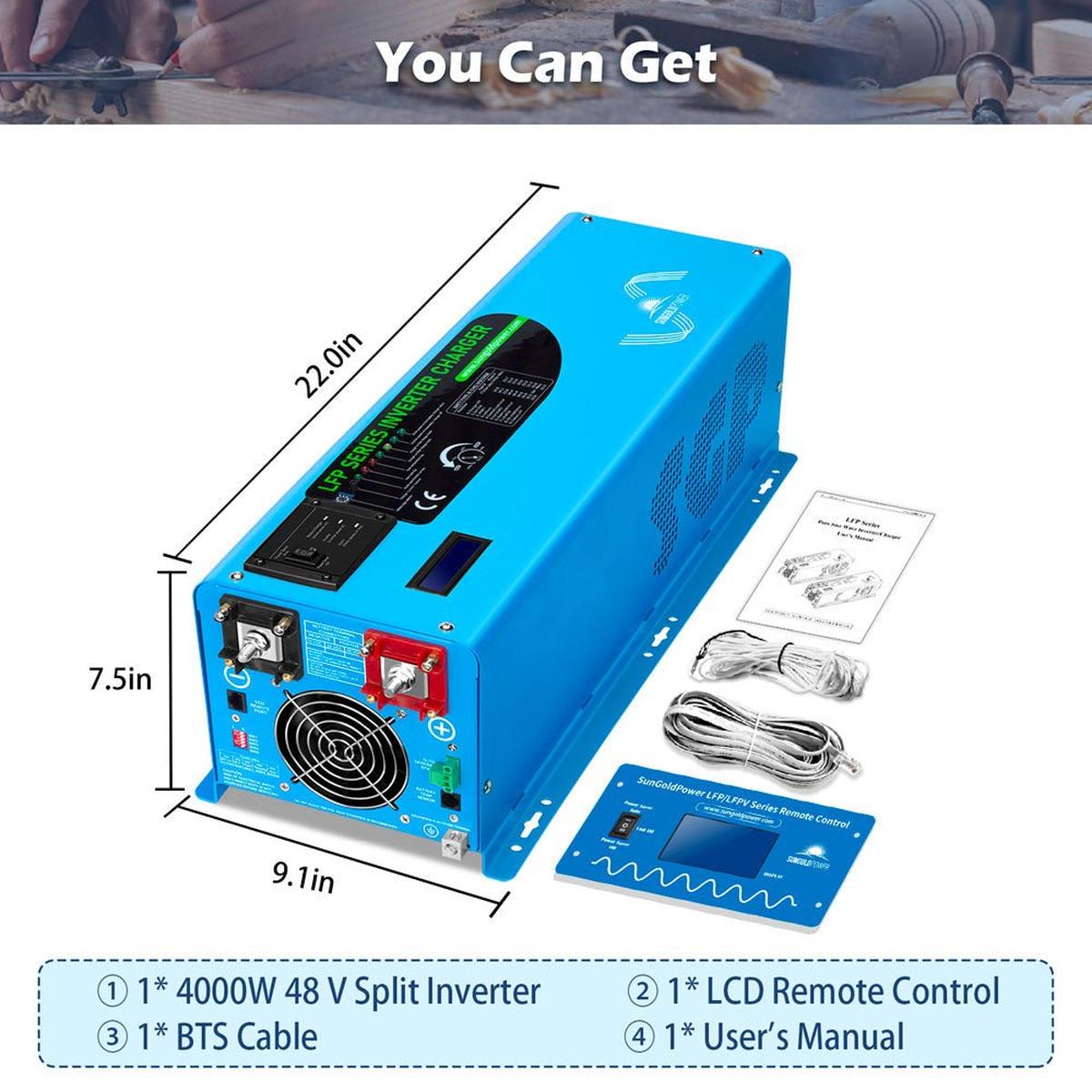

What's in the Box?
- 4000W 48V Low Frequency Pure Sine Inverter
- English Manual
- Remote Control
- BTS Cable
Specification
Inverter Specifications
| Inverter Output |
|---|
| Continuous Output Power |
4000W |
| Surge Rating |
12000W (20 Seconds) |
| AC Output |
AC 120V and AC 240V |
| AC Input |
240V |
| Output Wave |
Pure Sine Wave (bypass mode) |
| Typical Transfer Time |
10ms (MAX) |
| Nominal Efficiency |
>88% |
| DC Input |
|---|
| Nominal Input Voltage |
48.0Vdc |
| Minimum Start Voltage |
40.0Vdc |
| Low Battery Alarm |
42.0Vdc–44.0Vdc |
| Low Battery Trip |
40.0Vdc–42.0Vdc (select by SW1) |
| High Voltage Alarm |
64.0Vdc |
| Low Battery Voltage Restart |
52Vdc |
| Idle Consumption |
48W |
| Power Saver Mode Idle Consumption |
19W |
| AC Charger |
|---|
| Charger Rate |
40±5A |
| AC Input Range (Grid or Generator) |
140V–270VAC / 184V–253VAC (select by SW2) |
| Over Charge Protection Shutdown |
62.8V |
| Selectable Charge Setting |
Based on battery type |
| Adjustable Charge Current |
off, 0%–100% |
| Charger Type |
3-step intelligent battery charger |
SunGoldPower 4000W 48V FAQ's
Does this inverter provide both 120V and 240V output?
Yes, the split-phase design allows the inverter to deliver both 120V and 240V AC output, making it ideal for homes or applications that require 240V appliances.
Is this inverter charger UL certified?
Yes, it is UL1741 certified, ensuring it meets national safety and reliability standards for use in residential and commercial applications.
Can I use this inverter in both off-grid and grid-tied systems?
Absolutely. It includes AC and Battery Priority Modes, allowing you to tailor the system for off-grid independence or grid-connected backup scenarios.
What kind of batteries are compatible with this inverter?
This inverter supports 9 different battery types, including AGM, Gel, Flooded Lead Acid, and Lithium batteries like LiFePO4.
What happens during a power outage?
The built-in transfer switch shifts the load from AC to battery within 10 milliseconds, ensuring continuous power for your appliances without noticeable interruption.
