Run your whole home without compromise: Sol-Ark 18K-2P
Why You'll Love The Sol-Ark Premium 18K-2P Hybrid Inverter
-
18kW of backup, straight from your batteries. Where many hybrid inverters drop their output once the grid goes, the 18K-2P delivers its full 18kW continuously from battery storage — so an outage doesn't quietly downgrade your house.
-
Surge sized to meet locked rotor amps. 36kVA of surge for 10 seconds is what actually starts HVAC compressors, well pumps and large motors in a grid-down scenario, rather than tripping on them.
-
More solar than most inverters will take. Three full-sized MPPTs at 36A each across six DC ports, and Sol-Ark rates the platform at over 40kW of solar when AC coupling is used.
-

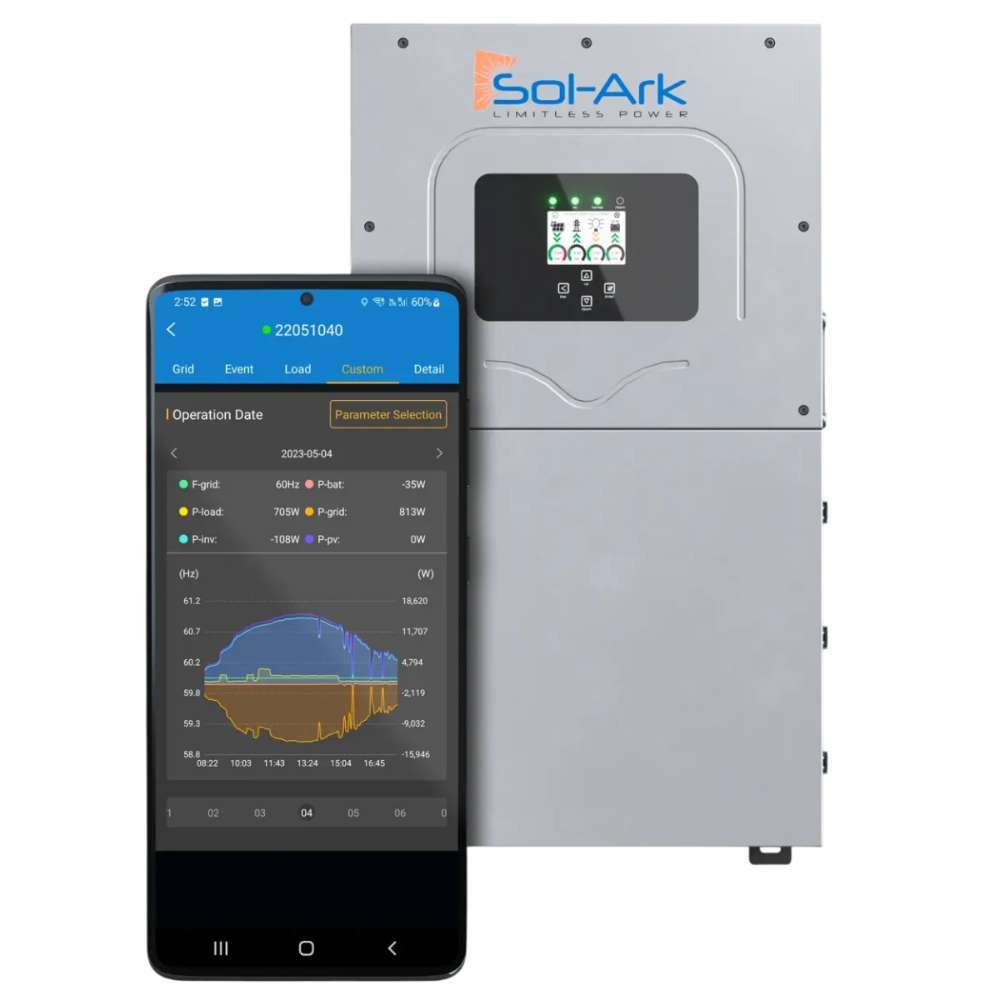

Your data stays home. It runs American-engineered firmware with data transmission kept stateside, and the MySol-Ark platform is hosted on US-based servers.
Your life, with the Sol-Ark Premium 18K-2P Hybrid Inverter
There's one moment that separates a good backup system from a great one — the instant your air conditioning compressor tries to start on battery power alone.
Plenty of inverters flinch at that. The 18K-2P is built for it: 36kVA of surge for 10 seconds, sized specifically to meet locked rotor amps, so the motors that stall lesser systems simply spin up and run.
And it holds that standard continuously. The Sol-Ark Premium 18K-2P delivers its full 18kW directly from battery storage, which means an outage doesn't halve your home's capacity. What you run on the grid, you run off it.
The rest of the platform is built to the same brief.

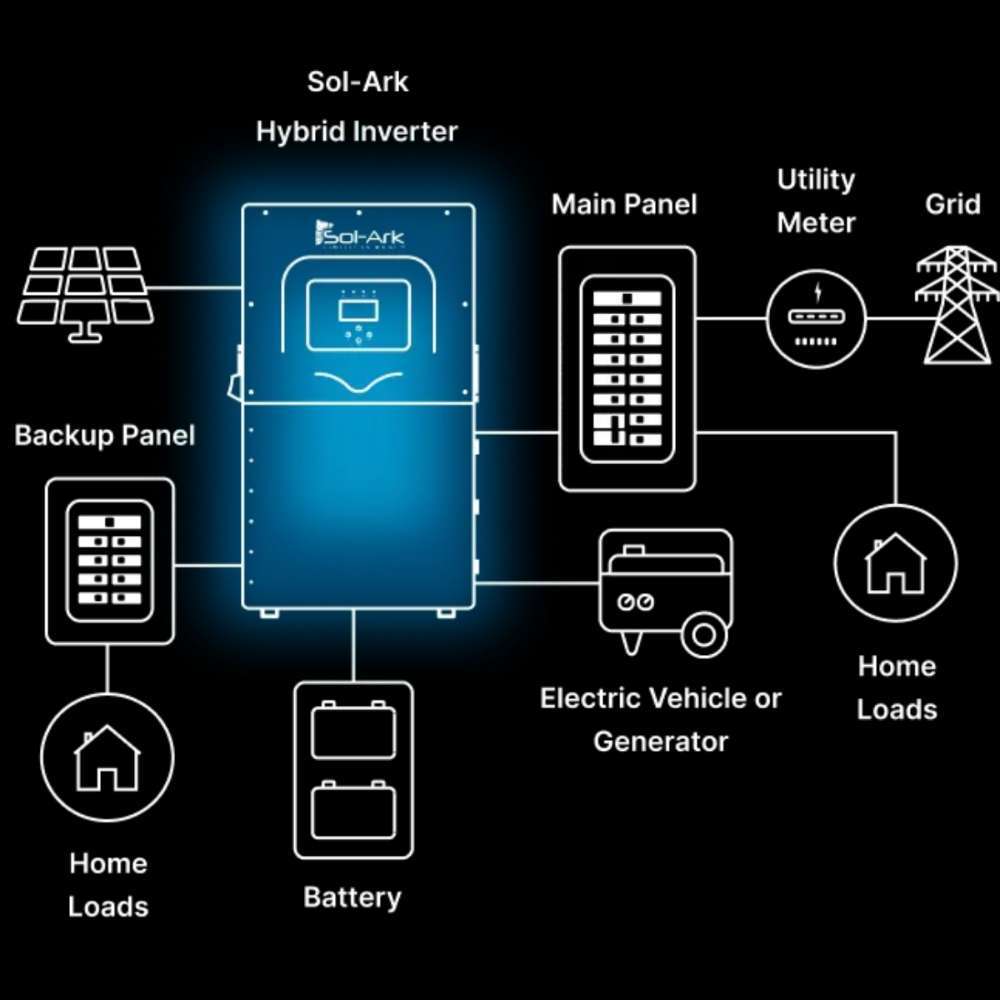

200A grid pass-through puts the inverter in front of your entire service, with an automatic 5ms transfer — nothing needs switching off and nothing flickers. A 350A battery charger refills large banks quickly across two 48V battery ports, working with anything from 50Ah to 9,900Ah.
On the solar side, three full-sized MPPTs take 36A each across six DC ports, and Sol-Ark rates the platform at over 40kW of solar once AC coupling is in play. That's real headroom if you're oversizing an array or folding in panels you already own.
It's IP65 / NEMA 3R rated and operates from -40°C up to 60°C, so where you mount it stays your choice rather than a constraint. With UL1741 3rd SB, IEEE1547-2018, CSA and Hawaiian Electric SRD approvals behind it and a 10-year warranty as standard, it's built to be signed off and then left alone.
The Sol-Ark Premium 18K-2P Hybrid Inverter in a nutshell:
-
18kW continuous from batteries — full output whether the grid is up or down.
-
36kVA surge for 10 seconds — sized to meet locked rotor amps on demanding motor loads.
-
350A charger across two 48V ports — large banks refilled fast, with your choice of certified battery partner.
-
Over 40kW of solar with AC coupling — array headroom most residential inverters simply don't offer.
Sol-Ark Premium 18K-2P Hybrid Inverter specifications
Model
Sol-Ark Premium 18K-2P (18K-2P-N)
Continuous AC Output
18 kW — delivered directly from battery storage
Surge Power
36 kVA for 10 seconds
Max Output Current
75A
Grid Pass-Through
200A
Grid Voltage
120/240V, 208V
Solar Capacity
Over 40 kW supported when using AC coupling (max AC coupled input 19,200W)
DC Solar Ports & MPPTs
6 DC solar ports across 3 full-sized MPPTs (2 inputs per MPPT)
Current per MPPT
36A operating / 54A short circuit
MPPT Operating Voltage Range
150 – 425V (125V startup, 500V max DC input)
Battery Charger
350A continuous charge / discharge current
Battery Ports
2 × 48V (40 – 60V operating range)
Battery Capacity Supported
50 – 9,900Ah
BMS Communication
CANBus & RS485 MODBUS
Transfer Time
Automatic, 5 ms
Grid Control
Multi-season time-of-day settings, virtual power plant ready, upgrade for UL 9540 options
GEN Port
Dedicated GEN port, AutoStart capable, supports generators or AC coupling
Max Efficiency
97.6%
Stackable
Up to 12 units in parallel
Protection
Integrated PV DC disconnect, ground fault detection, 200A AC output breaker, DC/AC Type II surge protection
Certifications
UL1741 3rd SB, UL1741 CRD-PCS, IEEE1547-2018 with IEEE2030.5 interoperability, Hawaiian Electric SRD V2.0, UL1699B PVDC AFCI, UL1998, CSA C22.2 No. 107
Enclosure & Environment
IP65 / NEMA 3R — -40 to +60°C (derating above 45°C), operating altitude 3,000 m, under 50 dB
Dimensions (H × W × D)
863 × 464 × 282 mm
Weight
62.4 kg / 137 lbs
Warranty
10 years
Let the experts help you find your perfect hybrid inverter
Not sure whether the Sol-Ark Premium 18K-2P is more inverter than your home needs, or exactly right for your loads? We're here to help you size it properly the first time.
Chat via Email — support@kratopower.com
Chat on the Phone — +1 (888) 855-7286
Sol-Ark Premium 18K-2P Hybrid Inverter documents and materials
Disclaimer: Potential energy savings and utility bill reductions depend on system size and configuration, energy usage, utility rates, local regulations, weather conditions, available incentives and installer design. Actual savings and performance will vary.
The information on this page is provided for general guidance only and should not be taken as professional, electrical or medical advice. The Sol-Ark Premium 18K-2P Hybrid Inverter is a high-voltage, grid-interconnected product weighing 137 lbs, and must be installed by a qualified, licensed electrician in line with the manufacturer's installation manual and your local codes; grid-tied and generator-connected use may also require permits and utility approval. Every situation is different, so if you have any doubt, please consult a qualified professional before purchasing or installing. Products are used at your own risk.
