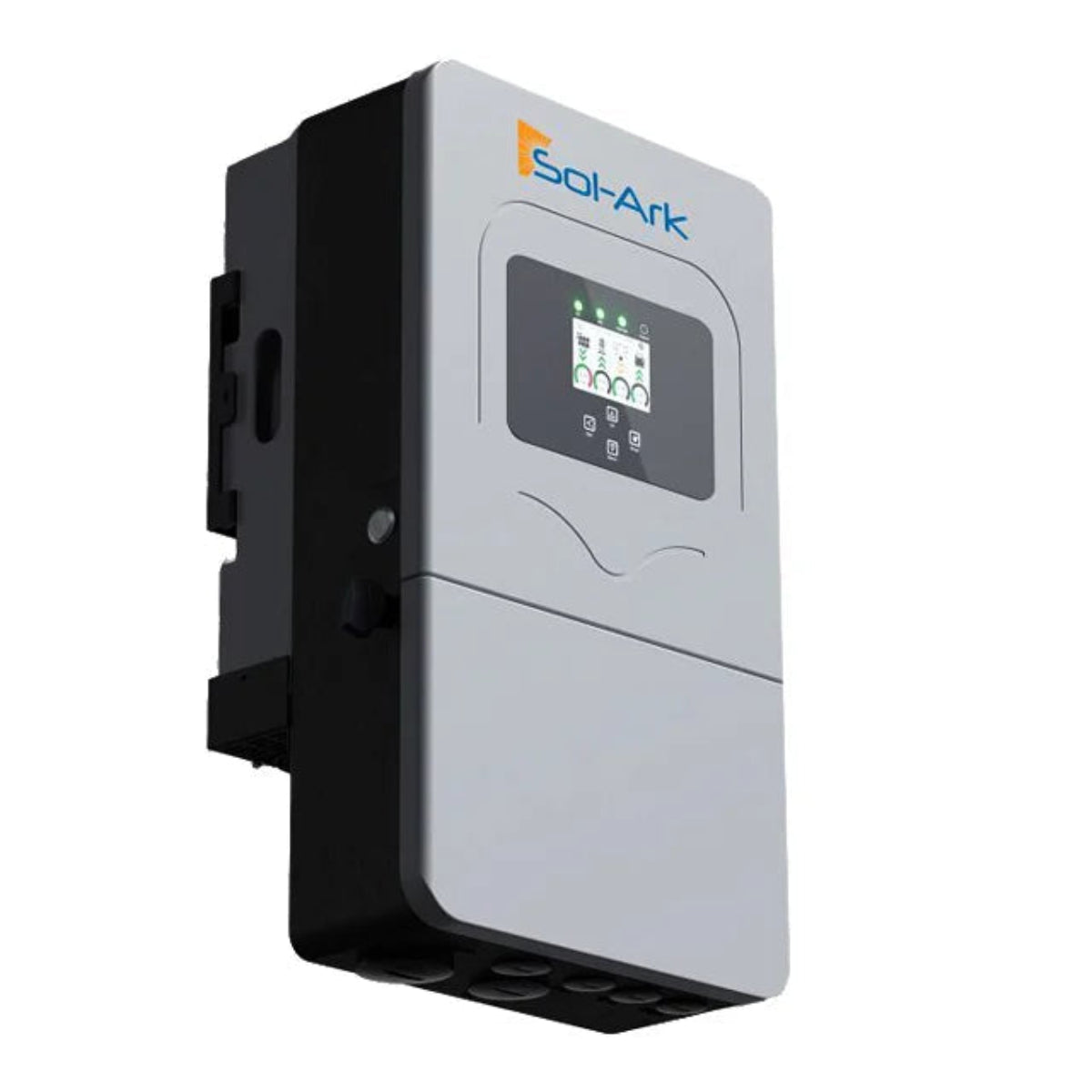

Whole-home backup made affordable: Limitless 12K-2P-LL Hybrid Inverter
Why You'll Love The Limitless 12K-2P-LL Hybrid Inverter
-
Backup that runs your real life, not just a few lights. With 12kW to the grid and 10kW of continuous AC backup from batteries, it comfortably carries mini-split A/C, a well pump, kitchen appliances, your furnace blower and lighting.
-
You'll barely notice the grid go down. A 5ms transfer time means the switch to battery power happens faster than your lights can flicker.
-
You're not locked into one battery brand. The 48V battery port works across Sol-Ark's certified battery partners — so when your batteries wear out years before the inverter does, you swap them rather than replace the whole system.
-

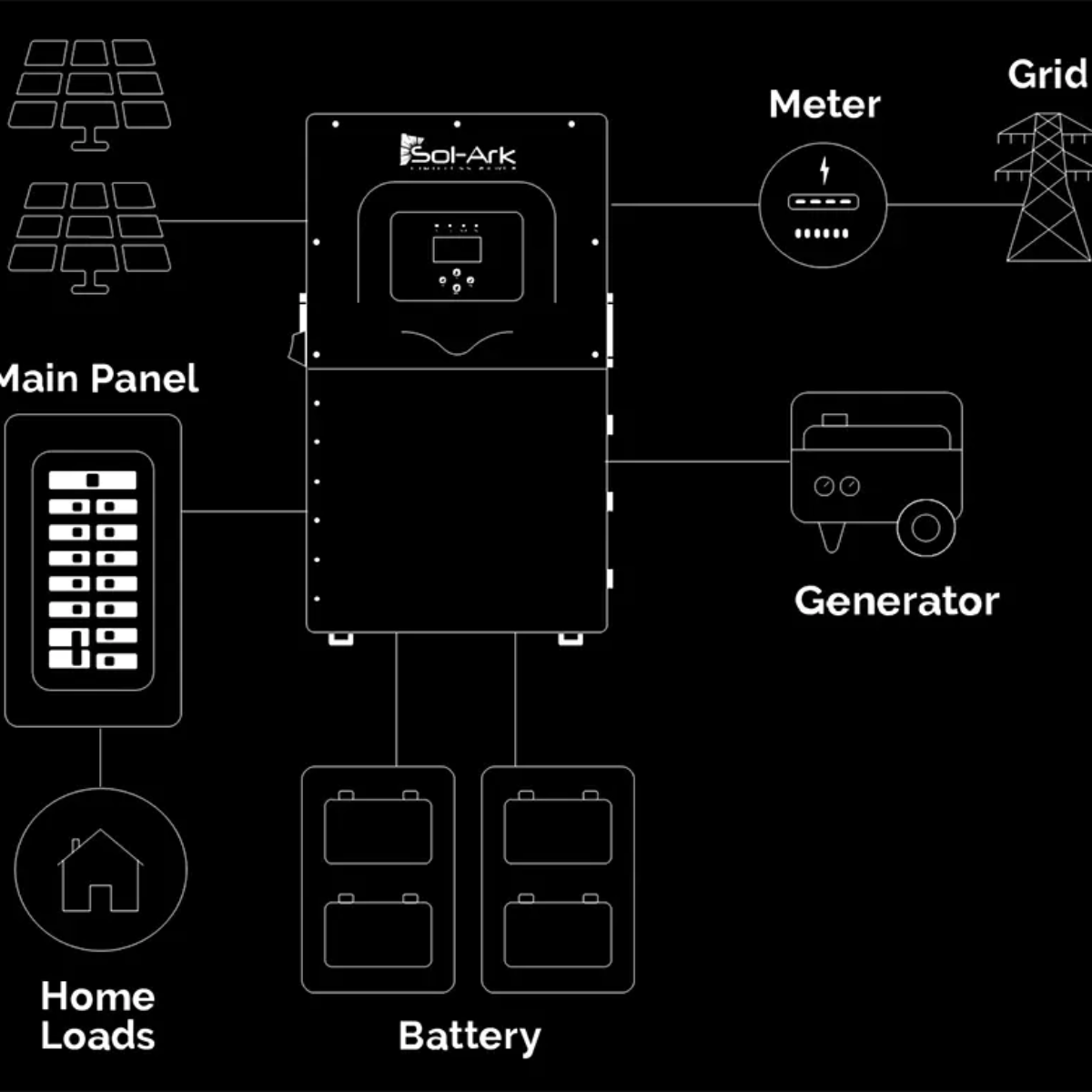

Start where your budget is, expand when you're ready. It installs with or without solar or batteries and supports both AC and DC coupling, so a retrofit onto panels you already own is as straightforward as a fresh build.
Your life, with the Limitless 12K-2P-LL Hybrid Inverter
Most people never think about their inverter until the power goes out. Then it quietly becomes the most important box in the house.
The Limitless 12K-2P-LL Hybrid Inverter is built for that moment, and for the thousands of ordinary days either side of it. When the grid drops, the handover takes 5 milliseconds — the A/C keeps running, the well pump keeps pumping, and dinner carries on uninterrupted.
On normal days it works on your bill instead. Multi-season time-of-use scheduling, peak shaving and virtual power plant readiness let it decide when to pull from the grid, when to lean on your batteries, and when to give back.
Sol-Ark built this one around flexibility.
Three MPPTs handle up to 19.2kW of solar, with two PV strings each — genuinely useful when your roof faces several directions or your array has grown over the years. If you already have grid-tied panels, 14kW of AC coupling lets you keep them and build storage around them rather than starting over.
The multifunction GEN port takes a generator, AC-coupled PV or a smart load, so a single port covers three jobs depending on how your system evolves. And with 100A grid passthrough and no MID required, the installation stays far more compact than this much capability would suggest.

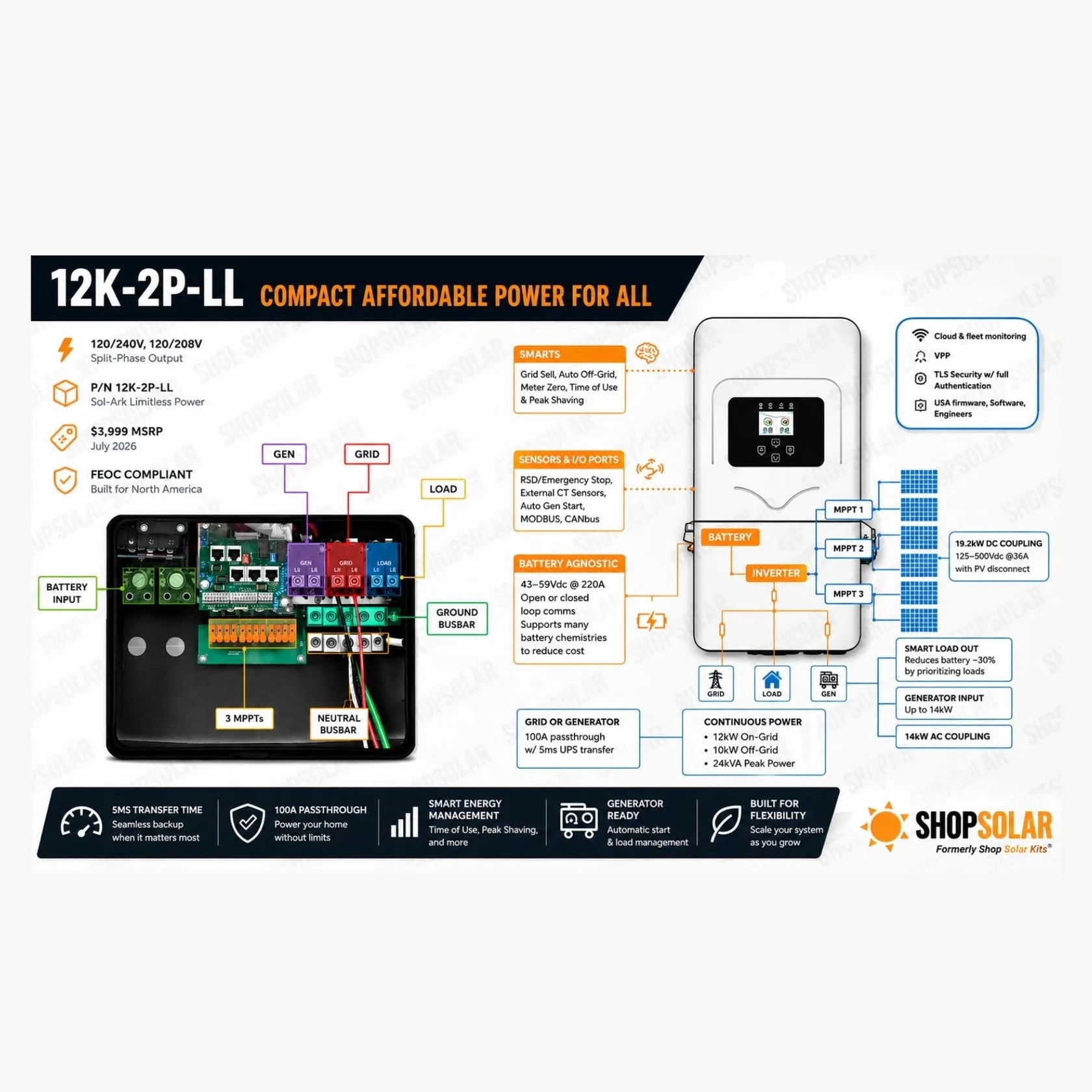

The Limitless 12K-2P-LL Hybrid Inverter in a nutshell:
-
12kW output, 10kW from batteries — whole-home capability with real headroom when the grid fails.
-
3 MPPTs, 19.2kW solar — 32A per MPPT and two strings each for flexible array design.
-
220A battery charger on a 48V port — fast charging with your choice of certified battery partner.
-
Multifunction GEN port — generator input, AC-coupled PV or smart load control from one connection.
Limitless 12K-2P-LL Hybrid Inverter specifications
AC Output
12 kW at 120/240 VAC
Backup Power from Batteries
10 kW AC continuous
Grid Passthrough
100A
MPPTs
3, supporting up to 19.2 kW of PV
Current per MPPT
32A
PV Strings per MPPT
2
AC Coupling
14 kW
Rapid Shutdown
Rapid shutdown control included
Battery Charger
220A
Battery Port
48V
Certification
UL 9540 options
Transfer Time
5 ms
Grid Interaction
Multi-season time-of-use, virtual power plant ready, peak shaving
AC GEN Port
Generator input, AC-coupled PV, AC smart load functionality
Installation
On-grid or off-grid, no MID required; installs with or without solar or batteries
Let the experts help you find your perfect hybrid inverter
Not sure whether the Limitless 12K-2P-LL Hybrid Inverter suits your home, or which battery partner to pair it with? We're here to help you get the design right the first time.
Chat via Email — support@kratopower.com
Chat on the Phone — +1 (888) 855-7286
Limitless 12K-2P-LL Hybrid Inverter documents and materials
Potential energy savings and utility bill reductions depend on system size and configuration, energy usage, utility rates, local regulations, weather conditions, available incentives and installer design. Actual savings and performance will vary.
Disclaimer: The information on this page is provided for general guidance only and should not be taken as professional, electrical or medical advice. The Limitless 12K-2P-LL Hybrid Inverter is a high-voltage, grid-interconnected product and must be installed by a qualified, licensed electrician in line with the manufacturer's installation manual and your local codes; grid-tied and generator-connected use may also require permits and utility approval. Every situation is different, so if you have any doubt, please consult a qualified professional before purchasing or installing. Products are used at your own risk.
