Outdoor commercial energy storage: Sol-Ark L3-HVR-60 Battery Bank
Why You'll Love The Sol-Ark L3-HVR-60 Outdoor Battery Bank
-

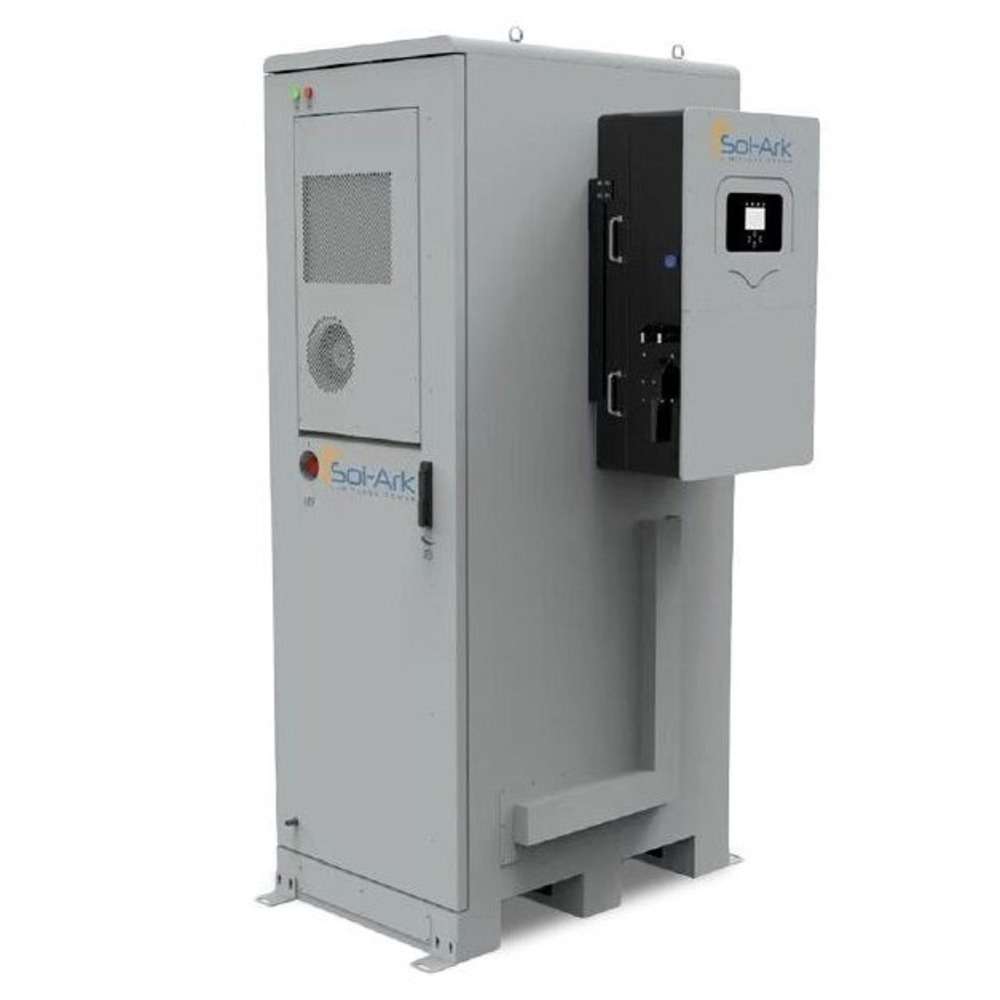

61.44 kWh of storage that lives outside. 55.30 kWh usable of safe LiFePO4 in a weatherproof enclosure, purpose-built to pair with the Sol-Ark 30K-3P-208V inverter — no indoor floor space or battery room required.
-

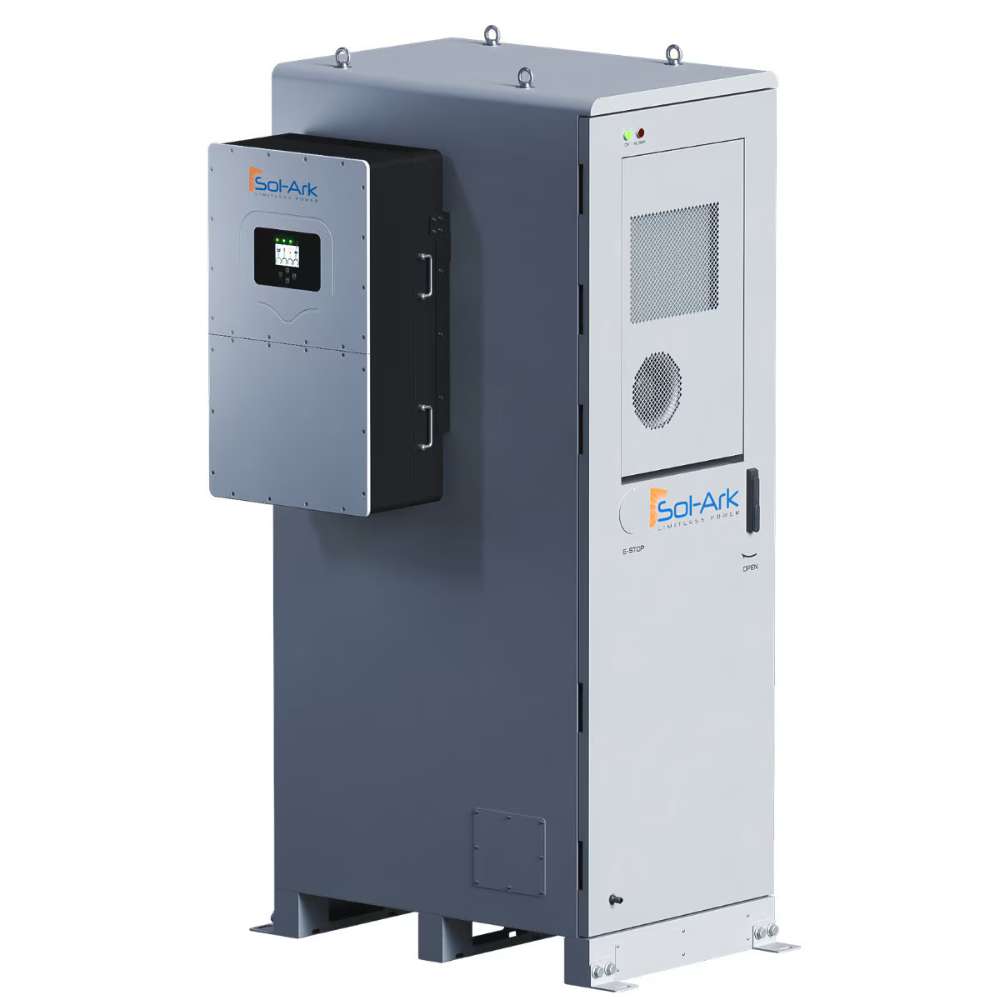

Built for the elements. An IP55 (NEMA 3R) outdoor enclosure runs across a wide -20°C to 50°C range, so it keeps working through hard winters and hot summers alike.
-
Safety engineered in. Built-in module and cabinet fire suppression, plus UL 9540 and UL 9540a listings, make the system straightforward to permit and to site.
-
Scales as the site grows. Stack up to 6 cabinets per inverter and parallel up to 6 inverters — 180kW AC and 2.2 MWh of storage — all on a 10-year warranty.
Your business, with the Sol-Ark L3-HVR-60 Outdoor Battery Bank
Plenty of commercial sites want energy storage but don't have the room to give up for it. Floor space is revenue, and a fire-rated battery room is a project of its own.
The Sol-Ark L3-HVR-60 solves that by living outside. Paired with the Sol-Ark 30K-3P-208V inverter, it banks solar or off-peak energy through the day, shaves your peak-demand hours to trim the bill, and keeps critical loads running when the grid drops — all from a weatherproof cabinet on a pad rather than inside your building.
It's engineered to shrug off the weather. The IP55 enclosure and a -20°C to 50°C operating range mean sun, rain and cold aren't obstacles, and built-in module and cabinet fire suppression keeps an outdoor asset safe with less reliance on site infrastructure.
There's less to wire and less to source, too.

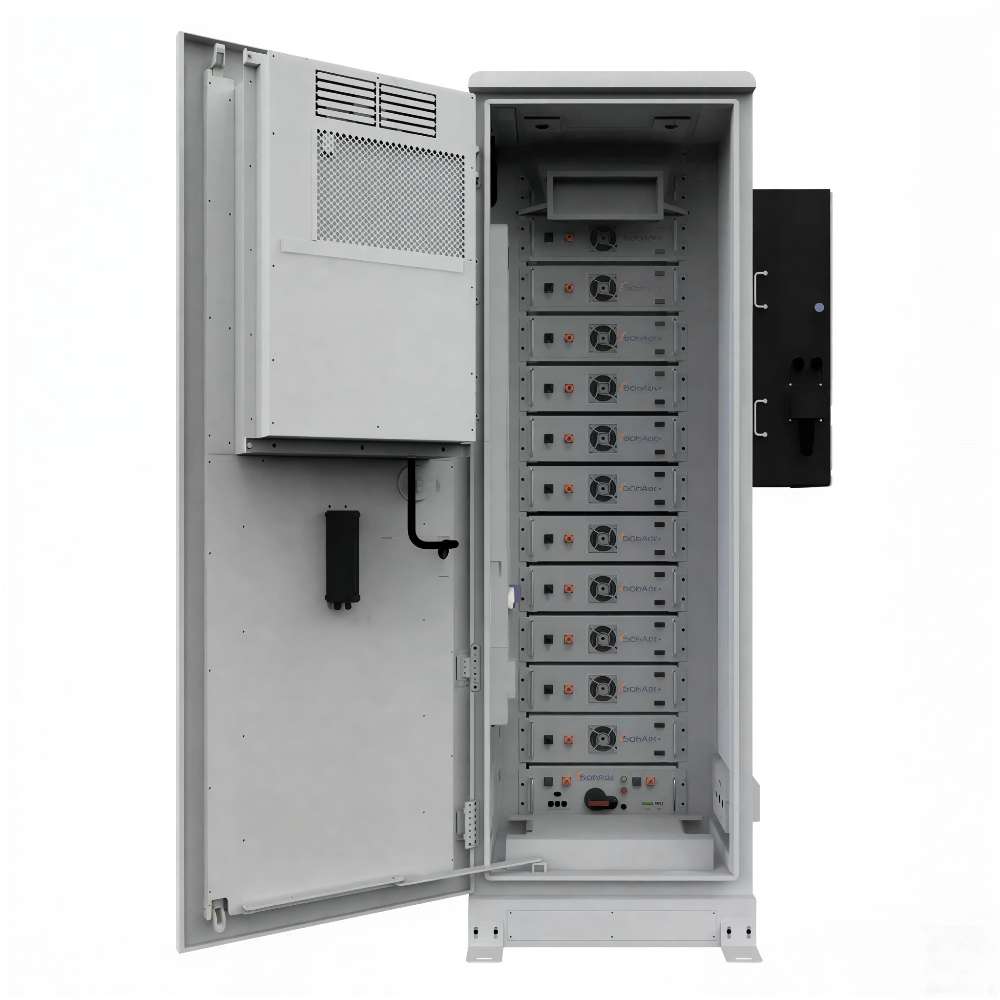

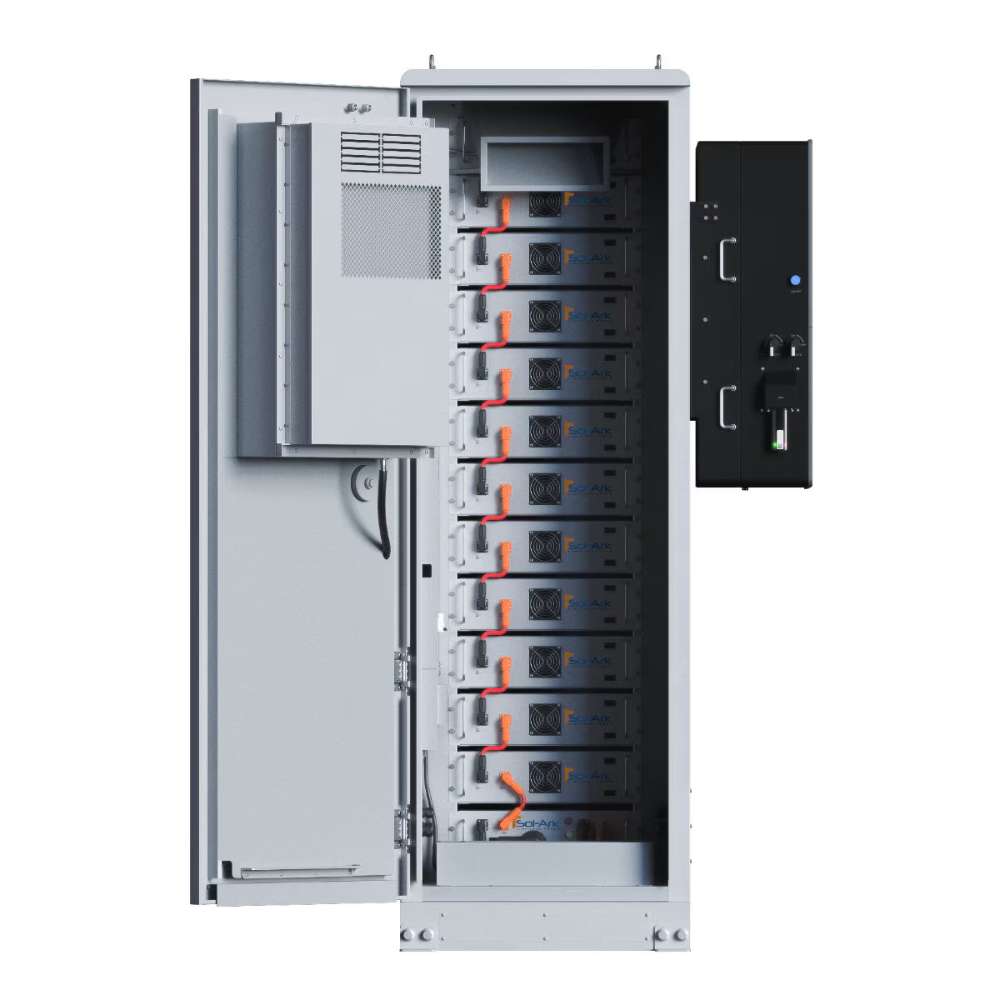

A 200A DC disconnect and a 160A internal fuse are built into each cabinet, so much of the balance-of-system that usually surrounds a commercial battery is already handled. Each cabinet is a 307V nominal bank of 5.12 kWh LiFePO4 modules, communicating over CAN 2.0 / RS485.
And the growth path is long. Start with a single 61.44 kWh cabinet, add up to 6 per inverter, and parallel up to 6 inverters for 2.2 MWh of storage and 180kW of AC power — with peak shaving, DER-program participation and grid sell-back all supported as your strategy develops.
-
The Sol-Ark L3-HVR-60 Outdoor Battery Bank in a nutshell:
-
61.44 kWh LiFePO4 (55.30 kWh usable) — purpose-built to pair with the Sol-Ark 30K-3P-208V inverter.
-
IP55 weatherproof, -20°C to 50°C — a true outdoor install with no dedicated battery room.
-
Built-in fire suppression, UL 9540a listed — safe siting and simpler permitting.
-
Scales to 2.2 MWh / 180kW AC — up to 6 cabinets per inverter, 6 inverters in parallel.
Sol-Ark L3-HVR-60 Outdoor Battery Bank specifications
Battery Model / SKU
L3 HVR-60 (ESS model L3 HVR-60KWH-30K) / SKU L3-HVR-60KWH
Compatible Inverter
Sol-Ark 30K-3P-208V
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Nameplate Energy Capacity (DC)
61.44 kWh
Usable Energy Capacity (DC)
55.30 kWh (at 90% depth of discharge)
System Nominal Voltage (DC)
307V (operating range 294 – 336V)
Battery Pack Configuration

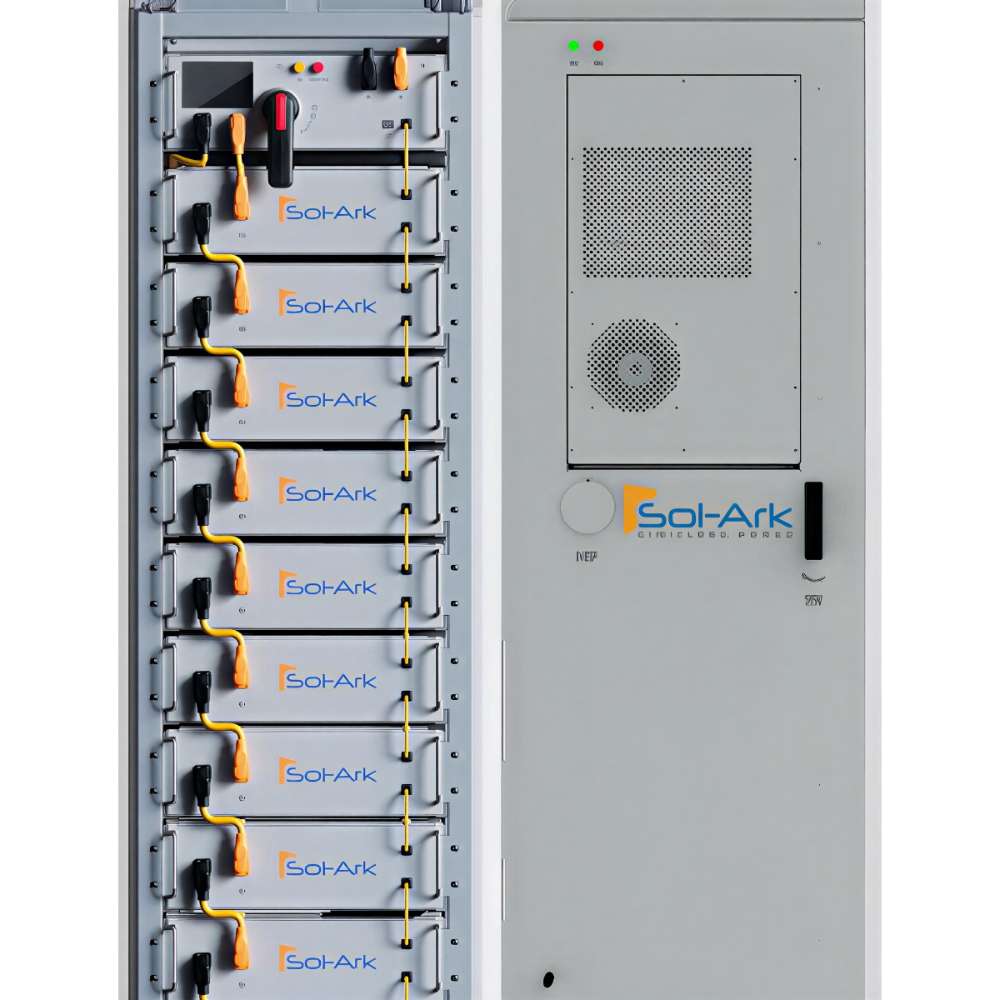

6s2p — 5.12 kWh modules (51.2V / 100Ah each)
Charge / Discharge Current (DC)
100A recommended / 100A max continuous / 125A peak discharge (60s @ 25°C)
Battery Max Continuous Power (DC)
61.44 kW
ESS Max Continuous Power (AC)
30 kW
Round-Trip Efficiency (DC)
94% (25°C, 0.5C)
Recommended Depth of Discharge
90%
Built-In DC Disconnect / Internal Fuse
200A disconnect / 160A fuse
Scalability
Up to 6 battery cabinets per inverter; up to 6 inverters in parallel — 180kW AC / 2.2 MWh
Fault Current Contribution per Battery
4,200A / 1.47 ms
Communication Ports
CAN 2.0 / RS485
Dimensions (W × D × H)
76 × 107 × 226 cm (30 × 42 × 89 in)
Net Weight
950 kg (2,095 lbs)
Mounting
Outdoor enclosure — corrosion-resistant powder-coated steel
Ingress Rating
IP55 (NEMA 3R) — outdoor rated
Operating Temperature & Humidity
-20°C – 50°C (-4°F – 122°F), 5% – 85% RH
Operating Altitude
3,000 m (9,843 ft)
Noise Level @ 1 m
75 dBA at 30°C (86°F)
Seismic Mounting
Up to Category F
Terminal Type
Amphenol SurLok push-lock connector
Fire Suppression
Built-in module and cabinet fire suppression
Warranty
10 years or 196 MWh throughput (performance); 10 years (product)
Certifications
UL 1973, UL 9540, UL 9540a, UN 38.3, FCC, Prop 65
Let the experts help you find your perfect battery bank
Not sure how many Sol-Ark L3-HVR-60 cabinets your site needs, or how they pair with the 30K-3P-208V inverter? We're here to help you scope the storage properly the first time.
Chat via Email — support@kratopower.com
Chat on the Phone — +1 (888) 855-7286
Sol-Ark L3-HVR-60 Outdoor Battery Bank documents and materials
