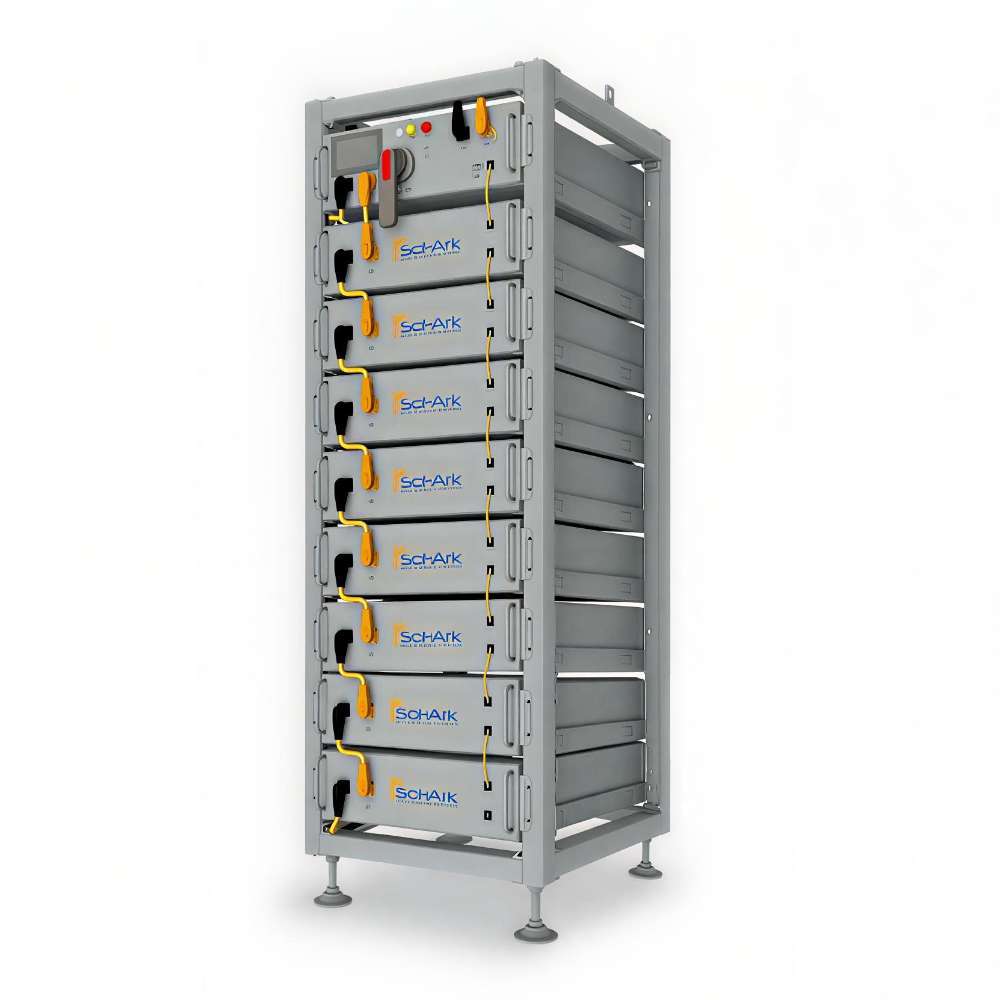

Megawatt-scale storage for your business: Sol-Ark L3-HV-60 Indoor
Why You'll Love The Sol-Ark L3-HV-60 Indoor Battery Bank
-
61.44 kWh of storage in a single cabinet. 55.30 kWh usable of safe LiFePO4 chemistry, purpose-built to pair with the Sol-Ark 60K-3P-480V inverter for demanding commercial and industrial sites.
-
Safety engineered for indoor commercial spaces. Built-in aerosol fire suppression in both the modules and the cabinet — plus UL 9540 and UL 9540a listings — help you permit the system and, in many cases, avoid the cost of a separate sprinkler build-out.
-
Scales to megawatt-hours. Stack up to 16 cabinets per inverter and parallel up to 10 inverters — 600kW AC and 9.6 MWh of storage — so the system expands with the operation.
-
Built to earn its keep for a decade. A 90% depth of discharge, 94% round-trip efficiency and a 10-year (or 196 MWh throughput) performance warranty keep your cost per usable kWh low over the long haul.
Your business, with the Sol-Ark L3-HV-60 Indoor Battery Bank
For a commercial site, stored energy does two valuable jobs. It keeps critical operations running when the grid fails, and it lets you sidestep the demand peaks that quietly dominate your utility bill.

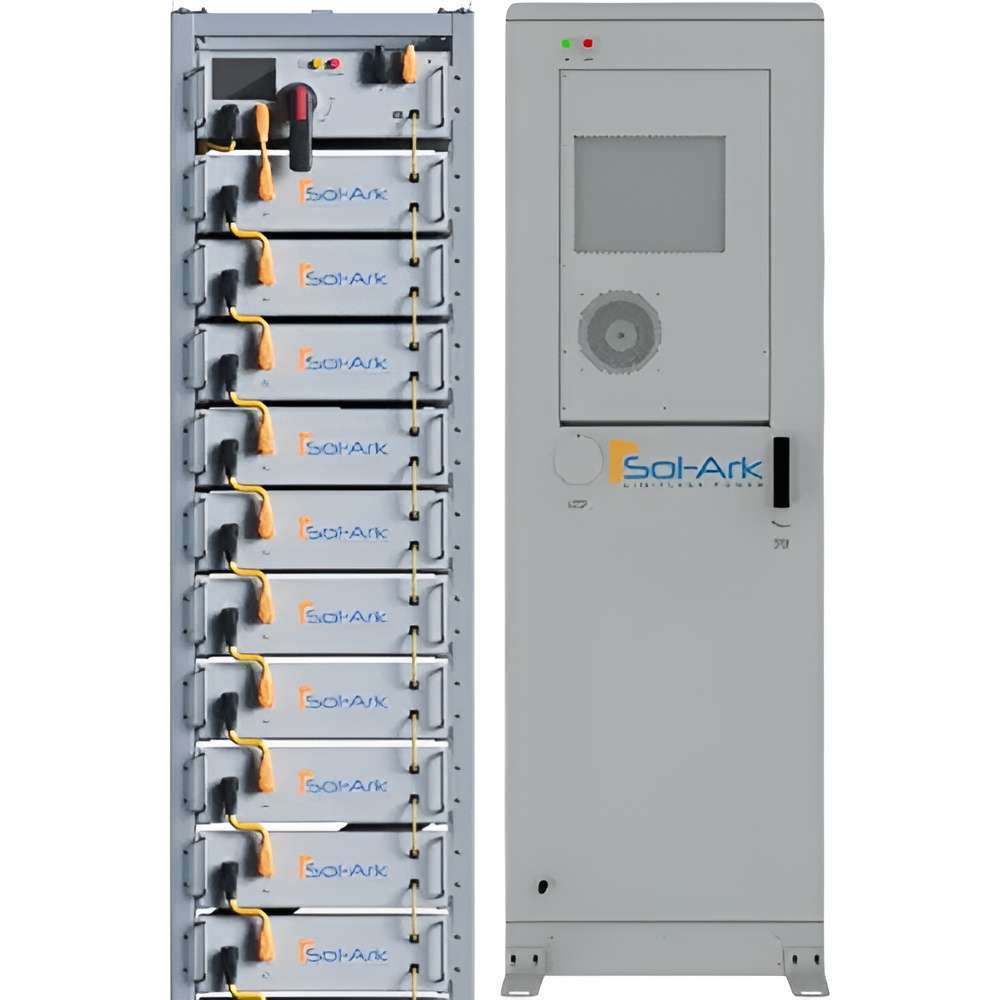

The Sol-Ark L3-HV-60 is built to do both at scale, paired with the Sol-Ark 60K-3P-480V inverter. Through the day it banks solar or off-peak energy; at your peak-demand hours it discharges to shave those spikes; and when the grid drops it keeps your essential loads live.
It's engineered for the realities of an indoor commercial install. LiFePO4 chemistry is inherently stable, and Sol-Ark's indoor L3 architecture adds built-in aerosol fire suppression in the modules and cabinet, plus integrated temperature control — which can help you avoid the expense of a separate sprinkler system. At under 40 dBA it's quiet enough for an occupied building.
There's less to wire and less to source, too.

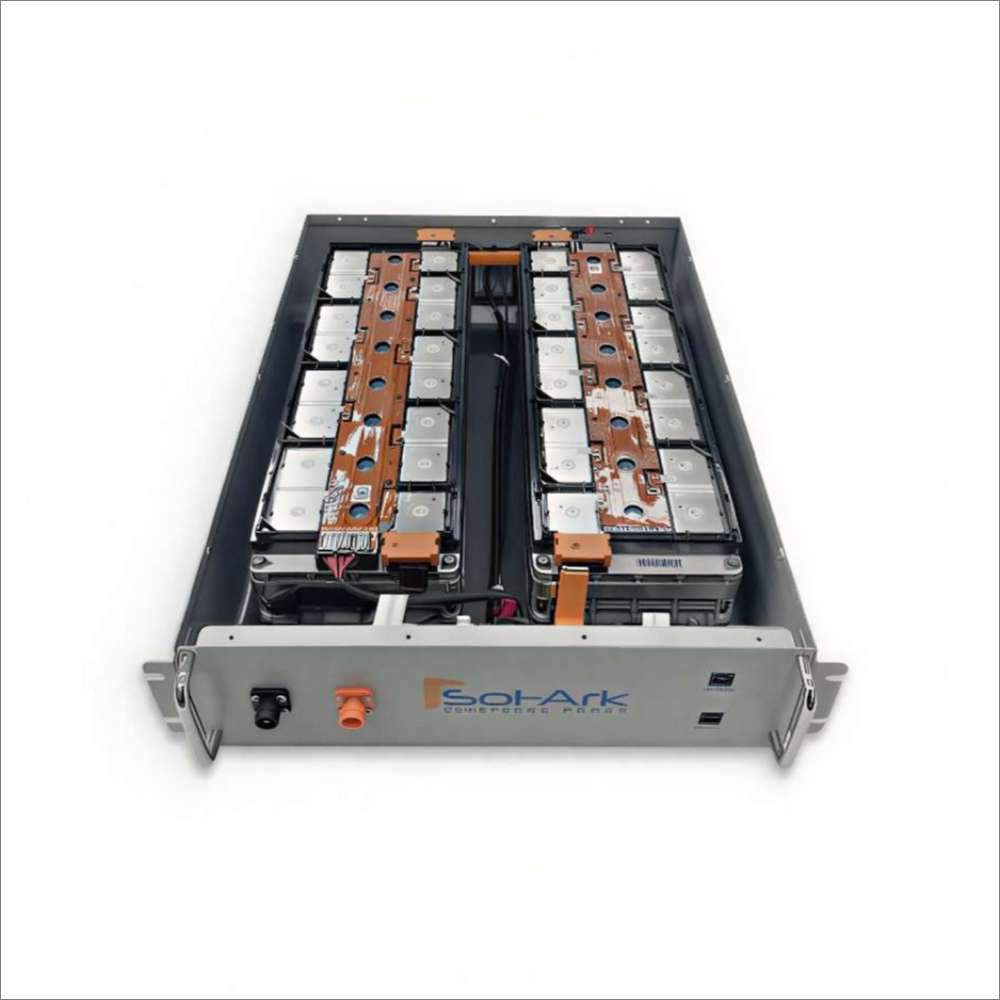

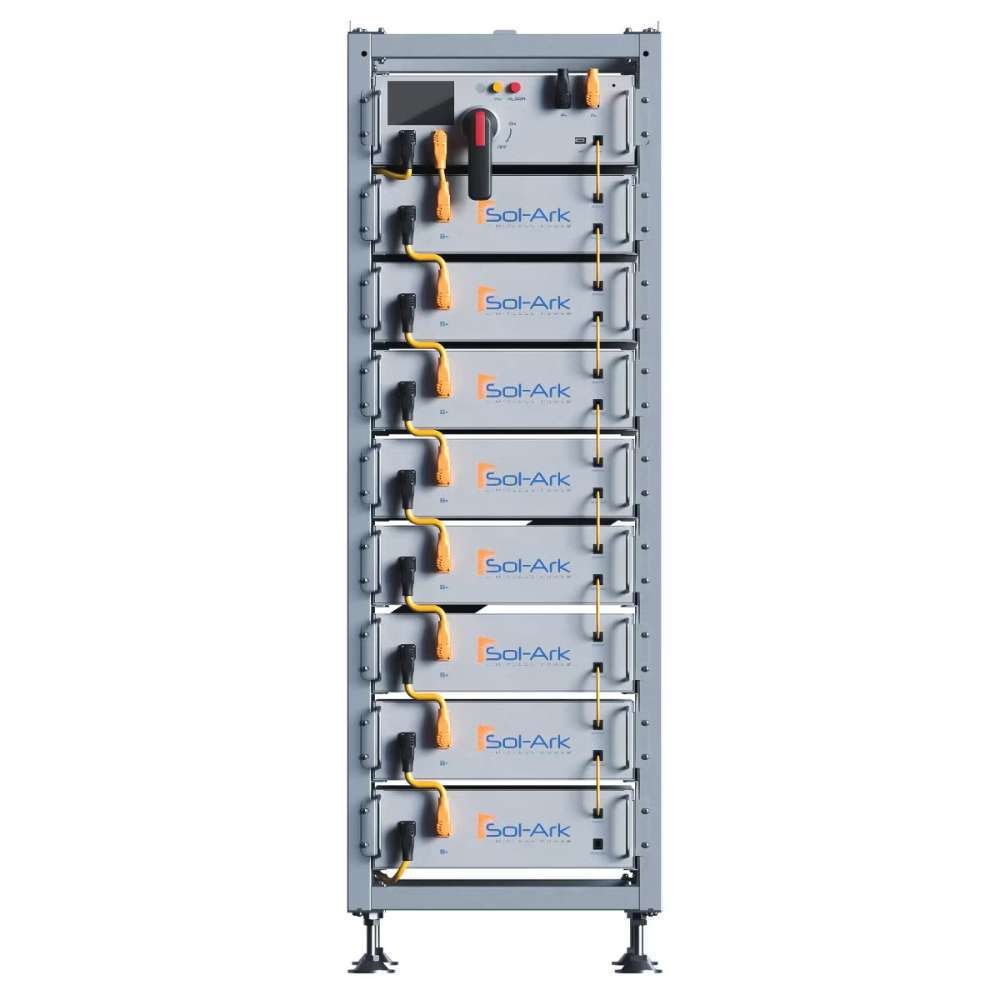

A 200A DC disconnect and a 160A internal fuse are built into each cabinet, so much of the balance-of-system that usually sits alongside a commercial battery is already handled. Each cabinet is a 614.4V nominal bank of twelve 5.12 kWh LiFePO4 modules, communicating over CAN 2.0 / RS485.
And the growth path is genuinely long. Start with a single 61.44 kWh cabinet, add up to 16 per inverter, and parallel up to 10 inverters for 9.6 MWh of storage and 600kW of AC power — with peak shaving, DER-program participation and grid sell-back all supported as your strategy develops.
The Sol-Ark L3-HV-60 Indoor Battery Bank in a nutshell:
-
61.44 kWh LiFePO4 (55.30 kWh usable) — purpose-built to pair with the Sol-Ark 60K-3P-480V inverter.
-
Built-in aerosol fire suppression, UL 9540a listed — engineered for safe indoor commercial installation.
-
Integrated 200A DC disconnect & 160A fuse — fewer external components and a cleaner install.
-
Scales to 9.6 MWh / 600kW AC — up to 16 cabinets per inverter, 10 inverters in parallel.
Sol-Ark L3-HV-60 Indoor Battery Bank specifications
Battery Model / SKU
L3 HV-60 (ESS model L3 HV-60KWH-60K) / SKU L3-HV-60KWH
Compatible Inverter
Sol-Ark 60K-3P-480V
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Nameplate Energy Capacity (DC)
61.44 kWh
Usable Energy Capacity (DC)
55.30 kWh (at 90% depth of discharge)
System Nominal Voltage (DC)
614.4V (operating range 588 – 672V)
Battery Pack Configuration
12s1p — twelve 5.12 kWh modules (51.2V / 100Ah each)
Charge / Discharge Current (DC)
50A recommended / 100A max continuous / 125A peak discharge (60s @ 25°C)
Battery Max Continuous Power (DC)
61.44 kW
ESS Max Continuous Power (AC)
60 kW
Round-Trip Efficiency (DC)
94% (25°C, 0.5C)
Warranted Depth of Discharge
90%
Built-In DC Disconnect / Internal Fuse
200A disconnect / 160A fuse
Scalability
Up to 16 battery cabinets per inverter; up to 10 inverters in parallel — 600kW AC / 9.6 MWh
Fault Current Contribution per Battery
4,200A / 1.47 ms
Communication Ports
CAN 2.0 / RS485
Dimensions (W × D × H)
58 × 58 × 218 cm (23 × 23 × 86 in)
Net Weight
773 kg (1,705 lbs)
Mounting

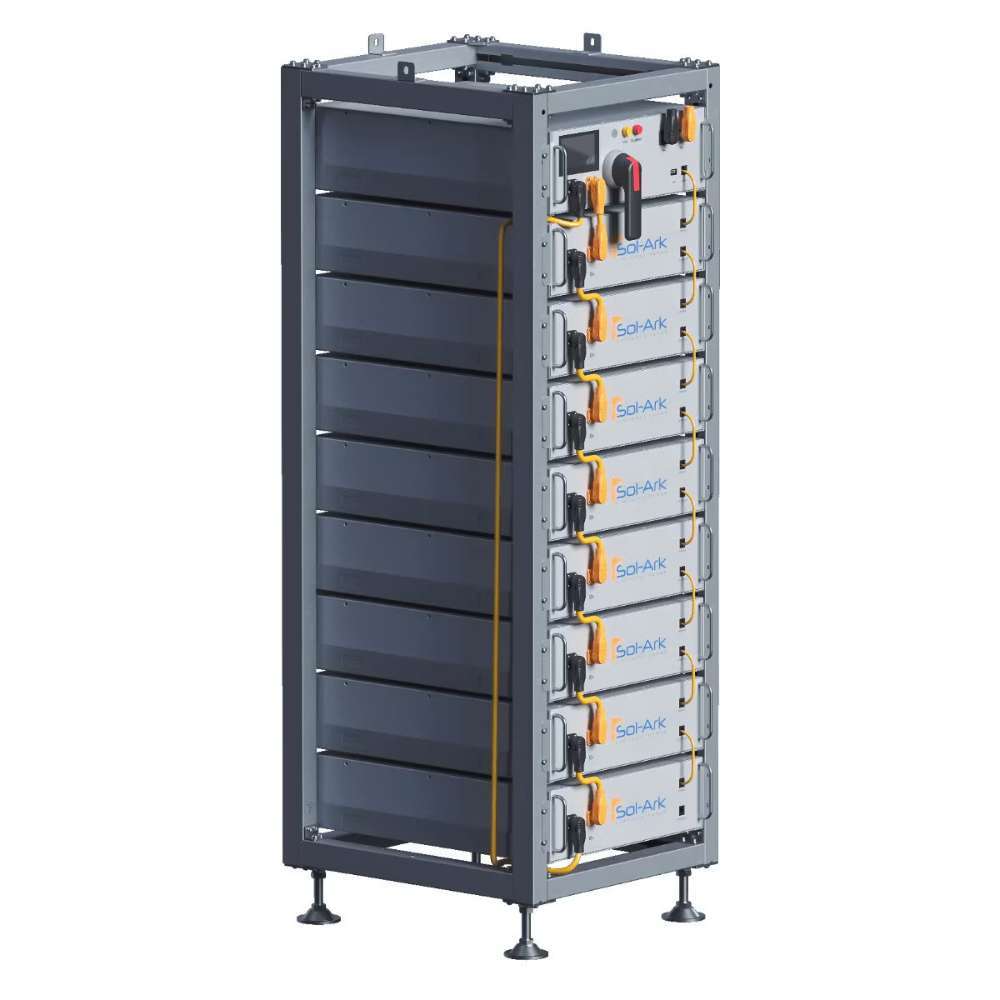

Freestanding rack mount — powder-coated steel
Ingress Rating
IP20 (NEMA 1) — indoor installation only
Operating Temperature & Humidity
4°C – 43°C (40°F – 110°F), 5% – 85% RH
Operating Altitude
3,000 m (9,843 ft)
Noise Level @ 1 m
Under 40 dBA at 30°C (86°F)
Seismic Mounting
Up to Category F
Terminal Type
Amphenol SurLok push-lock connector
Fire Suppression
Built-in aerosol fire suppression in modules and cabinet
Warranty
10 years or 196 MWh throughput (performance); 10 years (product)
Certifications
UL 1973, UL 9540, UL 9540a, UN 38.3, FCC, Prop 65
