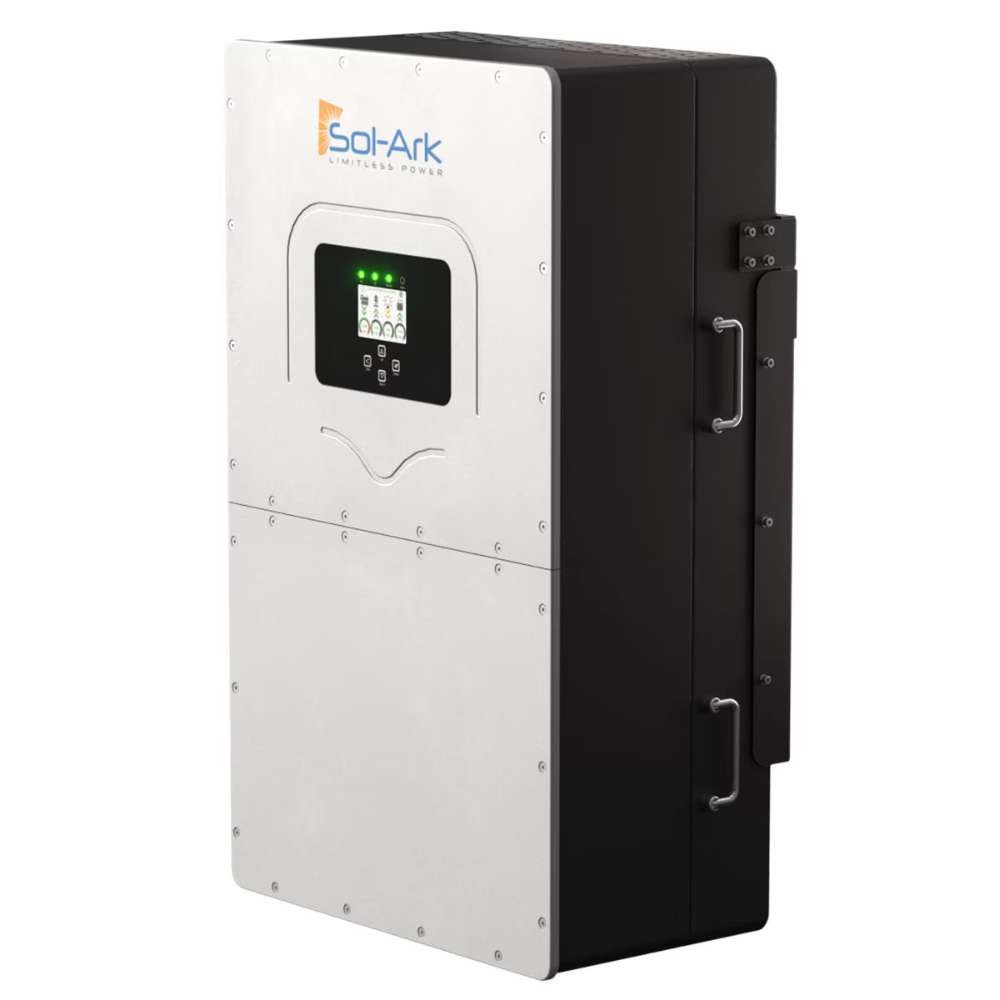

Commercial energy at scale: Sol-Ark 60K-3P-480V Inverter
-
Keep critical operations running. 60kW of continuous three-phase power with 90kVA of surge for 10 seconds keeps production, refrigeration and essential systems live through a grid outage, so downtime stops eating into revenue.
-
Attack your biggest utility line item. Peak shaving trims the demand charges that dominate commercial bills, and the platform can participate in grid-services programs for additional revenue.
-
Native 277/480V three-phase, ready for your building. It outputs the voltage commercial sites already run on — 4-wire Wye or 3-wire Delta — which keeps installation simpler and the equipment count down.
-
Built to scale with the business. Parallel up to 10 inverters for 600kW of power, with up to 16 batteries per inverter and storage that scales to 9.6 MWh — all on Sol-Ark's standard 10-year warranty.
Your business, with the Sol-Ark 60K-3P-480V Commercial Hybrid Inverter
For a commercial operation, two energy problems quietly cost the most. The demand charge that lands every month whether you notice it or not, and the outage that stops the business cold.
The Sol-Ark 60K-3P-480V is built to take on both. Peak shaving pulls down the demand peaks that drive your bill, while 60kW of continuous 277/480V three-phase power — with 90kVA of surge for 10 seconds — keeps your operation running when the grid doesn't.
And it's designed to grow rather than be replaced. Parallel up to 10 units for 600kW of power, add up to 16 batteries per inverter, and scale storage to 9.6 MWh as the site's needs expand.
The engineering is sized for serious commercial and industrial work.
Four MPPTs take up to 78kW of DC solar across an unusually wide 150–850V range, with a 1,000V maximum input that suits long commercial strings. You can AC-couple a further 60kW, so an existing array integrates rather than gets scrapped. Grid pass-through runs at 180A continuously, or 200A for up to ten minutes.
Batteries connect as a high-voltage lithium-ion bank — 600V or more nominal across a 160–700V range, with two inputs and BMS communication over triple CAN. Both AC and DC coupling are supported, so the 60K drops into new builds and retrofits alike.
It's IP65 / NEMA 3R rated, runs from -40°C to 60°C, draws just 60W at idle and sits under 30 dB at one metre. Wi-Fi and LAN hardware are included, and the MySol-Ark platform gives your team real-time monitoring and fleet management from anywhere.
The Sol-Ark 60K-3P-480V Commercial Hybrid Inverter in a nutshell:
-
60kW continuous three-phase at 277/480V — with 90kVA of surge for 10 seconds off-grid.
-
Up to 78kW DC solar across 4 MPPTs plus 60kW AC coupling — a 150–850V range for long commercial strings.
-
High-voltage lithium-ion battery input — 600V or more nominal, up to 16 batteries per inverter.
-
Scales to 600kW and 9.6 MWh — parallel up to 10 units as the site grows.
Sol-Ark 60K-3P-480V Commercial Hybrid Inverter specifications
Max Allowed PV Power (STC)
78,000W
MPPT Voltage Range
150 – 850V (180V startup, 1,000V max input voltage)
MPP Trackers & Strings
4 trackers, 2 PV strings per MPPT
Current per MPPT
36A max operating / 55A max short circuit
Max AC Coupled Input
60,000W
Nominal AC Voltage (3Φ)
277/480V (4-wire Wye) or 480V (3-wire Delta) — 50/60Hz
Real Power, Max Continuous (3Φ)
60,000W
Max Output Current
72.3A
Peak Apparent Power (10s, off-grid, 3Φ)
90,000VA
Grid Pass-Through Current
180A continuous / 200A for up to 10 minutes
Power Factor Output Range
+/- 0.8 (adjustable)
Backup Transfer Time
Up to 15 ms
Efficiency
97.5% max / 96.5% CEC
Design
Transformerless DC — stackable up to 10 units in parallel
Battery Chemistry
Lithium-ion
Battery Inputs
2 inputs, 50A terminal rating each
Nominal DC Voltage
≥600V (operating range 160 – 700V)
Battery Capacity Range
50 – 9,900Ah
Max Battery Charge / Discharge Current
100A (50A per input)
Charge Controller Type
CC/CV, BMS controlled — 96.0% grid-to-battery charging efficiency
Generator
Integrated 2-wire Automatic Generator Start (AGS)
BMS Communication
3 × CAN (Controller Area Network)
Protection
Integrated PV DC disconnect (NEC 240.15), ground fault detection (NEC 690.5), rapid shutdown control (NEC 690.12), arc fault detection (NEC 690.11), PV input lightning protection, PV string reverse polarity protection; DC Type II / AC Type III surge protection
Certifications
UL 1741-2021 (UL1741SB), CSA C22.2 No. 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP
Enclosure & Environment
IP65 / NEMA 3R — -40 to 60°C (derating above 45°C), operating altitude 2,000 m (6,561 ft), under 30 dB at 1 m / 25°C, 60W no-load idle consumption
Communication & Monitoring
Wi-Fi & LAN hardware included
Dimensions (H × W × D)
894 × 528 × 295 mm (35.2 × 20.8 × 11.6 in)
Weight
80 kg / 176 lbs
Warranty
10 years
Let the experts help you find your perfect commercial inverter
Not sure how many Sol-Ark 60K-3P-480V units your site needs, or how it pairs with a high-voltage battery bank? We're here to help you scope the project properly the first time.
Chat via Email — support@kratopower.com
Chat on the Phone — +1 (888) 855-7286
Sol-Ark 60K-3P-480V Commercial Hybrid Inverter documents and materials
Disclaimer: Potential energy savings and utility cost reductions depend on system size and configuration, energy usage, utility tariffs and demand charges, local regulations, weather conditions, available incentives and installer design. Actual savings and performance will vary.
The information on this page is provided for general guidance only and should not be taken as professional, electrical or medical advice. The Sol-Ark 60K-3P-480V is a high-voltage, three-phase, grid-interconnected commercial product weighing 176 lbs, and pairs with a high-voltage battery bank. It must be specified and installed by a suitably qualified and licensed electrical contractor in line with the manufacturer's installation manual and your local codes; commercial grid interconnection will normally require permits and a utility interconnection agreement. Every site is different, so if you have any doubt, please consult a qualified professional before purchasing or installing. Products are used at your own risk.
