Keep your business running: Sol-Ark 30K-3P-208V Commercial Inverter
Why You'll Love The Sol-Ark 30K-3P-208V Commercial Hybrid Inverter
-
Outages stop costing you money. 30kW of continuous three-phase power with 45kVA of surge keeps your operation running when the grid drops, so downtime doesn't quietly swallow a day's revenue.
-
Native 120/208V three-phase, with nothing to convert. It outputs the voltage your building already runs on, which keeps the installation simpler and the equipment count lower.
-
Works with the solar you have, or the solar you're planning. Up to 39kW of DC PV across four MPPTs plus 30kW of AC coupling means a retrofit is as straightforward as a new build.
-
Start at 30kW and scale to 300kW. Parallel up to 10 units as the business grows, all backed by Sol-Ark's standard 10-year warranty.
Your business, with the Sol-Ark 30K-3P-208V Commercial Hybrid Inverter
For a business, a power cut isn't an inconvenience. It's refrigeration at risk, production stopped, tills down and a day you don't get back.
The Sol-Ark 30K-3P-208V is built to make that somebody else's problem. It delivers 30kW of continuous 120/208V three-phase power with 45kVA of surge for 10 seconds — enough to restart the motors and compressors that stall lesser backup systems.
It earns its place on ordinary days too, turning your roof into a way of pulling down what you hand the utility rather than simply paying whatever the meter says.
The engineering is sized for commercial work throughout.
Four MPPTs take up to 39kW of DC solar across eight strings, and you can AC-couple a further 30kW — so an existing array doesn't need tearing out to add storage. Grid pass-through runs at 180A continuously, or 200A for up to ten minutes.
Batteries connect as a high-voltage lithium-ion bank rather than the 48V arrangement used on residential units: 300V or more nominal across a 160–500V range, with two battery inputs and BMS communication over dual CAN.

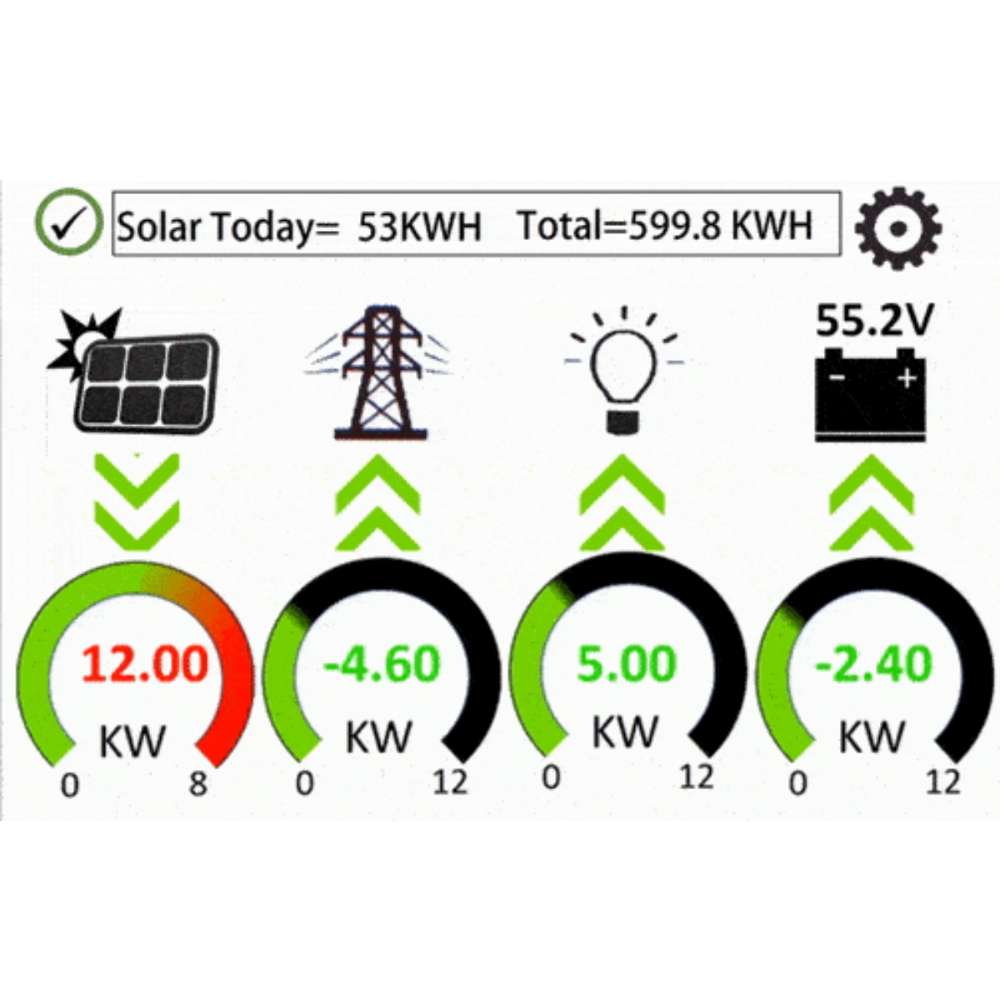

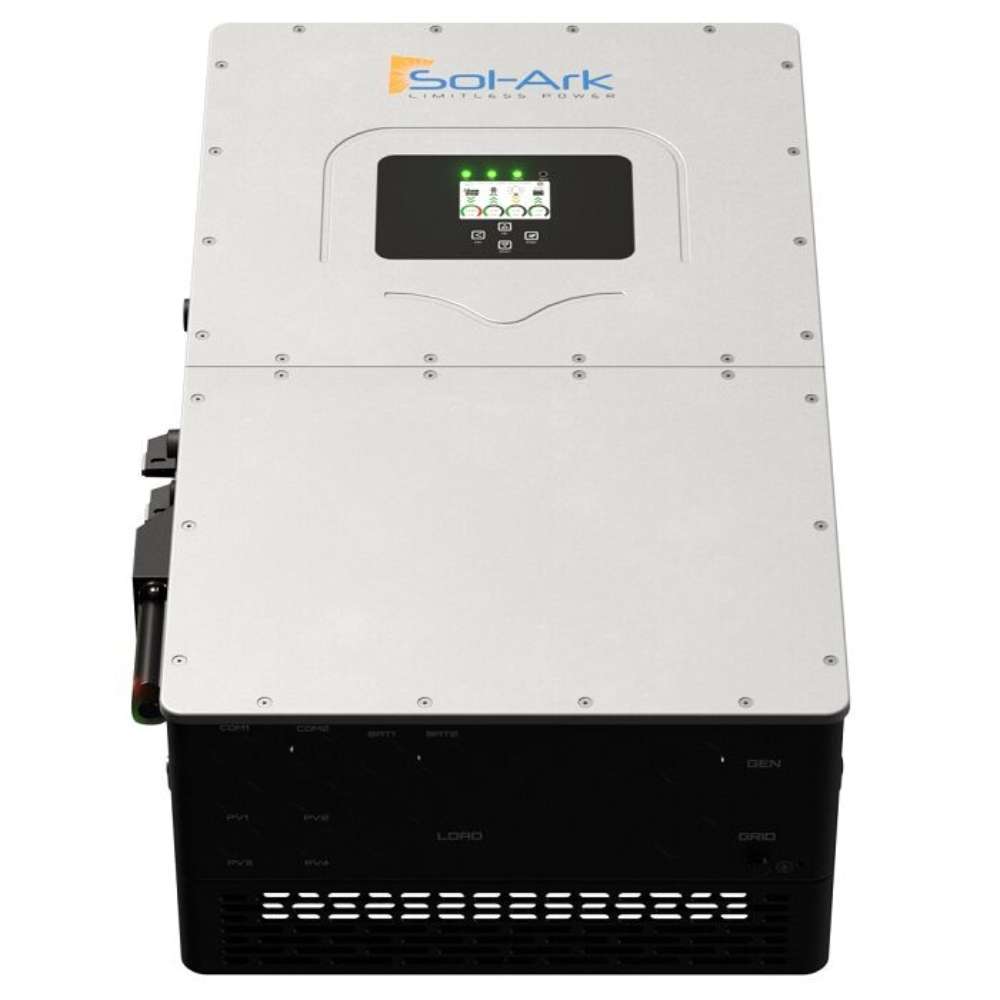

It's IP65 / NEMA 3R rated, operates from -40°C to 60°C, draws just 60W at idle and sits under 30 dB, so siting it is rarely the difficult part. Wi-Fi and LAN hardware are included, and the MySol-Ark platform gives you real-time monitoring and fleet management from anywhere.
The Sol-Ark 30K-3P-208V Commercial Hybrid Inverter in a nutshell:
-
30kW continuous three-phase at 120/208V — native output with 45kVA of surge for 10 seconds.
-
Four MPPTs, 39kW DC solar plus 30kW AC coupling — suits new arrays and retrofits alike.
-
High-voltage lithium-ion battery input — 300V or more nominal across two inputs.
-
Parallel up to 10 units — 30kW to 300kW as your energy needs grow.
Sol-Ark 30K-3P-208V Commercial Hybrid Inverter specifications
Max Allowed PV Power (STC)
39,000W
MPPT Voltage Range
150 – 500V (180V startup, 550V max input voltage)
MPP Trackers & Strings
4 trackers, 2 PV strings per MPPT
Current per MPPT
36A max operating / 55A max short circuit
Max AC Coupled Input Power
30,000W
Nominal AC Voltage (3Φ)
120/208V — 50/60Hz
Real Power, Max Continuous (3Φ)
30,000W
Max Output Current
83.4A
Peak Apparent Power (10s, off-grid, 3Φ)
45,000VA
Grid Pass-Through Current
180A continuous / 200A for up to 10 minutes
Power Factor Output Range
+/- 0.8 (adjustable)
Backup Transfer Time
20 ms (adjustable)
Efficiency
97.5% max / 96.5% CEC
Design
Transformerless DC — stackable up to 10 units in parallel
Battery Chemistry
Lithium-ion
Battery Inputs
2 inputs, 50A terminal rating each
Nominal DC Voltage
≥300V (operating range 160 – 500V)
Battery Capacity Range
50 – 9,900Ah
Max Battery Charge / Discharge Current
100A (50A per input)
Charge Controller Type
CC/CV, BMS controlled — 96.0% grid-to-battery charging efficiency
Generator
Integrated 2-wire Automatic Generator Start (AGS)
BMS Communication
2 × CAN (Controller Area Network)
Protection
Integrated PV DC disconnect (NEC 240.15), ground fault detection (NEC 690.5), rapid shutdown control (NEC 690.12), arc fault detection (NEC 690.11), PV input lightning protection, PV string reverse polarity protection; DC Type II / AC Type III surge protection
Certifications
UL 1741-2021 (UL1741SB), CSA C22.2 No. 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP
Enclosure & Environment
IP65 / NEMA 3R — -40 to 60°C (derating above 45°C), operating altitude 2,000 m (6,561 ft), under 30 dB at 25°C, 60W no-load idle consumption
Communication & Monitoring
Wi-Fi & LAN hardware included
Dimensions (H × W × D)
894 × 528 × 295 mm (35.2 × 20.8 × 11.6 in)
Weight
80 kg / 176 lbs
Warranty
10 years
Let the experts help you find your perfect commercial inverter
Not sure how many Sol-Ark 30K-3P-208V units your site needs, or how it pairs with a high-voltage battery bank? We're here to help you scope the project properly the first time.
Chat via Email — support@kratopower.com
Chat on the Phone — +1 (888) 855-7286
Sol-Ark 30K-3P-208V Commercial Hybrid Inverter documents and materials
Disclaimer: Potential energy savings and utility cost reductions depend on system size and configuration, energy usage, utility tariffs and demand charges, local regulations, weather conditions, available incentives and installer design. Actual savings and performance will vary.
The information on this page is provided for general guidance only and should not be taken as professional, electrical or medical advice. The Sol-Ark 30K-3P-208V is a high-voltage, three-phase, grid-interconnected commercial product weighing 176 lbs, and pairs with a high-voltage battery bank. It must be specified and installed by a suitably qualified and licensed electrical contractor in line with the manufacturer's installation manual and your local codes; commercial grid interconnection will normally require permits and a utility interconnection agreement. Every site is different, so if you have any doubt, please consult a qualified professional before purchasing or installing. Products are used at your own risk.
