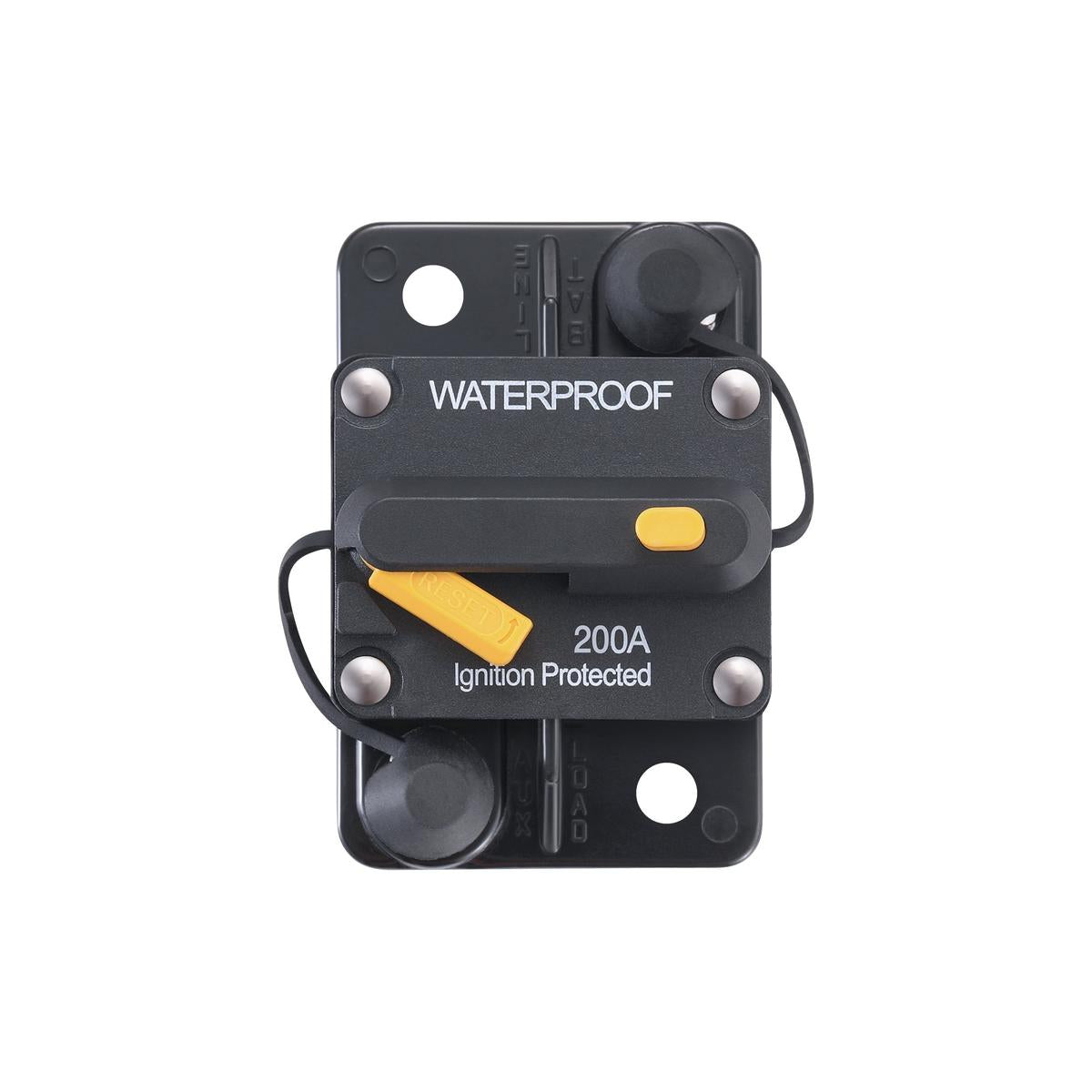

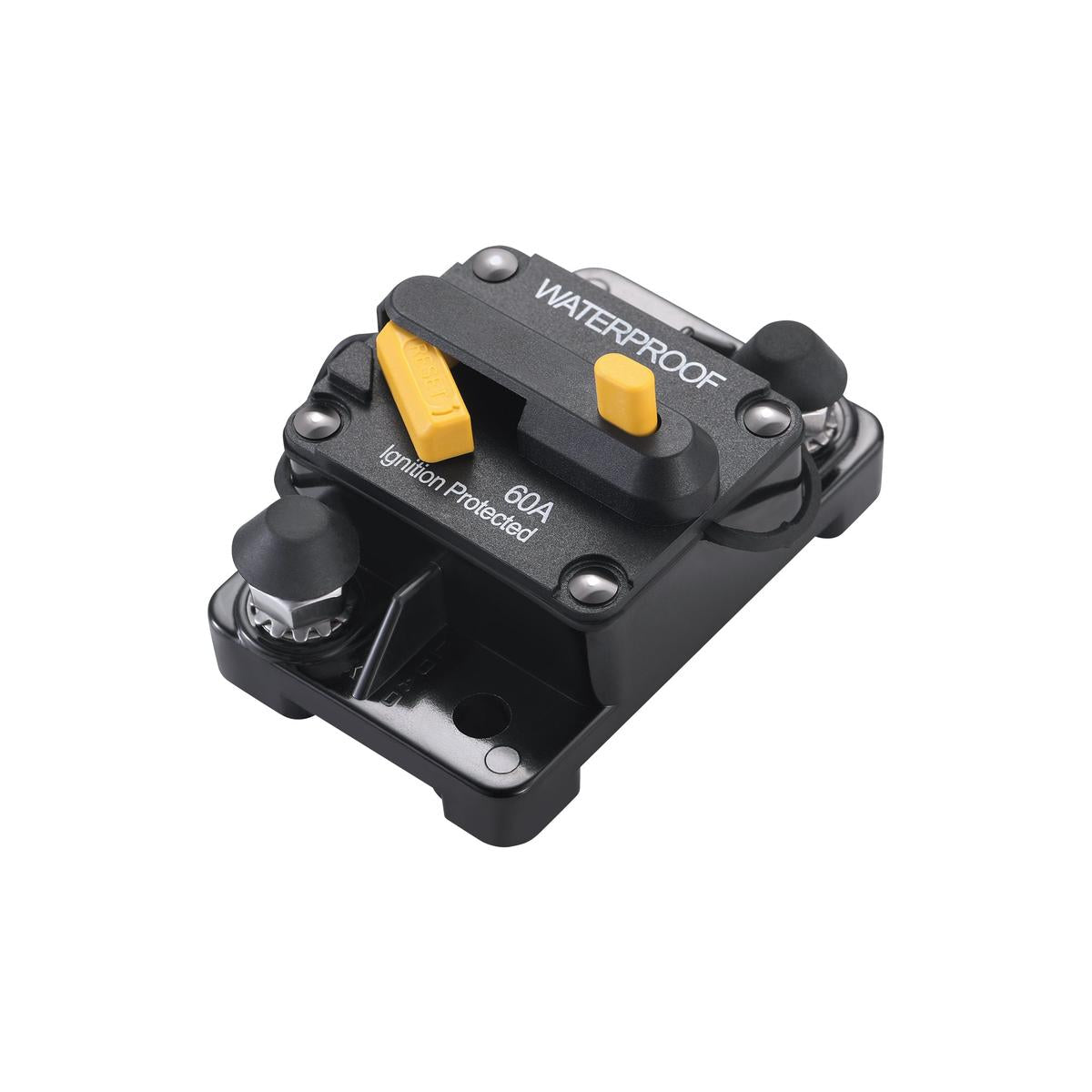

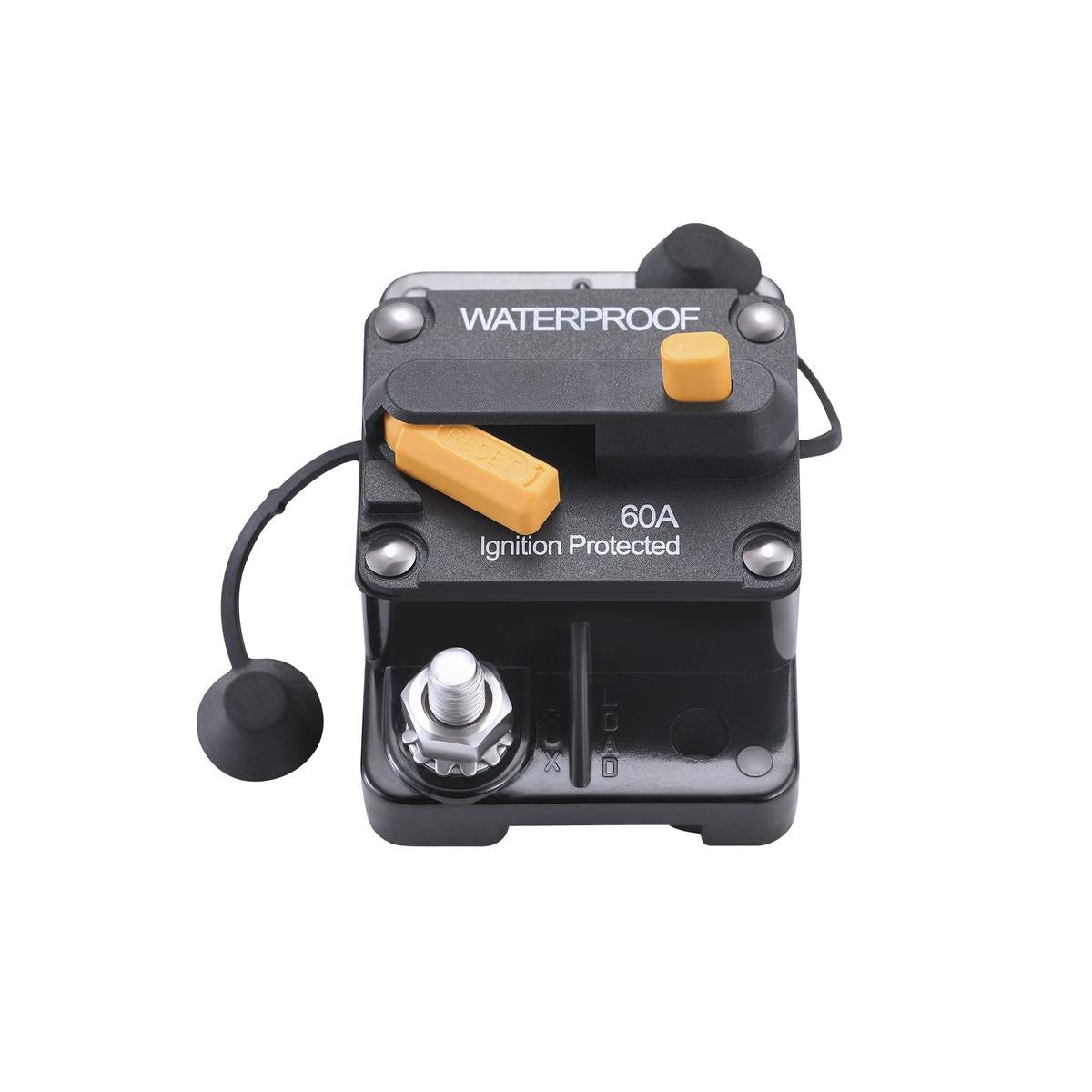

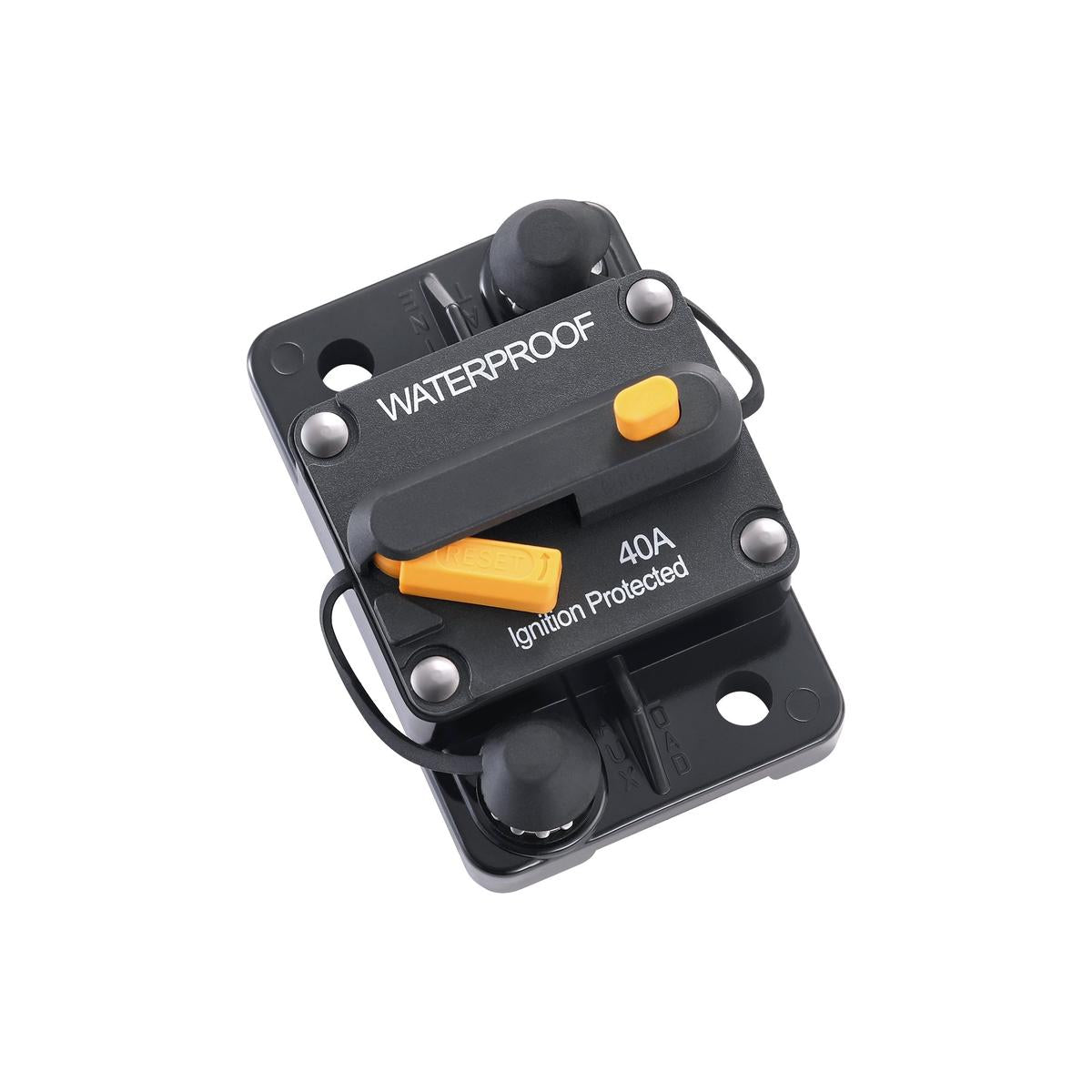

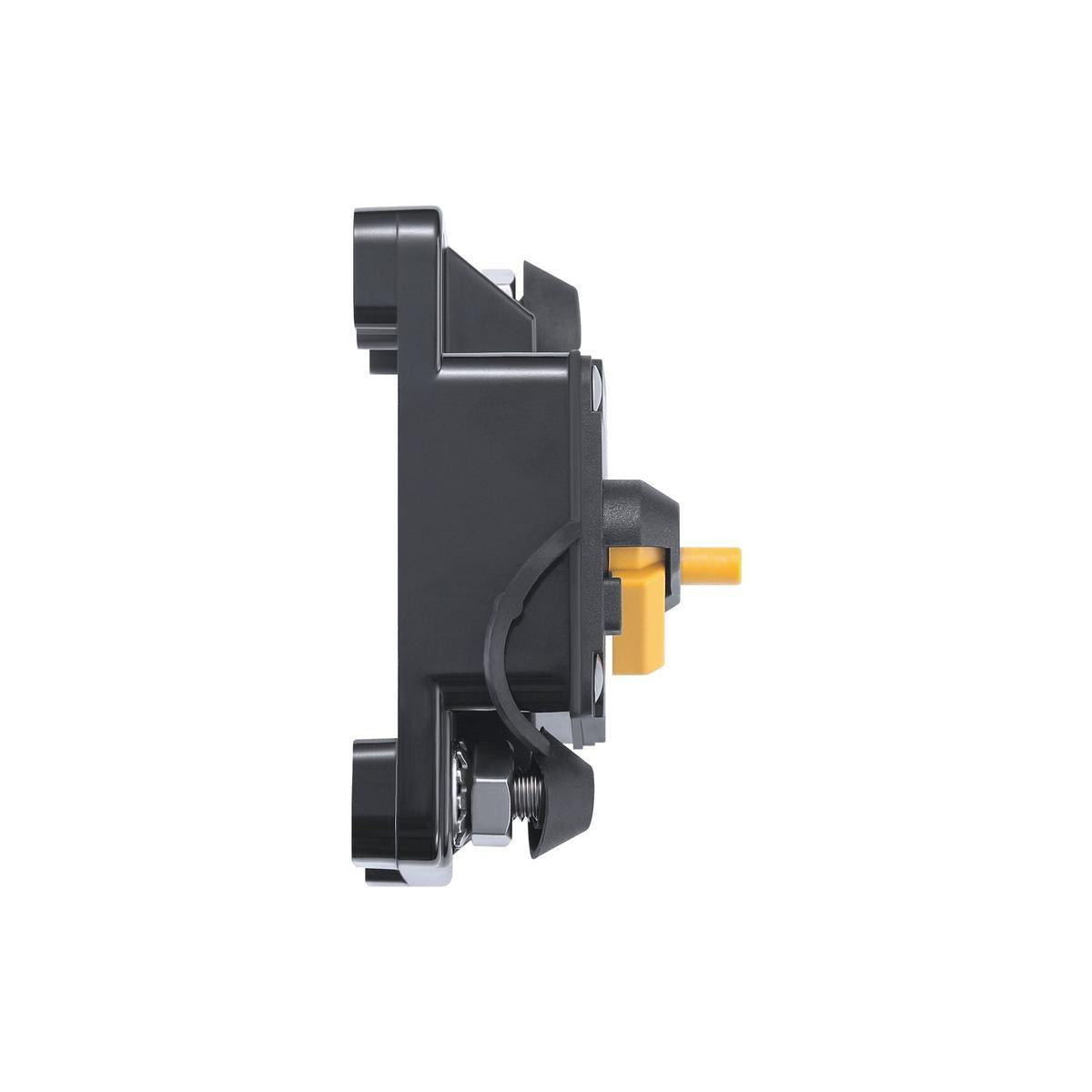

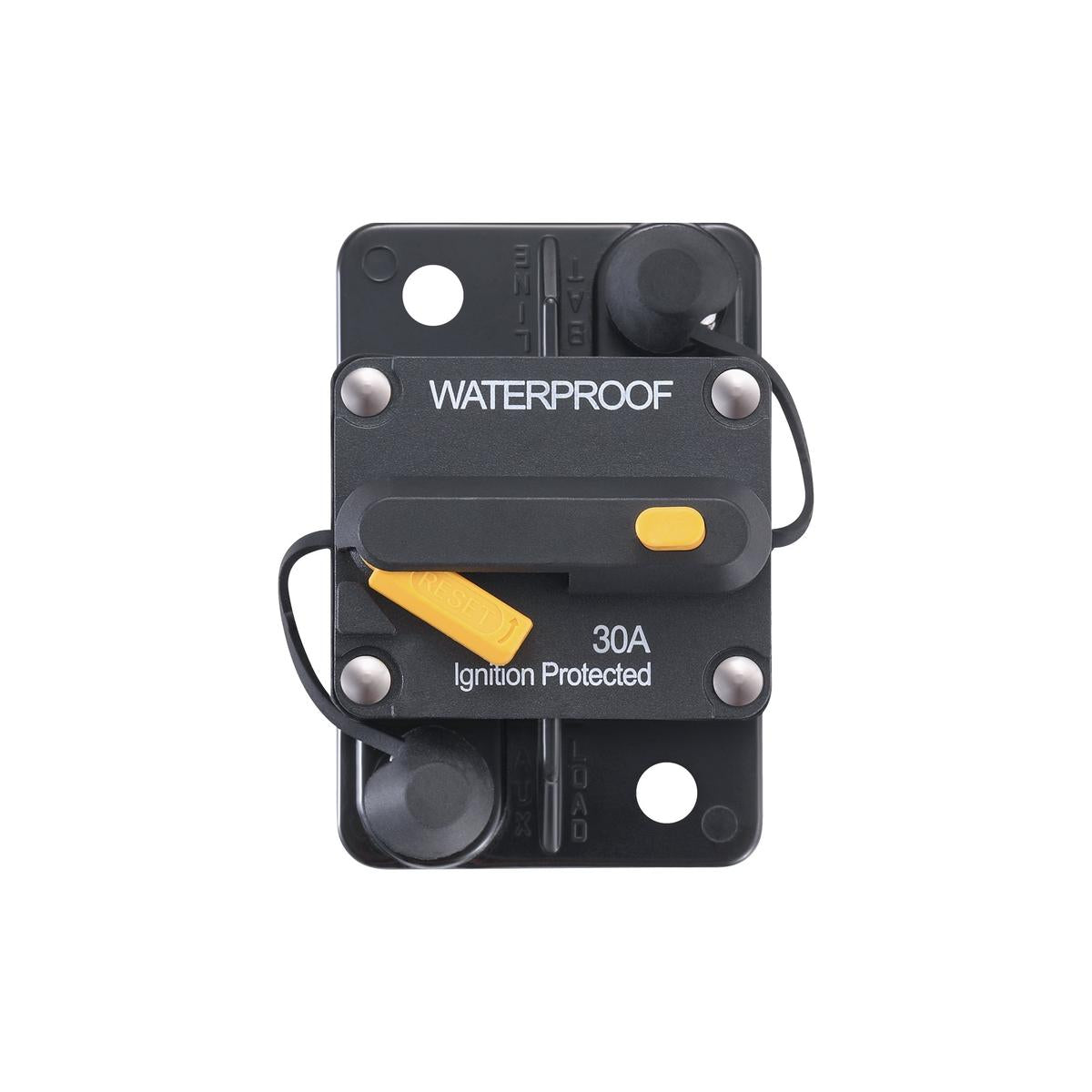

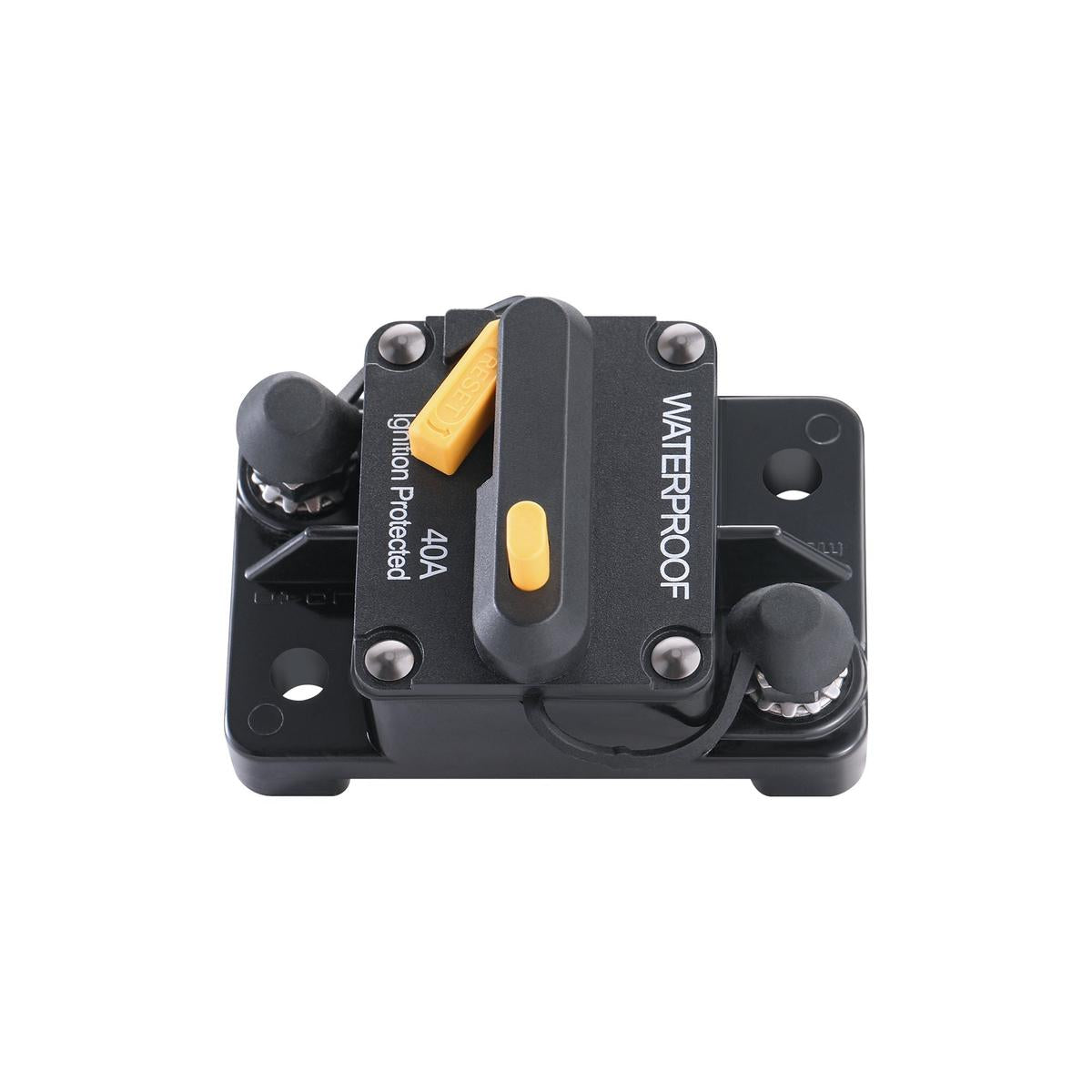

Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker | Choose Amp: 30A, 40A, 60A, 80A, 100A, 120A, 150A, 150A, 200A, 250A

Features

1. Advanced Electrical Protection

• Overload & Short-Circuit Defense: Instantly cuts power when current exceeds limits, protecting sensitive electronics
• High Interrupt Rating: Safely interrupts up to 3,000A @ 30VDC

2. Manual Reset Convenience

• Push-to-Trip Button: Allows manual testing or circuit shutdown
• Reset Lever: Quick and secure restart after interruption

3. Built for Harsh Environments

• IP67 Waterproof & Dustproof: Fully sealed for reliable outdoor use
• Rugged Housing: Flame-retardant UL 94V-0 thermoset plastic with insulated terminals

4. Versatile Installation Options

• Panel or Surface Mount: Threaded studs (1/4"-28 or 3/8"-16), 50 in-lbs torque max
• Wide Application Range: Ideal for trucks, buses, RVs, boats, ATVs, DC chargers, winches, and more

5. Certified Safety Standards

• SAE J553 / J1171 (Ignition Protected)
• ABYC E-11 (Marine Applications)
• Wide thermal tolerance: –25°F to 180°F operating / –34°F to 300°F

Specifications

• Rating: 25-250A, 30VDC; 48VDC
• Interrupt Rating: 3000A @30VDC
• Operating Temperature Rating: -25°F (-32°C) to 180°F (82°C)
• Storage Temperature Rating: -30°F (-34°C) to 300°F (149°C)
• Materials: Black UL-rated 94V0 thermoplastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (Surface-mount) bases.
• Marking: Standard marking includes amp ratings and part numbers. Custom markings are also available
• Termination: 1/4-28 or 3/8-16 threaded studs
• Torque Rating: S 50 in-lbs (5.6N·m) max
• Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6N·m) max. The threaded insert option has a max torque of 25 in-lbs (2.8N·m)
• Ingress Protection Rating: IP67
• Compliance: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
