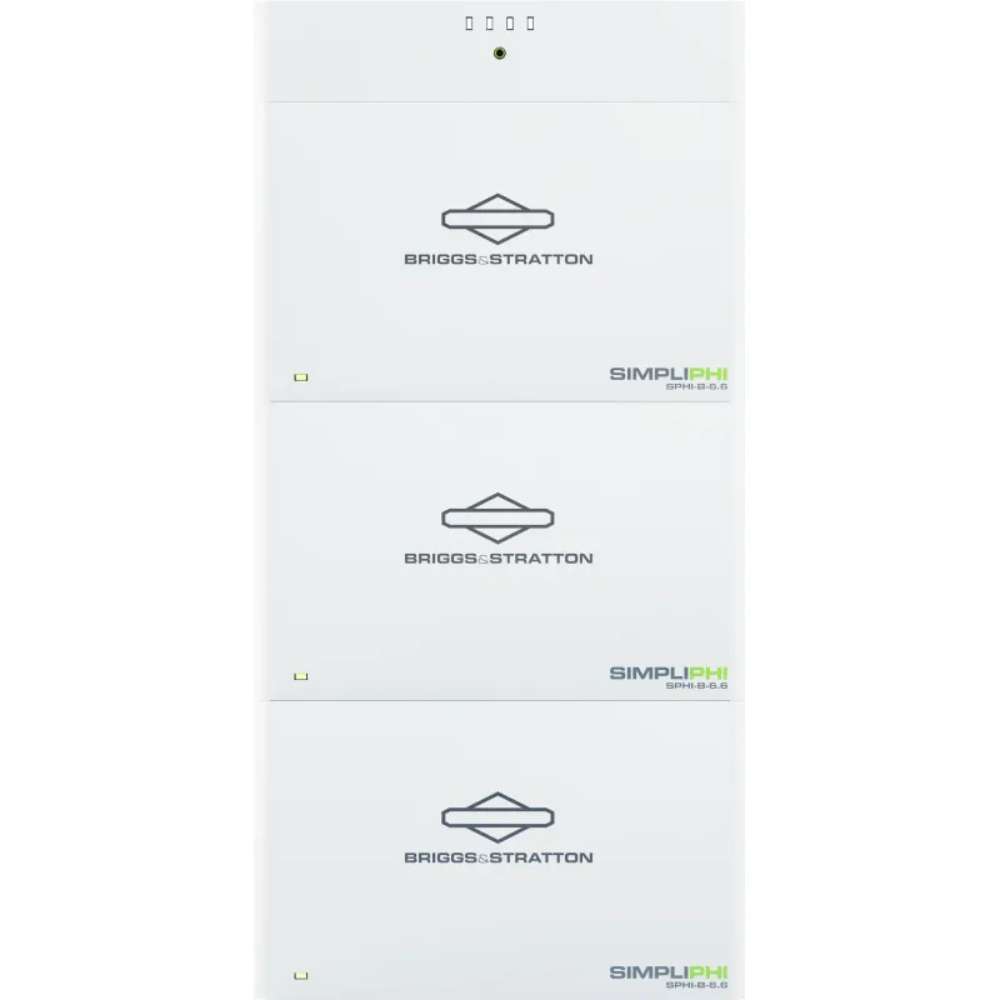

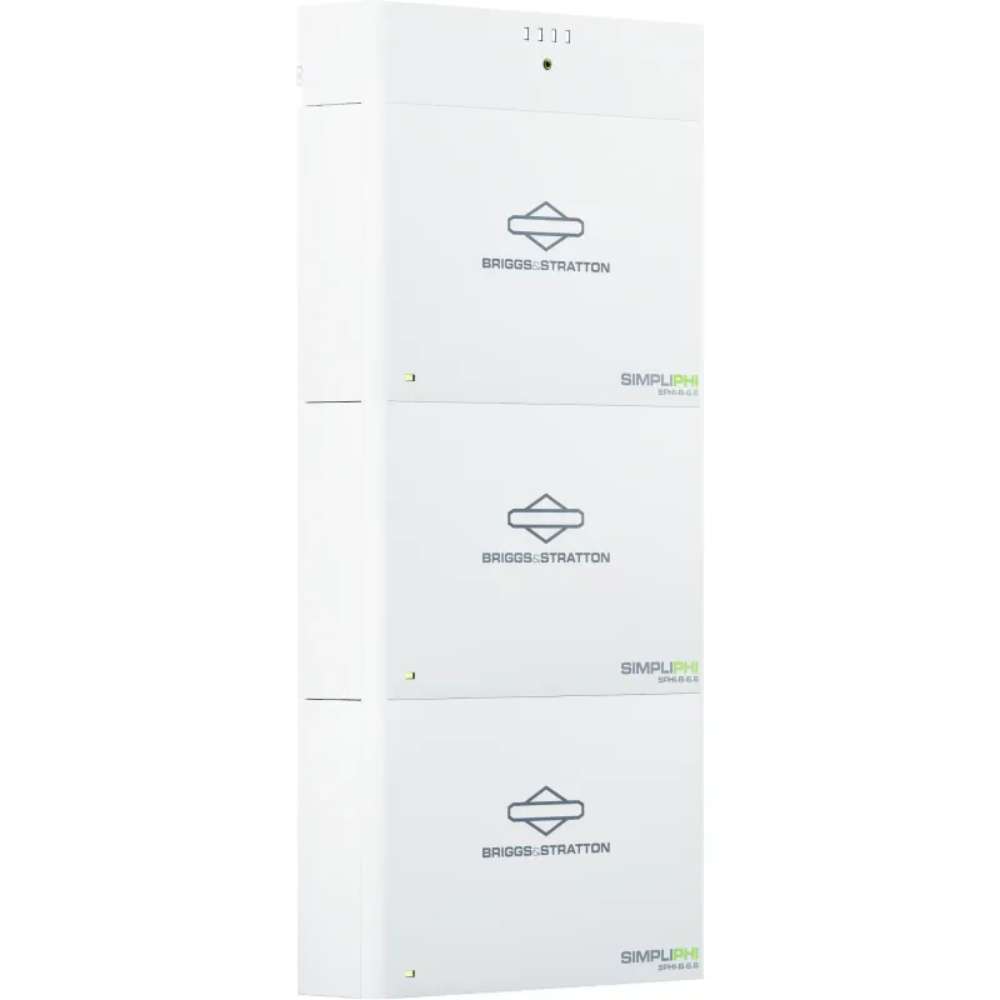

- Maximum batteries per stack: 3
- Maximum batteries per system: 18
- Nominal energy capacity: 6,656 Wh (6.66 kWh)
- Nominal DC voltage: 51.2 V
- Battery capacity: 130 Ah
- DC voltage range: 44.8 to 56.8 V
- Maximum continuous discharge rate: 130 A
- Maximum continuous charge rate: 100 A
- Surge discharge rate: 240 A for 2 seconds or 300 A for 1 second
- Efficiency rating: 96% or higher
- Self-discharge rate: Less than 0.03% per month when powered off
- Cycle life: 4,500 cycles at 100% depth of discharge
- Charging temperature range: -10°C to 50°C (14°F to 122°F)
- Discharge temperature range: -20°C to 55°C (-4°F to 131°F)
- Operating and storage humidity: 0% to 95%
- Storage temperature: -20°C to 55°C (-4°F to 131°F) for 1 month, or -20°C to 45°C (-4°F to 113°F) for 6 months
- Weight: 125 lb (56.7 kg)
- Enclosure material: Powder-coated steel
- IP rating: IP20 or IP65 when installed
- Maximum operating altitude: 3,000 m
- Dimensions: 28.6 x 18.9 x 6.7 in (725 x 479 x 170 mm)
- Wall-mounted full stack dimensions: 28.6 x 60.4 x 6.7 in (725 x 1,535 x 170 mm)
- Corrosion resistance rating: 240 hours
- Salt-fog rating: 240 hours
- Communication ports: CAN and RS485 compatible with leading inverters
- Certifications: UL9540, UL9540A, UL1973, UL1998 + 991, UN38.3, UN3480, IEC62619

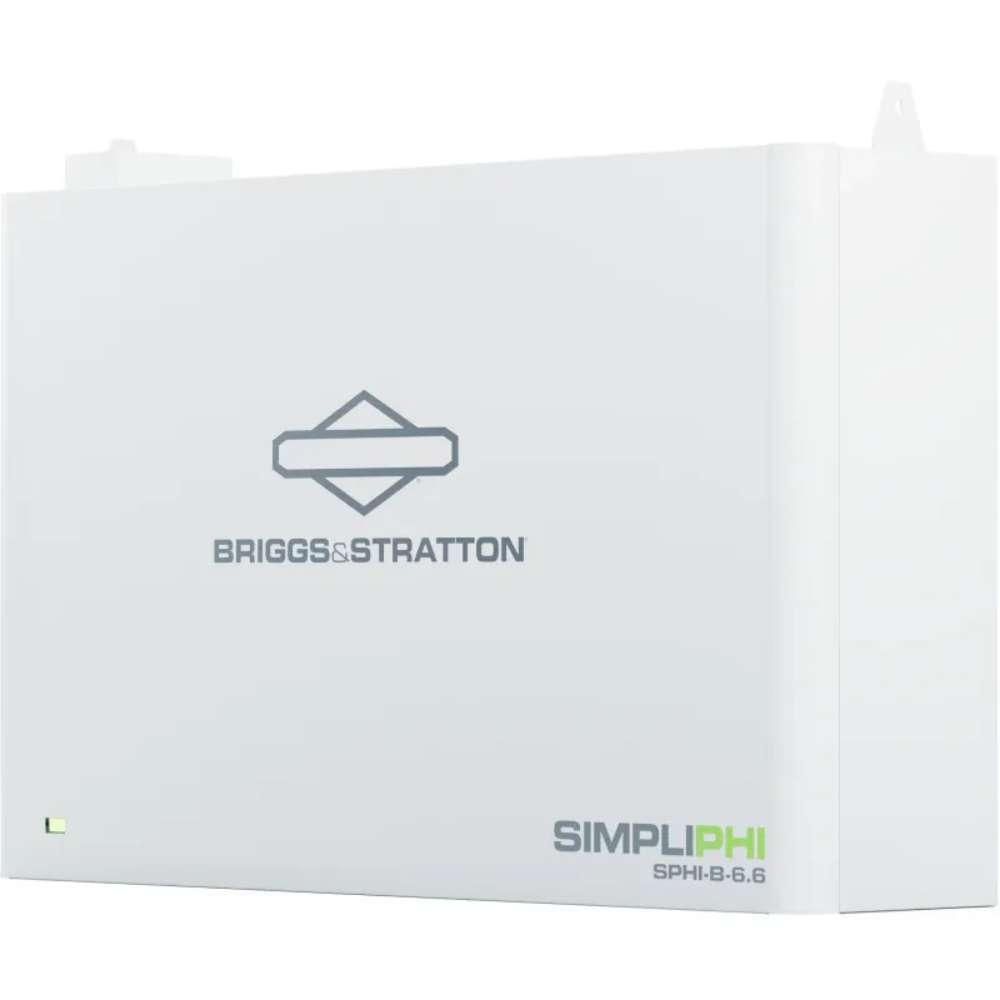

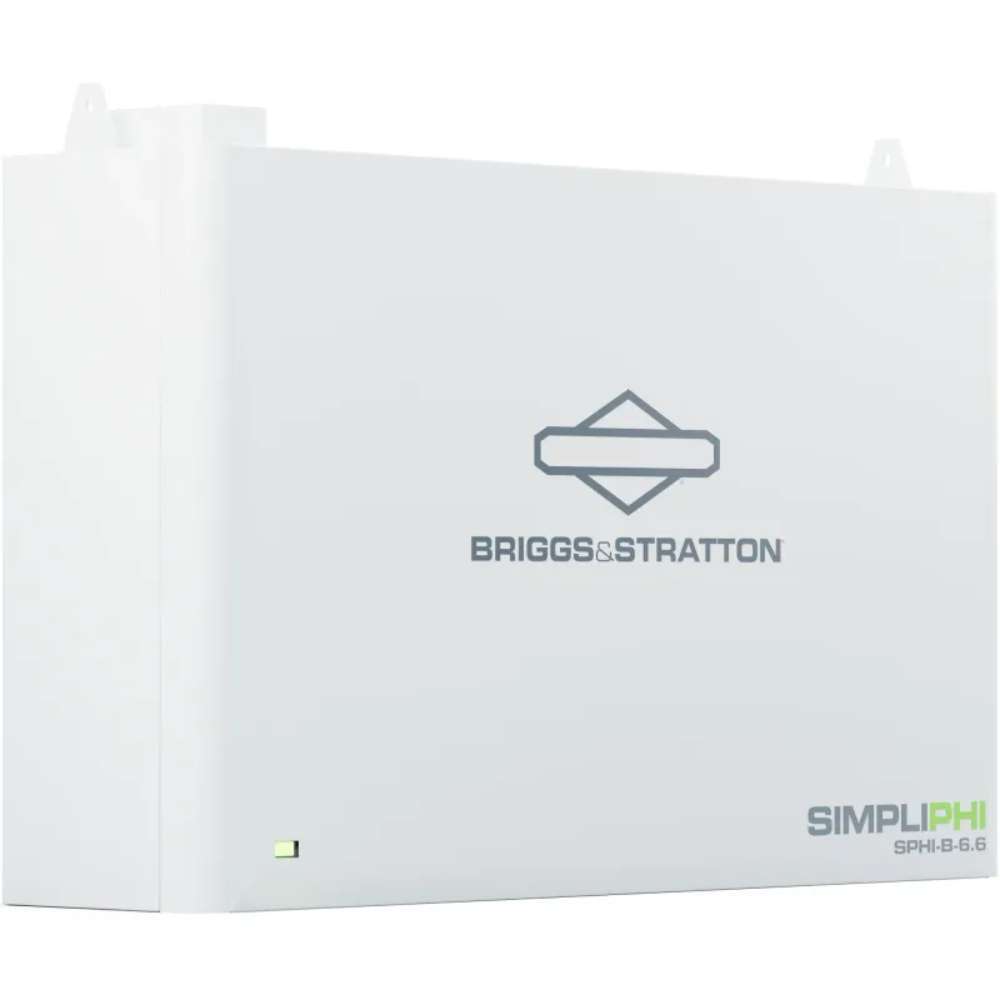

Simpliphi by Briggs & Stratton SPHI-B-6.6BA 6.6kWh Stackable Lithium Battery
SKU SPHI-B-6.6BA
by Simpliphi
Sold out
$4,098.97
