Specifications:
- Input: 48 VDC
- Output: 120 / 240 VAC Split Phase
- Power Output: 4200 watts (4.2 kW)
- Surge Capacity: 12,600 watts (12.6 kW)
- Outlets: Hardwired
- Fuse: External

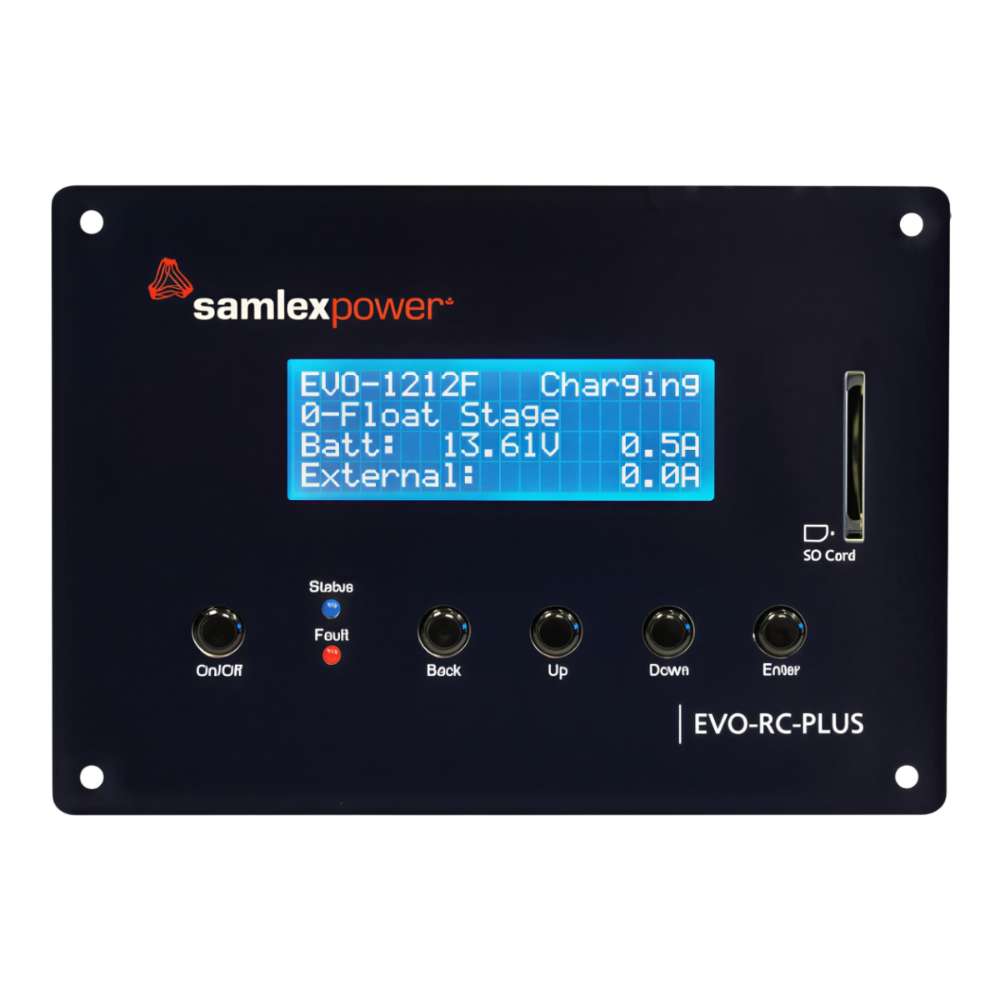

- Remote Control: EVO-RC-PLUS (Optional)
- Weight: 64 lb (29 kg)
- Dimensions: 12.8 × 16.3 × 8.35 in (324 × 415 × 212 mm)
- Safety Certifications: CSA Listed, conforms to CAN/CSA STD C22.2 No. 107.1-16 and UL Std No. 1741 2nd Ed, EMI/EMC compliant with FCC Part 15(B), Class A
Features:
- 120 / 240 VAC split-phase output for full household power compatibility
- Single programmable AC input for seamless grid or generator use
- Direct solar integration through external 48V MPPT charge controller support
- Advanced 3 or 4 stage adaptive battery charging with lithium compatibility
- Zero transfer time to grid and under 16 ms transfer to inverter
- 3X surge capacity with active power boost for heavy start-up loads
- High-speed processor delivering ultra-fast response and load handling

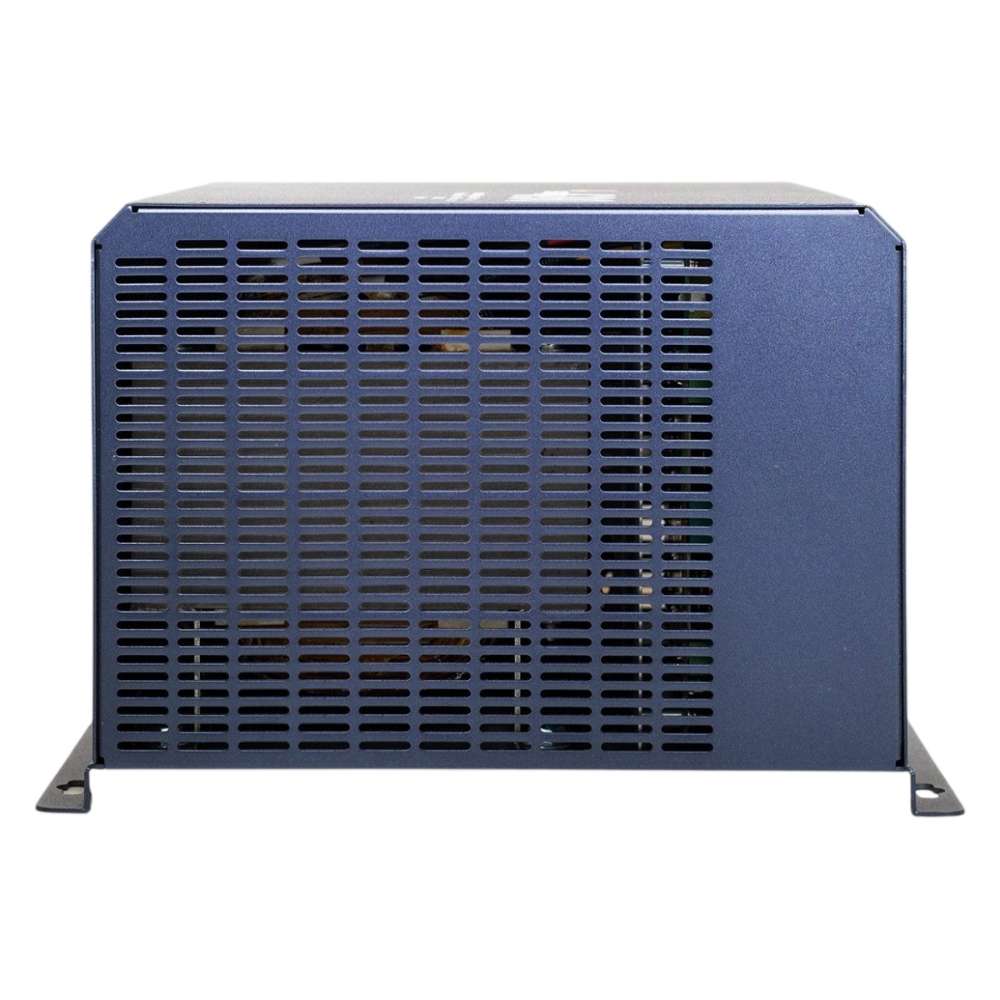

- Smart thermal management with multiple sensors and quiet variable speed cooling fans
