- Nominal Voltage: 48 V
- Actual Voltage @20% SOC: 51.2 V
- Nominal Capacity: 205 Ah
- Energy: 5.12 kWh
- Battery Chemistry: Lithium Iron Phosphate (LiFePO₄)
- Cell Type: Prismatic
- Cycle Life: 6,000 cycles at 80% DoD; 4,000 cycles at 100% DoD; 8,500 cycles at 50% DoD
- Retained Capacity at End of Cycle Life: 80%
- Warranty: 12 years
- Balancing Type: Impactive Balancing (up to 30% longer life)
- Maximum Balancing Current: 1.1 A
- BMS High Voltage Cutout: 59 ±1 V
- BMS Low Temp Cutout: 32°F (0°C)
- BMS High Temp Cutout: 135°F (57°C)
- Installation Position: Horizontal with base
- Enclosure Protection: IP50
- LCD Display: Touchscreen LCD showing SOC%, Voltage, Charging/Discharging Amps, Balancer Status, Cell Voltages, Faults
- Communication: Multiway Closed Loop Communication with inverters via RS485
- Mobility: Casters for maximum mobility

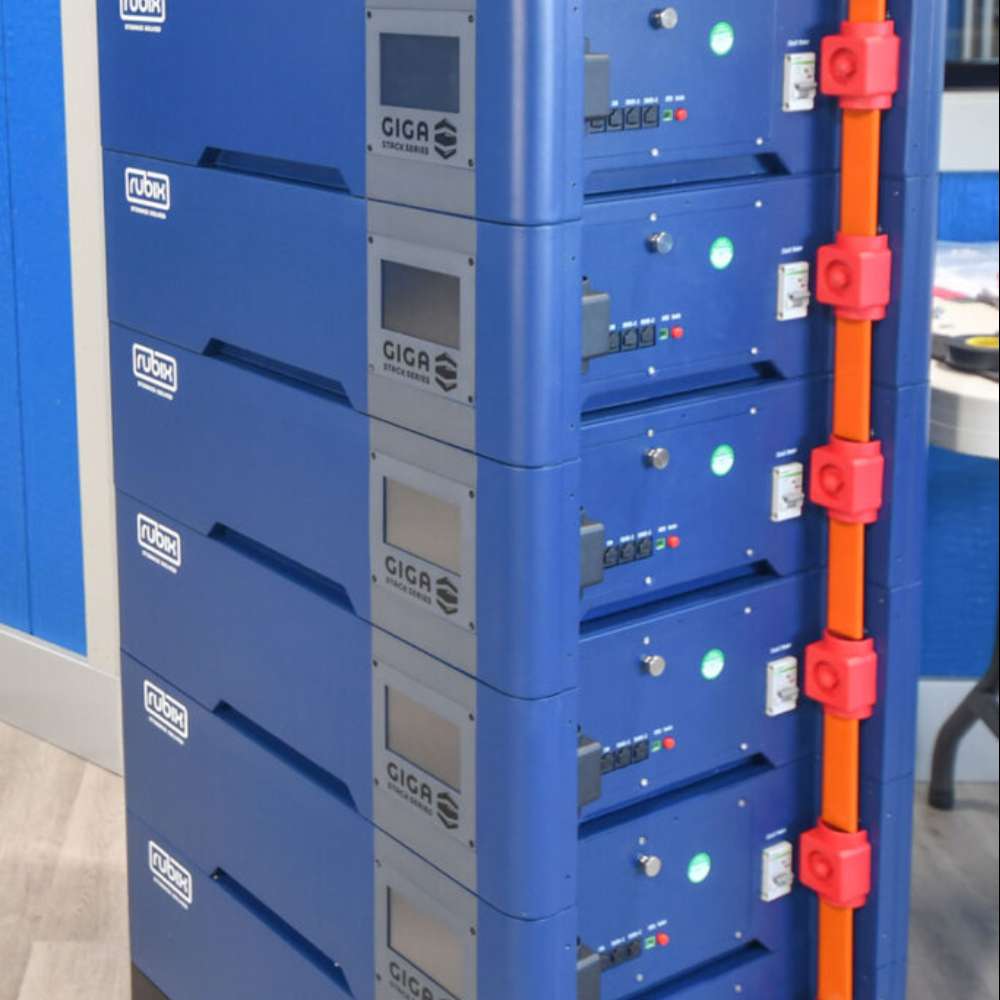

- Stacking Capability: Stack up to 7 batteries
- Certifications: UL9540A (pending), UN38.3
- Handles: Indented handles
- Terminal Type: Bolt-on M8
- Max Torque: 20 ft-lbs
- Ventilation Required: No
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Outdoor Rated: No
- Weight: 117 lbs (53 kg)

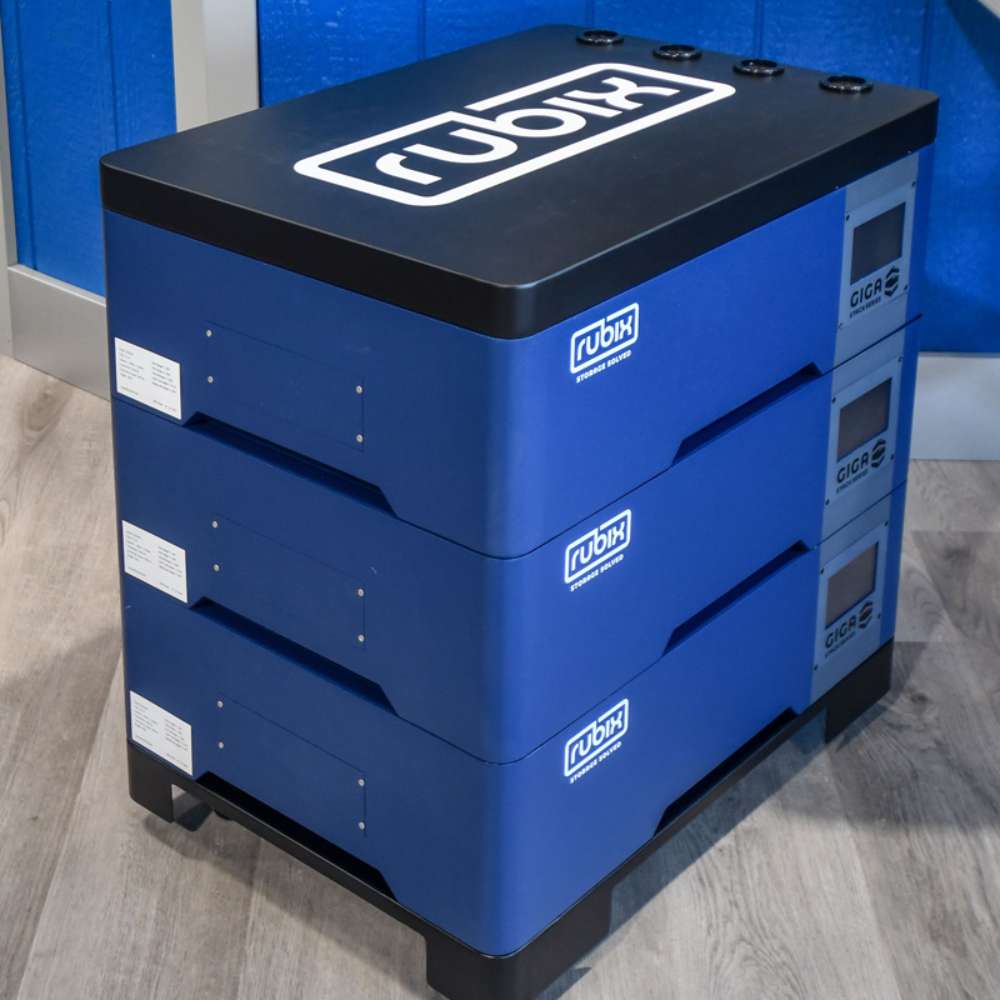

Rubix Giga Stack Series 48 Volt 205AH Lithium Battery
SKU RGS-48205
by Rubix
$4,398.97
¡También ofrecemos atención al cliente en español!
Find a better price somewhere else?
Well... we will BEAT it. Call us today to get the best price in the market!
ESTIMATED FREE DELIVERY BETWEEN
Order within to get it by the earliest date.
