- Nominal Voltage: 48 V
- Actual Voltage @20% SOC: 51.2 V
- Nominal Capacity: 100 Ah
- Energy: 5.12 kWh
- Battery Chemistry: Lithium Iron Phosphate (LiFePO₄)
- Cell Type: Prismatic
- Cycle Life: 6,000 cycles at 80% DoD; 4,000 cycles at 100% DoD; 8,500 cycles at 50% DoD
- Retained Capacity at End of Cycle Life: 80%
- Warranty: 12 years
- Balancing Type: Impactive Balancing (up to 30% longer life)
- Maximum Balancing Current: 1.1 A
- BMS High Voltage Cutout: 59 ±1 V
- BMS Low Temp Cutout: 32°F (0°C)
- BMS High Temp Cutout: 135°F (57°C)
- Installation Position: Horizontal with base
- Enclosure Protection: IP50
- LCD Display: Touchscreen LCD showing SOC%, Voltage, Charging/Discharging Amps, Balancer Status, Cell Voltages, Faults
- Communication: Multiway Closed Loop Communication with inverters via RS485
- Mobility: Casters for maximum mobility

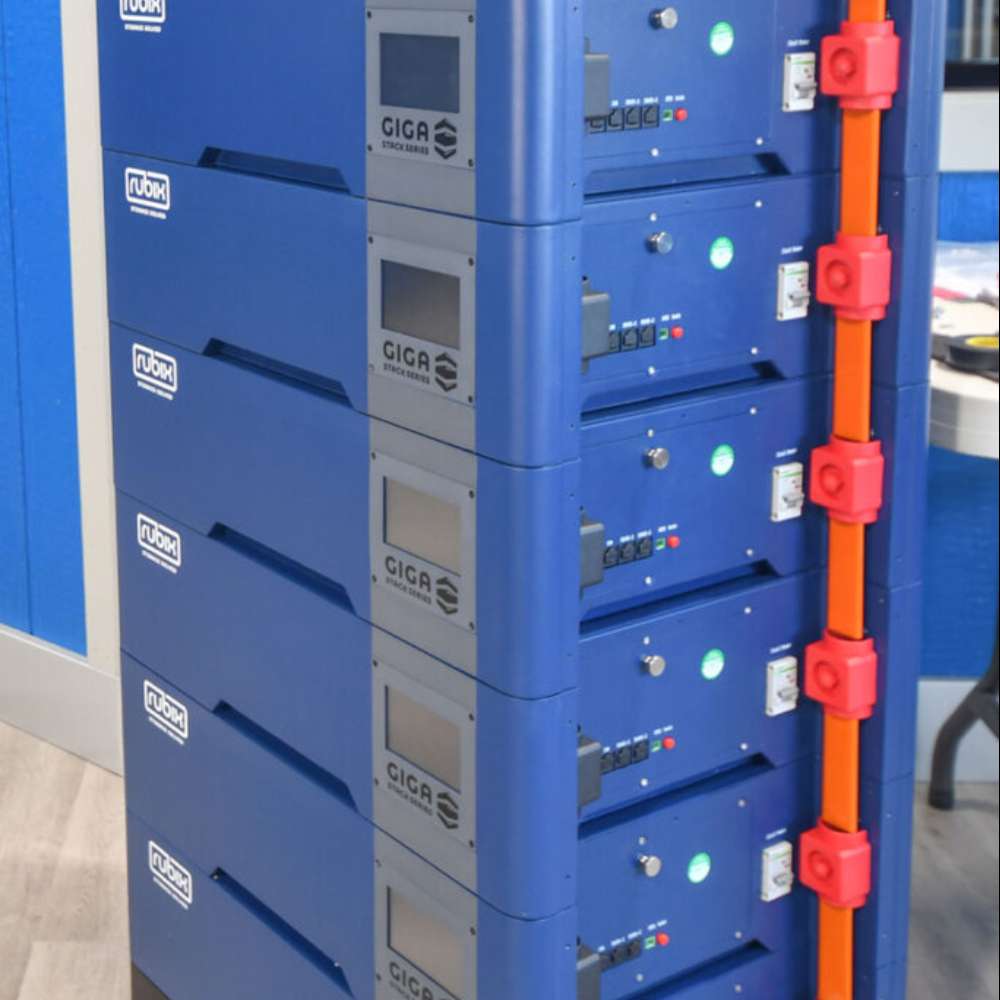

- Stacking Capability: Stack up to 7 batteries
- Certifications: UL9540A (pending), UN38.3
- Handles: Indented handles
- Terminal Type: Bolt-on M8
- Max Torque: 20 ft-lbs
- Ventilation Required: No
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Outdoor Rated: No
- Weight: 117 lbs (53 kg)

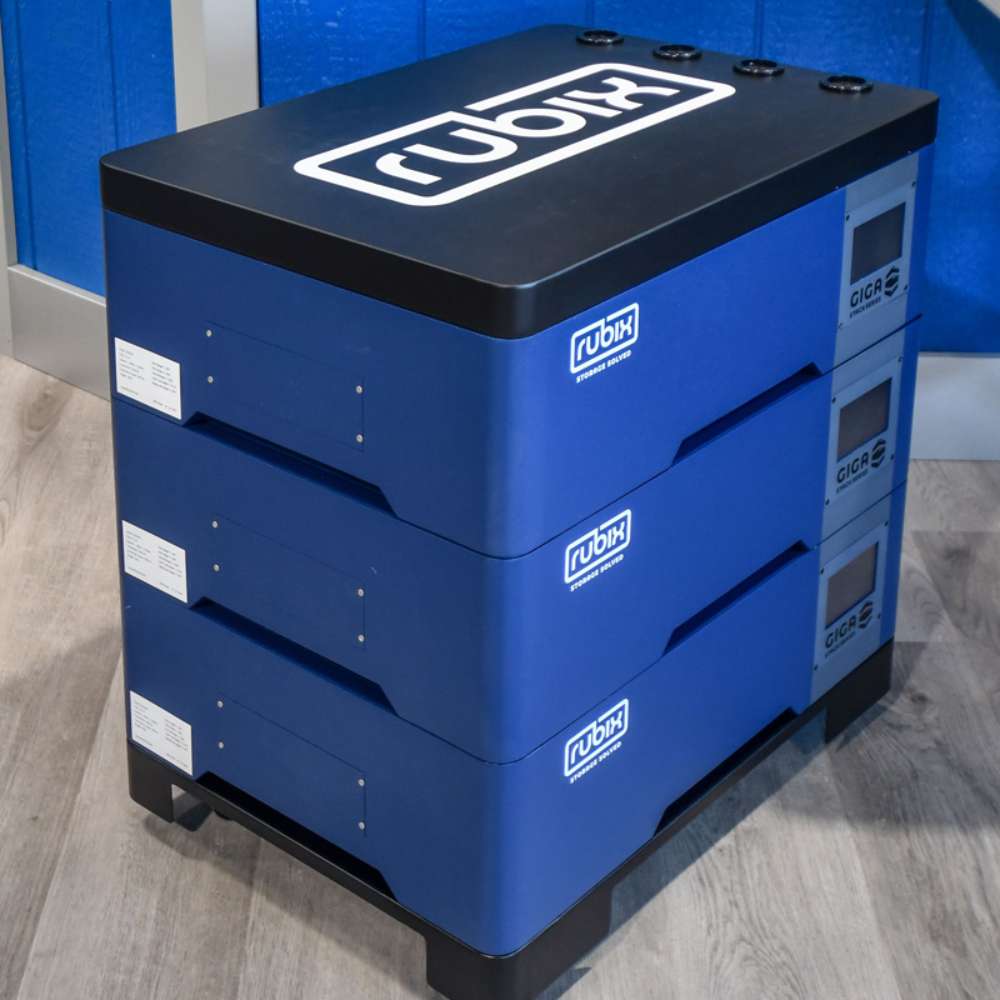

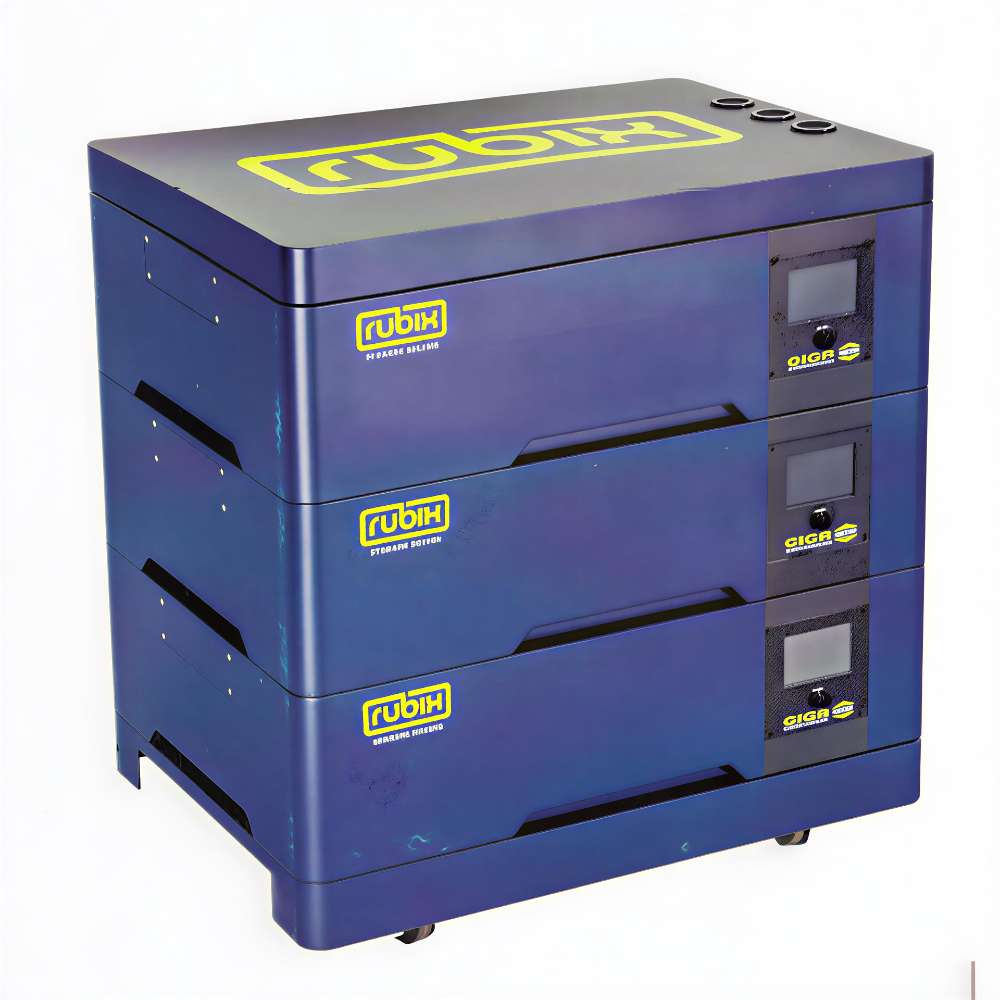

Rubix Giga Stack Series 48 Volt 100AH Lithium Battery
SKU RGS-48100
by Rubix
$2,398.97
¡También ofrecemos atención al cliente en español!
Find a better price somewhere else?
Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.
ESTIMATED DELIVERY BETWEEN
Order within to get it by the earliest date.
