- Nominal Energy: 16 kWh
- Default Voltage: 51.2 V
- Output Power: 10.2 kW
- Max Operation Current: 200 A

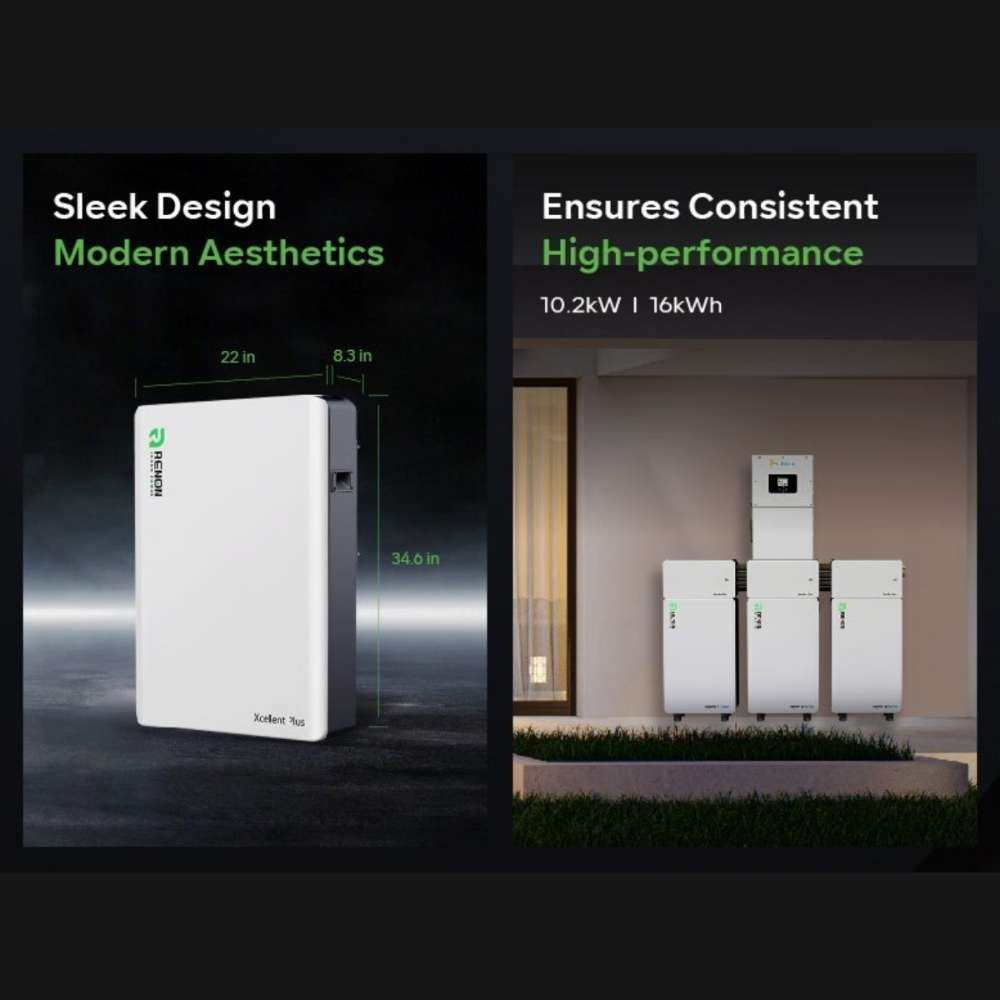

- Dimensions (W × D × H): 22 × 8.3 × 34.6 in (560 × 210 × 880 mm)
- Net Weight (Approximate): 351 lb (159 kg)
- Certifications: UN38.3, UL9540, UL9540A, UL1973
- Battery Chemistry: LiFePO4
- Cell Capacity: 314 Ah
- Nominal Energy: 16 kWh
- Output Power: 10.2 kW
- Default Voltage: 51.2 V
- Voltage Range: 43.2 to 59.2 V
- Max Operation Current: 200 A
- Primary Overcurrent Protection: 210 A at 5 seconds
- Secondary Overcurrent Protection: 240 A at 3 seconds
- Max Charging Voltage: 58.4 V
- Discharge Cut-Off Voltage: 43.2 V
- Recommended Charging Voltage: 56.8 V
- Scalability: Up to 15 systems in parallel
Storage Temperature: 20°C to 55°C(4°F to 131°F)
Recommended Storage Temperature: 0°C to 35°C (32°F to 95°F) - Humidity: Up to 90% RH, non-condensing
- Initial State of Charge: 50%
- Operating Temperature:
Charging: 32°F to 122°F / 0°C to 50°C
Discharging: –4°F to 122°F / –20°C to 50°C - Cooling: Natural cooling
- Max Altitude: 13,123 ft / 4,000 m
- Cycle Life: 8,000 cycles
- Communication: RS485, CAN, RS232
- Battery Model: R-XC016161-US
- Battery Compliances: UN38.3, UL9540, UL9540A, UL1973
- Installation Method: Wall mounting or floor mounting
- Installation Scene: Indoor or outdoor
- IP Rating: IP65
- Warranty: 10 years

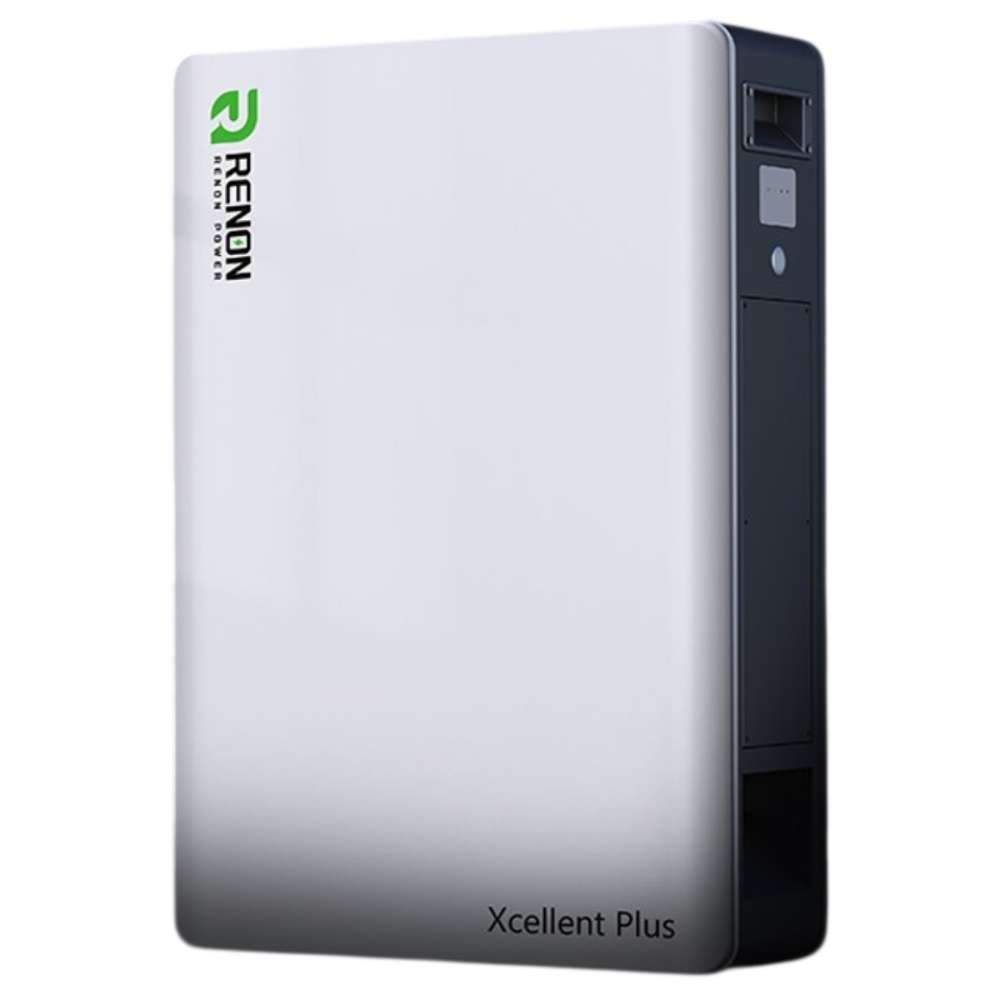

Renon Power Xcellent Plus 16kWh Wall-Mounted LV Battery System
SKU XCELLENTPLUS16K
by Renon Power
$4,598.97
