Renon Smart Matrix Stores Energy So Your Space Stays Comfortable

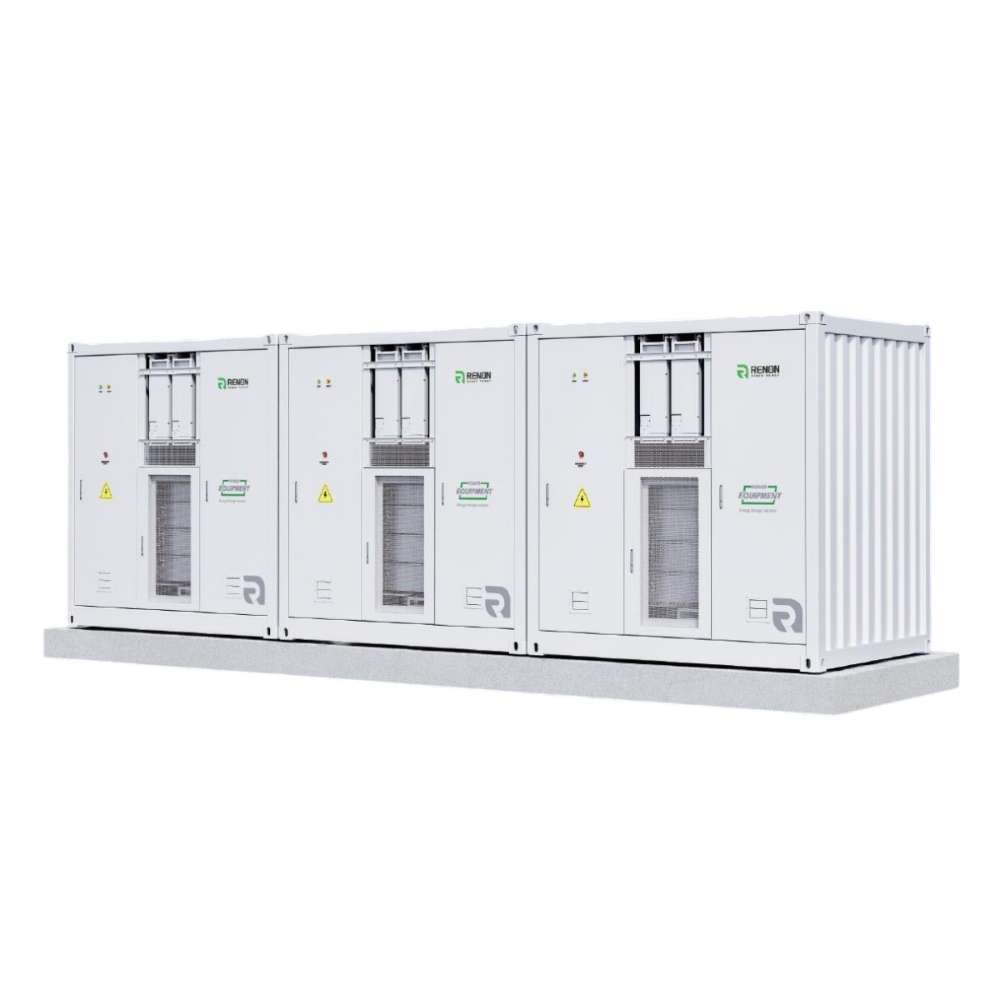

Renon Power Smart Matrix A 1672kWh Lithium Battery is a high-capacity energy storage system built for indoor and commercial power reliability, featuring a modular container design, lithium battery technology, smart energy management, and integrated safety systems. It delivers stable performance, efficient energy storage, remote monitoring, liquid cooling, and fire suppression, making it safer, quieter, and more efficient than many conventional battery solutions.
Add the Renon Power Smart Matrix A Lithium Battery - MATRIXBATTERY1331K to your energy setup today. View product details and secure reliable power for your space.
Features
- Massive 1672kWh high capacity energy storage
- High voltage 1331.2 VDC system for industrial performance
- Advanced lithium iron phosphate LFP battery chemistry

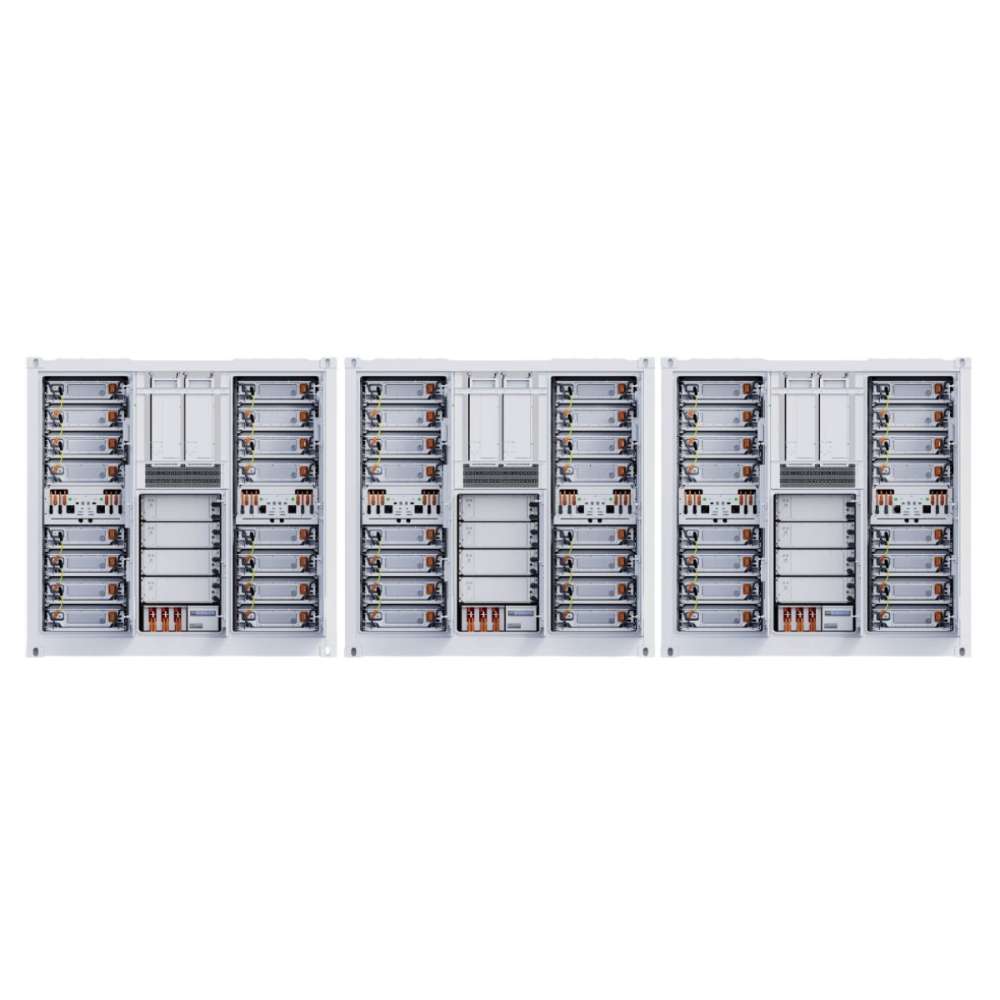

- Modular design for scalable system expansion
- Liquid cooling for efficient thermal control

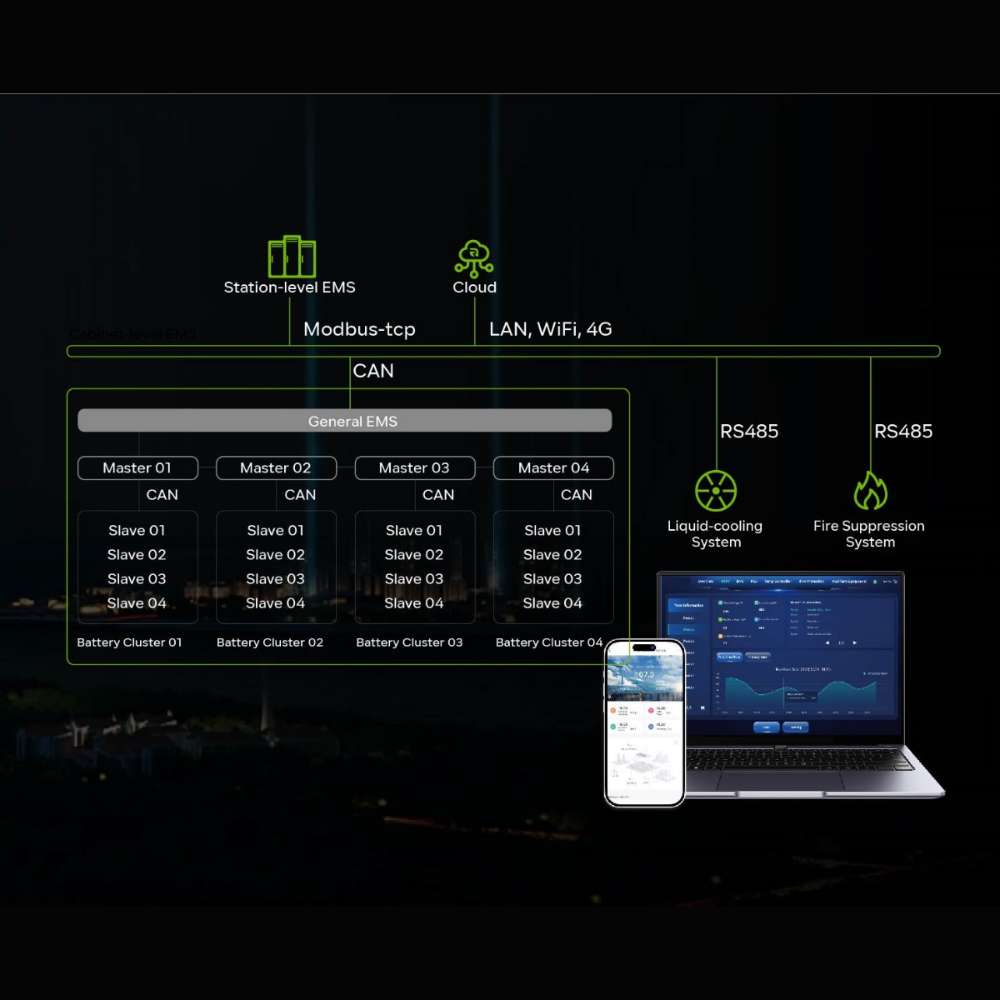

- Integrated smart energy management system EMS
- Built-in safety features with fire suppression and monitoring

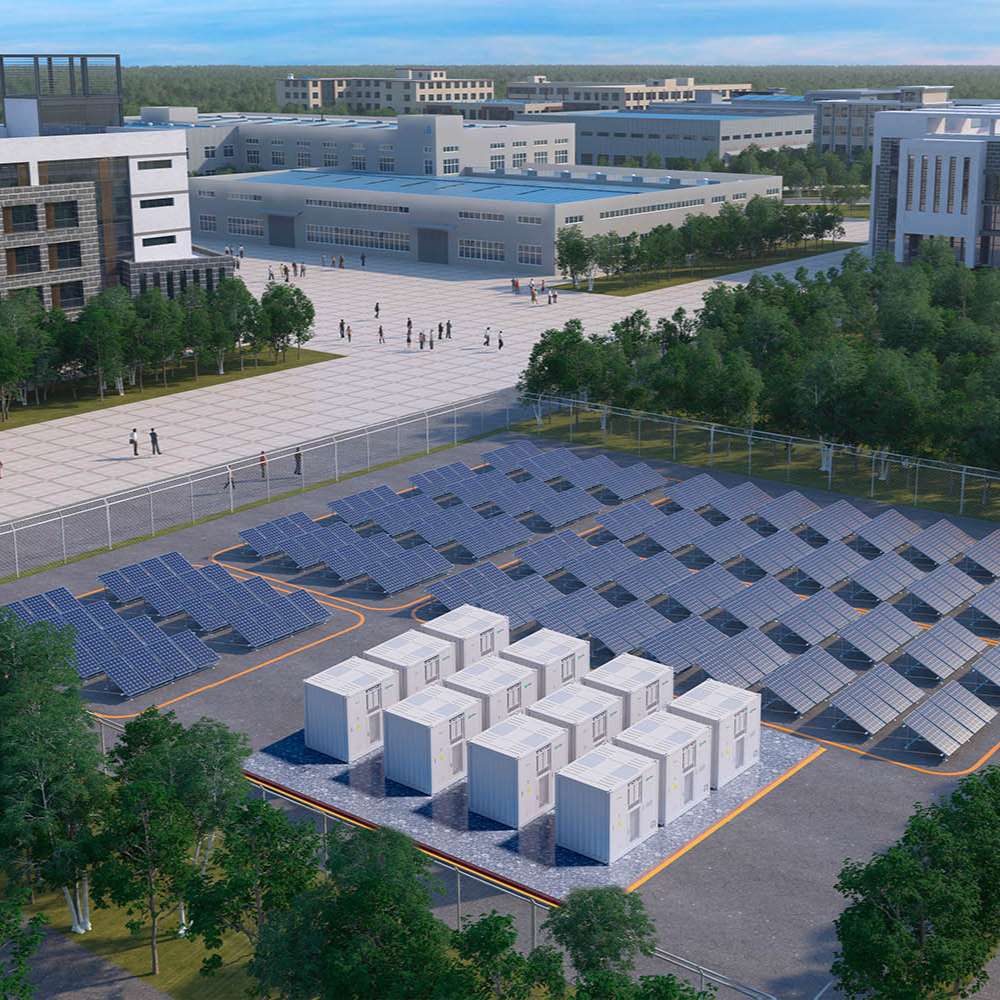

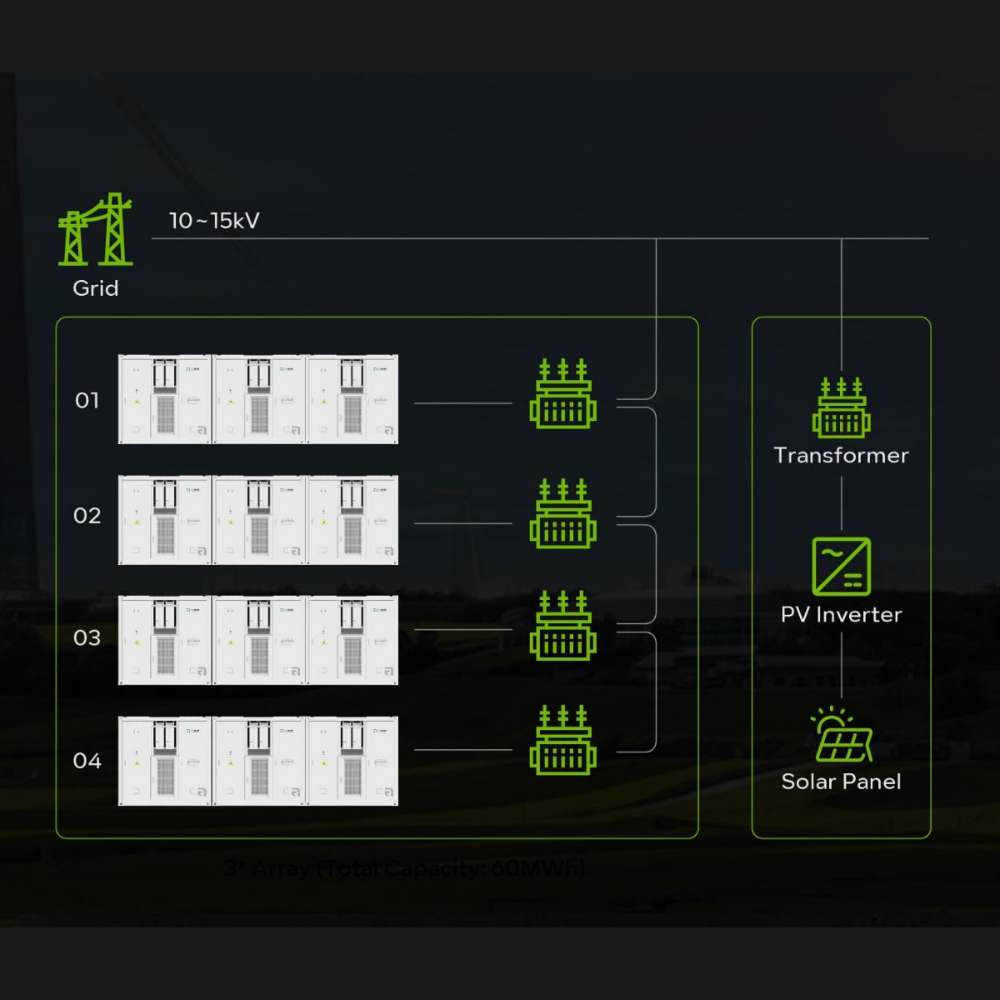

- Optimized for solar integration and microgrid applications
- Reliable long life performance with stable power output

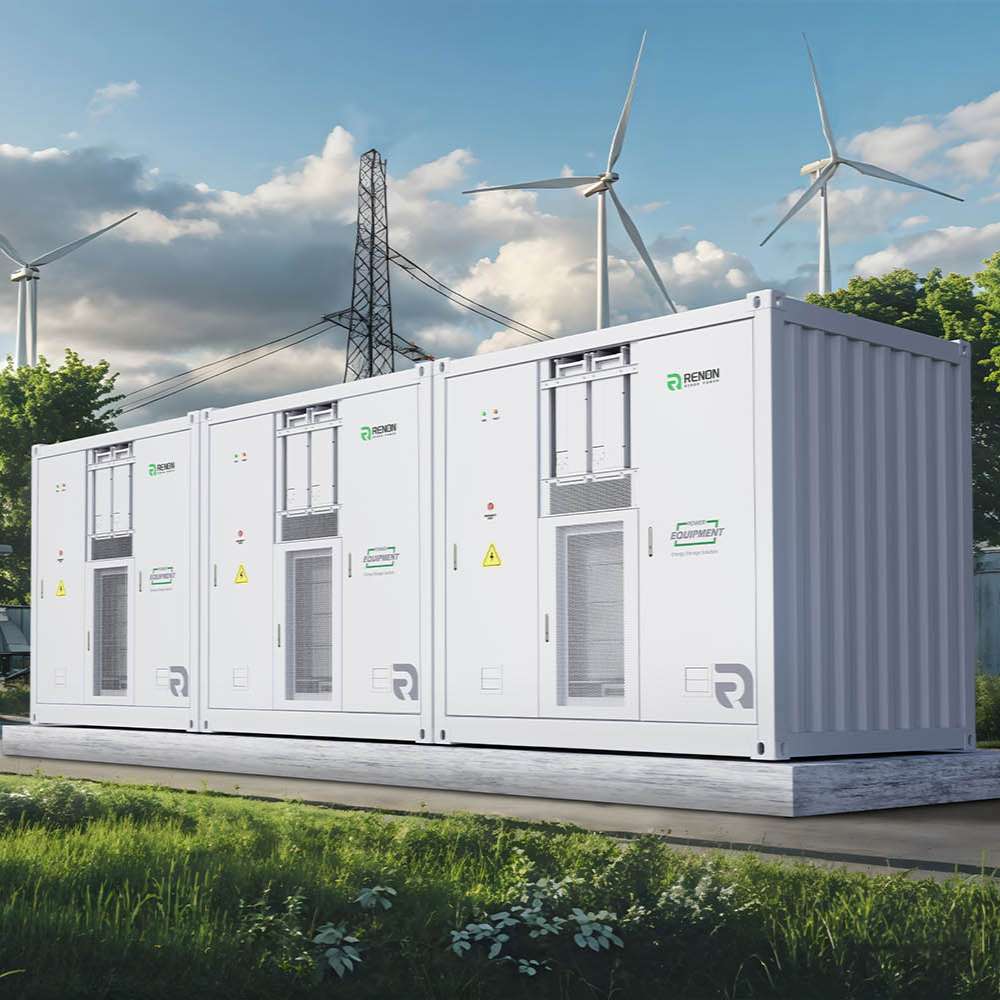

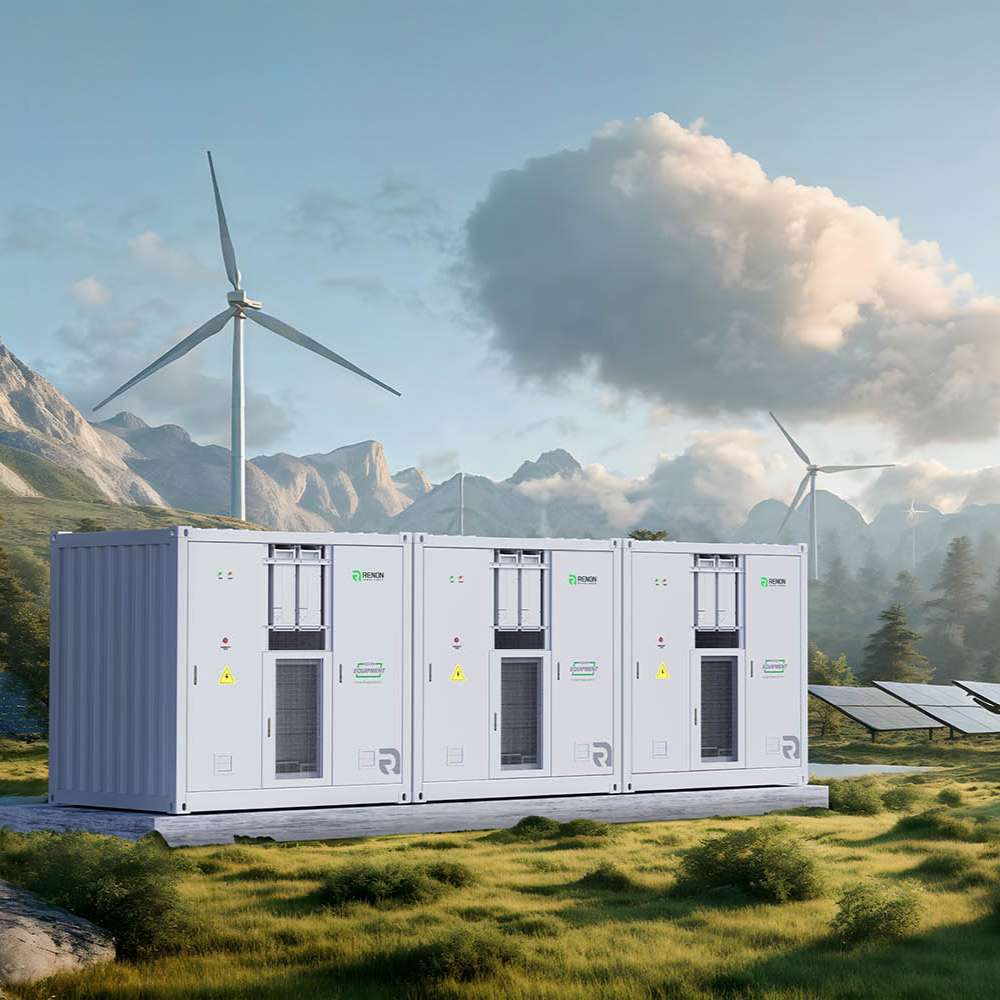

- Designed for large-scale commercial and utility energy storage
Specifications
-
Energy capacity: 1672 kWh (1.672 MWh)
-
Battery chemistry: LFP lithium iron phosphate
-
Cooling system: High efficiency liquid cooling
-
System design: Modular container-based energy storage
-
Nominal voltage: 832 V per battery module
-
Operating voltage range: 761 to 923 Vdc
-
Depth of discharge: 90 percent
-
Thermal safety: Aerosol fire suppression with multi-level protection
Energy management: Integrated EMS with intelligent SOC calibration
-
Monitoring: Remote monitoring via CAN RS485 Wi Fi and LTE
-
Noise level: Below 75 dB at 1 meter (about 3.3 feet)
-
Ingress protection: IP54 rated enclosure
-
Operating temperature: Minus 20 to 55 °C (minus 4 to 131 °F)
-
Humidity tolerance: Up to 95 percent non-condensing
-
Installation type: Outdoor or indoor commercial energy systems
-
Application support: Solar integration grid support and backup power
