- Battery Chemistry: LiFePO4
- Nominal Energy: 5.12 kWh (18.43 MJ)
- Nominal Capacity: 100 Ah
- Max Charging / Discharging Current: 95 A
- Nominal Voltage: 51.2 V
- Recommended Charging Voltage: 56.8 V
- Max Charging Voltage: 58.4 V
- Discharge Cut-off Voltage: 43.2 V
- Operating Temperature: 0 to 50 °C (32 to 122 °F)
- Safety Functions: Over-charge, over-discharge, over-current, high and low temperature, and short-circuit protection
- Parallel Capacity: Up to 31 units
- Communication: RS485, CAN, Wi-Fi
- Weight (Approx.): 99 lb (45 kg)
- Dimensions without rack kit, handle, terminals: 17.3 × 16.5 × 5.2 in (440 × 420 × 132 mm)
- Dimensions with rack kit, handle, terminals: 19.1 × 18.0 × 5.2 in (485 × 458 × 132 mm)
- Level of Protection: IP20
- Cycle Life: 8000 cycles at 77 °F (25 °C), 0.5C, 80 percent DOD, 80 percent EOL
- Designed Calendar Life: 10 years

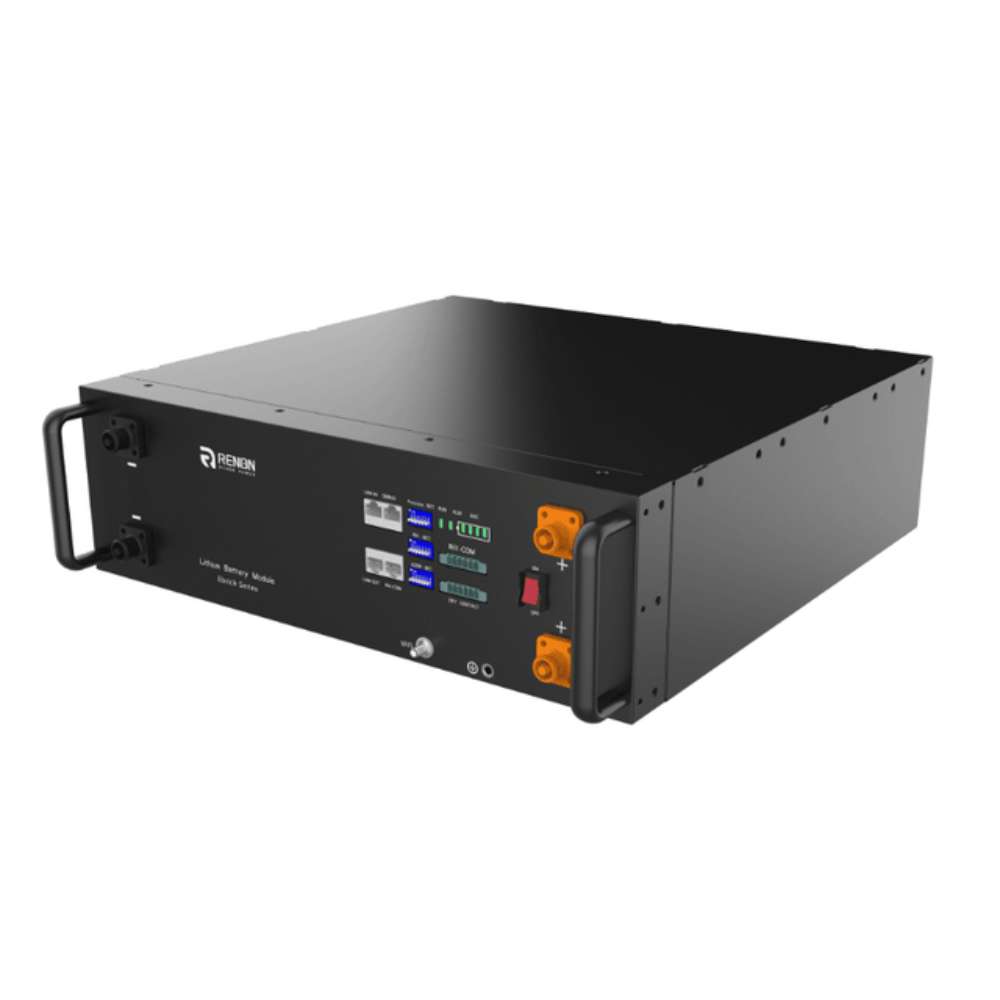

Renon Power EBrick Series 5.12 kWh LiFePO4 Stackable Battery Module
SKU EBRICKCONTR
by Renon Power
Sold out
$998.97
¡También ofrecemos atención al cliente en español!
Find a better price somewhere else?
Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.
ESTIMATED DELIVERY BETWEEN
Order within to get it by the earliest date.
