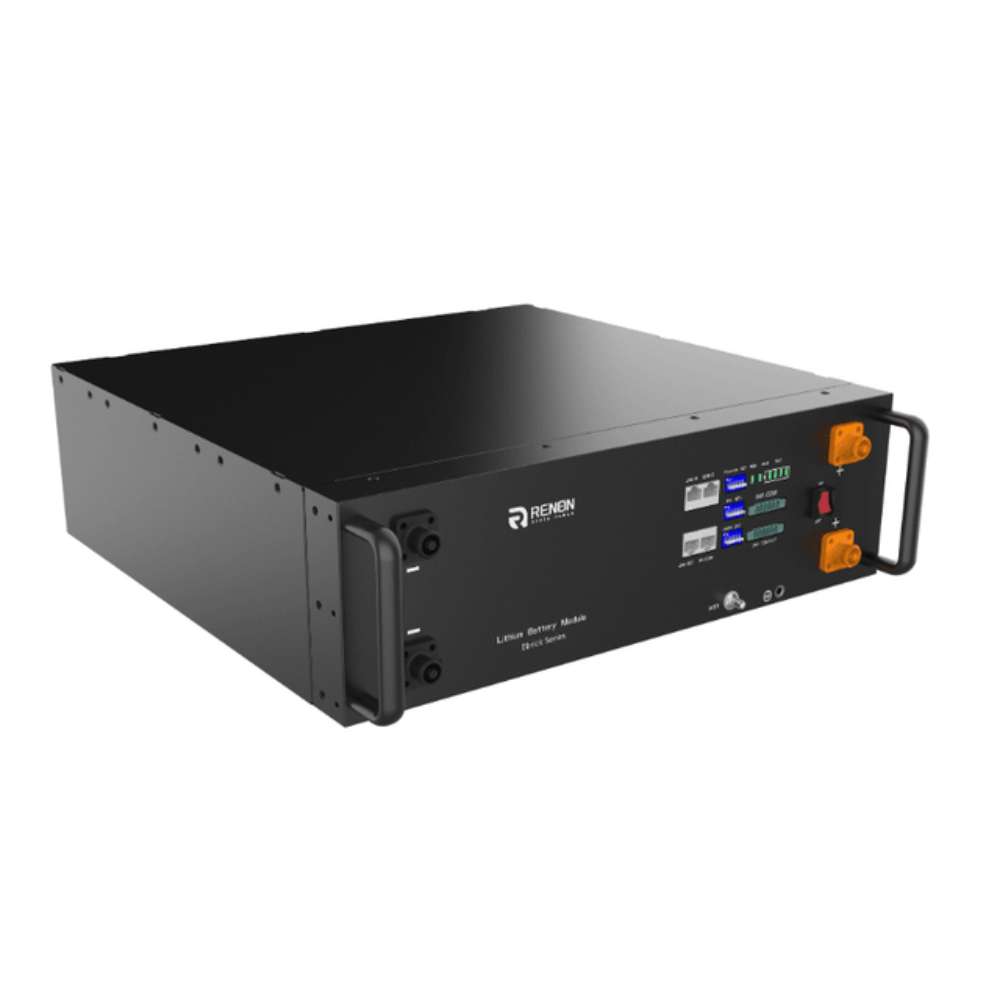

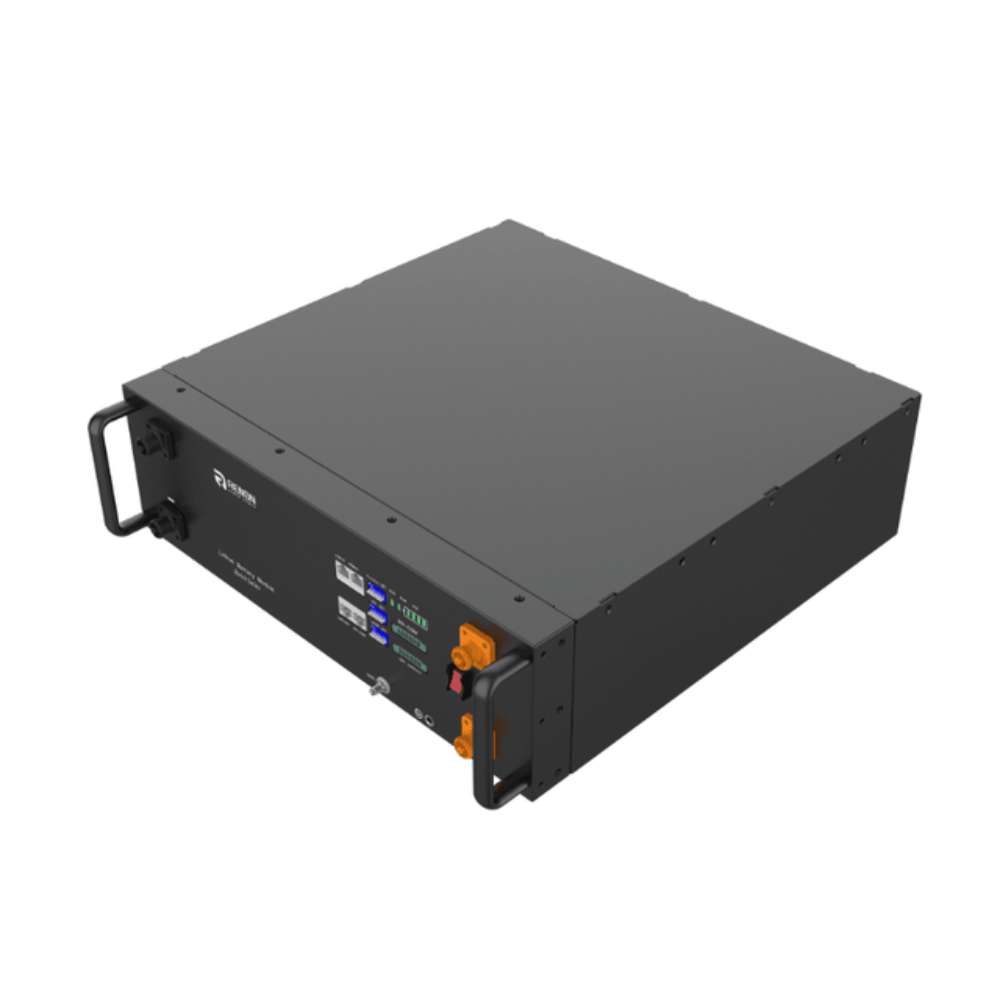

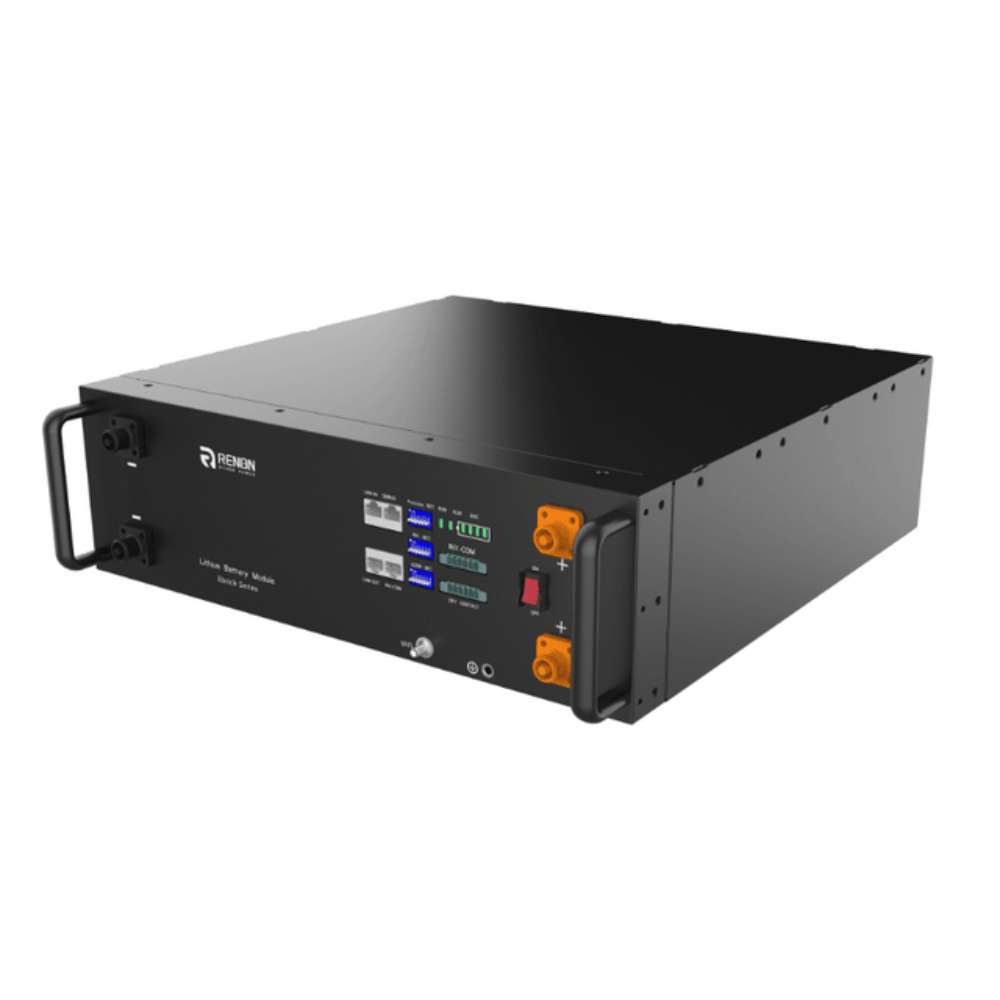

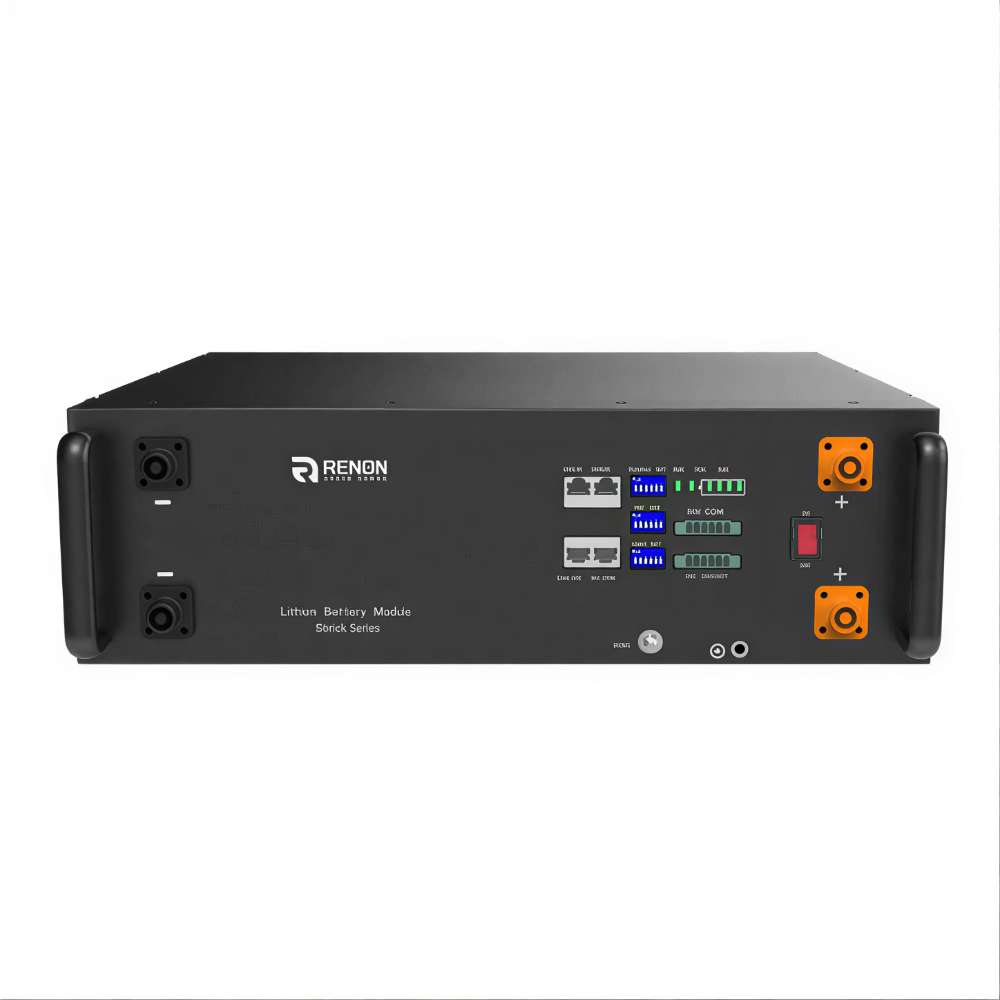

Renon Power EBrick Rack Series 5.12 kWh LiFePO4 Stackable Battery Module w/ Heat

Renon Power EBrick Stackable Energy Without the Clutter

Renon Power EBrick Rack Series 5.12 kWh LiFePO4 Stackable Battery Module w/ Heat - EBRICKRH5K is an indoor energy storage system built for long-term reliability and efficient power management. It uses durable LiFePO4 cells, includes an integrated heating feature for cold conditions, and offers a stackable rack-mounted design that allows capacity to expand as needed. This expandable rack‑mount battery delivers clean, dependable power for modern indoor setups. Add it to your system today and enjoy reliable energy storage built to perform.

Features

• 5.12kWh LiFePO4 battery with long-lasting performance
• 51.2V 48V rack-mounted energy storage design

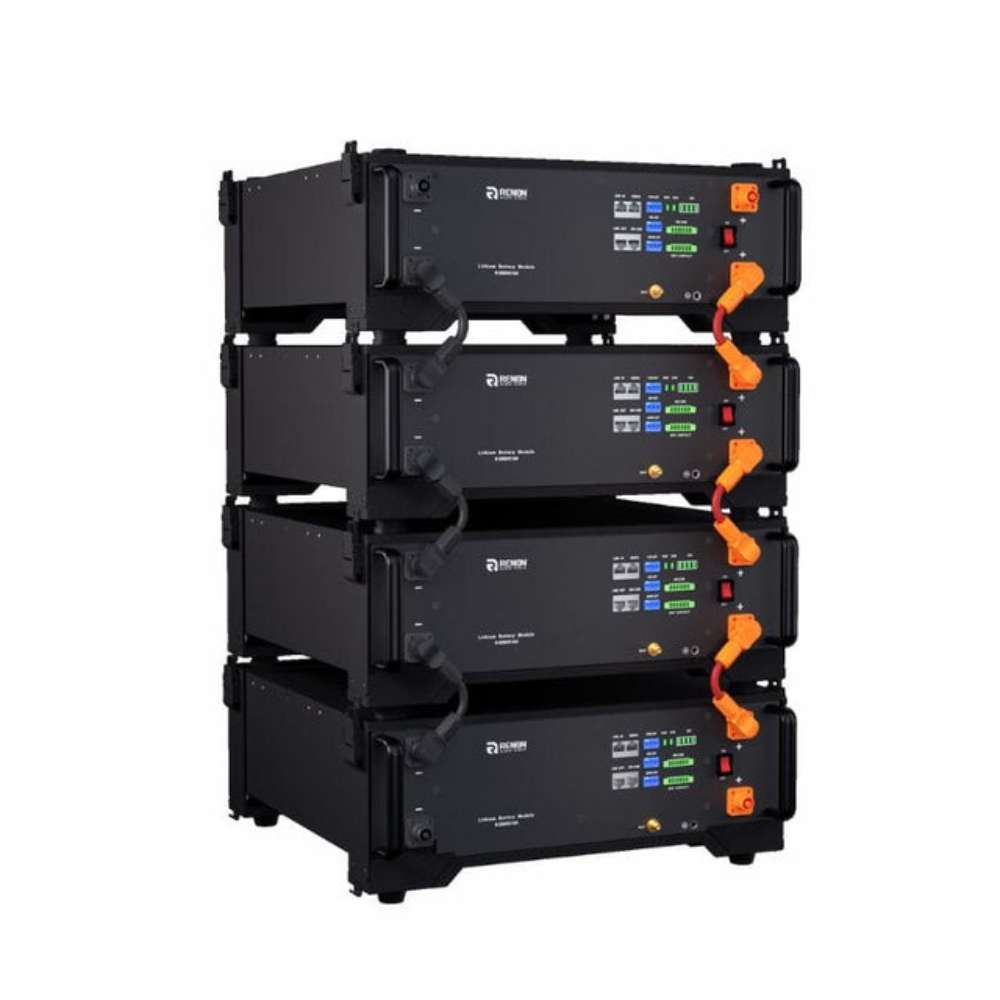

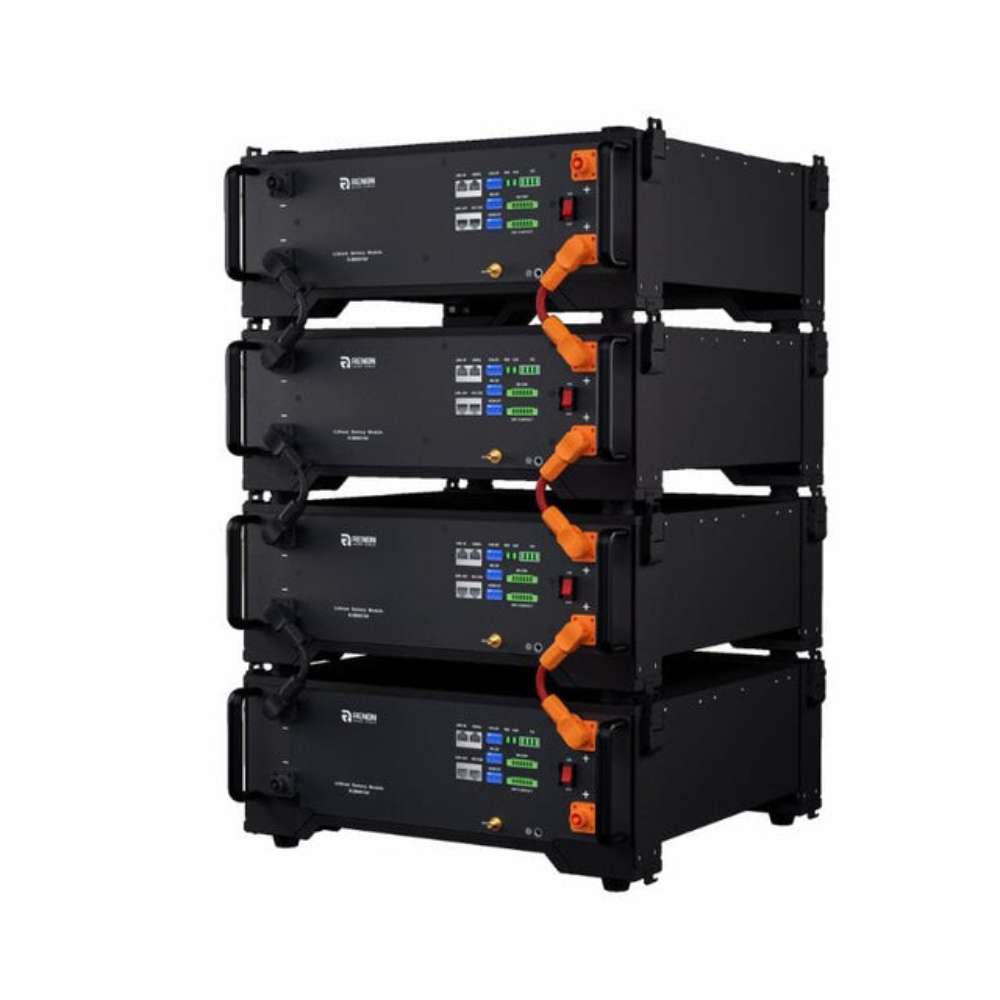

• Stackable system scalable up to 31 batteries in parallel
• Over 8,000 charge cycles at 80 percent depth of discharge
• Integrated Battery Management System for advanced safety protection
• Built-in heating for reliable performance in cold environments
• RS485, CAN, and Wi-Fi communication support
• Broad inverter compatibility including Victron, Sol-Ark, Growatt, and Deye

Specifications

• Battery Type: LiFePO4
• Energy Capacity: 5.12 kWh
• Capacity: 100 Ah
• Max Charge and Discharge Current: 95 A
• Nominal Voltage: 51.2 V
• Charging Voltage Range: 56.8 to 58.4 V
• Discharge Cutoff Voltage: 43.2 V
• Operating Temperature: 32 to 122 ℉ (0 to 50 ℃)
• Safety Protection: Overcharge, overdischarge, overcurrent, temperature, short circuit
• Parallel Connection: Up to 31 modules
• Communication: RS485, CAN, Wi Fi
• Weight: About 99 lb (45 kg)
• Dimensions Without mounting kit: 17.3 × 16.5 × 5.2 in (440 × 420 × 132 mm)
• Dimensions With mounting kit: 19.1 × 18.0 × 5.2 in (485 × 458 × 132 mm)
• Protection Rating: IP20
• Cycle Life: Up to 8000 cycles
• Design Life: 10 years

Product Documents

• Specs Sheet
• Quick Installation Guide
• UL1973 Certification
