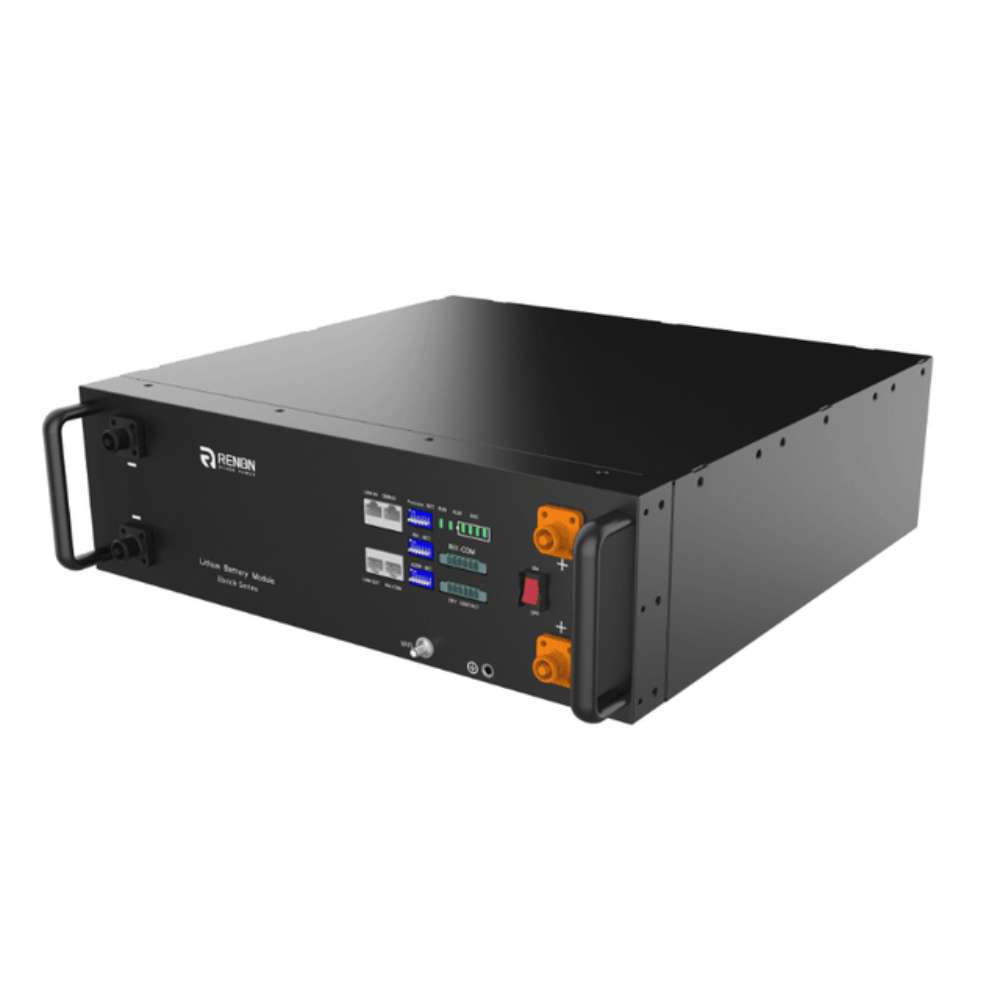

Renon Power EBrick Rack Series 5.12 kWh LiFePO4 Stackable Battery Module

Renon Power Ebrick Battery Stackable Strength for Reliable Indoor Energy

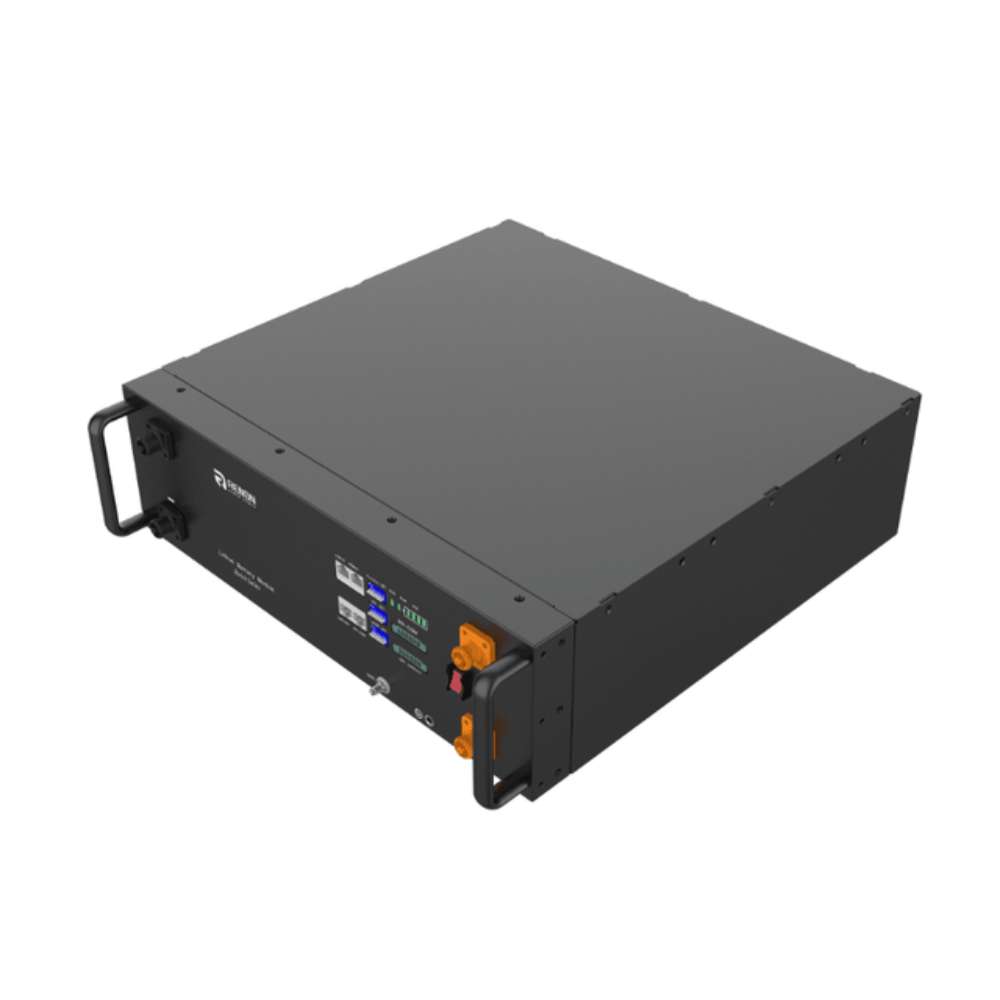

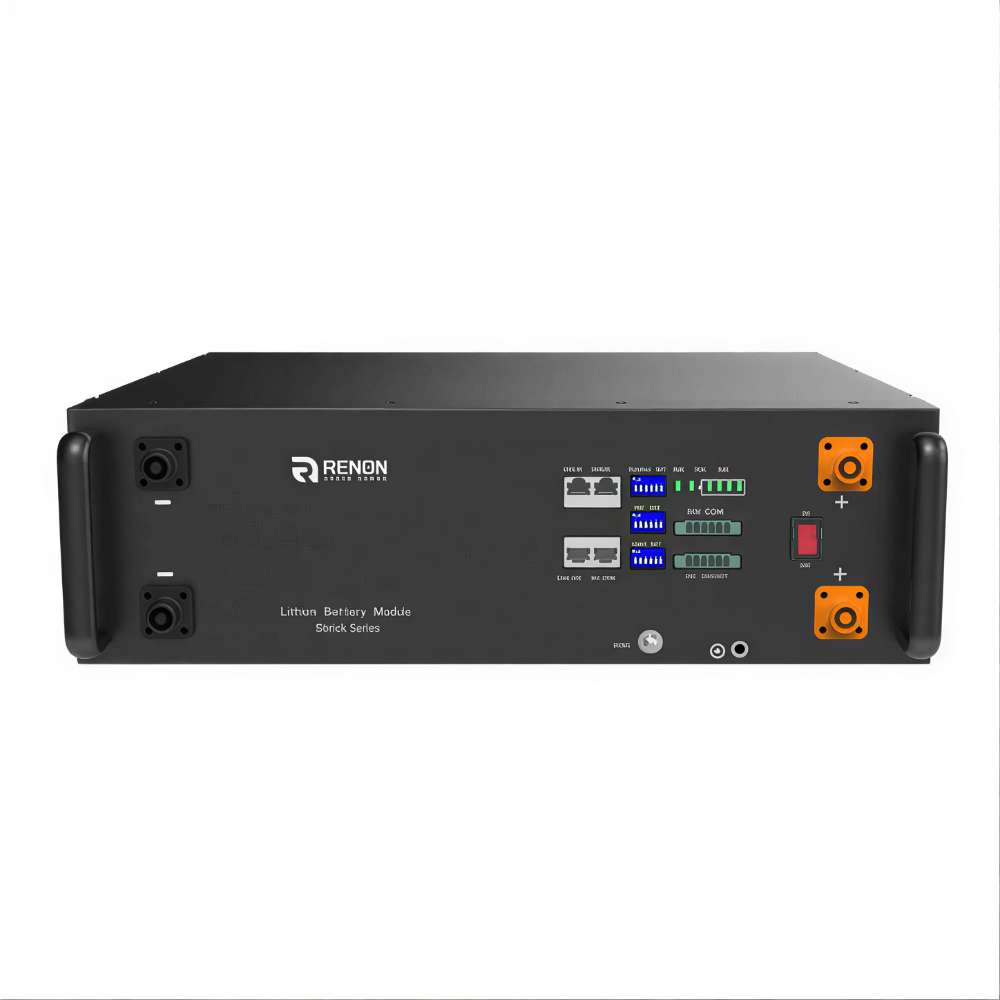

Renon Power EBrick Rack Series 5.12 kWh LiFePO4 Stackable Battery Module - EBRICKR5K is a modular energy storage system built for stable indoor power backup and daily energy use. It delivers 5.12 kWh of capacity per module, uses long-life LiFePO4 cells, and features a stackable rack design with built-in safety protections for efficient and space-saving expansion. This stackable battery system is designed for reliable performance and long-term use. Add dependable energy storage to your indoor setup today.

Features

• 5.12kWh LiFePO4 Capacity
• 8,000+ Cycle Long Life Performance

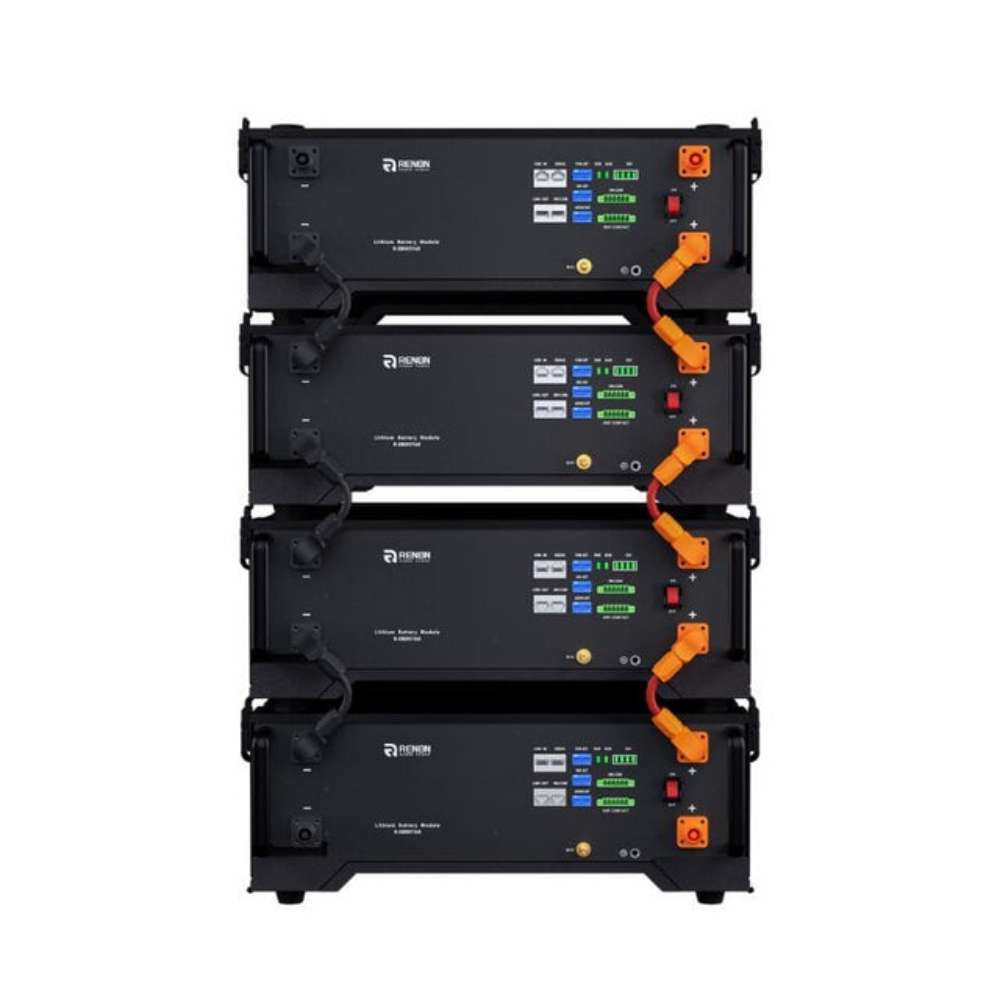

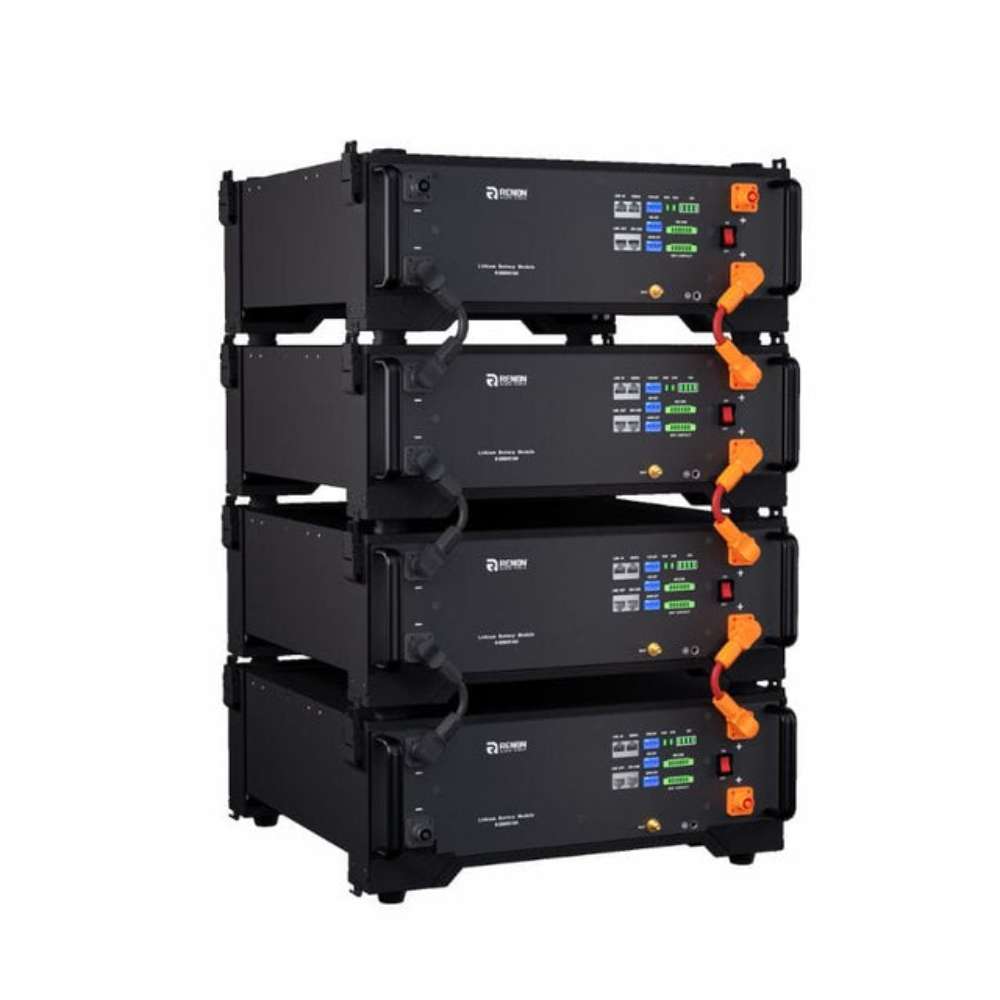

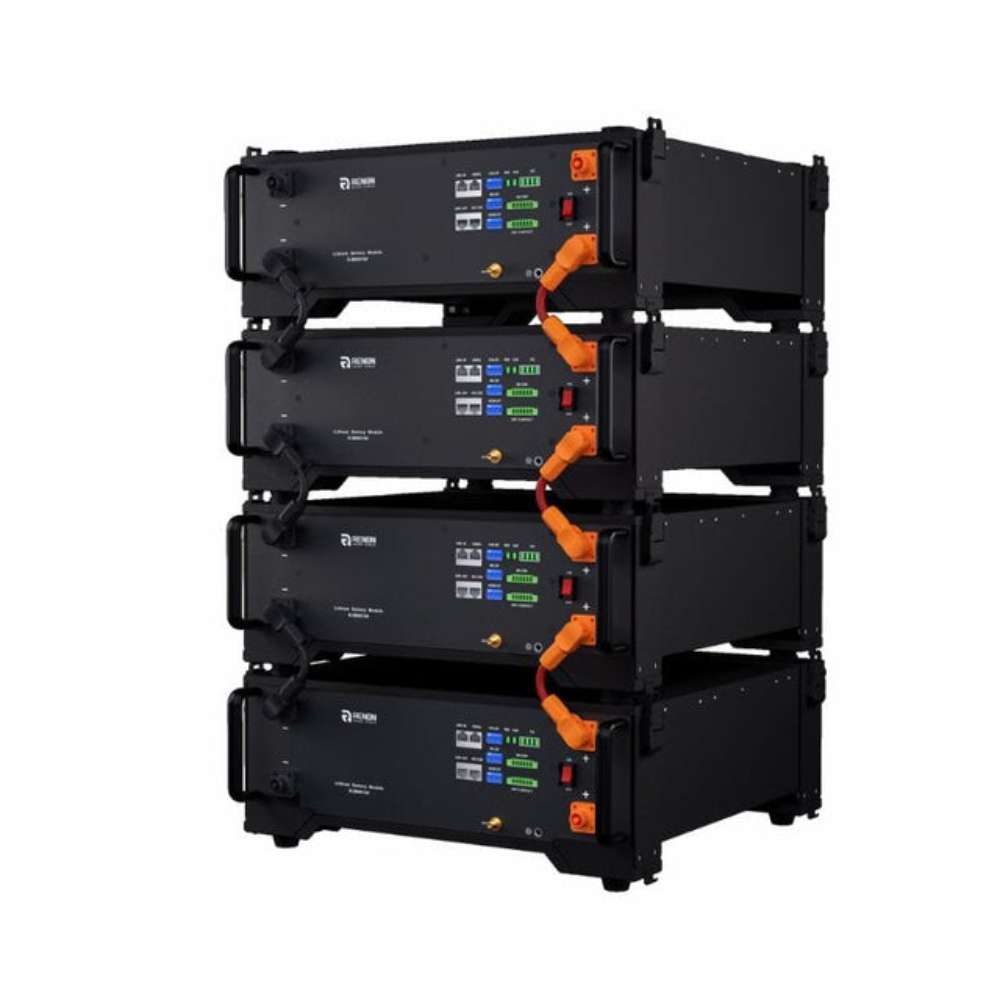

• Stackable Design Supporting Up to 31 Units
• Built-in Smart Battery Management System
• 19 Inch Rack Mount Ready for Easy Installation
• Heated and Standard Model Options
• Wide Operating Temperature Range

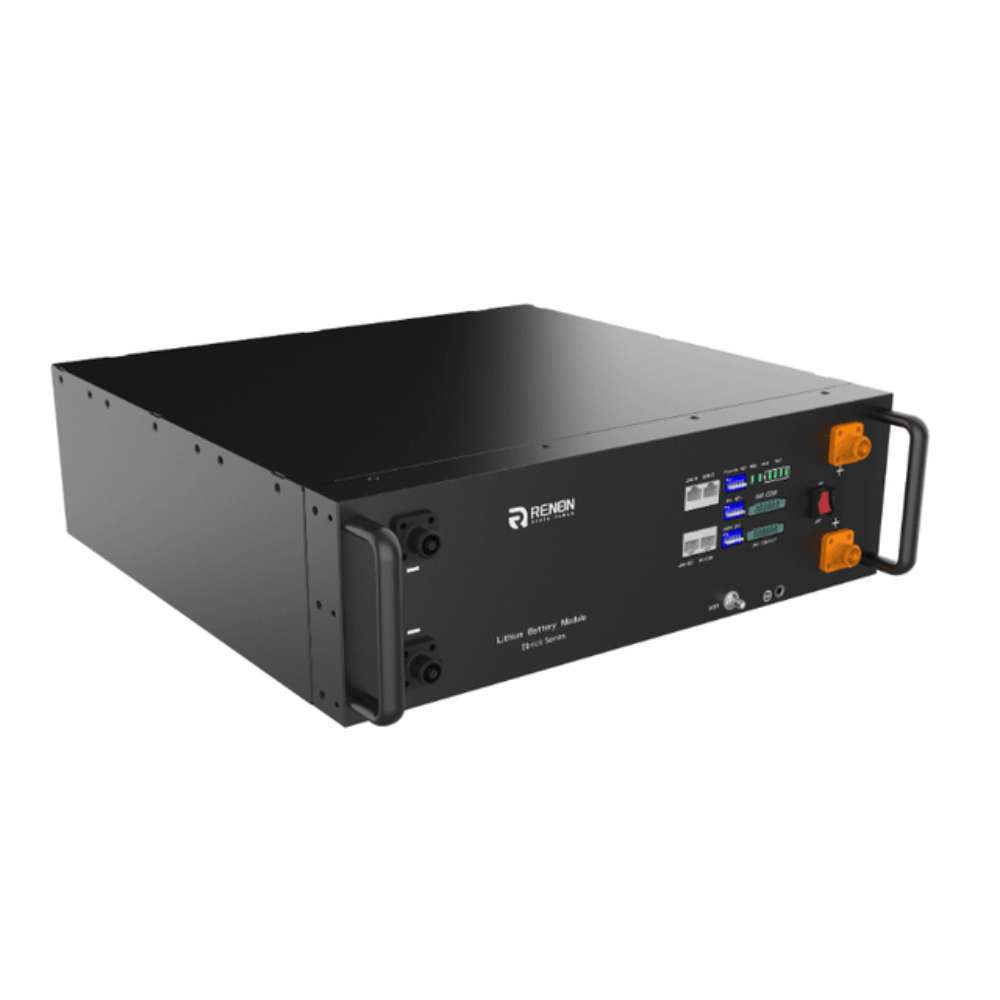

• Durable SPCC Steel Enclosure
• Low Self-Discharge for Long-Term Storage
• Smart Communication via RS485 CAN, and Wi Fi

Specifications

• Battery Type: LiFePO4
• Energy Capacity: 5.12 kWh
• Capacity: 100 Ah
• Max Charge and Discharge Current: 95 A
• Nominal Voltage: 51.2 V
• Charging Voltage Range: 56.8 to 58.4 V
• Discharge Cutoff Voltage: 43.2 V
• Operating Temperature: 32 to 122 ℉ (0 to 50 ℃)
• Safety Protection: Overcharge, overdischarge, overcurrent, temperature, short circuit

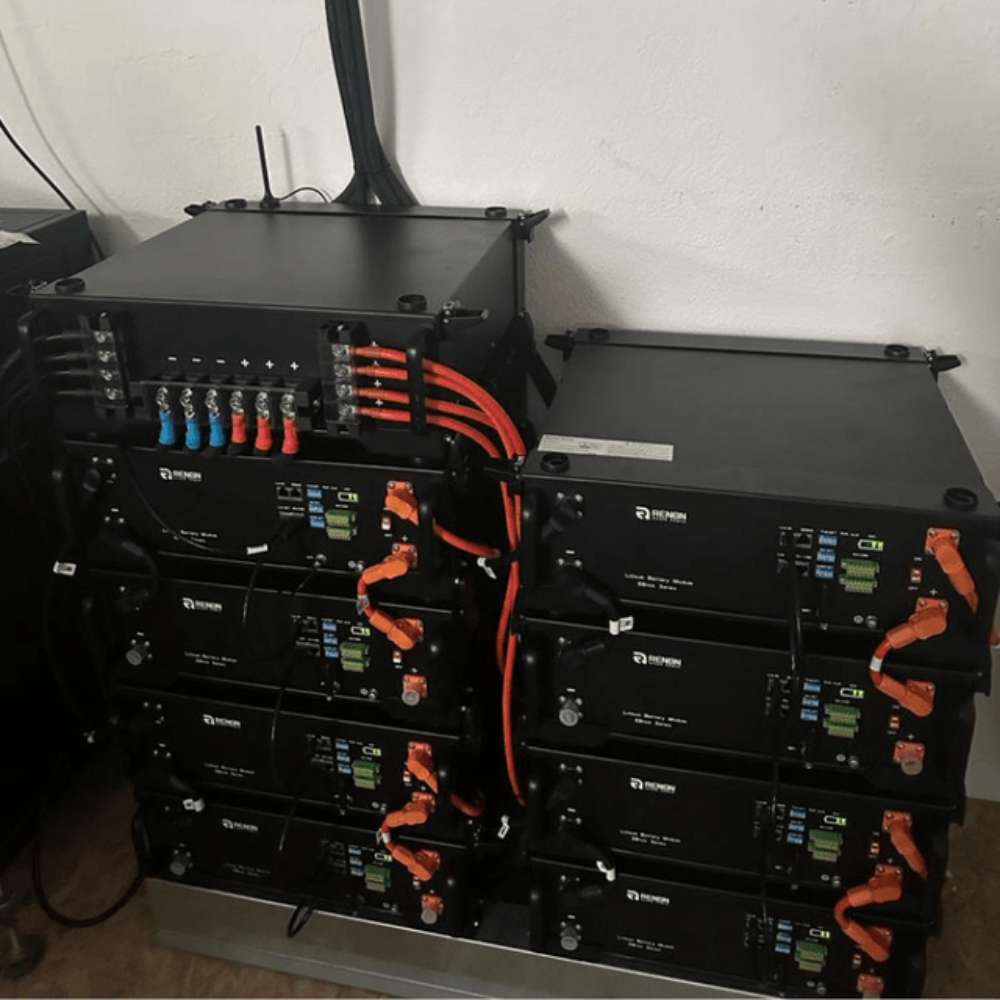

• Parallel Connection: Up to 31 modules
• Communication: RS485, CAN, Wi Fi
• Weight: About 99 lb (45 kg)
• Dimensions Without mounting kit: 17.3 × 16.5 × 5.2 in (440 × 420 × 132 mm)
• Dimensions With mounting kit: 19.1 × 18.0 × 5.2 in (485 × 458 × 132 mm)
• Protection Rating: IP20
• Cycle Life: Up to 8000 cycles
• Design Life: 10 years

Product Documents

• Specs Sheet
• Quick Installation Guide
• UL1973 Certification
