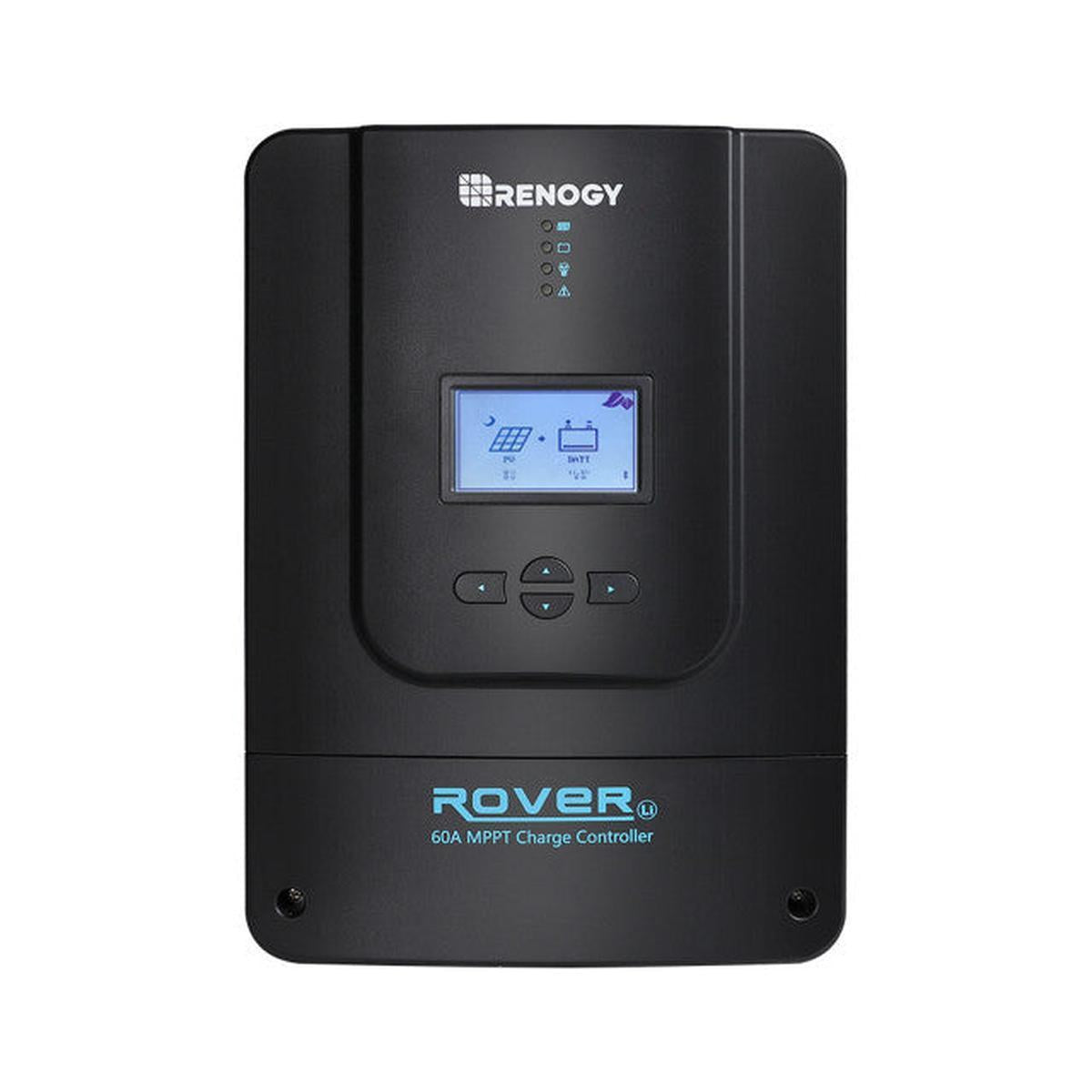

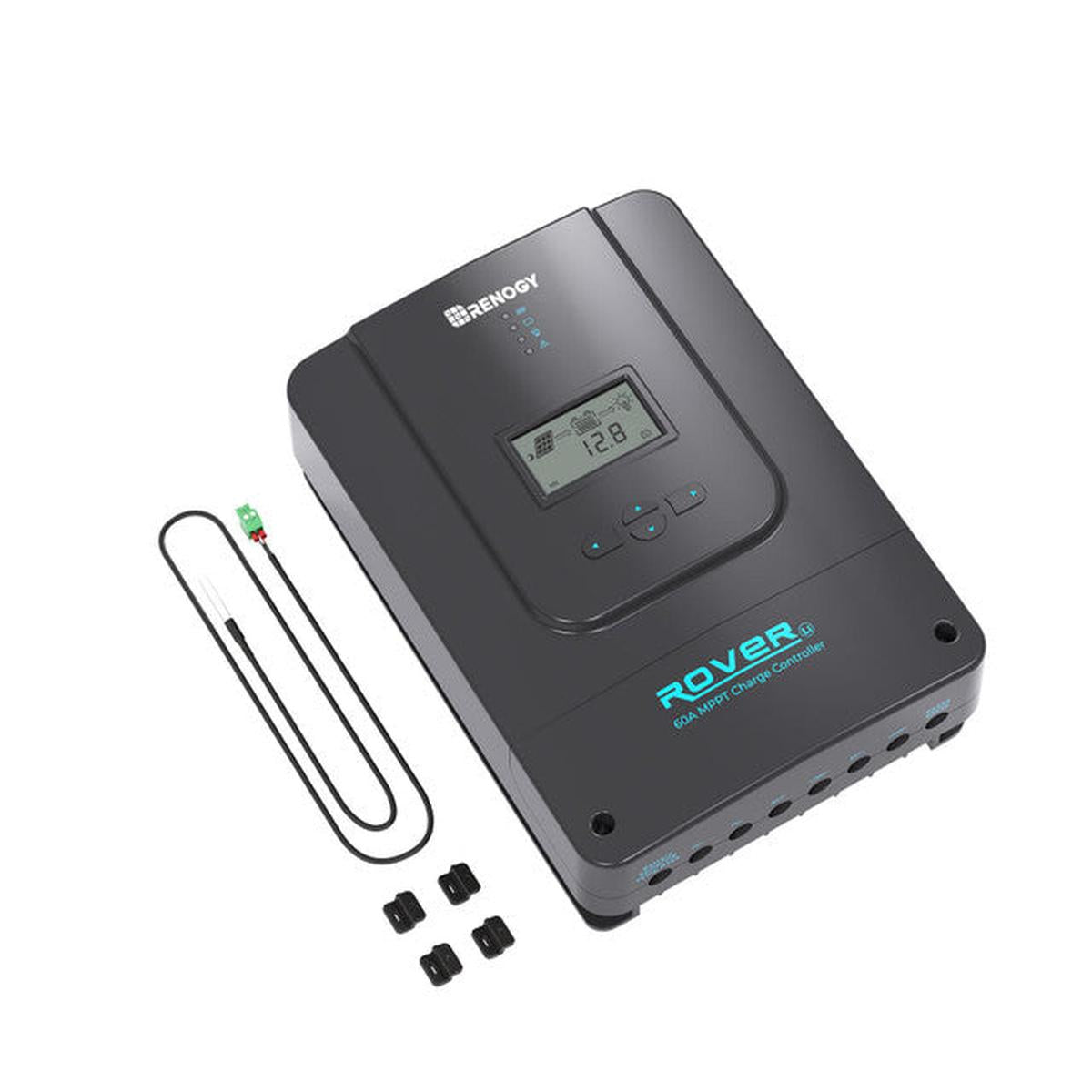

Renogy Rover 60 Amp MPPT Solar Charge Controller Overview
The Renogy Rover 60 Amp MPPT Solar Charge Controller is an advanced and reliable solution for managing solar power systems. Featuring cutting-edge Maximum Power Point Tracking (MPPT) technology, this charge controller optimizes solar panel performance by boosting energy harvest by up to 30% compared to conventional controllers. It’s designed to support 12V, 24V, 36V, and 48V battery banks, making it versatile for a wide range of off-grid and grid-tied solar applications.
Built for safety and durability, the Rover 60A offers multiple electronic protections, such as overcharging, reverse polarity, and short-circuit protection, ensuring your system operates safely and efficiently. The controller’s die-cast aluminum casing enhances heat dissipation, ensuring stable performance under challenging conditions. Whether you're powering a residential setup, RV, boat, or small business, the Rover 60A MPPT controller provides reliable, efficient energy management.
Renogy Rover 60 Amp MPPT Solar Charge Controller Features

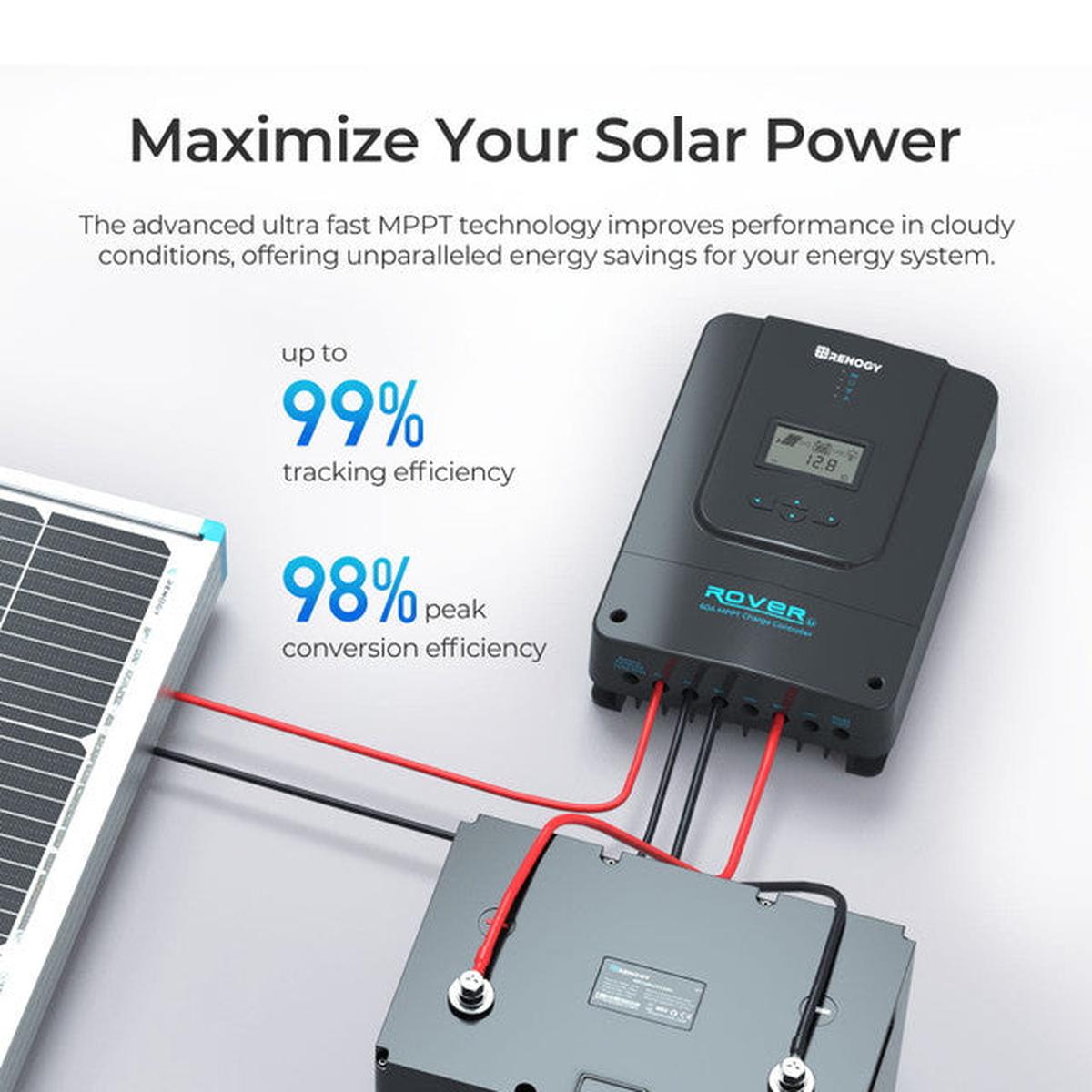

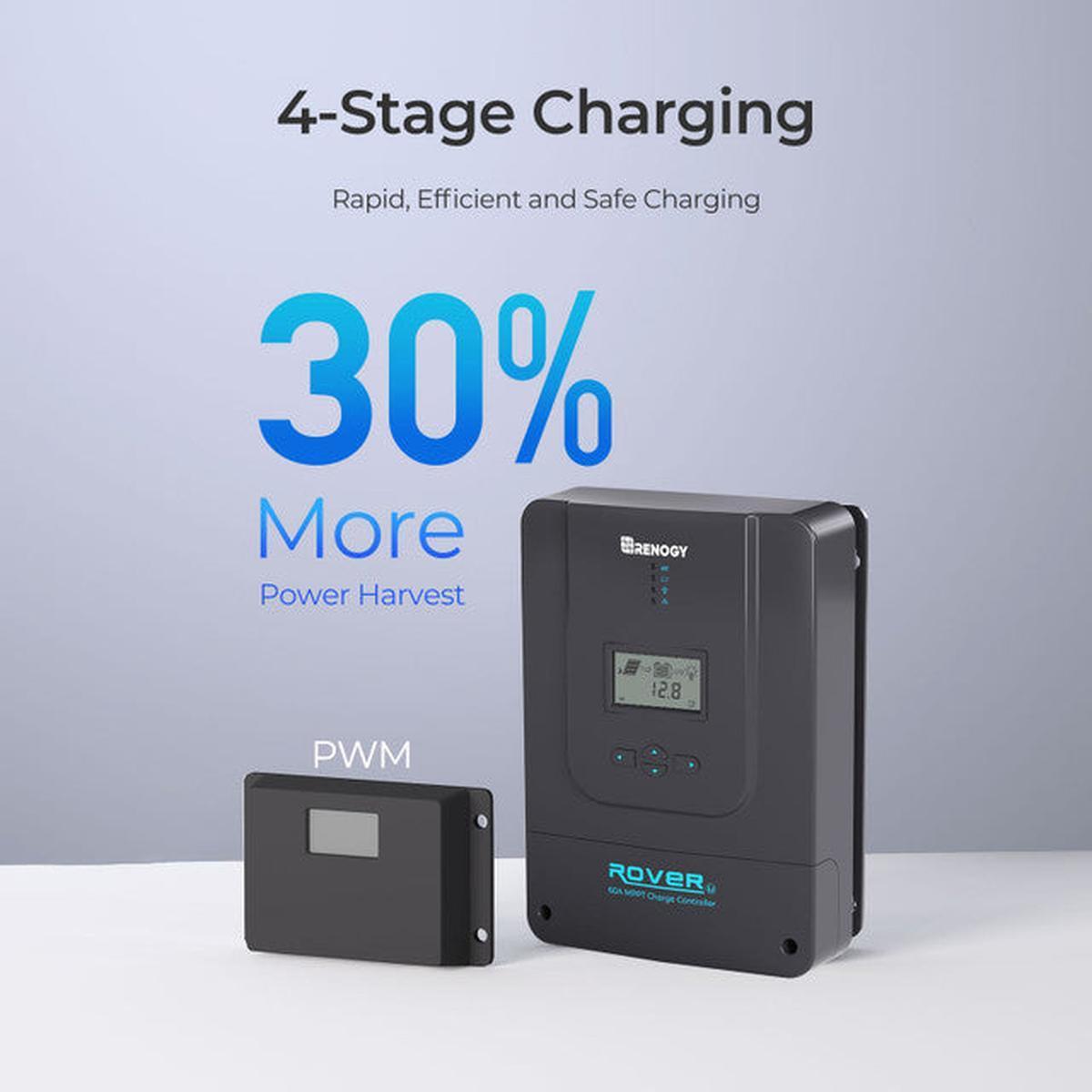

MPPT Technology for Maximum Efficiency
The MPPT tracking technology ensures that your solar system operates at its peak efficiency, boosting energy harvest by up to 30%. This makes the Rover 60A ideal for maximizing the power output of your solar panels.

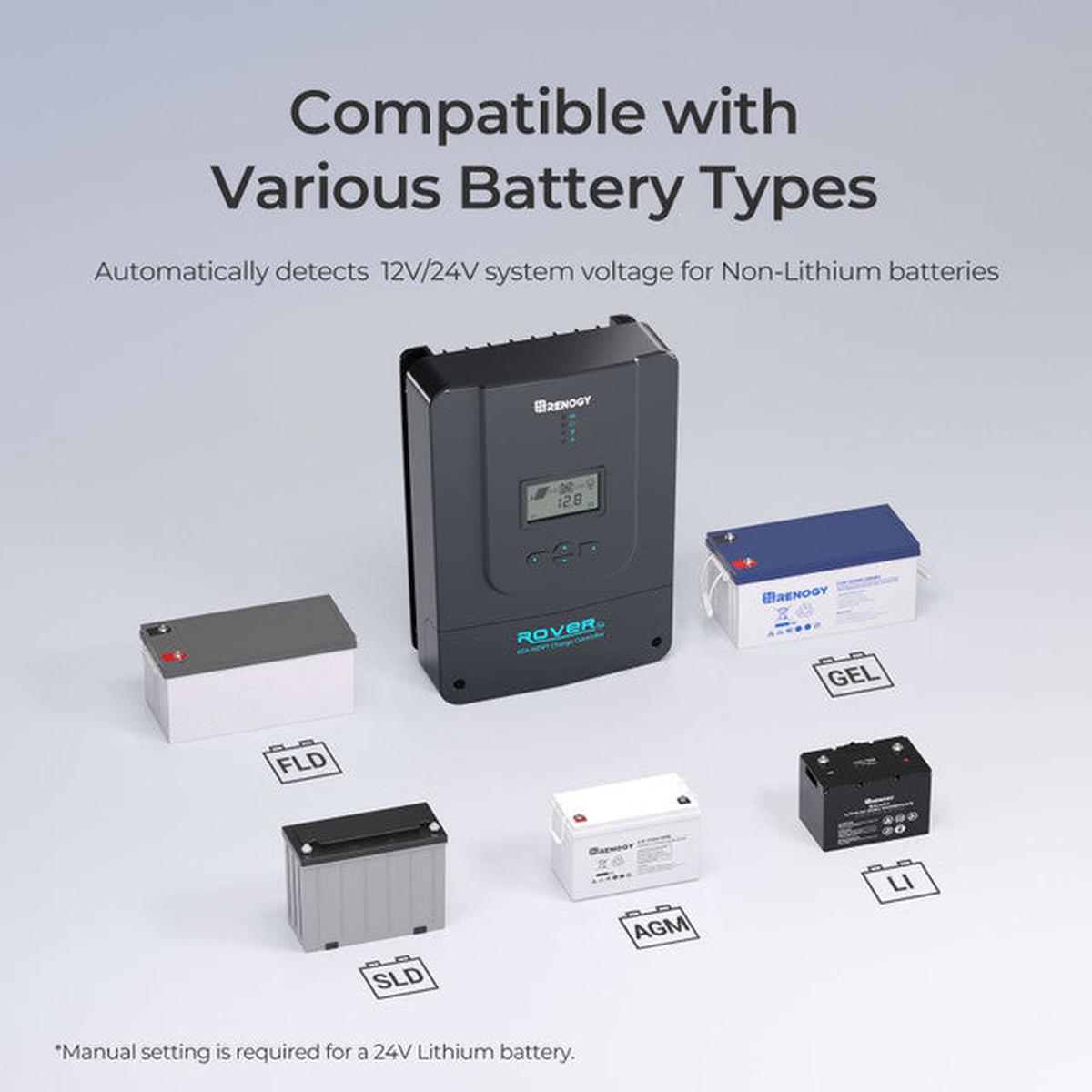

Wide Voltage Compatibility
The Rover 60A supports 12V, 24V, 36V, and 48V battery systems and works with various battery types, including AGM, gel, flooded, and lithium-ion, making it versatile for a wide range of energy storage setups.
Enhanced Safety Features
The controller is equipped with multiple protection features such as overcharging, over-discharging, reverse polarity, and short-circuit protection to safeguard both your solar system and your batteries.
Durable Construction
With a robust die-cast aluminum housing, the Rover 60A is built for long-lasting performance. The design improves heat dissipation, ensuring the controller performs reliably even in extreme weather conditions.

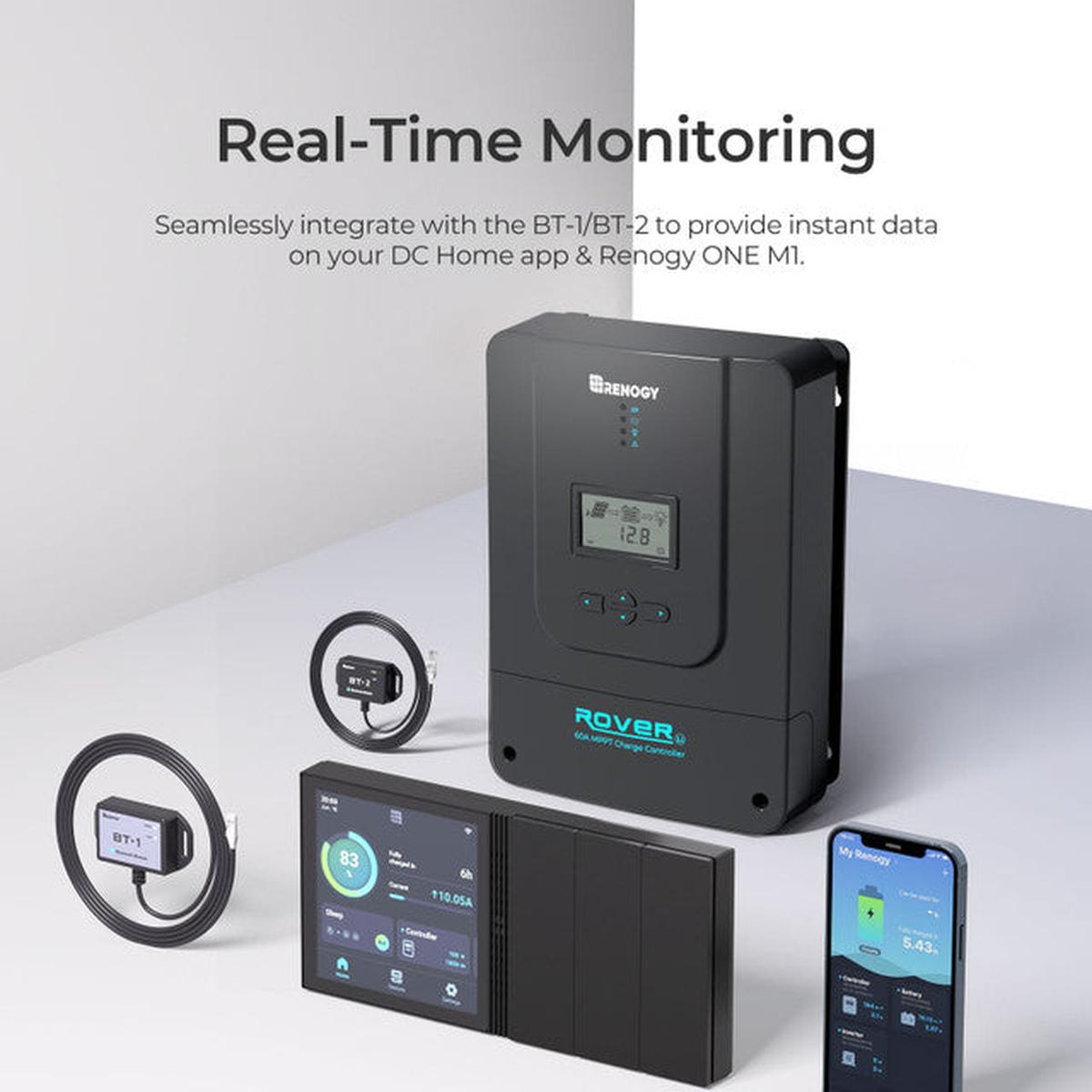

Real-Time Monitoring
The Rover 60A includes a backlit LCD screen that allows users to monitor real-time data on system performance, including battery voltage, charging current, and more. For remote monitoring, the controller is compatible with the Renogy BT-1 Bluetooth Module (sold separately), which connects to the Renogy DC Home app.
Warranty
Renogy provides a 2-year material and workmanship warranty on the Rover 60A MPPT Solar Charge Controller, ensuring reliable long-term performance.
What's in the Box?
- 1 x Rover 60A MPPT Solar Charge Controller
- 1 x User Manual
Renogy Rover 60 Amp MPPT Solar Charge Controller Specifications
-
Maximum Power Input: 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V)
-
Max. Solar Input Voltage: 150V
-
Max. Battery Current: 60A
-
Charging Technology: MPPT
-
Battery Types Supported: AGM, Gel, Flooded, Lithium
-
Dimensions: 11.4 x 9 x 4 inches
-
Weight: 9.6 lbs
-
Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Frequently Asked Questions
Q. Can the Rover 60A charge lithium batteries?
A. Yes, the Rover 60A is compatible with lithium batteries, as well as AGM, gel, and flooded battery types.
Q. Is remote monitoring available?
A. Yes, with the Renogy BT-1 Bluetooth Module (sold separately), you can remotely monitor your system through the Renogy DC Home app.
Q. What is the maximum solar input voltage for the Rover 60A?
A. The maximum solar input voltage for the Rover 60A MPPT Solar Charge Controller is 150V.
