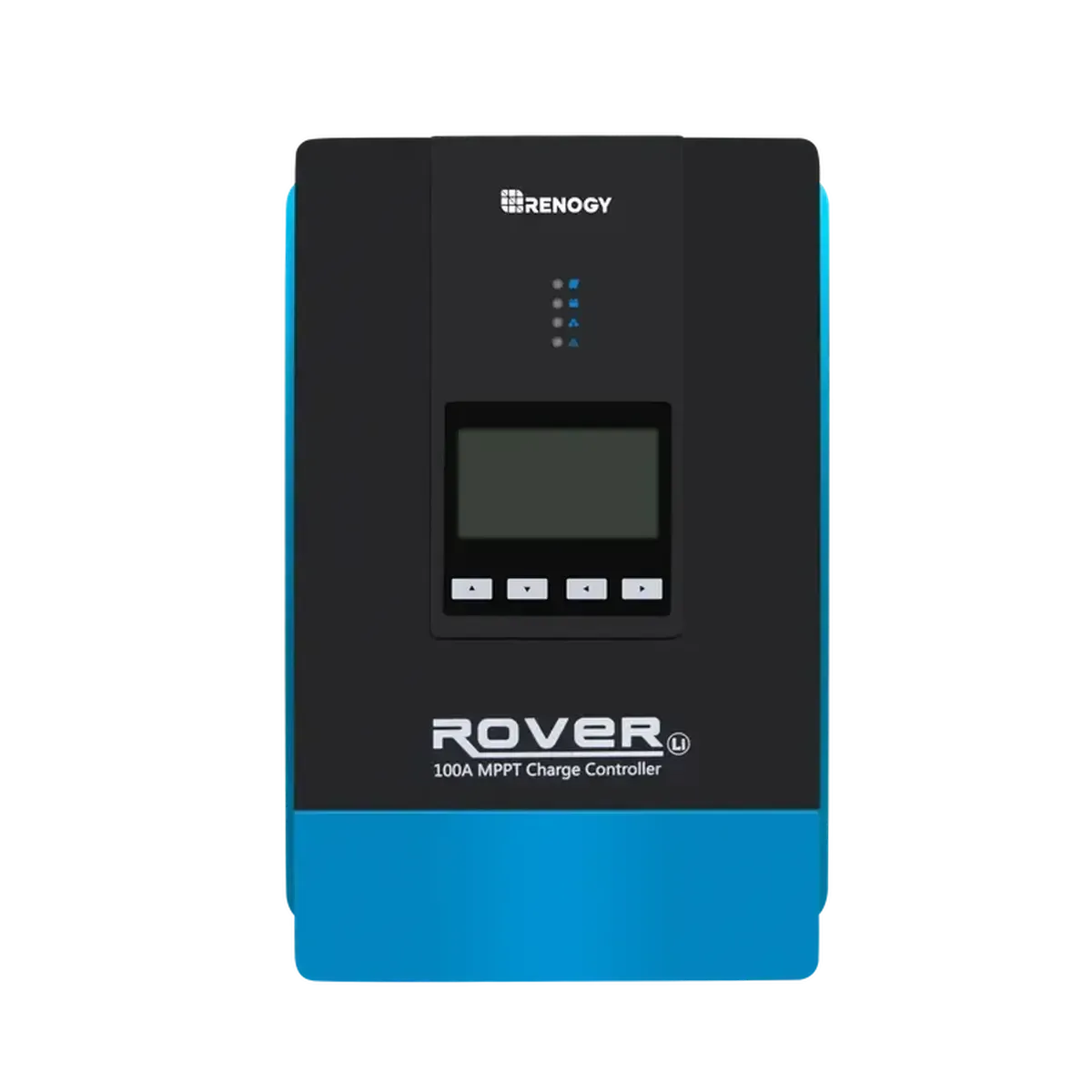

Renogy Rover 100 Amp MPPT Solar Charge Controller Overview
The Renogy Rover 100 Amp MPPT Solar Charge Controller is a powerful and intelligent solution designed to optimize the performance of your solar power system. Featuring advanced Maximum Power Point Tracking (MPPT) technology, this controller improves energy harvest efficiency by up to 30% compared to traditional charge controllers. It is ideal for large solar systems, ensuring maximum power generation and providing reliable charging for 12V/24V/36V/48V battery banks, making it compatible with various off-grid systems.
Engineered for durability and precision, the Rover 100A controller features multiple electronic protections, including overcharging, reverse polarity, and short-circuit safeguards. Its die-cast aluminum housing enhances heat dissipation, ensuring it operates smoothly under all weather conditions. Whether you're managing a residential, commercial, or RV solar setup, the Rover 100A delivers seamless energy management.
Renogy Rover 100 Amp MPPT Solar Charge Controller Features
Advanced MPPT Technology
The built-in MPPT technology ensures that your solar panels operate at their optimal power output by tracking the maximum power point, resulting in up to 30% greater energy harvest than traditional PWM charge controllers.
Wide System Compatibility
The Rover 100A supports 12V, 24V, 36V, and 48V battery systems, making it adaptable for a wide range of setups. It is compatible with lithium, AGM, gel, and flooded batteries, ensuring versatile use for different solar systems.
Multiple Protections
This charge controller offers comprehensive protection features, including overcharging, over-discharging, reverse polarity, and short-circuit protection, safeguarding your system and extending the lifespan of your batteries.

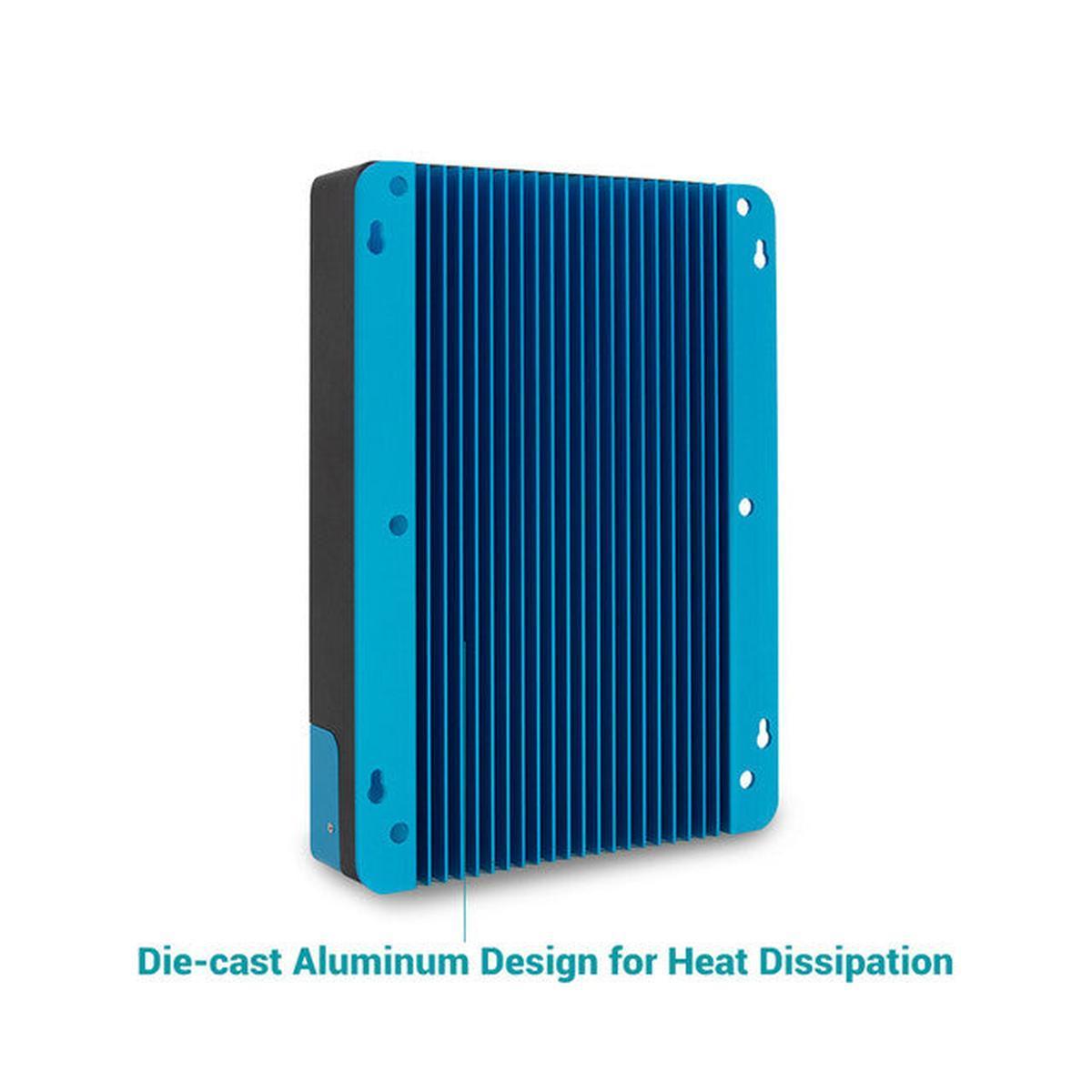

Die-Cast Aluminum Housing
The robust die-cast aluminum construction improves heat dissipation, ensuring optimal performance even in demanding conditions.

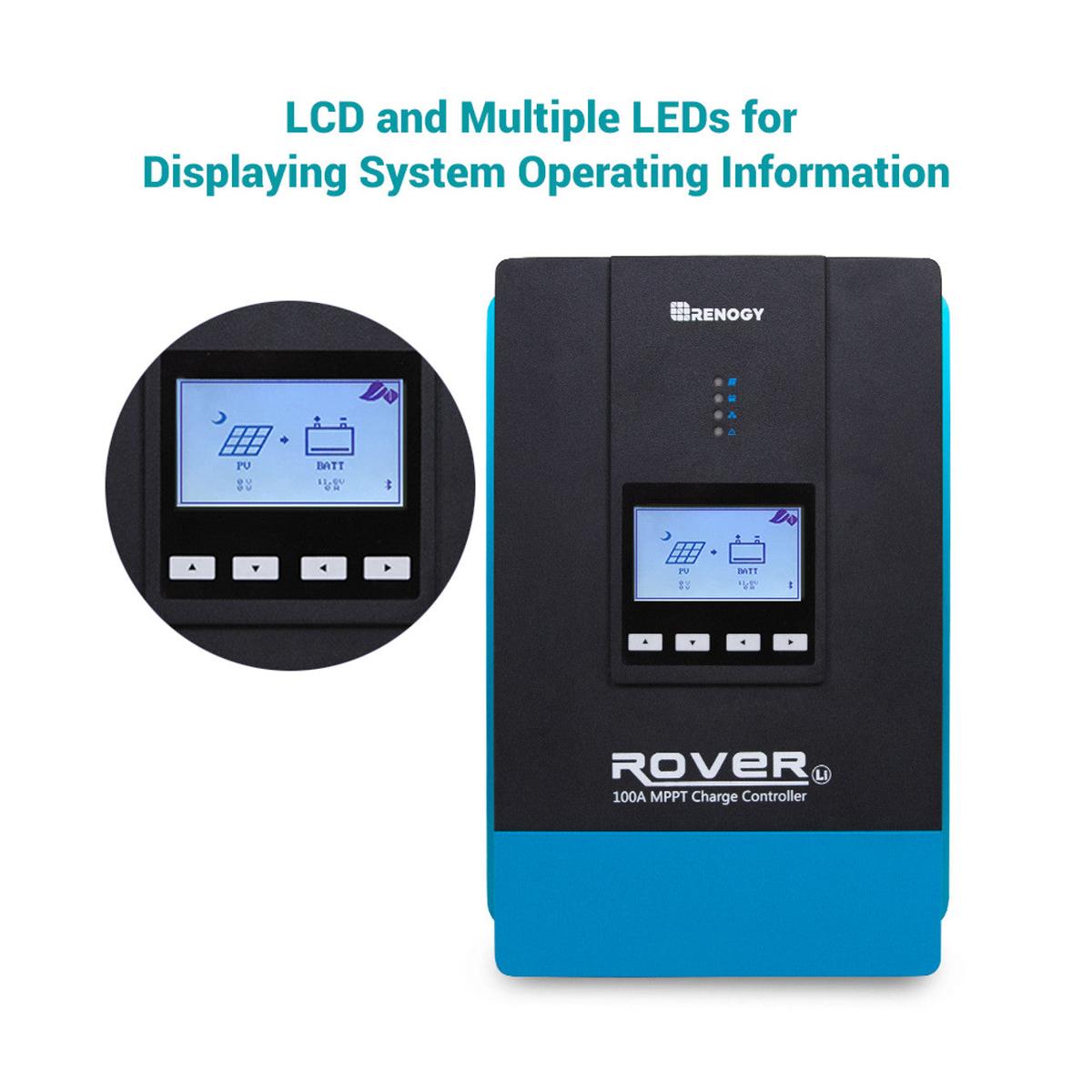

User-Friendly Interface

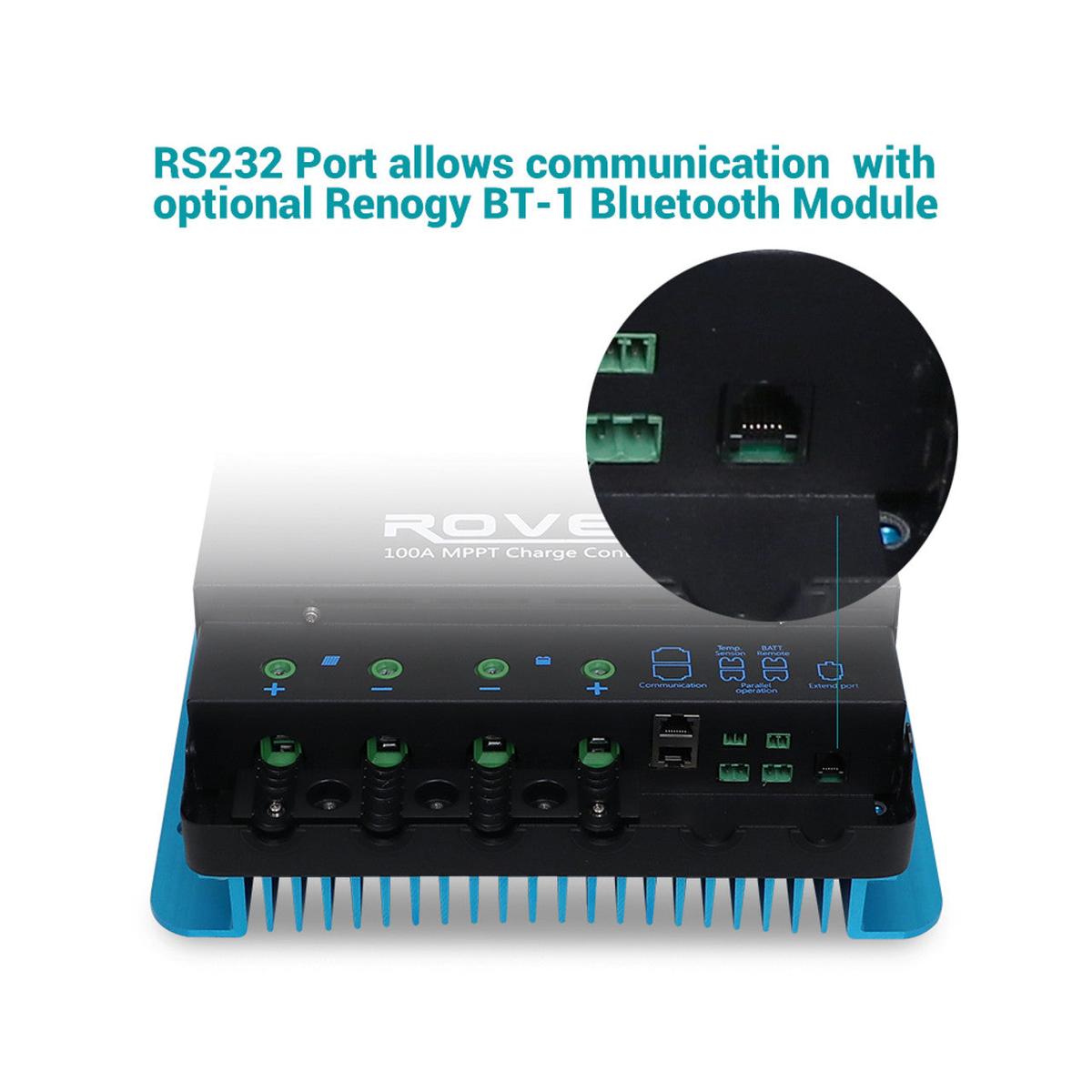

With an LCD display and user-friendly interface, the Rover 100A provides real-time monitoring of your system’s performance, battery voltage, charging current, and more. It also supports Bluetooth connectivity for remote system monitoring via the Renogy BT-1 Bluetooth Module (sold separately).
Warranty
Renogy provides a 2-year material and workmanship warranty on the Rover 100A MPPT Solar Charge Controller, ensuring long-term reliability.
What's in the Box?
- 1 x Rover 100A MPPT Solar Charge Controller
- 1 x User Manual
Renogy Rover 100 Amp MPPT Solar Charge Controller Specifications
-
Maximum Power Input: 1300W (12V), 2600W (24V), 3900W (36V), 5200W (48V)
-
Max. Solar Input Voltage: 150V
-
Max. Battery Current: 100A
-
Rated Charge Current: 100A
-
Charging Technology: MPPT
-
Battery Types Supported: AGM, Gel, Flooded, Lithium
-
Dimensions: 12.6 x 9.4 x 4.3 inches
-
Weight: 11.1 lbs
-
Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Frequently Asked Questions
Q. Can this controller be used with a lithium battery system?
A. Yes, the Rover 100A is fully compatible with lithium batteries, as well as AGM, gel, and flooded battery types.
Q. Does the controller support remote monitoring?

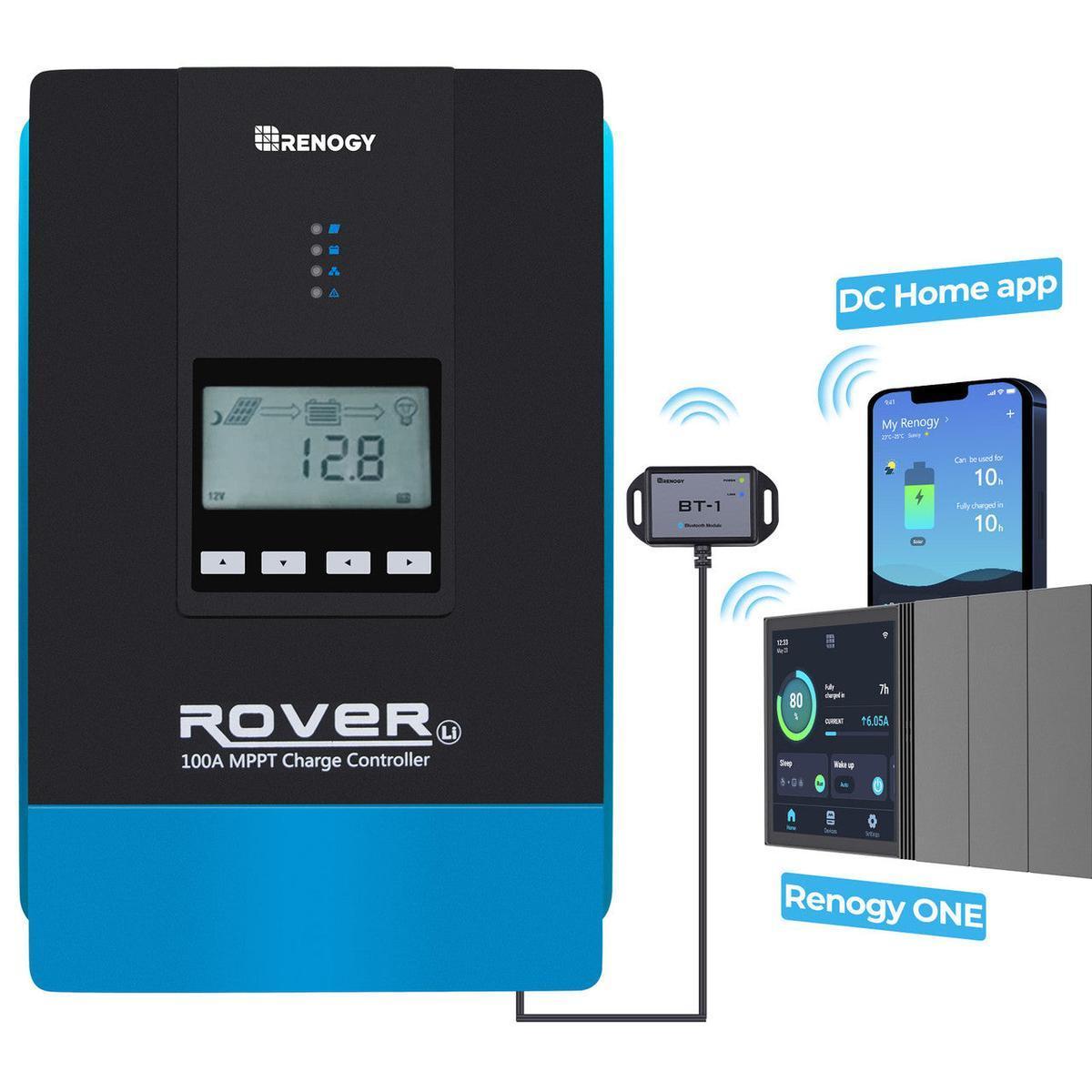

A. Yes, with the Renogy BT-1 Bluetooth Module (sold separately), you can monitor your system remotely using the Renogy DC Home app.
Q. What is the maximum solar input voltage?
A. The maximum solar input voltage for the Rover 100A MPPT Solar Charge Controller is 150V.
