Reliance A510C 50-Amps 10-Circuit Transfer Switch Overview
Introducing the Reliance A510C 50-Amps 10-Circuit Transfer Switch - your ticket to seamless power management. This Pro/Tran 2 manual transfer switch is the cream of the crop regarding load-side switches. With a lineup of (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole circuits, it's ready to handle whatever you throw its way. Also, this switch is the safest way to distribute power, eliminating dangerous backfeeds and electrical overloads. Plus, with 10 single-pole circuits or 5 double-pole circuits, you can customize your setup to suit your needs.
The A510C 10-Circuit Transfer Switch has a built-in wattage meter, helping you balance and manage generator load like a pro. With its hinged, non-metallic cover and powder-coated steel cabinet, your toggle switches and breakers are protected and display a sleek finish. Installation is easy with 18 inches of flexible conduit and all factory wires marked and colored. Plus, with (6) combination 1/2 and 3/4 knockouts, you'll be up and running in no time. Also, this transfer switch is certified by Underwriter Laboratories to UL Standard 1008 and meets all requirements of article 702 of the NEC ANSI/NFPA 70, so you can rest easily knowing you're in good hands. Upgrade to the Reliance A510C 50-Amps 10-Circuit Transfer Switch today and take control of your power like never before.
Reliance A510C 50-Amps Transfer Switch Features
Configuration for Safe and Efficient Operation
A sturdy 10-circuit solution for manual power transfer operations, the Reliance A510C from the Pro/Tran 2 series offers a flexible combination of circuits that include six single-pole 15A, one double-pole 20A, and one double-pole 30A combinations. This transfer switch enables safe and effective power management while removing concerns related to electrical overloads and backfeeds, offering dependable performance for both residential and commercial applications. It can support up to 10 single-pole or 5 double-pole circuits.
Color-coded wattage Meter and Durable Construction

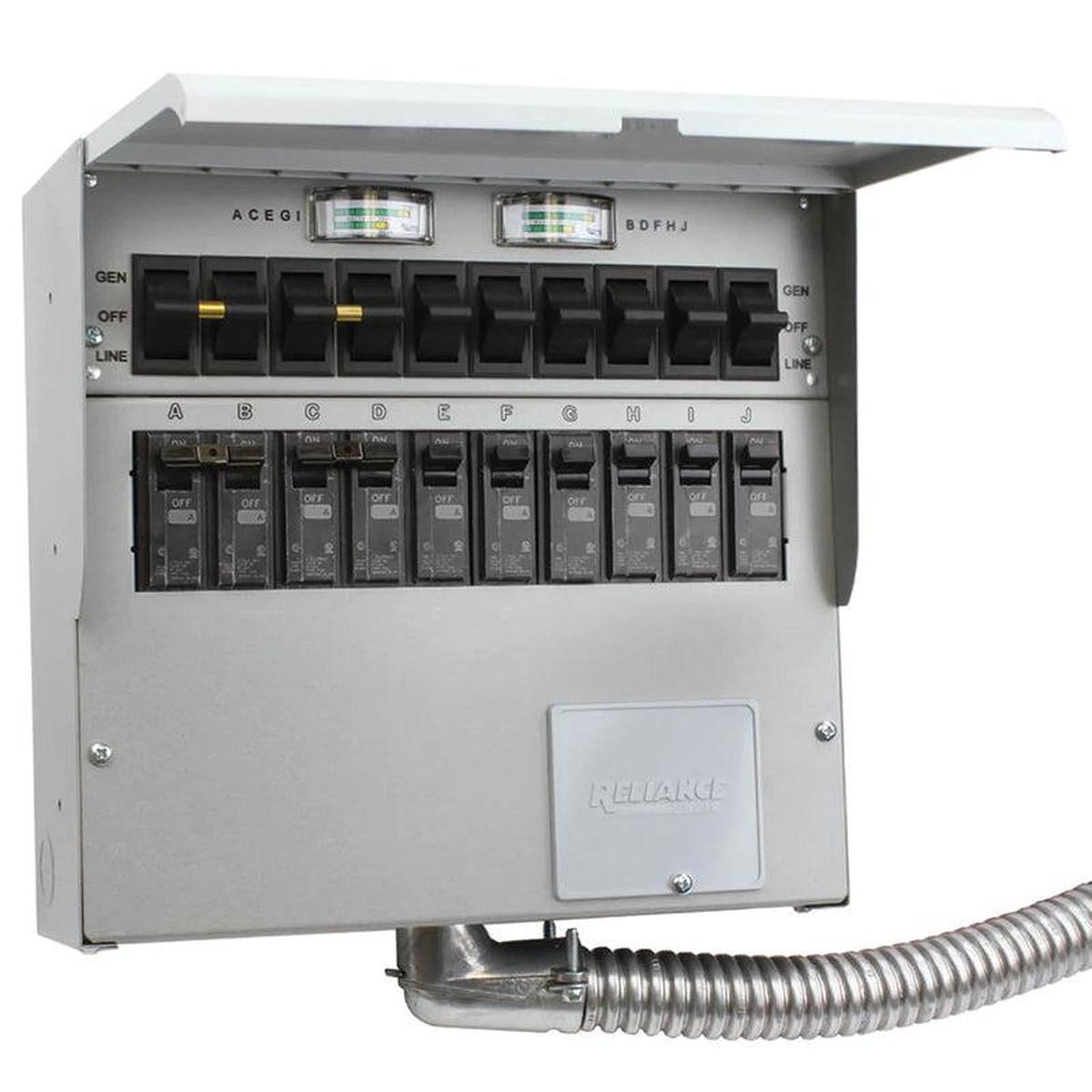

The handy, color-coded watts meter of the Reliance A510C makes easy power usage monitoring possible. This transfer switch is designed to protect toggle switches and breakers and has a powder-coated steel cabinet with a hinged, non-metallic lid. Its polished appearance and long lifespan make it ideal for indoor installations.
Certified Safety Assurance
Underwriter Laboratories has certified the Reliance A510C 50-Amp Transfer Switch as safe in accordance with UL Standard 1008, guaranteeing compliance with strict industry standards. It satisfies every prerequisite listed in NEC ANSI/NFPA 70 item 702, ensuring compliance and dependability in electrical installations.
Warranty
- 5-Year Limited Factory Warranty
- 30-day Satisfaction Guaranteed
What's in The Box?
- 120/240-Volt 50-Amp 10-Circuit Indoor Transfer Switch - A510C
- Owner's Manual
Reliance A510C 50-Amps Transfer Switch Specifications
| Model |
A510C |
| Brand |
Reliance |
| Voltage |
120/240 |
| Frequency |
60 Hertz |
| Max. Generator Running Wattage |
12,500 |
| Circuits |
6 - 15A/120V,1 - 20A/240V,1 - 30A/240V |
| Phase |
Single |
| Max. Single-Pole Circuits |
10 |
| Max. Double-Pole Circuits |
5 |
| Max. Combined Load at 125 Vac |
100 |
| Max. Combined Load at 250 Vac |
50 |
| Power Inlet |
None |
| Recommended Cord Size (Gauge) |
6 |
| Conduit Size (in.) |
1 |
| Conduit Length (in.) |
18 |
| Watt Meters |
Yes |
| Weight (lbs.) |
20 |
| Cabinet Type |
Indoor |
| Dimensions (HxWxD) (in.) |
11 x 11.75 x 4.5 (28.58 x 29.85 x 11.43 cm) |
