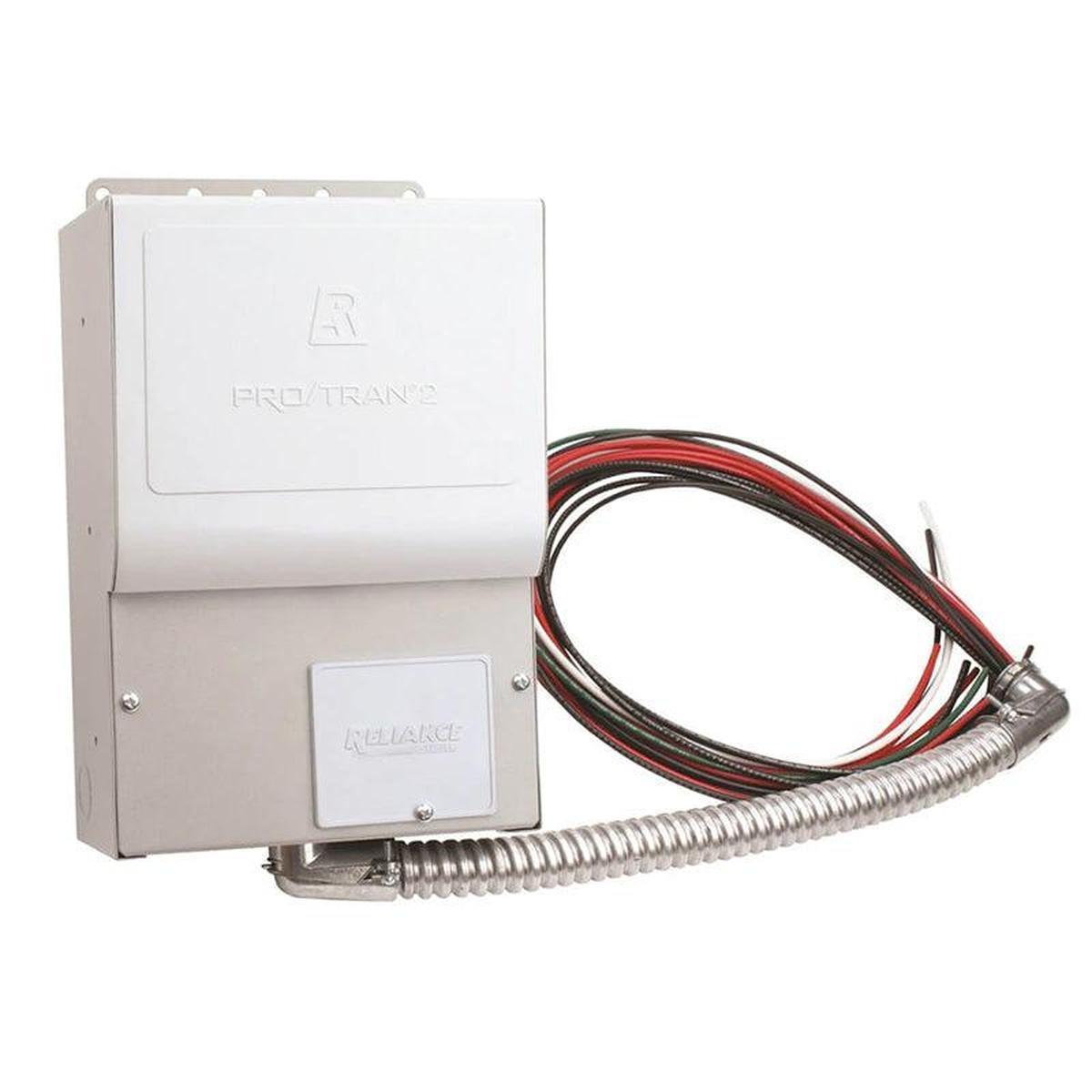

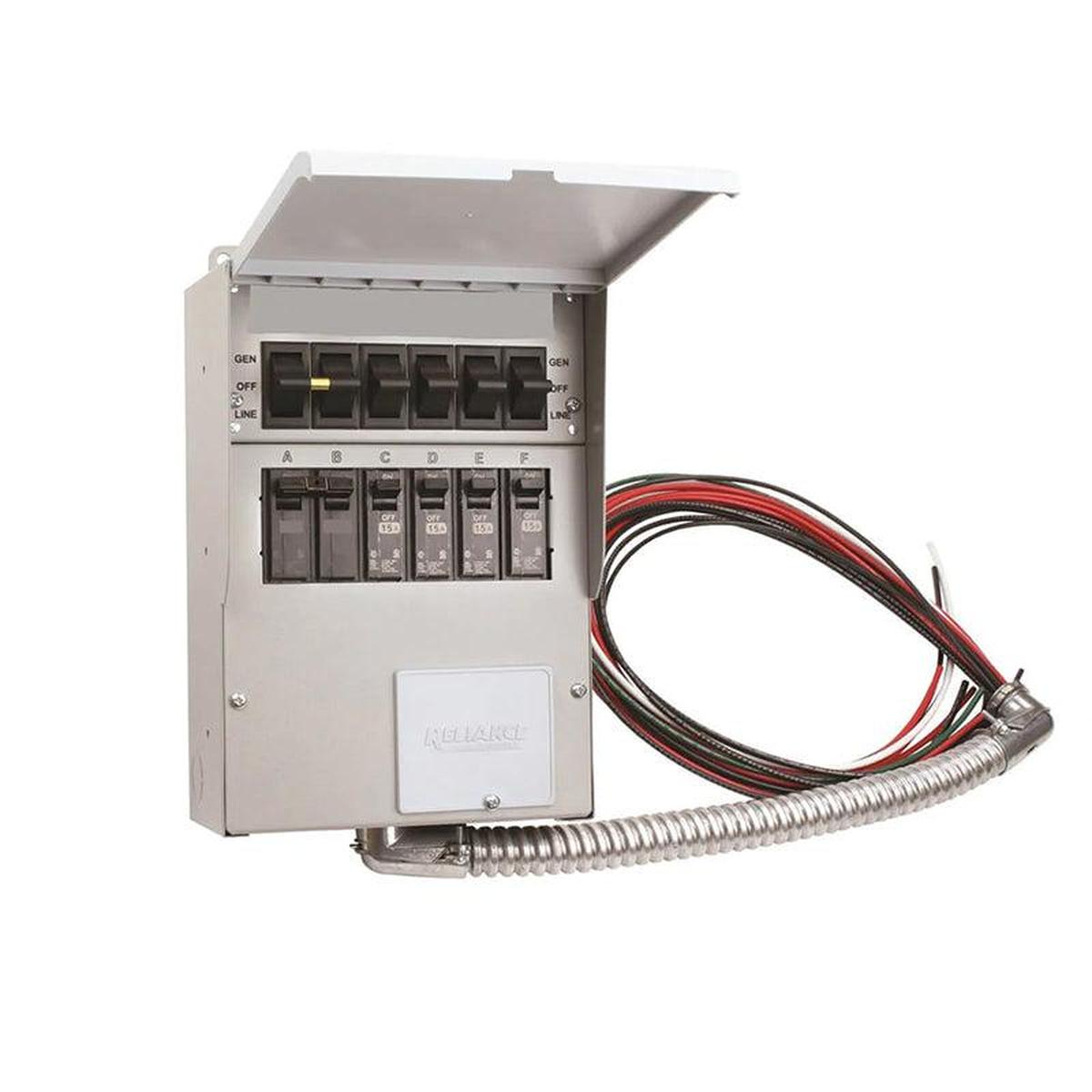

Reliance 306D 30-Amps 6-Circuit Indoor Transfer Switch Overview
The Reliance 306D Indoor Transfer Switch is the best option available for smooth power management in any situation. With its fully prewired, color-coded wiring, the 306D Transfer Switch requires no complicated setups or fumbling with wires during installation. All you have to do is connect the Pro/Tran 2 wire leads to the appropriate branch circuits after choosing them and fastening the sixteen-inch flexible conduit whip to a knockout on your load center, as directed. It is that simple.
In any circumstance, the Reliance 306D Indoor Transfer Switch is the greatest choice for efficient power management. The 306D Transfer Switch eliminates the need for intricate setups or fumbling with wires during installation thanks to its fully prewired, color-coded wiring. All you need to do is attach the sixteen-inch flexible conduit whip to a knockout on your load center as instructed, then connect the Pro/Tran 2 wire leads to the designated branch circuits after selecting them. It is that easy, honestly.
Reliance 306D Indoor Transfer Switch Features
Ensures Reliable Power Transfer and Circuit Safety
The sixteen-inch flexible conduit whip on the Reliance 306D Indoor Transfer Switch makes attachment to the load center simple. It provides strong protection during power transfer operations using standard 1-inch interchangeable circuit breakers and double-throw toggle switches for every circuit.
Tailored Configurations for Enhanced Safety
With its built-in circuit breakers, the Reliance 306D Indoor Transfer Switch provides flexibility, enabling various configurations to be made on the spot to suit individual requirements. UL listing guarantees safety and compliance in a variety of applications for breaker types, such as GFCI and AFCI.
Robust Construction for Enduring Reliability
With its robust design and powder-coated steel cabinet, the Reliance 306D Indoor Transfer Switch ensures lifespan and durability even in harsh settings. It provides comfort and is appropriate for a variety of electrical installations because it is UL listed to UL Standard 1008 and complies with the National Electrical Code, ANSI/NFPA 70.
Warranty
- 5-year Limited Warranty
- 30-day Satisfaction Guaranteed
What's in The Box?
- 120/240-Volt 30-Amp 6-Circuit Pro/Tran Indoor Transfer Switch - 306D
- Owner's Manual
Reliance 306D Indoor Transfer Switch Specifications
| Model |
306D |
| Brand |
Reliance |
| Voltage |
120/240 |
| Max. Generator Running Wattage |
7,500 |
| Phase |
Single |
| 15A Single Pole Breakers |
3 |
| 20A Single Pole Breakers |
2 |
| 20A Double Pole Breakers |
1 |
| Max. Combined Load at 125 Vac |
60 |
| Max. Combined Load at 250 Vac |
30 |
| Max. Single Pole Circuits |
6 |
| Max. Double Pole Circuits |
3 |
| Max. Load/Circuit From Generator |
Two 30A and Four 20A |
| Max. Load/Circuit From Load Center |
30A |
| Power Inlet |
None |
| Recommended Cord Size (Guage) |
10 |
| Conduit Size (in.) |
3/4 |
| Conduit Lenght (in.) |
16 |
| Watt Meters |
No |
| Cabinet Type |
Indoor |
| Weight (Lbs.) |
17 |
| Dimensions (HxWxD) (in.) |
11.25 x 7.75 x 4.5 |
