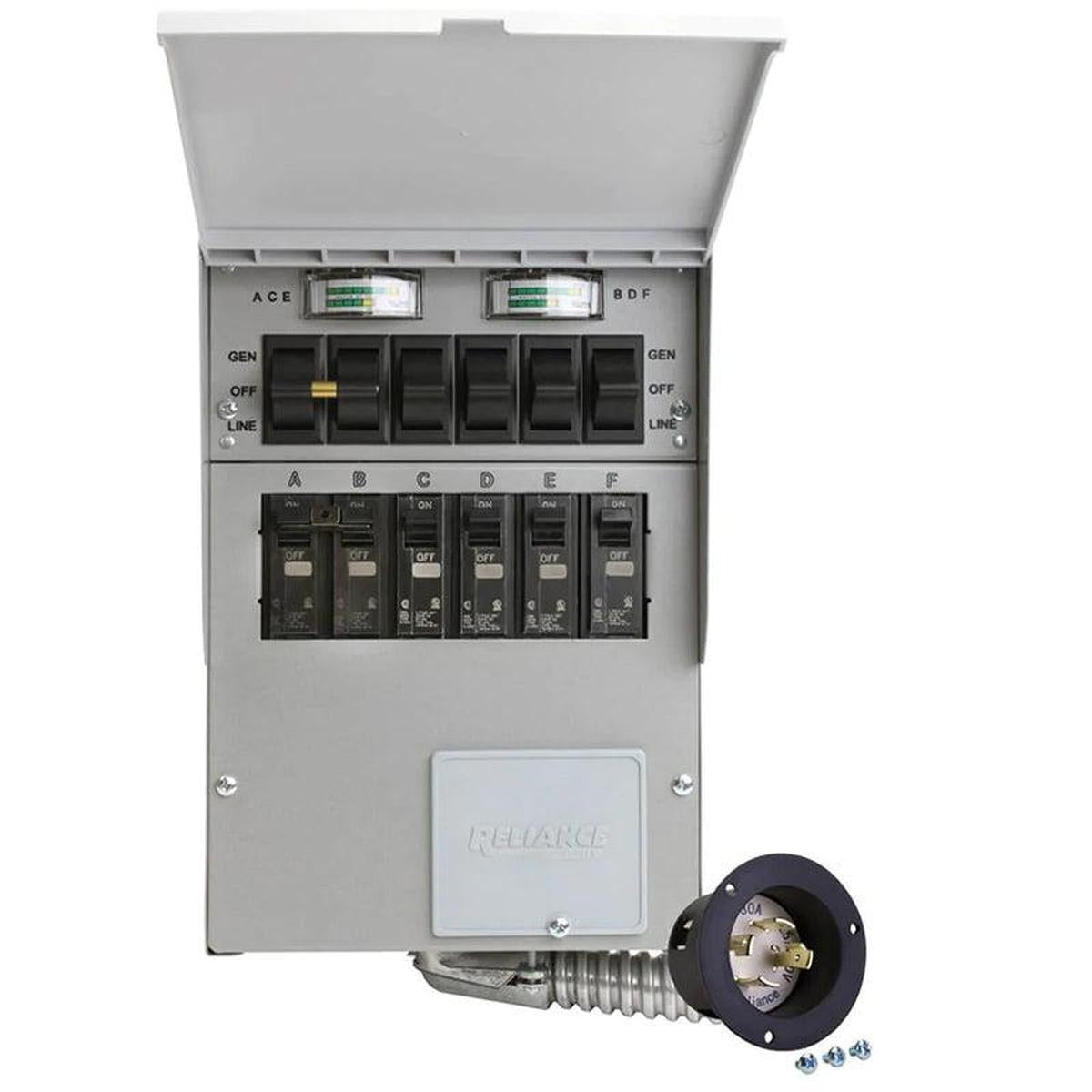

Reliance 306A 30-Amps 6-Circuit Indoor Transfer Switch Overview
Introducing the Reliance 306A 30-Amps 6-Circuit Indoor Transfer Switch - your key to seamless power management. This Pro/Tran 2 manual transfer switch is the epitome of reliability and safety, ensuring your home or business stays powered up when you need it most. With (4) 15A 1-Pole and (1) 20A 2-Pole circuits, this switch is ready to handle your power needs with ease. The Reliance 306A comes equipped with a brand-new color-coded built-in wattage meter, helping you balance and manage your generator load like a pro. Plus, its versatile connection options allow for hardwiring or plug-in connection via the included power inlet, giving you the flexibility you need.
Installation is a breeze with 18 inches of flexible conduit and all factory wires clearly marked and colored. Plus, with (6) combination 1/2 and 3/4 knockouts, you'll have no trouble getting set up and running smoothly. Also, the Reliance 306A doesn't disappoint. Certified by Underwriter Laboratories to UL Standard 1008 and meeting all requirements of article 702 of the NEC ANSI/NFPA 70, you can trust that this switch is built to last. Don't let power outages catch you off guard. Upgrade to the Reliance 306A 30-Amps 6-Circuit Indoor Transfer Switch today and take control of your power with confidence.
Reliance 306A Indoor Transfer Switch Features
6-Circuit Design for Safe Outage Management
With its 30-amp capacity and 6-circuit design, the Reliance 306A, which is a member of the Pro/Tran 2 series, provides a dependable solution for power management during outages. Its four 15A 1-Pole and one 20A 2-Pole switch configuration ensures effective and secure power distribution while removing the possibility of electrical overloads and backfeeds.
Color-Coded Wattage Meter and Enhanced Safety Features
The Reliance 306A has a hinged, non-metallic cover that protects toggle switches and breakers and improves the unit's look. It also has an integrated color-coded watts meter for simple power usage monitoring. It is housed in an indoor-use powder-coated steel cabinet with six combination 1/2 and 3/4 knockouts for easier installation and eighteen flexible conduits with factory wiring that are color-coded and clearly identified.
Certified Safety and Industry Standard Compliance
Underwriter Laboratories certified the Reliance 306A to UL Standard 1008, demonstrating its commitment to industry standards and safety. Additionally, it satisfies every one of the strict specifications listed in NEC ANSI/NFPA 70 item 702, guaranteeing conformity and dependability in electrical installations.
Warranty
- 5-year Limited Warranty
- 30-day Satisfaction Guaranteed
What's in The Box?
- 120/240-Volt 30-Amp 6-Circuit Indoor Transfer Switch - 306A
- Owner's Manual
Reliance 306A Indoor Transfer Switch Specifications
| Model |
306A |
| Brand |
Reliance |
| Max. Generator Running Watts |
7,500 |
| Phase |
Single |
| Frequency |
60 |
| Circuits |
4 - 15A/120V
1 - 20A/240V |
| Max. Single-Pole Circuits |
6 |
| Max. Double-Pole Circuits |
3 |
| Max. Combined Load at 125 Vac |
60 |
| Max. Combined Load at 250 Vac |
30 |
| Power Inlet |
L14-30 |
| Recommended Cord Size (Guage) |
10 |
| Conduit Size (in.) |
3/4 |
| Conduit Length (in.) |
16 |
| Watt Meters |
Yes |
| Dimensions (HxWxD) (in.) |
11.25 x 7.75 x 4.5
(28.58 x 19.69 x 11.43 cm) |
| Cabinet Type |
Indoor |
