- Waveform: Pure Sine Wave
- System Voltage: 48 VDC
- Rated AC Output Power: 6500 VA / 6500 W (6.5 kVA / 6.5 kW)
- AC Output Voltage: 110–127 Vac ± 5% (≈ 230 Vac equivalent range for reference)
- Max. AC Input Current: 60 Aac
- AC Frequency: 50 / 60 Hz auto recognition
- Max. PV Panel Voltage: 250 VDC × 2 (2 MPPTs)
- PV Panel MPP Voltage: 90–230 VDC × 2 (2 MPPTs)
- Max. Usable PV Current: 18 ADC × 2 (2 MPPTs), 36 ADC total
- Max. Usable PV Power: 4000 W × 2 (8 kW total)
- Max. PV Array Power: 5000 Wp × 2 (10 kWp total)
- Extensibility: Up to 9 units in parallel, supports three-phase or split-phase systems
- Battery Type: Lead acid (Gel, AGM, Flooded), Lithium
- Datalogger: 60 days
- Inverter Efficiency from Battery: > 90% peak
- Inverter Efficiency from PV: > 96% peak
- Dimensions (W × H × D): 17 × 23 × 5.8 in (432 × 584 × 147 mm)
- Weight: 40 lb (18.1 kg)
- Certificates: UL1741, CSA C22.2 No. 107.1-16, FCC Class A, RoHS compliant
- Warranty: 2 years

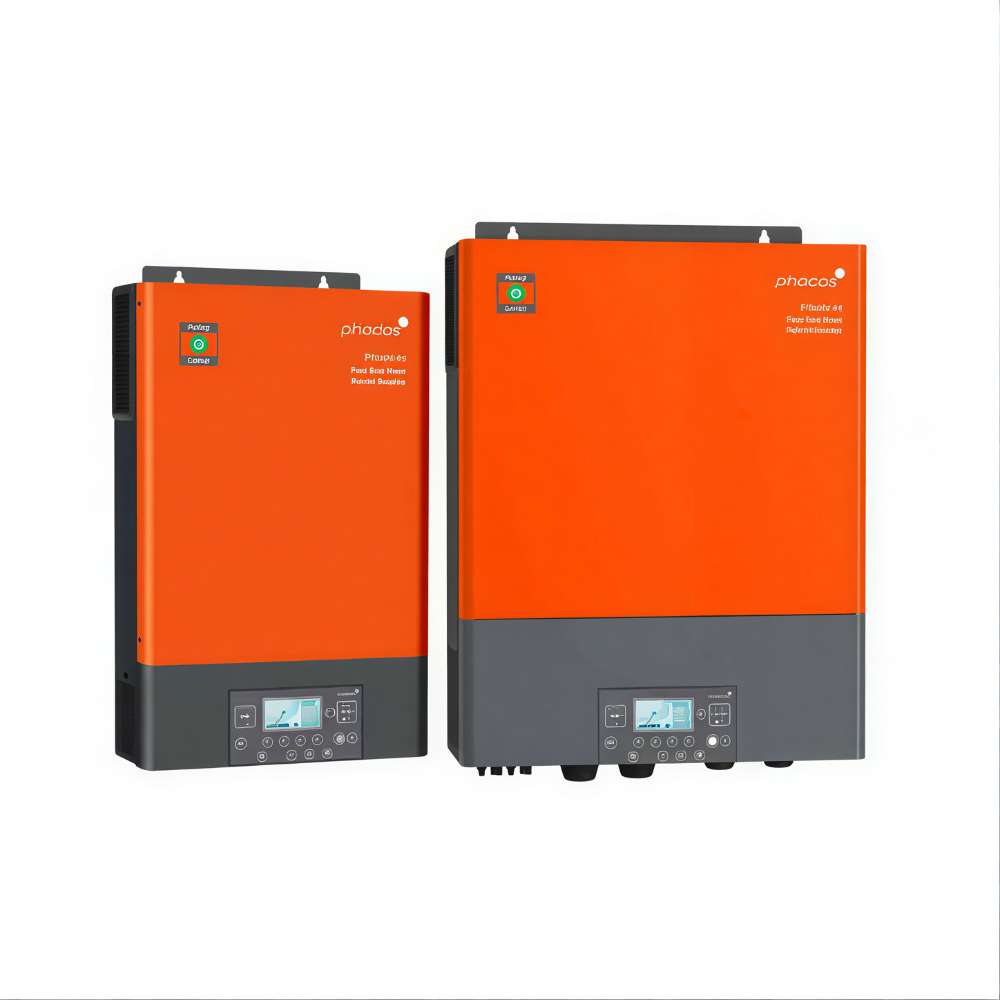

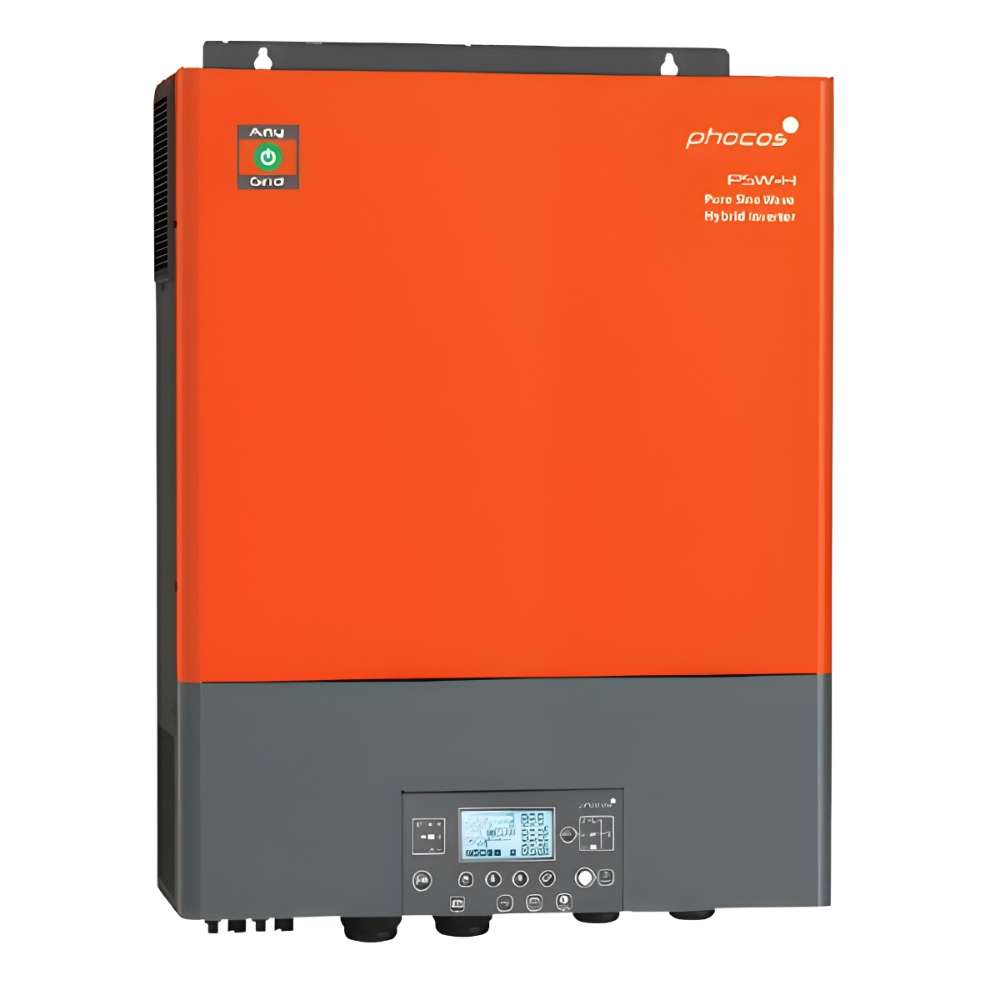

Phocos PSW-H-6.5KW-120/48V 6500 Watt 120VAC Any-Grid Hybrid Inverter/Charger
SKU PSW-H-6.5KW-120/48V
by Phocos
Sold out
$2,198.97
