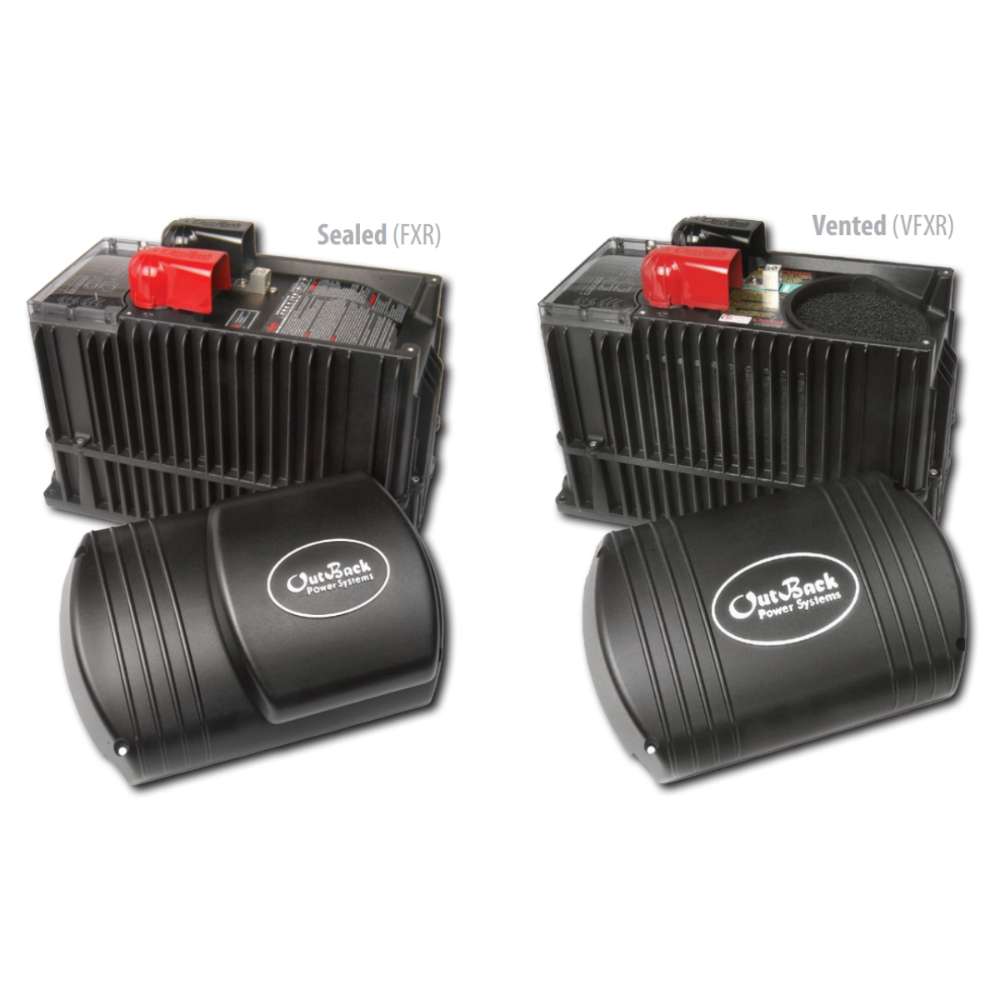

- Type: Sealed
- Chassis: Die-cast aluminum
- Instantaneous Power (100ms): 5750VA
- Surge Power (5 sec): 5175VA
- Peak Power (30 min): 3100VA
- Continuous Power Rating (@25°C): 2000VA
- Nominal DC Input Voltage: 24VDC
- AC Output Voltage (selectable): 230VAC (200–260VAC)
- AC Output Frequency (selectable): 50Hz (60Hz)
- Continuous AC Output Current: 8.7AAC
- Idle Power: Full ~34W | Search ~9W | Off ~3W
- Typical Efficiency: 92%
- Total Harmonic Distortion: <2% typical, <5% max
- AC Input Voltage Range (MATE3 adjustable): 170–290VAC
- AC Input Frequency Range: 45–55Hz (54–66Hz)
- Continuous Battery Charge Output: 55ADC
- Maximum Battery Charging: AC: 7AAC, DC: 55ADC, Power: 1500W
- Advanced Battery Charging supports flooded, gel, AGM, lithium-ion, and flow chemistry batteries.
- Rated: -20 to 50°C
- Operating: -40 to 60°C
- Storage: -40 to 60°C
- Relative Humidity: 93%
- Listings/Certifications: IEC 62109, EN 61000-3, EN 61000-6, AS4777.2/3
- RoHS Compliant: Yes
- Unit Weight: 61 lb / 28 kg
- Shipping Weight: 67 lb / 30 kg
- Dimensions (H × W × L): 13 × 8.25 × 16.25 in
- Shipping Dimensions: 21.75 × 13 × 22 in
- Accessory Ports: Includes remote temperature sensor, supports MATE3 and HUB communications.

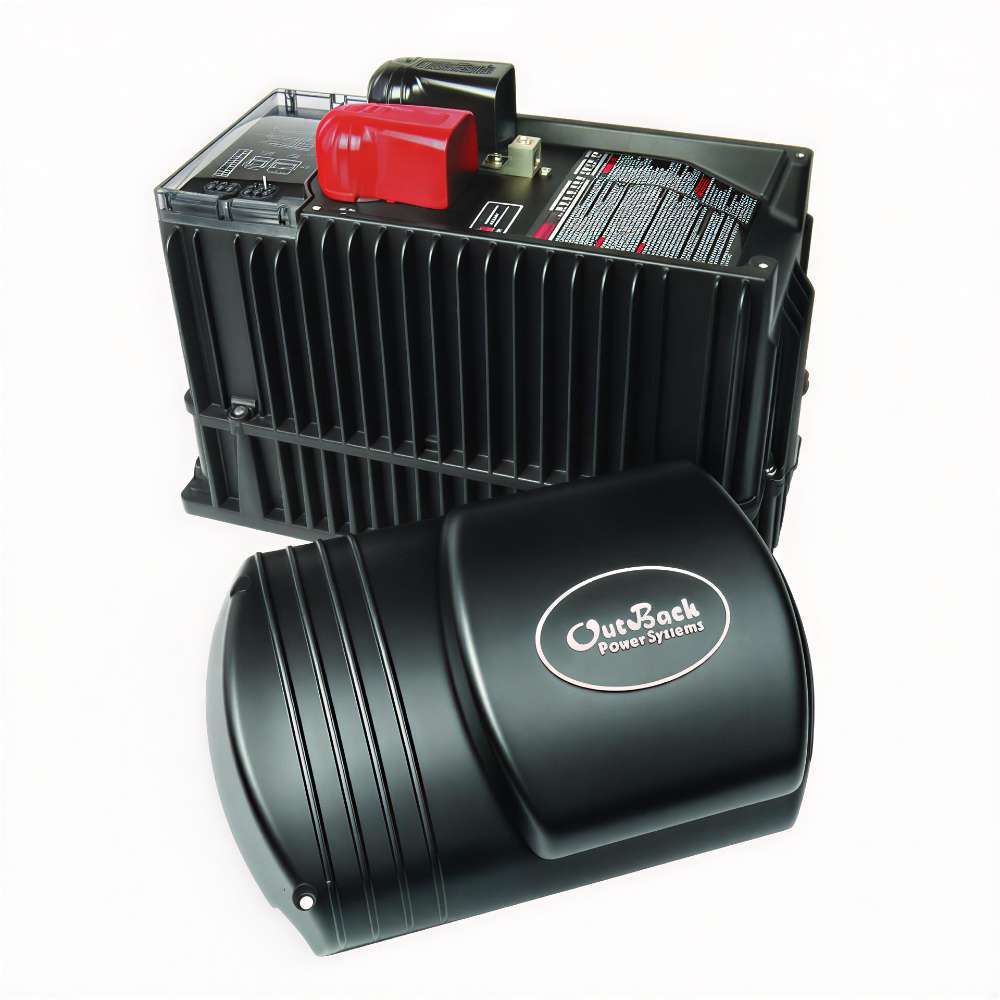

Outback Power FXR Sealed Series FXR2524A-01 2500W 24VDC Inverter/Charger
SKU FXR2524A-01
$2,298.97
