- Model Type: Sealed
- Continuous Power Rating (@ 25°C): 2300VA
- Instantaneous Power (100ms): 5750VA
- Surge Power (5 sec): 5175VA
- Peak Power (30 min): 3100VA
- Nominal DC Input Voltage: 48VDC
- AC Output Voltage (Selectable): 230VAC (200–260VAC)
- AC Output Frequency (Selectable): 50Hz (60Hz)
- Continuous AC Output Current: 10AAC
- Idle Power: Full ~34W, Search ~9W, Off ~3W
- Typical Efficiency: 93 percent
- Total Harmonic Distortion: <2 percent typical, <5 percent max
- Output Voltage Regulation: ±2.5 percent
- AC Input Voltage Range (Adjustable): 170 to 290VAC
- AC Input Frequency Range: 45 to 55Hz (54 to 66Hz)
- Grid Interactive Voltage Range: 208 to 252VAC
- Grid Interactive Frequency Range: 47 to 51Hz
- Maximum AC Input Current: 30AAC
- Continuous Battery Charge Output: 35ADC
- Maximum Battery Charging: AC 7AAC, DC 35ADC, Power 1900W
- Advanced Battery Charging: Flooded, gel, AGM, lithium ion and flow batteries
- DC Input Voltage Range: 42 to 68VDC
- Accessory Ports: Remote temperature sensor (included), MATE3 and HUB communications
- Warranty: Standard 5 year, extended 10 year available
- Weight: Unit 61 lb (28 kg), Shipping 67 lb (30 kg)
- Dimensions (Unit): 13 x 8.25 x 16.25 in (H x W x L)
- Dimensions (Shipping): 21.75 x 13 x 22 in
- Temperature Rating: Rated -20°C to 50°C, Operating -40°C to 60°C, Storage -40°C to 60°C
- Humidity Rating: 93 percent
- Certifications: IEC 62109, EN 61000 3, EN 61000 6, AS4777.2/3
- RoHS Compliant: Yes

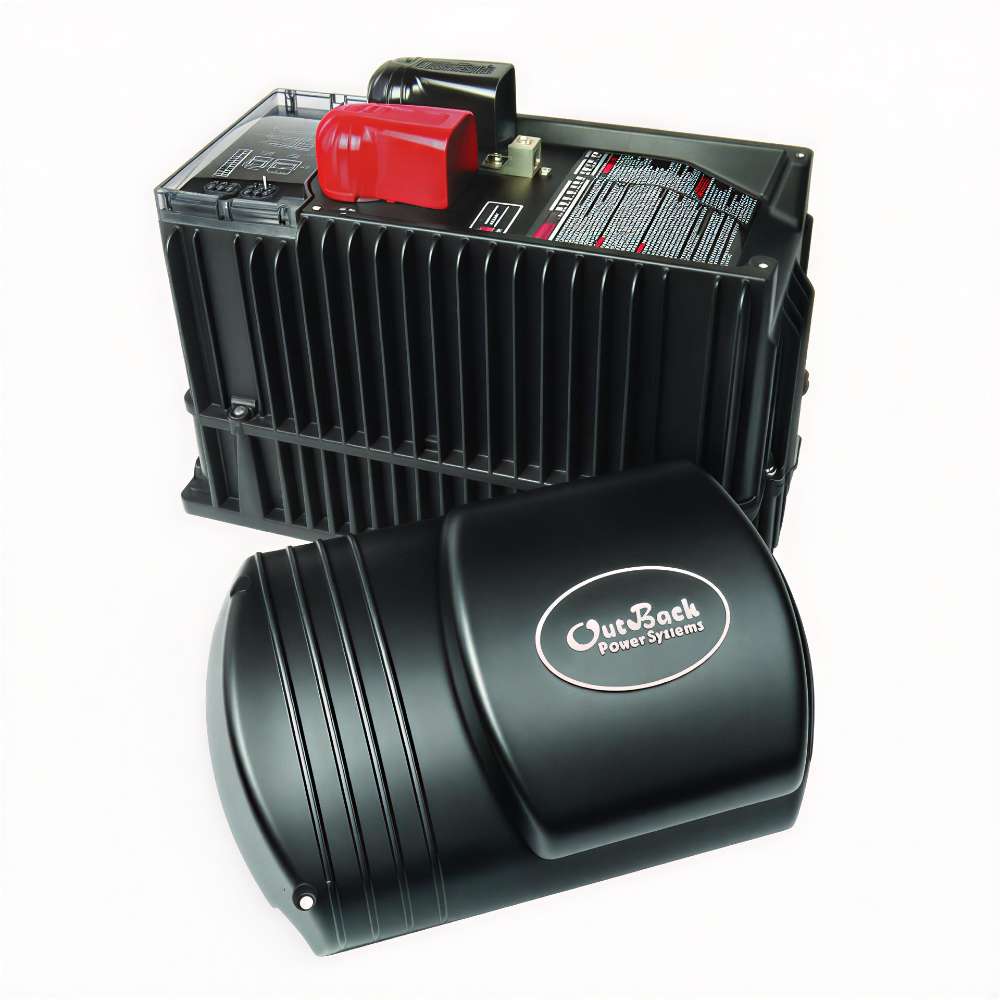

Outback Power FXR Sealed E Series FXR2348E 2300W 48VDC Inverter/Charger
SKU FXR2348E
Sold out
$2,198.97
