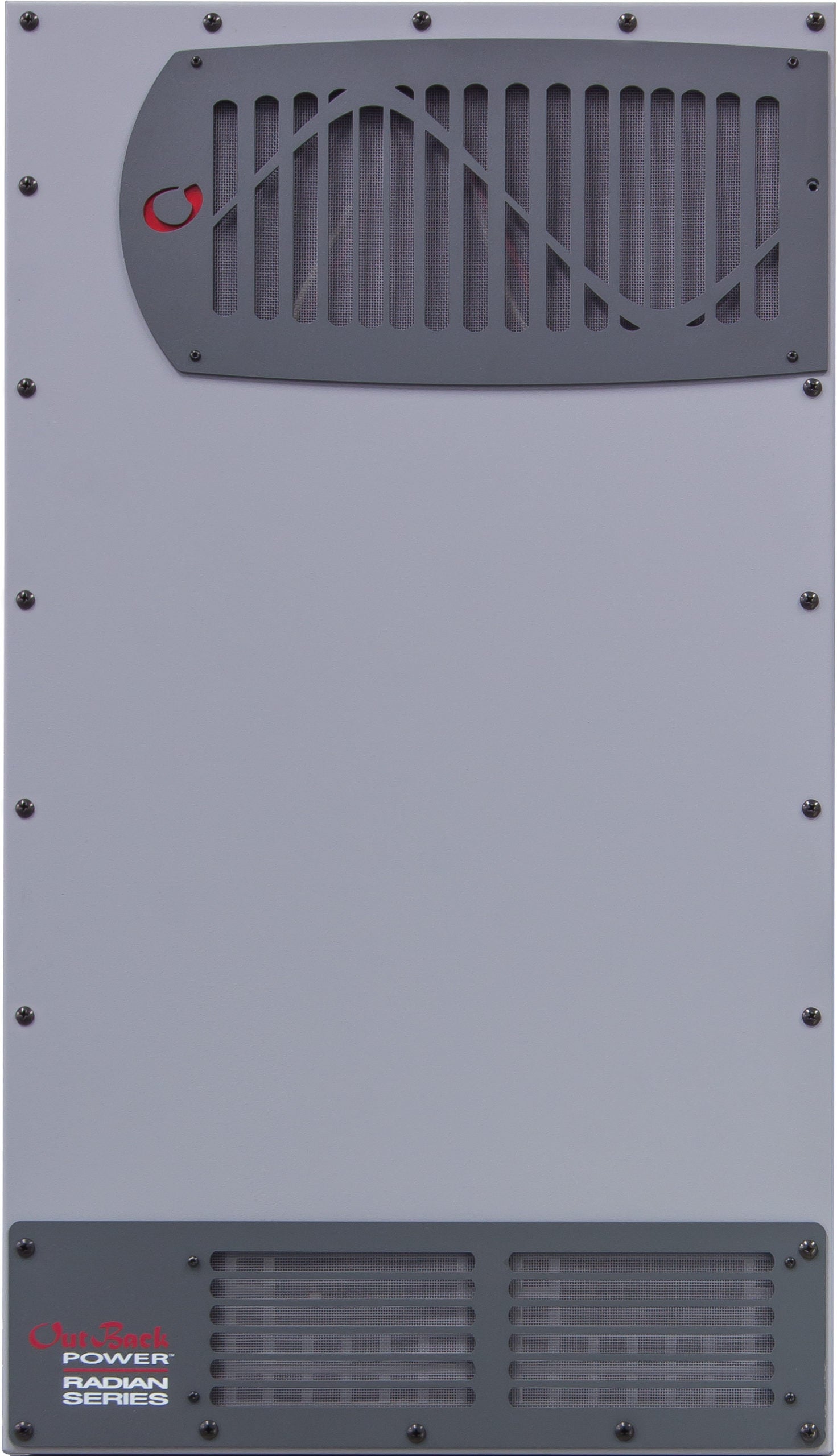

The Outback Power GS7048E is a 7.0 kW, 48 VDC, 230 VAC inverter/charger from the Radian Series, designed for either grid-interactive or off-grid power systems. A hybrid unit, it features dual AC inputs, allowing it to seamlessly switch between utility power and a generator.
Key features
Flexible operation: The Radian GS7048E can operate in multiple modes, including grid-interactive for homes with utility access and off-grid for energy independence.
Dual AC inputs: The unit can switch between two AC sources, such as the grid and a backup generator, without needing an external transfer switch.
GridZero technology: This operating mode minimizes grid dependence by prioritizing stored renewable energy. The system draws from the grid only when a predefined load threshold is exceeded.
High efficiency: A dual-power module design ensures high efficiency during both low and full power operation. Bimble Solar reports an efficiency of 92% and a maximum efficiency of 96%.
Scalability: For larger power needs, multiple Radian inverters can be stacked. The GS7048E supports single-phase arrays of up to 70 kW or three-phase systems of up to 21 kW.
Advanced Battery Charging (ABC): An enhanced charging profile is compatible with various battery technologies, including lithium-ion, flooded, gel, and AGM batteries.
Ease of installation: The unit features a field-serviceable modular design and spring-based AC terminals that eliminate the need for re-torquing. Using an optional GS Load Center further simplifies the process.
Specifications
Feature Outback Power GS7048E
Nominal DC Input Voltage 48 VDC
Continuous Output Power (@ 25°C) 7000 VA
AC Output Voltage (Selectable) 230 VAC (210 to 250 VAC)
AC Output Frequency (Selectable) 50 or 60 Hz
Continuous AC Output Current (@ 25°C) 30 AAC
Max Battery Charge Output 100 ADC
Maximum AC Input Current 50 AAC
Operating Temperature Range Rated: -20°C to 50°C (derated power above 25°C)
Weight (Unit) 56.7 kg (125 lbs)
Dimensions (H x W x D) 71.1 x 40.6 x 22.1 cm (28 x 16 x 8.7 inches)
Warranty Standard 5-year warranty
