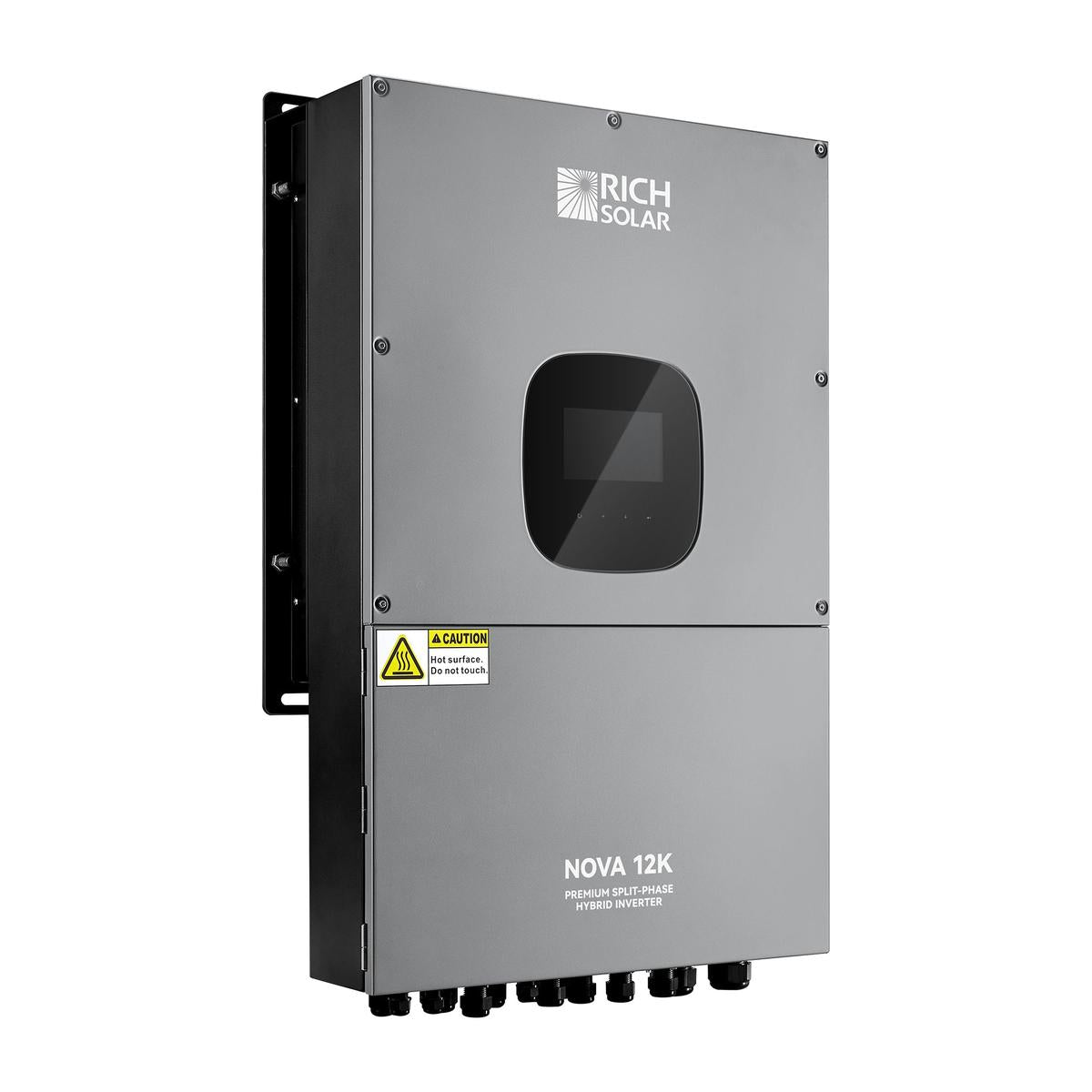

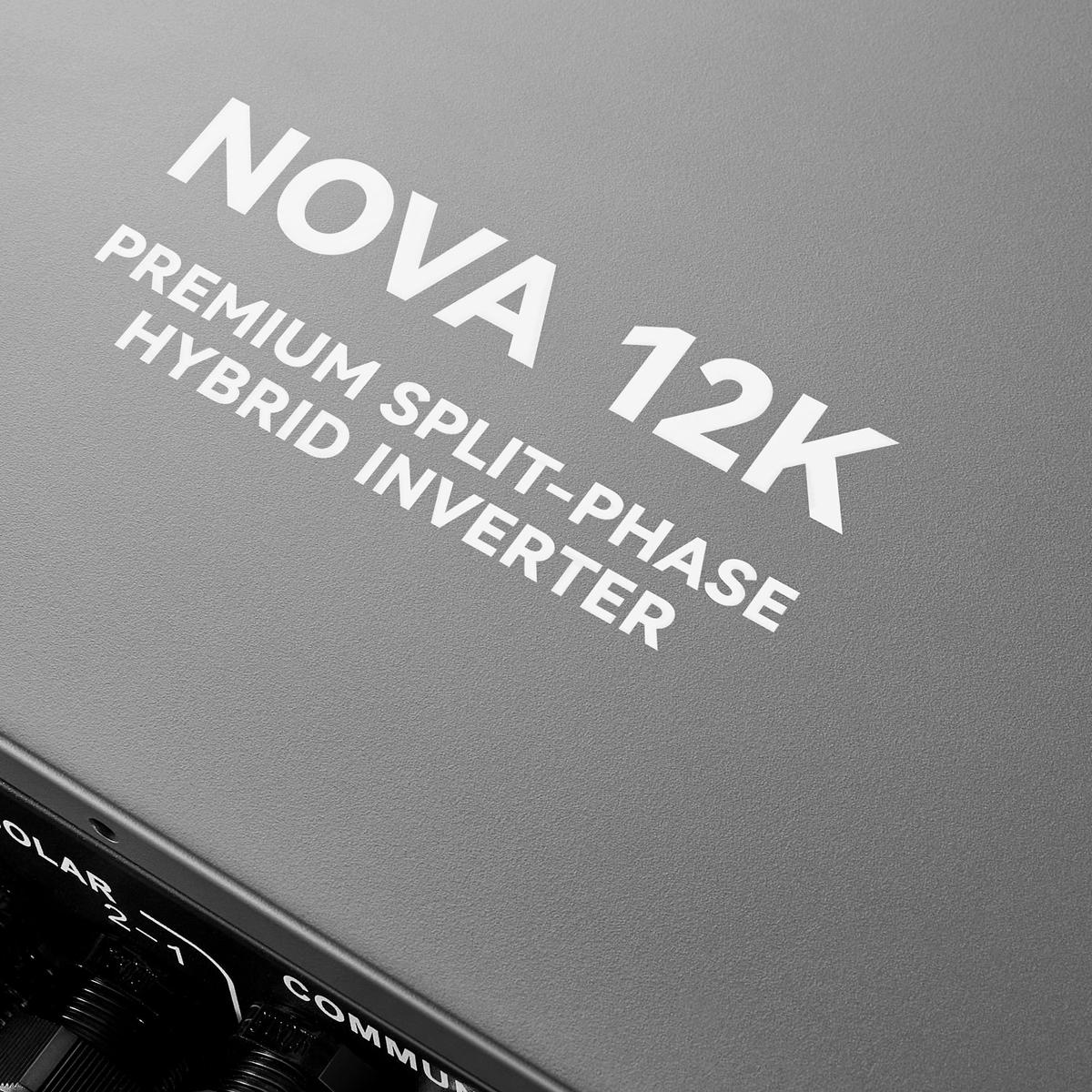

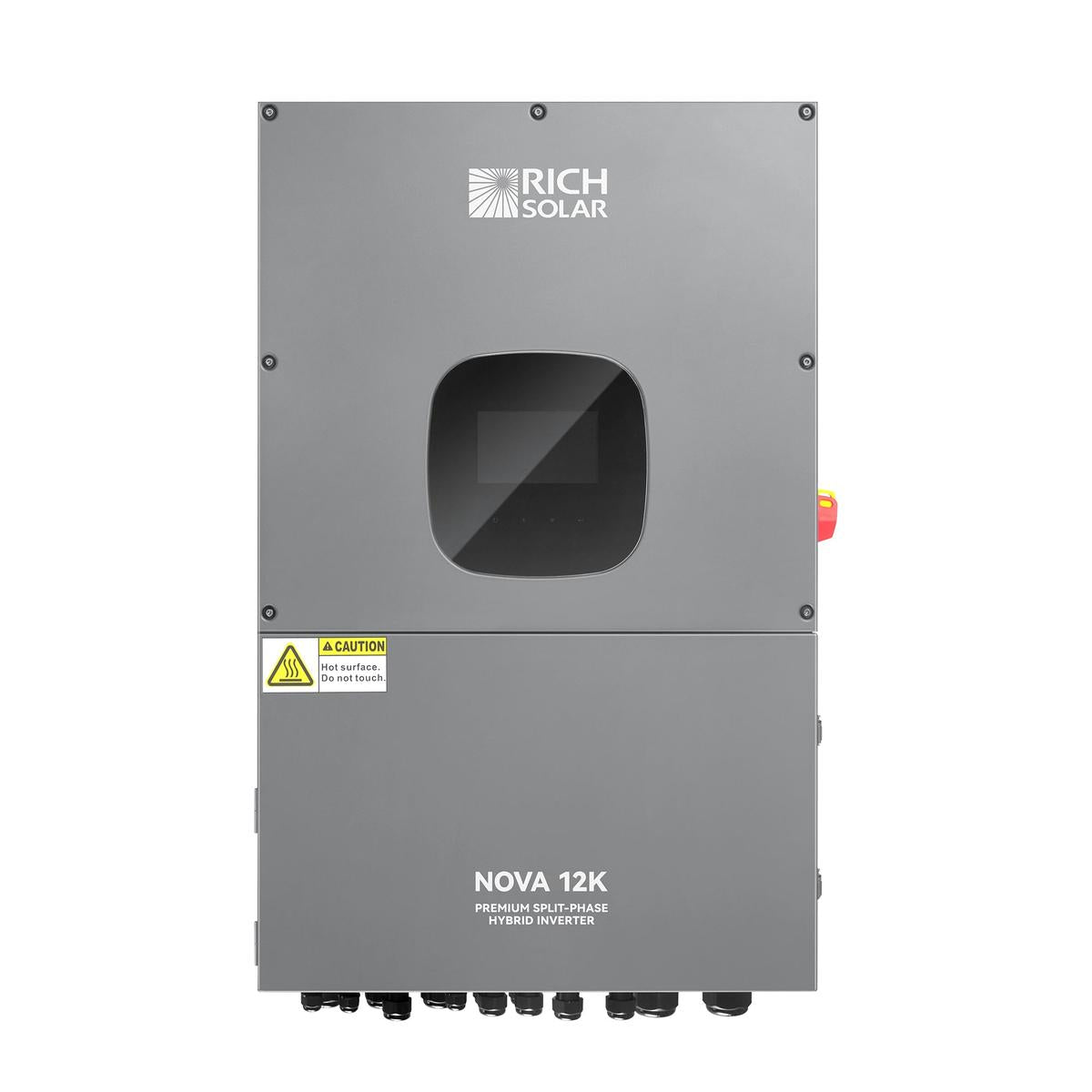

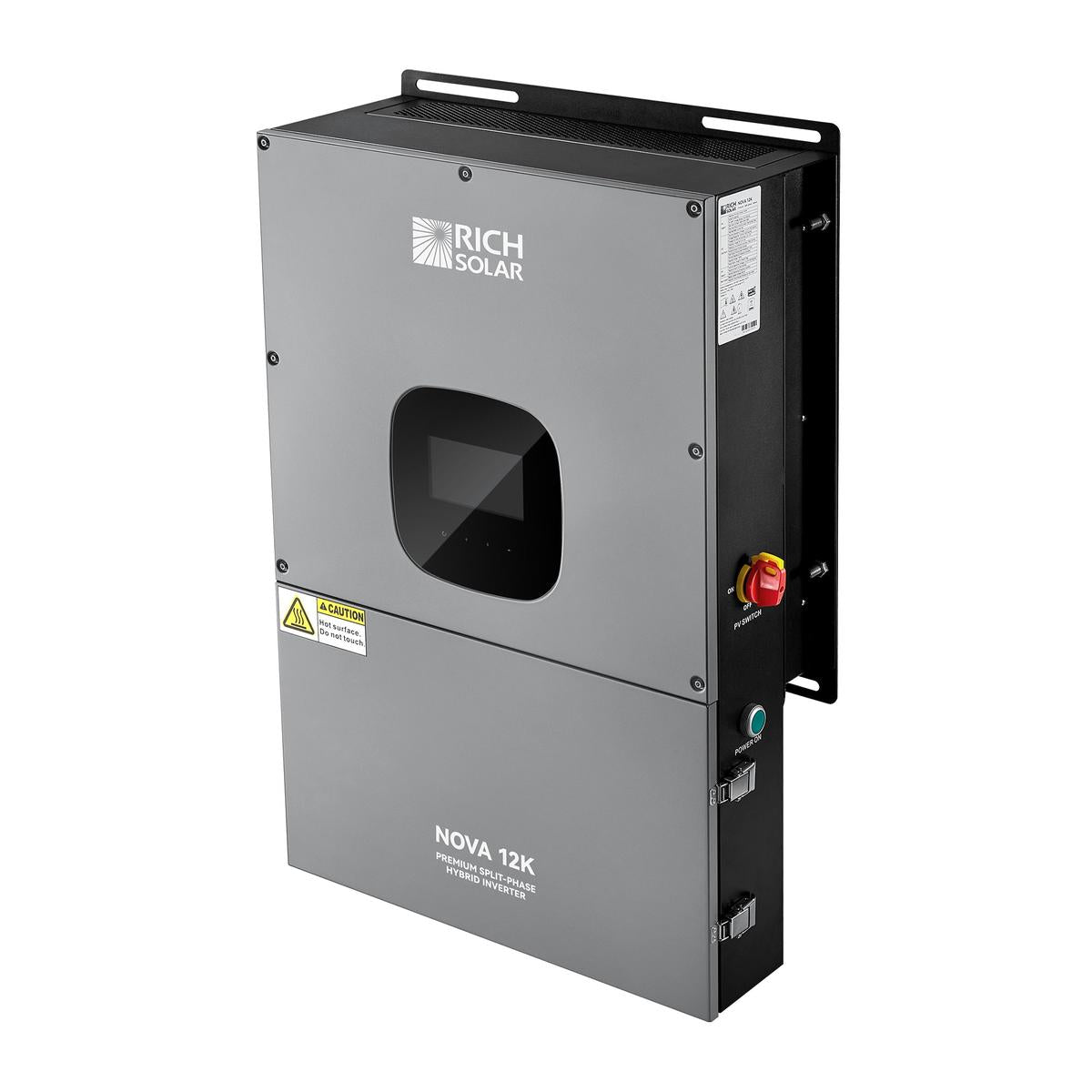

NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified

FEATURES

• Support multiple input & output - Split phase 120/240VAC Split phase, 120V/208V Split phase

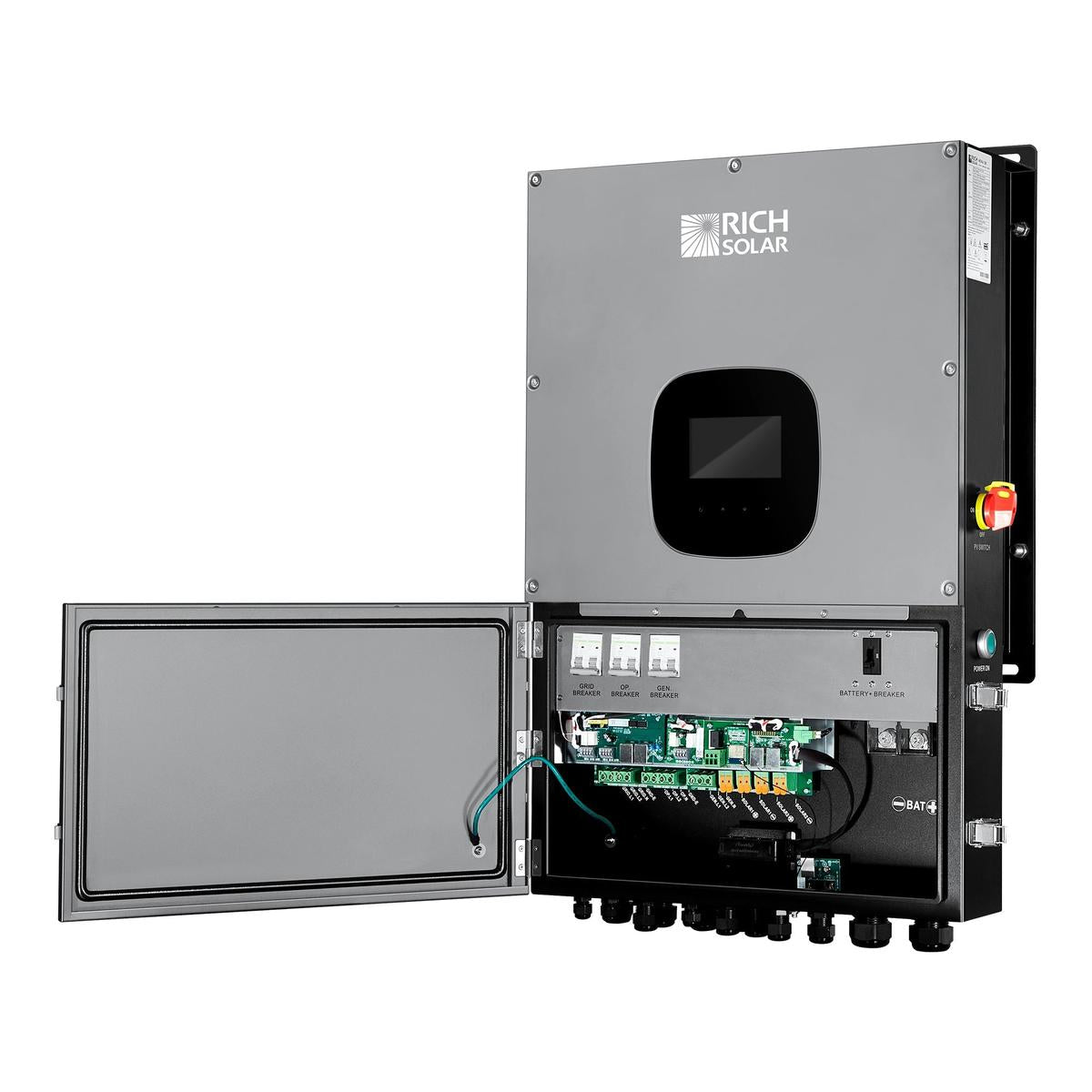

• Door-type cable compartment.
• Built-in 300A DC breaker and 60A AC breaker.
• Built-in AC coupled function.
• Built-in Wi-Fi for mobile monitoring (APP is available).
• Accepts second input power source, generator input compatible.
• Built-in arc fault detection (AFD) and rapid shutdown (RSD).
• External CT sensor to guarantee 100% self-consumption.
• Built-in communication port for BMS (RS485).
• User-adjustable charging current and voltage.
• Parallel operation up to 6 units.
• Idle Consumption: -150W (±10%)

SPECIFICATIONS

Maximum PV Input Power: 12000W
Parallel Capability: 6 units

INPUT

• Maximum PV Input Power: 12000W
• Maximum DC Voltage: 600VDC
• Start-up Voltage/Initial Feeding Voltage: 125VDC/160VDC
• MPPT Voltage Range: 120VDC-550VDC
• Number of MPPT Trackers/Maximum Input Current: 2/18A

OUTPUT

• Rated Output Power: 10000VA/10000W
• Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
• Output Voltage Range: 105.5–132VAC per phase
• Nominal Output Current: 41.5A per phase

BATTERY

• Battery DC Voltage Range: 40–62VDC/48VDC
• Maximum Solar Charging Current: 200A
• Maximum AC Charging Current: 200A
• Maximum Charging Current: 200A

OPERATING ENVIRONMENT

• Operating Temperature Range: -13°F to 140°F(>113°F derating)
• Protection Degree: IP65
• Communication Port: RS232, RS485, Wi-Fi, USB

PHYSICAL

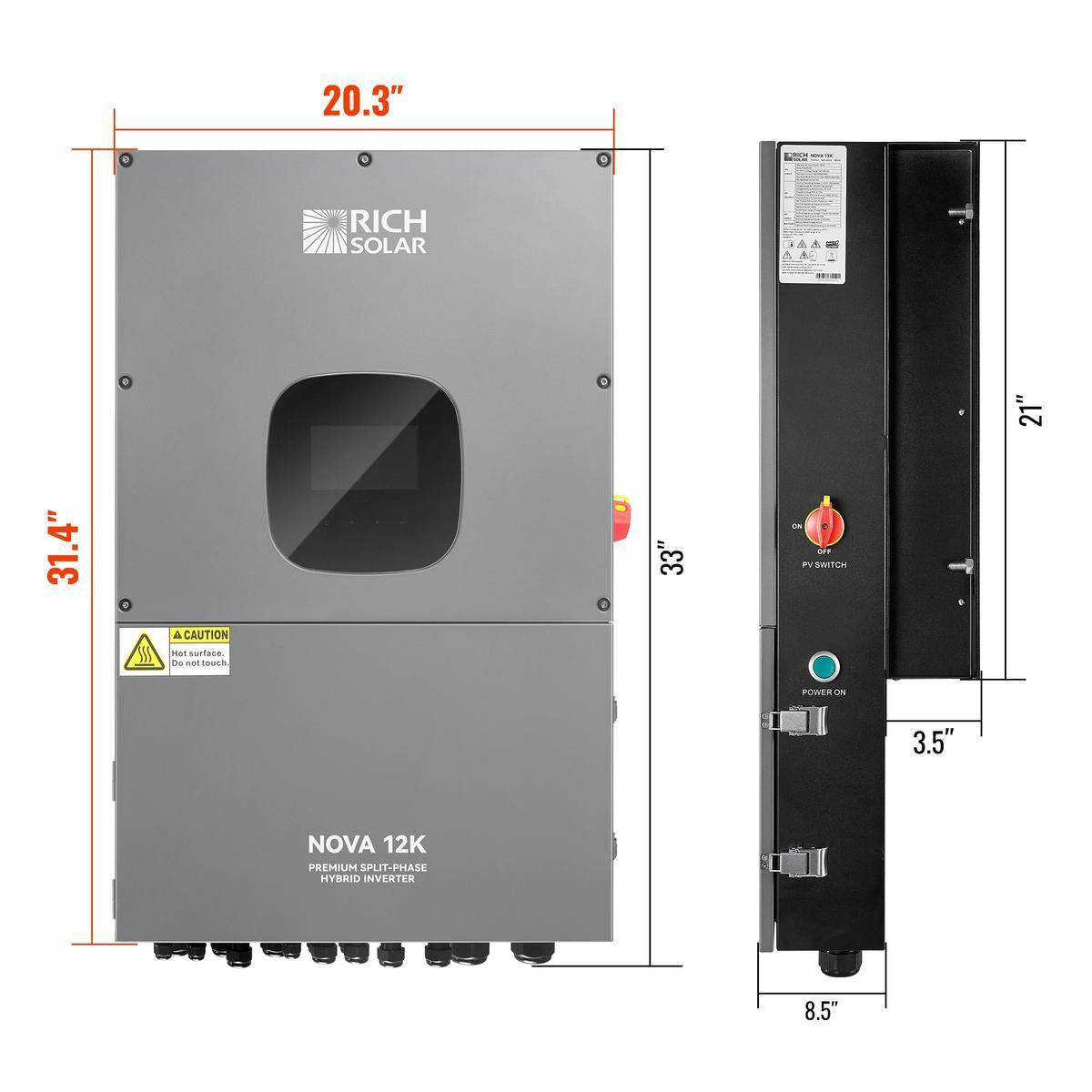

• Dimension (LxWxH): 8.5x20.3x28.1in/215.5x515x715mm
• Net Weight: 99.2lb/45kg



CERTIFICATE

• UL1741SA, UL1741SB, CSA 22.2.107.1, CEC
