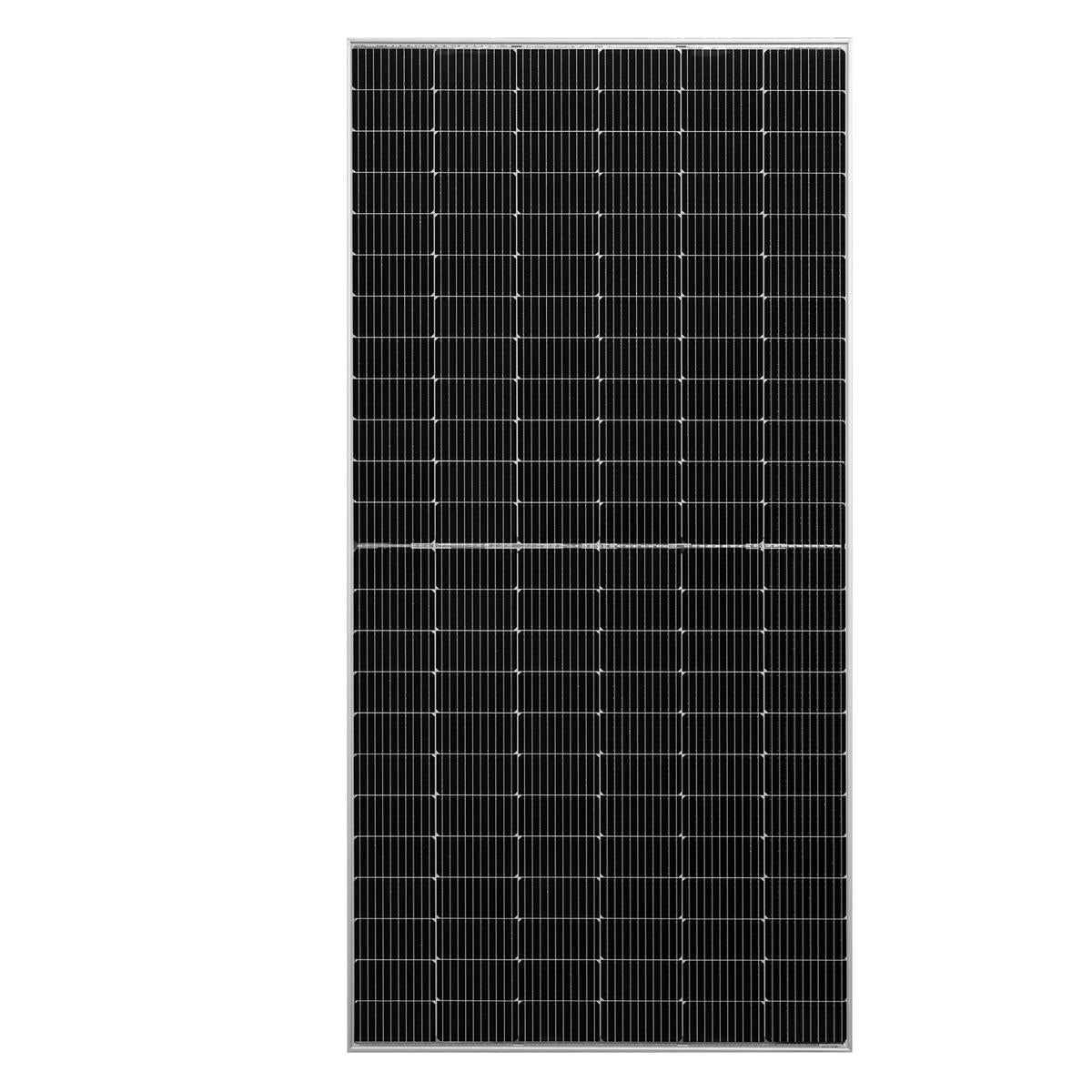

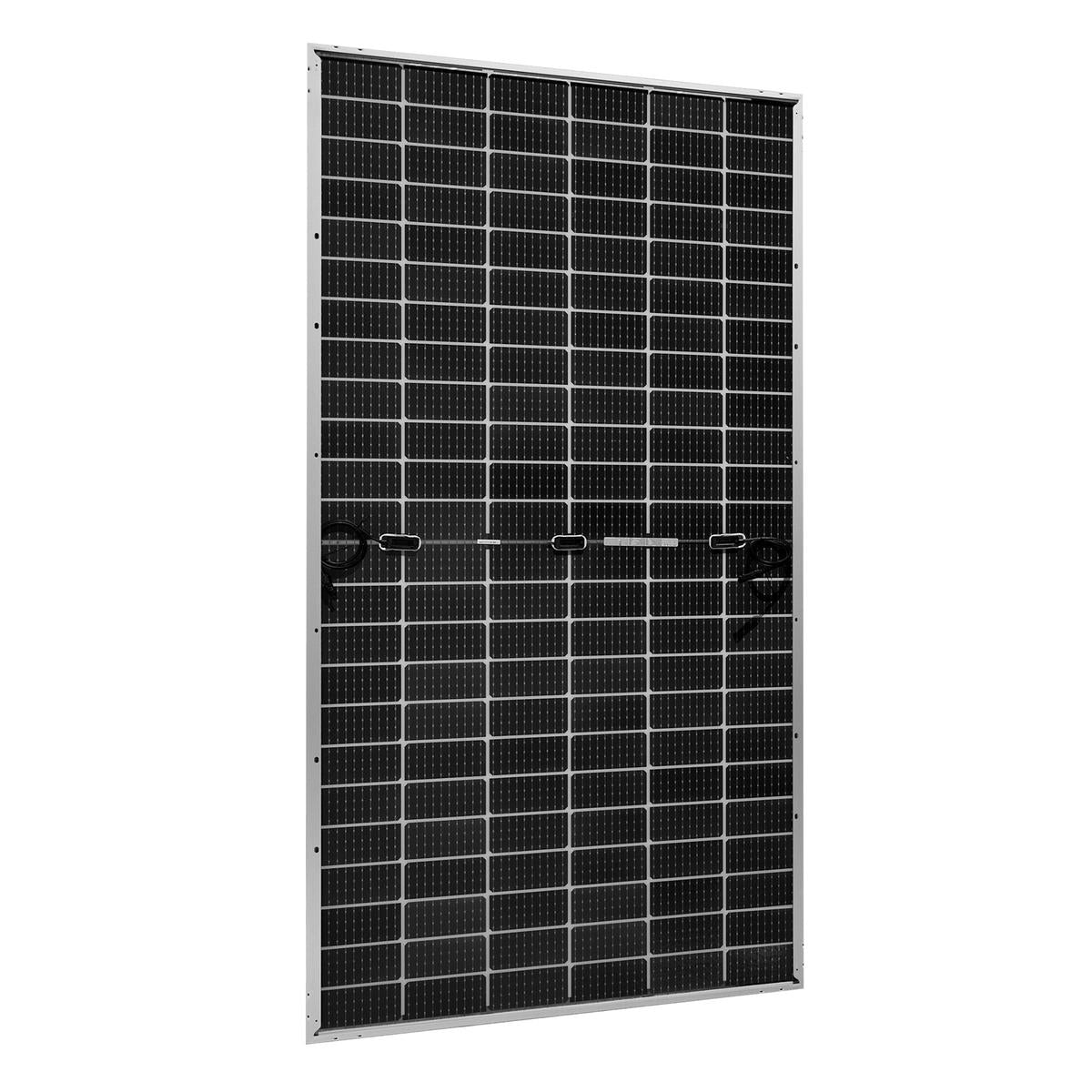

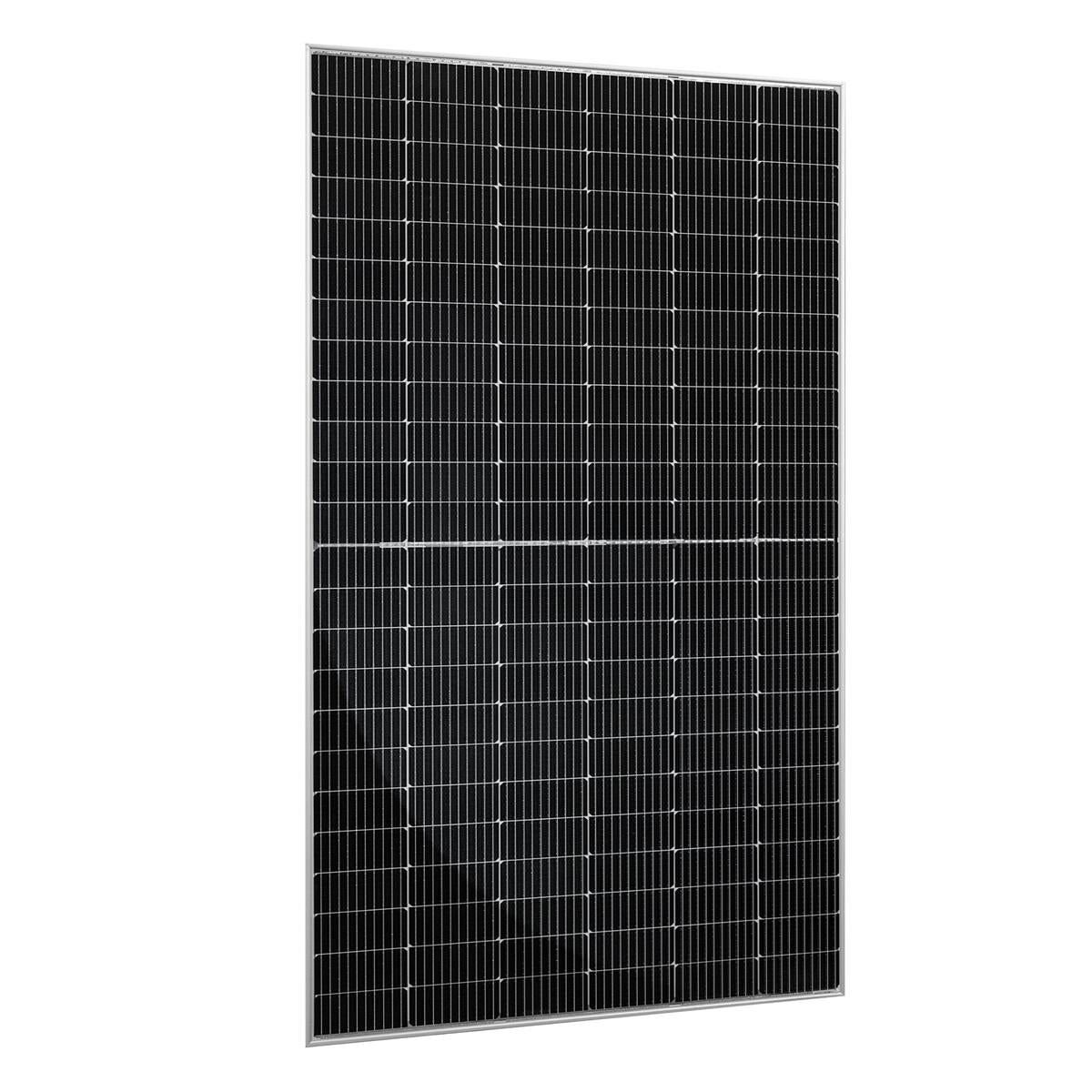

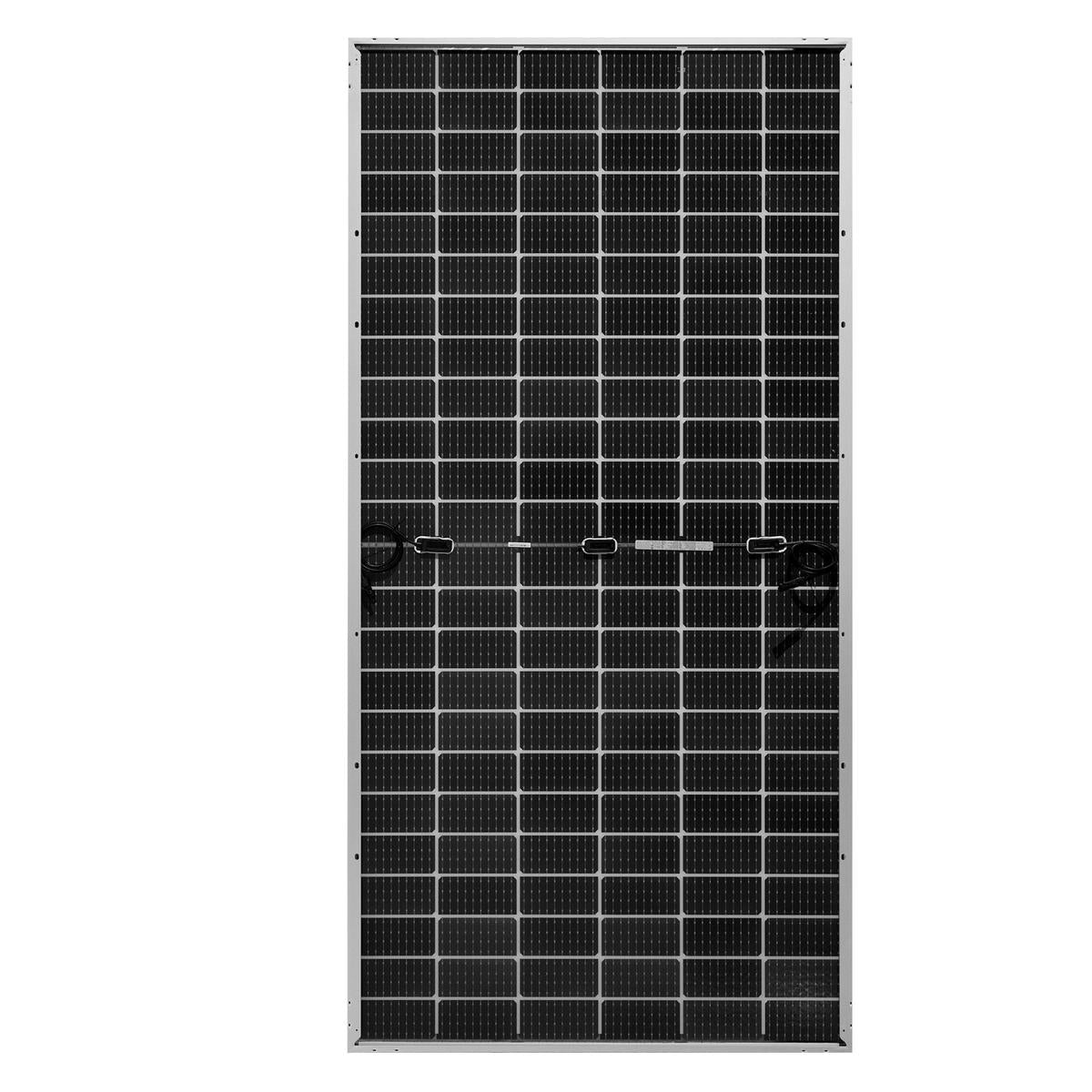

MEGA 580 BIFACIAL | 580 Watt Bifacial Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified

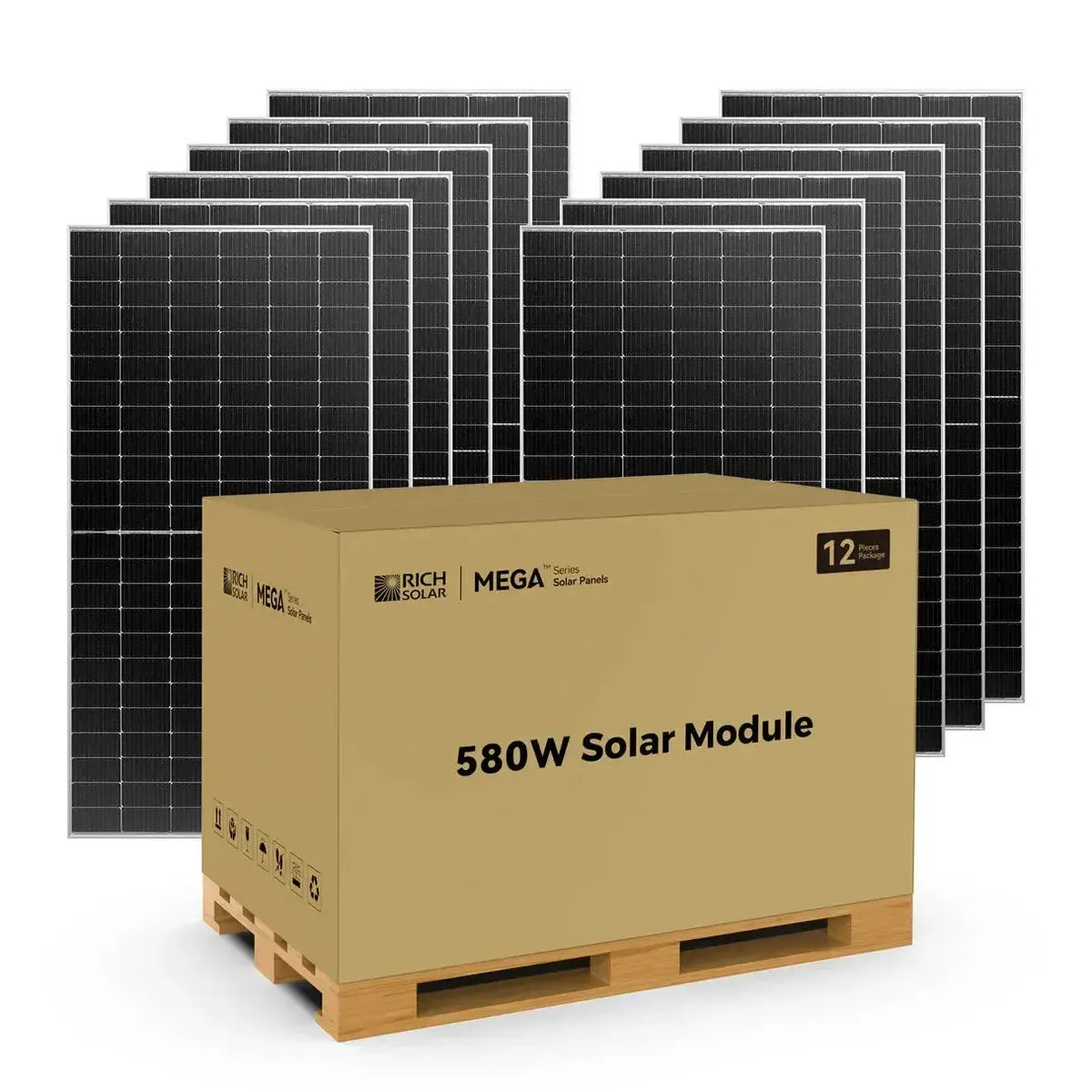

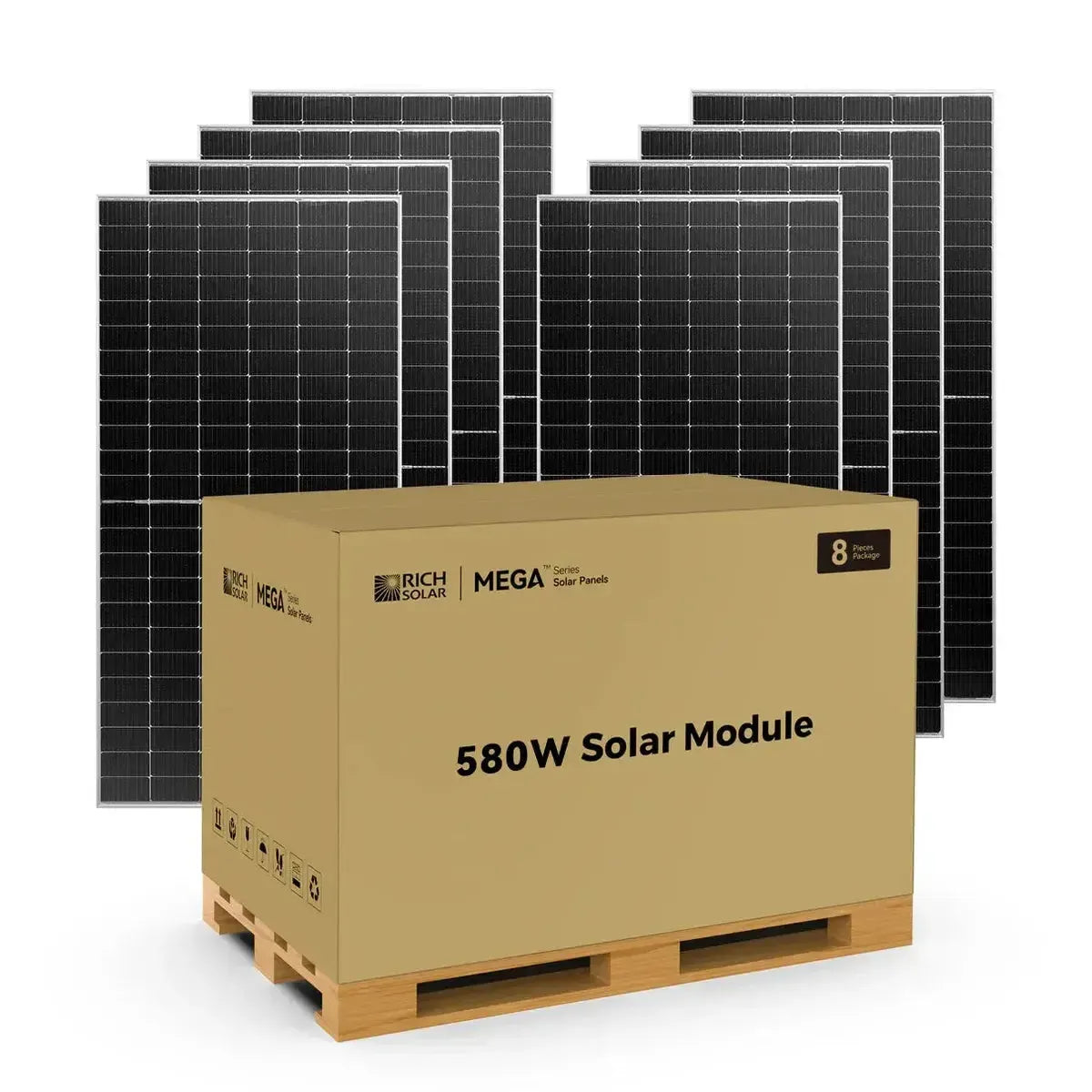

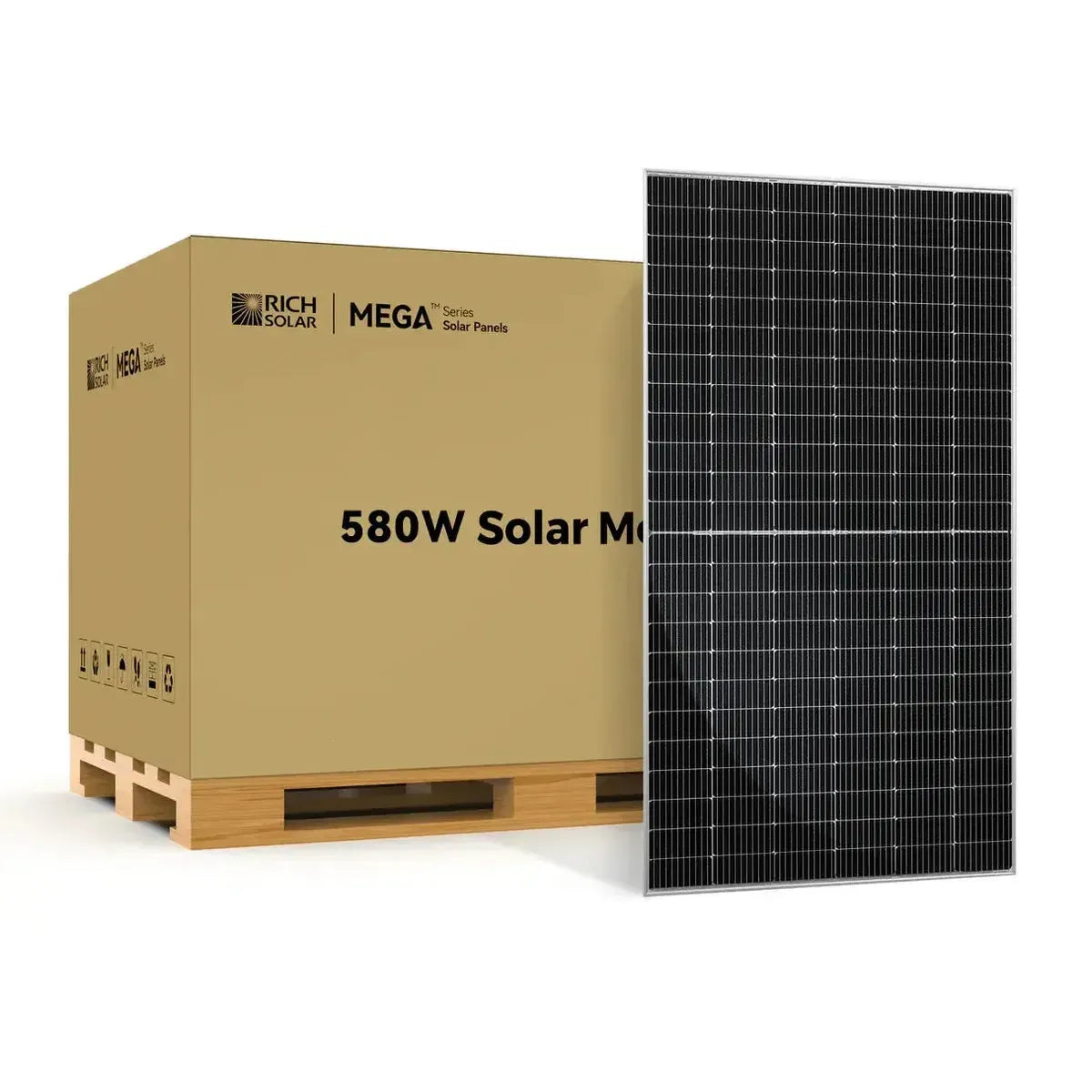

PALLET SHIPPING ONLY!

For any other quantities, please call our sales team at 1-800-831-9889 or email us at sales@richsolar.com. The MEGA 580 solar panel is engineered to deliver maximum solar output with minimal space, system complexity, and cost. Generating 580W of power at 24V, it’s a reliable solution for residential, agricultural, and commercial off-grid applications. Built with a lightweight anodized aluminum frame and anti-reflective tempered glass, it offers exceptional durability and performance, even in harsh weather conditions.

Features

• 16 busbar solar cell configuration
• TOPCON technology
• Lightweight anodized aluminum frame
• High transmission, AR (anti-reflective) coated tempered glass
• Plug-and-play junction box
• Industry-standard quick-connect cables (Solar Connectors) work in series or parallel
• Excellent low-light performance on cloudy days, mornings, and evenings
• Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
• Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications, on-grid solar system)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty

• 25-year output warranty
• 10-year manufacturer warranty

Built-in Components

• 580 watt solar panel
• Panel leads (pair): 2 feet long each
• IP68-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes are built into the junction box

Specifications

• Maximum Power(PMAX): 580 W
• Maximum Power Voltage(VMP): 42.7 V
• Maximum Power Current(IMP): 13.6 A
• Open Circuit Voltage(VOC): 51.4 V
• Short Circuit Current(ISC): 14.3 A
• Module Efficiency η m (%): 22.5%
• Max Series Fuse Rating: 30 A
• Weight: 68.8 lb (31.2 kg)

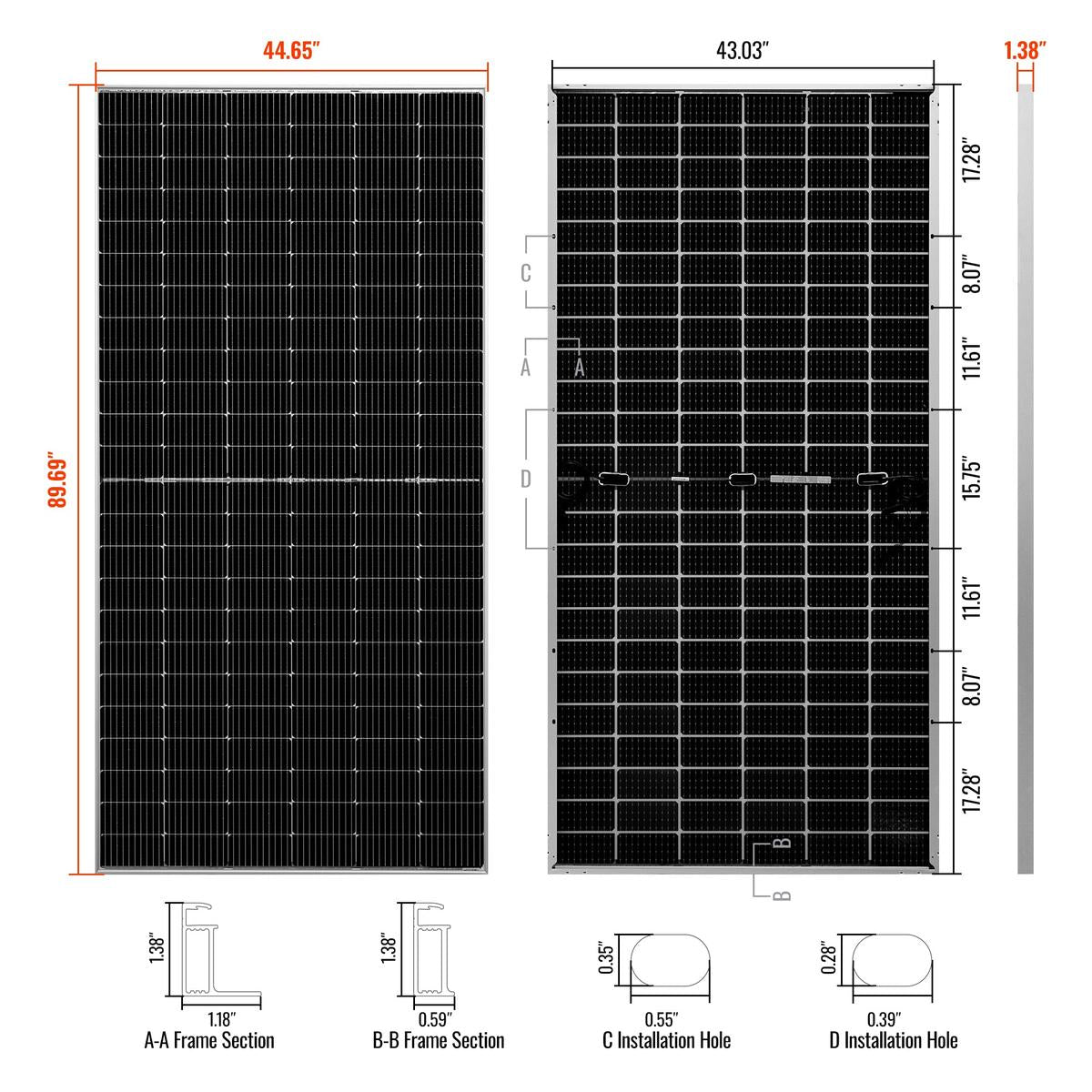

• Dimensions: 89.7 × 44.7 × 1.2 in
