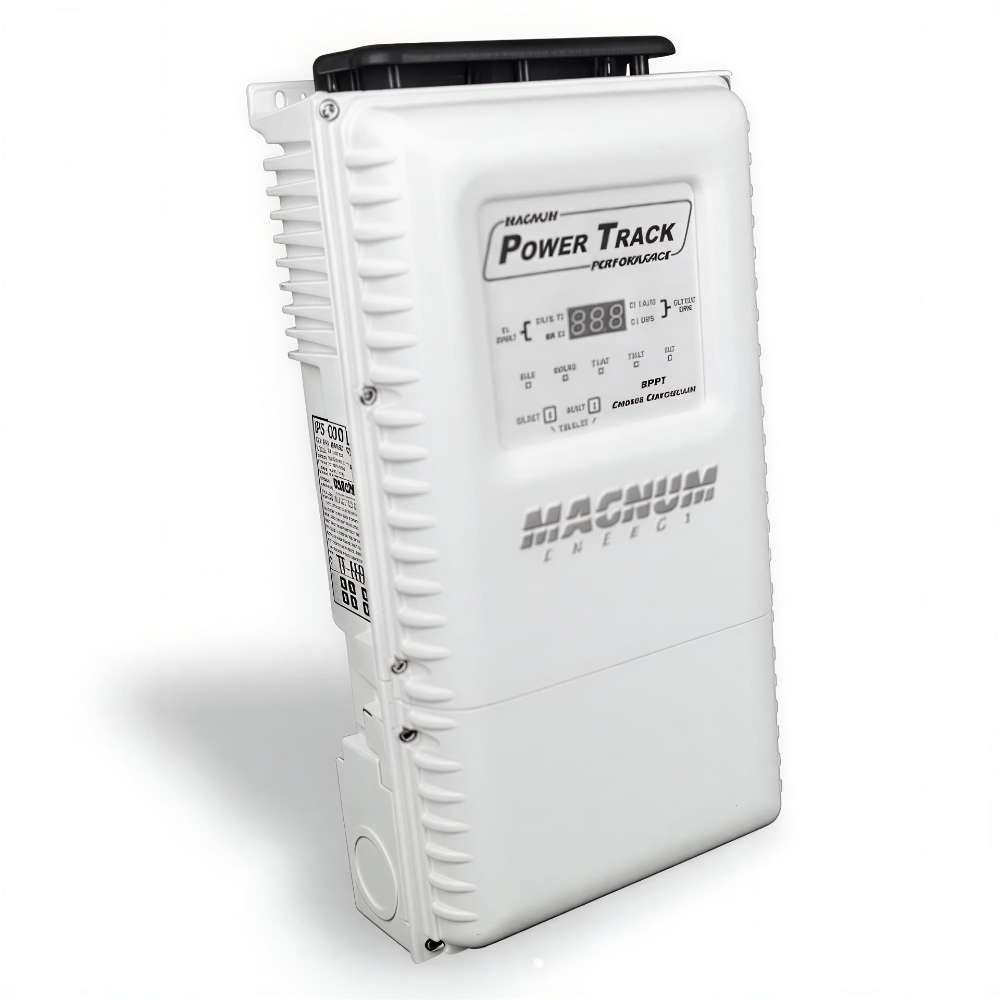

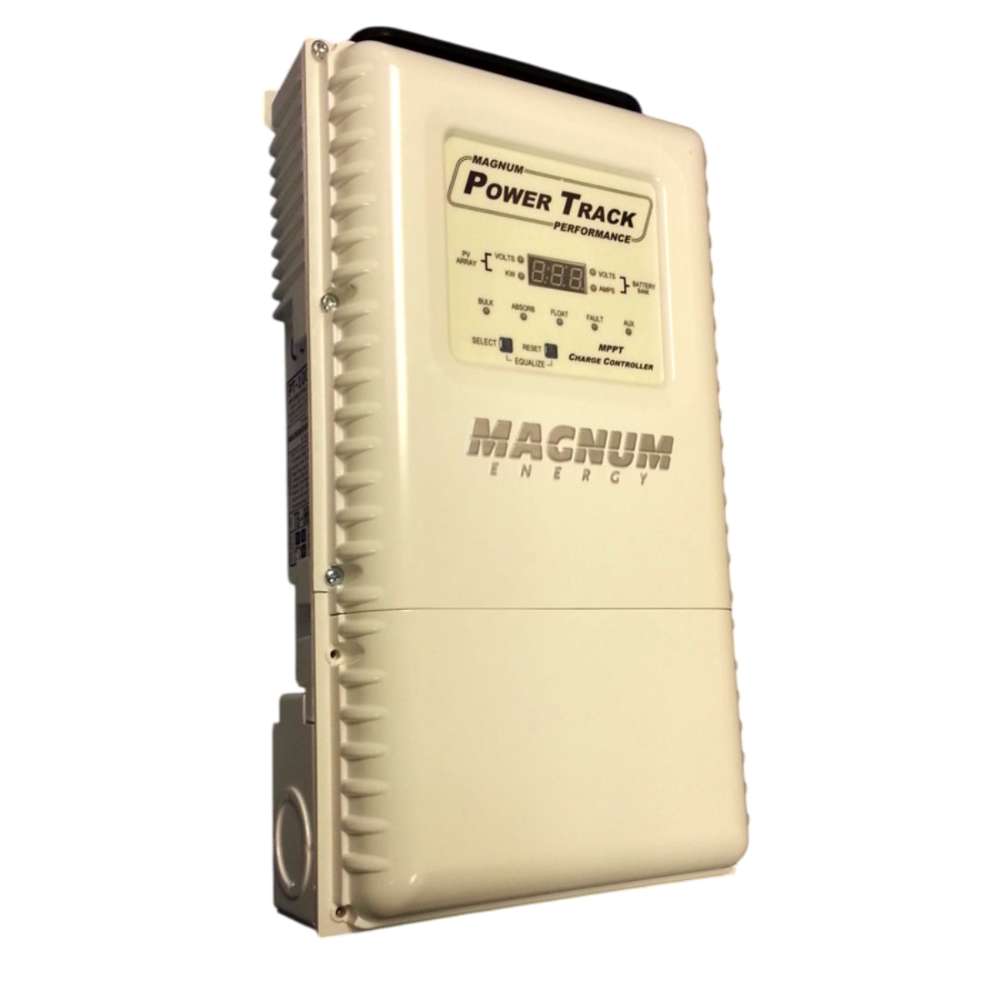

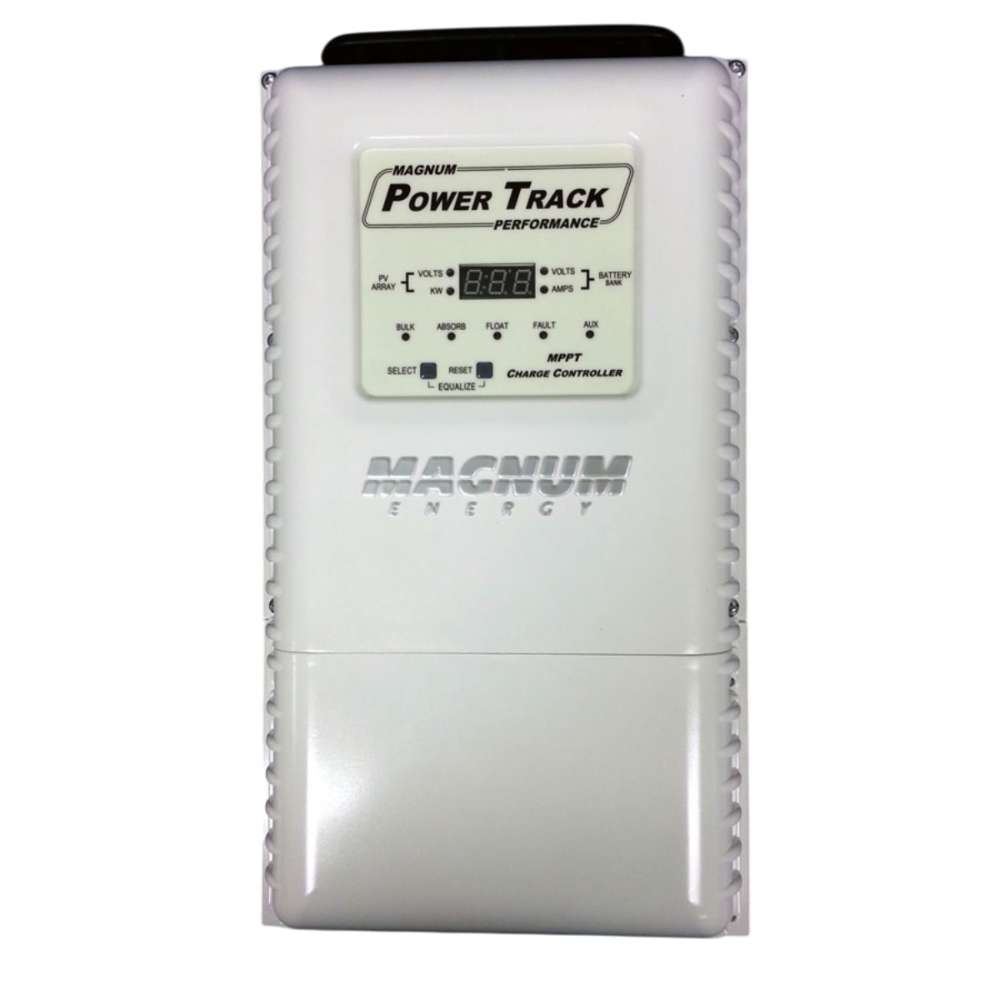

Magnum Energy PT100 100 MPPT Solar Charge Controller

Magnum PT100 Control Makes Solar Flow Smooth and Simple

Magnum Energy PT100 100 MPPT Solar Charge Controller delivers high efficiency power conversion with a 100 amp output, advanced MPPT tracking, and support for 12 to 48 volt battery systems. It manages up to 240 volts of solar input while protecting your setup with built-in arc and ground fault detection. Bring smarter solar power into your indoor life with the Magnum Energy PT100 Output MPPT Charge Controller and enjoy dependable energy every day. Shop now and upgrade to a controller built to perform.

Features

• Over 99% peak efficiency for maximum solar power conversion
• Supports large PV arrays up to 6,600 watts
• Flexible installation options with a removable wiring box
• Easy integration with Magnum Panel and Mini Magnum Panel systems
• Built-in Ground Fault Detection and Interruption for enhanced safety
• Arc Fault Circuit Interrupter protection for safer solar performance
• Comprehensive electronic protection for dependable long-term use
• Multi-stage charging that boosts performance and extends battery life
• Works with AGM, sealed, gel, flooded, and lithium batteries
• Included temperature sensor for precise charging control
• Internal data logging with up to 255 days of stored energy history
• Field-updatable software that keeps the controller ready for future upgrades

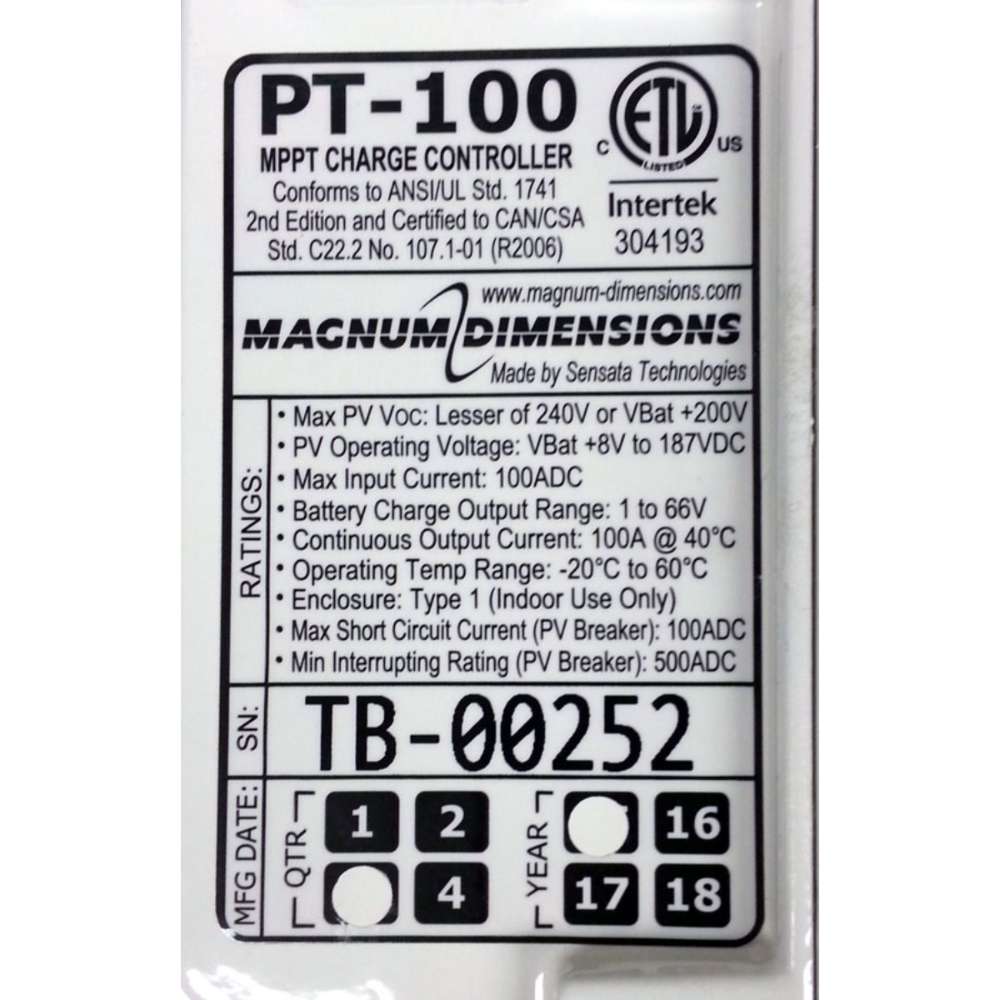

Specifications

• Type: MPPT
• Applications: Renewable energy systems, off-grid power, and backup power
• Dimensions: 8.5 x 15.5 x 4.0 inches
• Weight: 12.5 pounds
• Shipping: Ground
• Rated Input Current: 100 amps
• Operating Voltage: 187 volts
• Battery Charging Range: 10 to 66 VDC

Product Documents

• User Manual
• Specs Sheet
