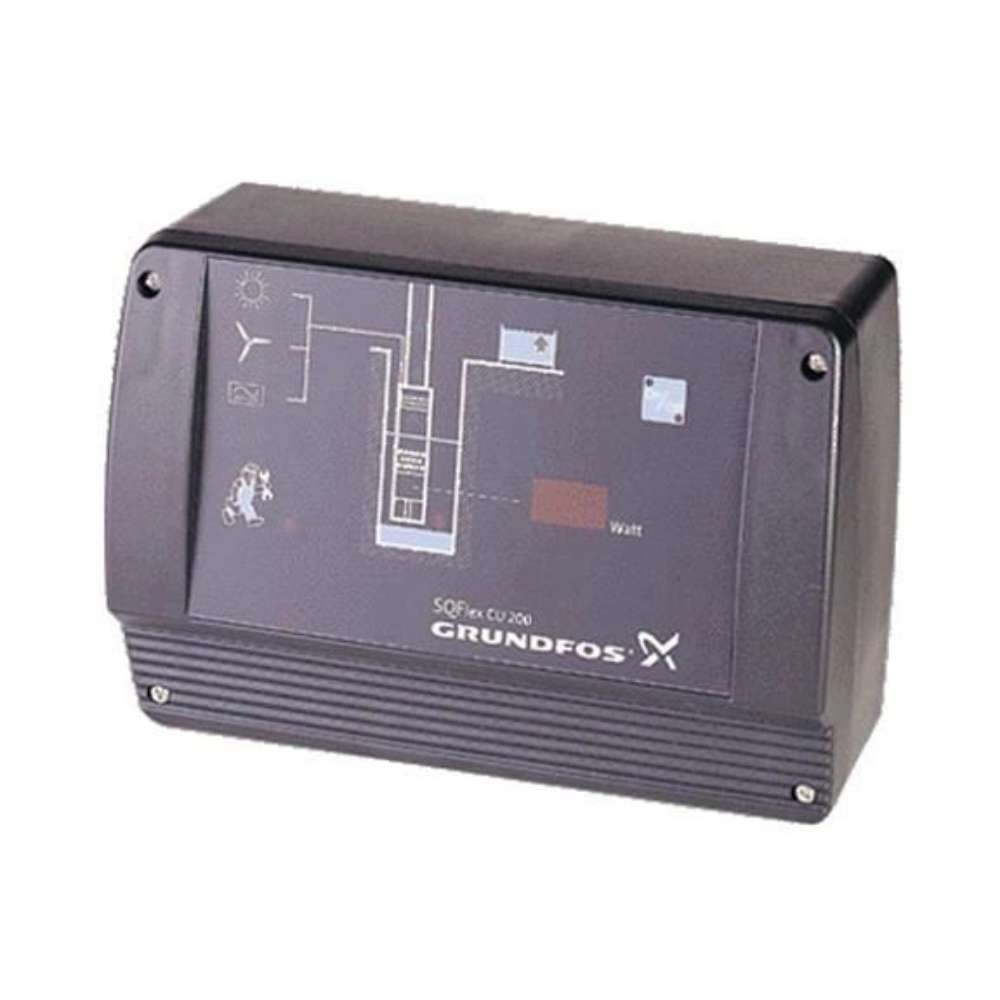

Grundfos GF96481502-V02 Switch Box

Grundfos Switch Box Control That Keeps Water Moving

Grundfos GF96481502-V02 Switch Box is a reliable control unit designed to manage and protect Grundfos SQFlex pump systems, offering simple operation and dependable performance. It features a compact, durable housing, clear connection points for easy installation, and built-in protection that helps ensure stable power delivery and long-term system reliability.

Choose the Grundfos GF96481502-V02 Switch Box to keep your pump system running smoothly and efficiently. Add it to your setup today and invest in dependable control you can trust.

Features

• Designed specifically for Grundfos SQFlex pump systems
• Combined control, status, and communication unit
• Power Line Communication with no extra cables required
• Built-in on off and reset button for easy control
• Supports level switch connection for water tank monitoring
• Real-time system monitoring and clear status indicators
• Advanced alarm protection for dry running and power issues
• Wide voltage compatibility for flexible energy sources

Specifications

• Nominal power consumption: 5 W
• Rated voltage AC: 90–240 V AC single phase
• Rated voltage DC: 30–300 V DC
• Maximum load: 100 mA (0.1 A)
• Back-up fuse: 10 A
• Enclosure rating: IP55 dust and water resistant
• Maximum relative humidity: 95%

Applications

• Rotor & Spray Irrigation
• Livestock & Wildlife Watering
• Solar Boosting and Water Supply Solutions
• Solar Controls & Digital Water Management
• Solar Water Treatment Fertigation & Dosing
• Municipal Solar Solutions
• Agriculture Solar Solutions
• Livestock Watering With Solar Solutions
• Community Solar Solutions

Product Documents

• Safety Instructions
