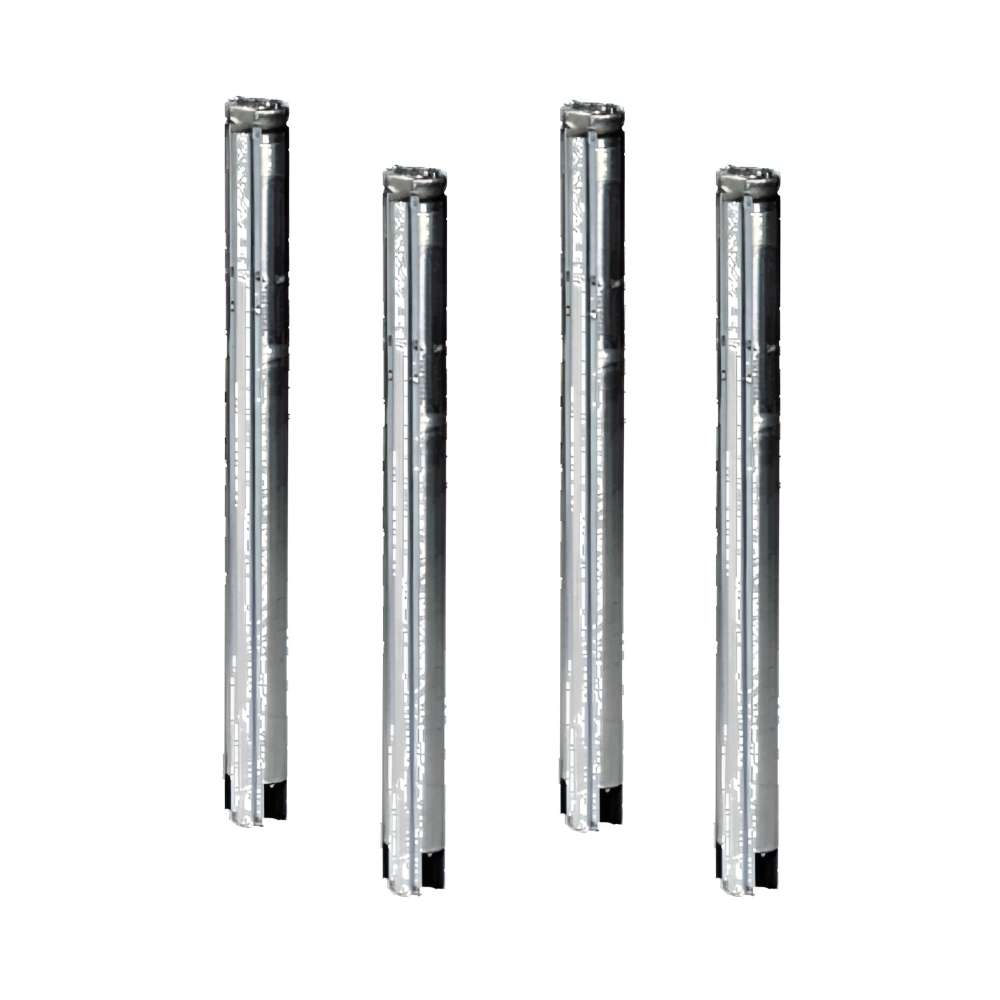

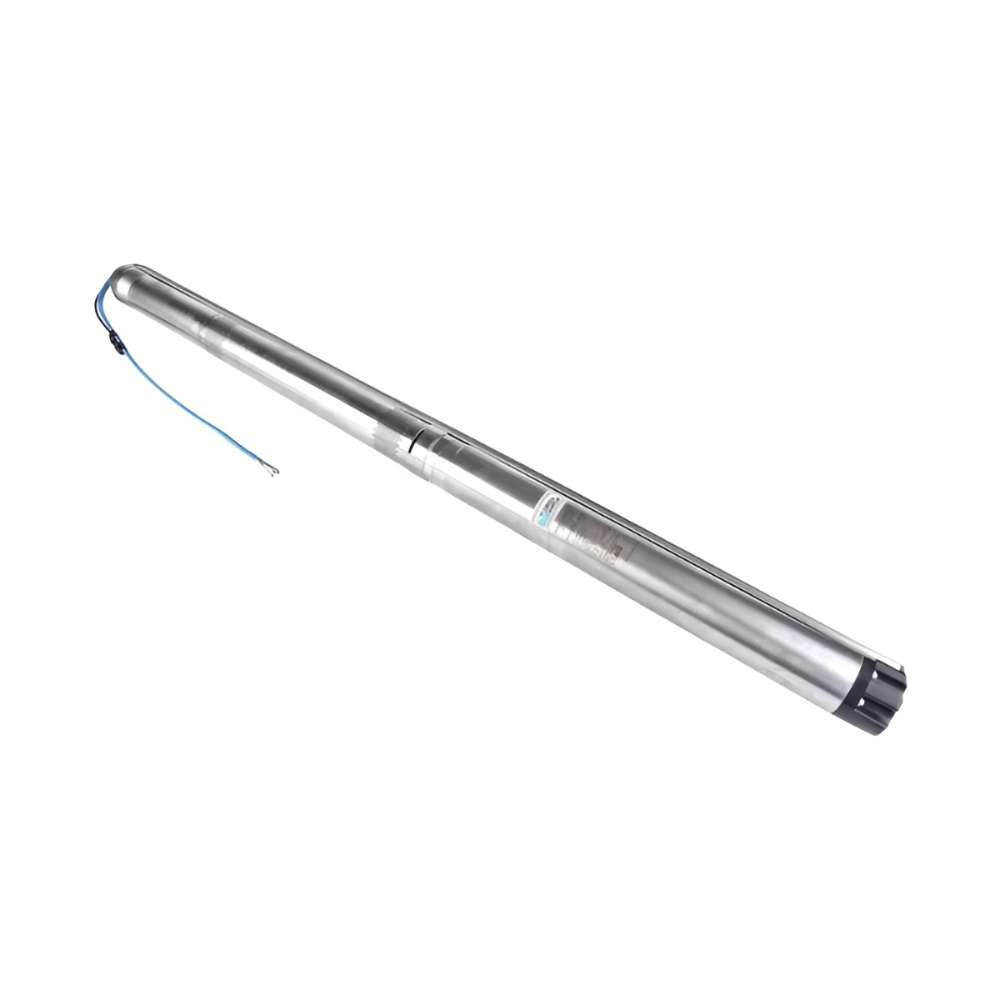

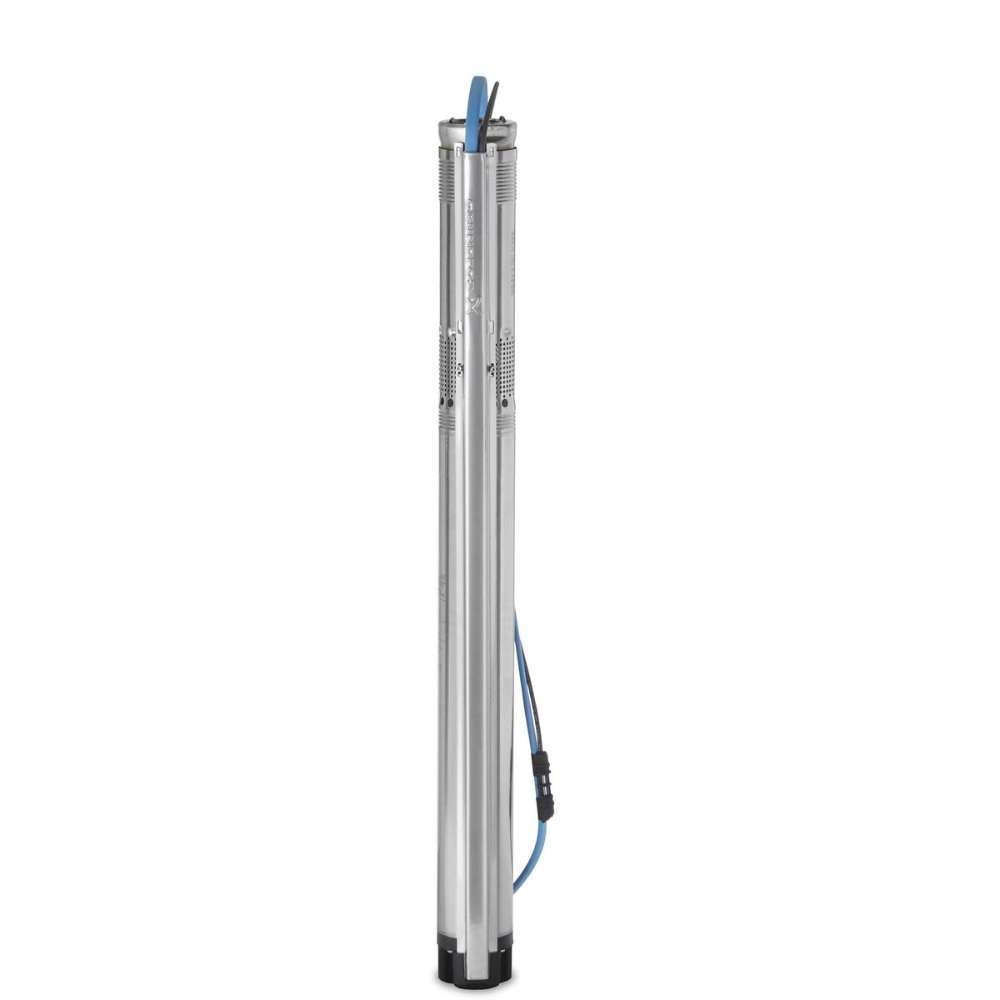

Grundfos 22 SQ15-220 SQ Series Solar Submersible Pump | 22 GPM | 1.5 HP | 220 Ft | 240 VAC

SKU 22SQ15-220-240V

by Grundfos

Save $1.00

$1,599.97

$1,598.97

Availability: Only 3 left!

Quantity

✅ FREE REPLACEMENT PARTS FOR LIFE ⚙️

Find a better price somewhere else?

Well... we will BEAT it. Call us today to get the best price in the market!

Call/Text Us: 1-888-855-7286

Live Chat With an Expert

US Based Authorized Grundfos Dealer

Full manufacturer warranty included
4-5 Day Free Shipping + No Sales Tax

More savings on every purchase and ships in 4-5 business day
Easy 30-Day Returns & Price Beat Guarantee

Risk-free shopping + best price guaranteed
Post-Purchase Customer Support

Dedicated help whenever you need it

ESTIMATED FREE DELIVERY BETWEEN

Order within to get it by the earliest date.

Description
Shipping
Why Buy From Us

Description

Let the Grundfos 22 SQ15 Well Pump Keep Your Tap Flowing All Year

Grundfos 22 SQ15-220 SQ Series Solar Submersible Pump | 22 GPM | 1.5 HP | 220 Ft | 240 VAC is a high-efficiency deep-well pump designed for reliable water delivery with smooth performance and low energy use. It features a durable stainless steel build, soft-start technology, and protection against dry-running, overheating, and overloads.

Bring home a pump you can trust to keep your water running strong. Make the smart choice today and add this Grundfos Well Pump powerhouse to your system.

Features

Highly efficient 1.5 HP permanent-magnet motor for powerful and reliable performance.
Soft-start design that reduces wear and allows the use of smaller-gauge wire.
Dry-running protection that prevents damage when water levels drop.
Durable stainless steel construction built for long life in demanding wells.
Floating impellers with tungsten carbide and ceramic bearings for superior sand resistance.
Overvoltage and undervoltage protection for safer operation.
Overload and overtemperature protection to keep the motor running in optimal condition.
Replaceable cable plug that makes installation and servicing easier.
Ideal for 3-inch wells with a strong 22 GPM flow rate and up to 220 feet of lift.
Backed by a dependable 2-year warranty for added peace of mind.

Applications

Residential groundwater intake
Residential rainwater harvesting
Municipal wells

Simple wiring diagram shows live, neutral, and ground connected to a single-phase motor for the Grundfos 22 SQ15-220 SQ Series Solar Submersible Pump | 22 GPM | 1.5 HP | 220 Ft | 240 VAC

Specifications

Flow Rate: 22 GPM (83.3 L/min)
Horsepower: 1.5 HP (1.12 kW)
Total Dynamic Head: 220 ft (67.1 m)
Voltage: 200-240 VAC
Current Draw: 12.3 A
Pump Diameter: 3 in (76.2 mm)
Material: Stainless Steel
Protection Features: Dry-run, overload, over-temperature
Warranty: 2 years

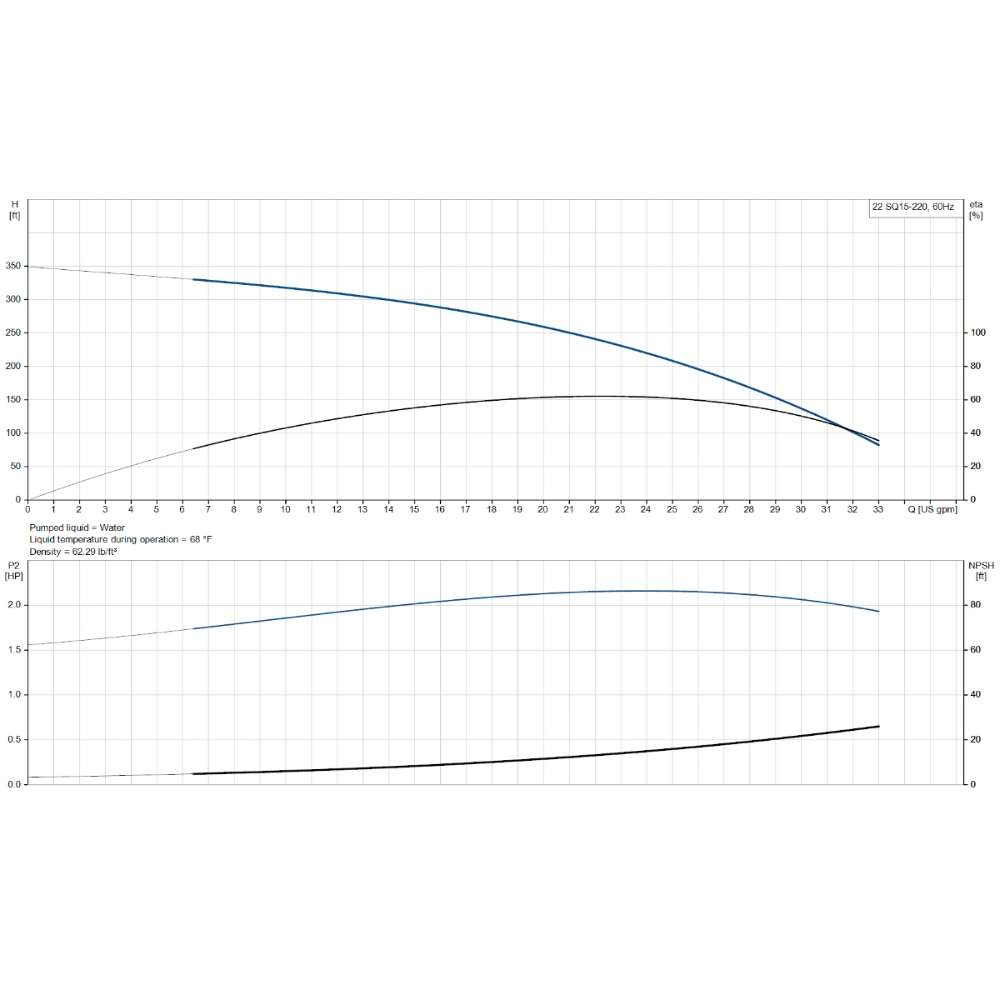

Performance graph shows flow, pressure, and efficiency curves for the Grundfos 22 SQ15-220 SQ Series Solar Submersible Pump | 22 GPM | 1.5 HP | 220 Ft | 240 VAC
