Specifications:
Technical
- Pump speed: 10,700 rpm
- Rated flow: 13.2 GPM (50.0 L/min)
- Rated Head: 321.5 ft (98.0 m)
- Stages: 7
- Approvals: cULus
- Curve tolerance: ISO9906:2012 3B
- Pump number: 96397380
- Model: C
- Check valve: Built-in non-return valve
Materials
- Pump housing: Stainless steel (AISI 304)
- Impellers: Composite ZYTEL PA6.6 with 30 percent glass fiber
- Motor housing: Stainless steel (AISI 304)
Installation
- Max Operating Pressure: 217.56 psi (15.0 bar)
- Outlet Size: 1¼ in NPT (31.8 mm)
- Minimum Borehole Diameter: 2.99 in (76.0 mm)
Liquid
- Pumped liquid: Water
- Temperature Range: 32 to 95 °F (0 to 35 °C)
- Selected Temperature: 68 °F (20 °C)
- Density: 62.29 lb/ft³ (998 kg/m³)

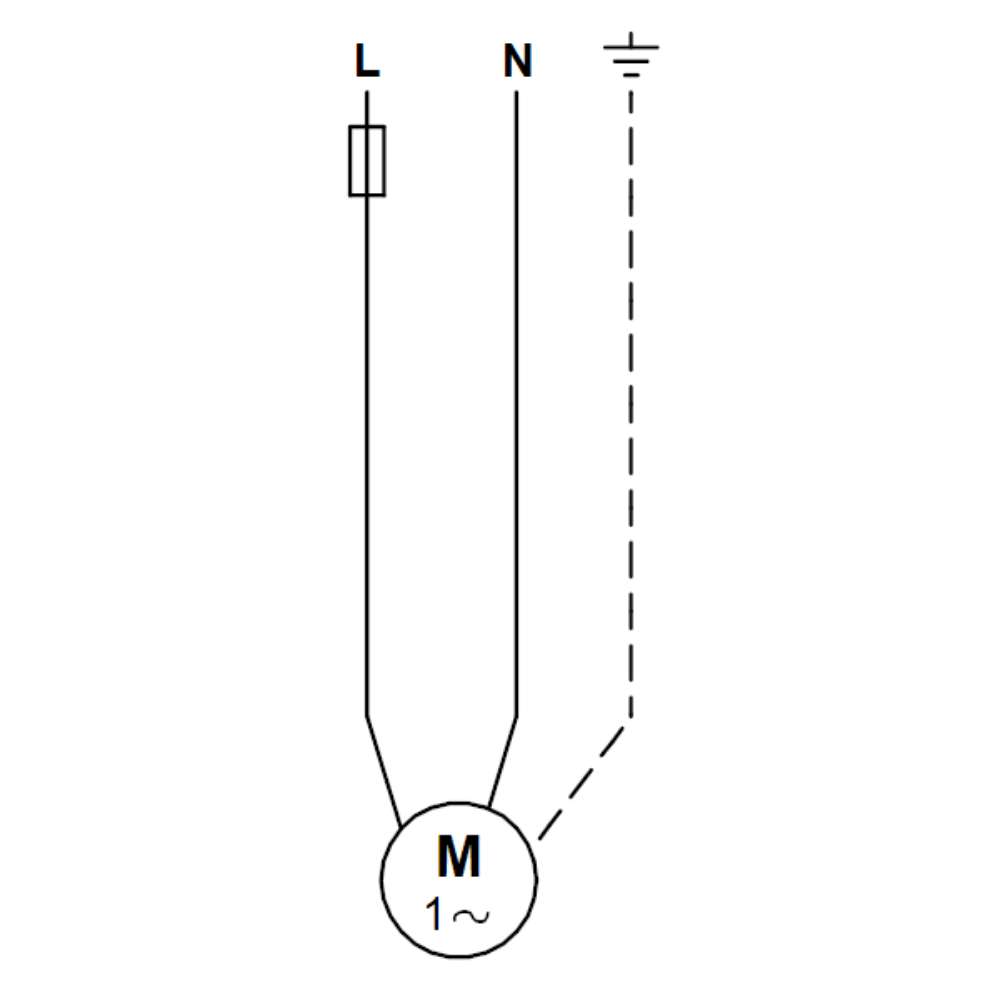

Electrical
- Motor type: MS3
- Power input (P1): 2.05 kW
- Rated power (P2): 2.08 HP 2.08 HP (1.55 kW)
- Power Required by Pump: 2.8 HP (2.09 kW)
- Frequency: 60 Hz
- Voltage: 200 to 240 V (single phase)
- Service factor: 2.07
- Rated current: 11.2 A
- Power factor: 1.00
- Rated speed: 10,700 rpm
- Start method: Direct on line
- Enclosure: IP68
- Insulation class: F
- Motor protection: Built in
- Thermal protection: Internal
- Cable length: 4.92 ft (1.5 m)
- Motor number: 96160537
Controls
- Compatible with CU 300 / CU 301
- Communication: None
Features:
- Soft start design for smooth operation and reduced wear.
- Highly efficient 1 HP permanent magnet motor for stronger performance.
- Rated 15 GPM at 250 feet for reliable deep well delivery.
- Dry-running protection that prevents damage and extends pump life.
- Stainless steel construction built for long-lasting durability.
- Floating impellers with tungsten carbide and ceramic bearings for sand resistance.
- Overvoltage and undervoltage protection for safer operation.
- Built-in overload and overtemperature protection for motor longevity.
- Replaceable cable plug for easy installation and maintenance.
- Compatible with solar power systems for efficient off-grid use.
