Grundfos SQ Pumps Smarter for Homes That Dream Bigger

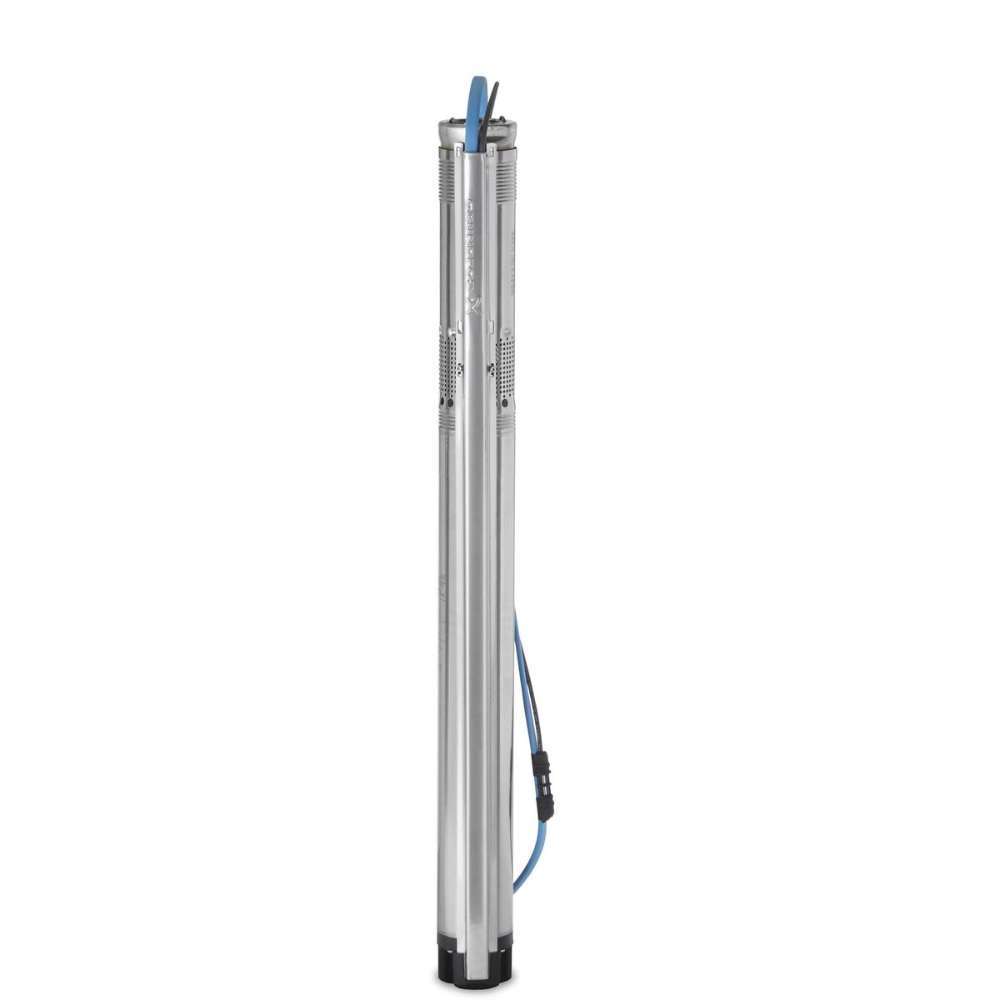

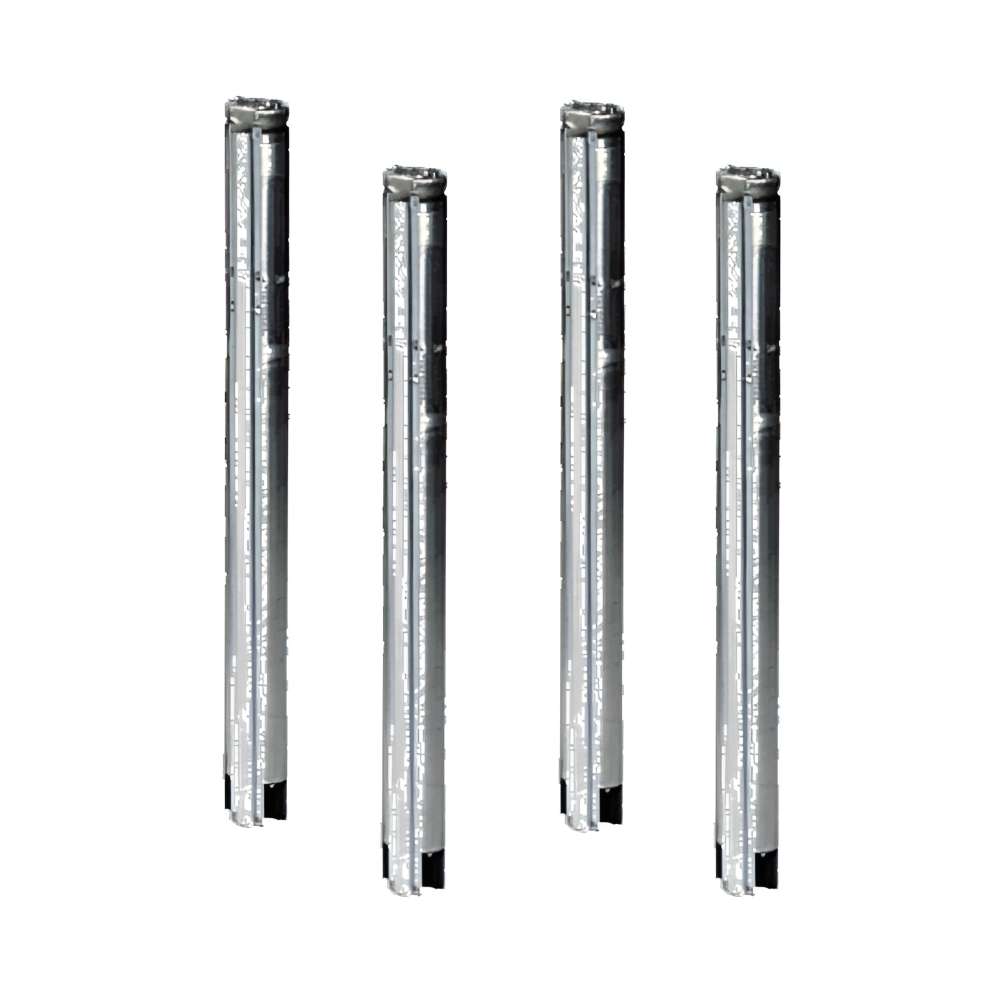

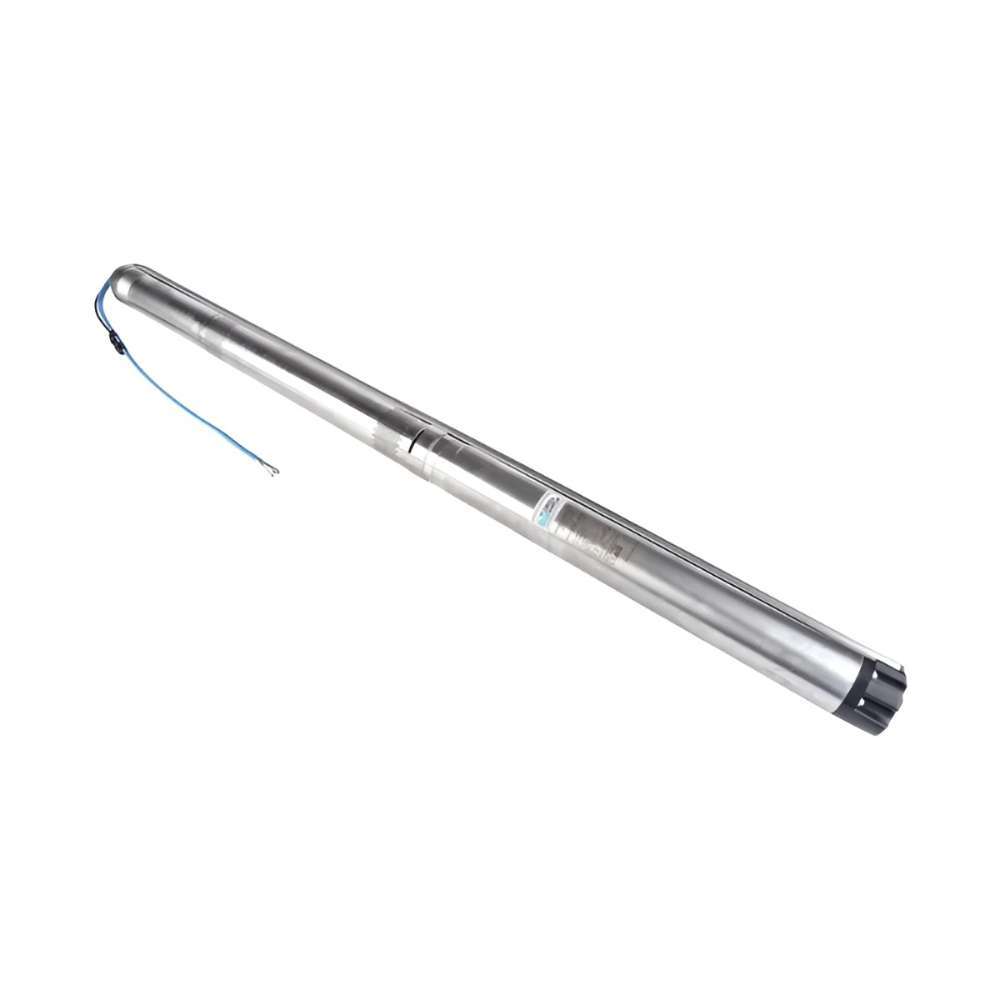

Grundfos 10 SQ07-200 SQ Series Solar Submersible Pump | 10 GPM | 3/4 HP | 200 Ft | 240 VAC is a lightweight, high-efficiency deep-well pump designed to deliver a steady 10 GPM from wells up to 200 feet deep. Its permanent magnet motor, soft-start technology, and corrosion-resistant stainless steel construction make it reliable, energy efficient, and ideal for solar applications. With built-in protection against dry running, voltage issues, and overload, it offers long life and dependable performance.
Bring powerful, efficient water pumping to your off-grid or remote property with this easy-to-install, solar-ready 10 SQ07-200 SQ Series Well Pump. Get yours today and upgrade your water system with confidence.
Features
- Dry running protection for long-lasting reliability
- Permanent magnet motor with high efficiency
- Floating impellers for excellent wear resistance
- Built-in protection against upthrust
- High flow velocity for strong and steady performance
- Soft start technology that reduces motor wear
- Over-voltage protection for safer operation
- Under-voltage protection for consistent performance
- Overload protection that keeps the pump safe
- Over-temperature protection for added durability
Specifications

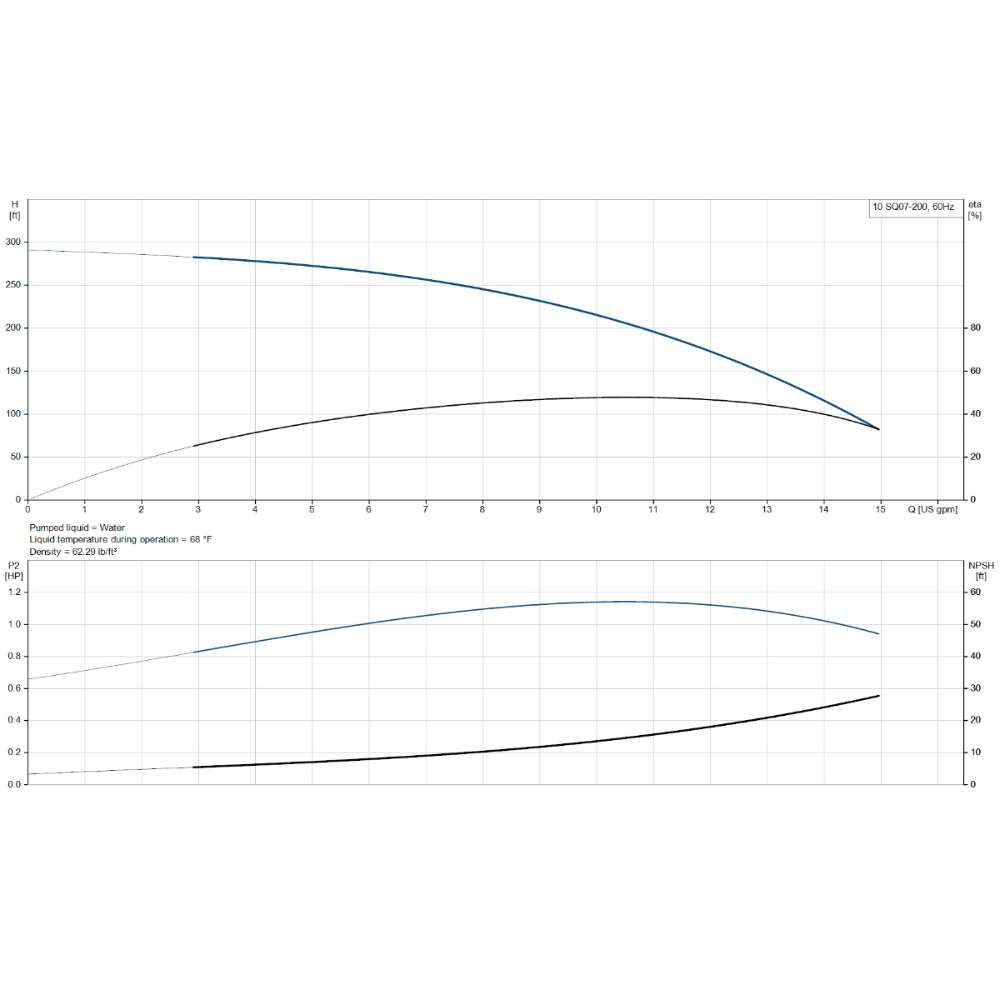

Technical
- Pump speed: 10,700 rpm
- Rated flow: 8.81 GPM (33.3 L/min)
- Rated Head: 233 ft (71.0 m)
- Stages: 4
- Approval: cULus
- Pump number: 96397371
- Model: C
- Valve: Built-in non-return valve
Materials
- Pump body: Stainless steel AISI 304
- Impellers: Composite Zytel PA6.6
- Motor: Stainless steel AISI 304
Installation
- Max Operating Pressure: 217.56 psi (≈ 15.0 bar)
- Outlet Size: 1¼ in NPT (≈ 31.8 mm)
- Minimum Well Diameter: 2.99 in (≈ 76.0 mm)
Liquid
- Pumped liquid: Water
- Temperature Range: 32 to 95 °F (0 to 35 °C)
- Selected Temperature: 68 °F (20 °C)
- Density: 62.29 lb/ft³ (≈ 998 kg/m³)

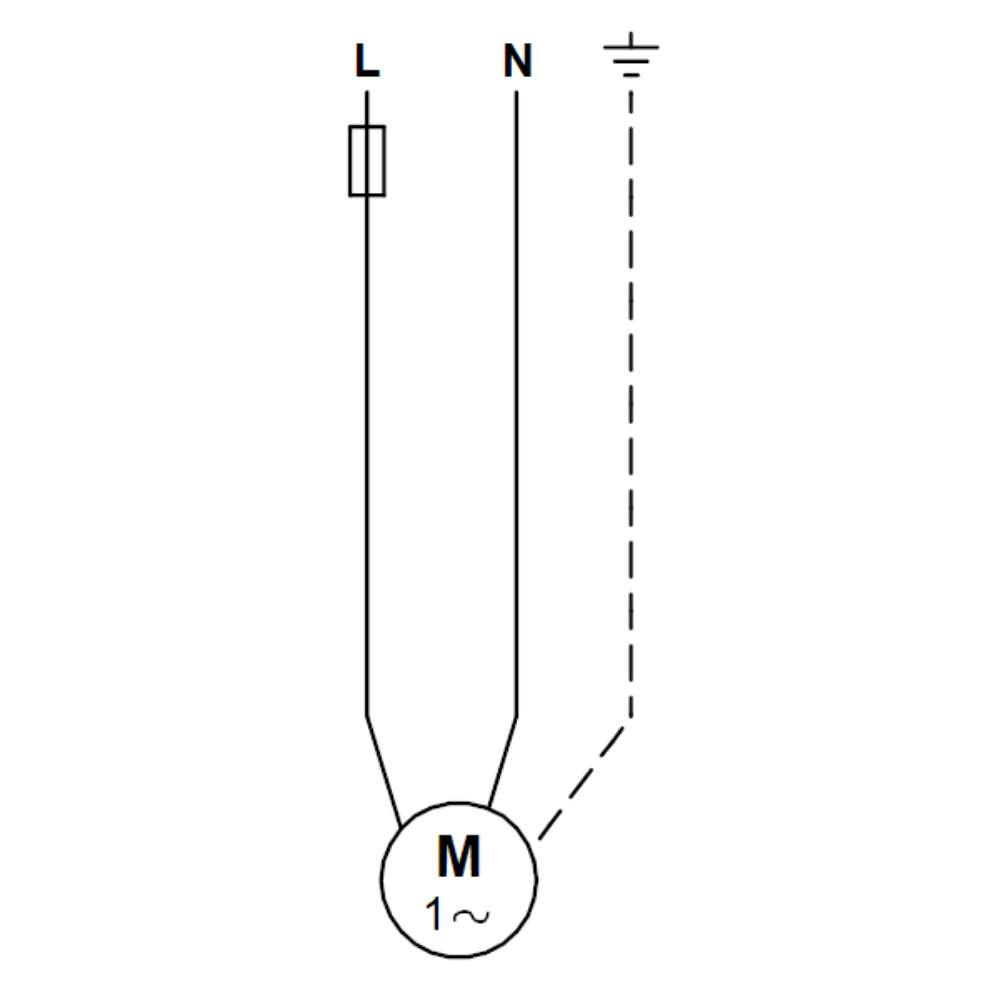

Electrical
- Motor type: MS3
- Power input: 1.55 kW
- Rated power: 1.54 HP (1.15 kW)
- Power required: 1.7 HP (1.27 kW)
- Frequency: 60 Hz
- Voltage: 200 to 240 V
- Service factor: 2.05
- Rated current: 8.4 A
- Power factor: 1.00
- Rated speed: 10,700 rpm
- Start method: Direct on line
- Enclosure: IP68
- Insulation class: F
- Motor protection: Internal thermal protection
- Cable length: 4.92 ft (1.5 m)
- Motor number: 96160536
Applications
- Residential groundwater intake
- Residential rainwater harvesting
- Municipal wells
