Specifications:
Technical Specs

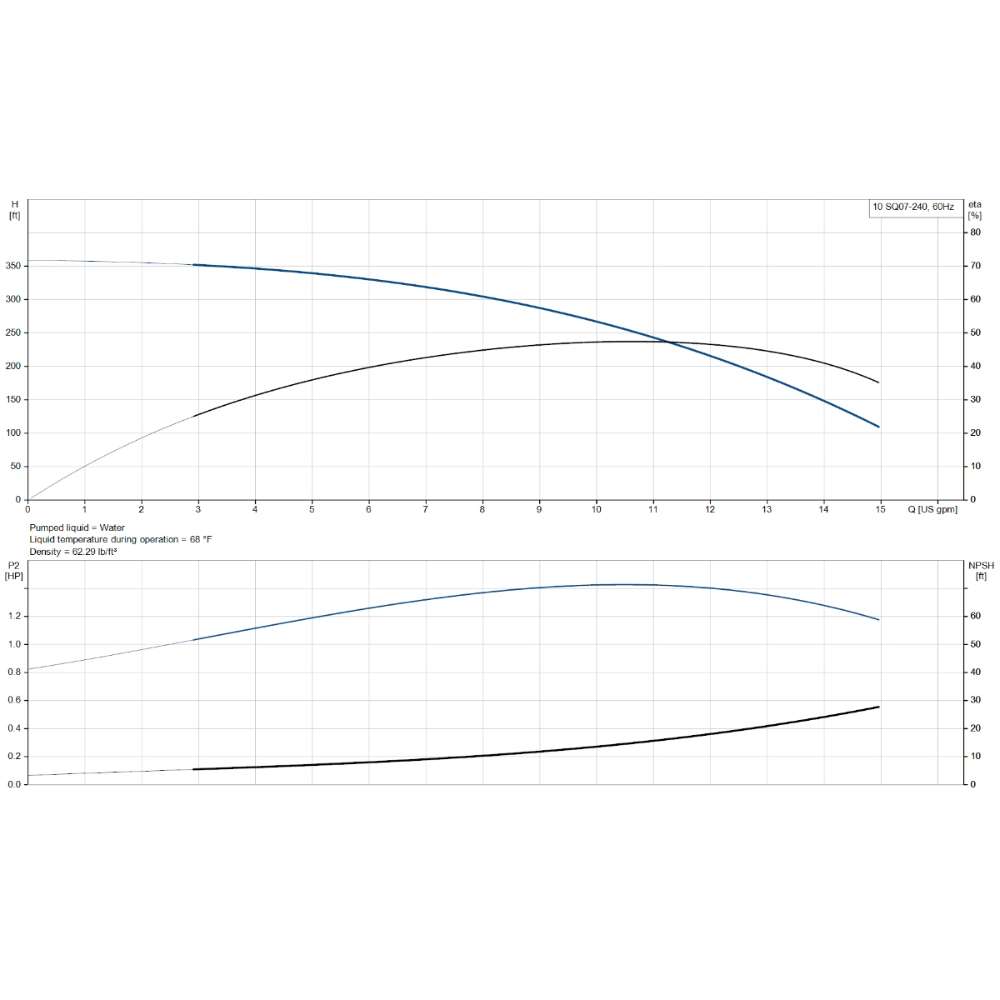

- Pump speed: 10700 rpm
- Rated flow: 8.81 GPM (33.3 L/min)
- Rated head: 288.7 ft (88.0 m)
- Stages: 5
- Approvals: cULus
- Curve tolerance: ISO9906:2012 3B
- Pump number: 96397372
- Model: C
- Check valve: Built-in non-return valve
Materials
- Pump body: Stainless steel AISI 304
- Impeller: Composite ZYTEL 70G30
- Motor housing: Stainless steel AISI 304
Installation
- Max Operating Pressure: 217.56 psi (15.0 bar)
- Outlet Size: 1¼ in NPT (31.8 mm)
- Minimum Borehole Diameter: 2.99 in (76.0 mm)
Liquid Requirements
- Liquid: Water
- Temperature Range: 32 to 95 °F (0 to 35 °C)
- Set Temperature: 68 °F (20 °C)
- Density: 62.29 lb/ft³ (≈ 998 kg/m³)

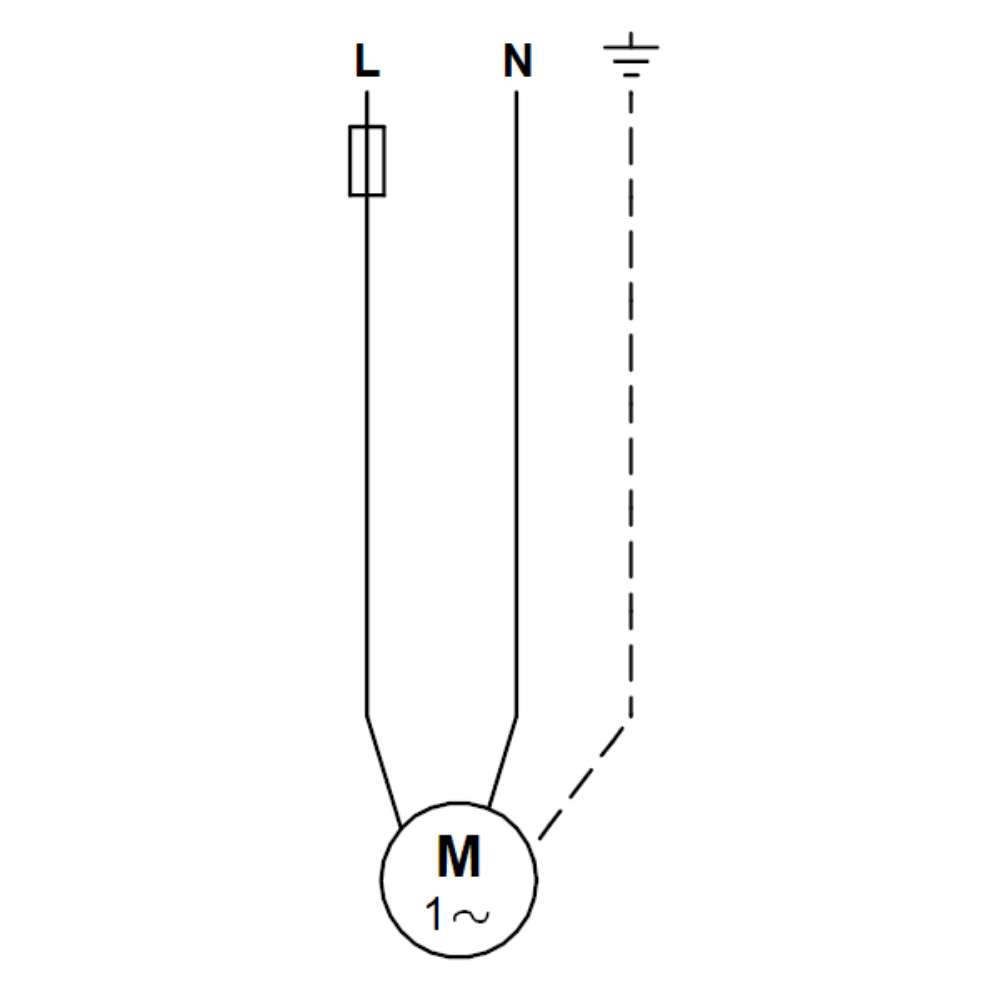

Electrical
- Motor type: MS3
- Power input: 1.55 kW
- Rated motor power: 1.54 HP (1.15 kW)
- Power required by pump: 2.08 HP (1.55 kW)
- Frequency: 60 Hz
- Voltage: 200 to 240 VAC
- Service factor: 2.05
- Rated current: 8.4 A
- Power factor: 1.00
- Rated speed: 10700 rpm
- Start method: Direct on line
- Enclosure class: IP68
- Insulation class: F
- Built-in motor protection: Yes
- Thermal protection: Internal
- Cable length: 4.92 ft (1.5 m)
- Motor number: 96160536
Features:
- Dry-running protection
- Permanent magnet motor with high efficiency
- Wear resistance from floating impellers
- Protection against upthrust
- High flow velocity
- Soft-starts reduce wear on the motor
- Over-voltage protection
- Under-voltage protection
- Overload protection
- Over-temperature protection
