Grundfos 10 SQ05-160 SQ Series Solar Submersible Pump | 10 GPM | 1/2 HP | 160 Ft | 120 VAC

Grundfos 10 SQ05 Turns Well Water Into a Steady, Dependable Stream

Grundfos 10 SQ05-160 SQ Series Solar Submersible Pump | 10 GPM | 1/2 HP | 160 Ft | 120 VAC delivers reliable water flow with a compact, durable stainless steel design built for deep well applications. It offers smooth, efficient performance with built-in dry-run protection, soft-start technology, and the ability to operate on solar power for energy savings and off-grid convenience.

Choose a pump that works hard without wasting energy and brings steady water when you need it. Get the Grundfos 10 SQ05 Well Pump today and upgrade your water system with confidence.

Features

• Dry running protection for long pump life
• Permanent magnet motor for high efficiency and lower energy use
• Floating impellers for impressive wear resistance
• Built-in protection against upthrust
• High flow velocity for smooth and steady performance
• Soft start technology that reduces stress on the motor
• Over and under-voltage protection for safer operation
• Overload protection that keeps the pump safe in demanding conditions
• Over-temperature protection for reliable performance in tough environments

Applications

• Residential groundwater intake
• Residential rainwater harvesting
• Municipal wells

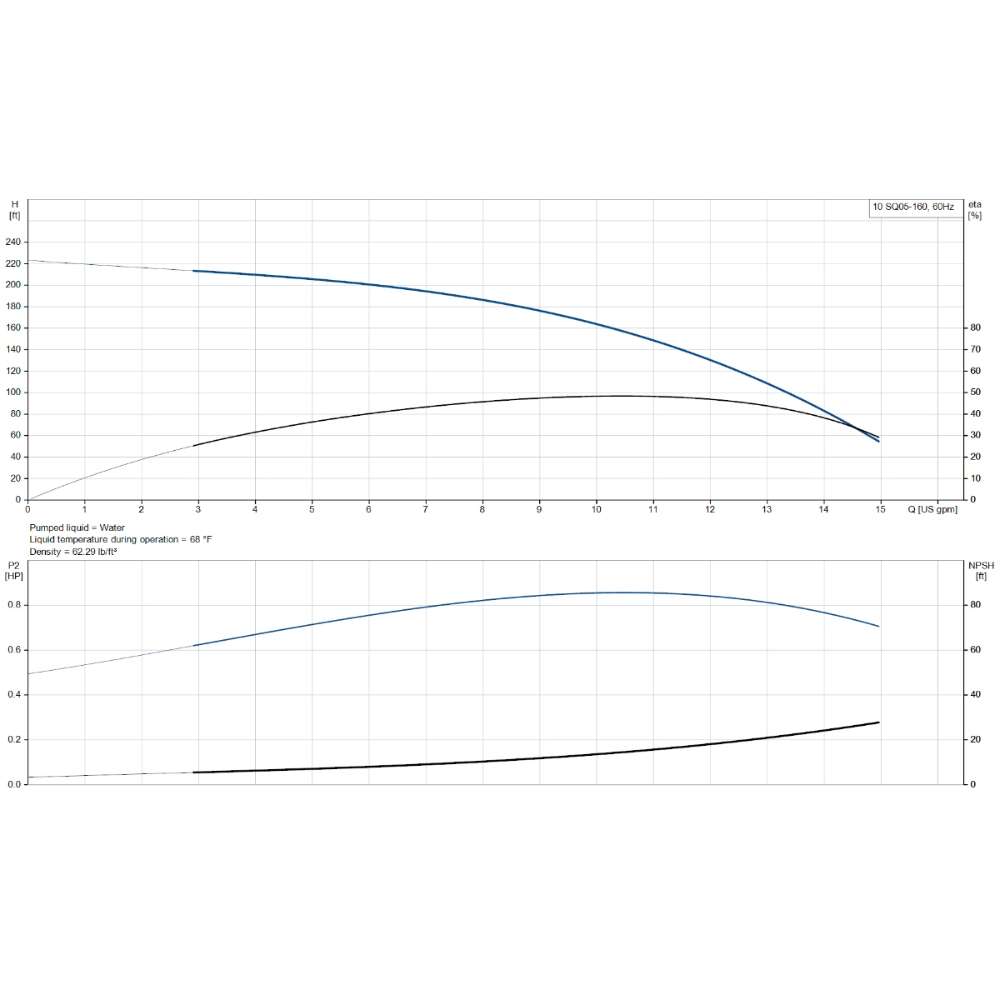

Specifications

Technical

• Pump speed: 10700 rpm
• Rated flow: 8.81 GPM (33.3 L/min)
• Rated Head: 177.2 ft (54.0 m)
• Stages: 3
• Certification: cULus
• Curve tolerance: ISO9906:2012 3B
• Pump number: 96397370
• Model: C
• Built-in non-return valve

Materials

• Pump housing: Stainless steel AISI 304
• Impellers: Durable composite
• Motor housing: Stainless steel AISI 304

Installation

• Max Operating Pressure: 217.56 psi (15.0 bar)
• Outlet Size: 1¼ in NPT (31.8 mm)
• Minimum Borehole: 2.99 in (76.0 mm)

Liquid

• Pumped liquid: Water
• Temperature Range: 32 to 95 °F (0 to 35 °C)
• Selected Temperature: 68 °F (20 °C)
• Density: 62.29 lb/ft³ (998 kg/m³)

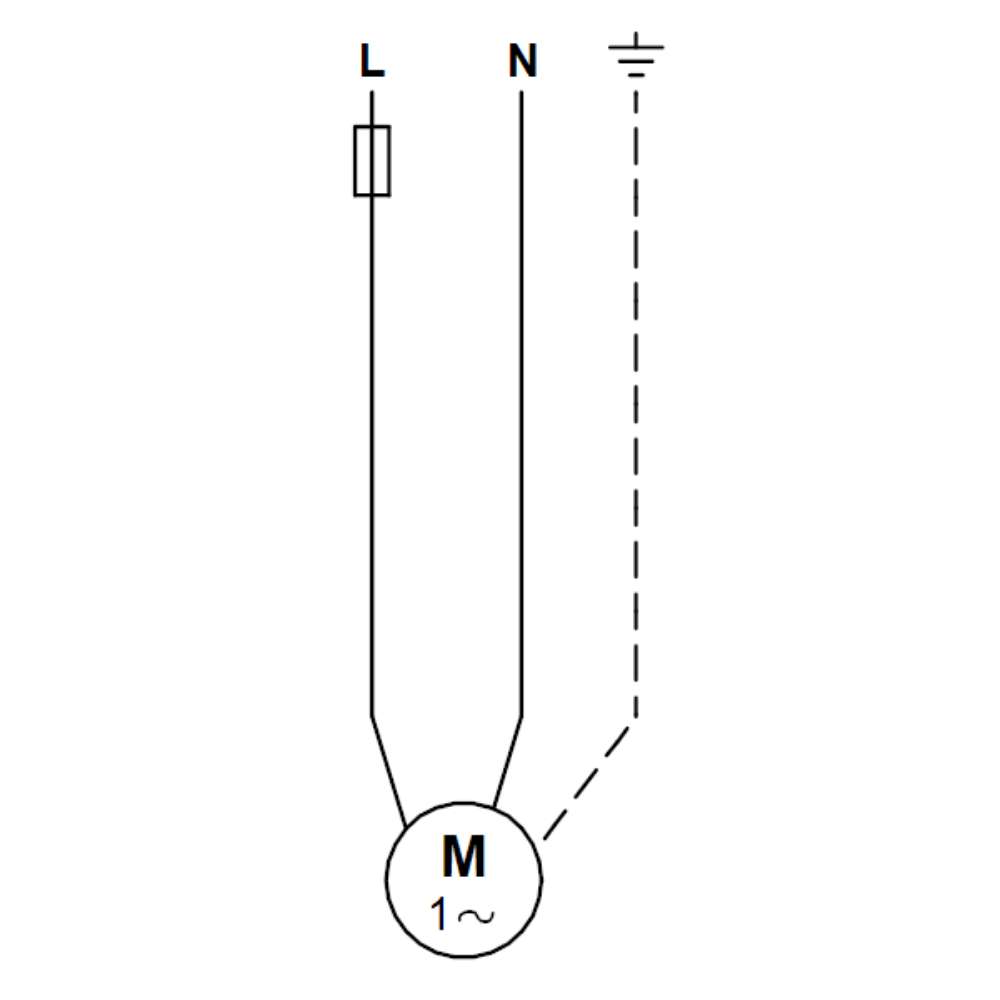

Electrical

• Motor type: MS3
• Power input: 1 kW
• Rated motor power: 0.939 HP (0.70 kW)
• Power required by pump: 1.34 HP (1.00 kW)
• Frequency: 60 Hz
• Voltage: 200 to 240 V single phase
• Service factor: 1.85
• Rated current: 5.2 A
• Power factor: 1.00
• Rated speed: 10700 rpm
• Start method: Direct on line
• Enclosure: IP68
• Insulation class: F
• Built-in motor protection: Yes
• Thermal protection: Internal
• Cable length: 4.92 ft (1.5 m)
• Motor number: 96160578
