Input Information
- 2 MPP trackers
- Max PV input power: 10.25 kW
- Start voltage: 80 V
- MPP voltage range: 260 V to 480 V
Backup Power
- PV Point switchover time: up to 22 seconds
- Full Backup switchover time: up to 17 seconds
Electrical Data
- Nominal voltage options: 208V, 220V, 240V
- Grid frequency: 50 Hz or 60 Hz
Size and Weight
- Length: 1.91 ft
- Width: 1.74 ft
- Height: 1.91 ft
- Depth: 7.09 in
- Weight: 45.97 lb
- Weight with packaging: 57.1 lb
Design and Installation
- Transformerless inverter
- Active Cooling Technology
- Works indoors or outdoors
- Operating temperature: -40 °F to 140 °F
- Protection class: 1
- Overvoltage category: DC 2 / AC 4
- Noise level: 51 dB(A)

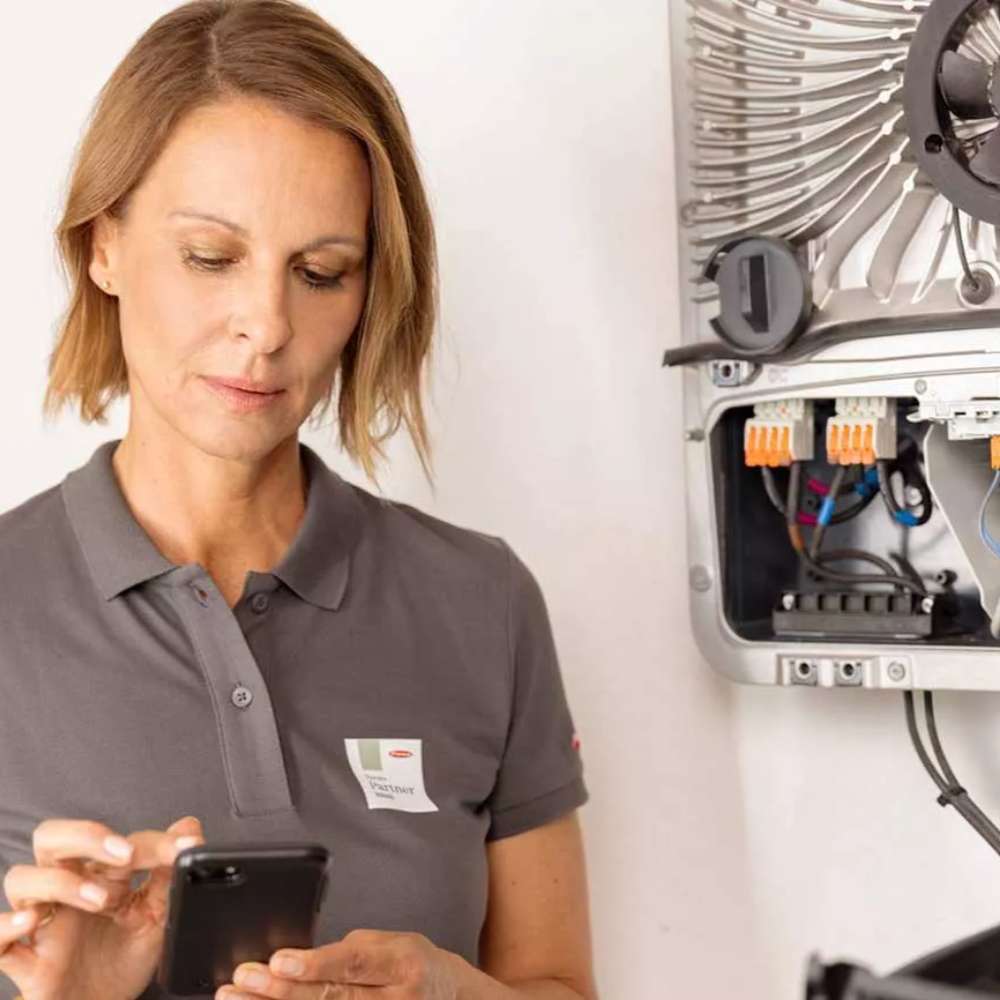

Connection Details
- DC PV terminals: spring-type, copper, AWG 14 to 8
- DC battery terminals: copper, AWG 12 to 8
- AC terminals: copper, AWG 12 to 6
- Backup terminals: AWG 16 to 8
Backup Features
- PV Point basic backup
- Full Backup capability (with battery and switch hardware)
Protective Features
- DC insulation monitoring
- Overload protection with power limiting
- Built-in DC disconnector
- Reverse polarity protection
- Arc fault detection (Fronius Arc Guard)
Communication and Interfaces
- WiFi and 2 Ethernet ports
- Supports Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API
- 6 digital inputs/outputs
- Ripple control receiver support
- Emergency stop function
- Built-in datalogger and web server
- 2 RS485 connections
- Compatible with Modbus RTU and Fronius Smart Meter
Grid Connection
- NPE grid configuration
